Pipe Insulation Template Ø15, Ø18, Ø22, Ø28, Ø35

Templates / Gauges for insulating pipes/lines, for new and old construction.

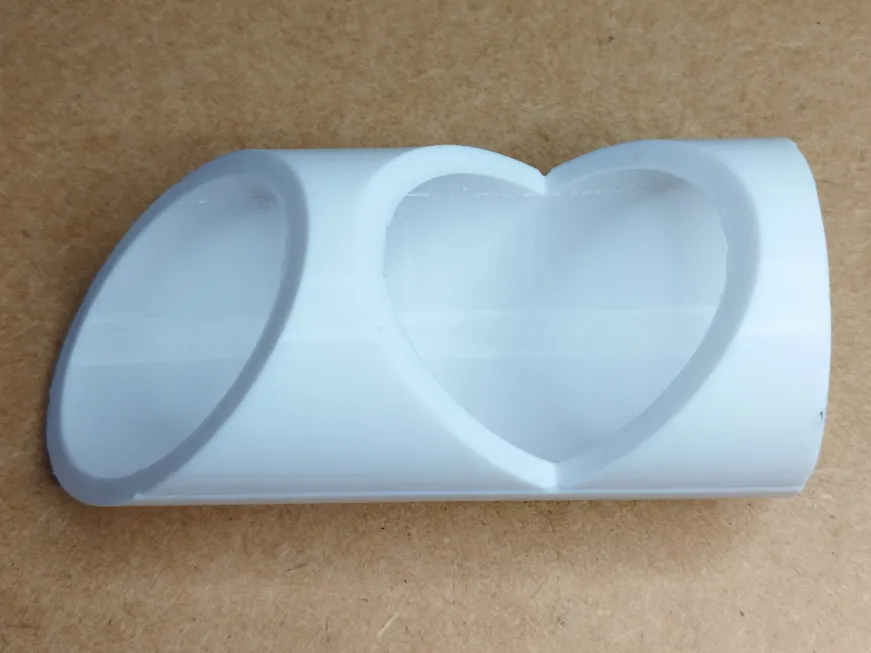

With all templates, cuts of 45°, 90°, and T-connections are possible.

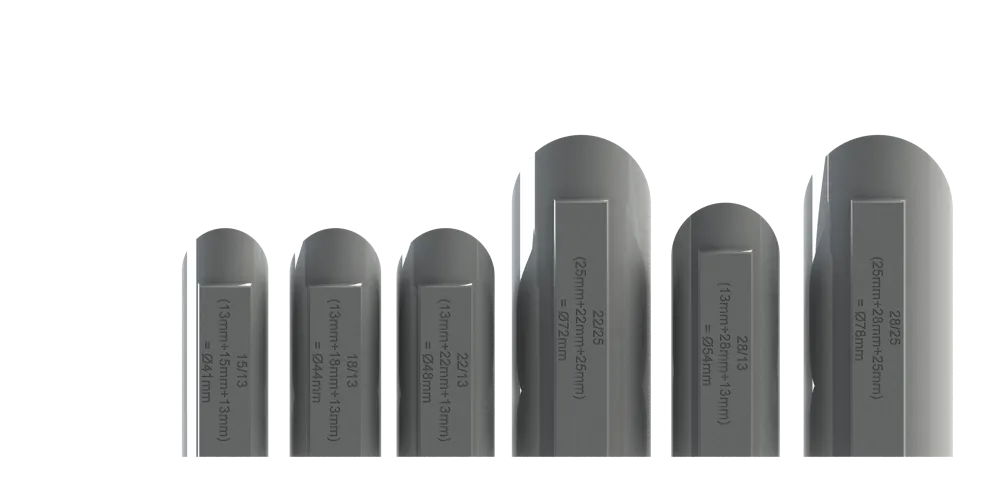

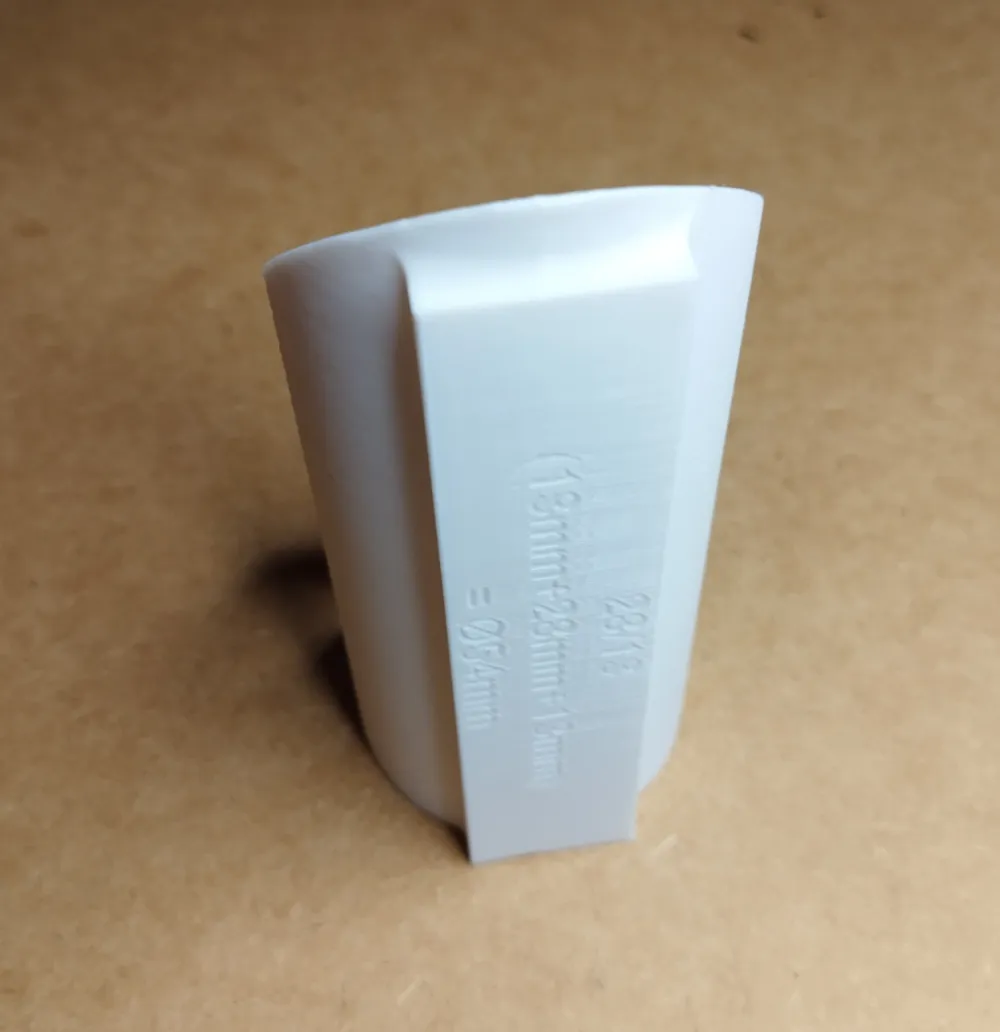

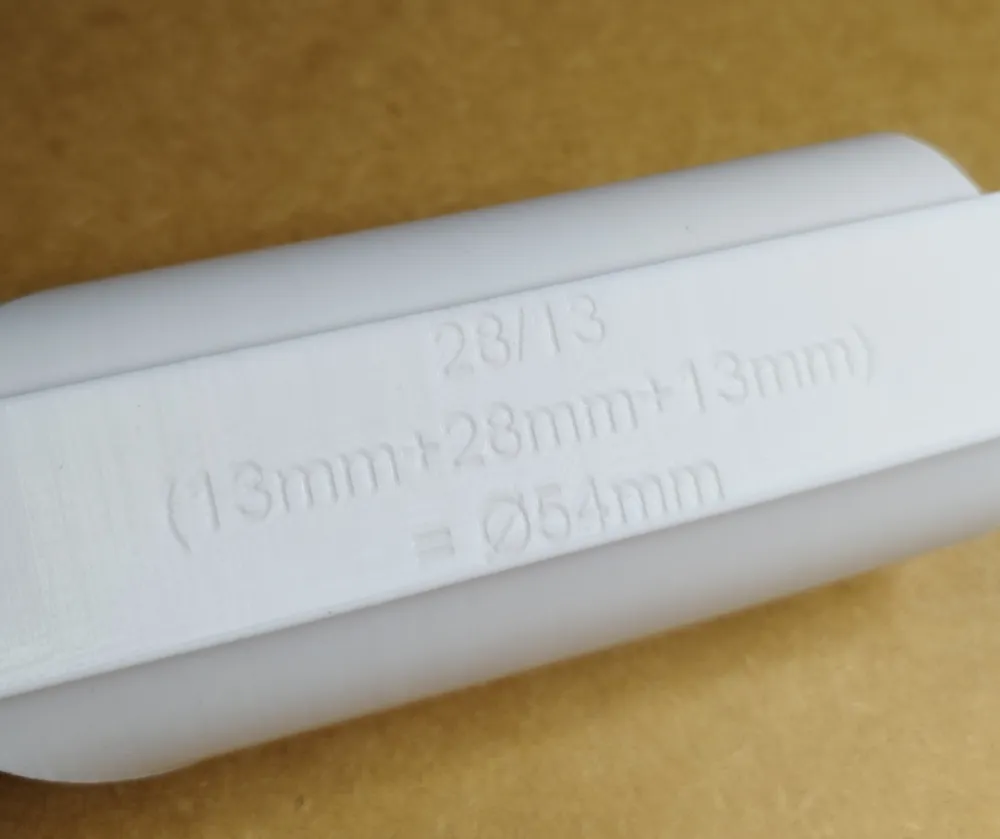

The following pipe/insulation thickness combinations are included (the respective size is engraved on the individual part) :


For pipe Ø15:
Pipe/insulation thickness Ø15/13

For pipe Ø18:
Pipe/insulation thickness Ø18/13
Pipe/insulation thickness Ø18/20
Pipe/insulation thickness Ø18/30

For pipe Ø22:
Pipe/insulation thickness Ø22/13
Pipe/insulation thickness Ø22/19
Pipe/insulation thickness Ø22/20
Pipe/insulation thickness Ø22/25
Pipe/insulation thickness Ø22/30

For pipe Ø28:
Pipe/insulation thickness Ø28/13
Pipe/insulation thickness Ø28/20
Pipe/insulation thickness Ø28/25
Pipe/insulation thickness Ø28/30

For pipe Ø35:
Pipe/insulation thickness Ø35/20
Pipe/insulation thickness Ø35/30

All inner diameters of the template have +1.5mm so that the insulation can be pushed in and out more easily.
