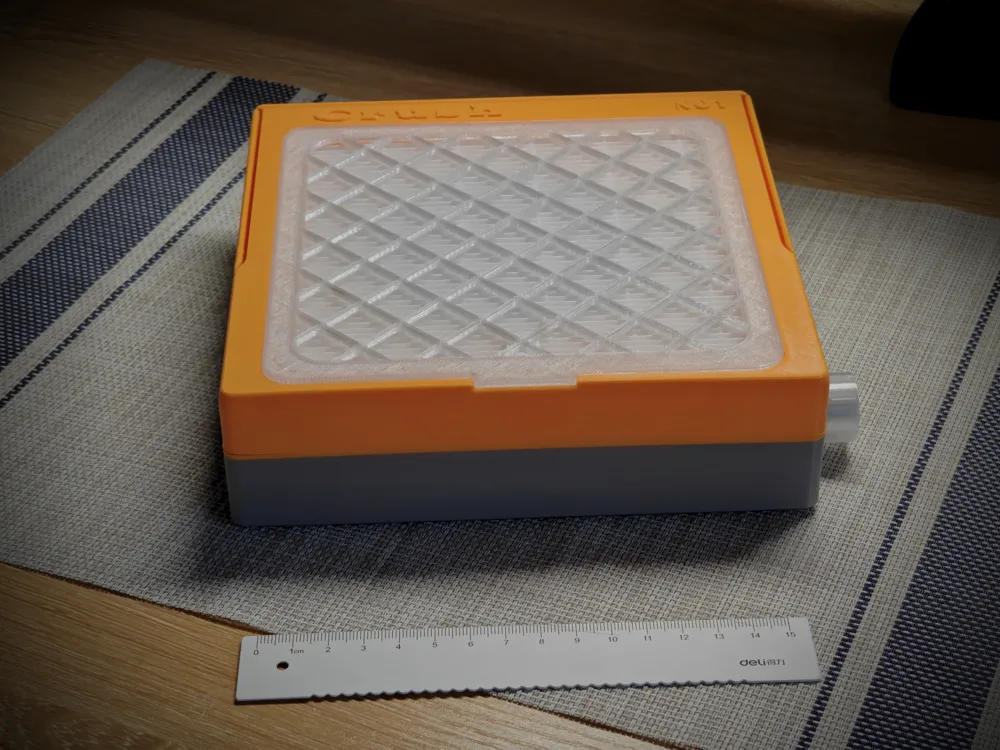

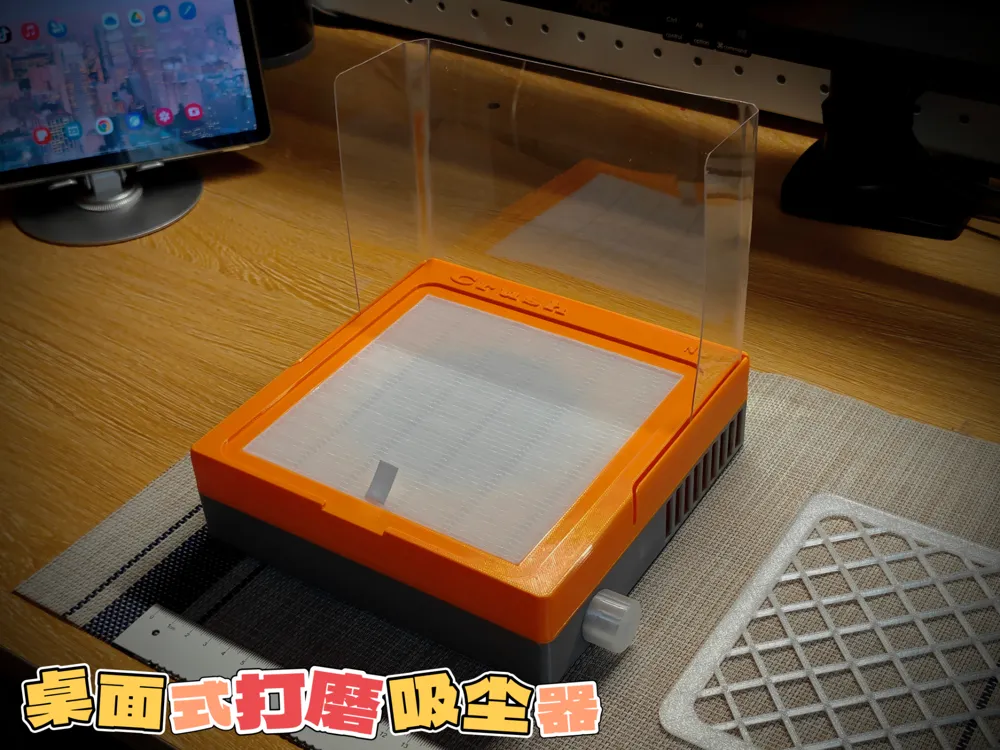

Desktop Grinding Dust Collector—Essential Tool for Artisans

Essential for craft enthusiasts, this grinding dust collector effectively absorbs fine dust during grinding, preventing tiny particles from spreading indoors.

Artisans must pay attention to protecting their lungs!

(Note: This vacuum cleaner is only effective for easily inhalable tiny particles; jade, wood chips, etc., can be blocked by a protective cover)

When printing PETG, I sometimes get fine stringing. I usually trim it here to prevent fuzz from flying everywhere! It's very effective, I've tried it myself!

Demo Video: https://b23.tv/paPABTH

Performance Parameters:

PWM stepless speed regulation

12V DC interface power supply

HEPA filter

Single-sided air outlet

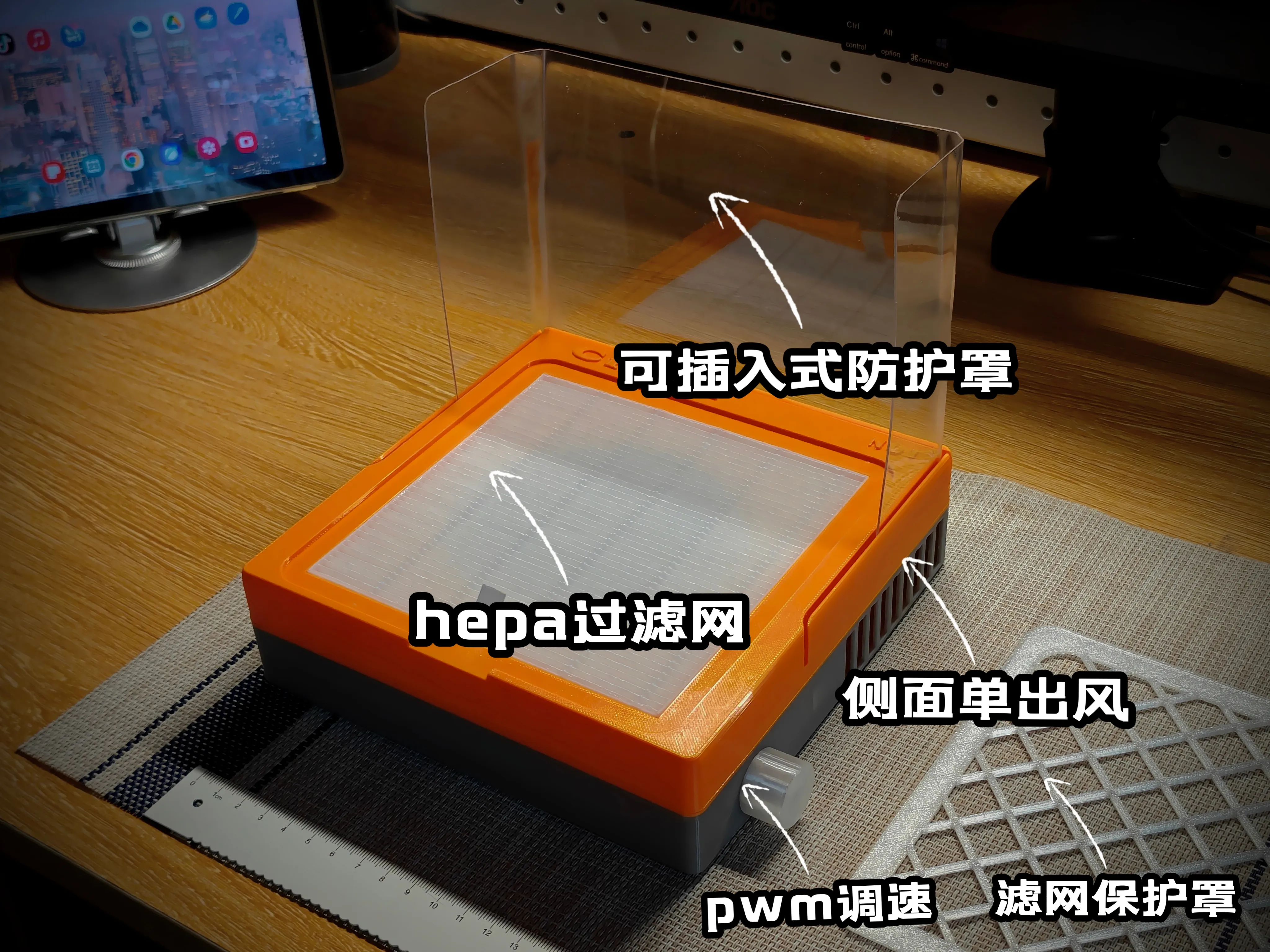

Design Philosophy:

Compact enough to be placed on a desktop for convenient grinding of small objects;

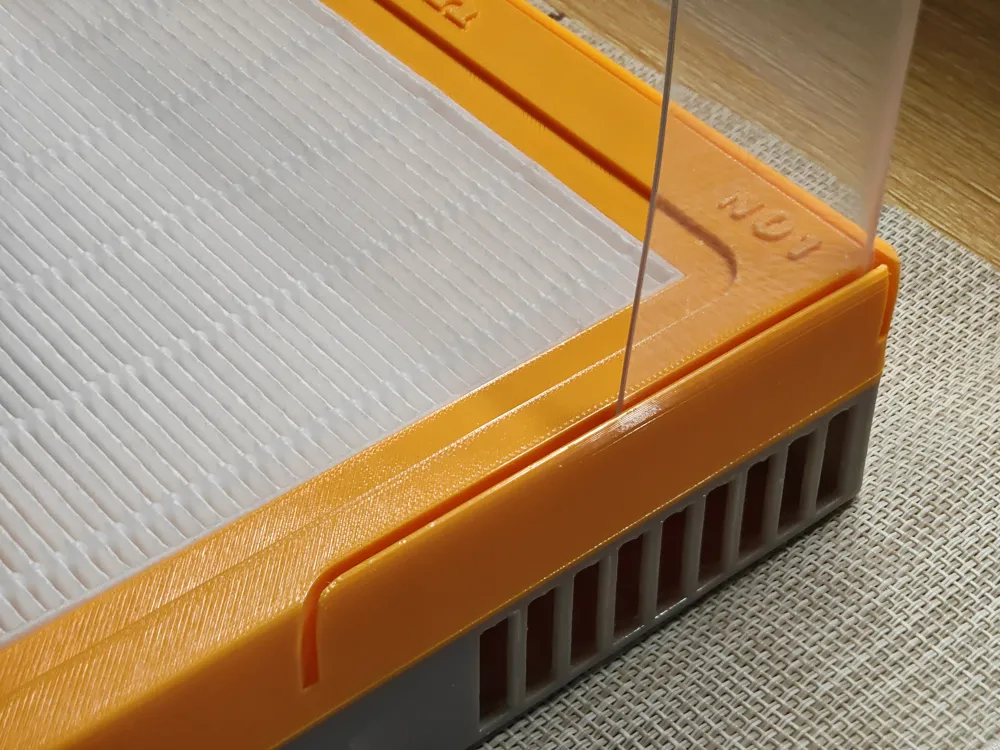

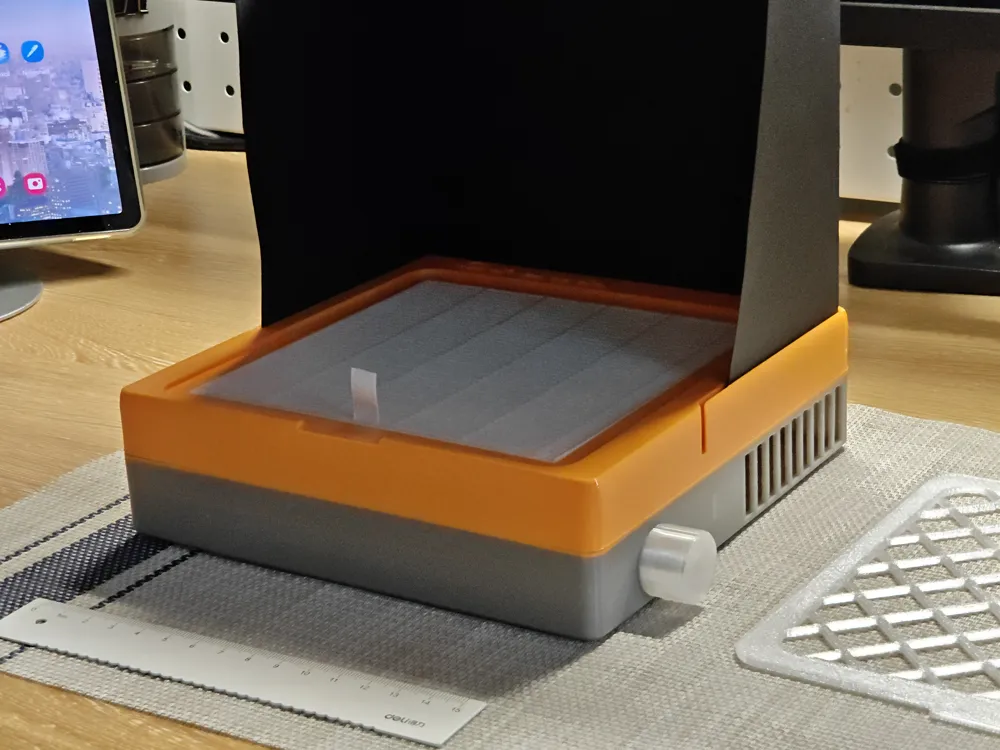

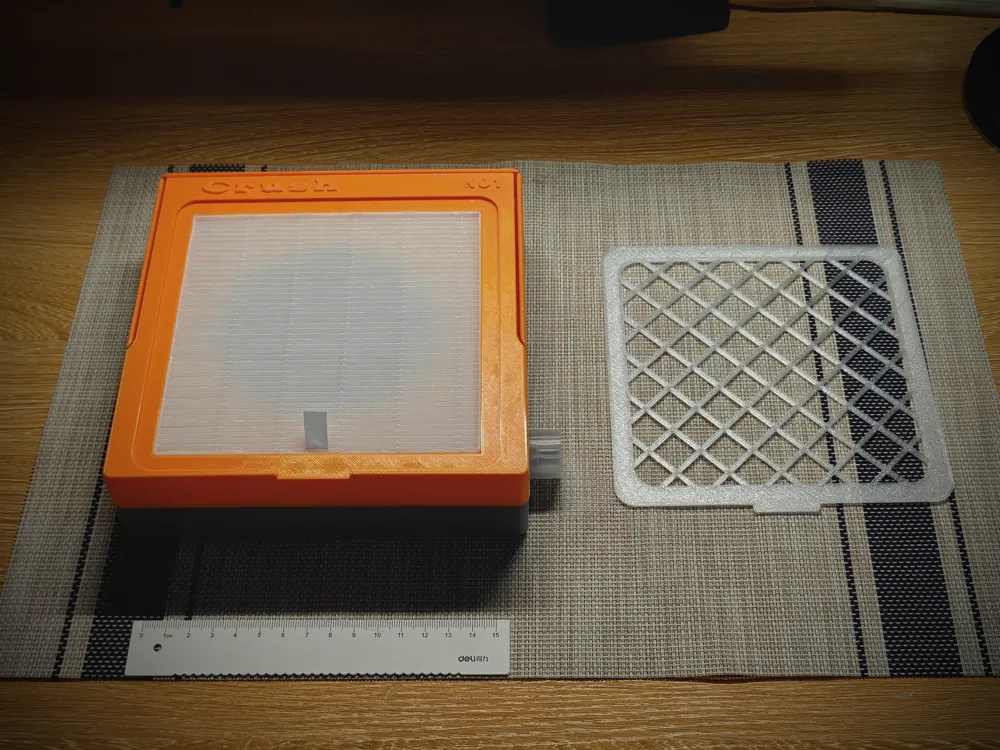

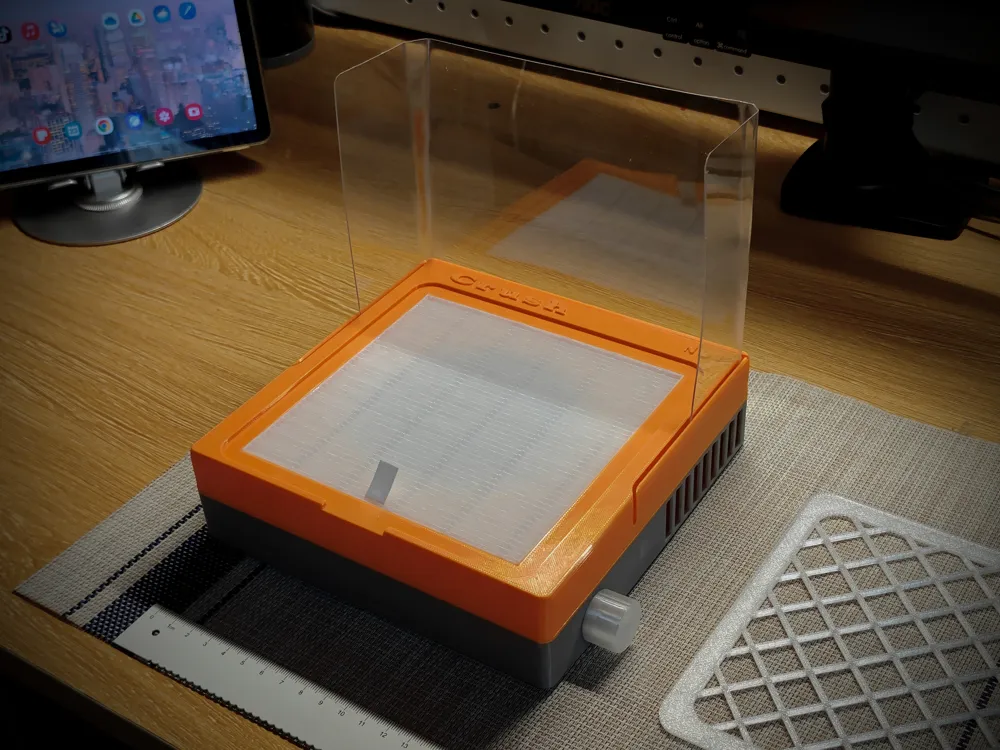

To prevent large particles from splashing during grinding, a guide slot is added to the top, where any hard paper or plastic sheet can be inserted as a protective cover;

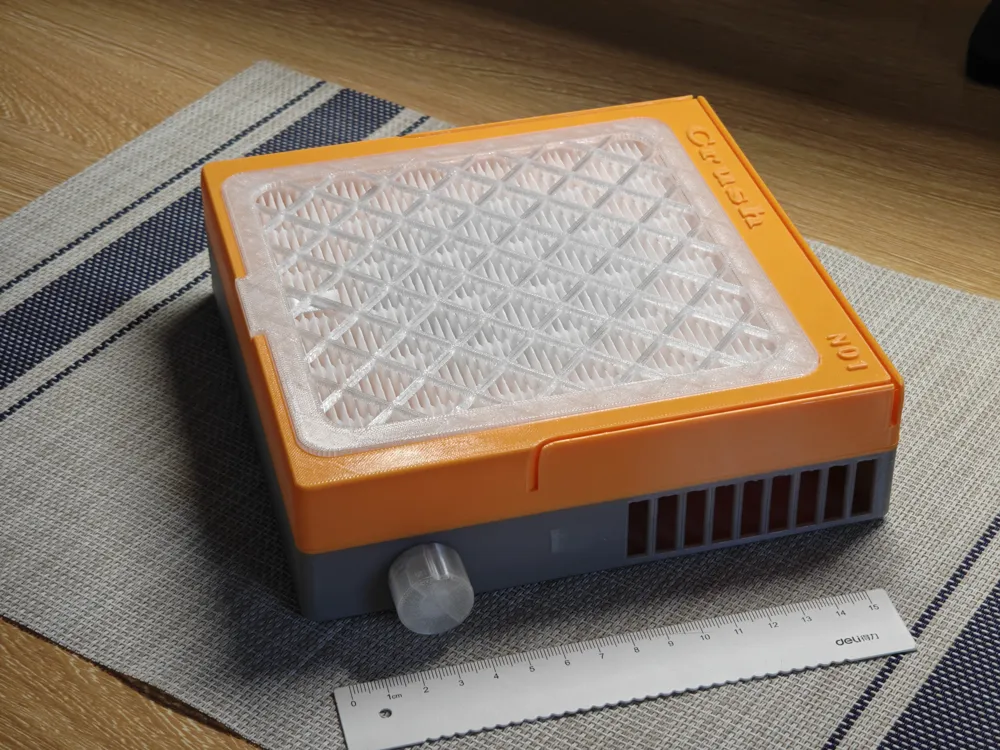

It uses PWM speed regulation and a single-sided air outlet to avoid random blowing and secondary dust dispersion;

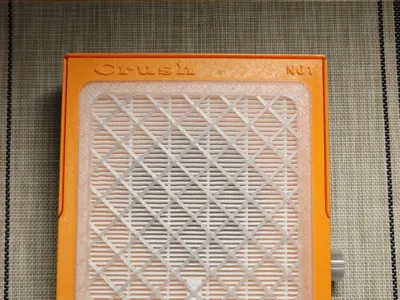

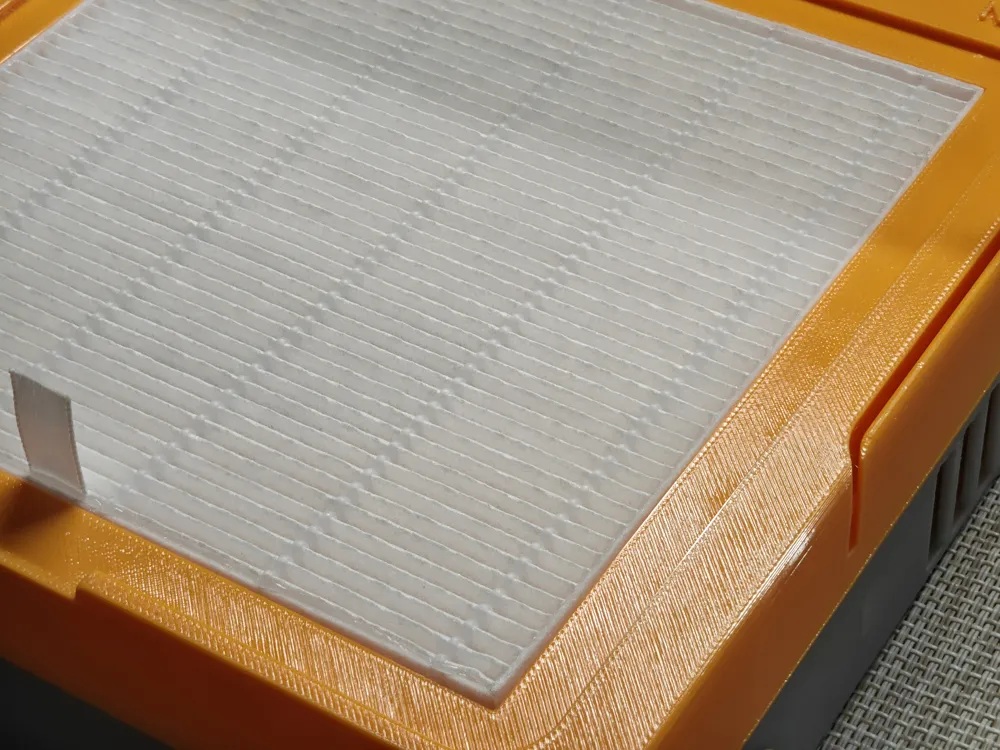

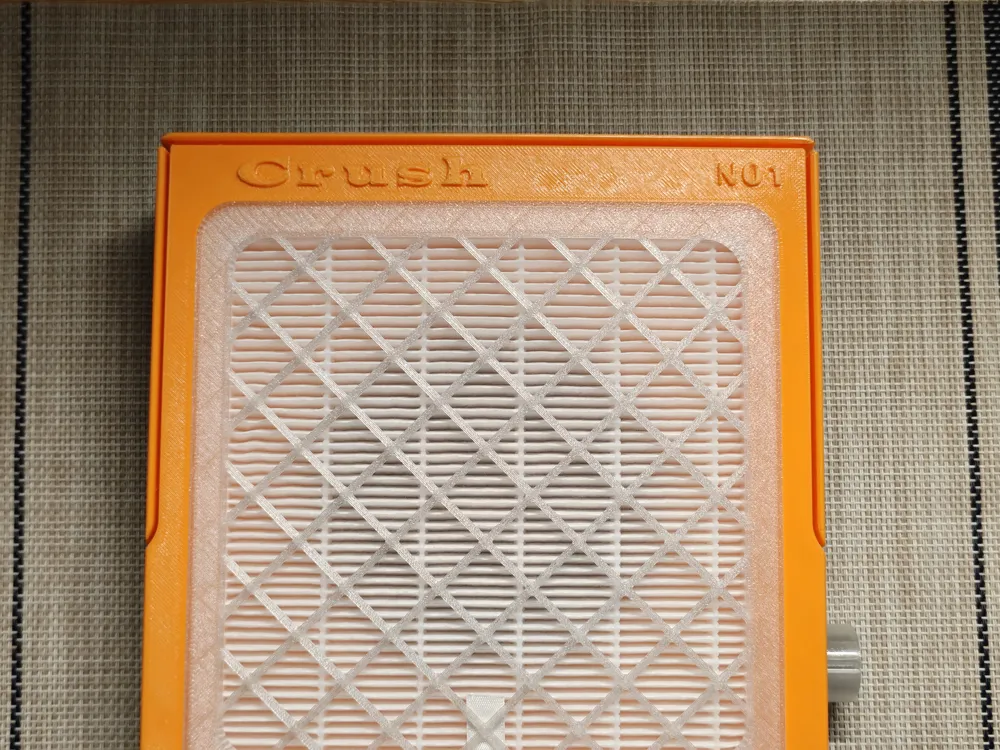

HEPA filtration is included to ensure small particles are adsorbed by the filter, which is easy to disassemble and clean.

Required accessories:

12025 turbine fan 12V 4600 RPM *1

Small PWM speed controller *1

13.8CM HEPA filter

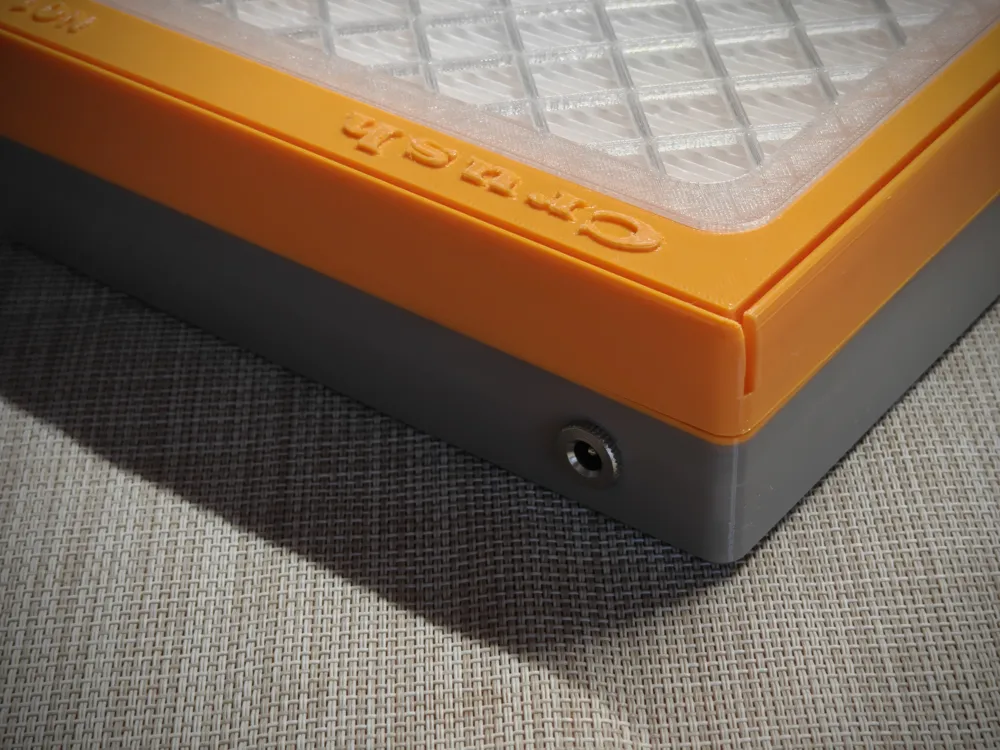

5.5*2.1 DC socket

12v 2A DC power supply

M4*8 countersunk screws *3 (motor feet)

M3*12 countersunk screws *4 (casing fasteners)

10*1 round anti-slip silicone pads *4 (optional)

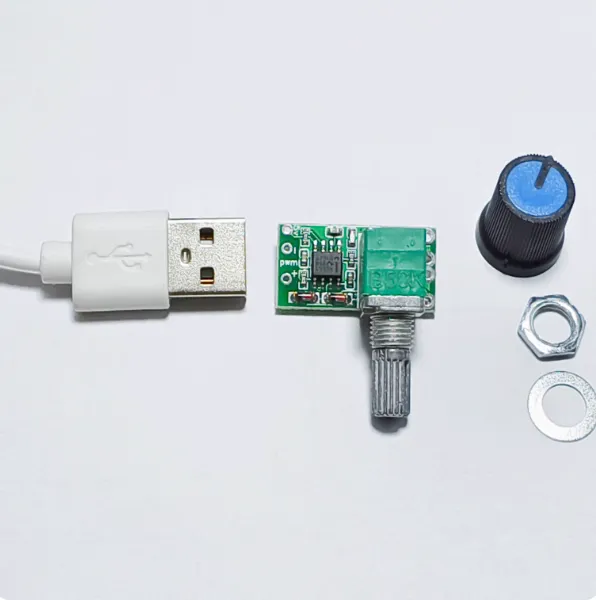

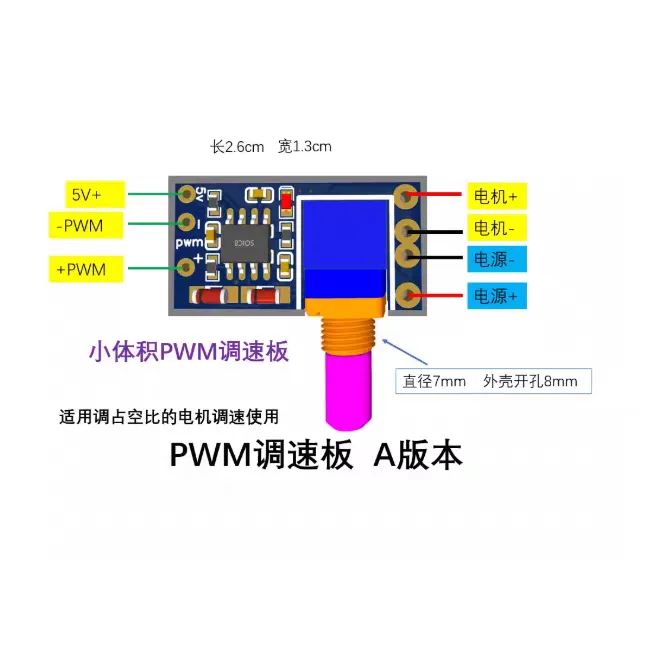

The fan and other parts are standard components. PWM speed control versions are available on major e-commerce platforms. Specifications are shown in the image. E-commerce software can be used to identify and find them (no ads, no links). They are generally similar, and other specifications can also be modified by yourself, just be careful not to make them too large.

Installation:

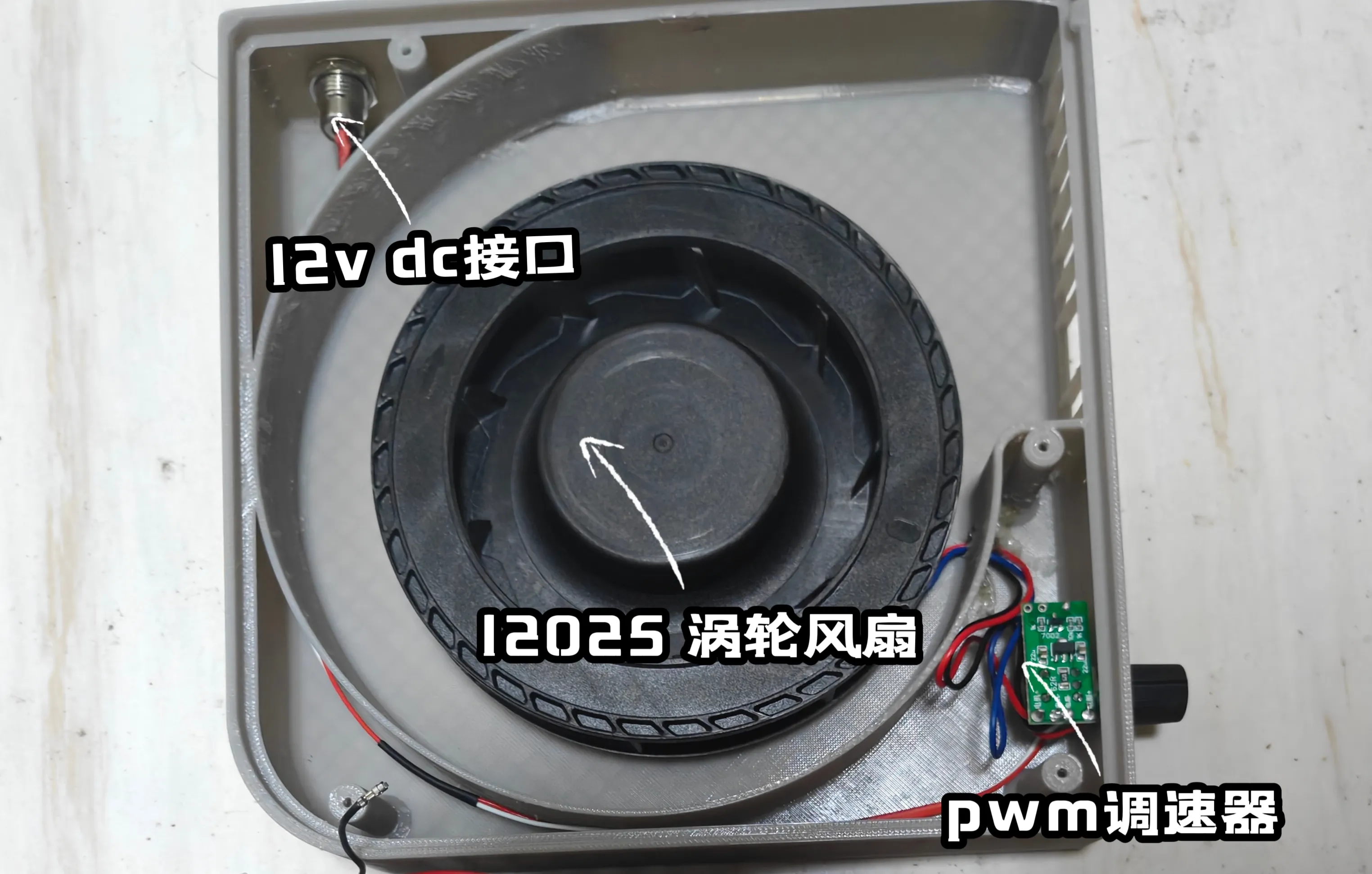

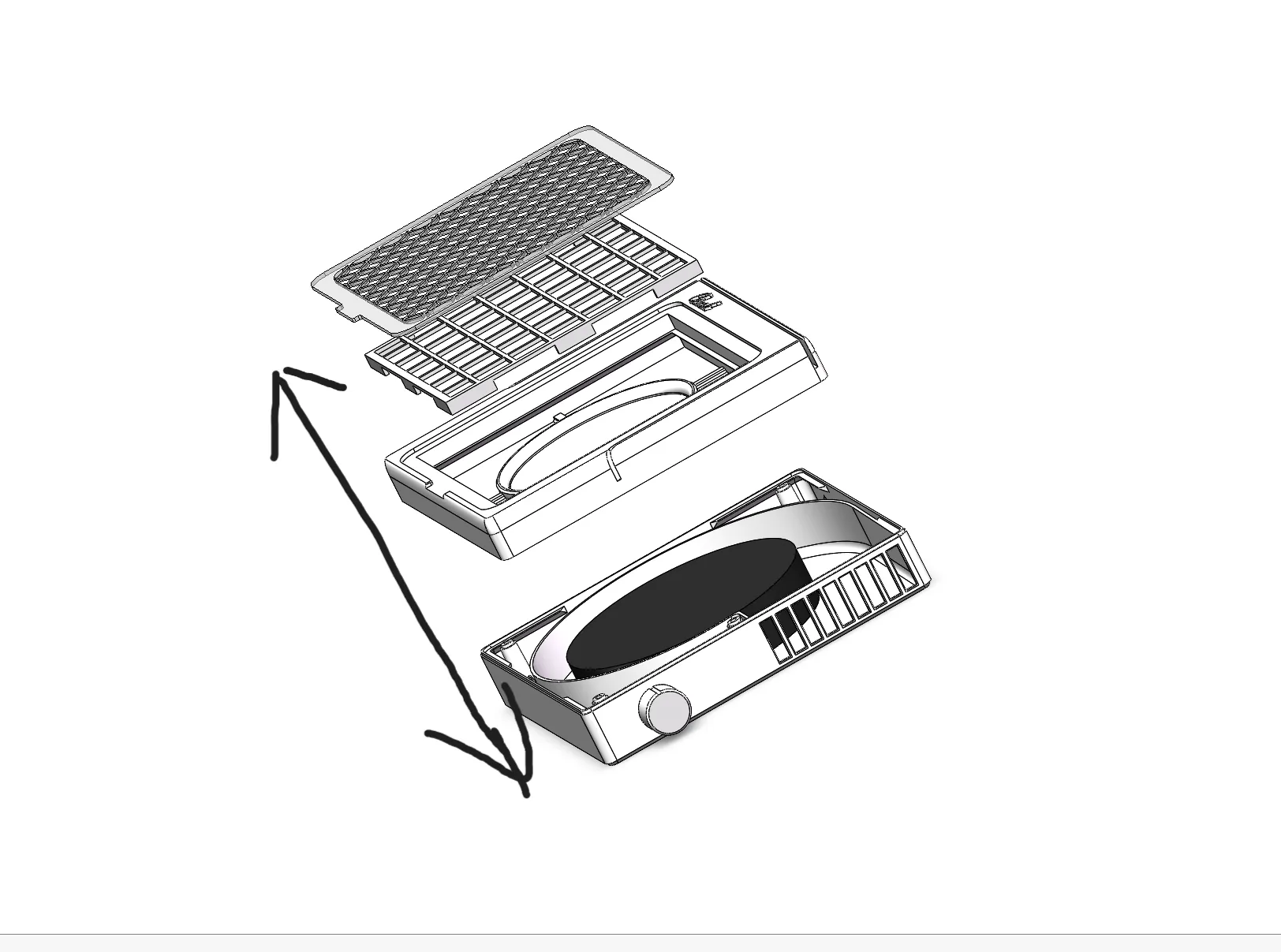

Foolproof installation; just ensure wires are threaded through holes beforehand to avoid rework! Internal wiring is shown in the figure.

About Printing:

I used PETG, and to prevent the shell from warping at the edges, I added an external skirt. However, due to the size limitations of the A1 mini, a skirt cannot be added. If warping occurs, it will not affect its use! It just loses a bit of the perfect industrial aesthetic.
