H2C 5 build plate rack
Print Profile(4)
Description

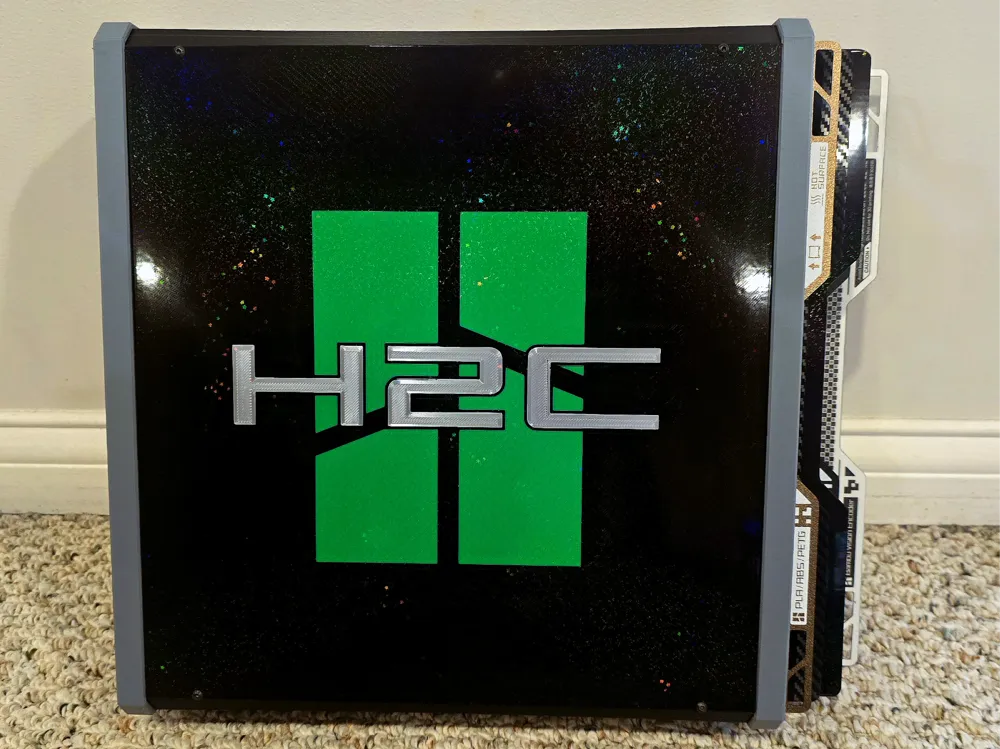

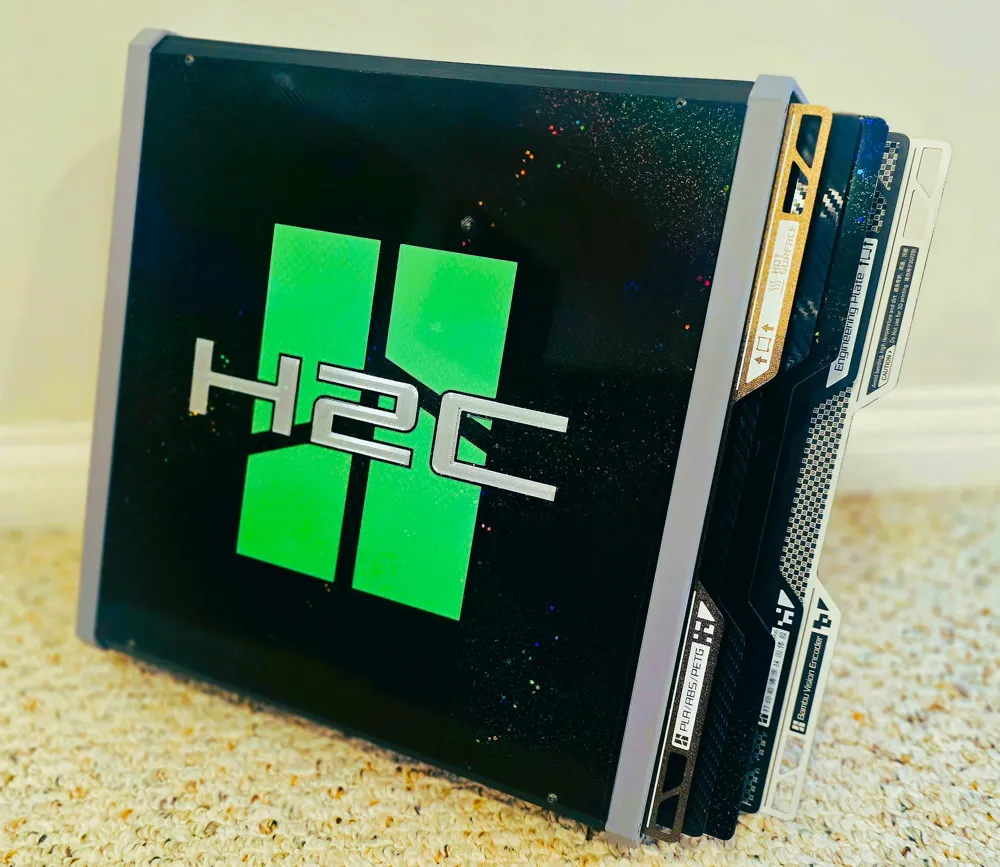

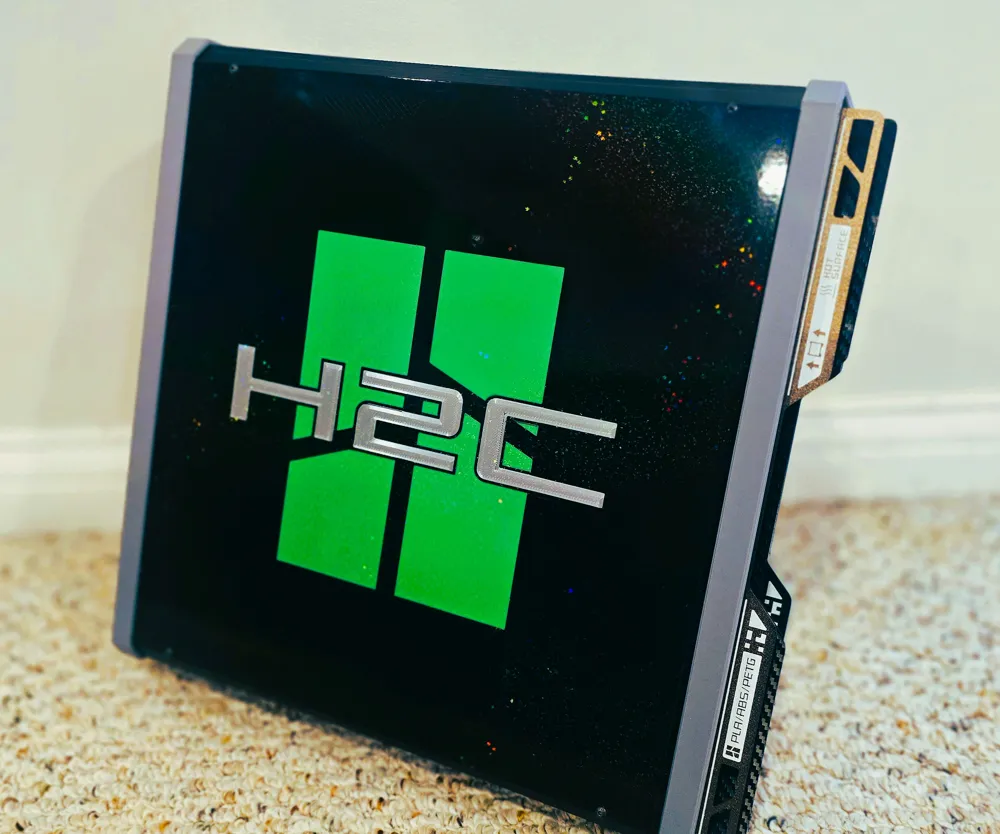

From the same favorite of the X1C rack, the new H2C build plate rack is here!!!! Hold up to 5 build plates securely! Screws together with 3mmx14mm socket head cap screws. This has some of the same dimensions from the X1c version, so the stand, couplers, and hex wall mounts will also work with this version! There is also a 10 plate version linked below. The X1, H2D and H2S racks are all uploaded under my profile!

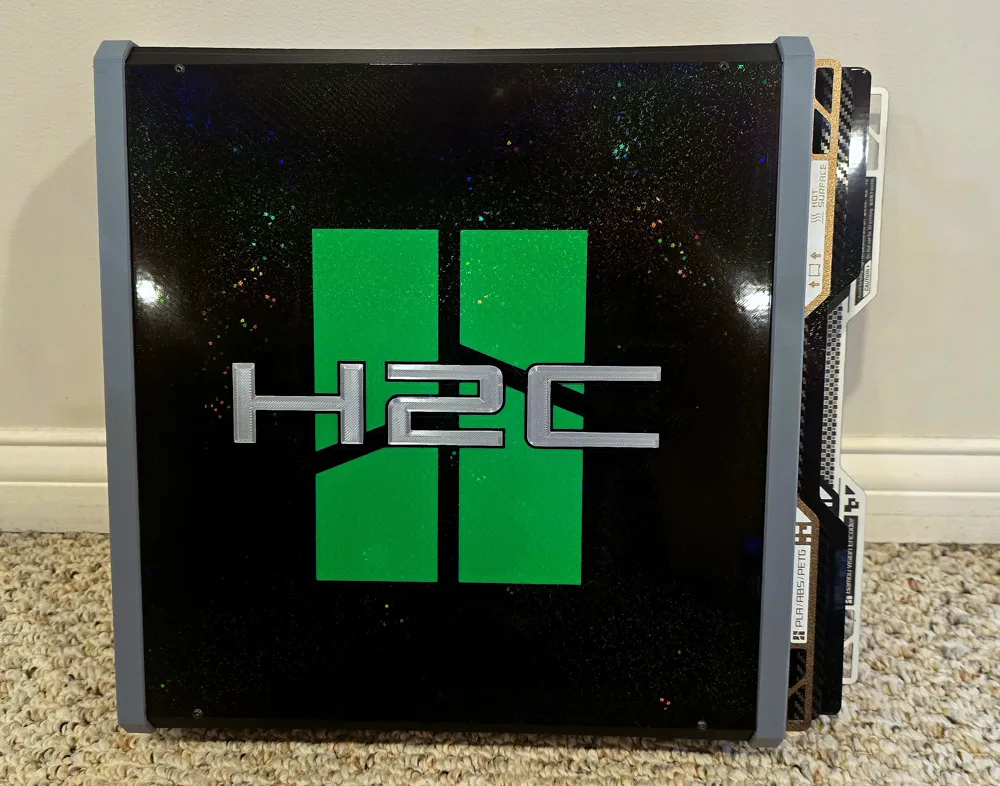

Note about the side cover panel
The H2C panel will need the left nozzle to print the main body of the logo panel due to location limitations. It is a very tight fit but it is possible to print it solid unlike the H2D version that technically prints half with the left nozzle and the other half with the right.
Be sure to use short M3 bolts for the side plate to prevent going into the first channel of the plate slots! M3 x 10mm MAX Length!
Links to other versions including X1/P1 and H2D!
10 Plate H2C Version
https://makerworld.com/en/models/2113651-h2c-10-build-plate-rack#profileId-2287014
5 Plate H2D Version
https://makerworld.com/en/models/1289365-h2d-5-build-plate-rack-with-side-cover#profileId-1319235
10 Plate H2D Version
https://makerworld.com/en/models/1289348-h2d-10-build-plate-rack-with-side-cover#profileId-1319220
5 Plate X1/P1 Version
https://makerworld.com/en/models/19745-5pc-build-plate-rack-bambu-x1-p1#profileId-18426
10 Plate X1/P1 Version
https://makerworld.com/en/models/19526-10-pc-build-plate-rack-bambu-x1-p1#profileId-18252
Be sure to check out my coupler to join this 5pc rack and an additional 5pc rack! or a 5 and 10, or a 10 and 10!
https://makerworld.com/en/models/713548#profileId-644013
And check out my Hex system adapter mounts so you can mount the rack to a hex wall!
