UniFi USW-Lite-8-PoE 10" 1U Rack Mount | Lab Rax

1U rack mount for the Ubiquiti UniFi Lite 8 PoE Switch (USW-Lite-8-PoE), designed for 10-inch racks.

This model is part of the Lab Rax series.

Design Details

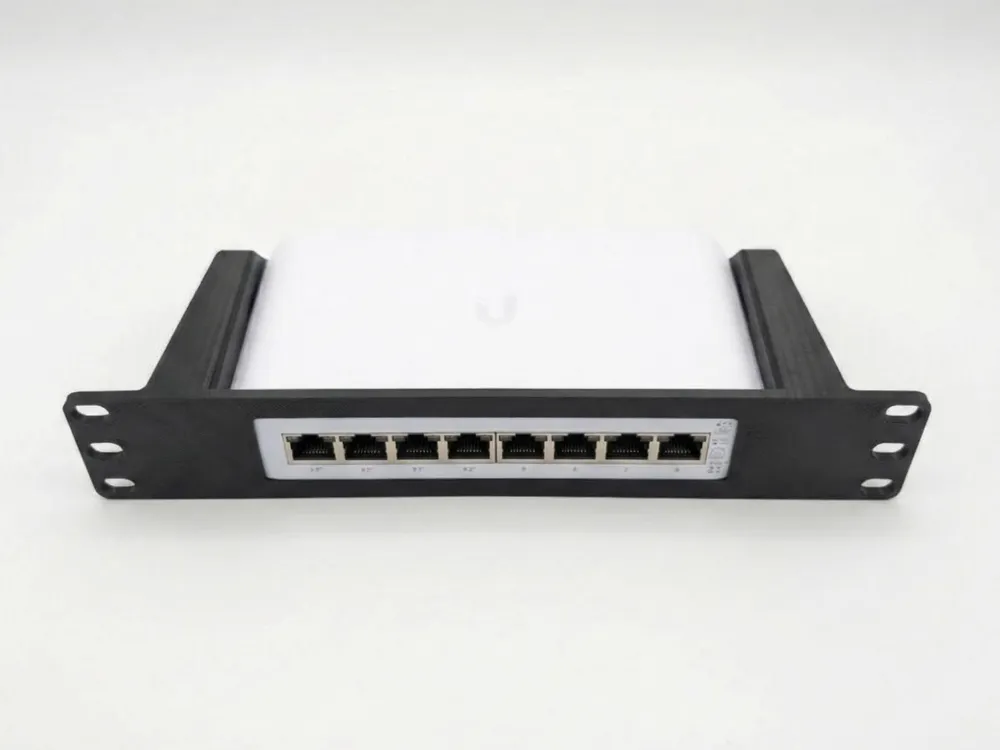

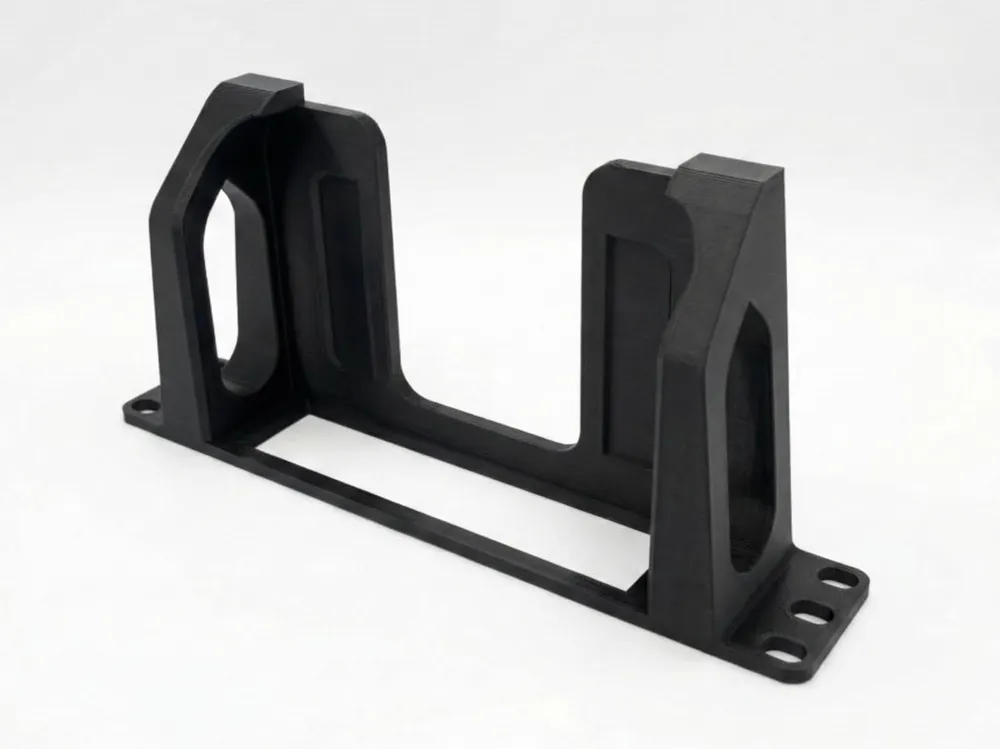

Like other models in this series, this mount is designed to eliminate the unsightly gaps often seen between the device's rounded corners and the faceplate. The contoured opening sits flush against the switch, providing a clean, professional, and integrated look for your homelab.

Features

• Flush Fit: Precision-contoured faceplate matches the switch's corner radius to eliminate gaps.
• Full Port Access: Ethernet ports and status LEDs remain fully accessible.
• Secure Lock: Designed to hold the switch firmly without adhesives.

Print Settings

• Material: PLA, PETG, or ASA.
• Infill: 15% - 20%.
• Supports: Recommended. There is a slight overhang to wrap around the rear of the switch.

Installation

1. Prep: Carefully remove all support material from the print.
2. Insert: Slide the USW-Lite-8-PoE into the mount from the rear, aligning the front face with the opening.
3. Lock: The mount is designed to flex slightly to accommodate the device. Press the unit forward until it snaps securely into place behind the faceplate lip.
4. Mount: Screws to attach to your 10" rack rails.
