Sliding Door and Window Lock

Modified on 2026.6.3 at 22:53

1, Re-uploaded the model files and configurations, removed old models, and only kept new models

2, Modified the assembly clearance, no need for sanding after printing except for supports, can be directly assembled and used

Additional note: I used a cold plate, the default build plate should have no effect on printing. By the way, this model has been uploaded for so long, and more than 30 people have printed it, why did no one ever remind me that this model was an old one, and I uploaded the wrong one before!

Modified on 2026.1.19 at 00:00

1, Modified one interference point (as shown in the figure below)

The red arrow on the left indicates an interference with the baseplate buckle when the wing plate is assembled in the direction of the blue arrow, making assembly difficult. Forcing assembly may cause breakage

The green arrow on the right shows the modified state, with the interference removed for easier assembly

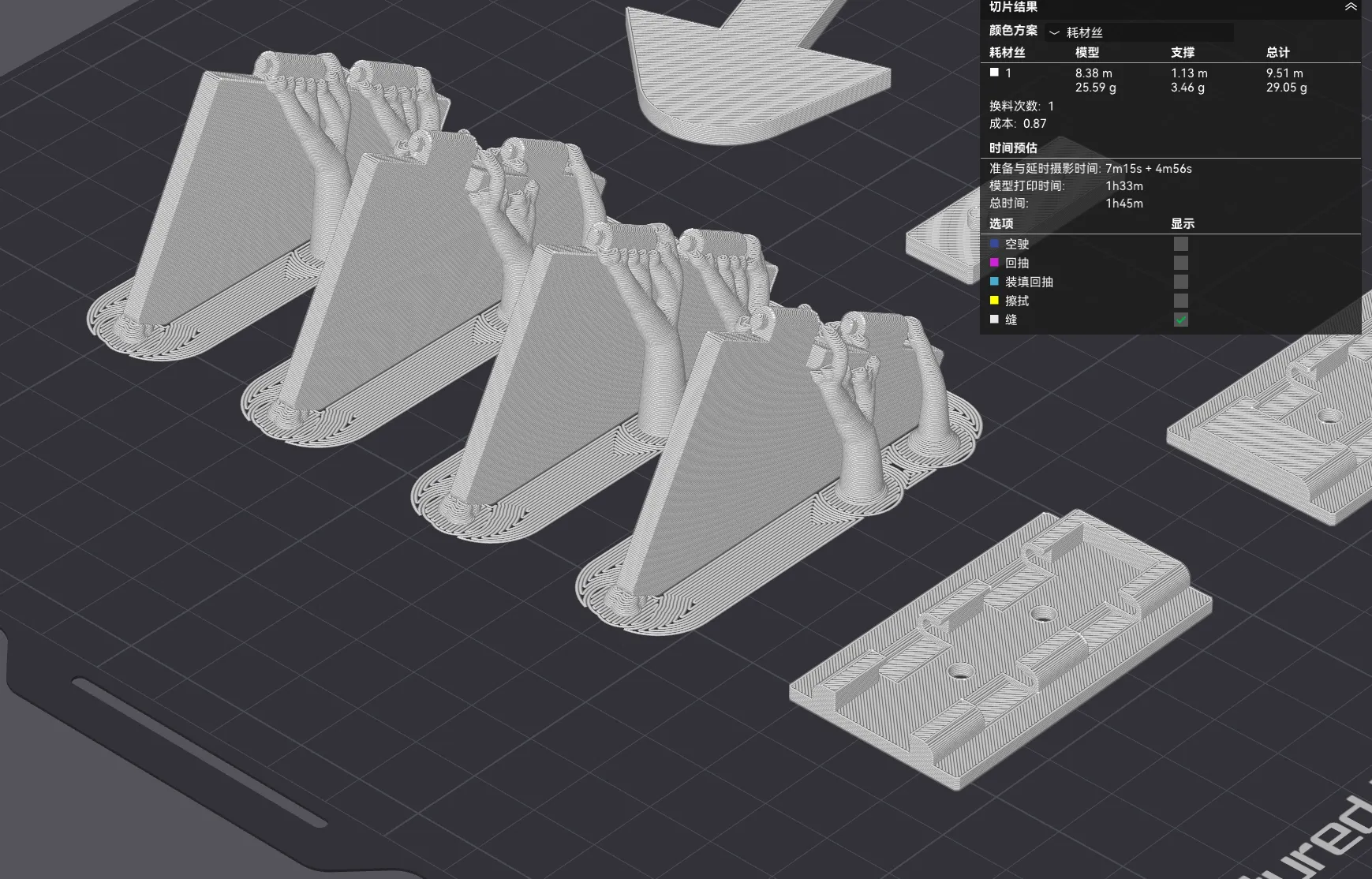

2, Modified the printing plate direction (as shown in the figure below)

The arrangement of the wing plate makes the print lines more reasonable, enhancing strength in the direction of force when in use

3, Optimized the original model and added an improved model, saving more printing material and time (as shown in the figure below)

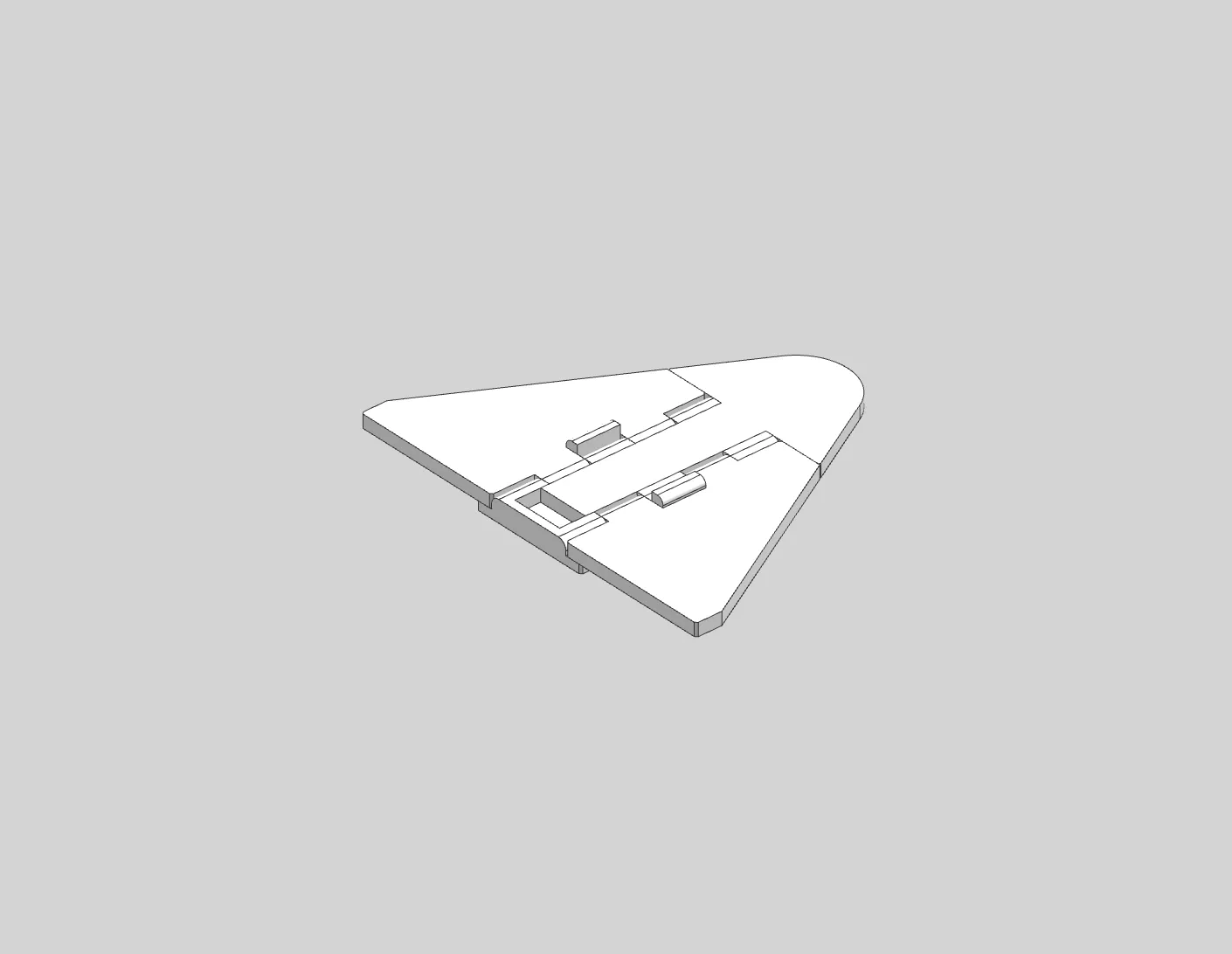

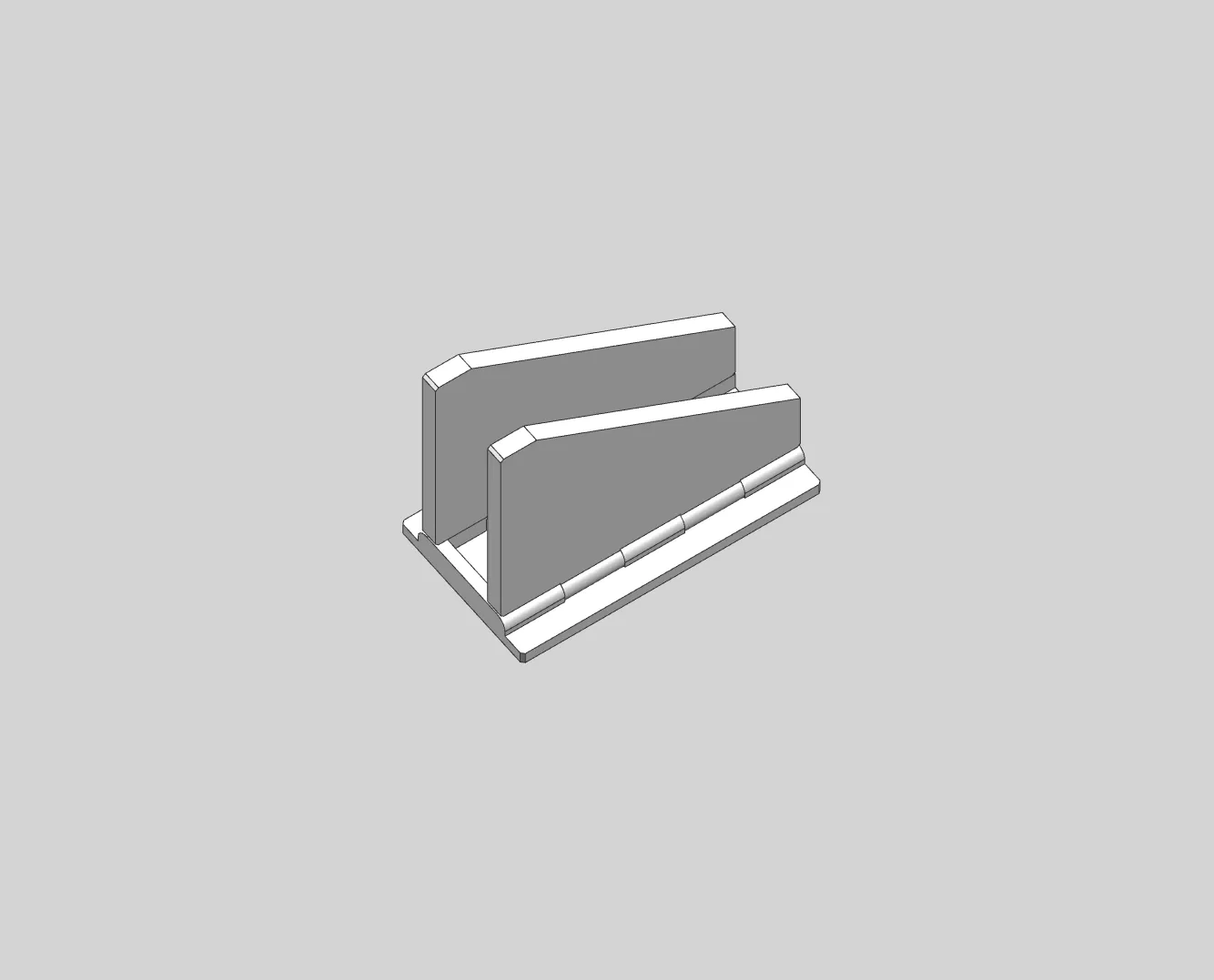

The left side shows the model before optimization, and the right side shows the optimized model

The optimized model is used in the same way as the unoptimized model

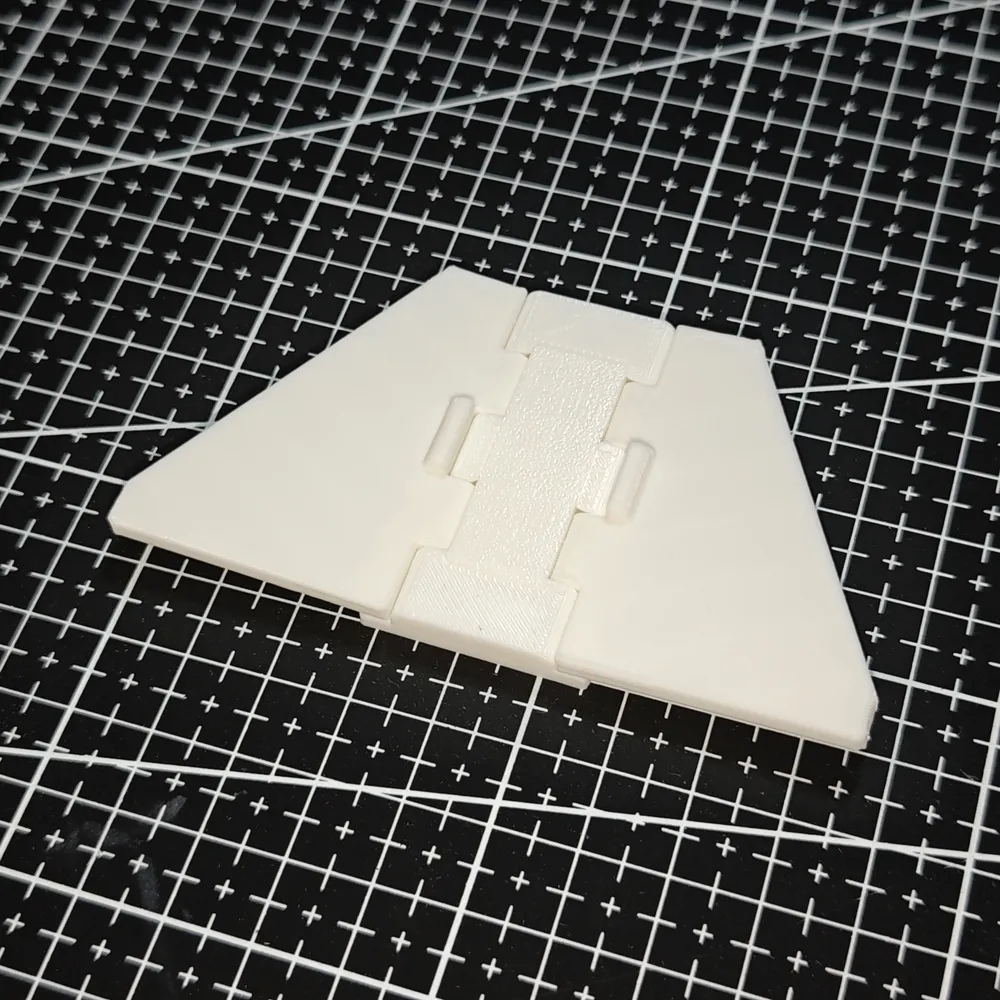

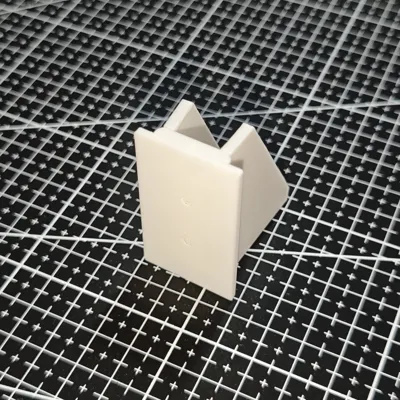

This is a handle/latch for sliding doors and sliding windows, which can be used for doors and windows where it is inconvenient to install locks or for other purposes

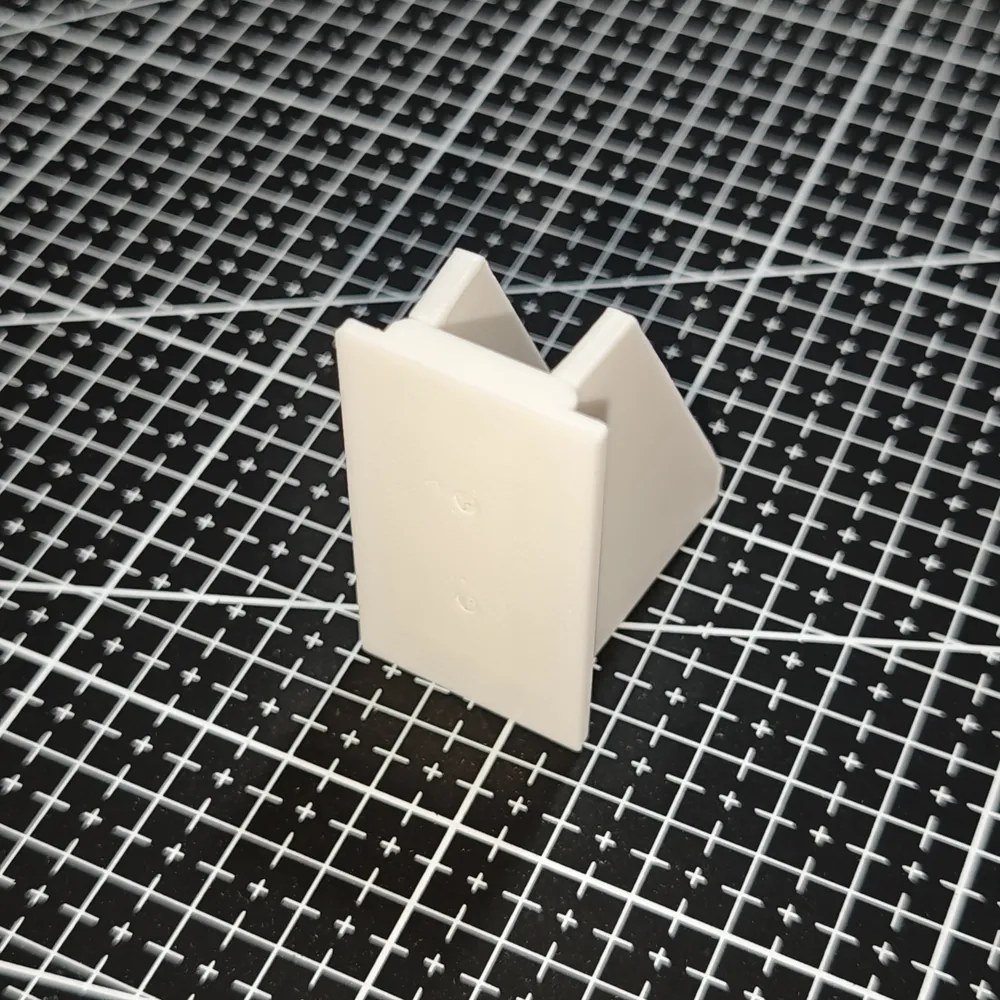

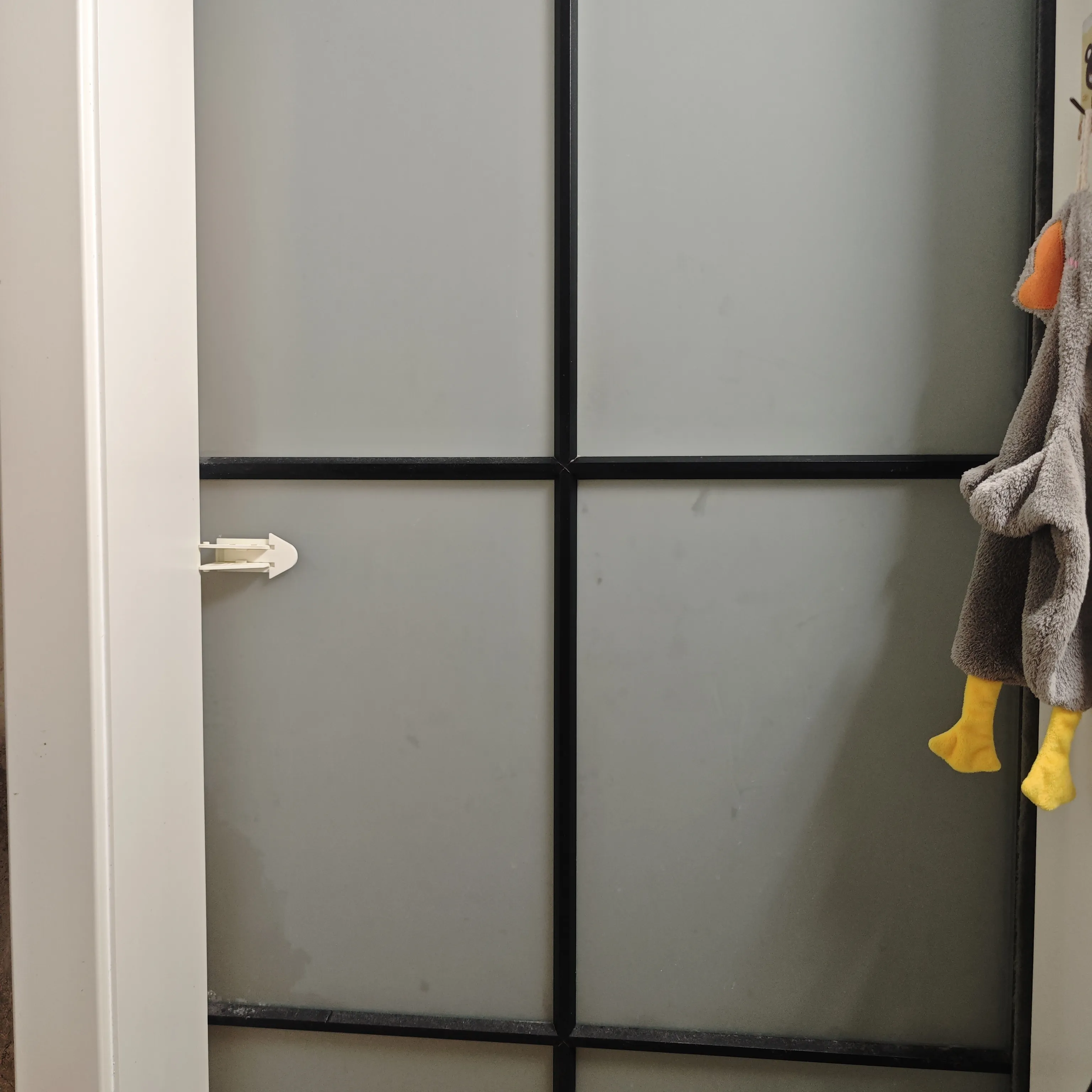

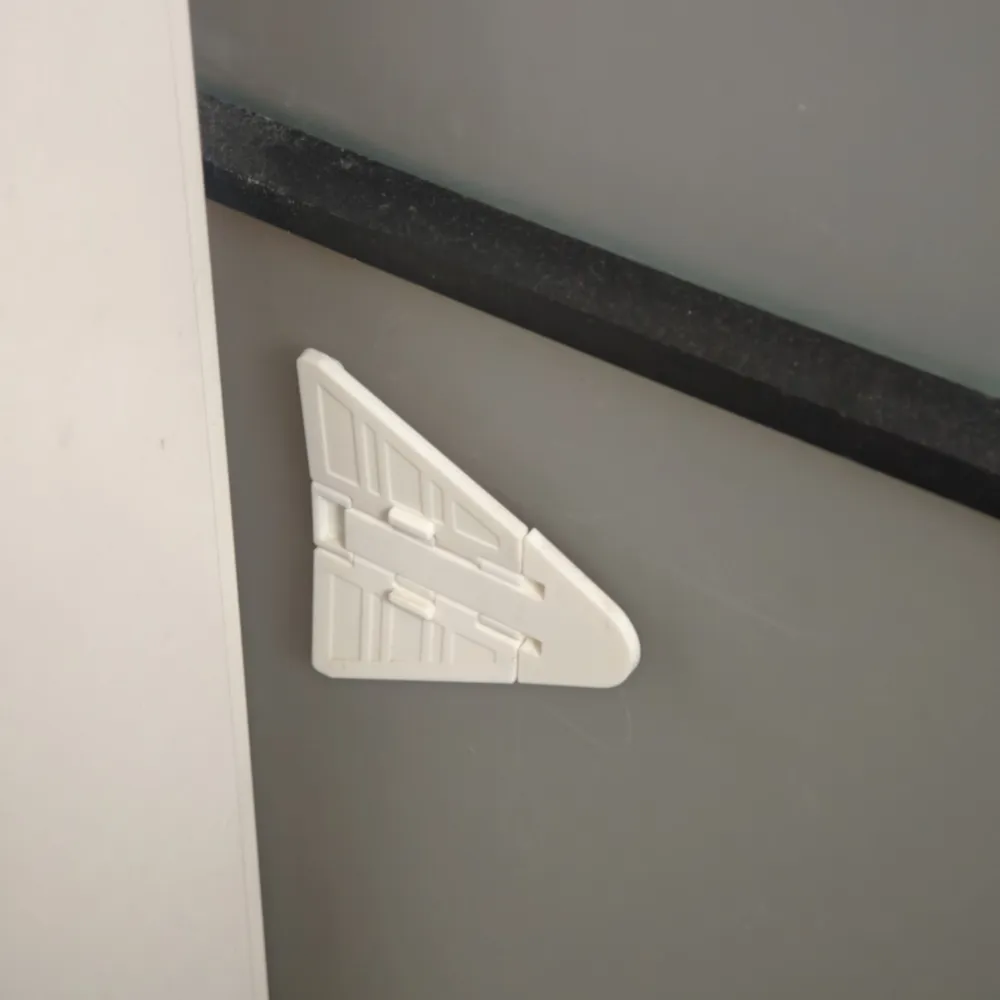

1, For specific uses, please refer to the figure below

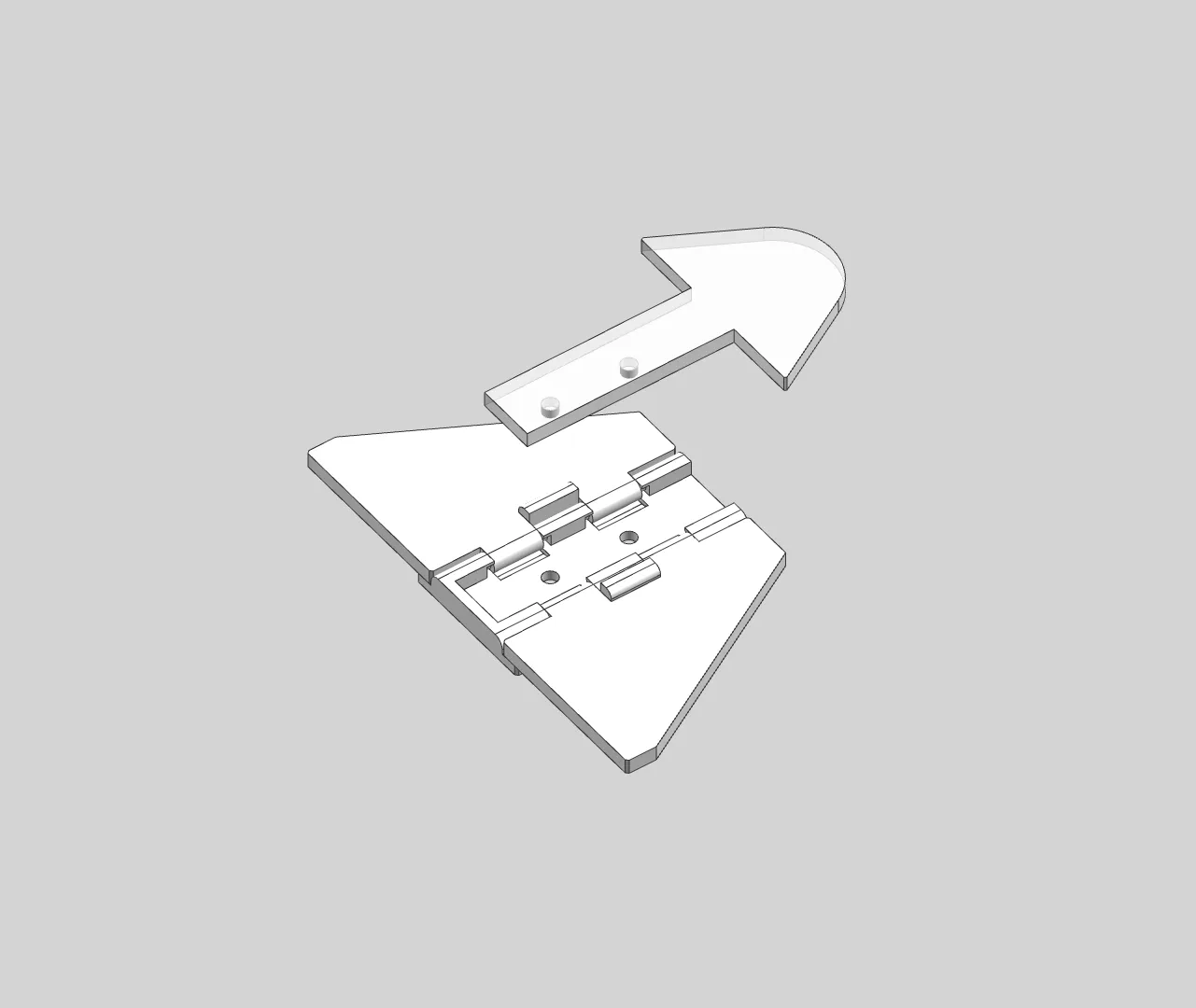

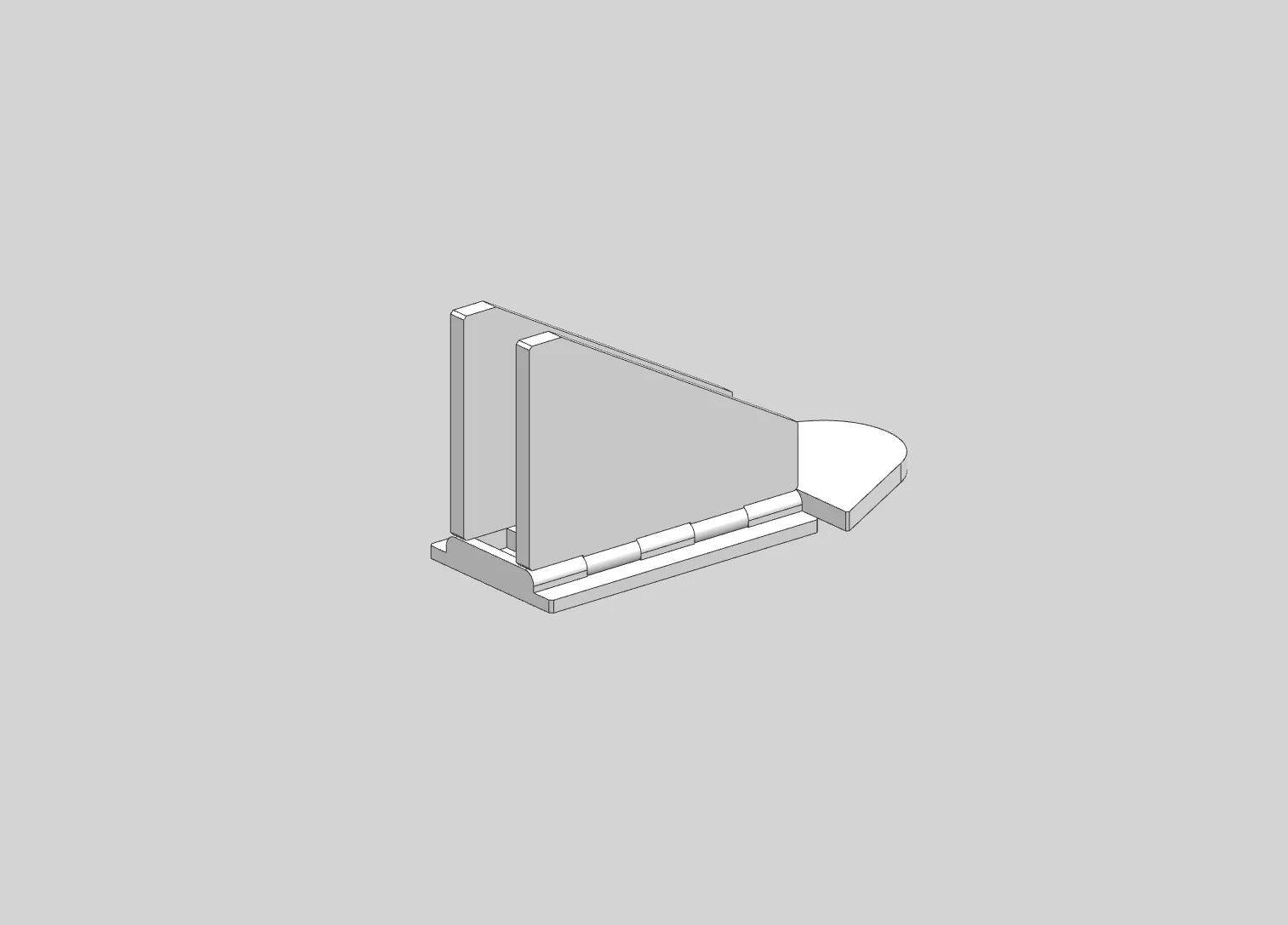

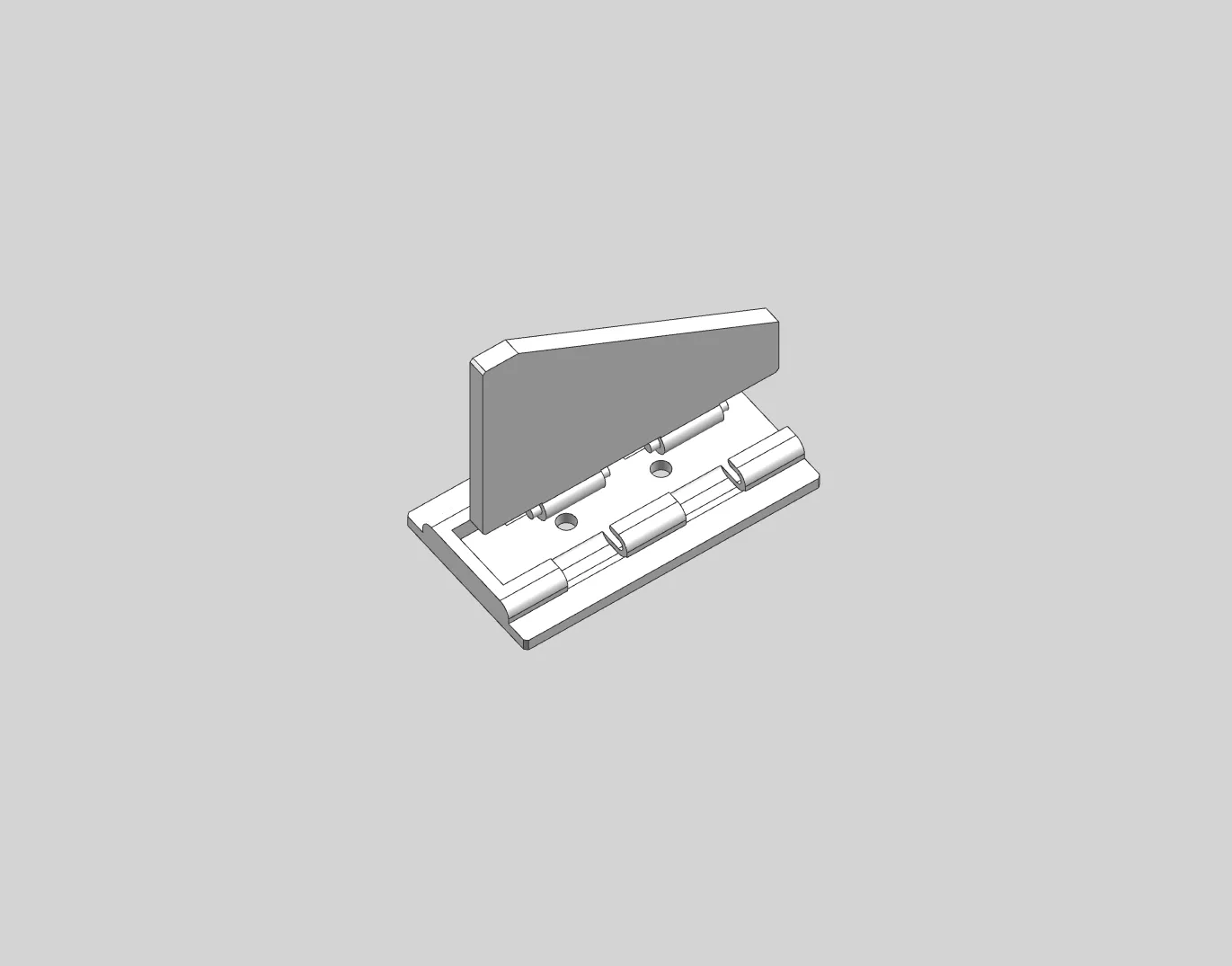

2, See the figure below for model assembly method

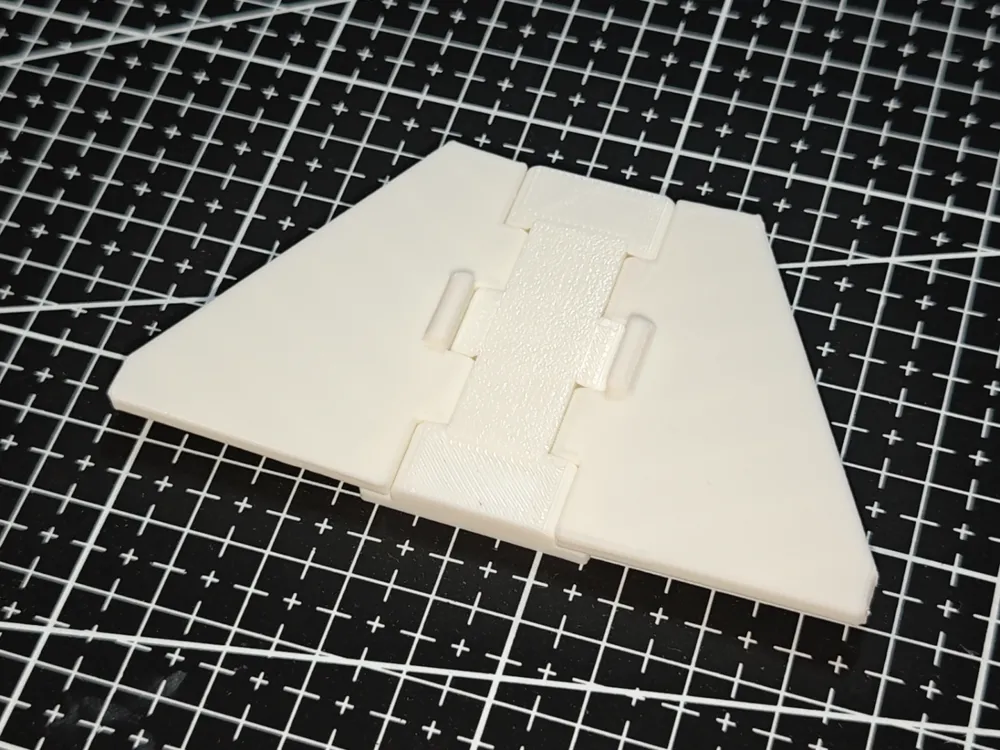

After assembling as shown in the figure above, attach nano tape to the back of the base and stick it in a suitable place on the door or window for use
