Mount for Simrad GPS HS-75
Print Profile(0)
Description

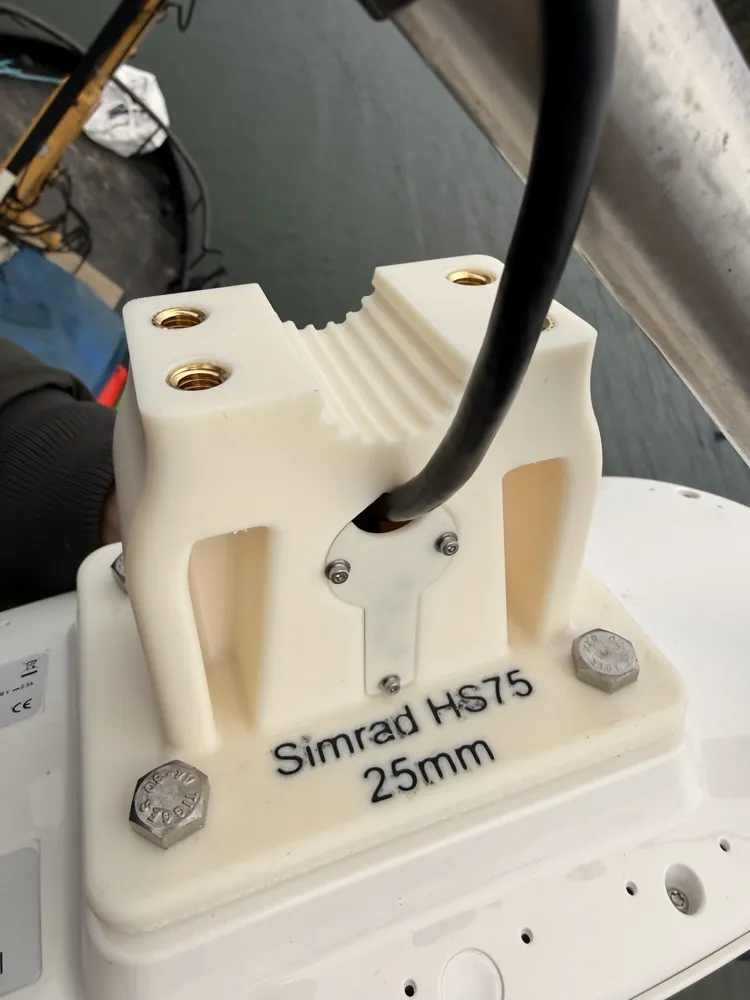

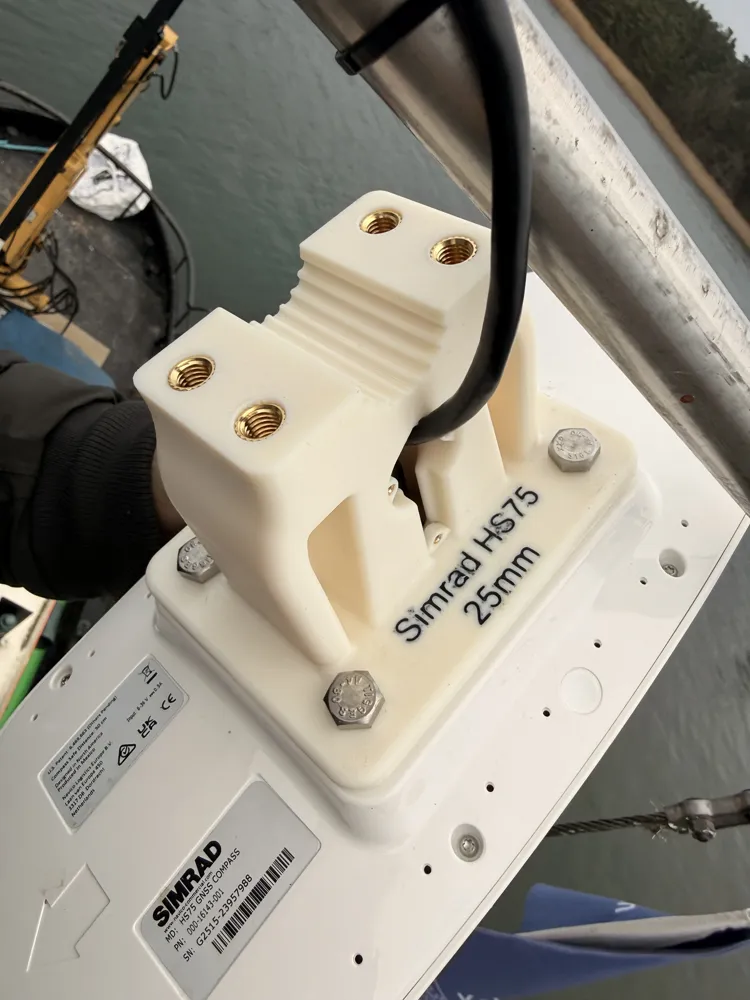

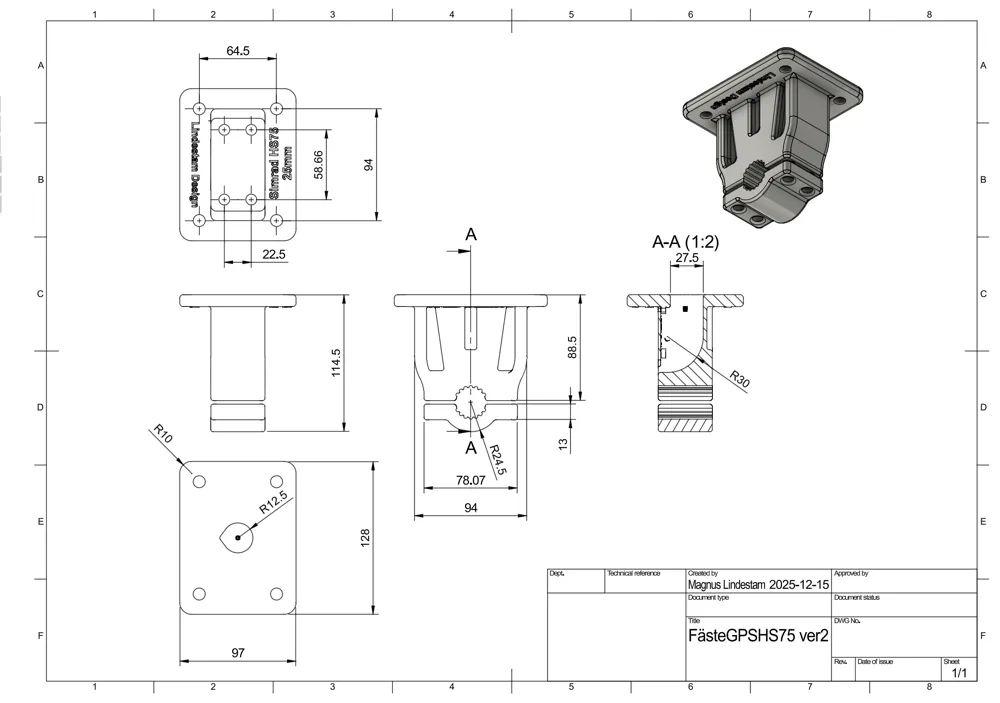

This is a custom-designed mounting bracket for the Simrad HS-75 GPS / heading sensor, intended for installation on a 25 mm stainless steel pole.

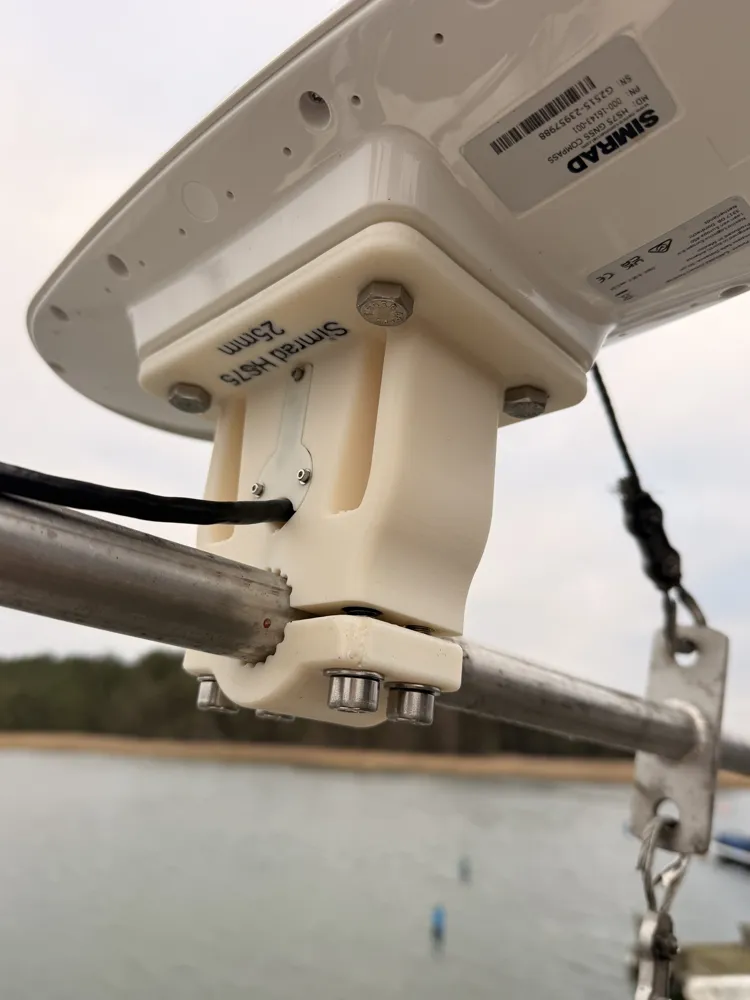

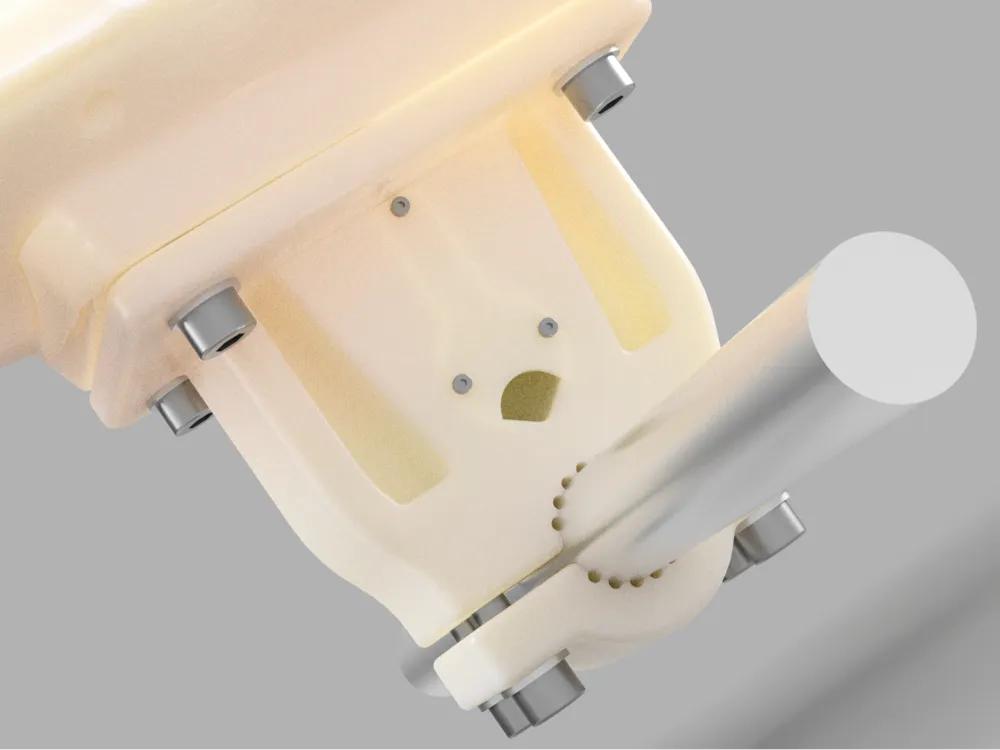

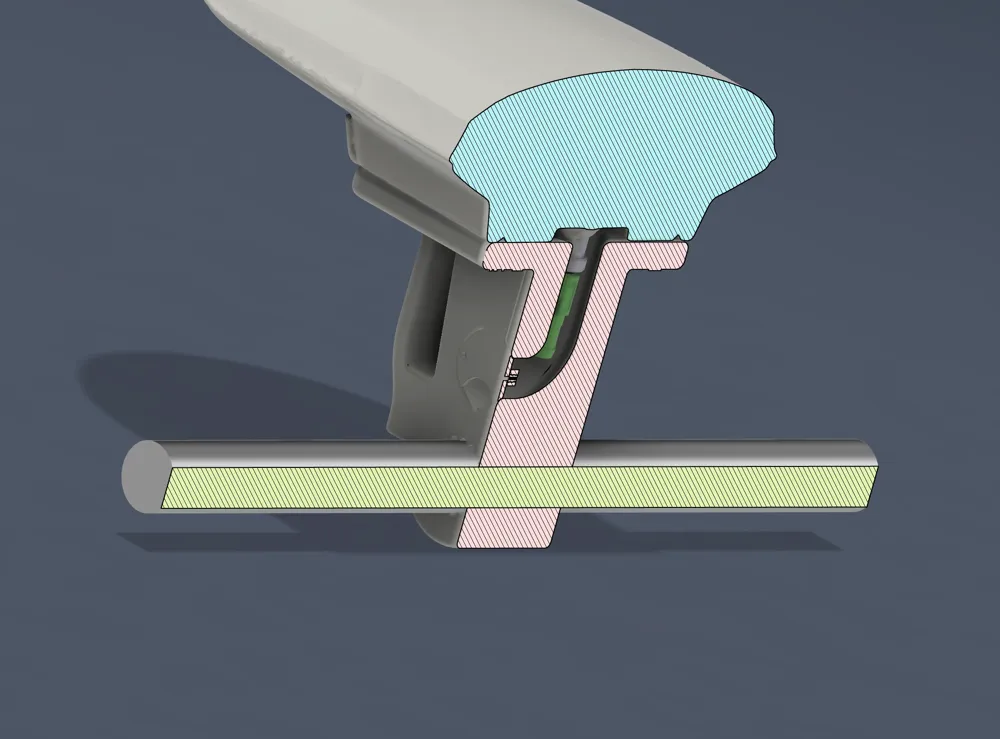

The mount securely clamps around the pole using four M8 bolts, providing a stable and vibration-resistant installation suitable for marine environments.
Hardware required
- 3 × Ruthex M2 threaded inserts
- 4 × Ruthex M8 threaded inserts
- 4 × M8 bolts, 30 mm length (for clamping around the pole)
Recommended material
- ASA
ASA is recommended due to its excellent UV resistance, temperature stability, and durability in outdoor and marine environments.
Notes
- Designed for a clean and secure installation without modification to the Simrad HS-75 unit
- Ideal for mast, rail, or pole mounting
- Print orientation and insert installation should be done carefully to ensure maximum clamping strength
