New 2026 F1 Front Wing with moving flaps-Scale 1/5
Print Profile(2)
Bill of Materials
Description

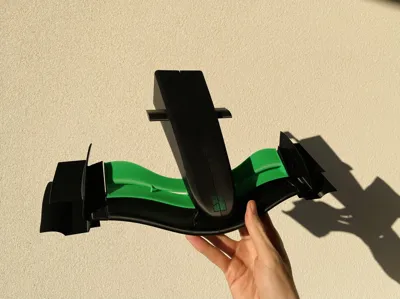

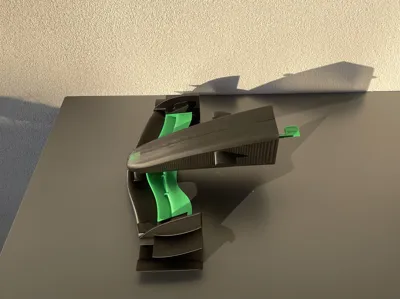

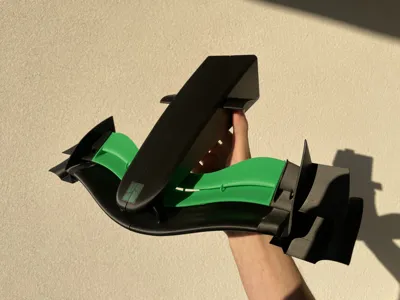

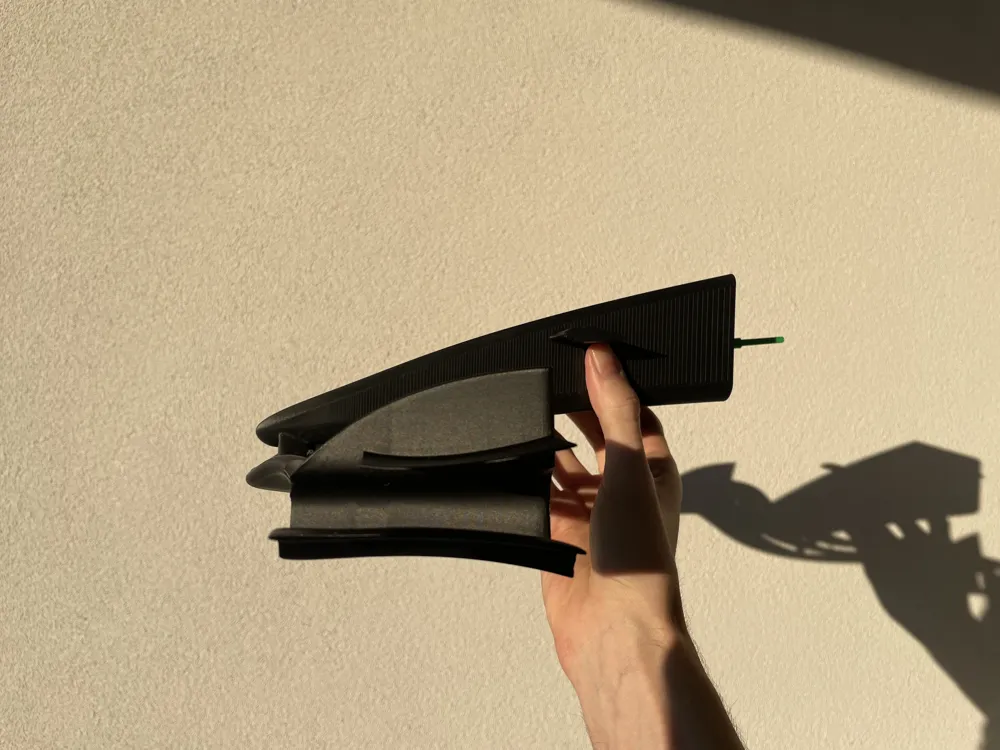

Introducing the F1 2026 Front Wing, a fully functional 1:5 scale replica featuring a working Active Aero flap mechanism!
Boost Me (for free)
If you enjoyed the engineering and complexity of this model, please consider leaving a Boost! š Every Boost directly fuels the development of new, larger, and more intricate models for the community. Your support moves my projects forward!
This project has been an incredible journey, and Iām excited to finally share it with the 3D printing community and motorsport fans!
Behind countless hours of designing, prototyping, and refining all the details, hides my passion for making things, engineering, tinkering, and sharing it, but mostly my love for racing cars!
Details
This F1 Active Aero model is designed for precise printing and precise assembly.

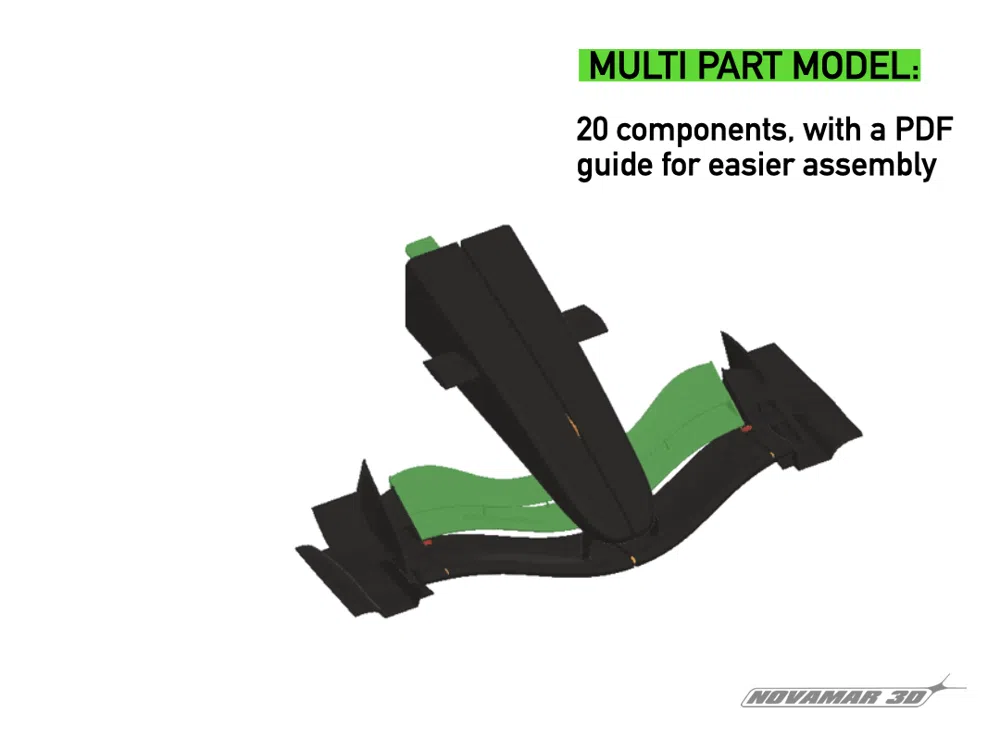

- Components: The model is composed of a total of 20 pieces, separated for optimal printing and to minimize supports.

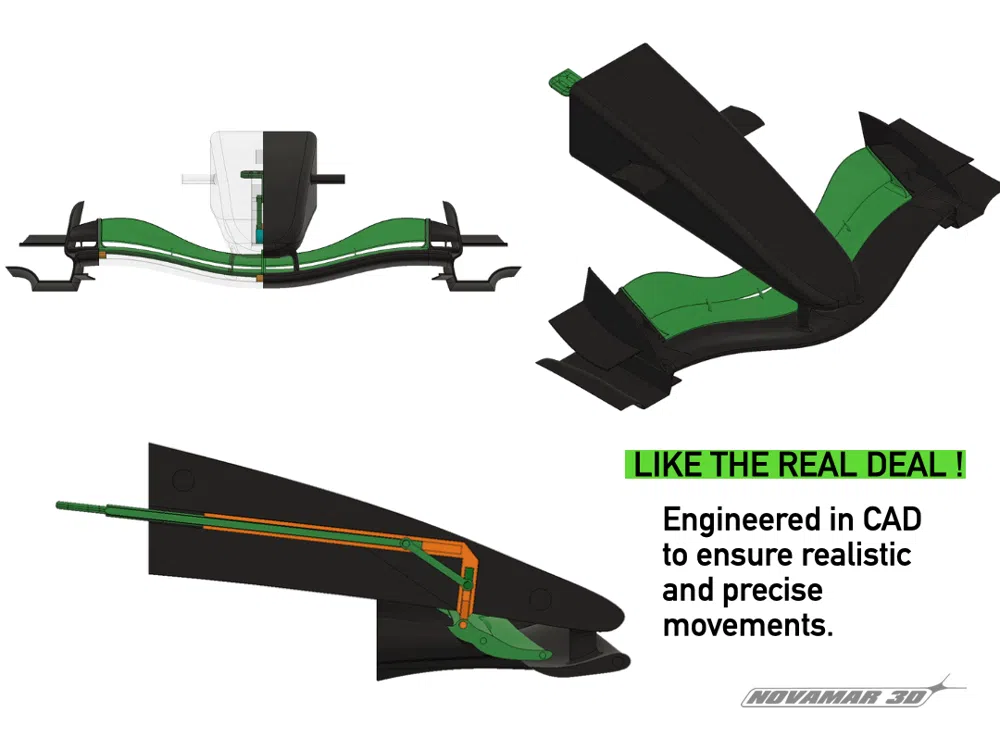

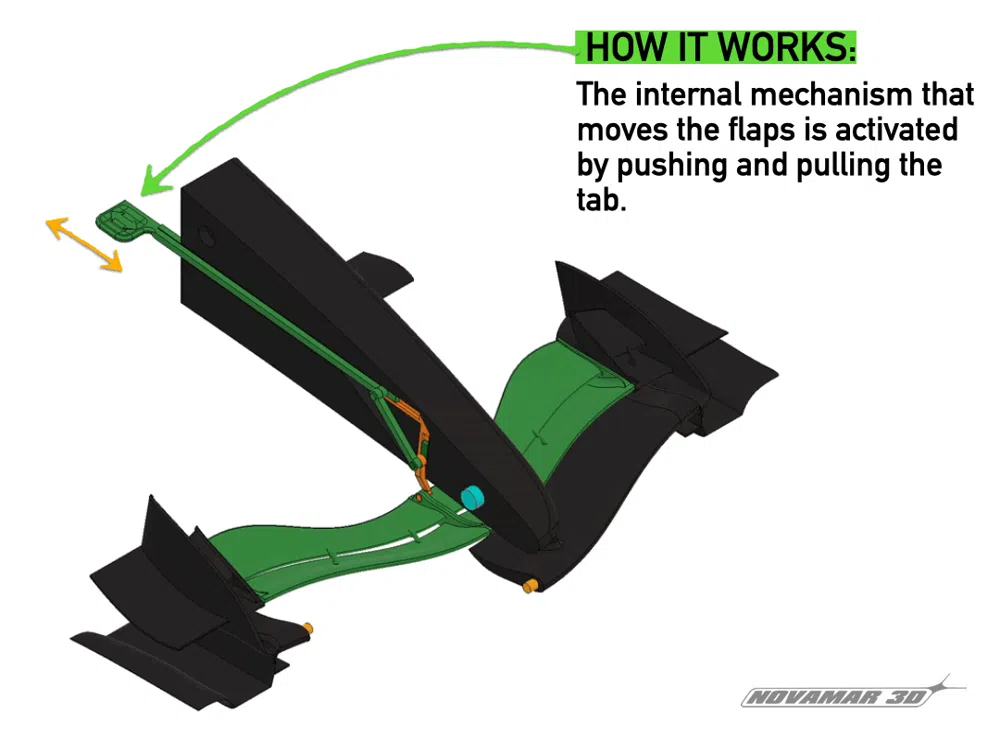

- Mechanism: The core feature is the internal mechanism which drives the motion of the flaps, creating a realistic, functional Active Aero system of the new f1 cars of 2026
- Assembly: All pieces are designed to be connected using robust built-in snap connectors, meaning little to no glue or extra hardware is required for assembly.
- Scale 1:5 (based on a real 1900mm wing span)
- Dimensions: 364 x 271 x 112mm
- Tested on: Bambu Lab A1 Combo
- Difficulty: Medium (Requires careful assembly and fine-tuning).Ā
ā ļø PLEASE LOOK AT THE ASSEMBLY GUIDE PDF UNDER DOCUMENTATION ā ļø
Important Notes Before Printing ā ļø
- Tolerances: The mechanism uses tight clearances (most are 0.15mm). Ensure your printer is well-calibrated, or try to adjust your printer settings to achieve the best results.
- Ā Glue will be required during assembly. Before applying glue, make sure to test-fit the parts to ensure a perfect fit and avoid any mistakes.
- Filaments: I used BambuLab PLA BASIC, result may differ if you use other filament types
Assembly Guide: Please refer to the comprehensive Assembly Guide (PDF) provided in the files for step-by-step instructions.
Ā

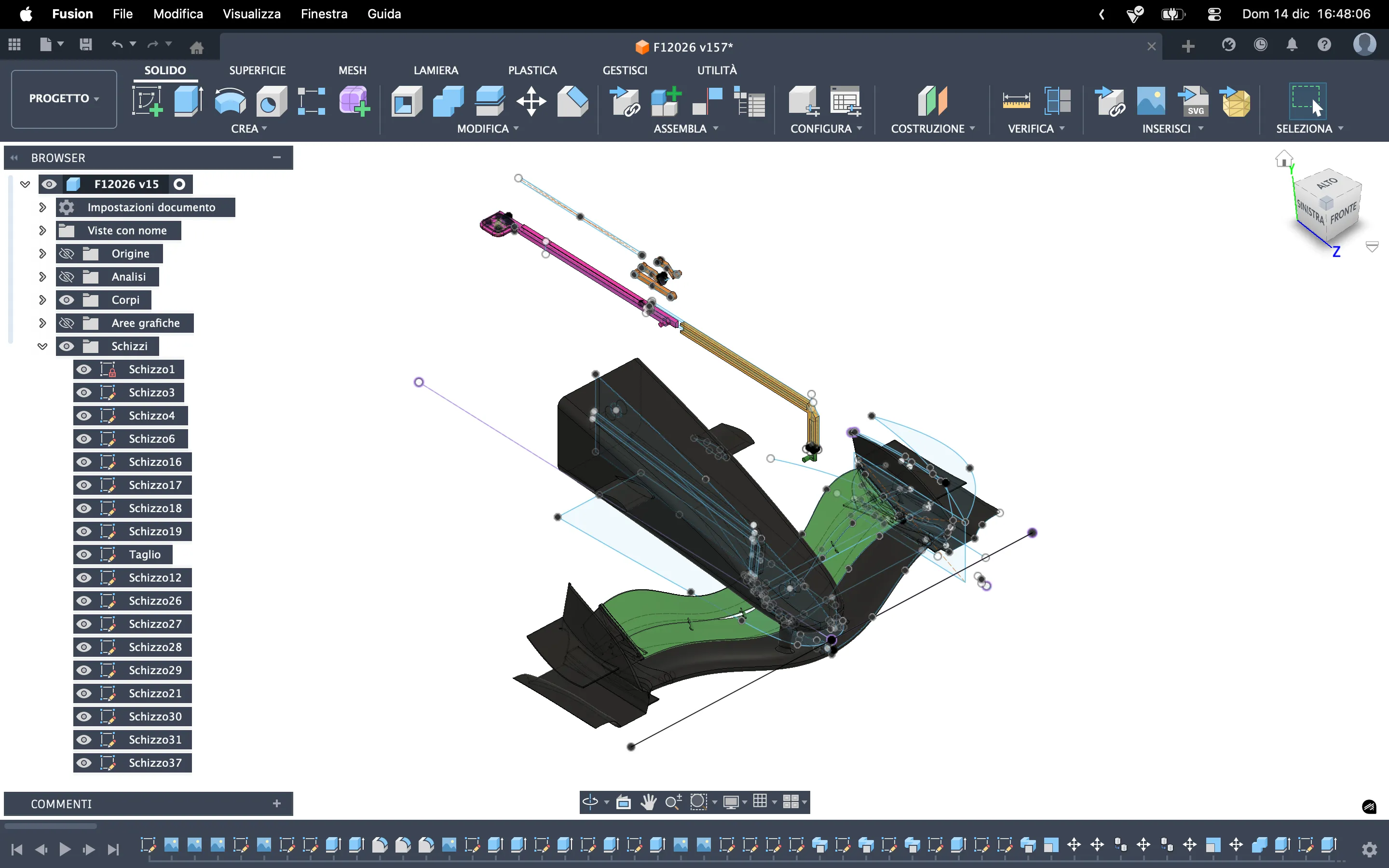

This project was entirely made by me in Autodesk Fusion 360, sliced in Bambu Studio, printed on my Bambu Lab A1 Combo, and published with the Maker World Exclusive Program.
Hope you find the same joy I found building this project!
If you liked this project, please let me know with a Like or a Boost! Ratings also work!Ā šš»šāāāāā
Consider looking at my profile for other models that may interest you!
These actions would help me tremendously in my next projects, allowing me to create even larger, more complex models for the community.
Thank you for your support! Let's go!
