2.2 Comp Spec Bead Lock Crawler Wheels
Print Profile(1)
Description
Boost Me (for free)
Boosts let me know you enjoy my models. Thank you!

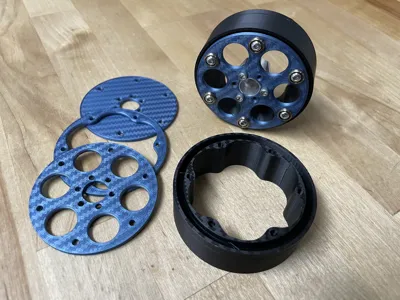

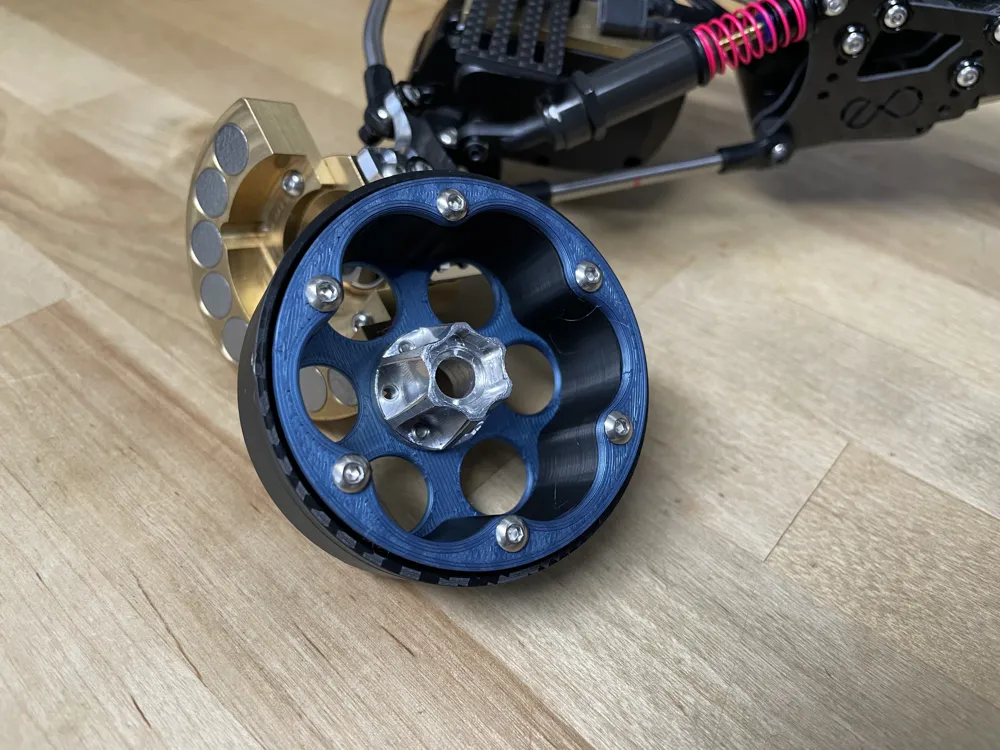

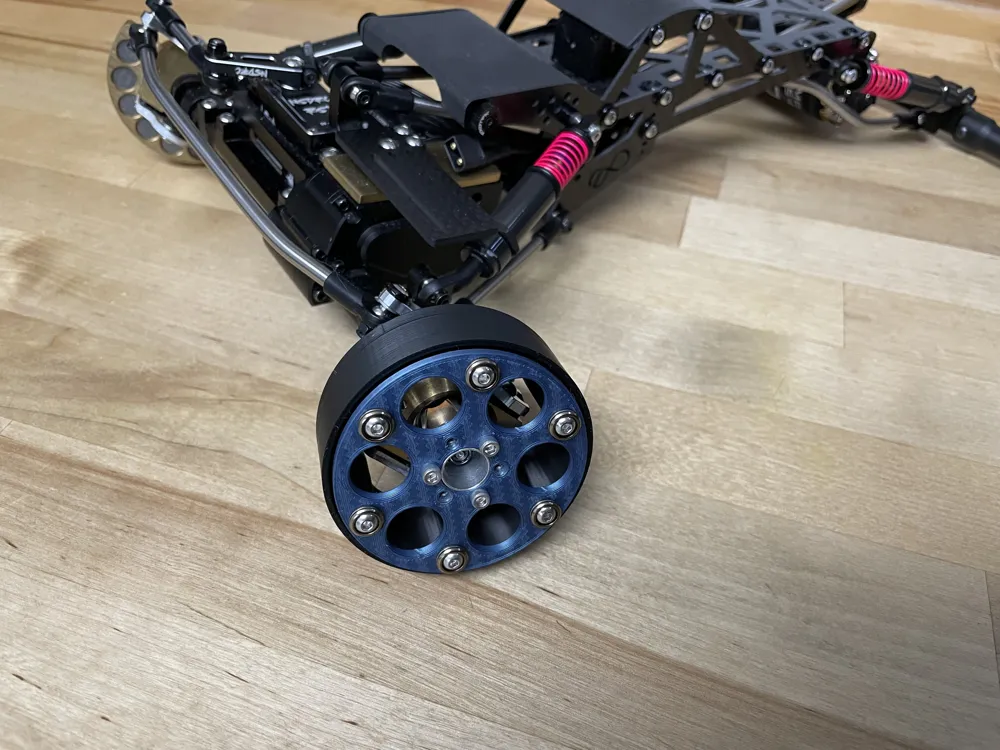

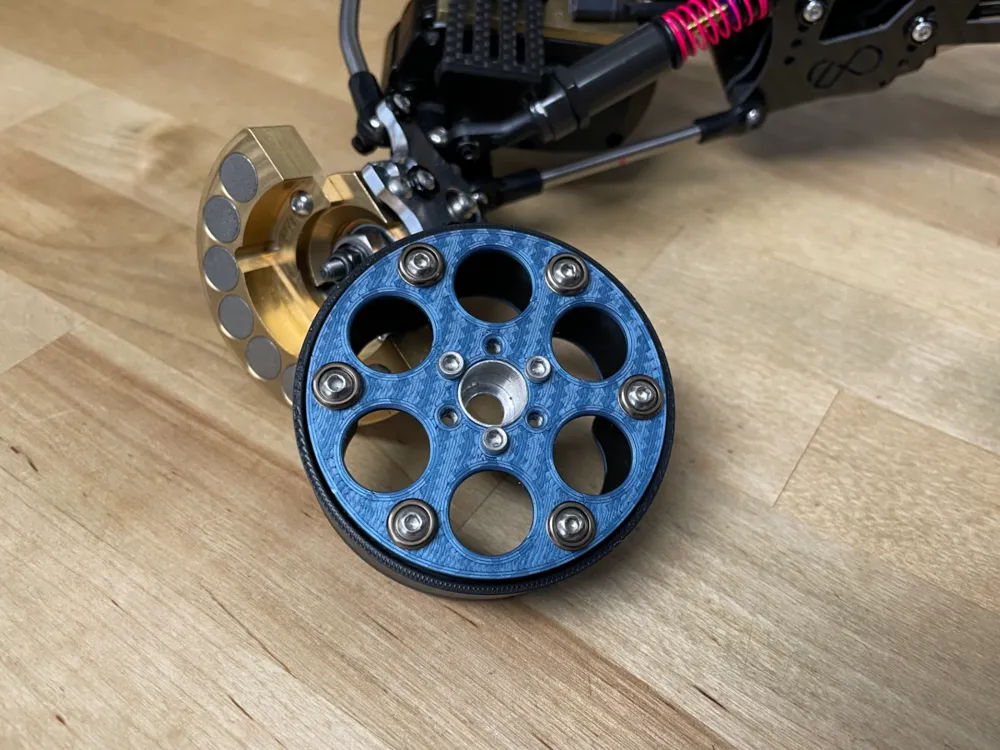

Here are my 2.2 Competition bead lock wheels. I designed these with the intention of creating a well polished, strong and aesthetically pleasing 3D printed bead lock wheel.
Features:
- Deep bead lock groove to accept all size tire beads
- Smooth inner bead lock barrel.
- Reinforced holes for strong bead clamping

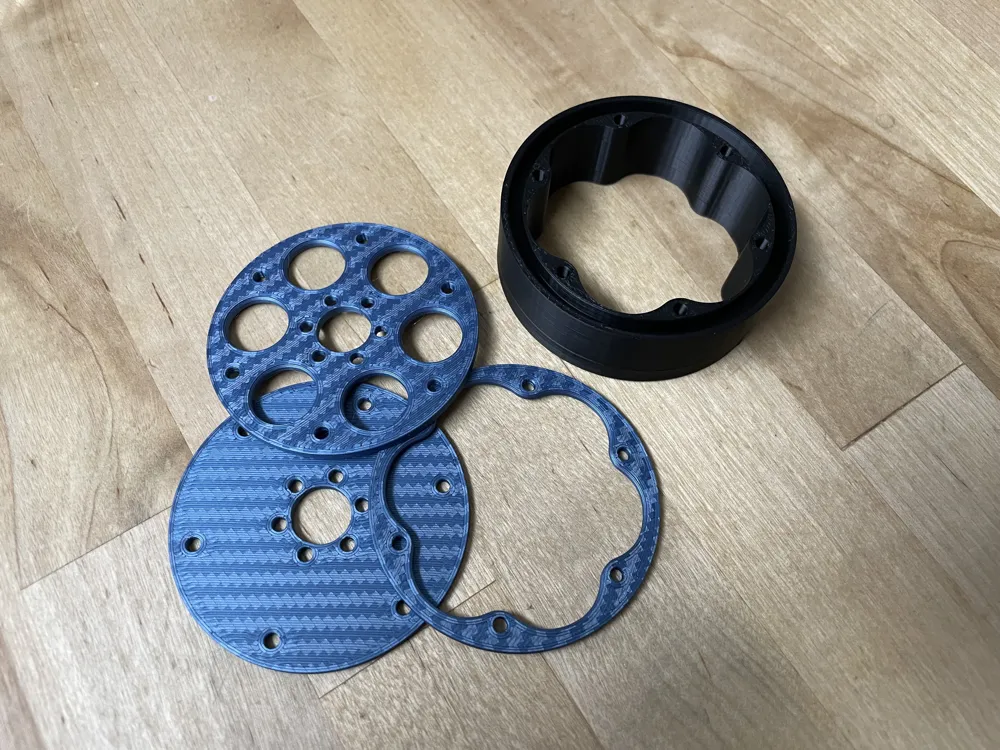

- 2 wheel faces available (Revolver & Comp)… More to come!
- Bead lock bodies are compatible with most 2.2 carbon wheel faces.
- Compatible with Dlux knuckles
- Fully rebuildable
Recommendations:
- Plates are preset for a full set 4 wheels. Add/Delete items as needed.
- Brim is highly recommended for the bead lock bodies. The brim has been preset so don't forget to remove the brim from the faces and rear bead lock ring before printing.
- Textured plate is highly recommended for the bead lock bodies as smooth plates allow the model to lift and lose alignment.
- Faces can be printed on effect plates to give an optional look. i.e. carbon fiber, etc.
This is a personal model/file and is not to be distributed or sold in any way without my written consent. Thank you and I hope you enjoy!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
