Soldering Iron Workstation Modular Highly Integrated Design
Print Profile(1)
Description

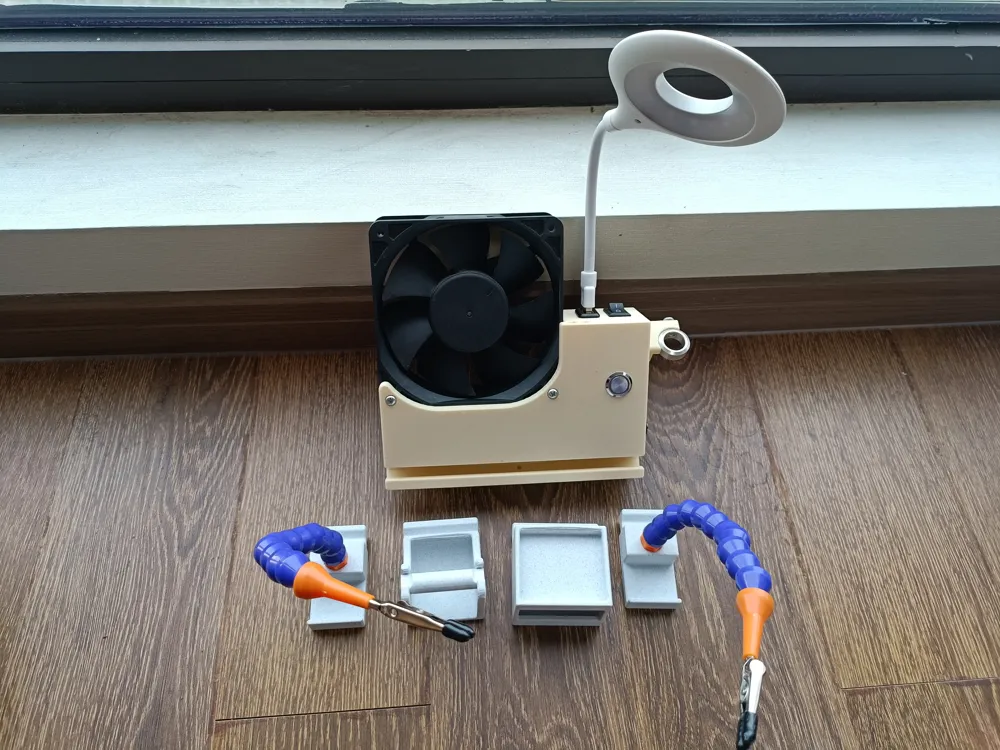

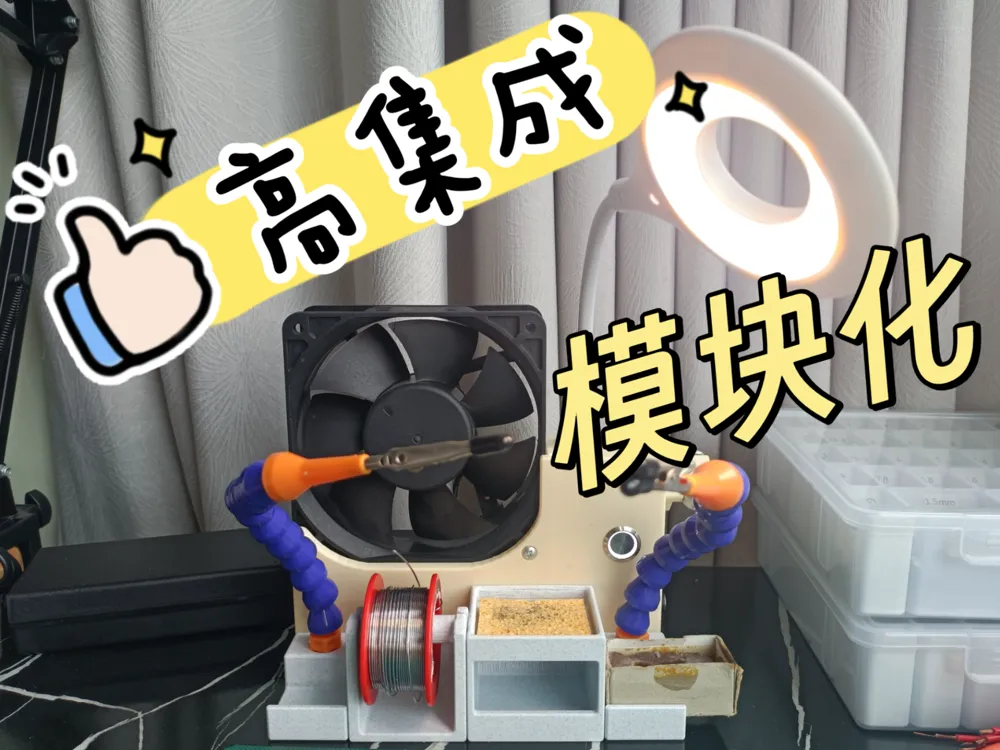

Highly integrated, modular splicing design, can be separated for individual use

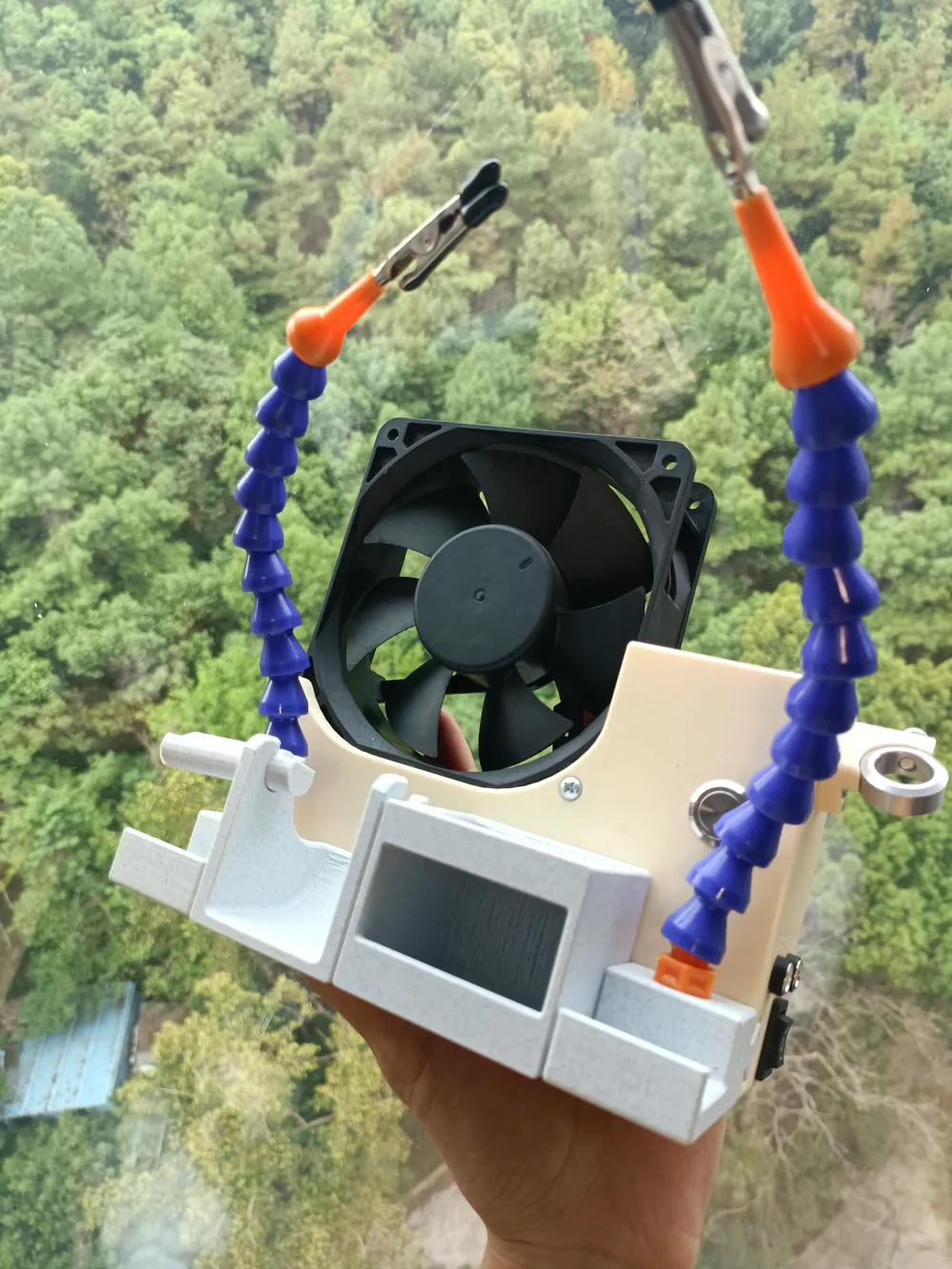

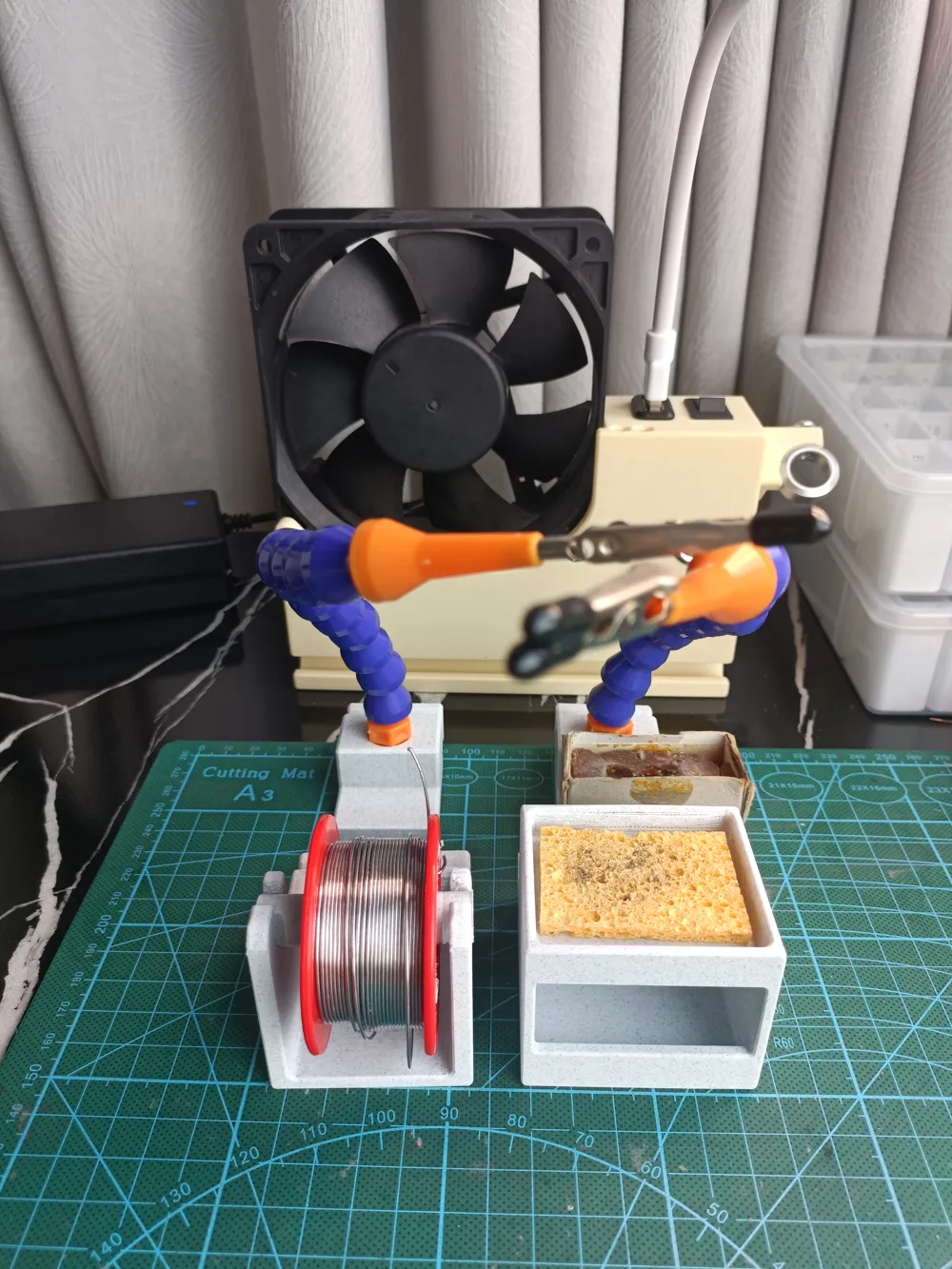

Includes fume extractor fan, desk lamp, universal clamp, soldering iron stand, sleep holder, soldering tip slot, sponge slot, rosin slot

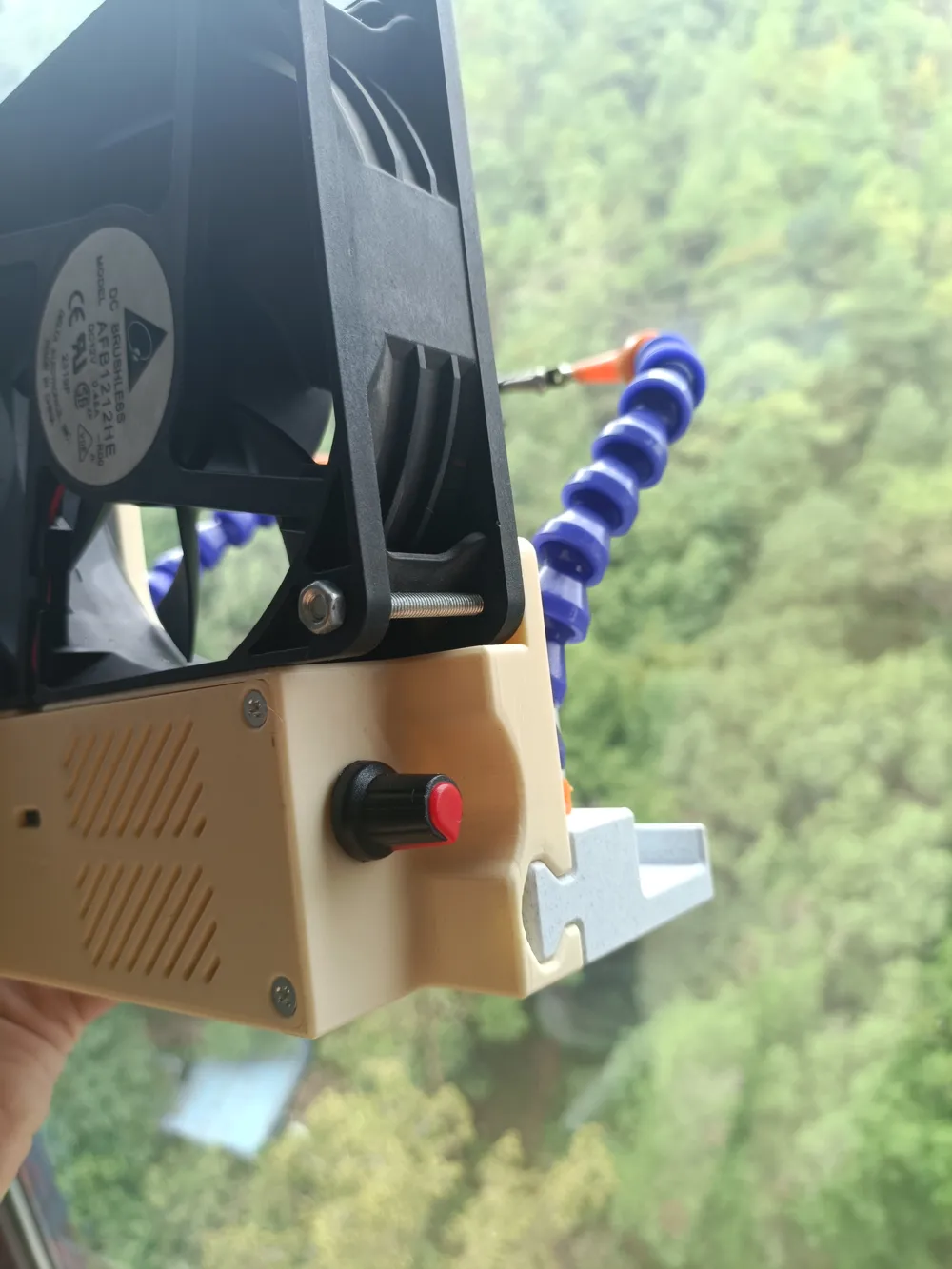

Fan speed adjustable, lamp can be switched on/off independently

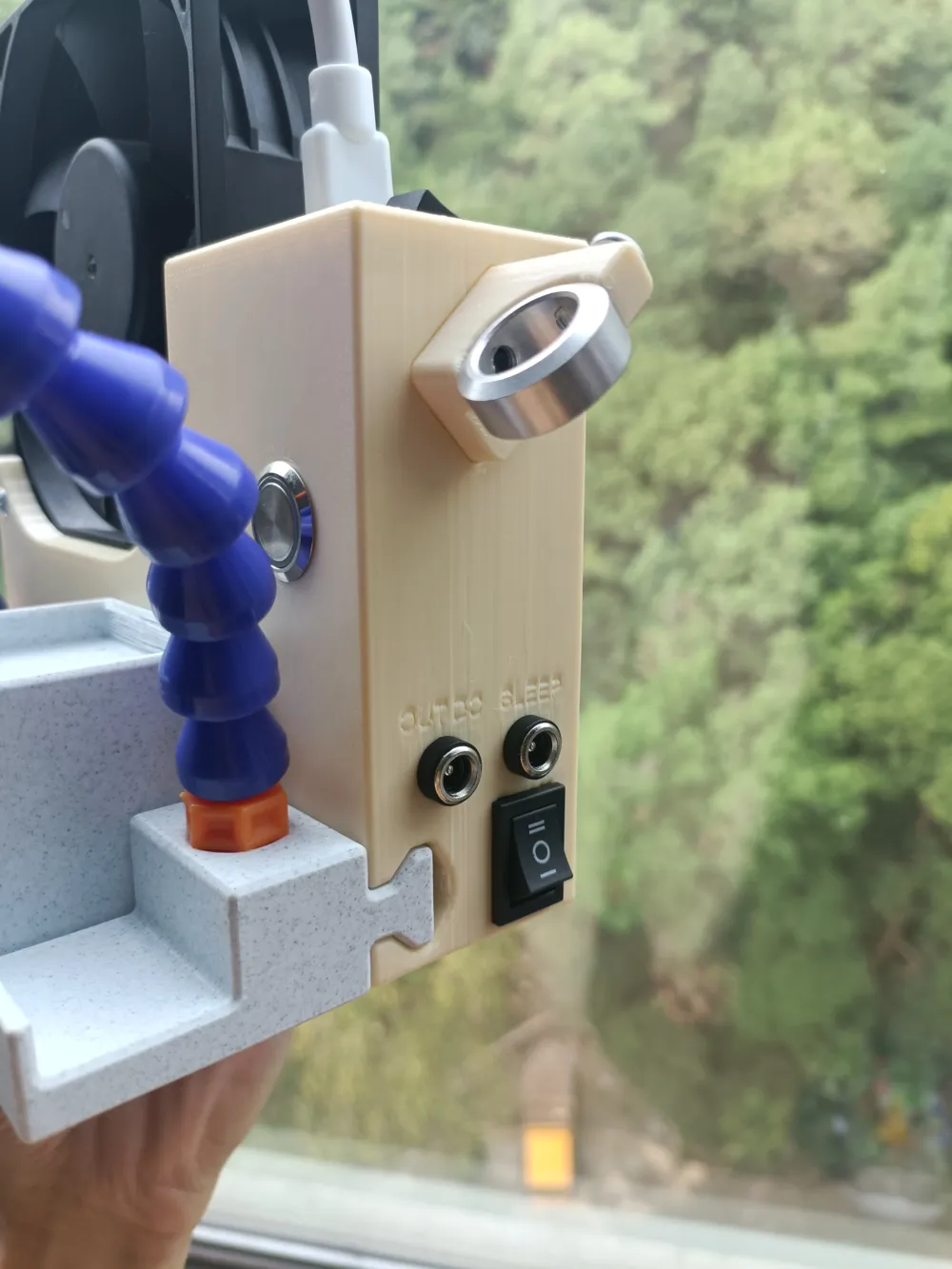

Soldering iron holder with sleep function, can be used with a DC sleep port and a three-position switch to toggle the sleep holder function: Off/Sleep (standby)/Core replacement (no heating)
Built-in dual buck converter modules, wide voltage power supply
Input voltage: 12~35V,

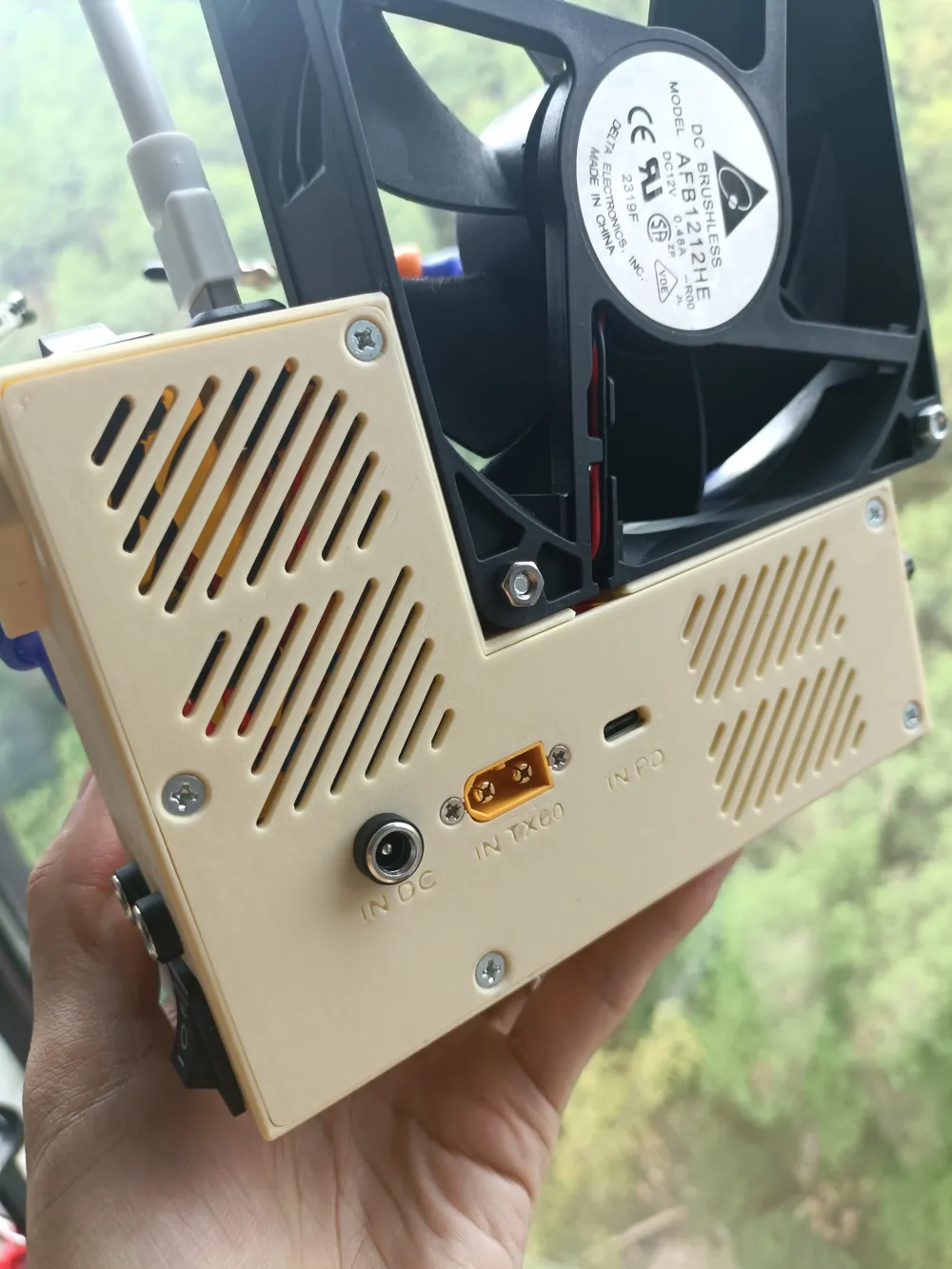

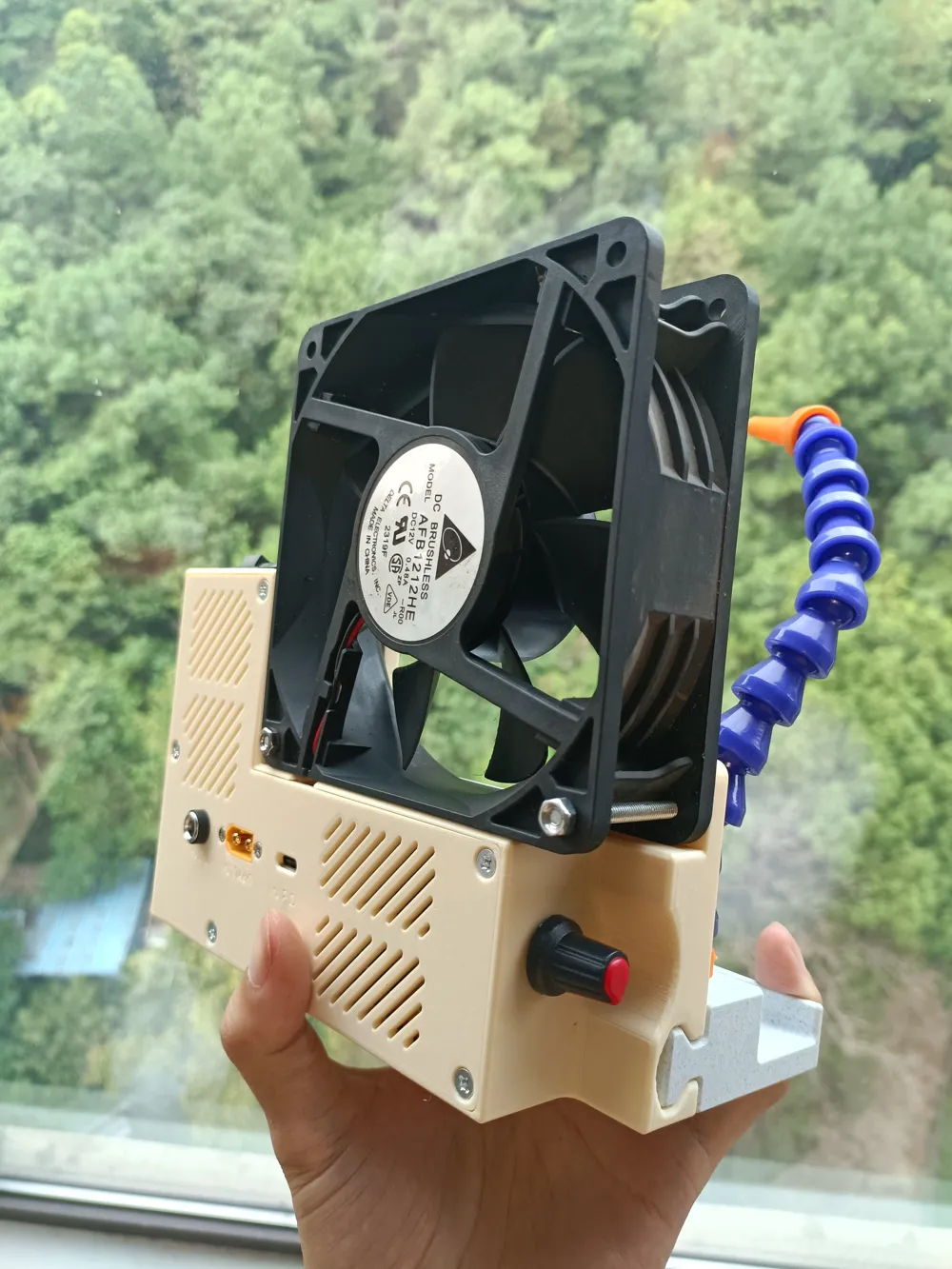

Input interface: DC 5.5x2.1, TYPE-C (PD fast charge 12~20V), XT60
Output interface: DC 5.5x2.1 (voltage same as input)
Bill of Materials:
▶ 120mm fan *1 (supports thickness of 38mm and below)

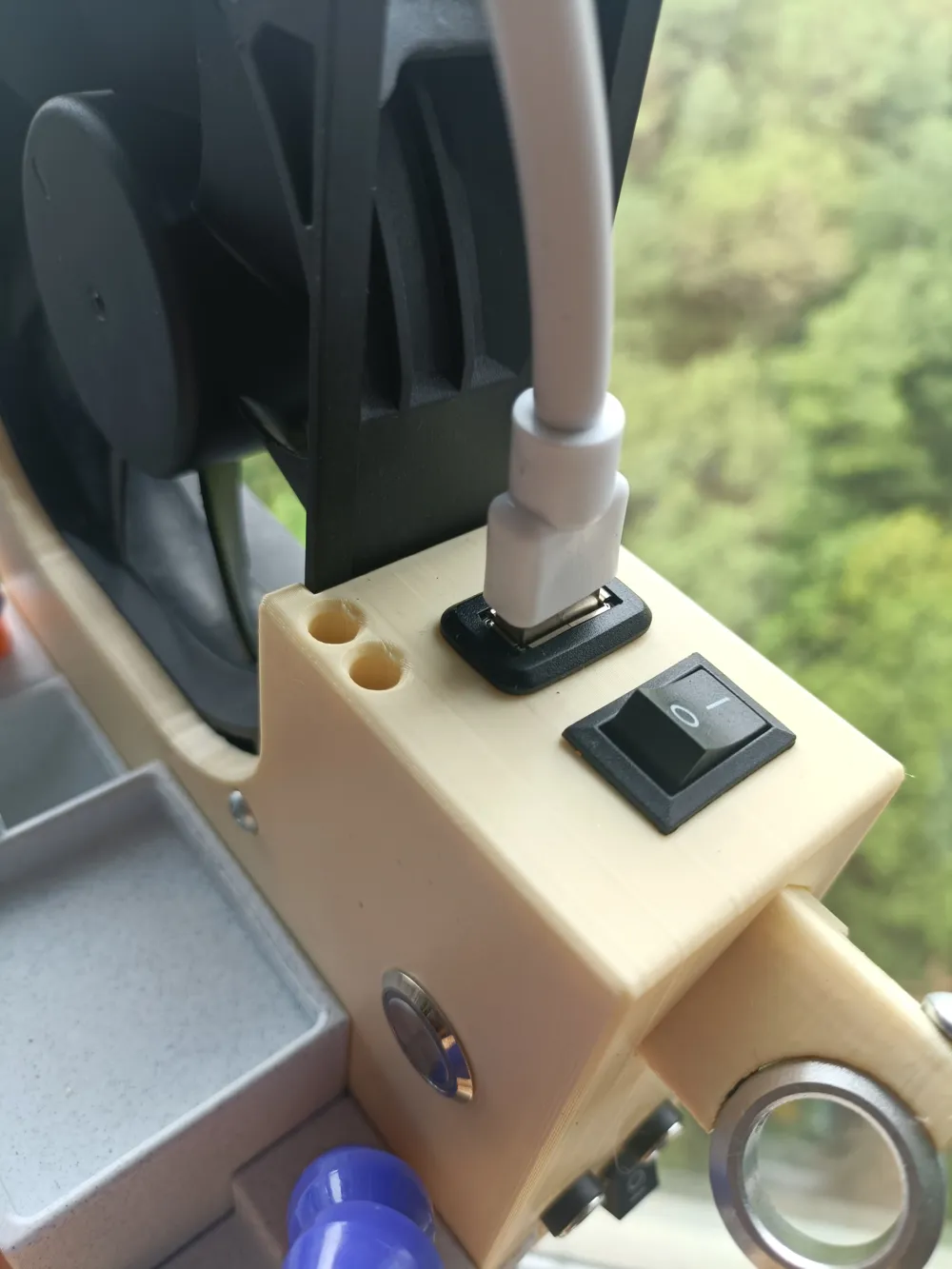

▶ USB night light *1

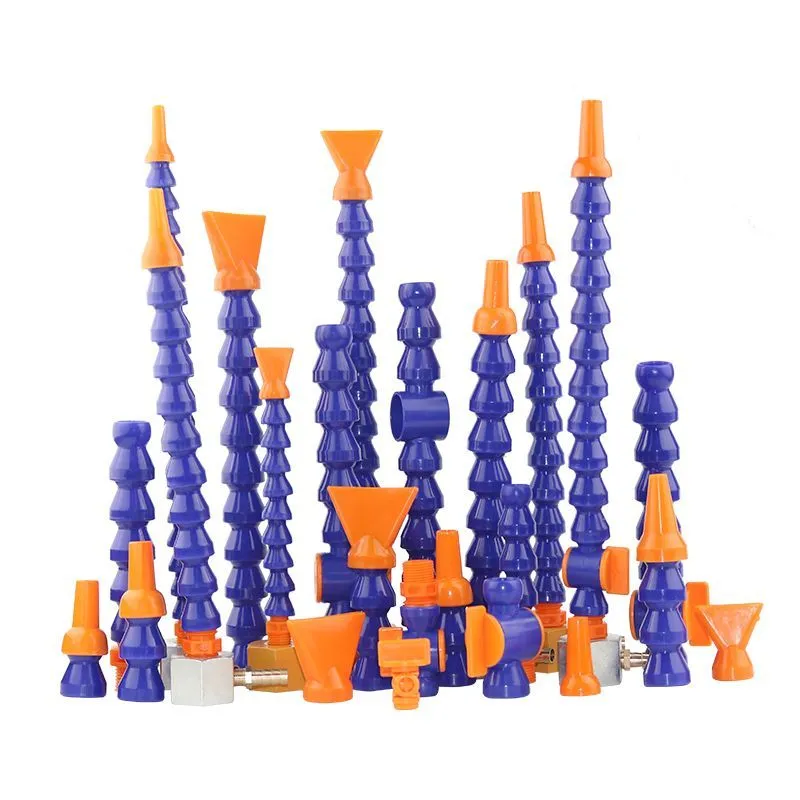

▶ Universal gooseneck tube, thin round nozzle 2 points long 200mm *2

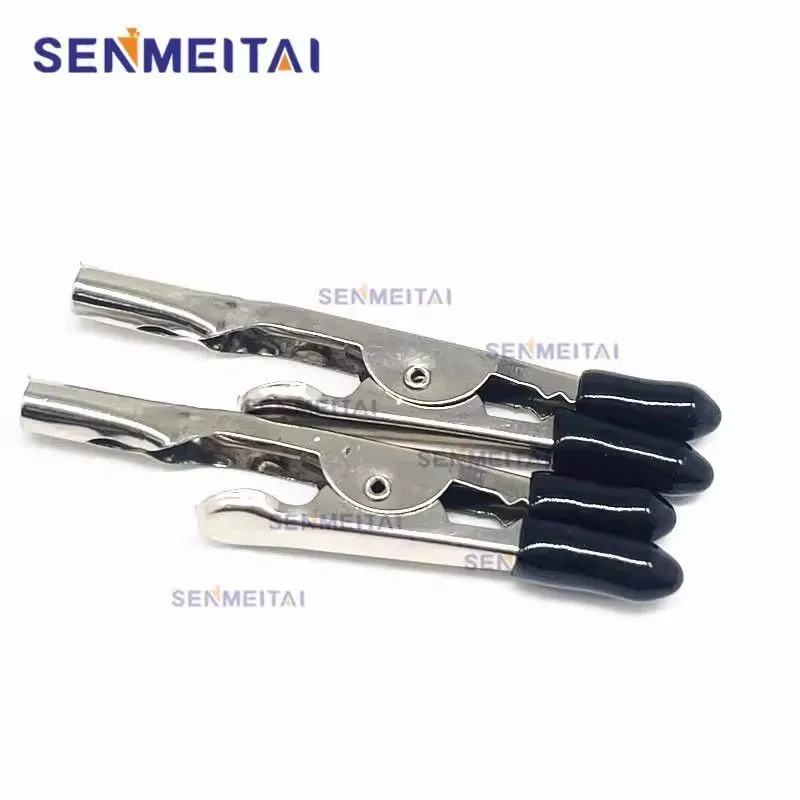

▶ Flat-nose clamp *2

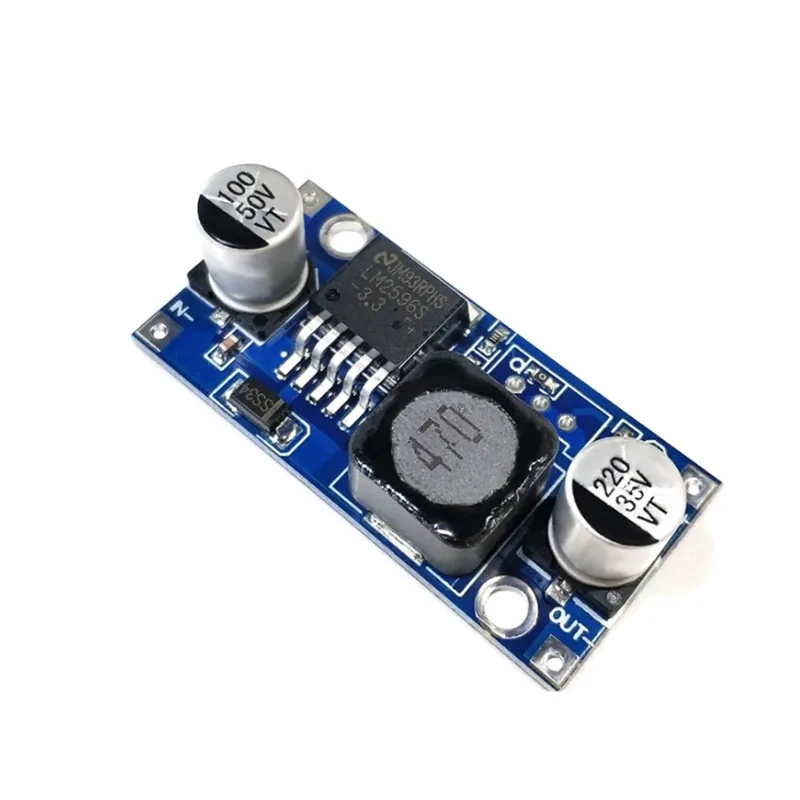

▶ LM2596 buck module to 12V *1
▶ LM2596 buck module to 5V *1

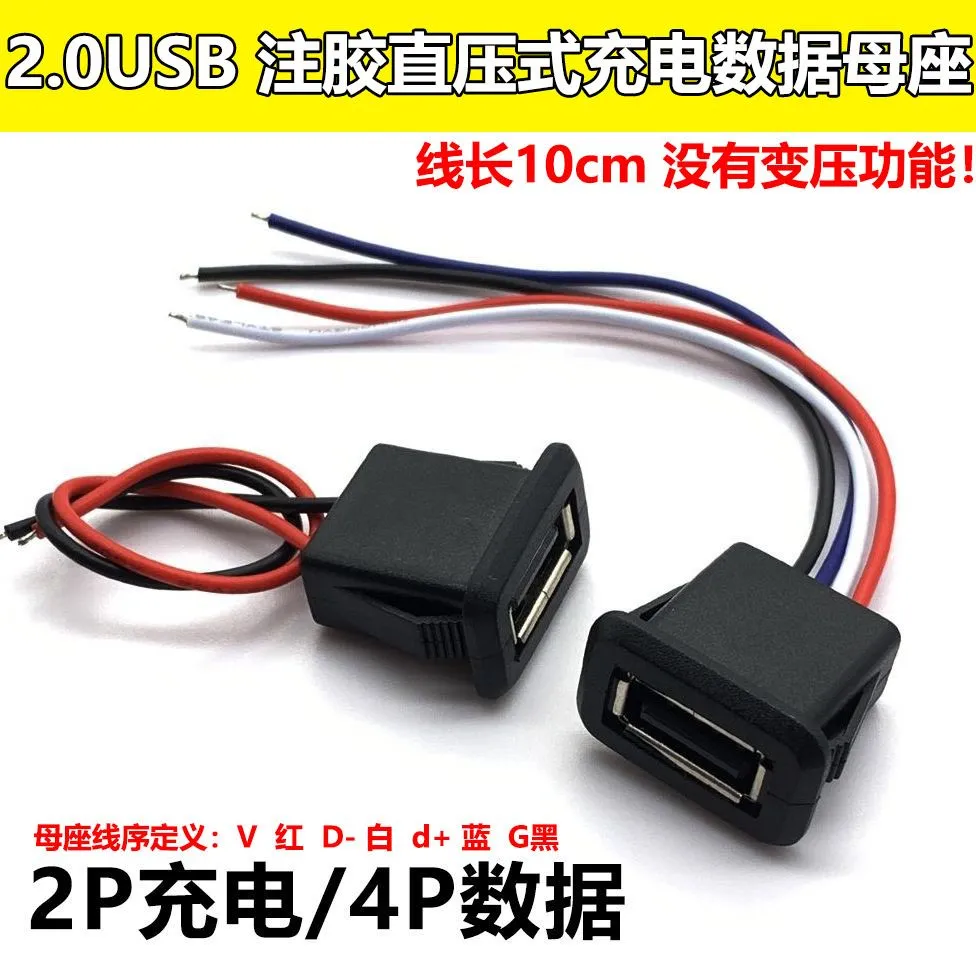

▶ USB female socket, two-wire type *1

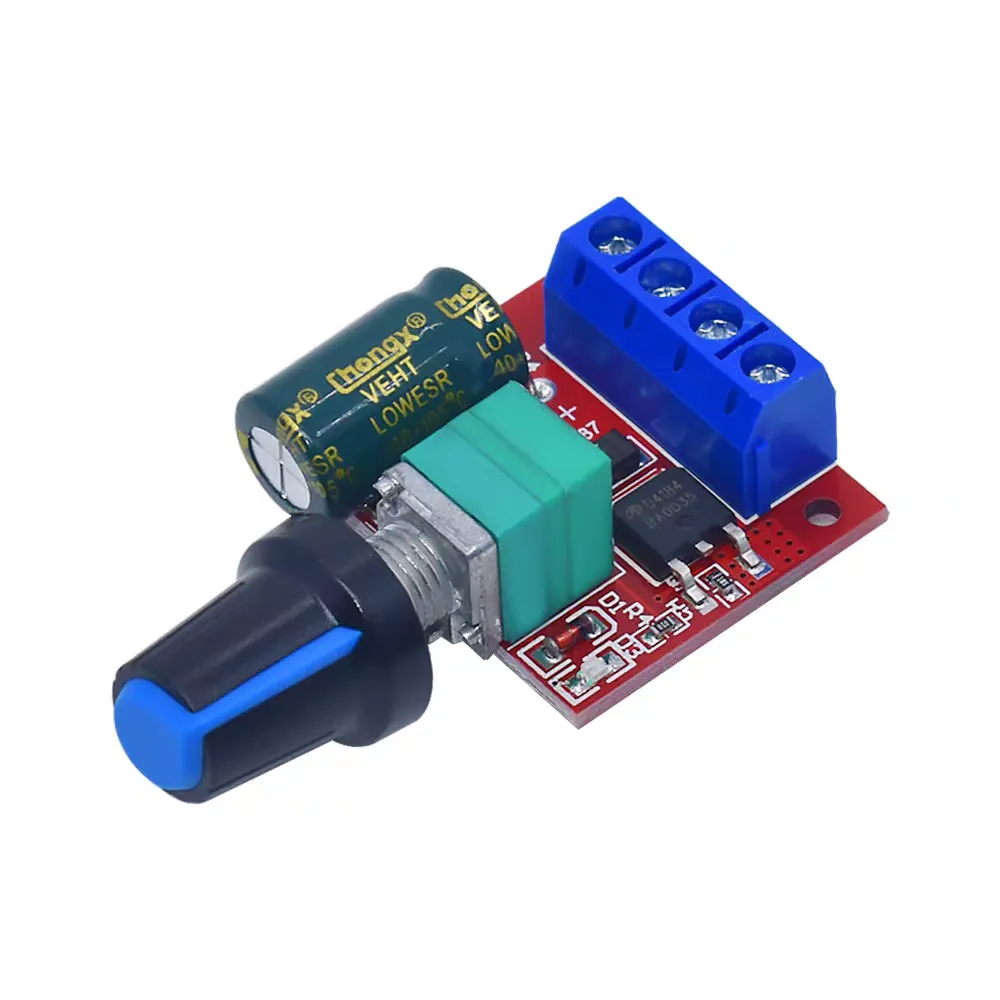

▶ PWM speed controller, DC4.5~35V 5A *1

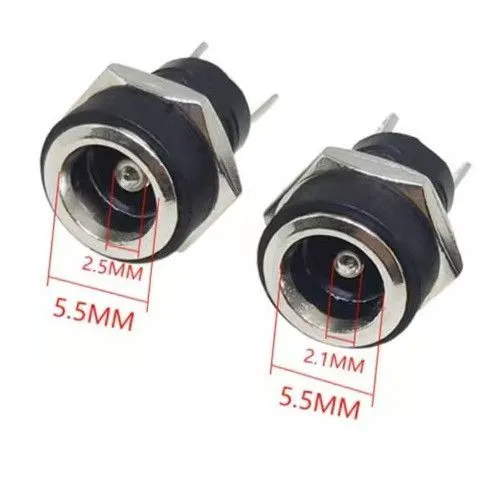

▶ DC female socket 5.5x2.1 *3

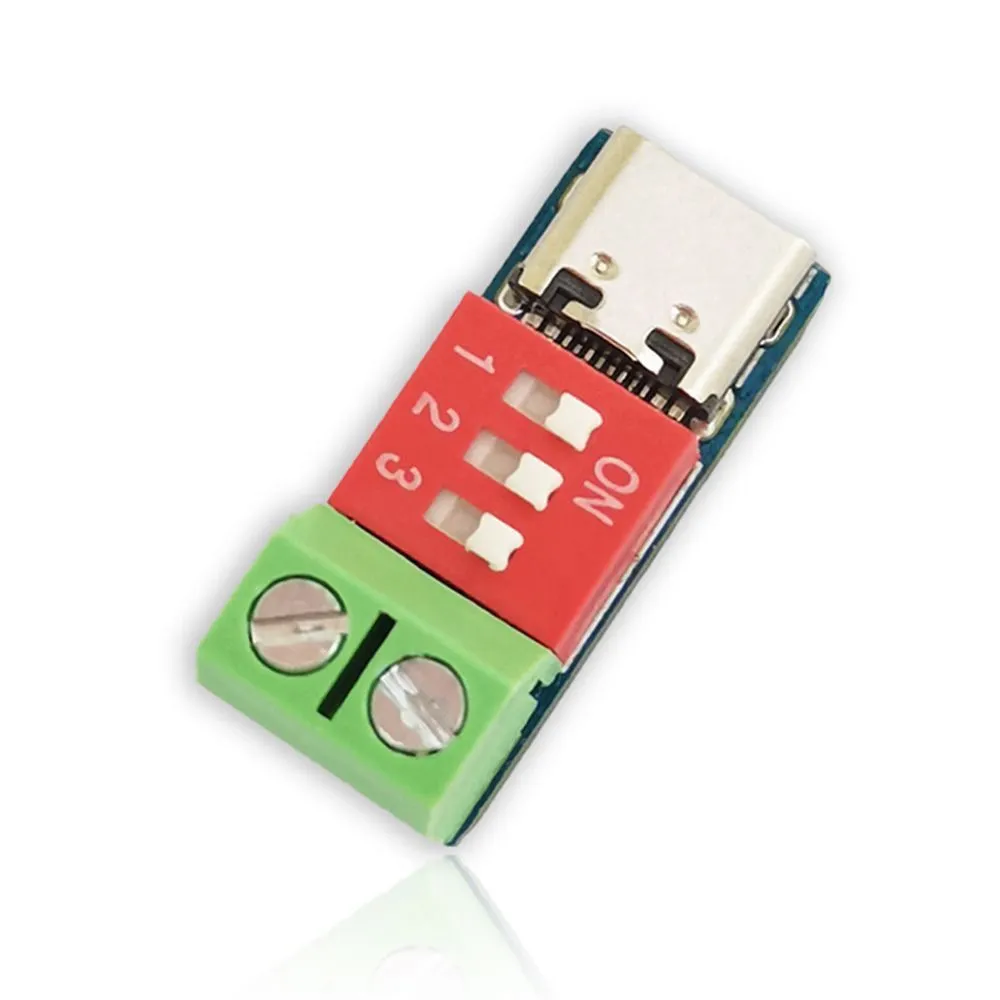

▶ PD trigger module *1
▶ 20A10 diode *1
▶ XT60E-M *1
▶ KCD1 two-pin rocker switch *1
▶ KCD1 three-pin rocker switch *1
▶ 16mm round self-locking switch *1
▶ M3x8 flat head screw *5
▶ M4x45 screw *2
▶ M4 nut *2
Wiring Diagram:
More people need a wiring diagram
