Bill of Materials

List other parts

M4 x 20mm Drywall Screw Phillips Flat Head x 4: The head of these screws has a conical shape that tapers down the shaft, allowing it to sink into the material until the top surface is perfectly even (flush) with the wall material, creating a smooth finish.
Wall plugs suitable for drywall, concrete, or masonry x 4:

Description

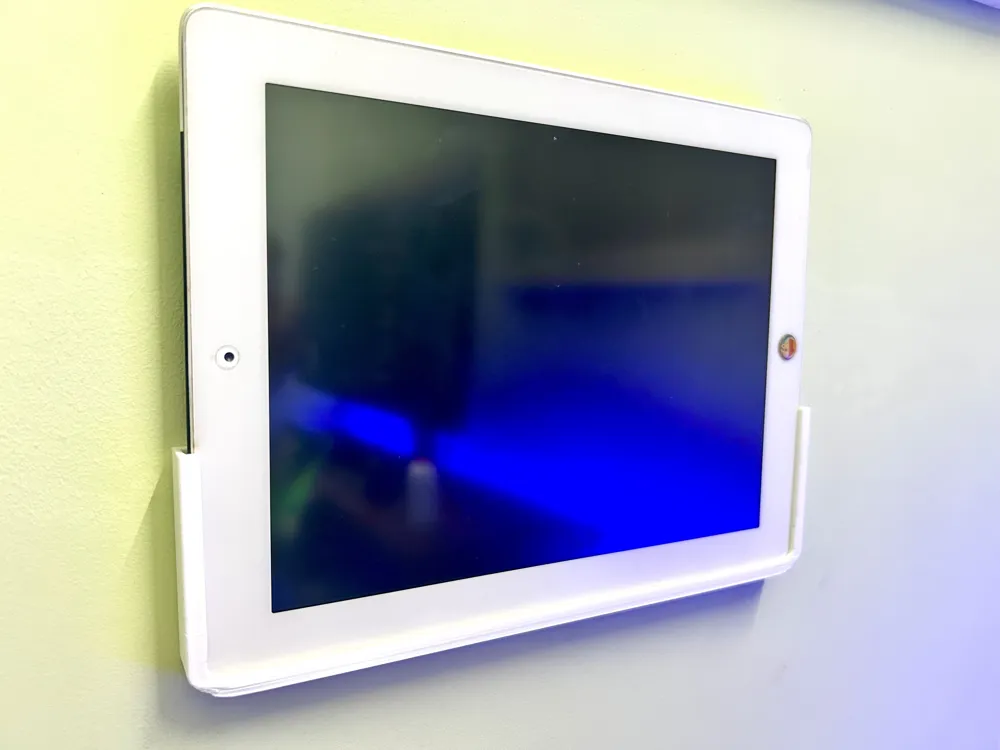

📌 Apple iPad 2 (A1396) Secure Wall Mount

This is a 3D-printable wall mount designed specifically for the Apple iPad 2 Wi-Fi + 3G (Model A1396), released in March 2011.

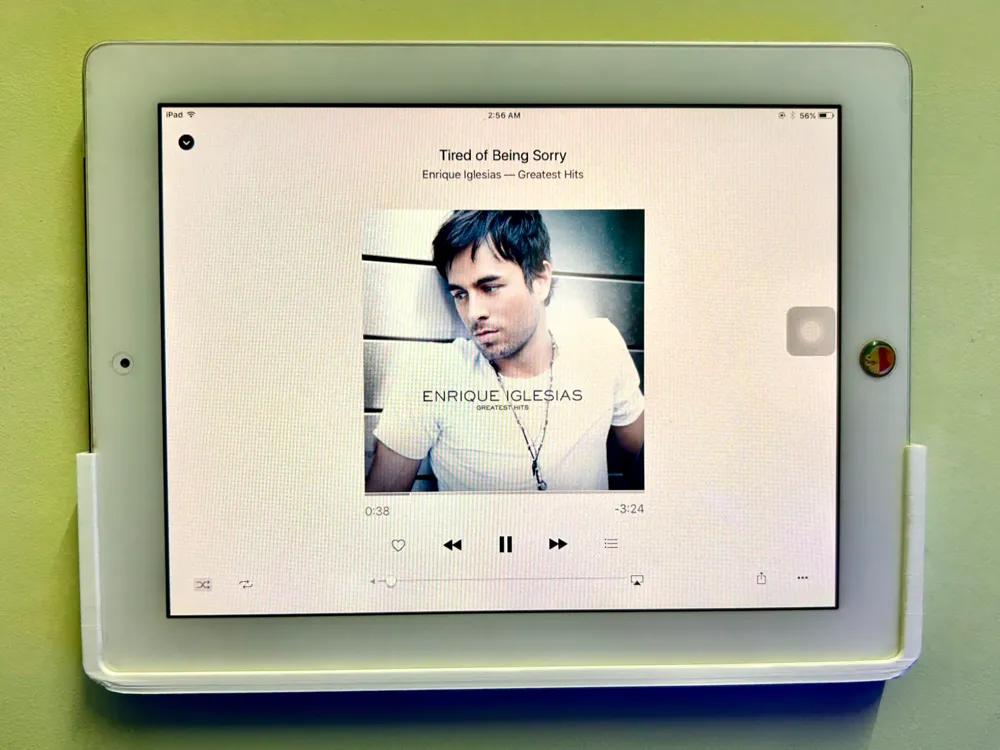

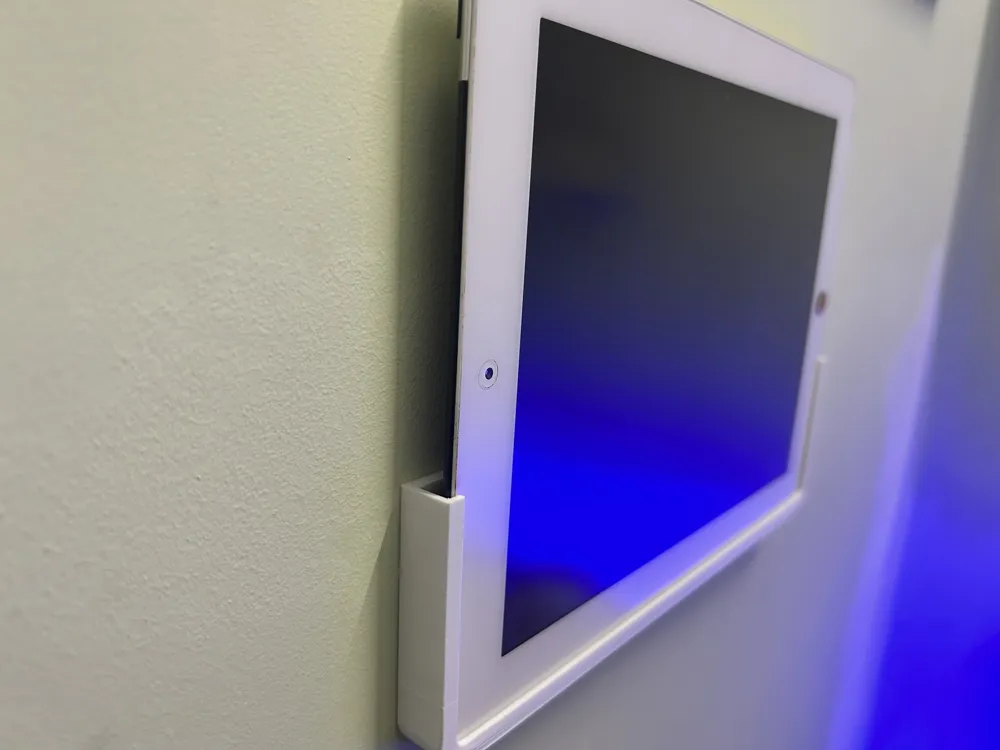

The mount provides a secure, clean, and space-saving solution for mounting your iPad on a wall while maintaining easy access to buttons, charging port, and ventilation.

✅ Compatible Device

Apple iPad 2
Model: A1396
Thickness: 8.8 mm
Weight: ~607 g

⚠️ This model is designed for bare iPad only.
If you use a case or skin, additional clearance may be required.

🧩 Key Features

Designed specifically for iPad 2 (A1396)
Secure fit with safe printing tolerances
Open design for airflow and heat dissipation

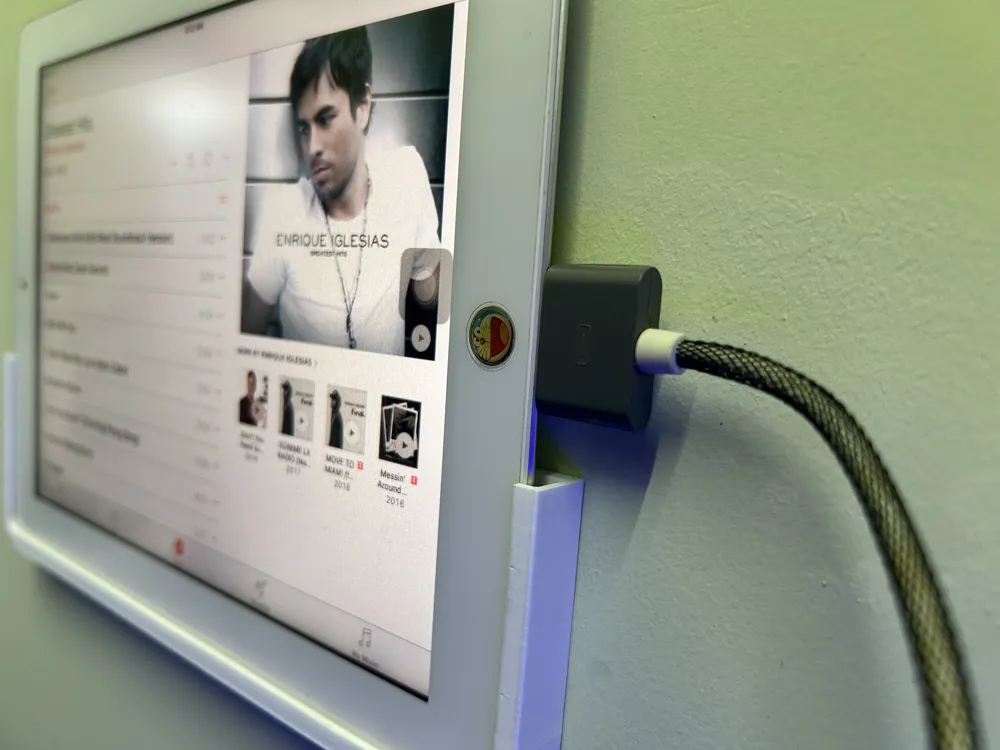

Charging cable access from the side
Clean, minimal wall-mounted appearance
No permanent modification to the iPad

🖨️ Printing Recommendations

Printers: Bambu Lab A1 / P1 / X1 series (or similar FDM printers)
Materials:
- PLA+ (indoor use)
- PETG (recommended for warmer environments)
Nozzle: 0.4 mm
Layer Height: 0.2 mm
Infill: 25% (Gyroid or Cubic)
Walls: 4 perimeters

🔧 Print Orientation & Supports

No supports required for most setups
Enable a brim if your printer has adhesion issues

🛠️ Assembly Overview

Test fit the iPad before wall installation

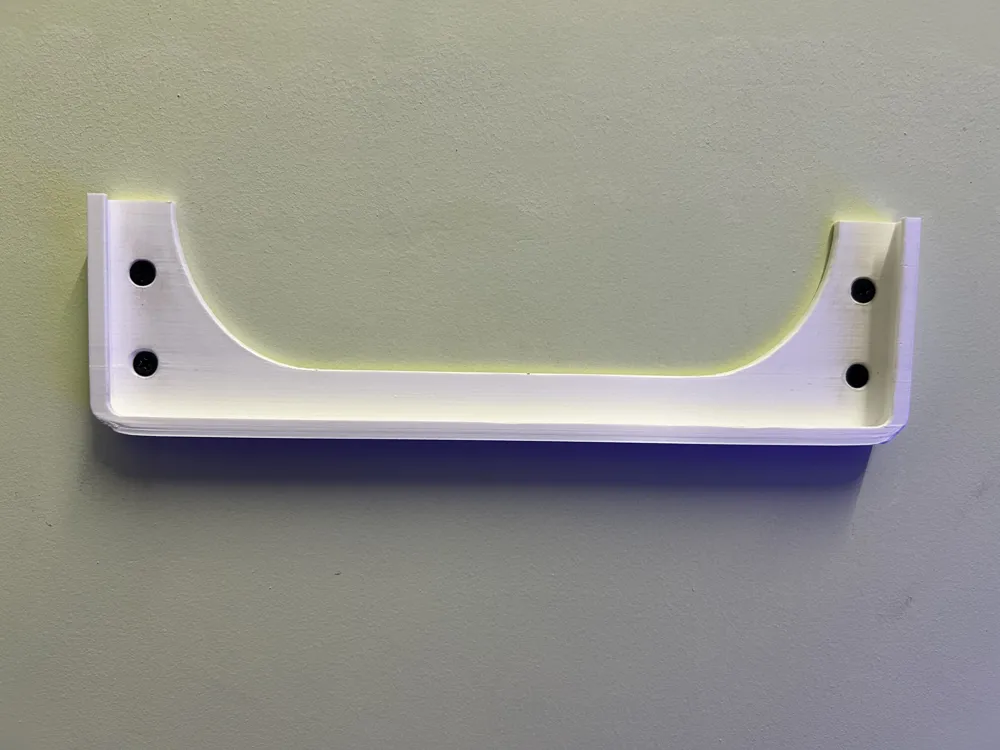

Secure the mount to the wall using suitable screws and wall anchors
Insert the iPad and connect the charging cable

🧱 Mounting Hardware (Not Included)

Recommended:

4× M4 x 20mm Drywall Screw Phillips Flat Head
Wall plugs suitable for drywall, concrete, or masonry

⚠️ Due to the iPad’s weight (~607 g), ensure the mount is fixed securely into wall anchors or studs.

⚠️ Safety & Disclaimer

Always test fit before final installation
Ensure screws and anchors are properly tightened
The creator is not responsible for damage caused by improper installation or use
