Belt Holder with Metal Pin (improved version)

Optimized version of: https://makerworld.com/de/models/2080556-belt-holder-wardrobe-ikea-pax#profileId-2248114

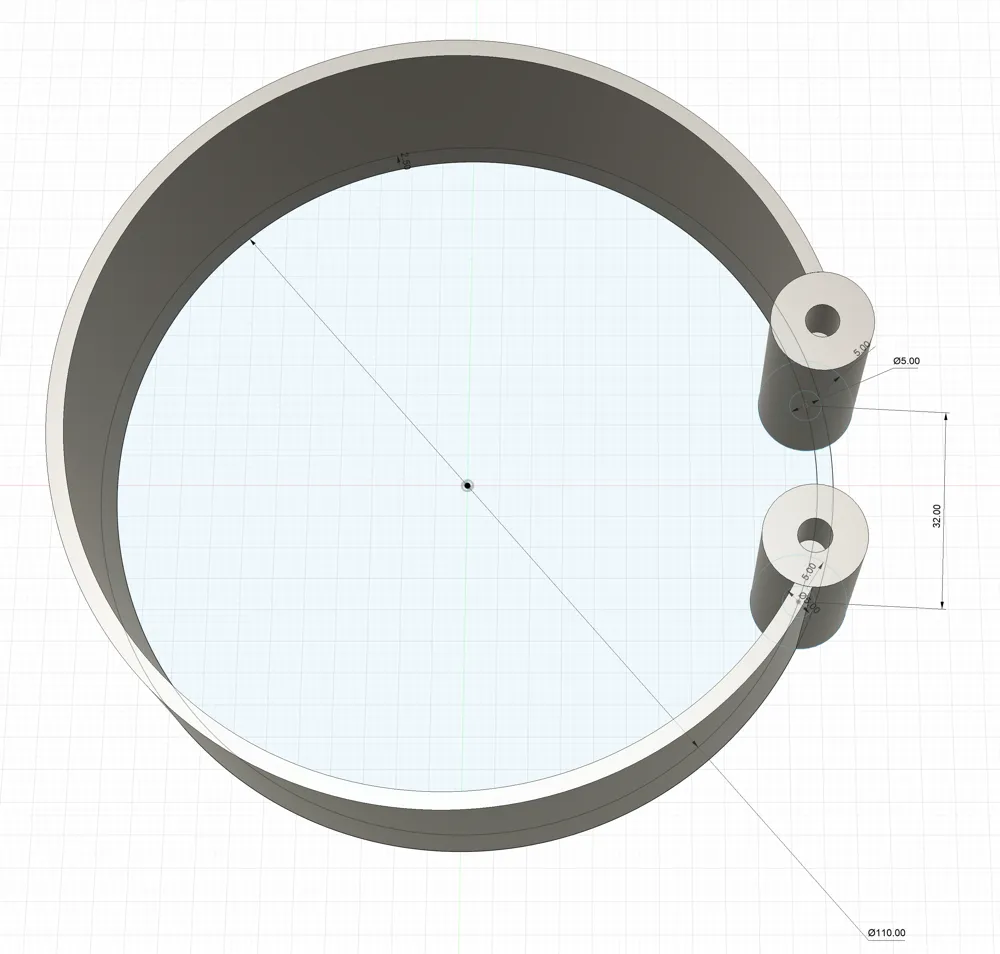

Belt holder suitable for IKEA PAX wardrobes It can be inserted directly into the perforated strip without screws Hole spacing must be 32mm Hole diameter cabinet 5mm Depth 10mm The diameter of the belt holder is 110mm

I can also produce a larger or smaller version upon request

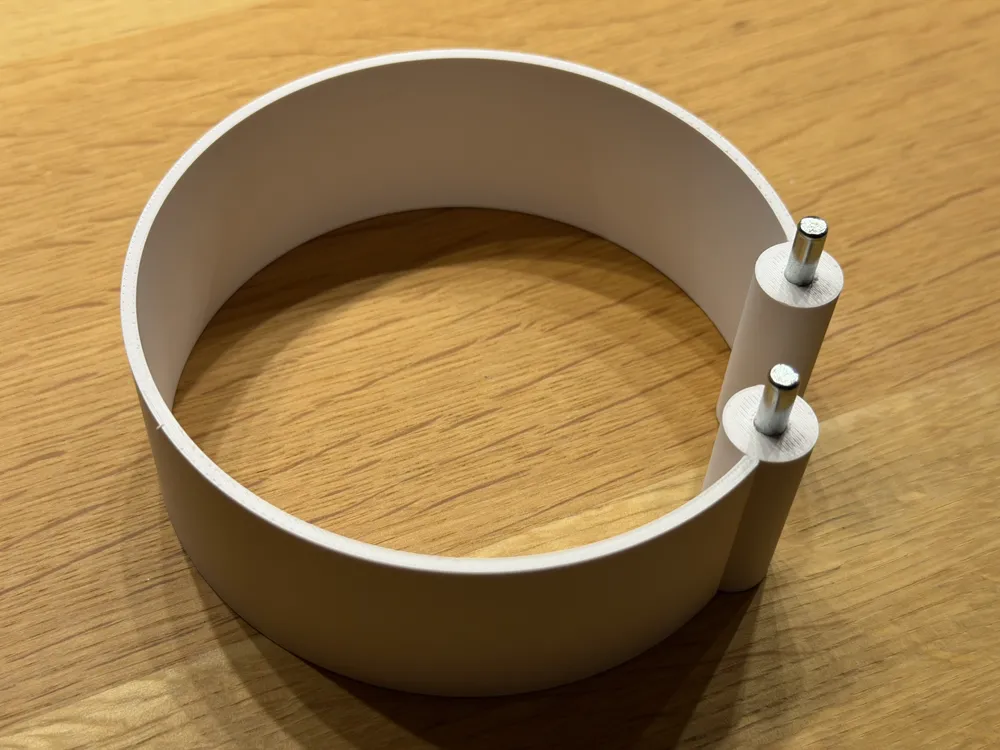

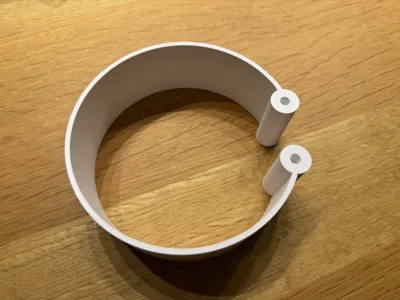

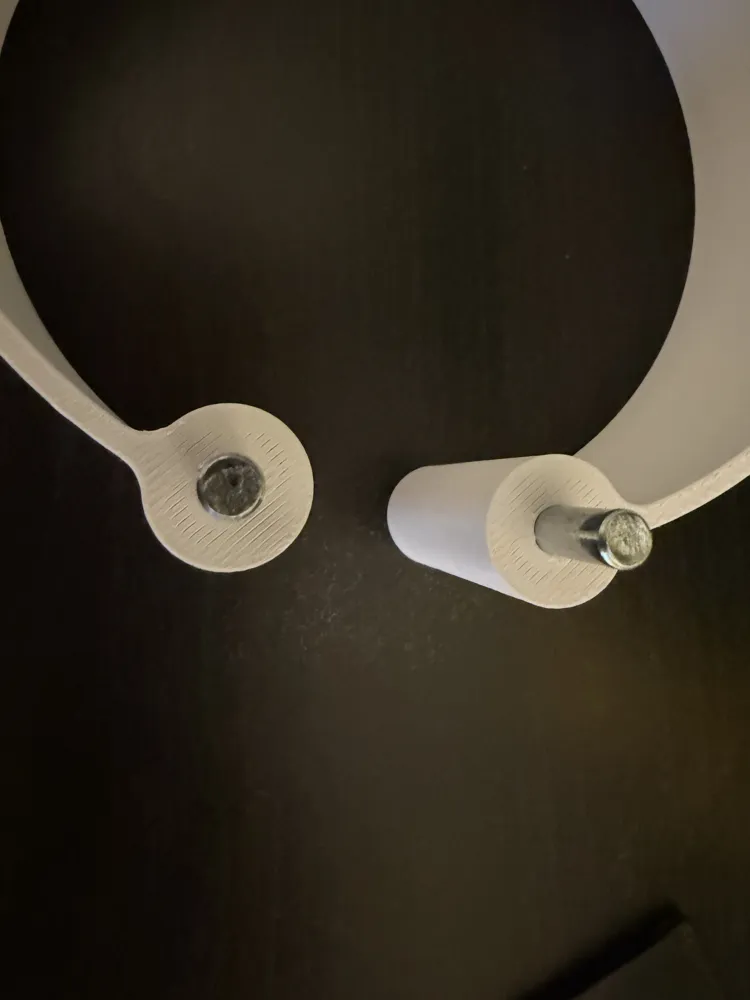

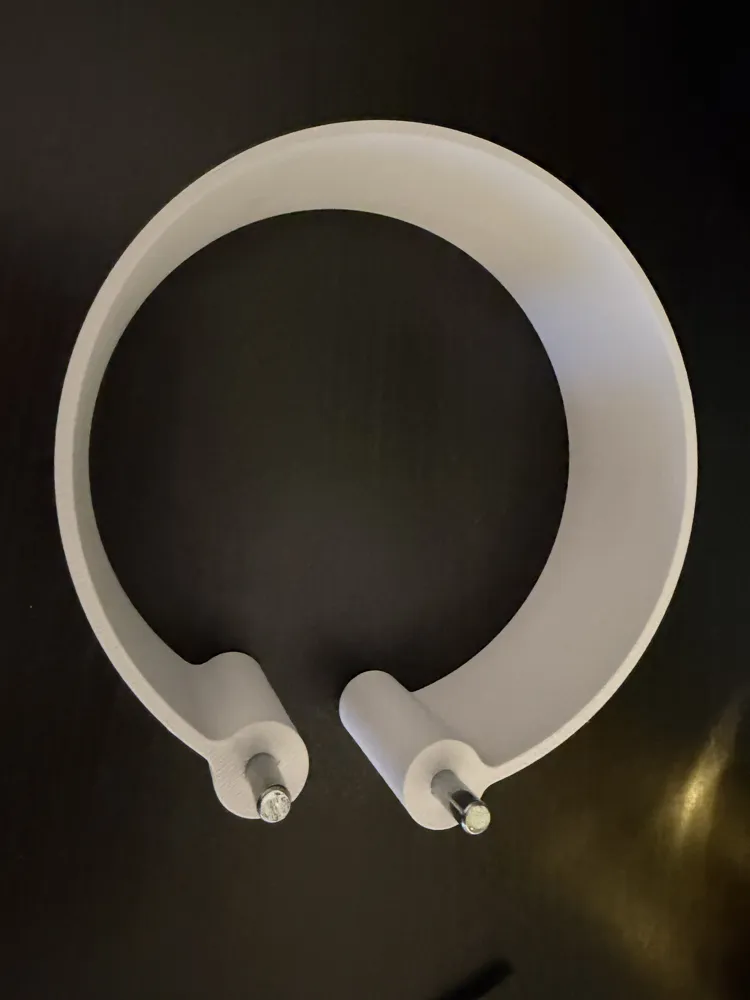

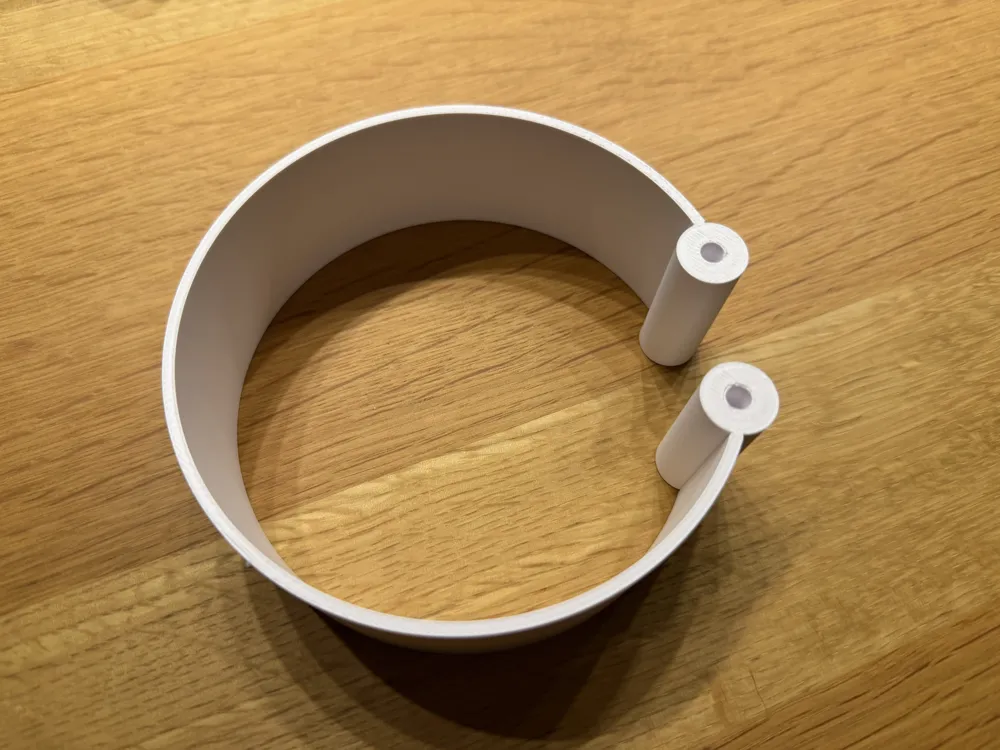

Instead of pins that are printed directly, the optimized version has holes for shelf supports The shelf supports can be inserted into the belt holder They fit quite snugly They can, of course, also be glued in

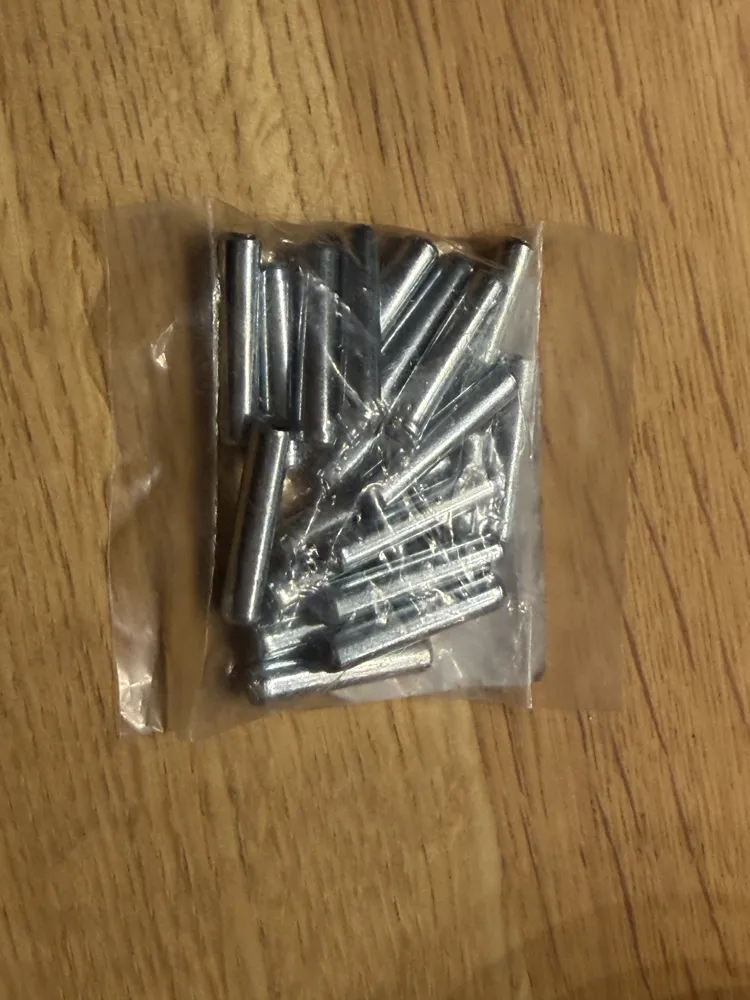

Hole depth is 12mm Shelf supports should have a diameter of 5mm and a maximum length of 22mm

Example: https://www.amazon.de/dp/B0F38DSCZN?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
