Siglent SDS1104X SDS1204X SDS1202X VESA adapter

If you like this model and use it please upload a like, it really helps others find it!

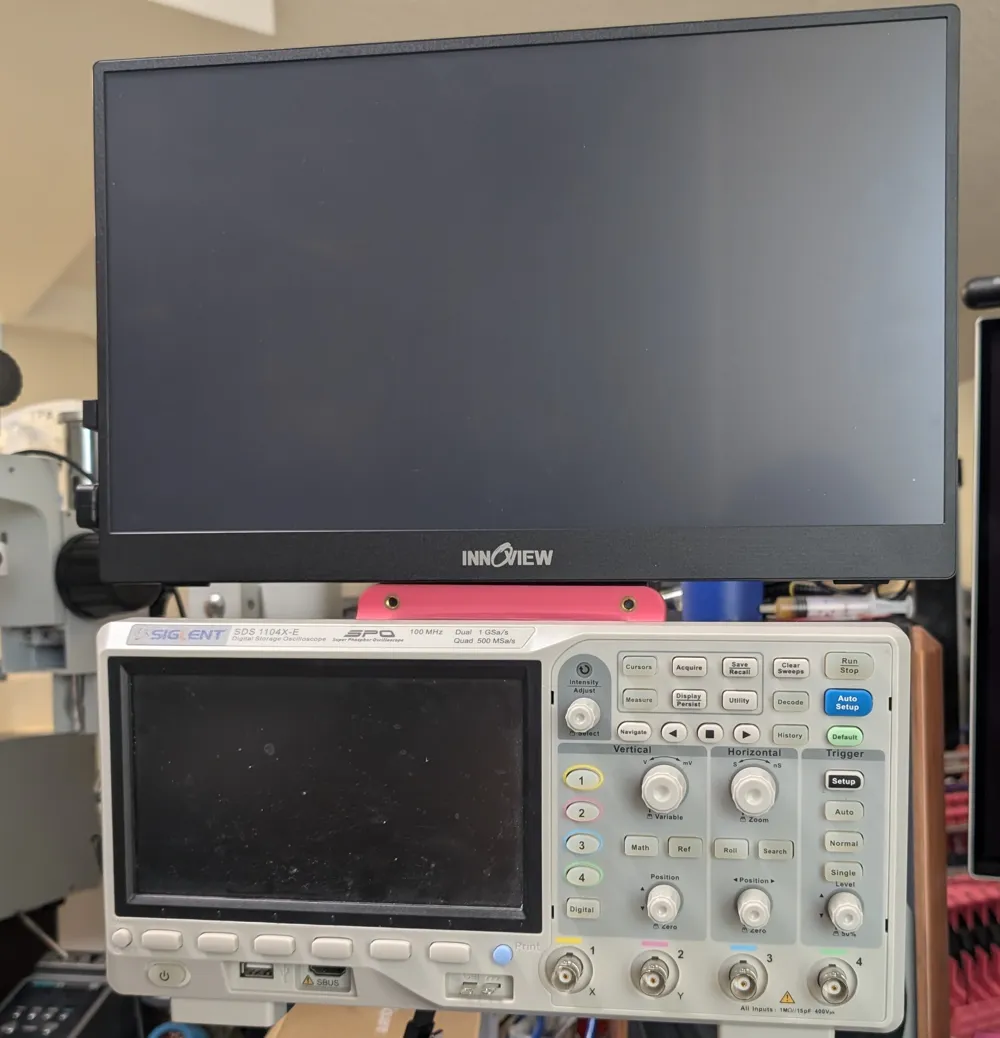

I hated having my scope on my desk and the cables getting in my way, especially when not in use, and I already had a “portable” touch screen mounted to a vesa arm, only using the top two screw holes.  I created this mount to add my Siglent scope to the arm.

To install, you need to open the scope back (4 torx screws, two under the handle, and 2 by the feet).   Remove the cotter pins holding the handle, and remove the stock handle, install the printed part and put the pins in, with the cotter pins to lock it.

Re assemble the case and use longer m3 screws thru the 3d print to further attach everything.  The holes for the vesa mount are for M5 heatset inserts.

The pattern for the vesa mount is 100x100mm

Recommend at least ABS or abs-cf.  Supports are needed for the print.
