0.2mm layer, 2 walls, 30% infill, with ironing function enabled to reduce print time, other settings are the same as the first version
0.2mm layer, 2 walls, 30% infill, with ironing function enabled to reduce print time, other settings are the same as the first version
Designer
3.6 h
1 plate

Custom model: dimensions width 215mm, height 245mm, thickness 3mm
Custom model: dimensions width 215mm, height 245mm, thickness 3mm
Designer
4.9 h
1 plate

0.2mm layer, 2 walls, 30% infill, enable ironing for a smoother top surface
0.2mm layer, 2 walls, 30% infill, enable ironing for a smoother top surface
Designer
4.8 h
1 plate

Open in Bambu Studio
Boost
15
61
0
0
71
23
Released

Description

Content has been automatically translated.
Show original

Boost Me (for free)

If you like it, please boost me. Your encouragement is the greatest motivation for my continuous creation. Thank you.

Model Name: Xiaomi fish tank isolation board

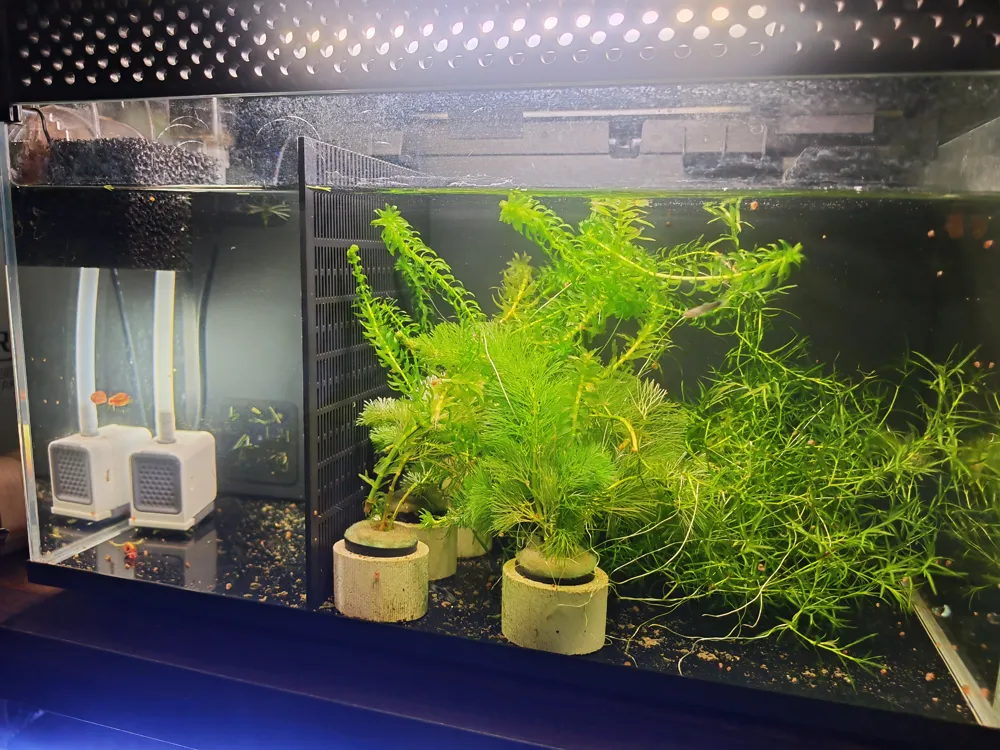

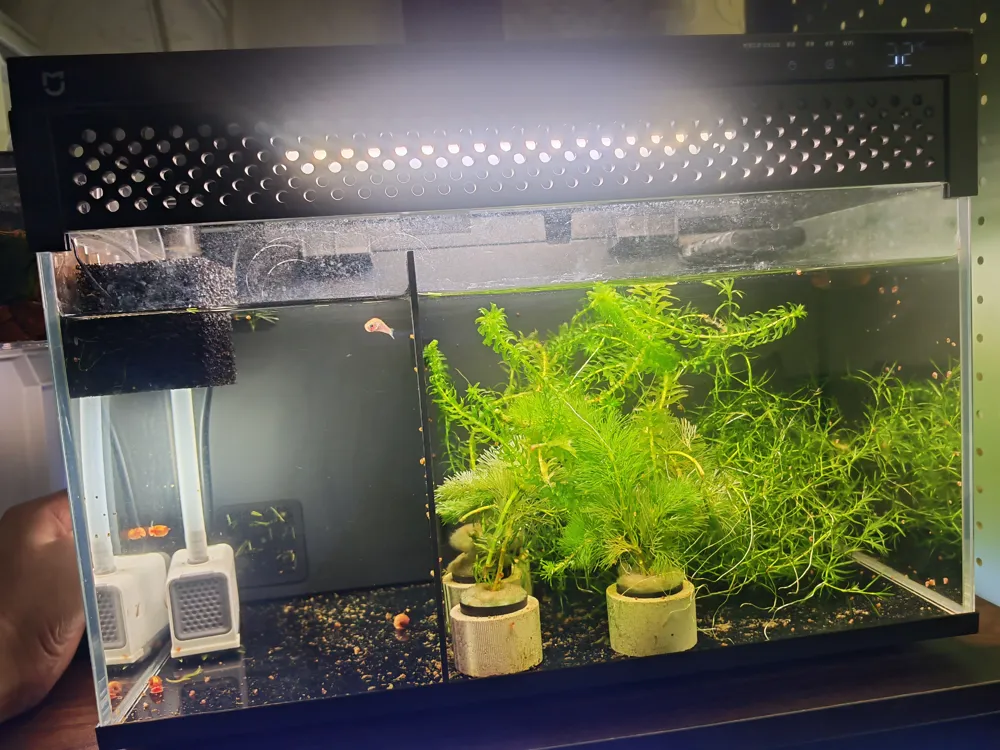

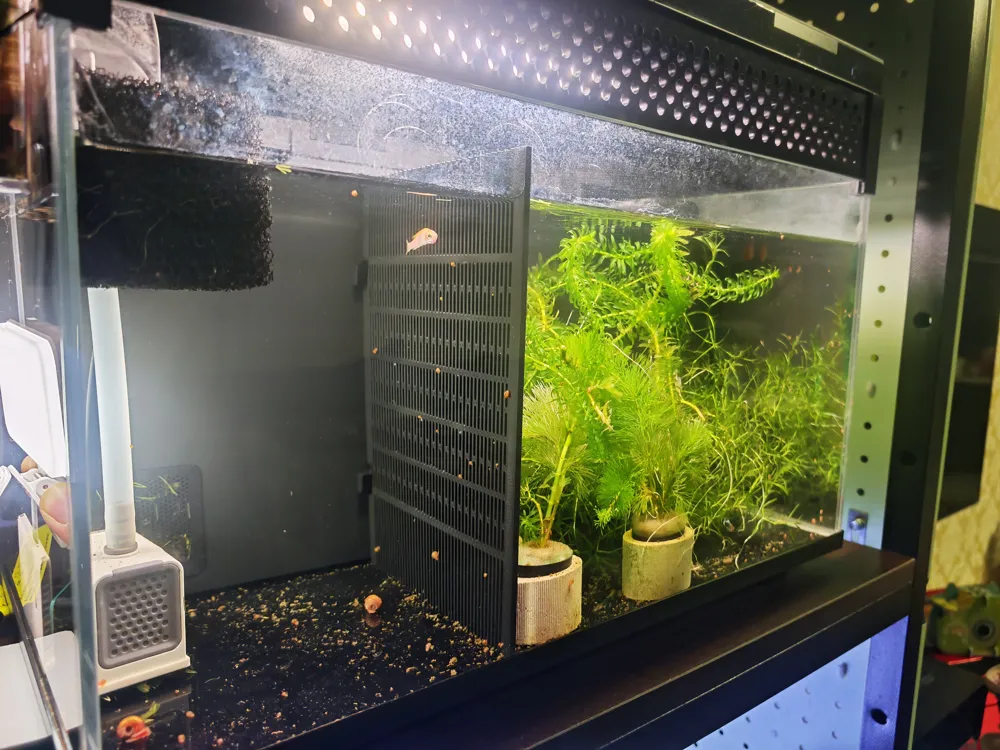

Applicable Scope: For first-generation Xiaomi fish tanks for isolation breeding, or fish tanks with matching dimensions

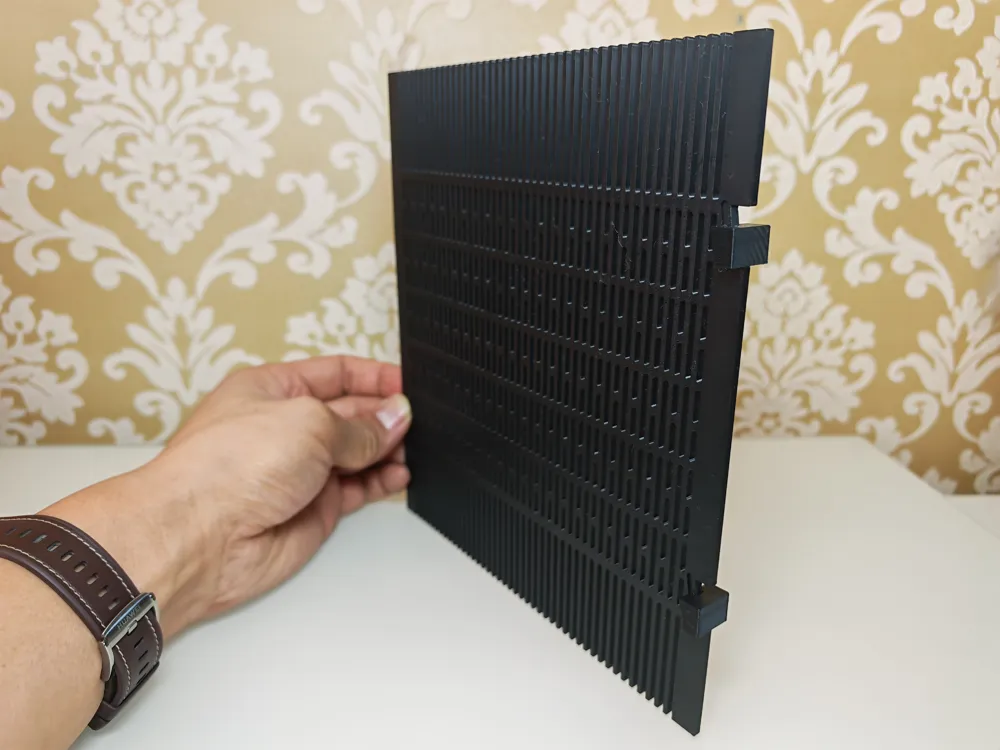

Specifications: Length 190mm, Height 210mm, Thickness 3mm, Mesh width 2mm

Design Features: 1. Open top and bottom design, does not affect water flow at the bottom and top;

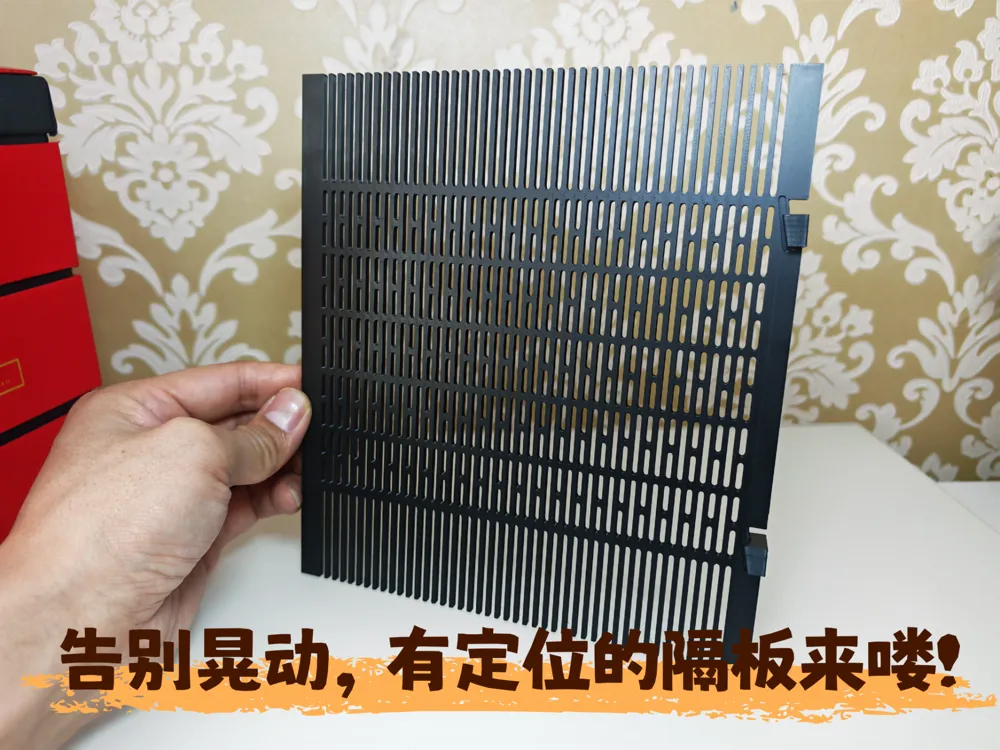

                    2. Slotted mesh, beautiful and with low water resistance;

                    3. 2mm wide mesh, perfect for isolating small fish;

                    4. Positioning sliders on the back for effective placement and arrangement;

Design Testing: After multiple adjustments and tests, it shows good fit, high strength, and smooth sliders.

Customization Service: If other specifications are needed, please leave a message for customization.

For other fish tank accessories or items, please browse my homepage.
