IKEA Skadis pegboard pull-out side-mount
Print Profile(3)
Description

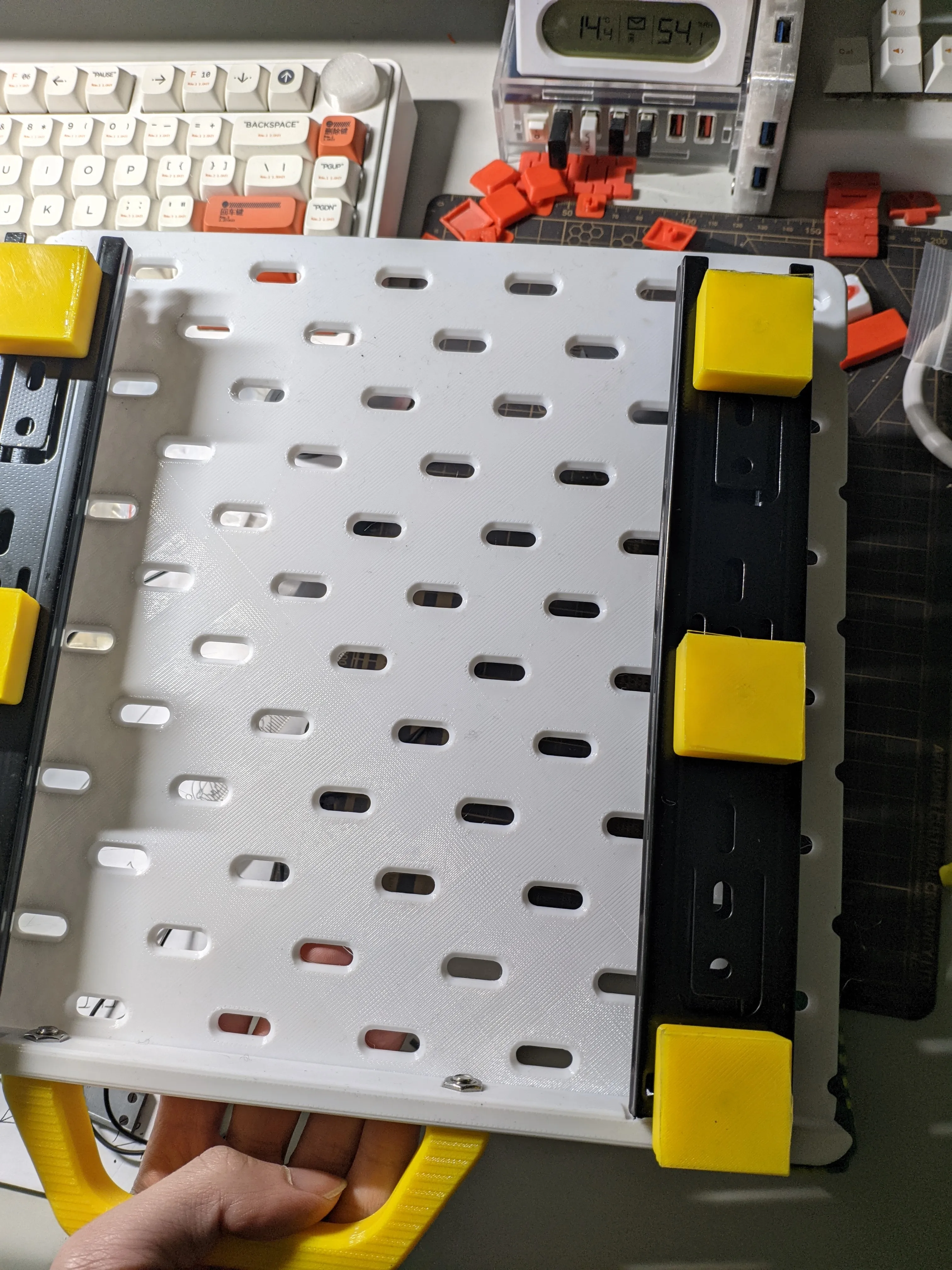

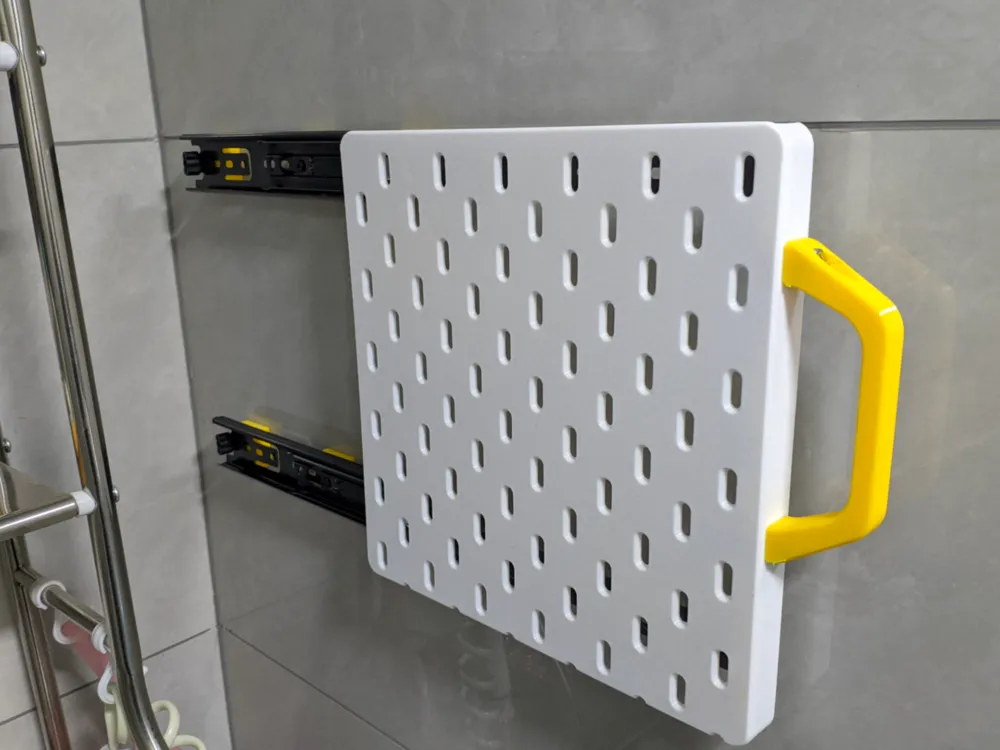

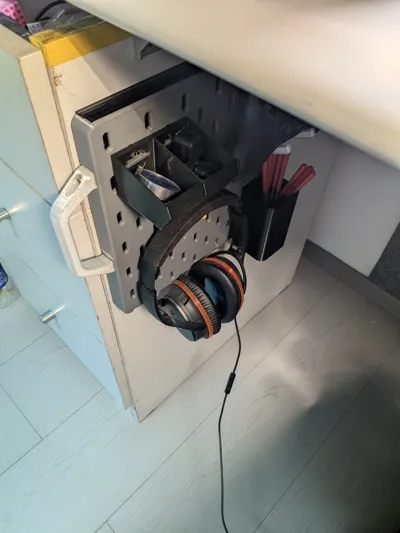

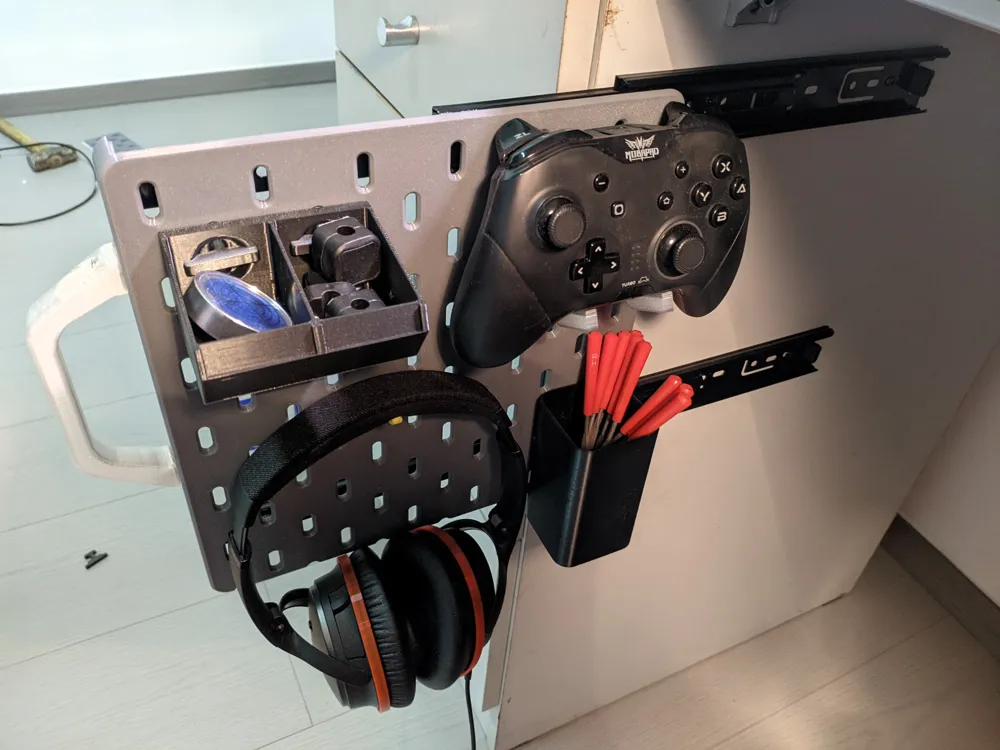

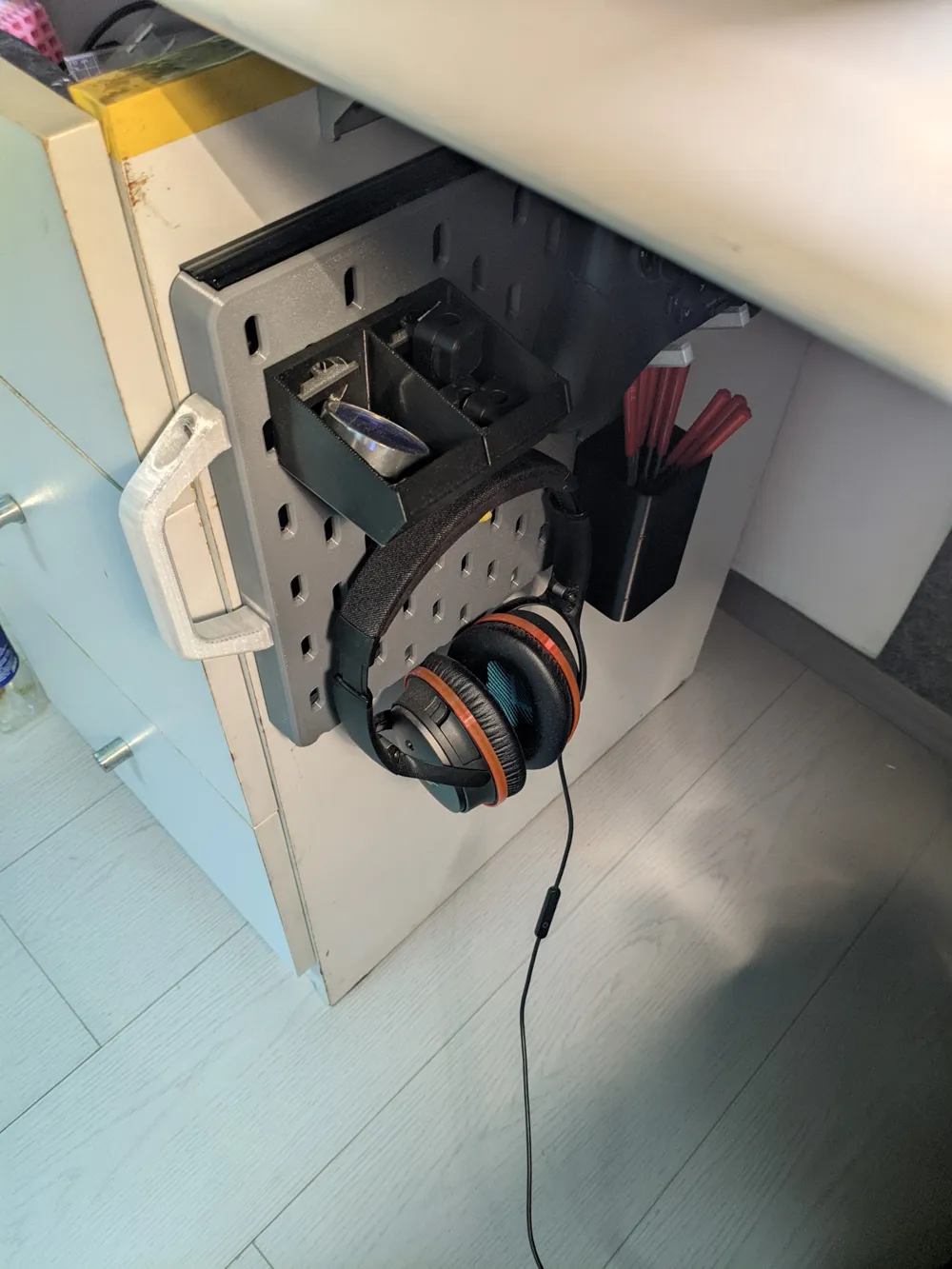

This is a pull-out side-sliding Skadis pegboard that can be freely installed on vertical panels
Two versions are available, left-hand and right-hand pull-out
Boost Me (for free)
If needed, I can make an enlarged, connectable version

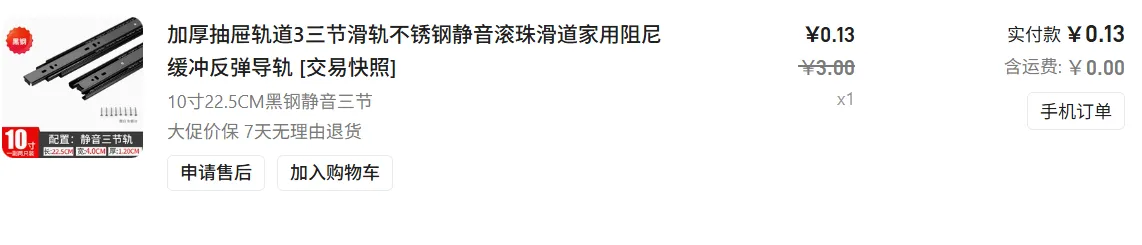

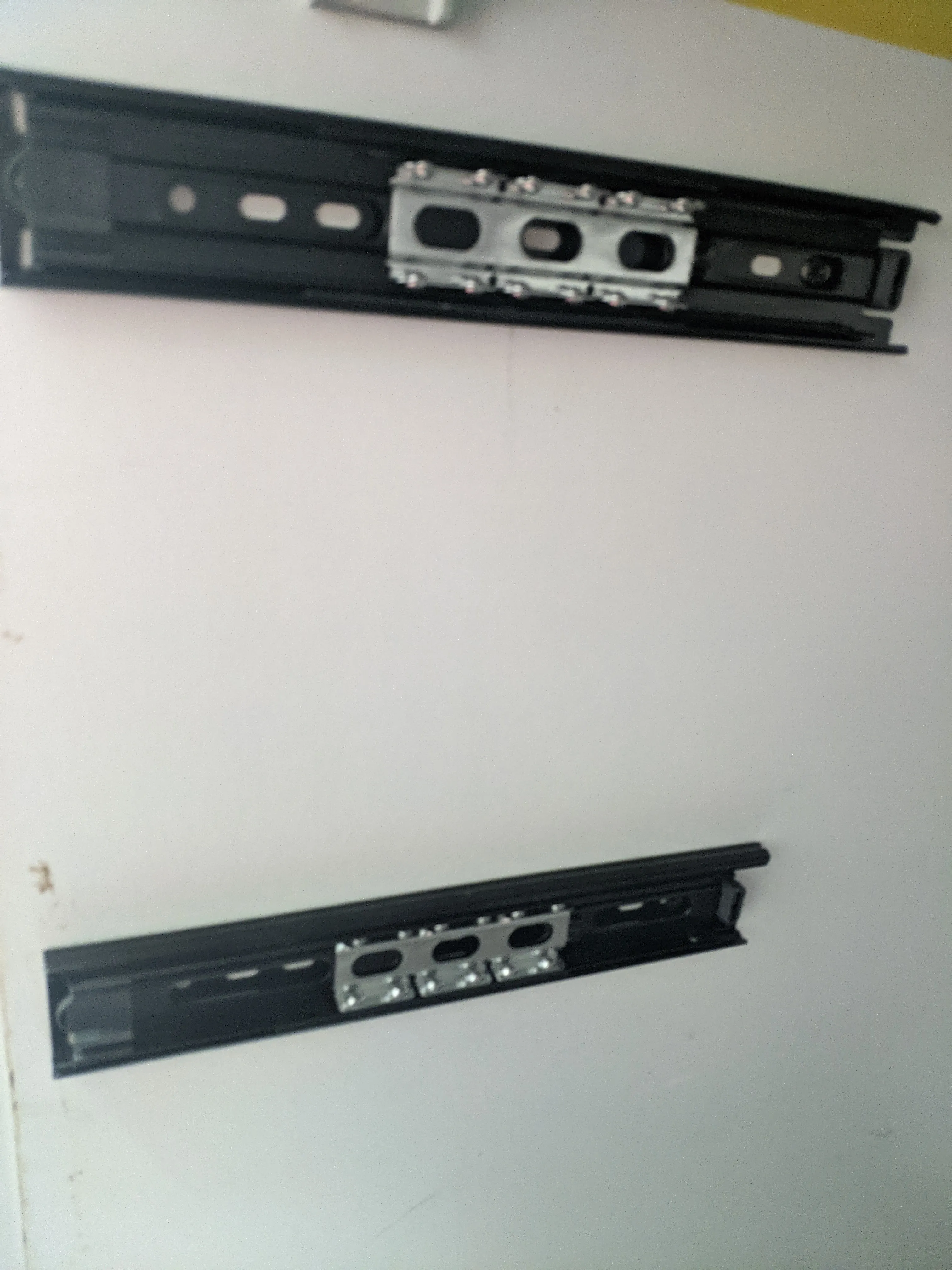

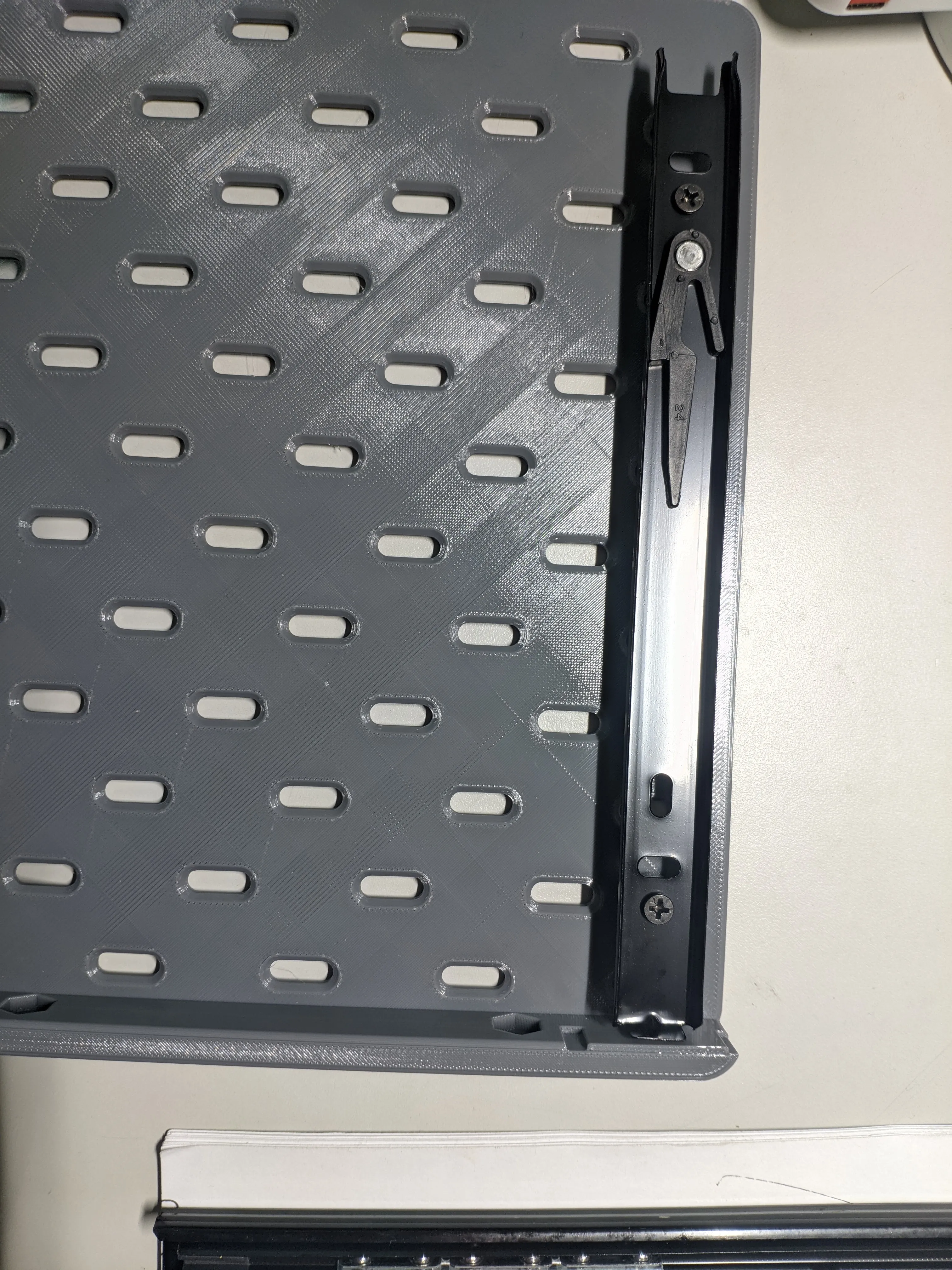

Requires M6 nuts, M6x14 hex socket bolts, 10-inch drawer slides, and the self-tapping screws that come with the slides

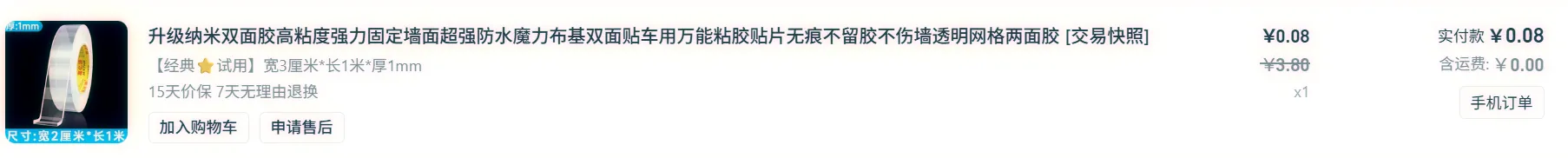

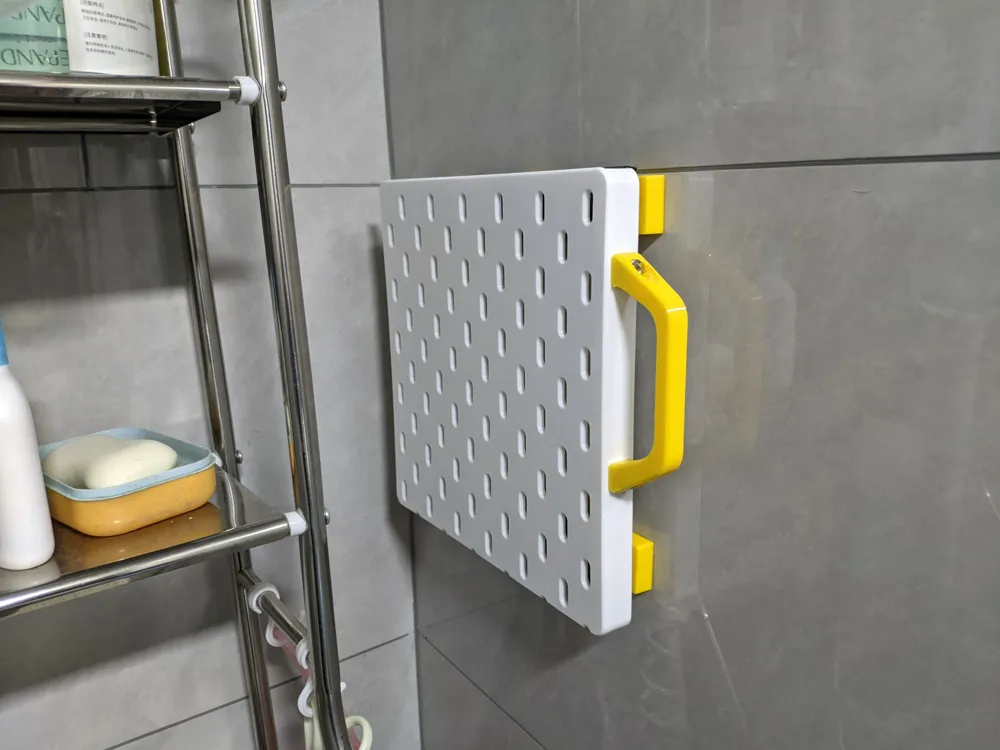

Can be fixed with non-marking adhesive

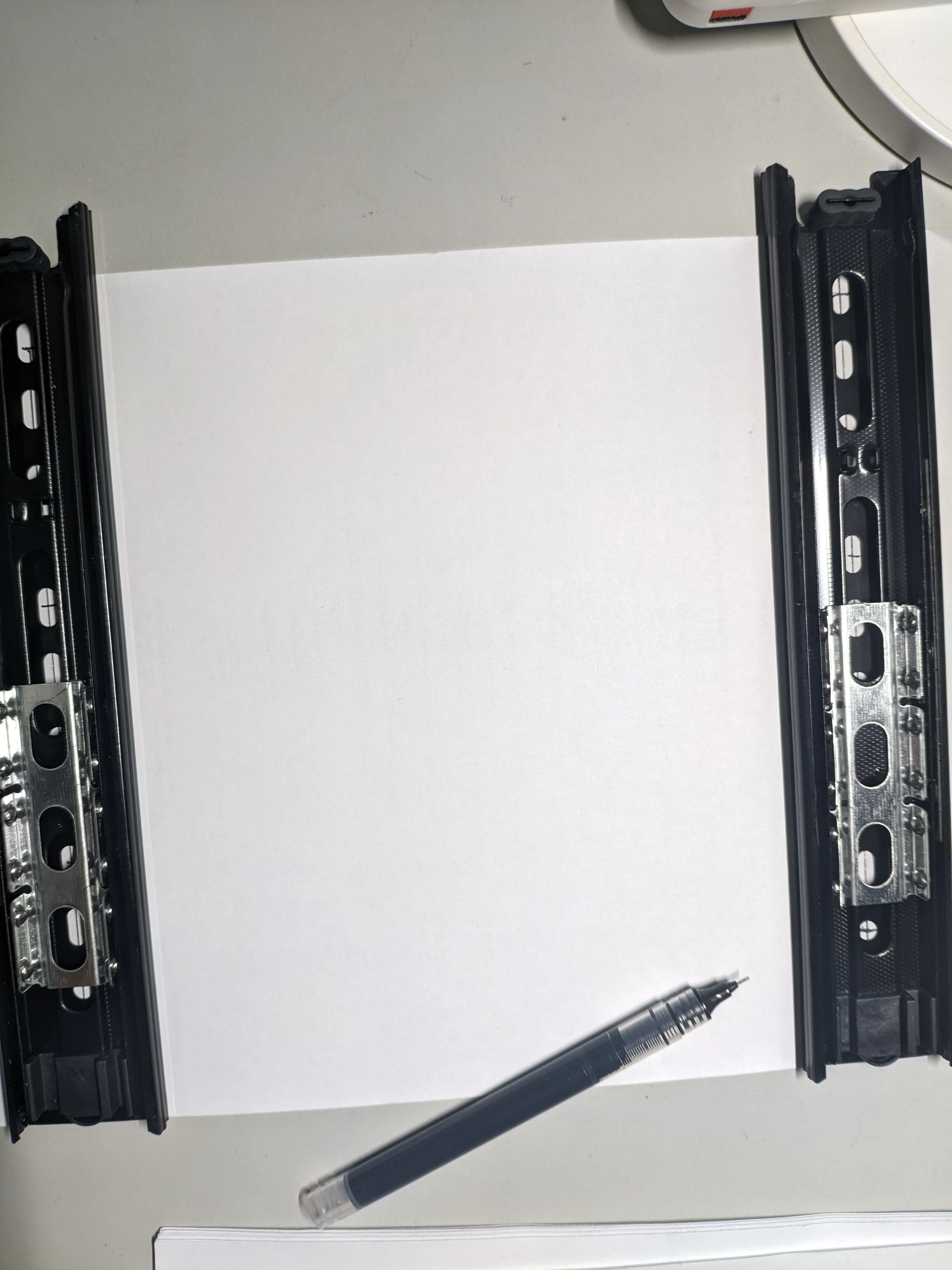

When installing, first draw parallel lines 20cm apart on an A4 paper
Mark the hole positions
Tape the A4 paper in the appropriate position

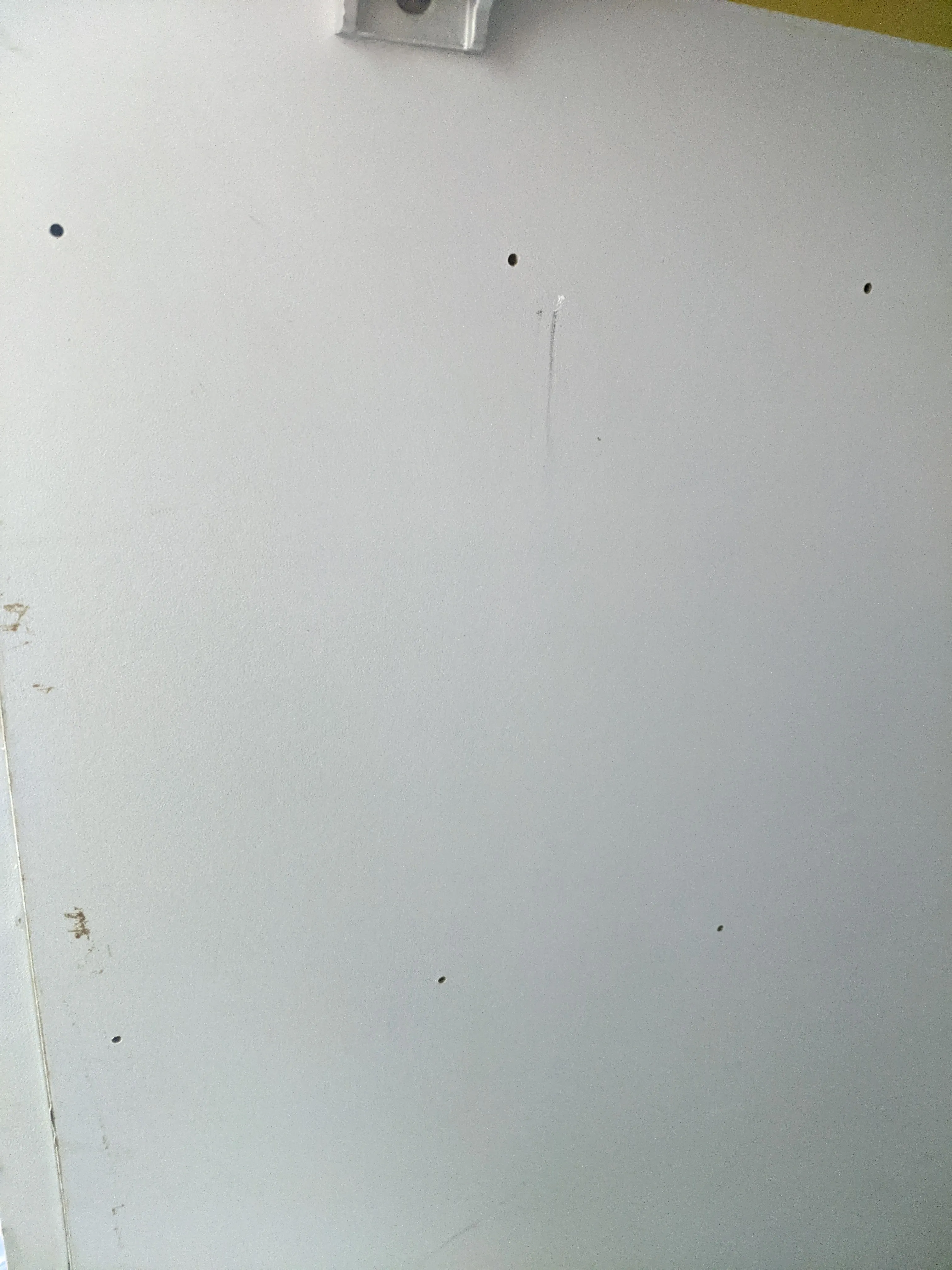

Drill pilot holes, a 2.5mm drill bit is used in the image, even without an electric drill, you can manually drill holes using this handle
