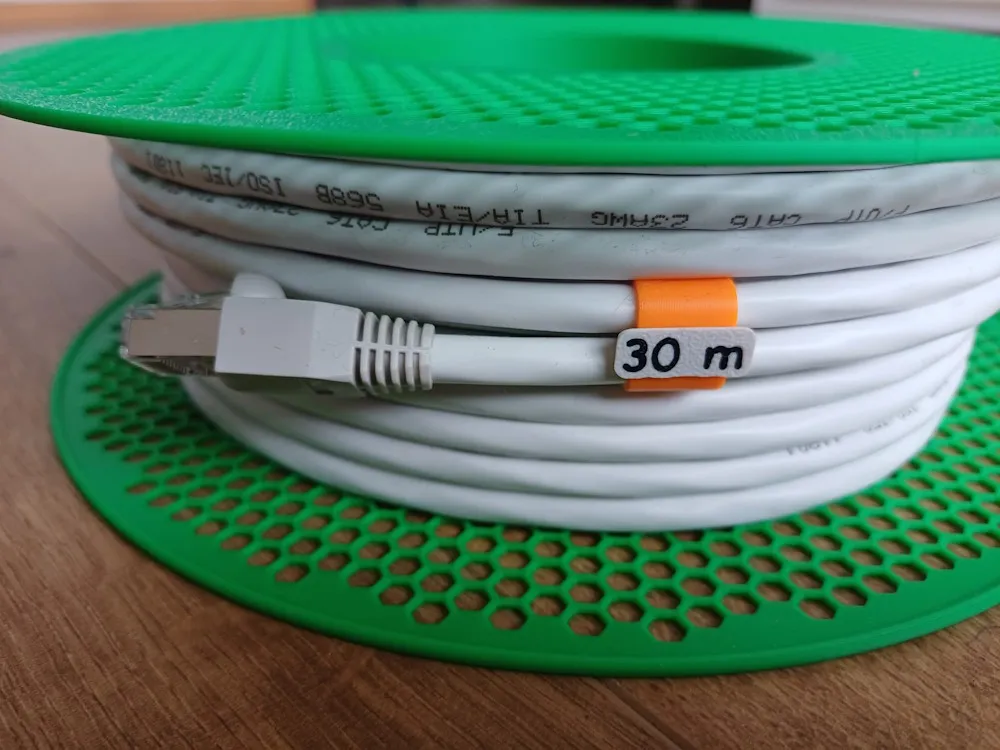

Tag plates for UTP-cable clips

These tags go together with another model of mine (the UTP-cable clip).  They help you to distinguish between the different cables you store.

Tag plates are press-fit: you can press them on the clips without the need for glue.

I only provided 5 different tags, but you can easily design your own tags.  Here are some design tips for your own tags:

• A tag should have 2 mounting pins with a diameter and height of 1.6 mm.  Fillet both the base and the op of the pins with 0.5 mm.

•

  The “Comic Neue” font with a height of 5 mm yields clean readable results.

• When slicing: always split the text in separate objects before splicing
