Bambu P1SC/X1 upgrade poop chute nozzle wiper AMS multi-color printing upgrade accessories

Parameter presets have been adjusted, no need to change for printing

Model upgraded and changed based on @Tandy's design

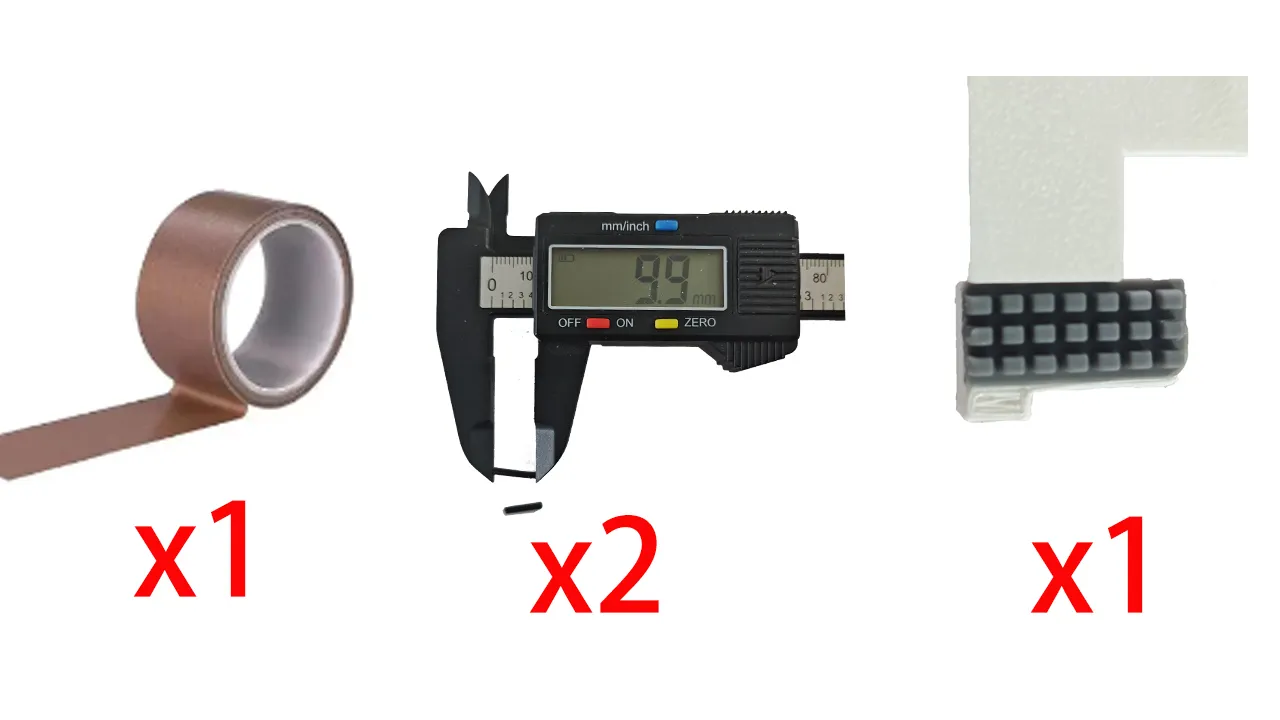

Required accessories: Teflon tape (4cm wide x 0.13mm thick)

Two 1.75mm diameter x 10mm pieces of filament (for poop chute baffle pins)

One A1 nozzle wiper silicone strip

To upgrade this modification, the poop chute needs to be removed. Please refer to the following links:

Replace P1P Metal Rear Panel | Bambu Lab Wiki

Waste Chute | Bambu Lab Wiki

Replace Nozzle Wiper Assembly | Bambu Lab Wiki

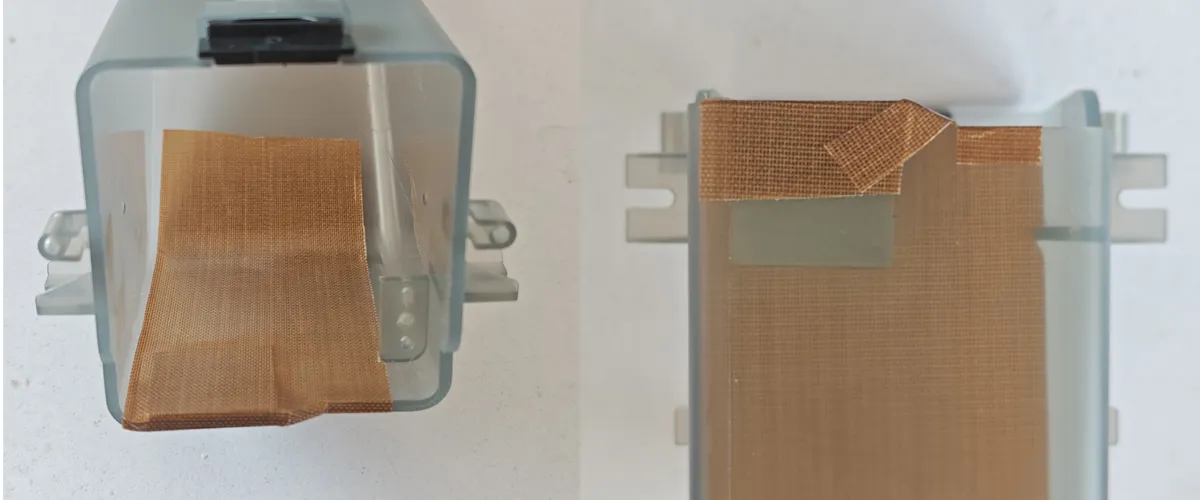

1. Attach Teflon tape to the waste chute

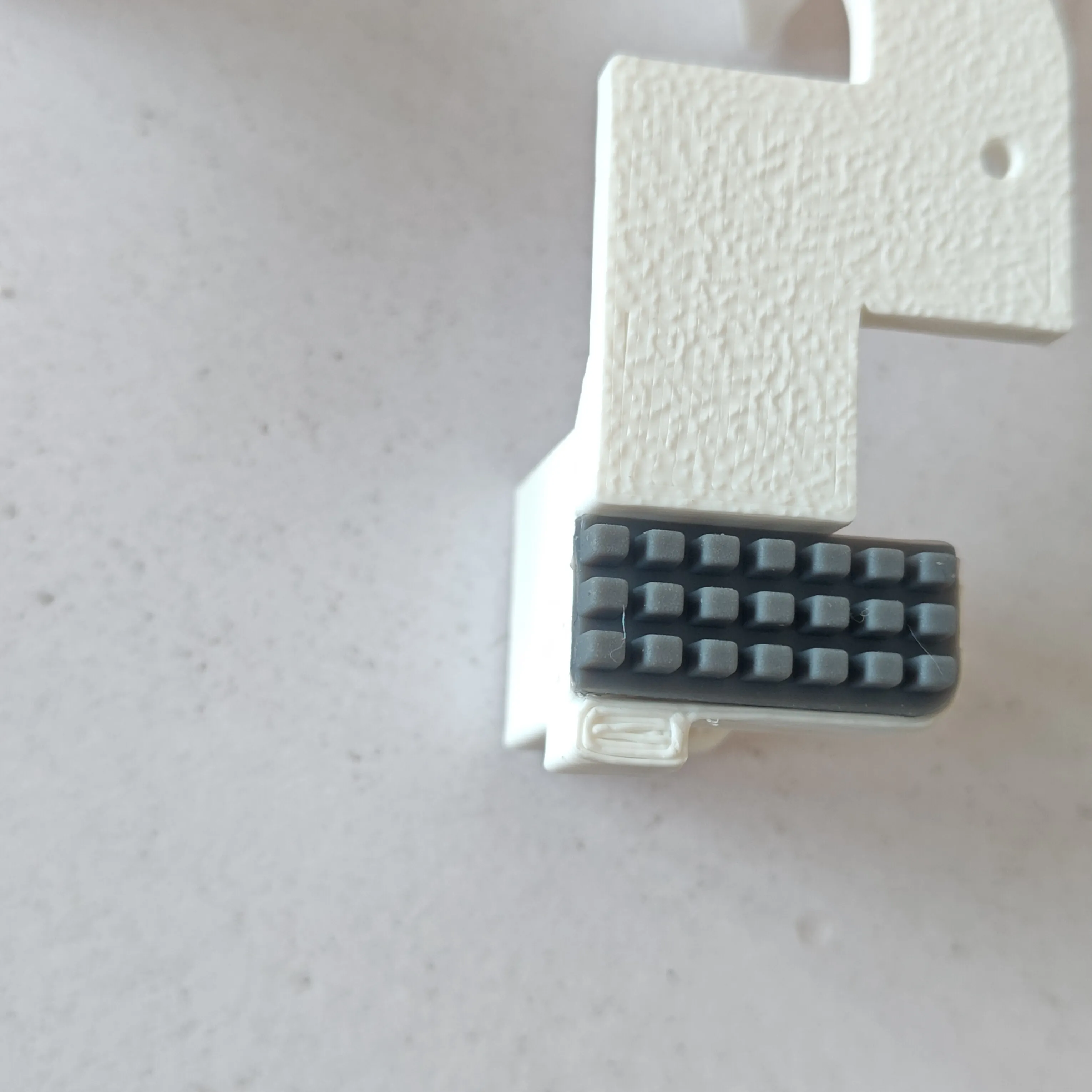

2. Attach the A1 silicone wiper strip (cut flush with the nozzle wiper bracket), can be secured with 502 adhesive, no need to remove the back panel and poop chute for replacement

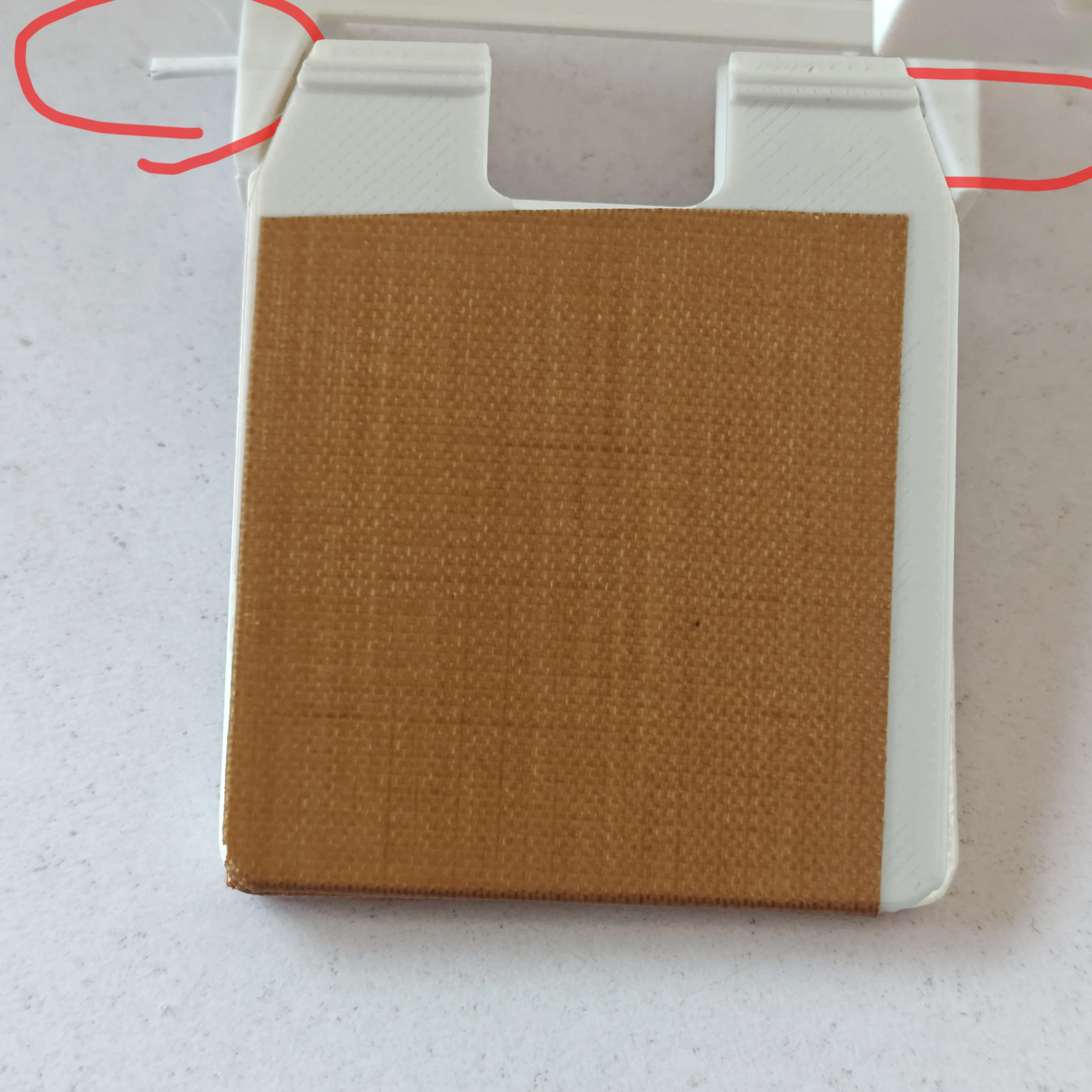

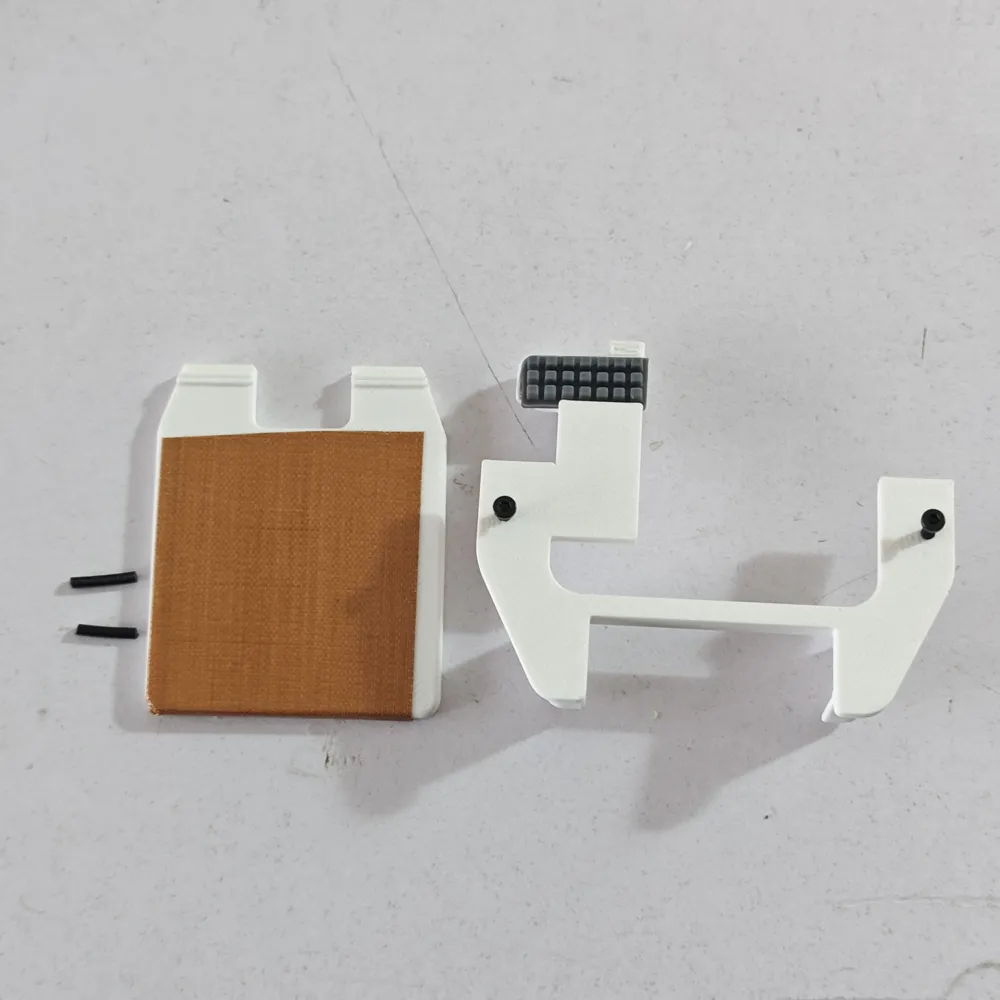

3. Connect the poop chute nozzle wiper bracket accessory to the poop chute baffle with filament pins

4. Install the chute

5. Install the back panel

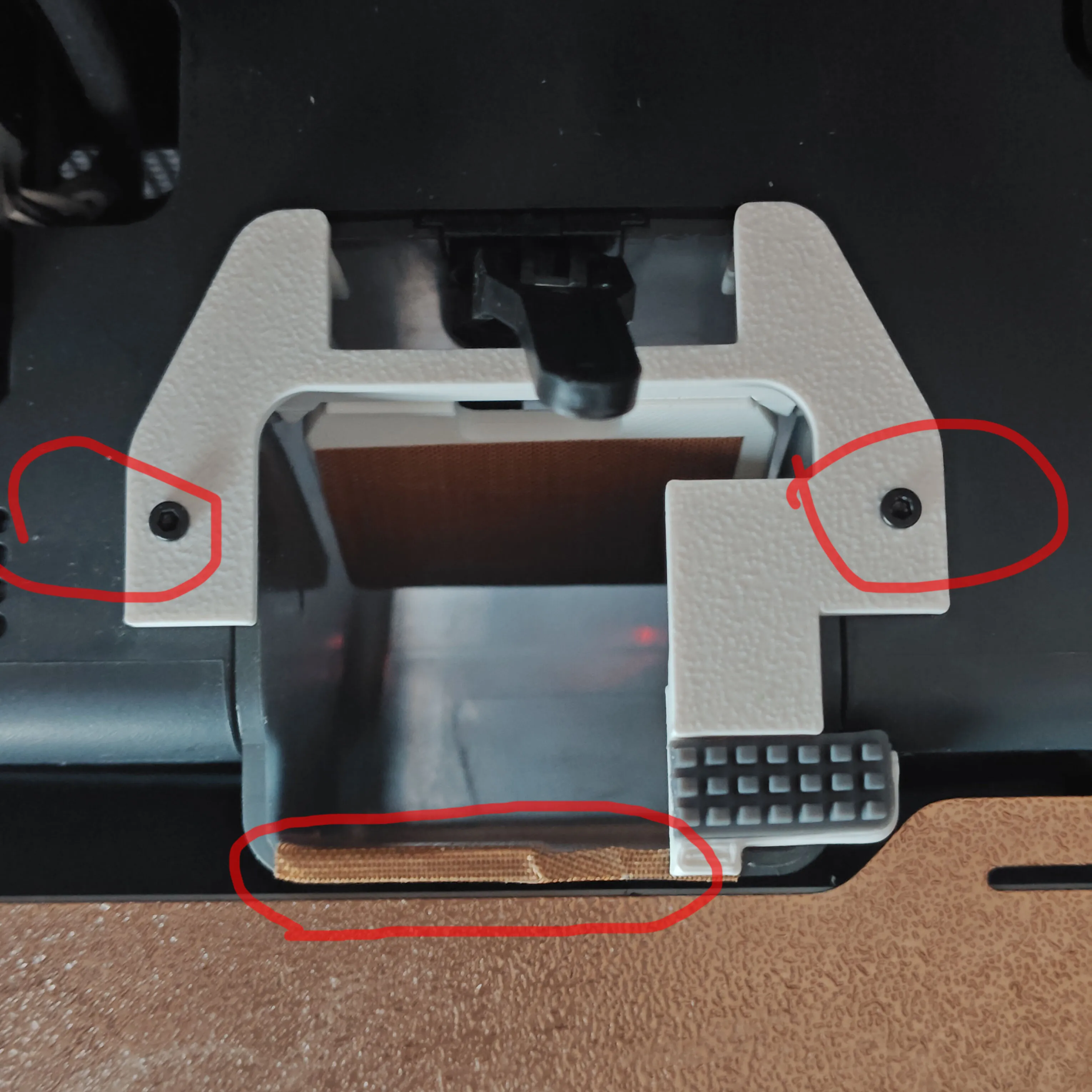

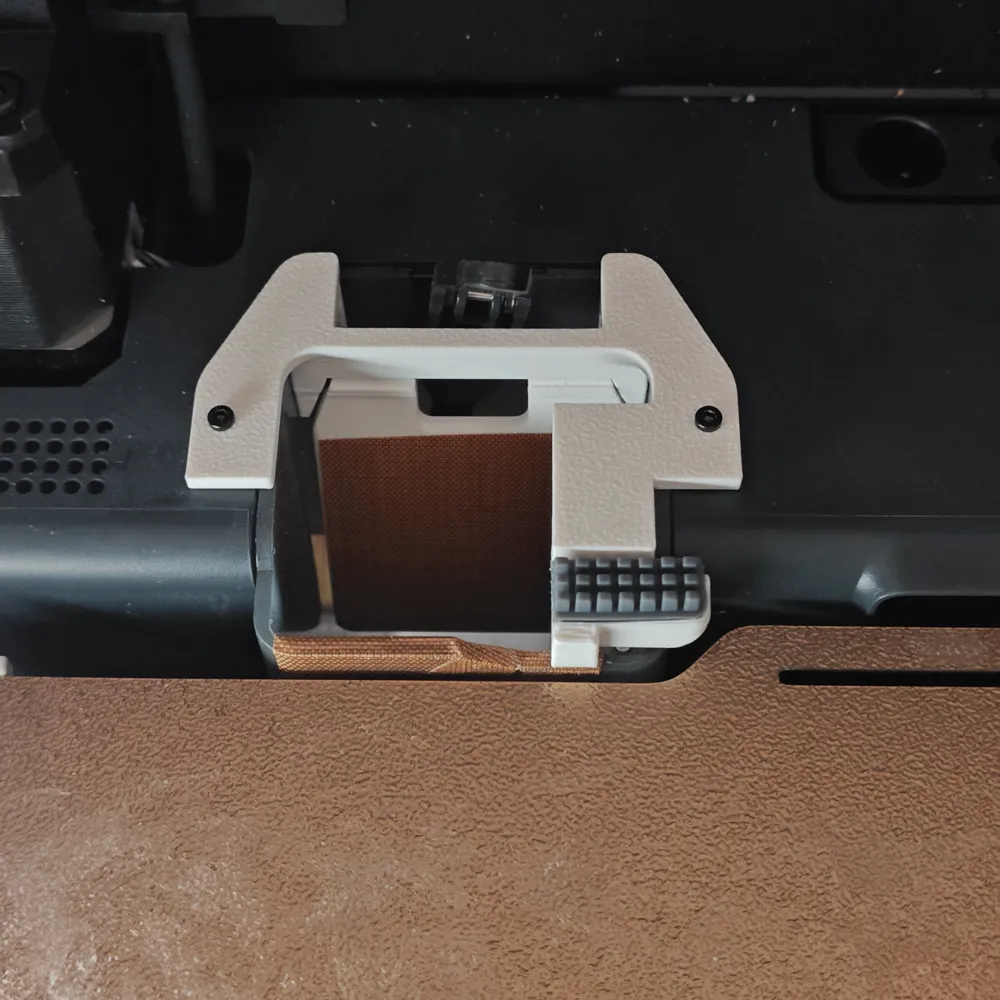

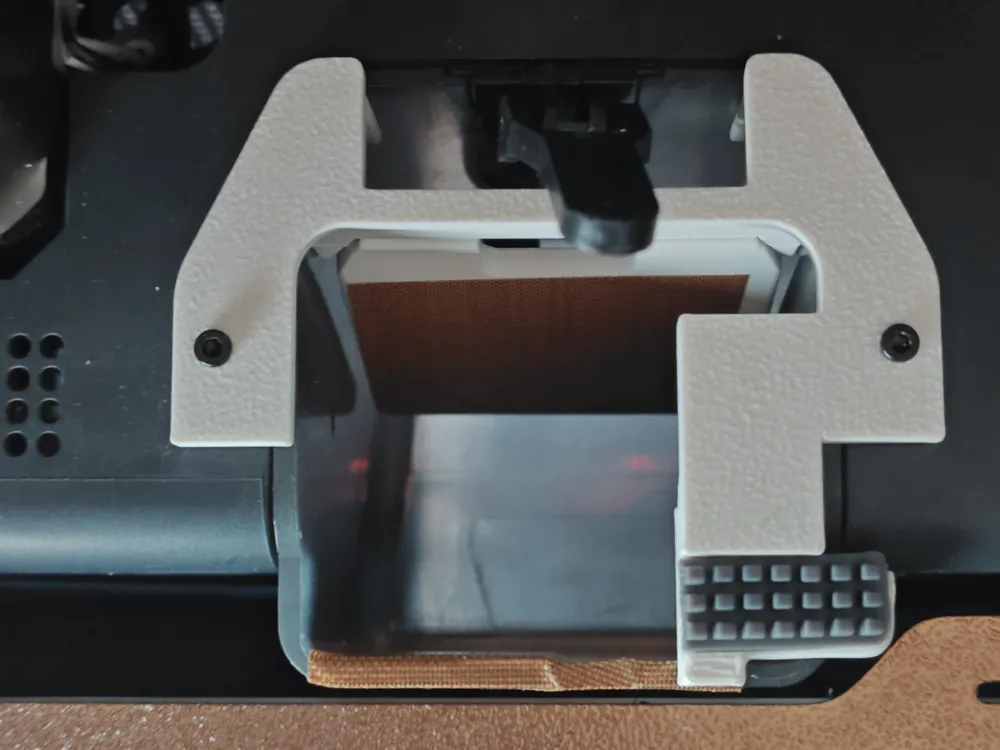

6. Insert the upgrade kit into the poop chute opening and tighten with two screws to secure it. Please pay attention to the distance between the platform and the poop chute
