This all-in-one print profile gives you everything you need to build a fully modular lathe backsplash organizer. Designed for mounting on a 16.5 mm wide backsplash bracket, it lets you snap on a variety of holders to keep your tools neatly organized and always within reach. Included Plates  1. Organizer Bracket (16.5 mm wide backsplash)     The main mounting bracket for your lathe backsplash, designed to hold all other holders securely in place. 2. AXA Toolholder (26 mm wide holder)     Compact holder for smaller AXA tools, snaps easily onto the backsplash bracket. 3. AXA Toolholder (31 mm wide holder)     Larger AXA toolholder for bigger tools, fully compatible with the organizer bracket. 4. Chuck Key Holder (20 mm hole diameter)     Perfectly sized for larger chuck keys, clips in and keeps them accessible. 5. Chuck Key Holder (13 mm hole diameter)     Holds smaller chuck keys securely, easy to snap on or remove. 6. Morse Taper 2 Holder (25 mm width)     Designed for rigid MT2 tooling or small drill bits, attaches directly to the backsplash bracket. 7. Morse Taper 2 Holder (50 mm width)     Fits MT2 drill chucks and larger tooling, giving you flexible, modular storage. 8. Morse Taper 3 Holder (30 mm width)     Fits MT3 adapters, etc. giving you flexible, modular storage. 9. Morse Taper 3 Holder (60 mm width)     Fits MT3 drill chucks, etc. giving you flexible, modular storage. 10. Organizer Bracket (27.0 mm wide backsplash)     The main mounting bracket for your lathe backsplash, designed to hold all other holders securely in place.

All-in-One Print Profile

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

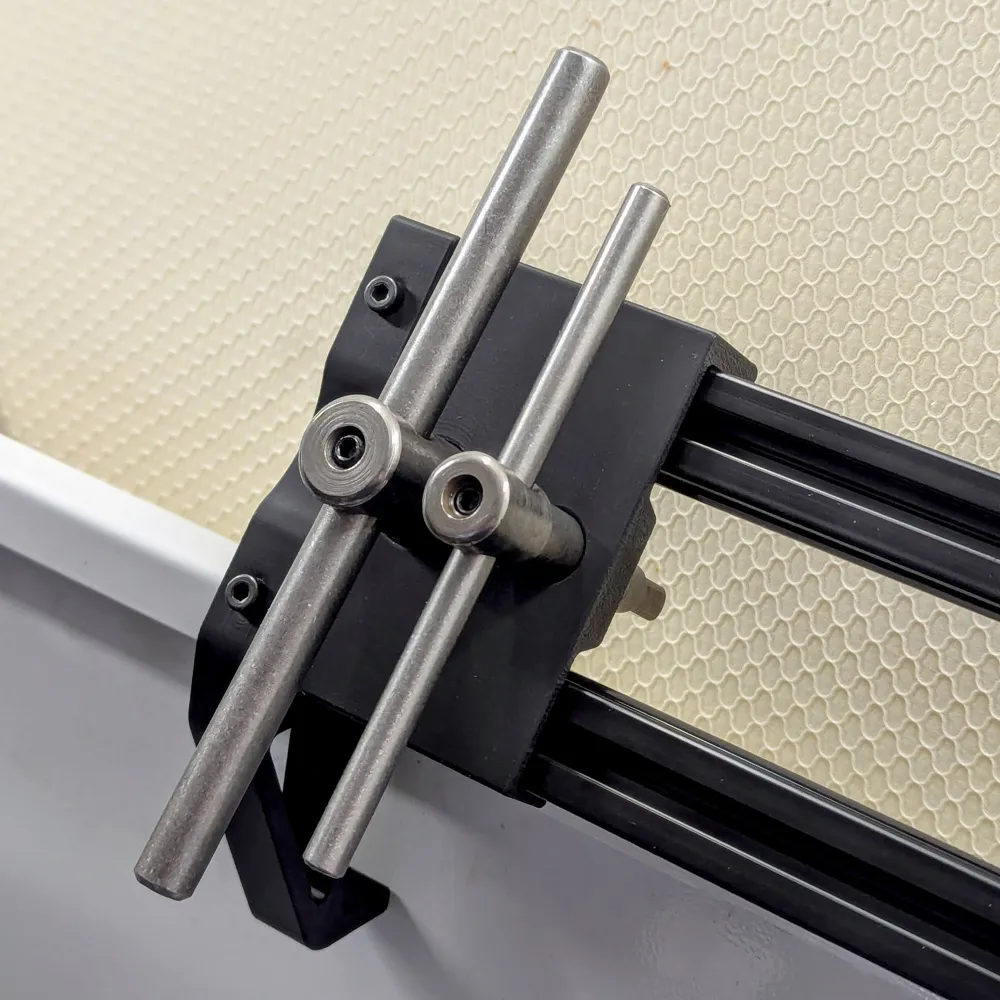

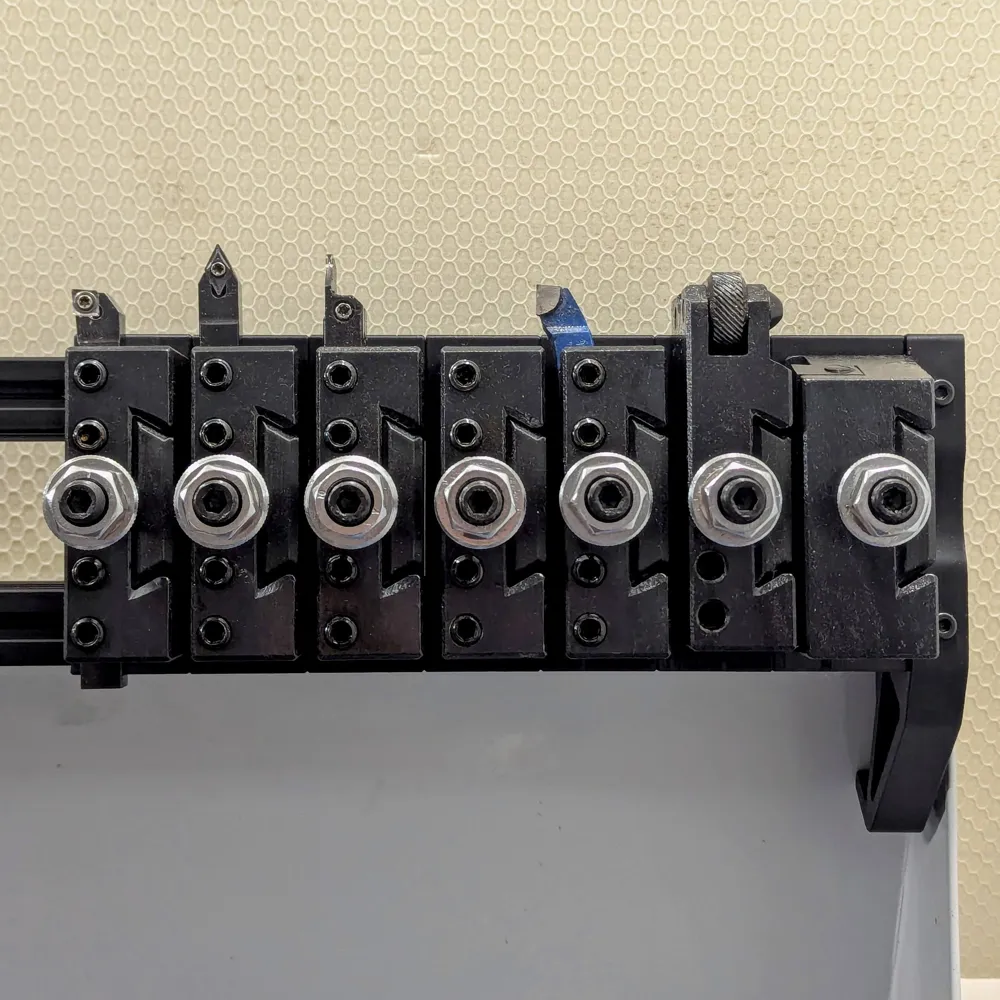

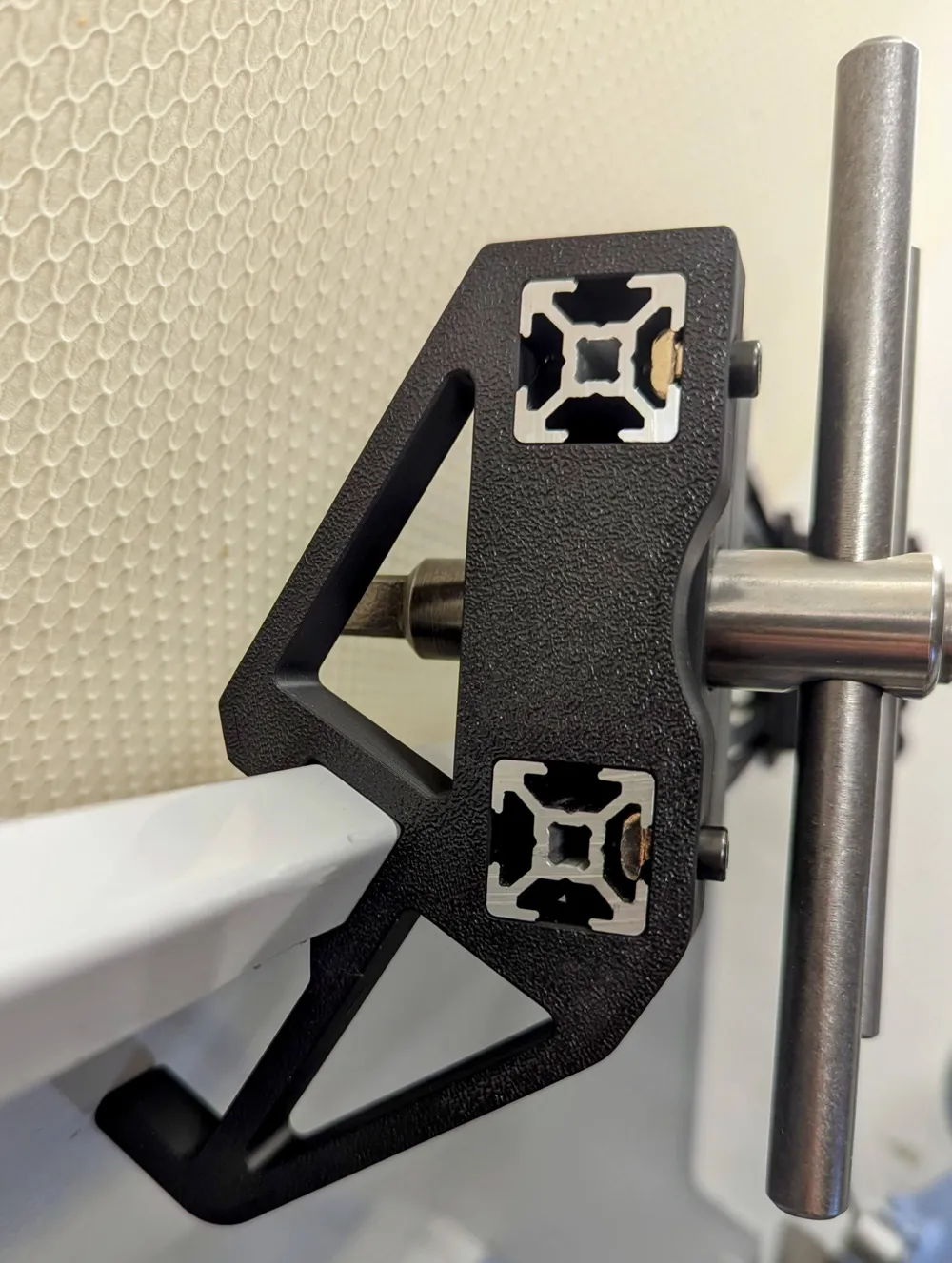

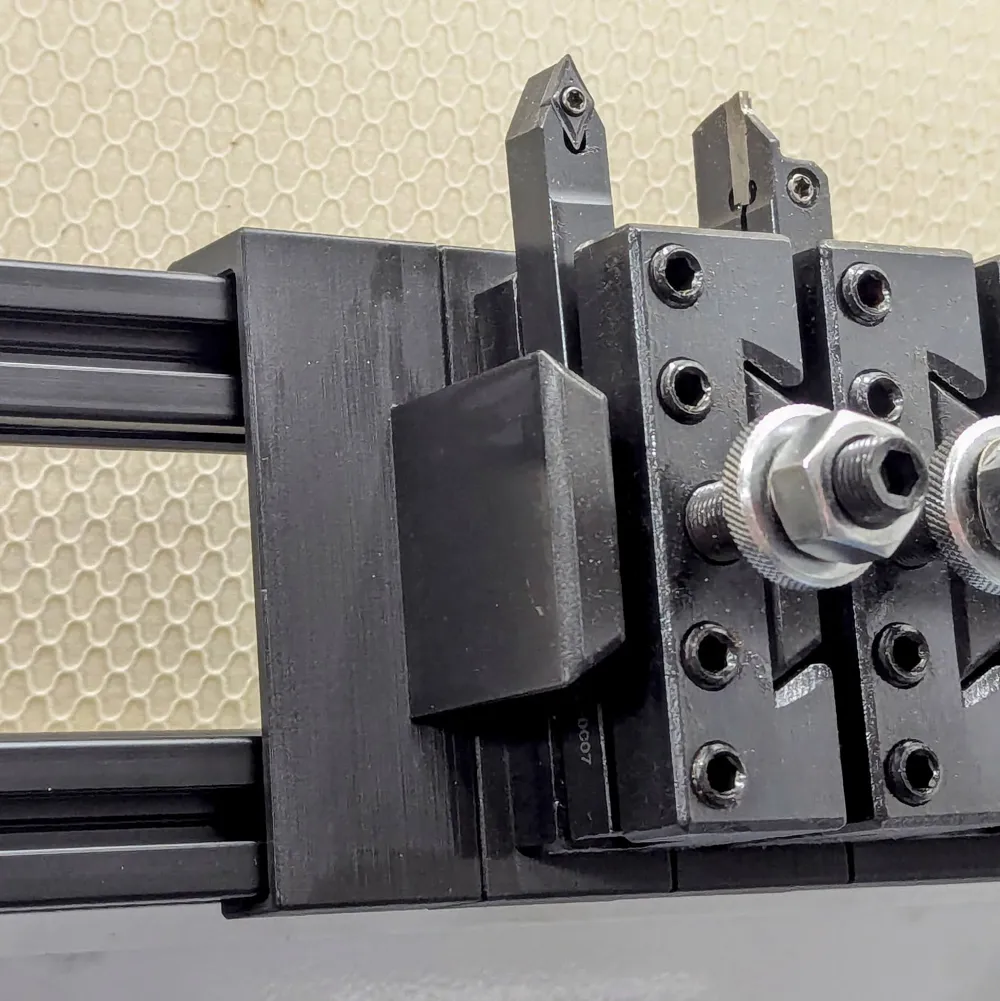

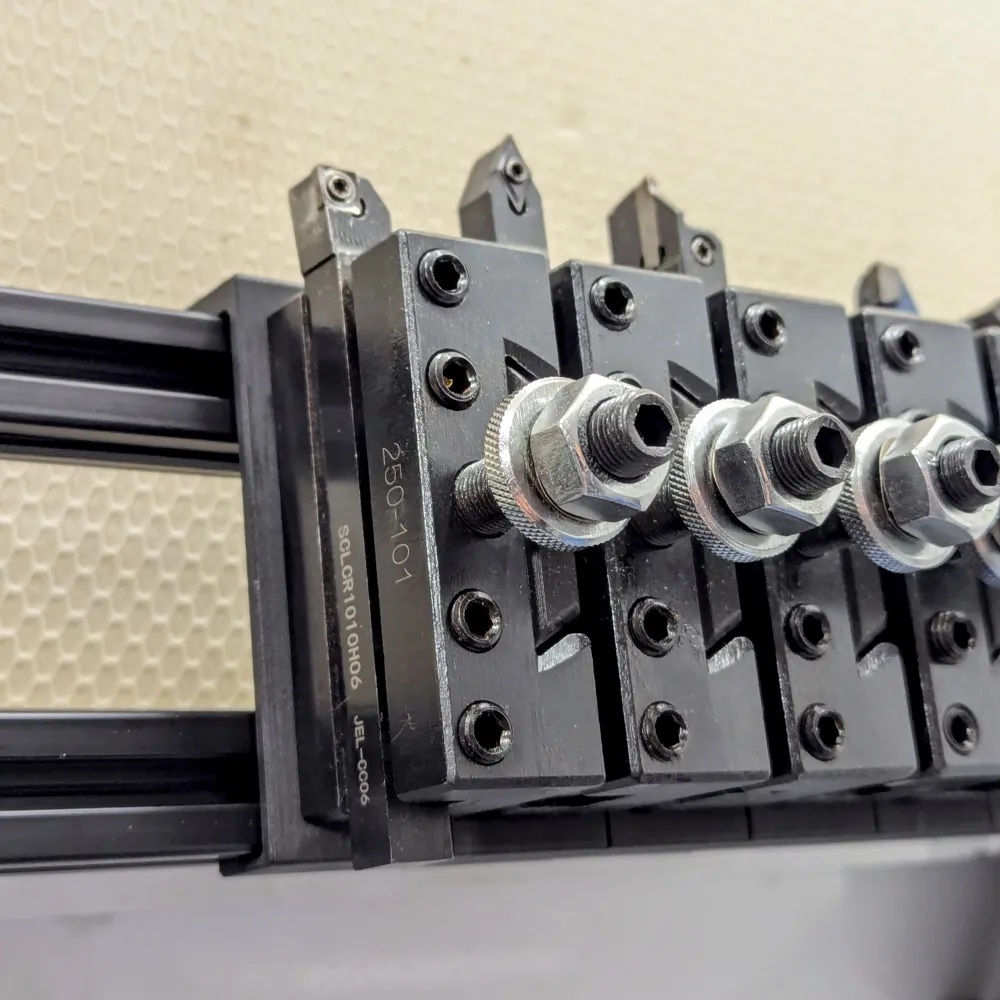

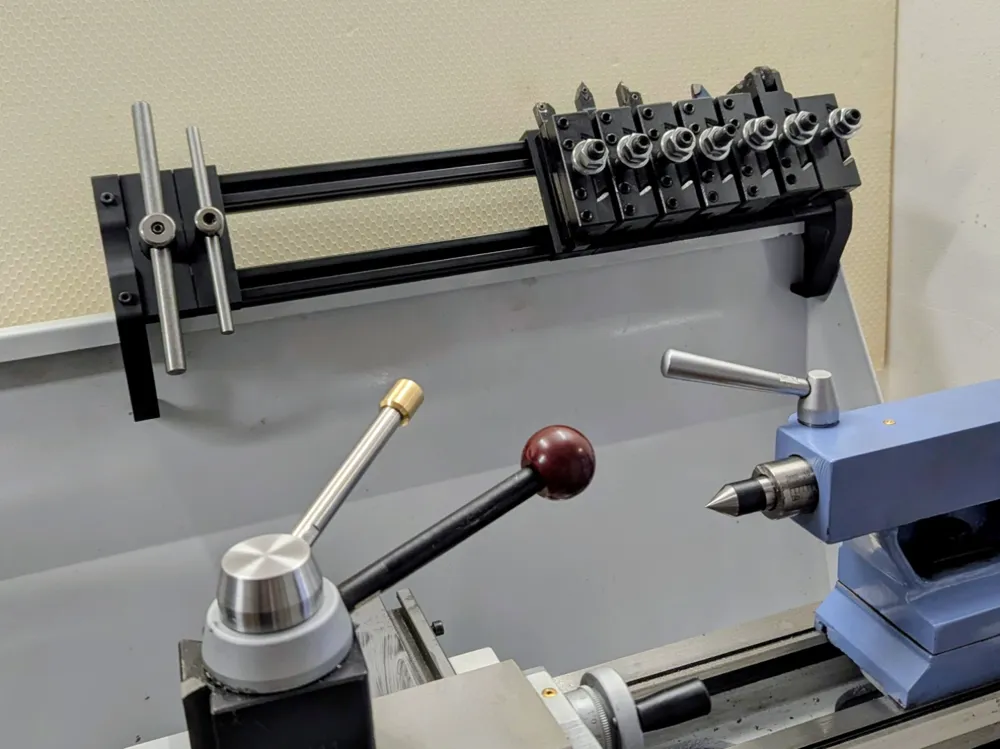

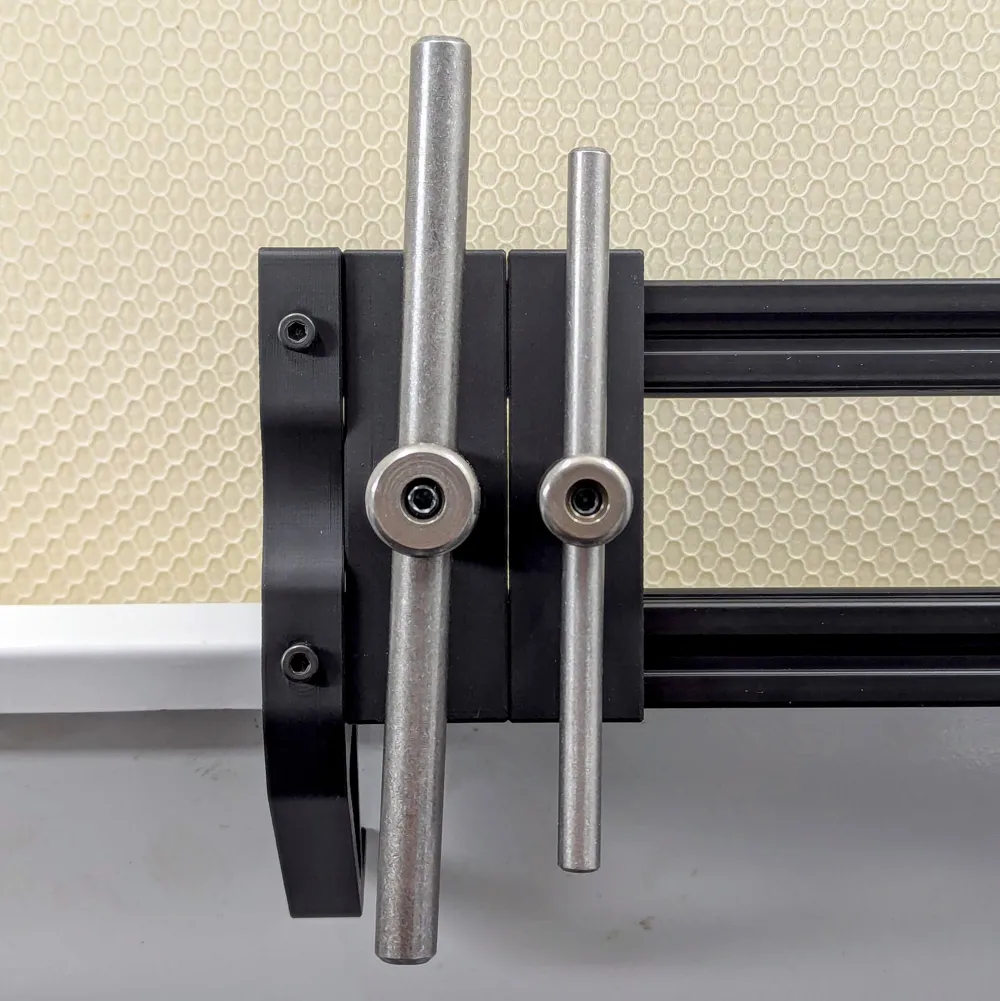

Take control of your lathe workspace with this modular Backsplash Organizer! Designed to attach directly to the rear splash guard of your lathe using two clamps, it creates a stable and flexible mounting system with two 2020mm aluminum profiles, spaced 60mm apart. The length is fully customizable, so it can fit any lathe, no matter the size. The clips are specifically designed for a backsplash with the following profile and dimensions:<img class="image_resized" style="width: 19.43%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000002149846/design/2025-12-23_054fe4b04fe7c8.png">If this does not fit on your lathe, just leave me a comment and I can adjust the model to fit your backsplash :) Once mounted, you can clip on a variety of holders to keep all your essential tools within reach, from toolholders to chuck keys and Morse tapers. Each module snaps in and out effortlessly, making it easy to reorganize as your setup evolves.Included modules for your lathe:<ul><li>Organizer Mount 16.5mm Backsplash (JY250VF)</li><li>Organizer Mount 27.0mm Backsplash (Grizzly G4003)</li><li>AXA Toolholder 26mm wide</li><li>AXA Toolholder 31mm wide</li><li>Chuck Key 20mm</li><li>Chuck Key 13mm</li><li>Morse Taper 2 – 25mm width</li><li>Morse Taper 2 – 50mm width</li><li>Morse Taper 3 – 30mm width</li><li>Morse Taper 3 – 60mm width</li></ul><boostme><boosttitle>Boost Me</boosttitle><boostcontent>If this improved your workshop, show some love with a Boost! ❤️</boostcontent></boostme>Upgrade your lathe workflow, reduce clutter, and make your workspace truly maker-friendly. Perfect for hobbyists and professionals alike!
