A1 Top Rail PTFE Mount - Filament Guide
Print Profile(6)
Bill of Materials
- PC4-M10 x 4:
Description
Hi!

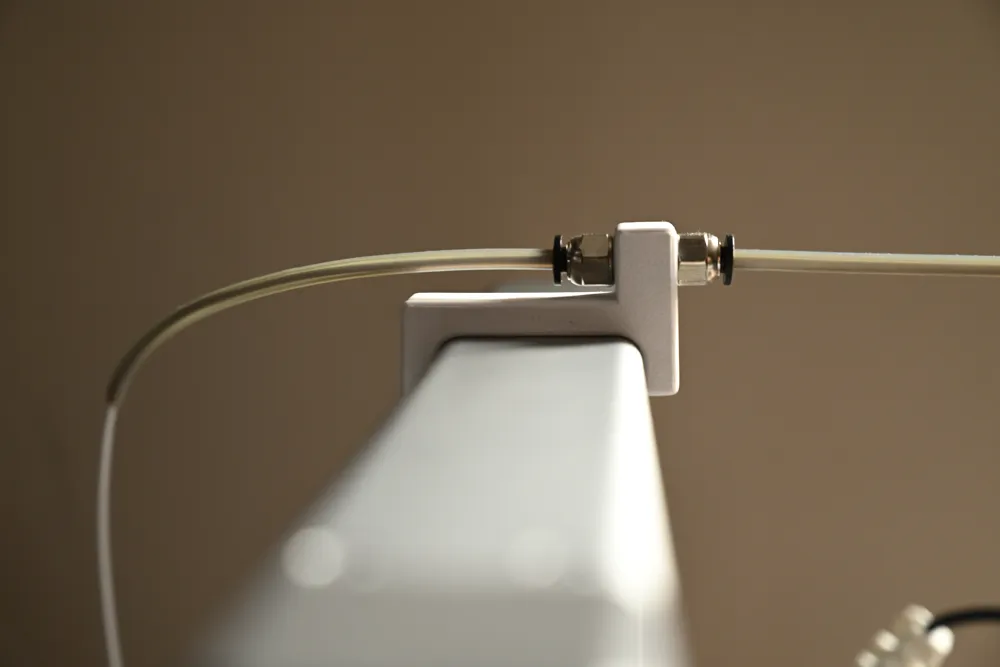

Here is a simple PTFE Tubes holder for the top rail of your A1 printer.
This mount snaps directly onto the top rail of your A1 printer, making it a perfect alternative if you keep your filament spools on the side, in a dry box, or on a shelf nearby. It allows you to organize your PTFE tubes using standard PC4-M10 pneumatic connectors. No extra hardware or glue is needed - just screw in the connectors using the included wrench and snap it onto the rail.
- Easy Installation
- Compatibility
- Clean Look
Important Note: The model is designed to be compact, so the fit for the connectors is quite tight. I have included a wrench in the files to help you screw them in. I recommend printing the wrench in PETG, as it is more durable and won't wear out as quickly as PLA when tightening the metal connectors.
It might require a bit of effort to get them in perfectly, but I chose this design to keep it strong without making the mount too bulky. I am still refining the model, but it's already fully functional and I wanted to share it with you!
Included files:

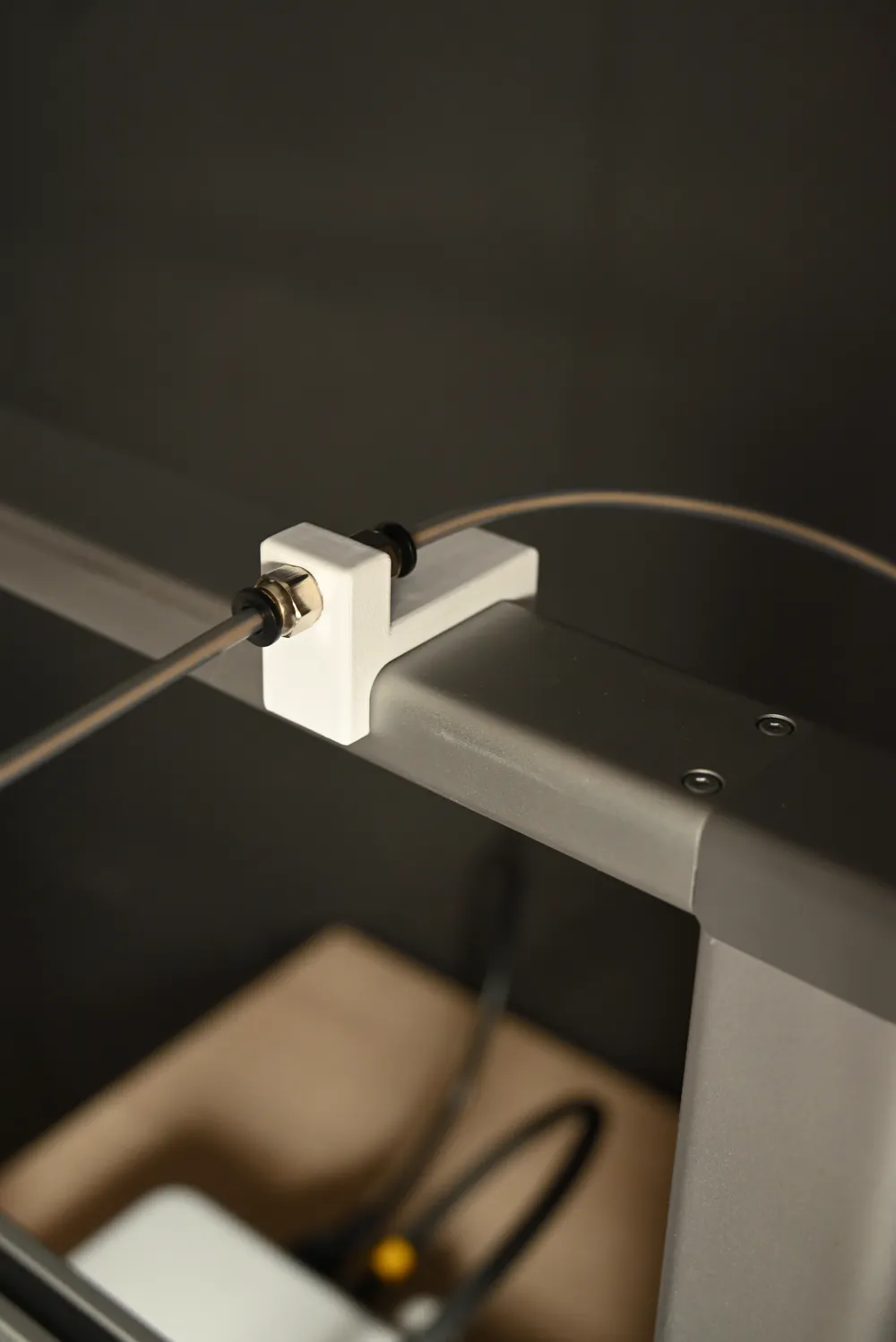

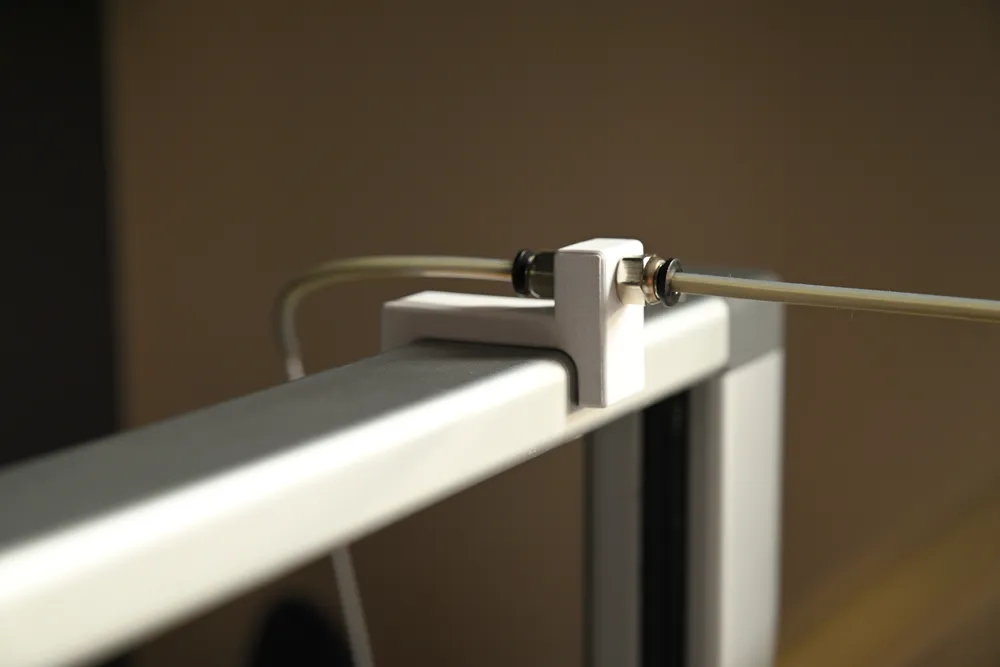

Single PTFE mount

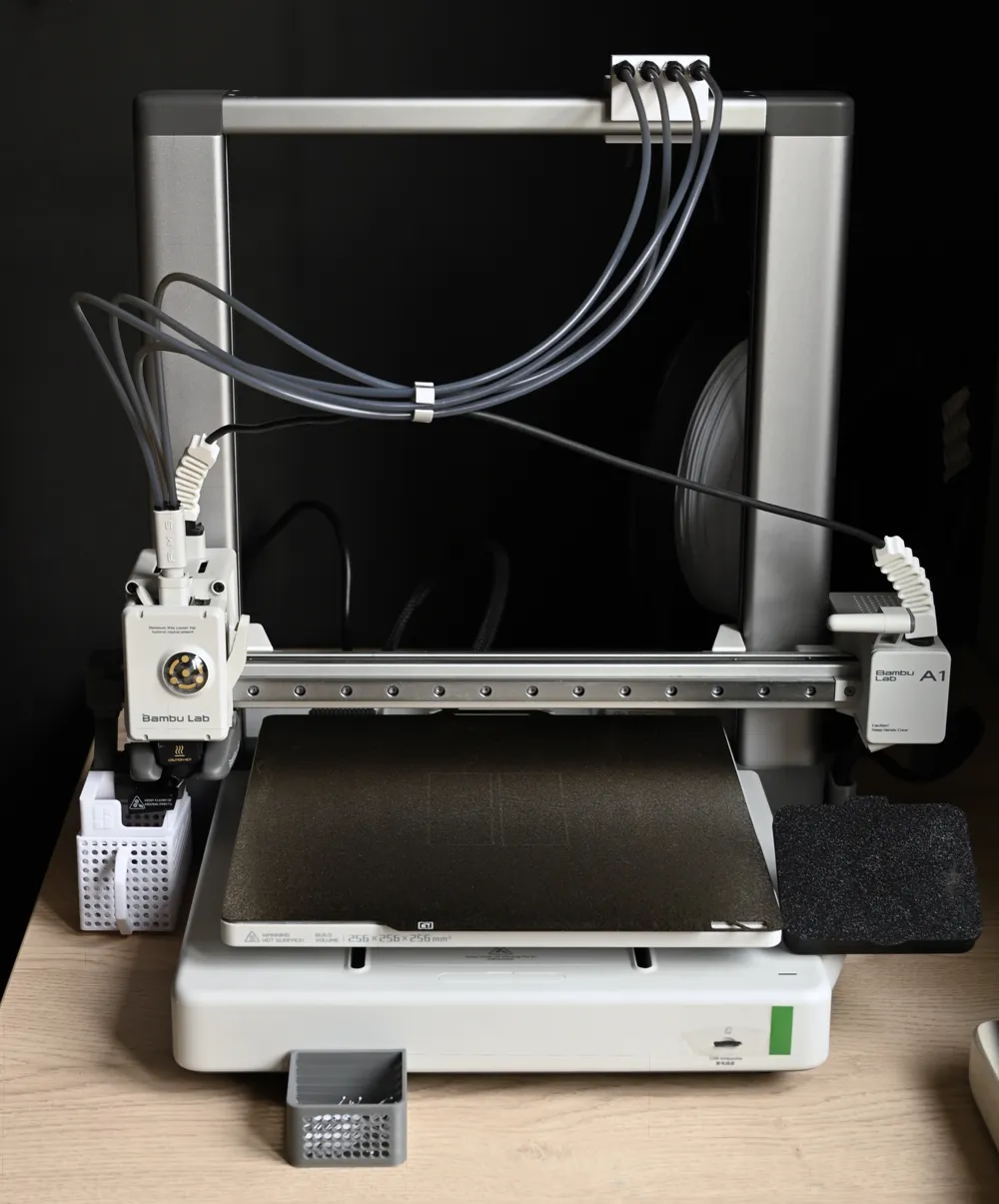

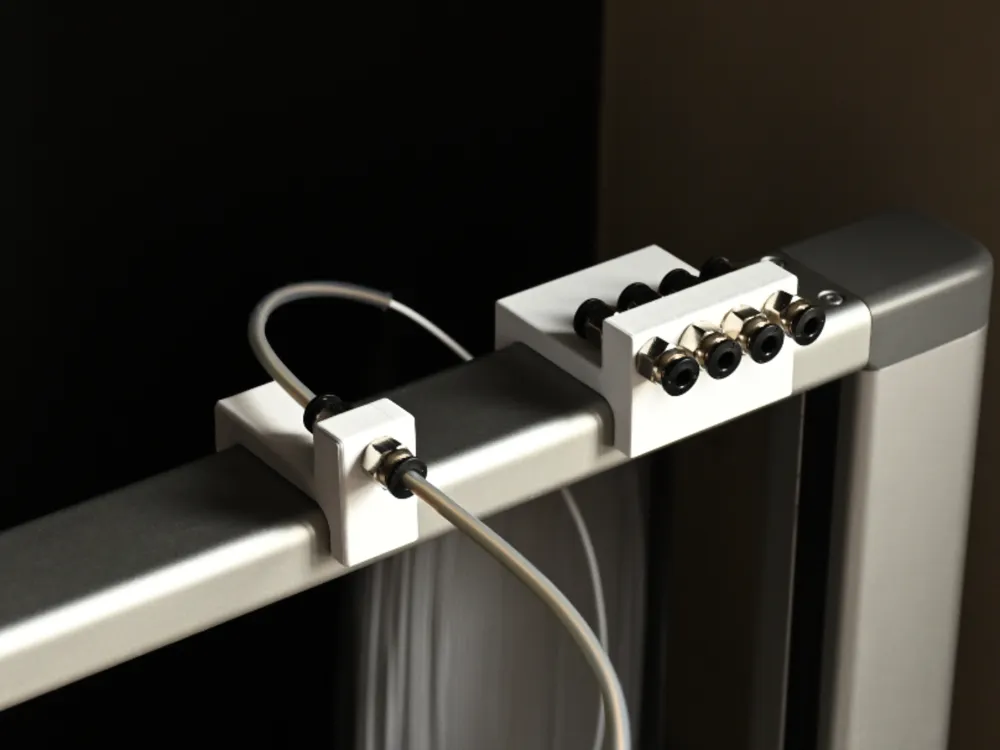

4 PTFE Tubes mount
Custom wrench for installation
