Simson Schwalbe Headlight Visor with Screen

Simson Schwalbe Headlight Visor / Shade – Custom Tuning Look

Description:

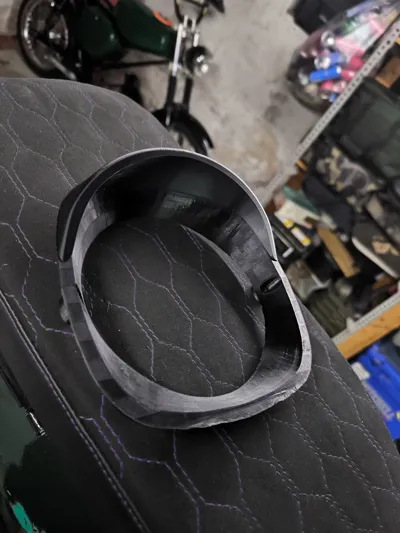

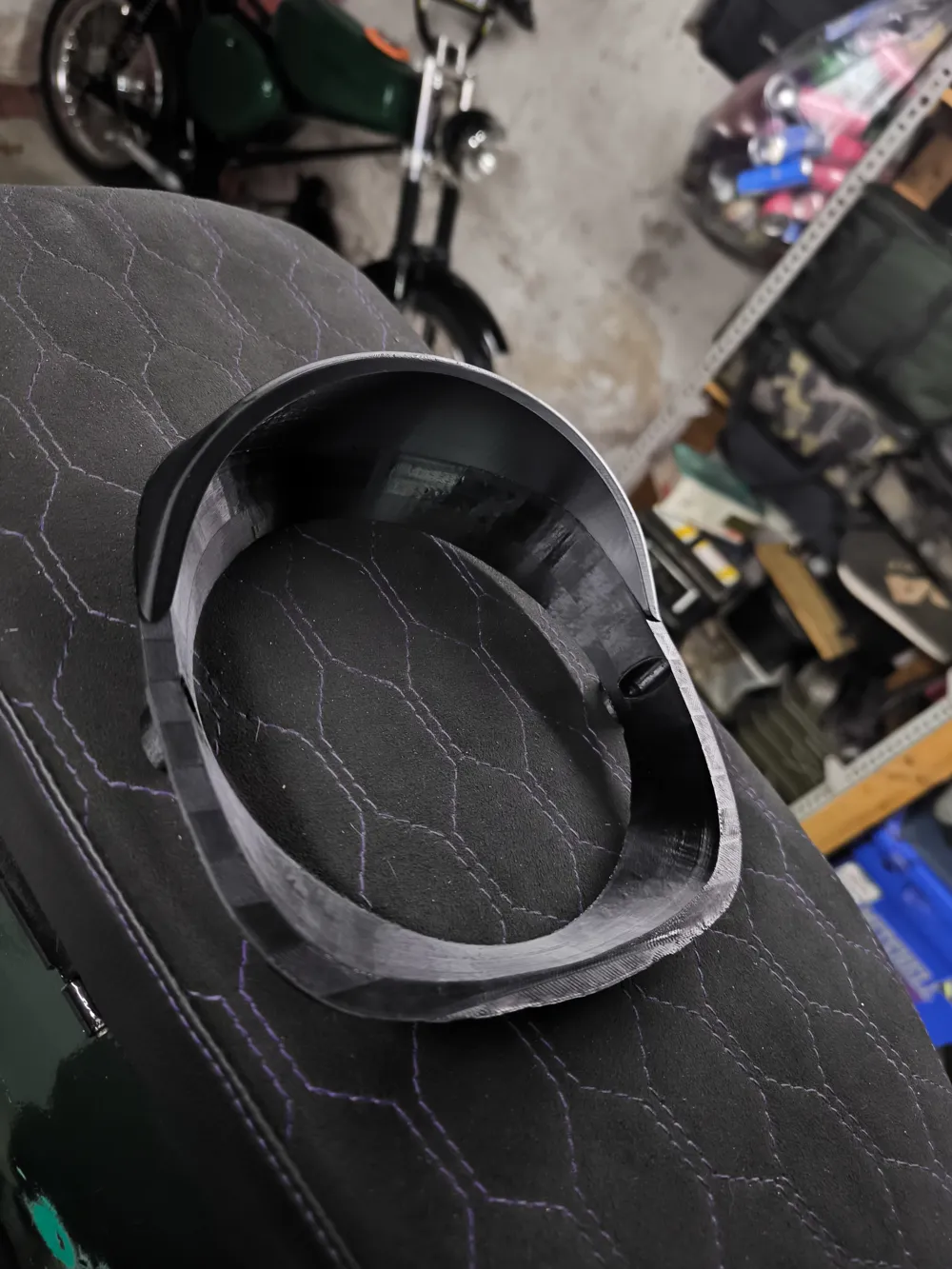

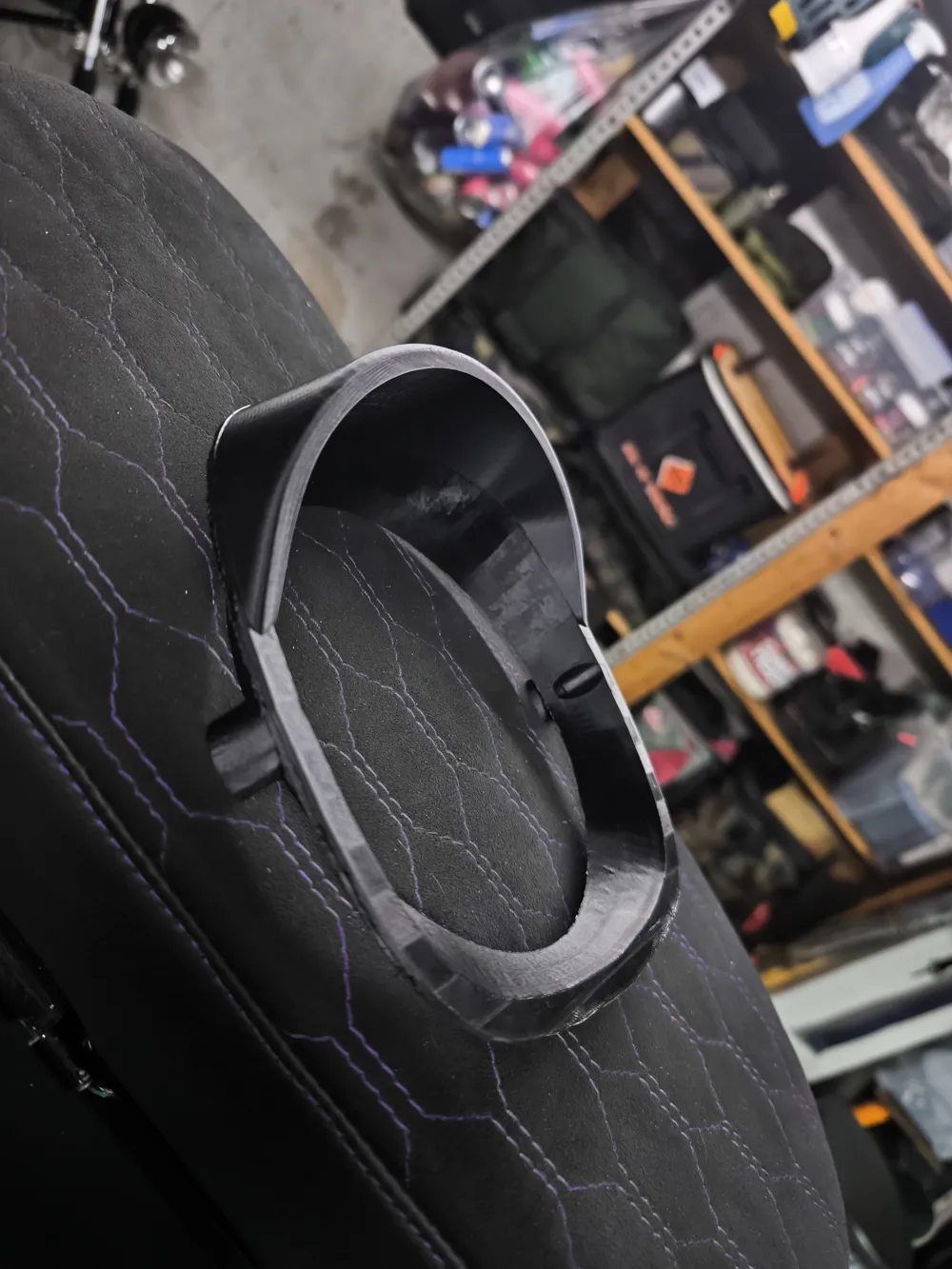

Give your Simson Schwalbe (KR51/1 & KR51/2) a unique and distinctive look! This 3D-printed headlight visor (also known as a "shade") provides a visual upgrade in classic tuning style, without significantly affecting light output

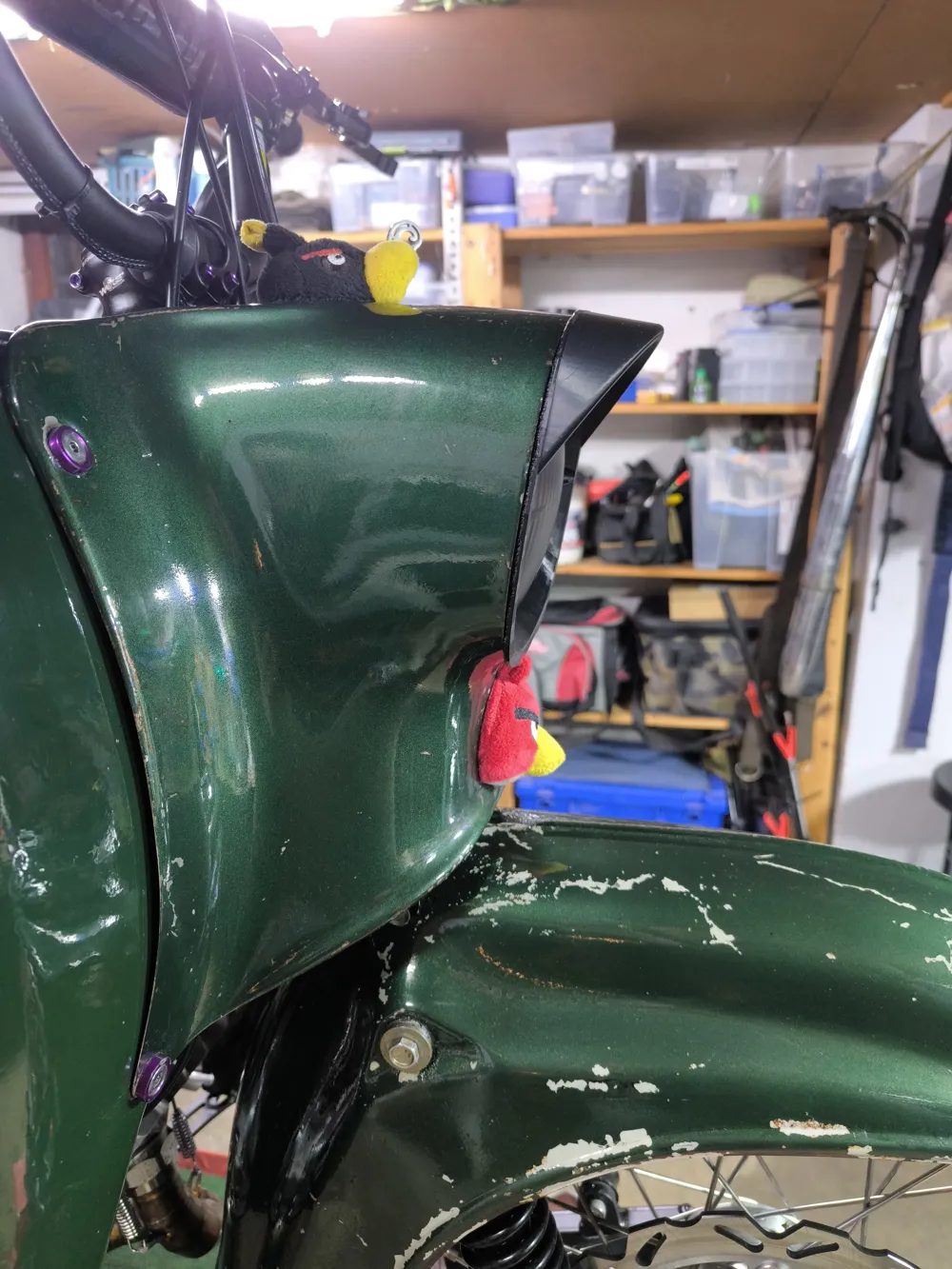

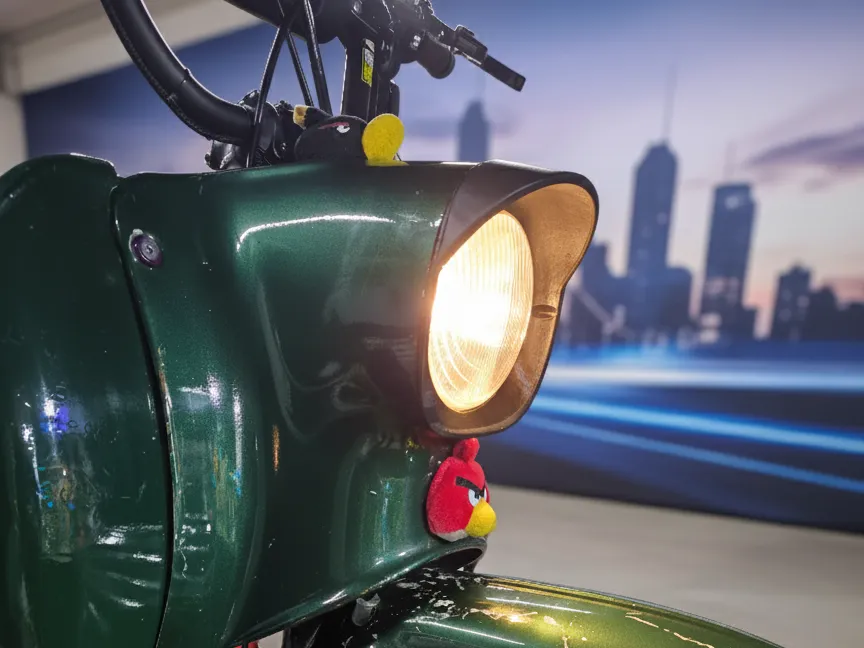

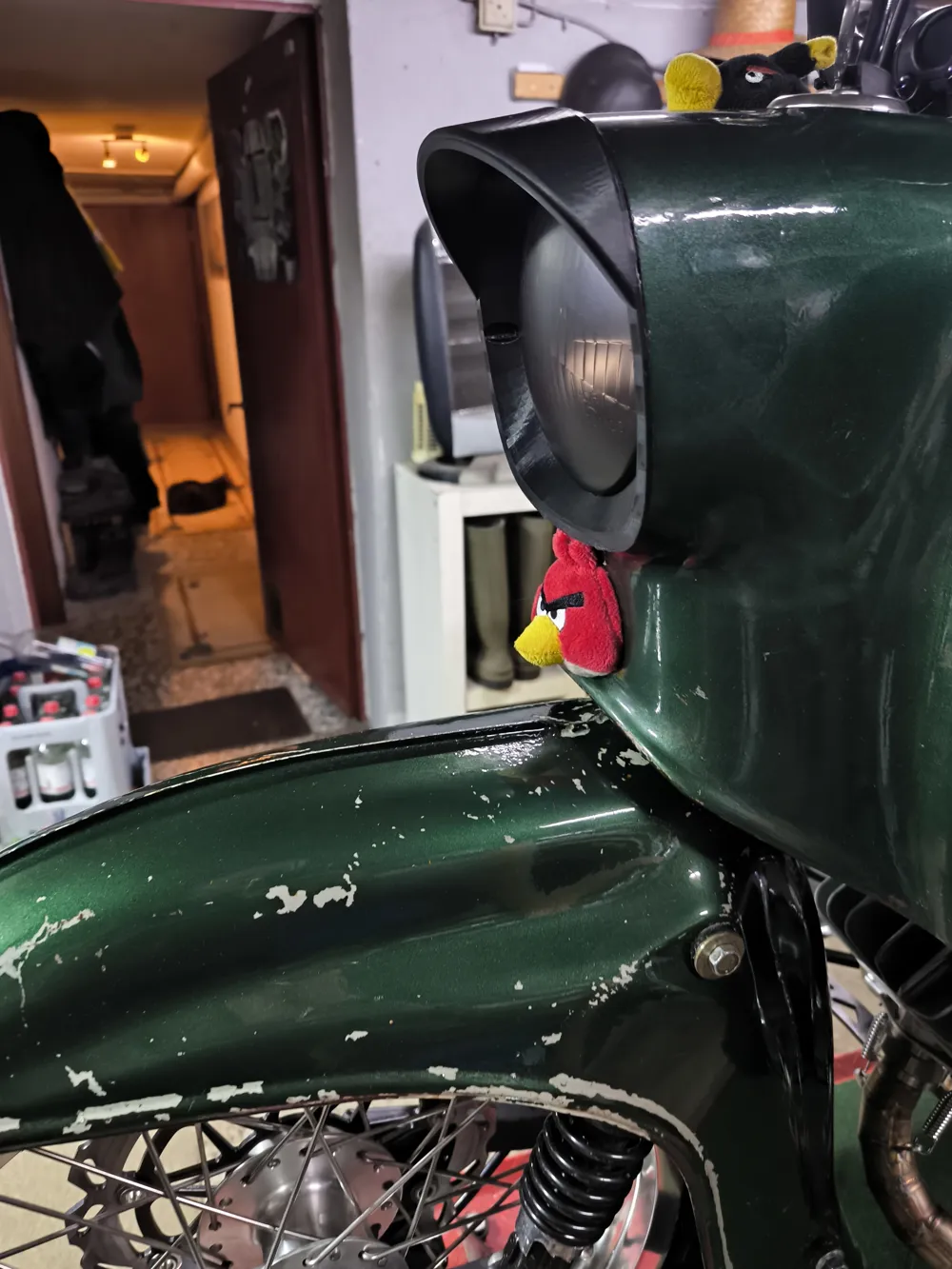

The visor is simply screwed on in place of the original headlight trim ring. It fits perfectly with the original look of the Schwalbe and gives the front a more aggressive, deeper gaze

Product Details:

• Compatibility: Suitable for all Simson Schwalbe models (KR51/1, KR51/2)
• Design: Classic "Evil Eye" / Shade look
• Installation: Easy assembly without drilling or gluing – fixed by the headlight trim ring
• Style: Ideal for custom projects or restored originals that want to add a special accent

Print Recommendations:

Print Profiles & Versions:

I am providing you with two optimized print profiles for this project:

1. Standard Profile (Without AMS): Classic print with automatic support structures from the main material. (Minor sanding work may be necessary at support points)



2. AMS-Support Profile (Interface Layer): In this profile, an interface layer of PLA is set. Since PLA and the main material (e.g., PETG or ASA) do not form a strong bond, the supports can be removed without leaving residue. The result is a perfectly smooth underside on the lampshade, without the typical marks from support structures

• Material: I recommend PETG, ASA, or ABS, as these materials are heat-resistant and UV-resistant. PLA can deform under direct sunlight or due to the heat of the light source
• Infill: 20–100% (depending on desired stability)

• Layer Height: 0.2 mm for a clean finish
