RadGauge-Dual MEGA (radius up to 80mm)

Congratulations on finally discovering FunOrNothing :)

🌀 RadGauge – Radius Measurement Tool

Radgauge is an innovative device designed to quickly and accurately measure the radius of a curved surface. Currently, various designs are available depending on the measurement range and function, and the characteristics of each design can be checked in the table below.

(Click on the letters in the table to go to the page where you can print the design.)

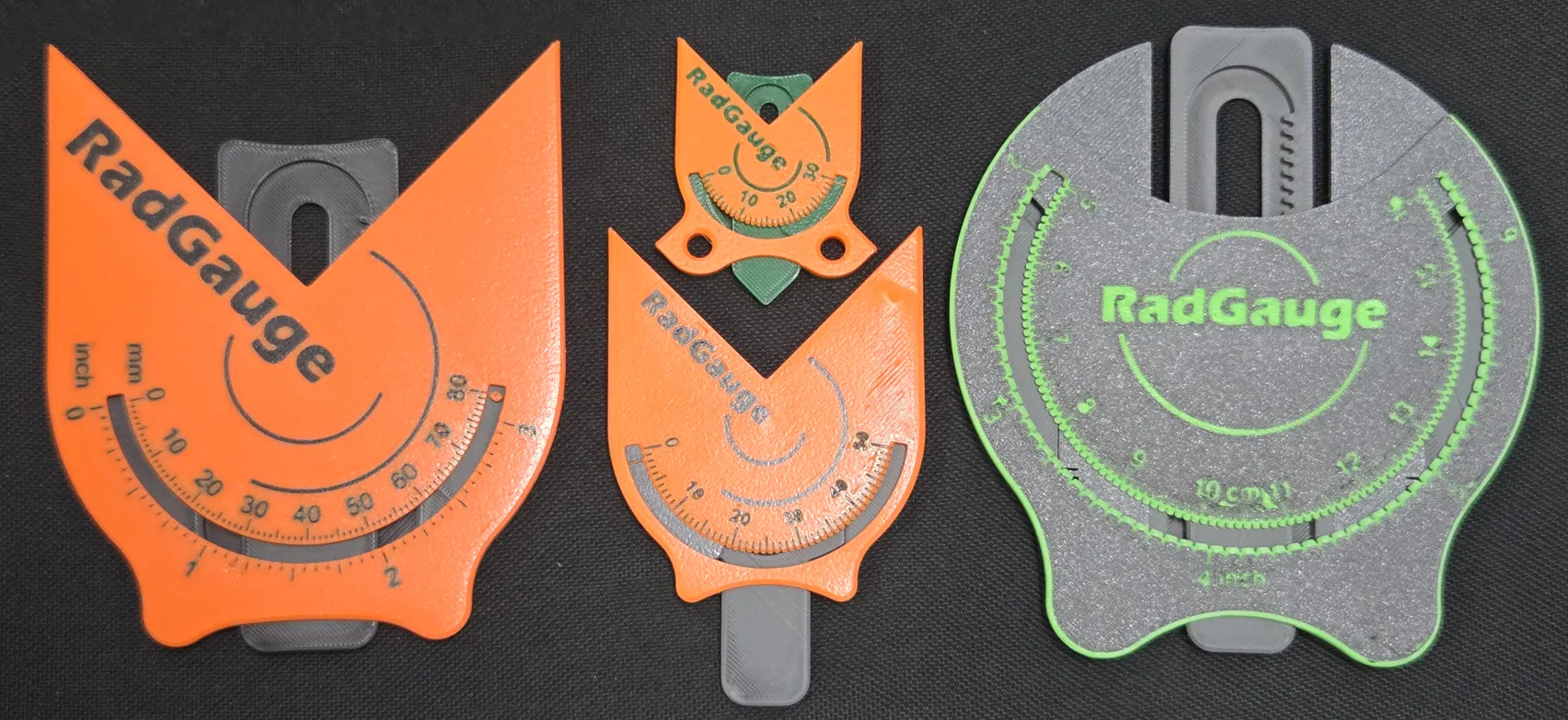

RadGauge Family

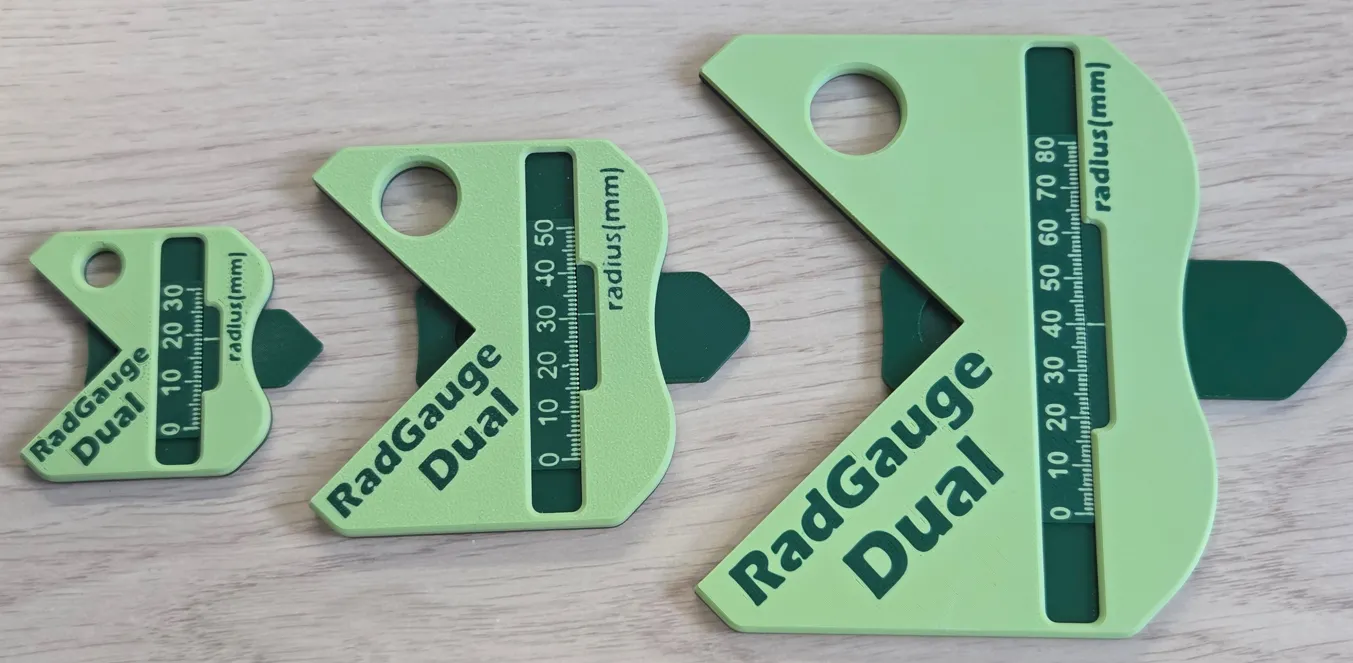

RadGauge-Dual Mega

When I unveiled the RadGauge-Dual model a few days ago, I expected it to be less popular than the original RadGauge, but the response exceeded my expectations.

Of course, this was partly due to the addition of an internal radius measurement feature, which the original RadGauge lacked. But perhaps more importantly, many people felt the same sense of engineering pleasure I felt from the device's movement.

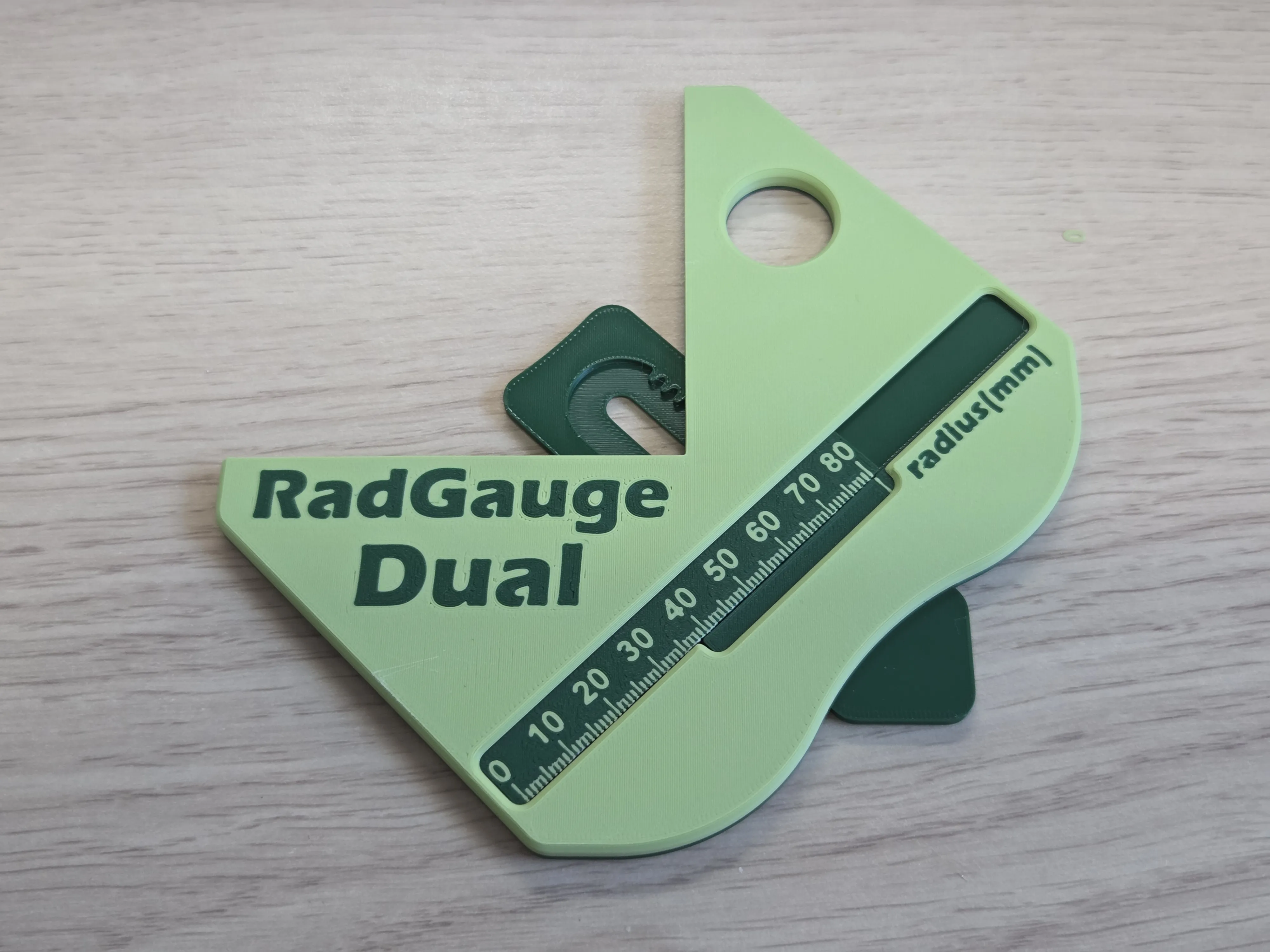

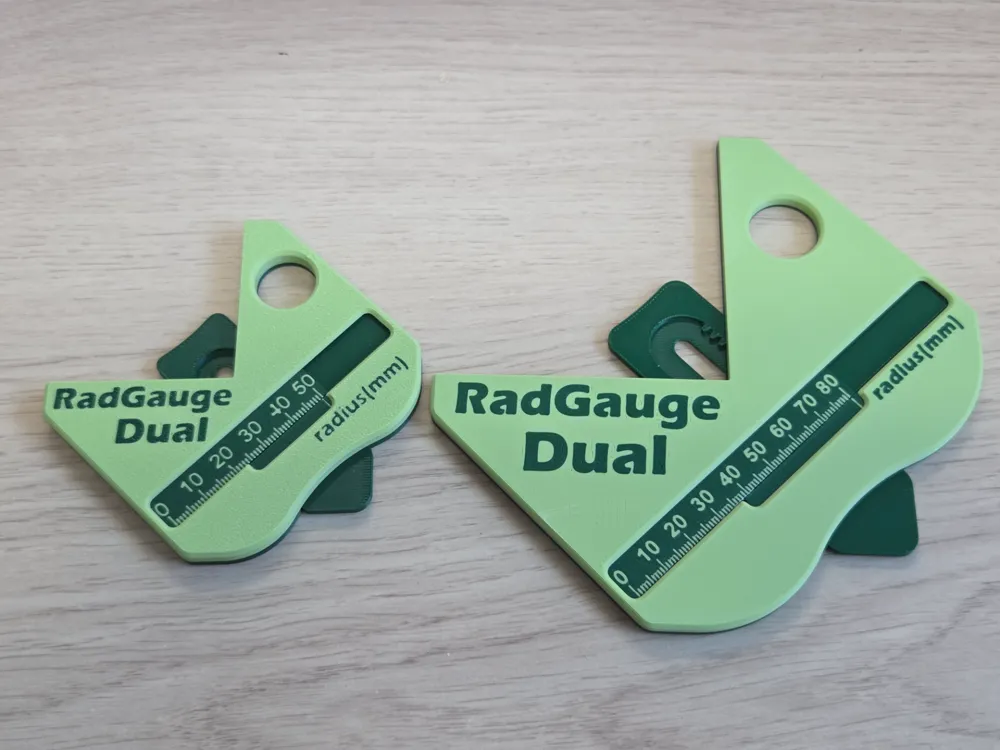

So, I designed the MEGA model, which uses the same mechanism to measure radii up to 80mm.

This model also adds an internal radius measurement feature and is similar in size to the original MAGA version, but thinner. While the rotating pointer structure limits its ability to be thinner due to durability considerations, the sliding scale and pointer allow for a thinner design due to their structural advantages.

This model measures the inner radius to a minimum of 5 mm. For smaller radii, use the NANO model.

Originally it's designed for metric units users but there is a profile including inch scale separately.

The method of use is the same as for all existing RadGauge models.

!!CAUSION!!

Please note that if the build plate has poor adhesion, the scale may not print properly.

For smooth sliding, the use of a smooth plate is recommended.

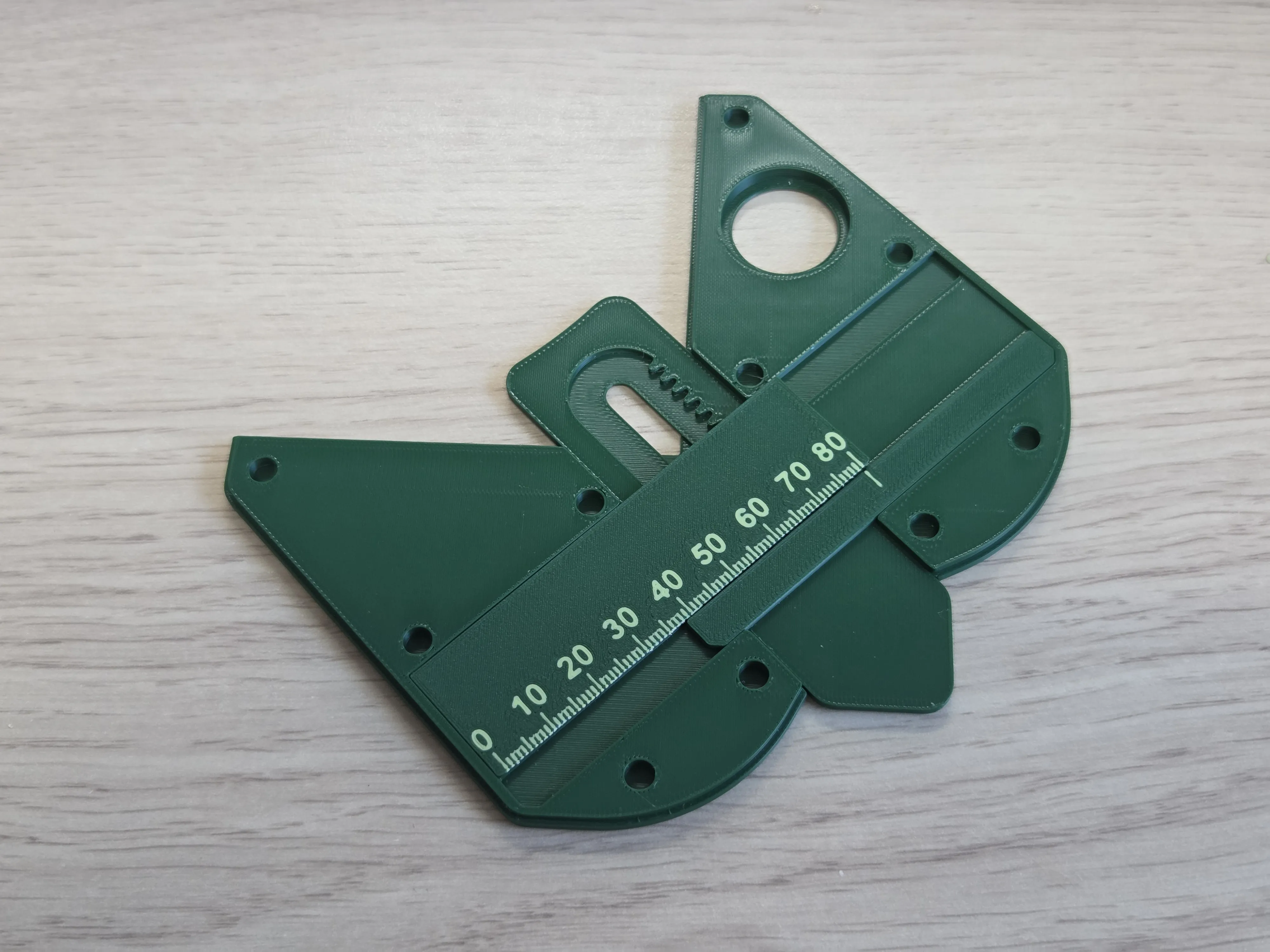

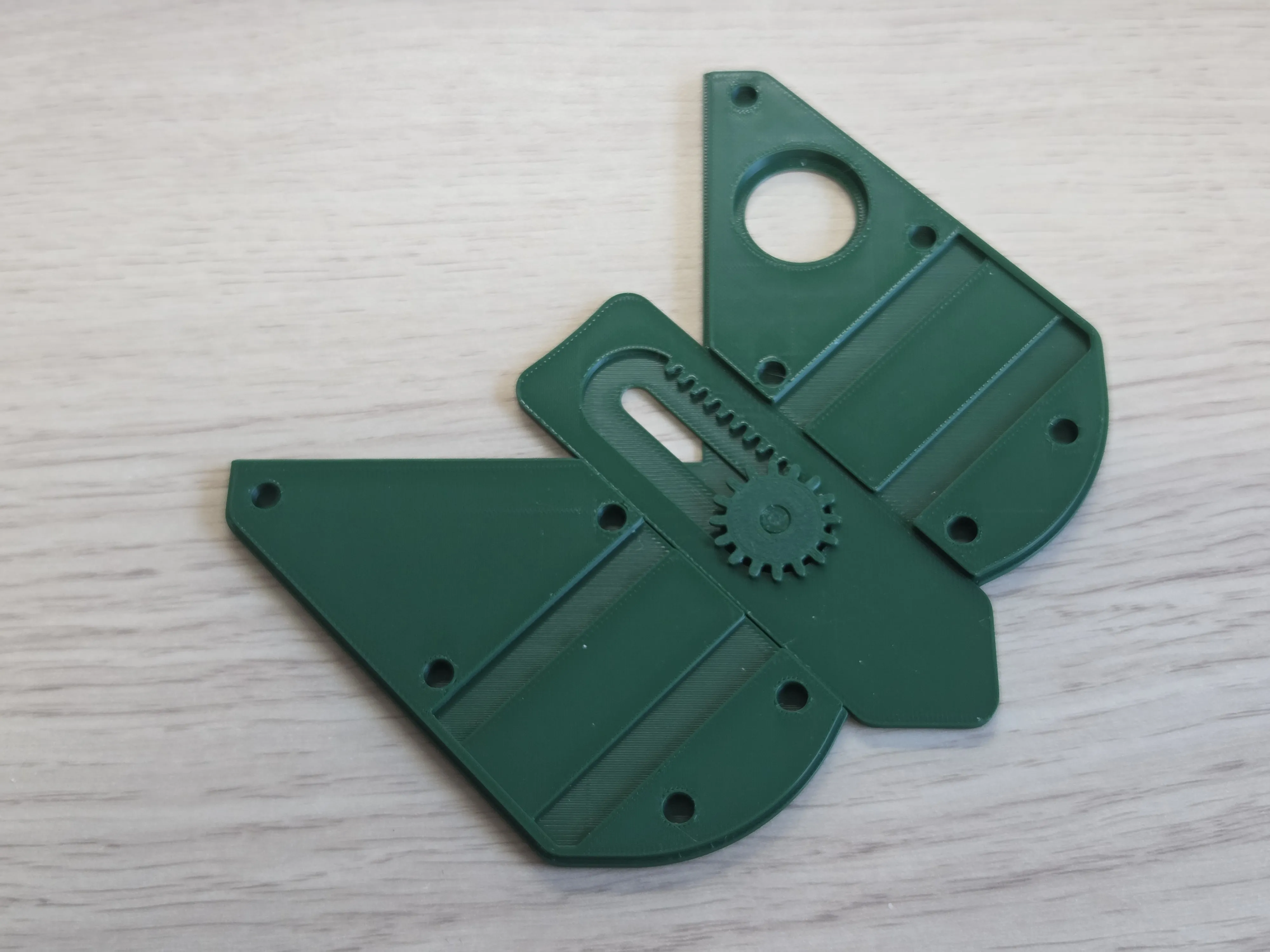

Assembly order

Assembled at 80mm measurement settings.

1. General Licensing Statement

This model is copyrighted and its commercial use is strictly prohibited.
This falls under the Non-Commercial (NC) condition of the Creative Commons license.

2. Specific Prohibition on Reproduction Services

PROHIBITION OF PRINTING SERVICES: Providing this model file to any third party for the purpose of paid reproduction (printing) is strictly prohibited.
PERSONAL USE ONLY: All reproduction must be conducted solely on the end-user's personally owned 3D printer.
This license condition forbids the use of printing services, even for a single personal copy.

⚠️ Official Notice Regarding RadianLab™ Model
This model is exclusively manufactured and distributed under the RadianLab™ brand.

The unauthorized sale of this product by any other individual or entity is strictly prohibited and constitutes a violation of my brand rights. I require that any instances of unauthorized distribution or sales be reported to me immediately.

01/05/2026 Model Update

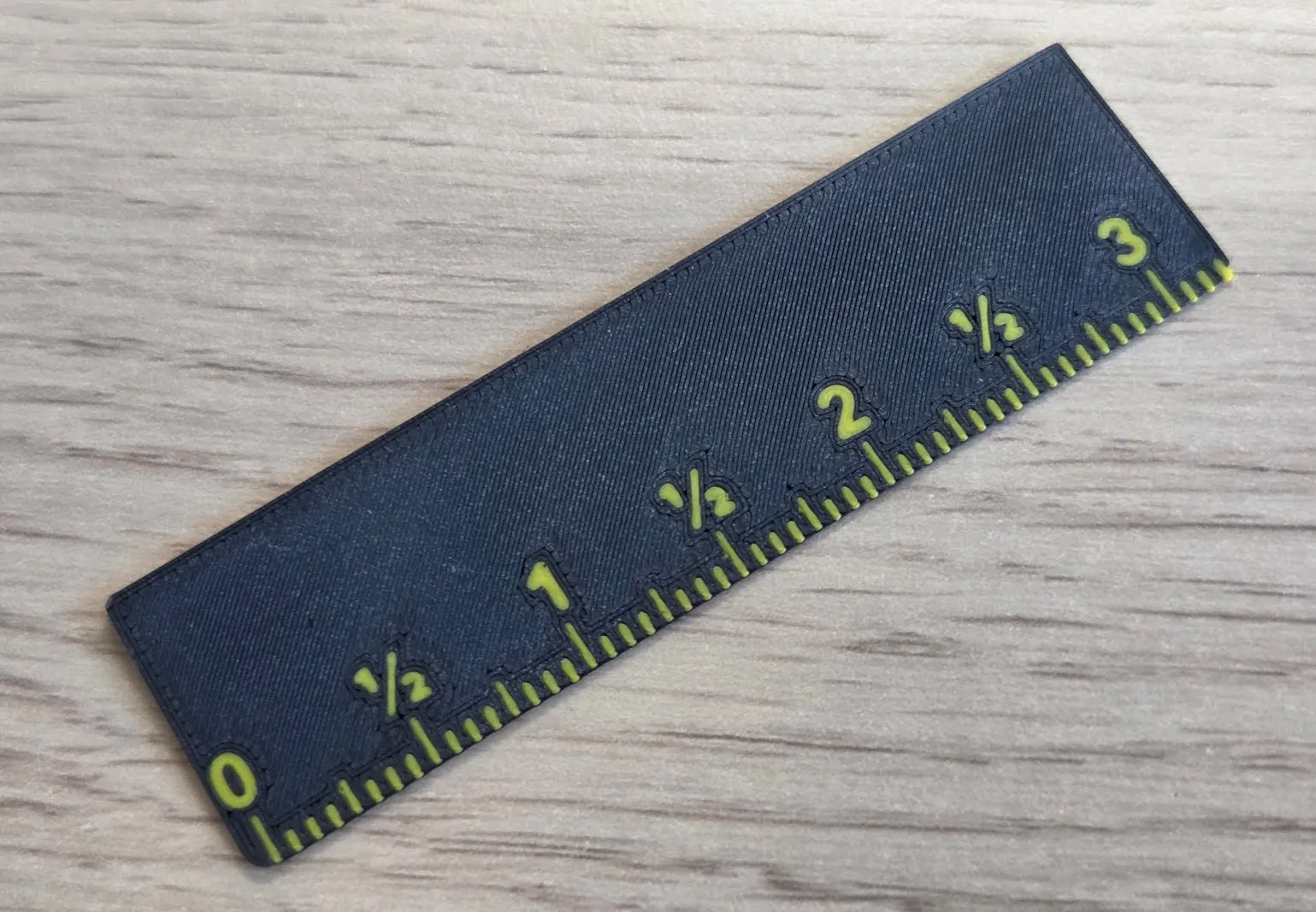

Added inch scale profile. This profile only contains scale models, so you can use them instead of mm scales.

________________________

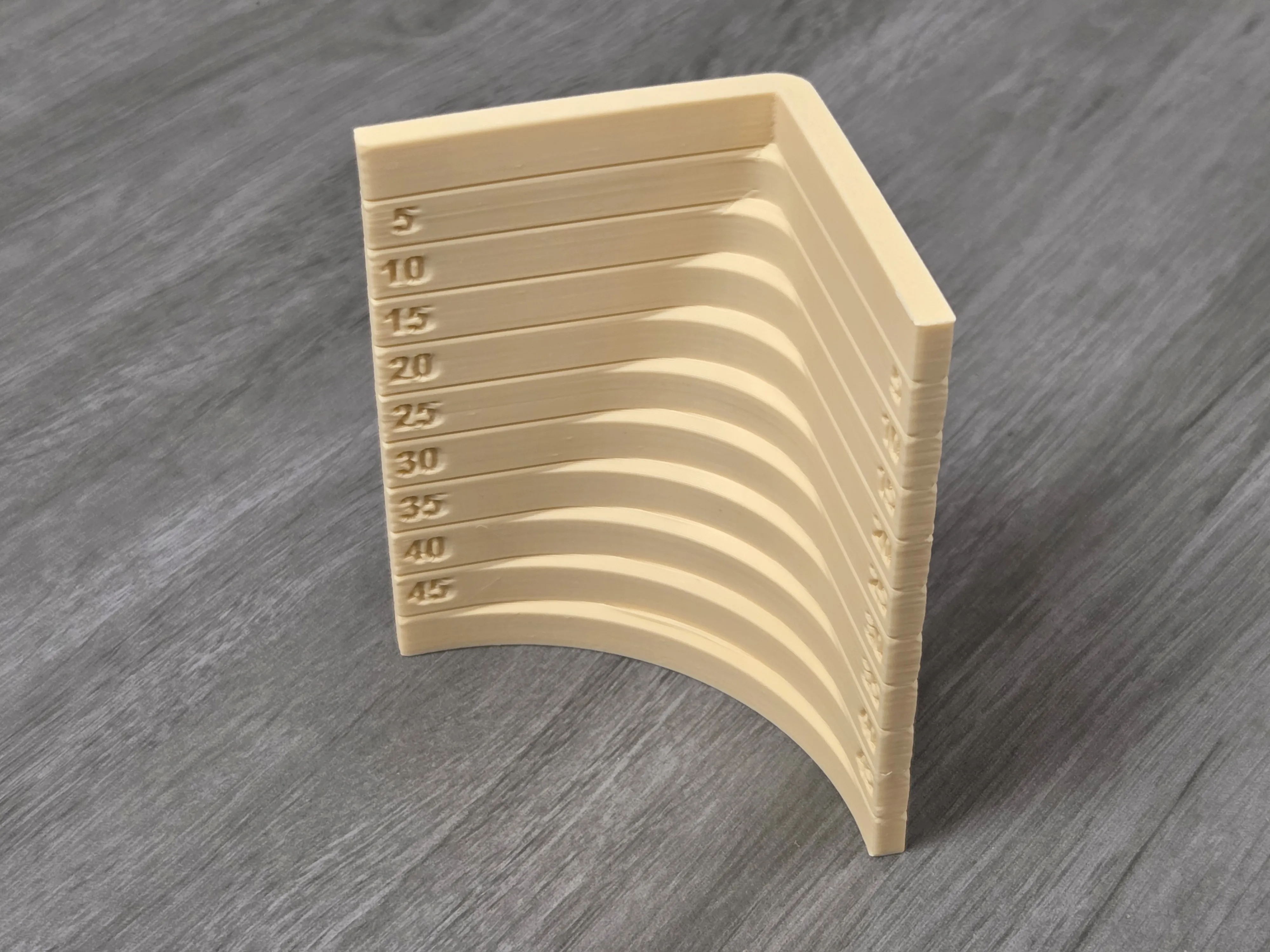

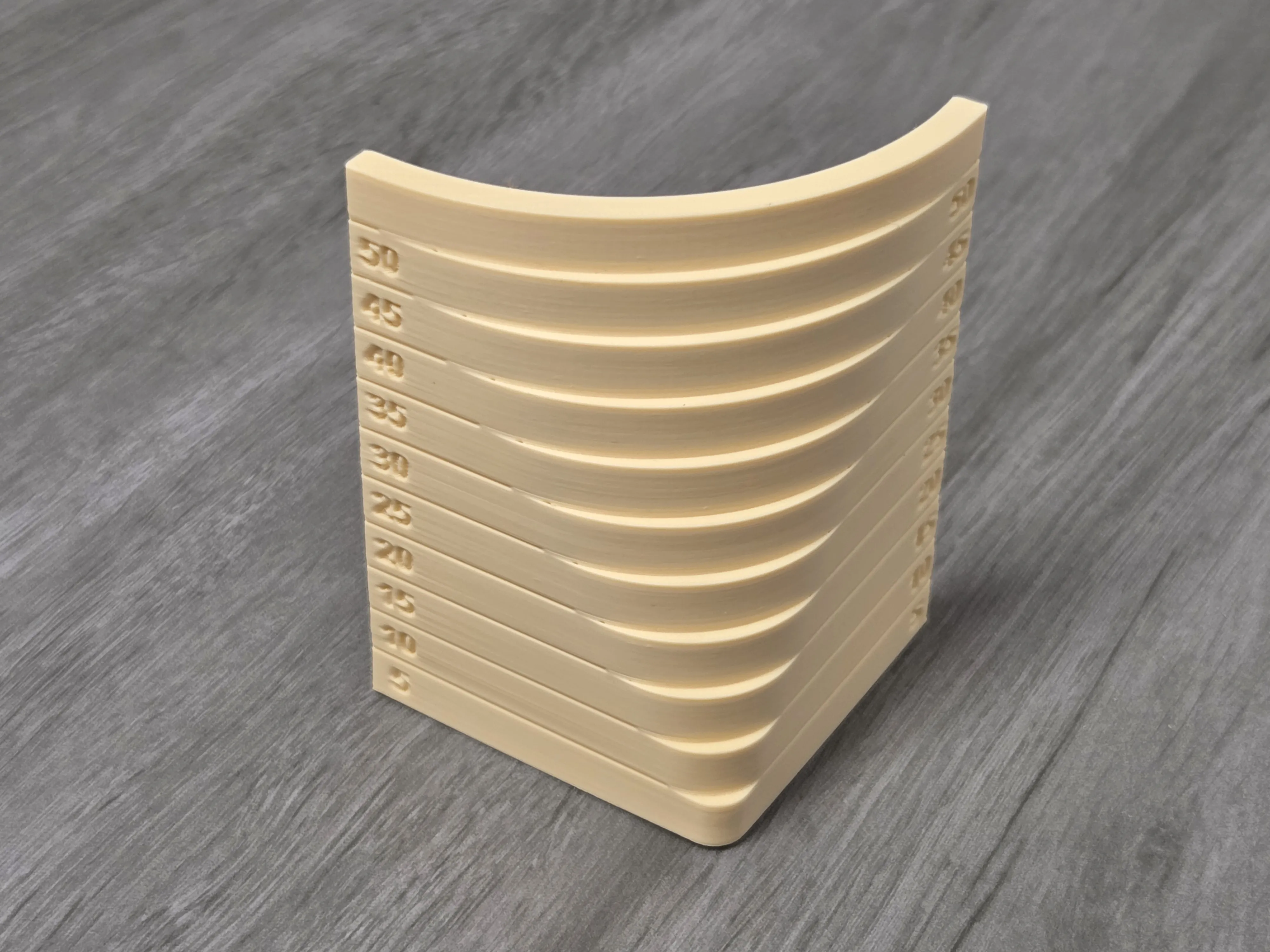

This is the model I used for testing while designing the RadGauge series.
Test the accuracy of your RadGauge model. (Click)

______________________

You may also like…

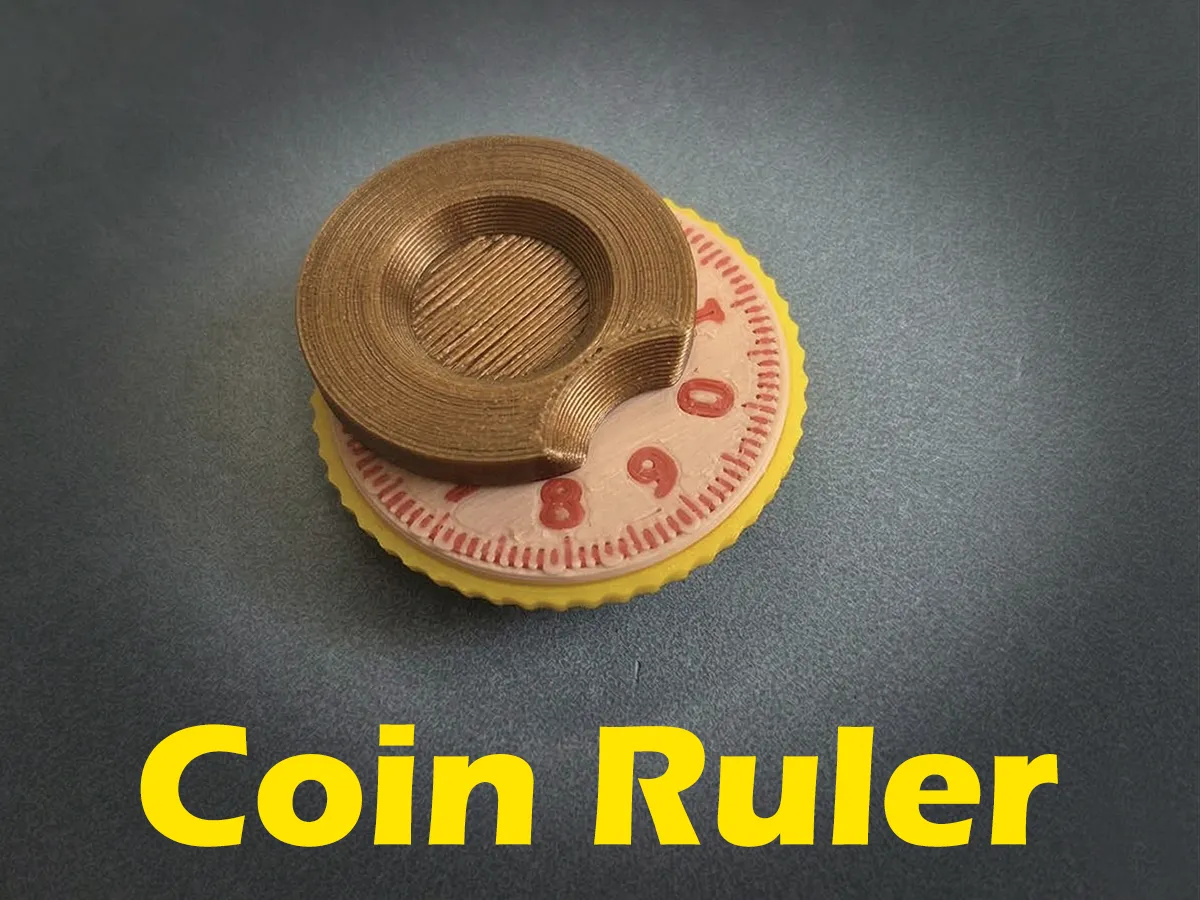

Coin Ruler

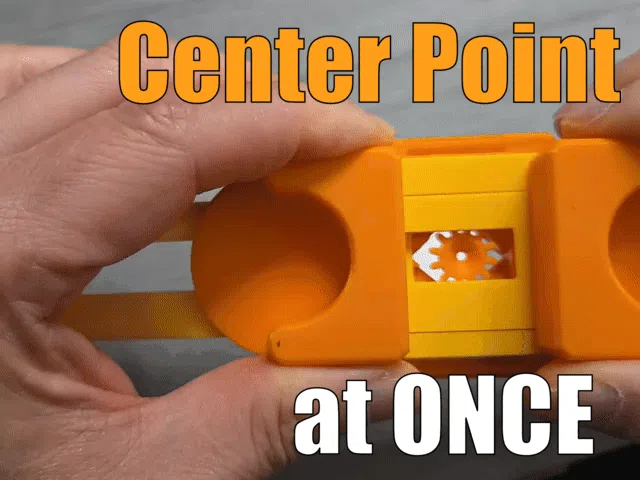

Center Point Finder

Hope you Enjoy this model.

As always, I welcome your feedback.
