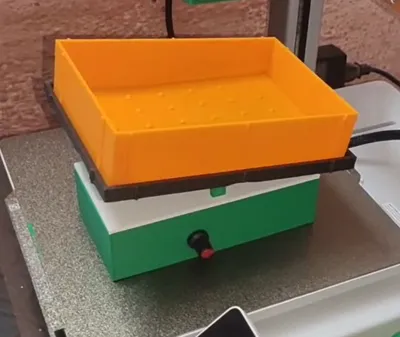

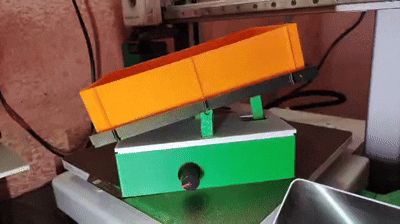

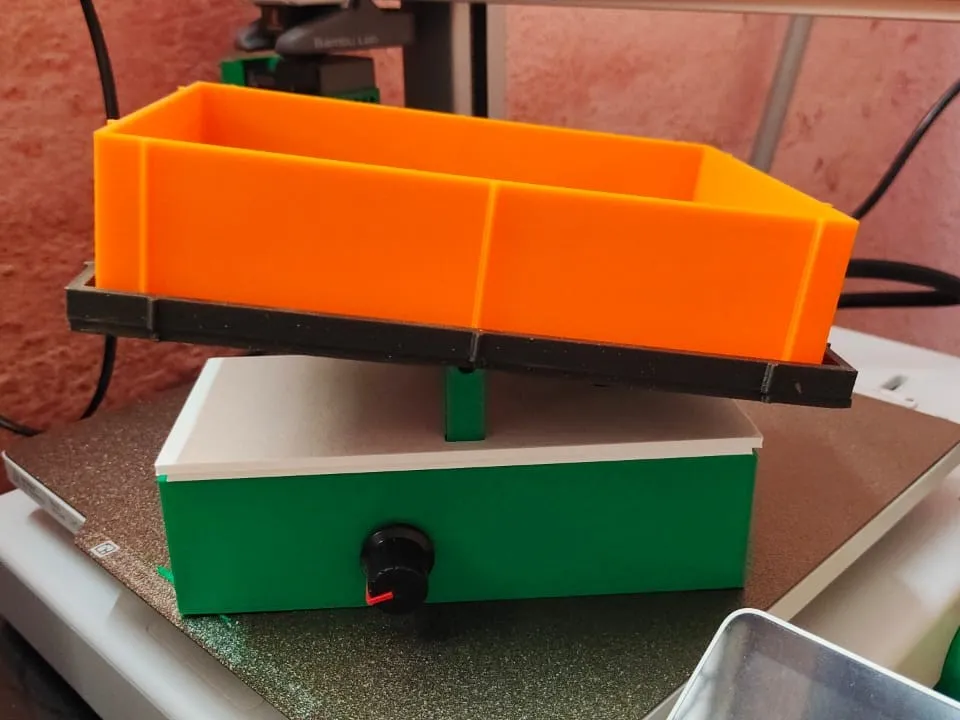

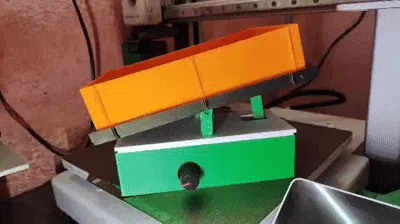

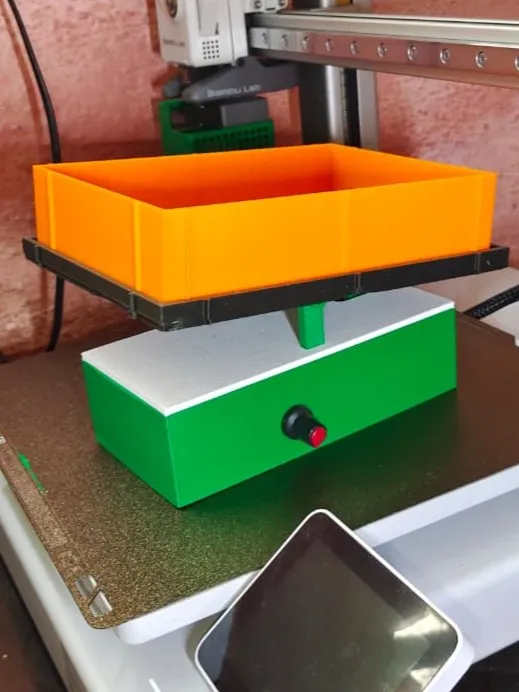

PCB Etching Shaker – Battery Powered
A compact, portable PCB etching shaker designed for uniform and reliable PCB etching. It uses a DC BO motor (45–100 RPM) with a motor speed controller to adjust shaking speed as required.

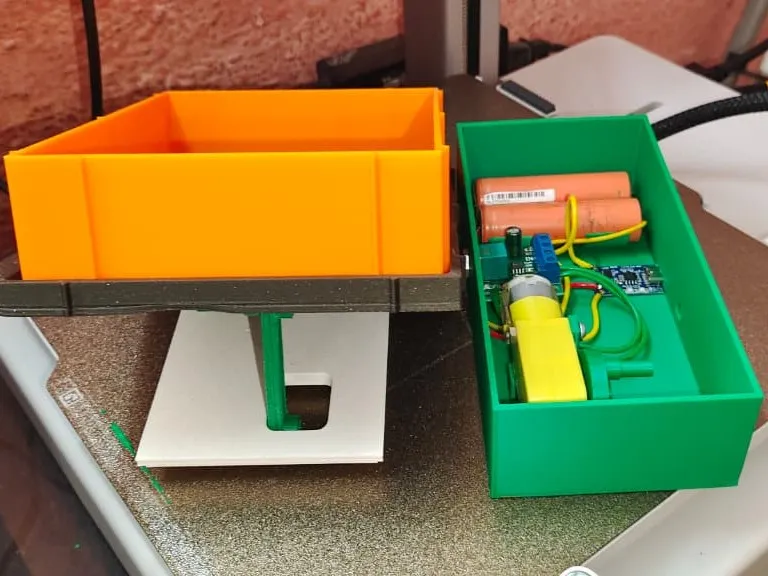

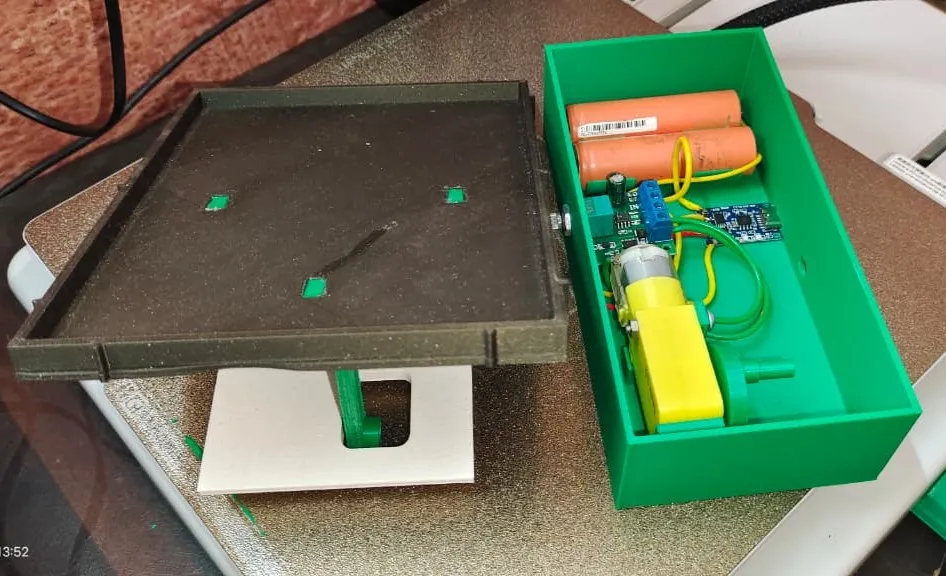

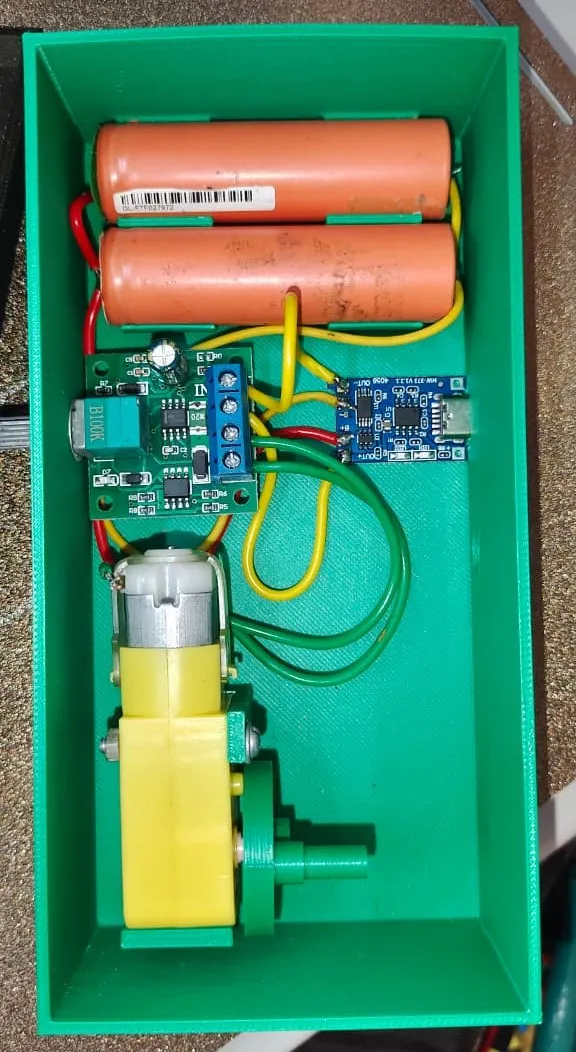

Powered by 2 × 18650 Li-ion batteries with an onboard TP4056 USB charging module, the unit is fully portable and rechargeable.
Features
- DC BO motor (45–100 RPM)
- Adjustable motor speed controller
- 2 × 18650 battery powered
- TP4056 USB charging module
- Compact and portable design
Ideal for DIY PCB fabrication and electronics hobby labs.
