BMCU-C Dual Microswitch High Torque Standard Gear Version
Print Profile(2)
Description

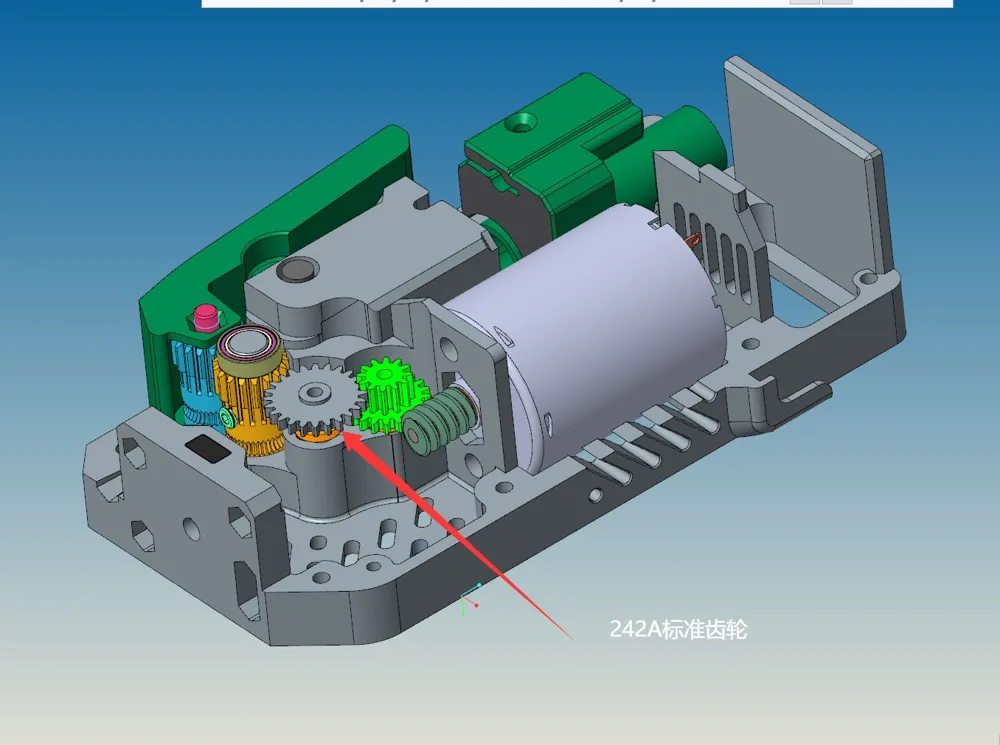

This is a dual micro-motion high-torque standard gear version, replacing the original two 182A gears with 20122 double-layer spur gears and 242A standard gears (with a middle thickness of 1.5MM) If you need Kongming's thickened gears, please visit my homepage to print the Kongming thickened gear version There are two versions of this 242A gear, please note the difference
For the original dual micro-motion version, only the back cover, middle frame, and front cover need to be replaced (the original front cover can also be used, with modifications only to the gear observation port and for adding grease) All other accessories are universal with the original, so parts that have already been printed do not need to be printed again
