TonieBox 1 or 2 modular shelf

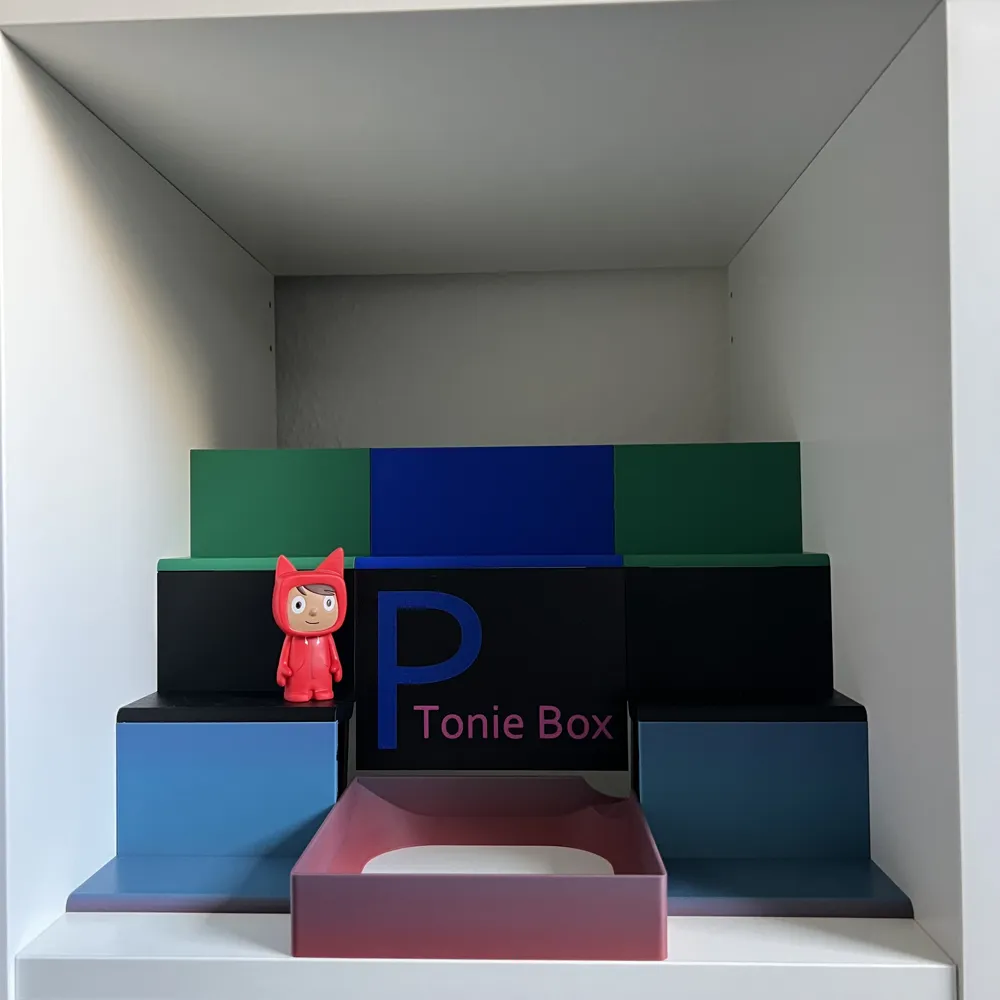

Here is my modular shelf (fits into a Kallax compartment) for a TonieBox 1 or 2 as well as various figures with magnetic holders:


This shelf can be assembled modularly

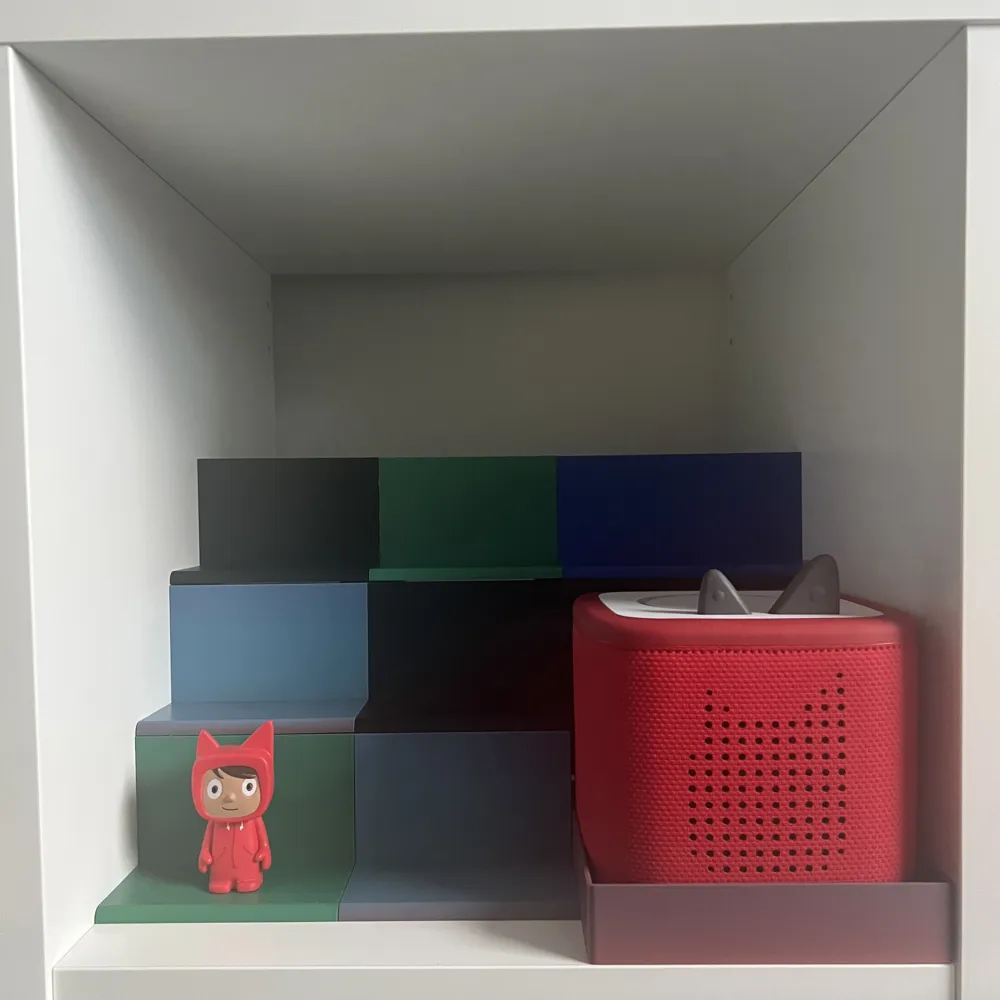

Regardless of where the TonieBox 1 or 2 holder is located (left/middle/right), according to your own wishes!

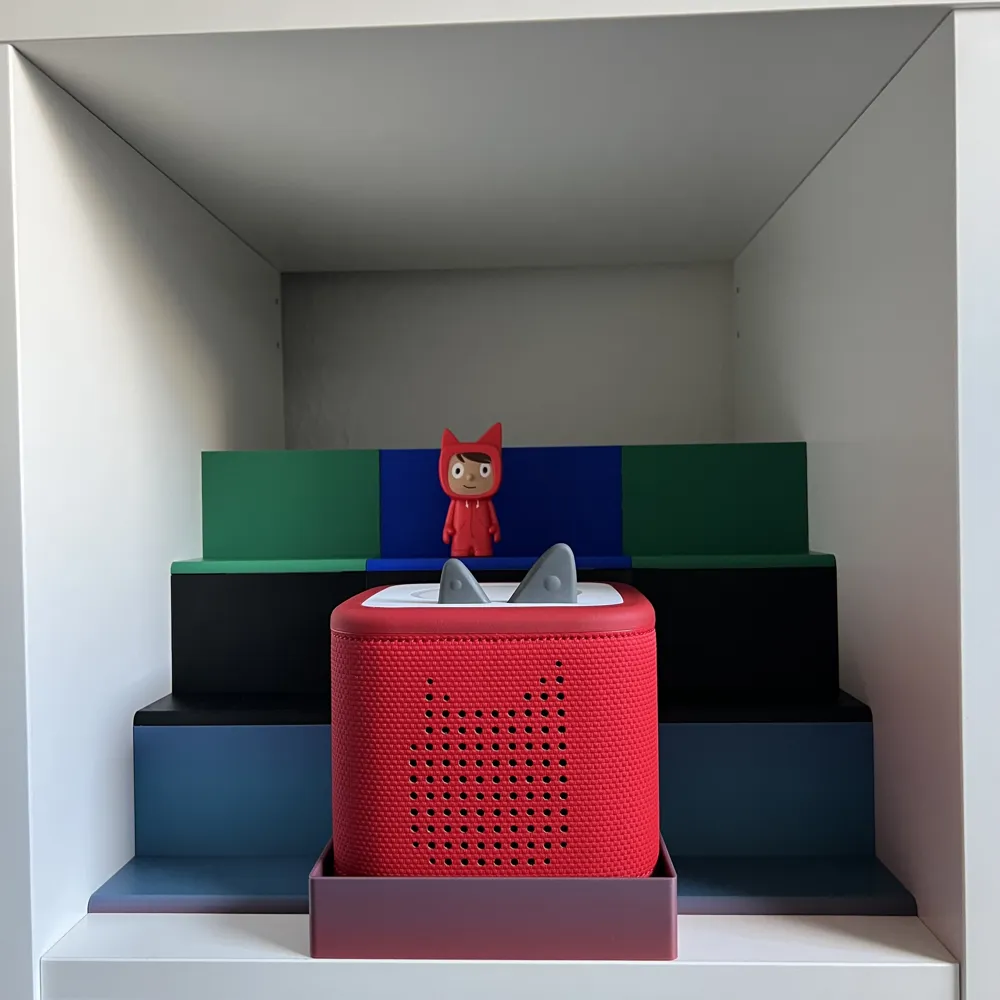

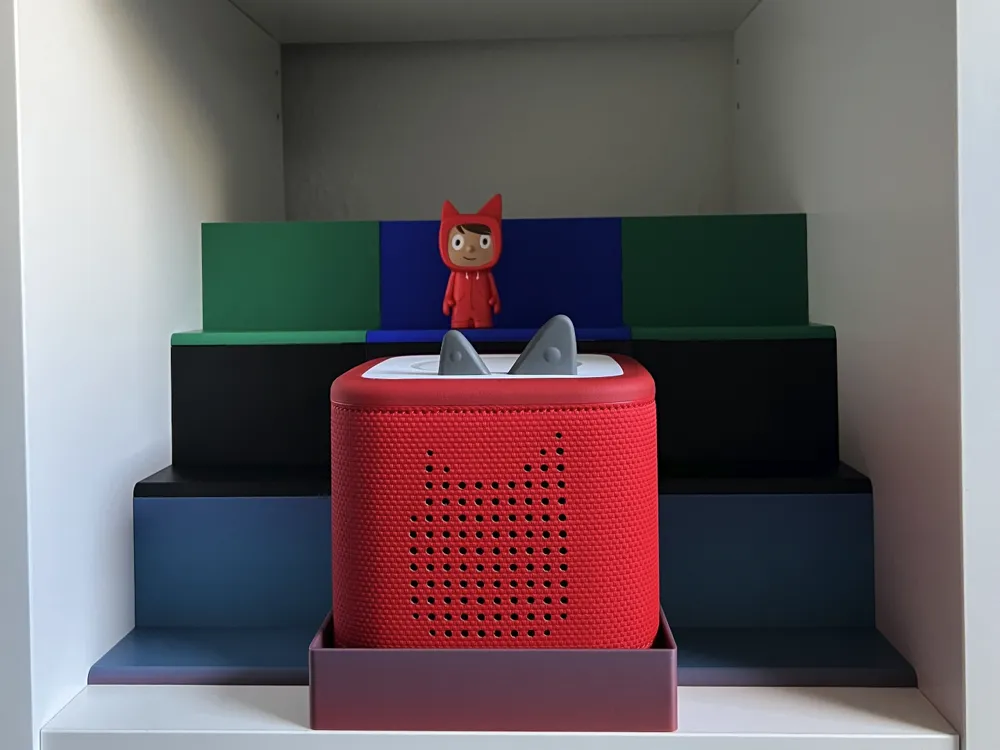

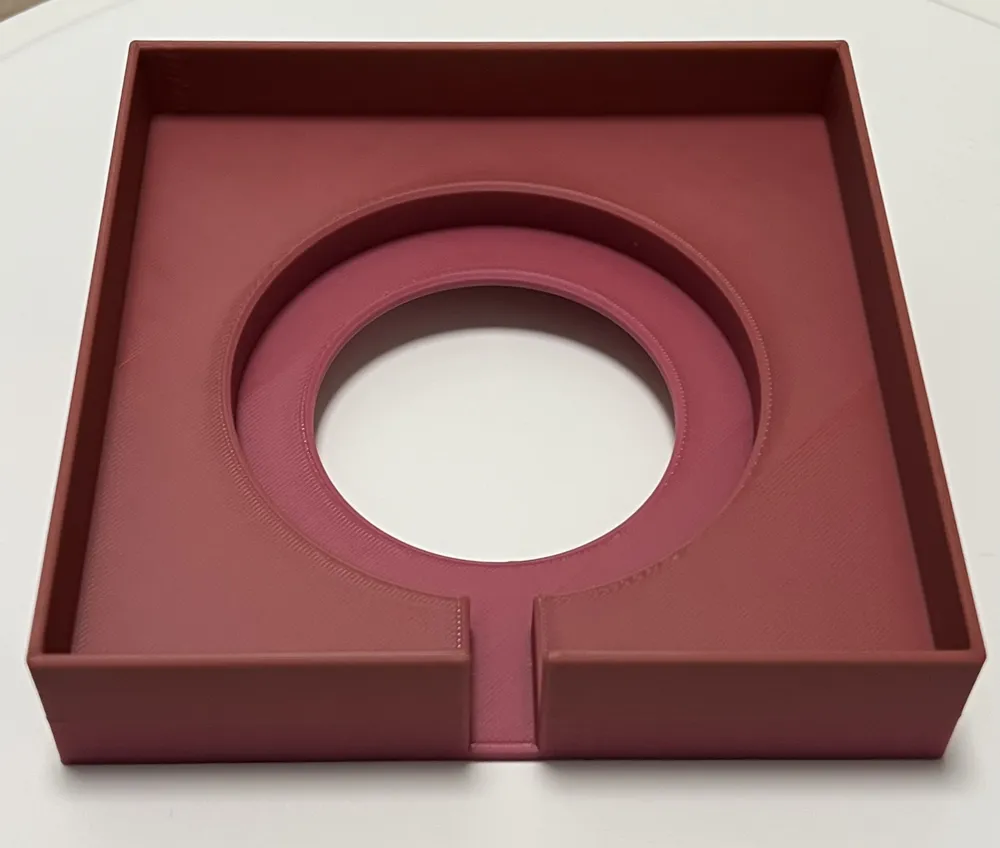

The base element with connection options on the left/right side can be integrated into the L-shelves with appropriate connectors. The TonieBox 1 or 2 is enclosed by the base element and thus still stands on its own non-slip rubber foot or charging adapter

The back panel can be mounted behind the base element, and text can be inserted before printing

Please note the documents as accompanying materials here

General description:

The connectors are sometimes very tight. If there is still a need, the parts can be glued with a suitable adhesive. To increase stability, additional connector pins can be used

For small children, I recommend gluing

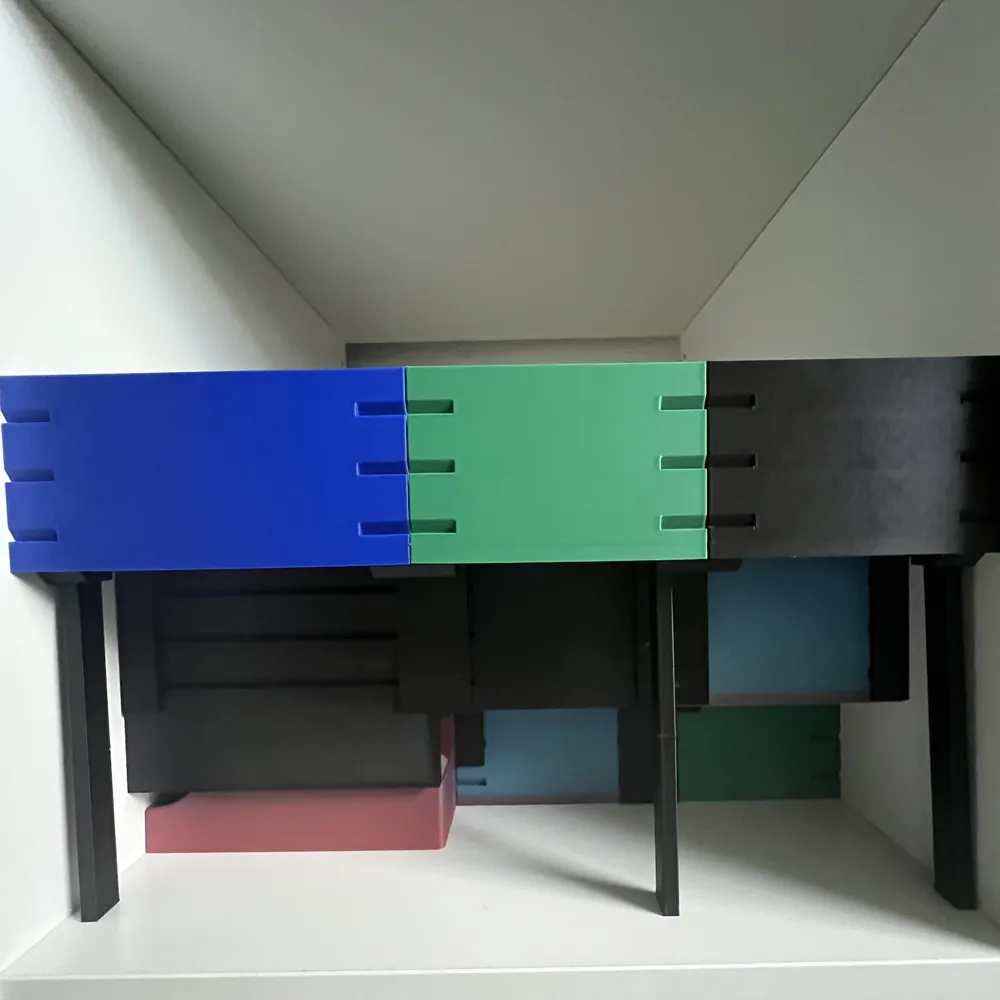

To support the L_shelves, 60mm supports are needed for the 1st floor

For each additional floor, one 65.3mm support is additionally required

By stacking (60mm+65.3mm+65.3mm+ ……), each level can now be supported in this way

By stacking (60mm+65.3mm+65.3mm+ ……), each level can now be supported in this way.
-> Update: The supports have been enlarged to make them more stable; both versions are already stored in Tonie_Box_V2_1,8.3mf

TrägerHinten_30mm are used as connectors for 2 L-shelves

TrägerHinten_15mm are used at the end of each L-shelf

The TrägrerHinten_15mm Short are only needed in the area where the connection to the base element is to be established

For this, VerbinderLinks and/or VerbinderRechts are necessary and must be mounted as needed

Magnets (15mm x 1.8mm) can be inserted during the print pause

Please check the pause here and pay attention to the polarity!, TEST with a Tonie.

For questions and requests, please send a private message


History:

2026-01-27 V2 upload

2026-01-27 Documents replaced / updated

2027-01-27 Change of supports
2026-01-27 Expansion of L-shelves with 200mm as well as without and for 2.2mm magnets (sep. DL)

2025-12-28 Expansion of Tonie 1 base element

2025-12-24 First upload
