Afterburner Mounting Plate UK Pattress
Print Profile(1)
Description

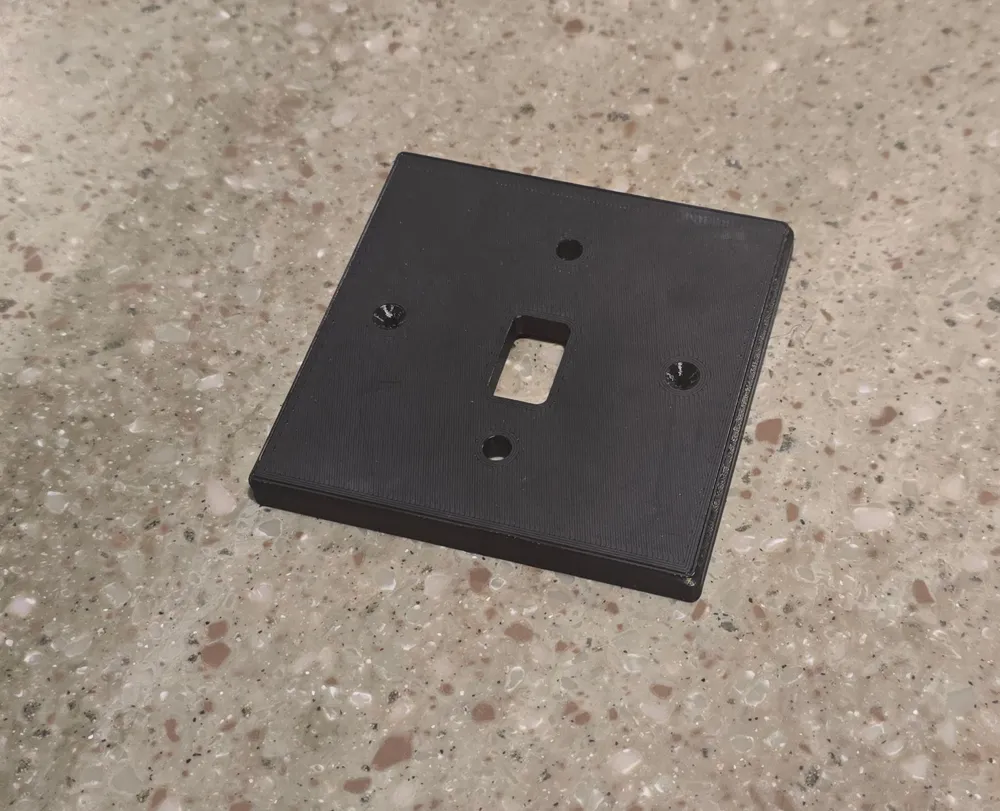

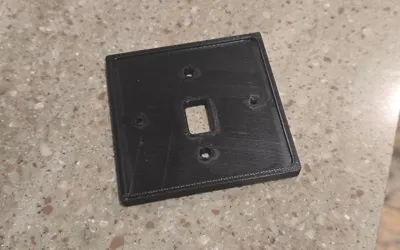

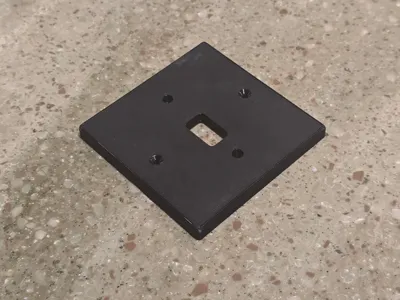

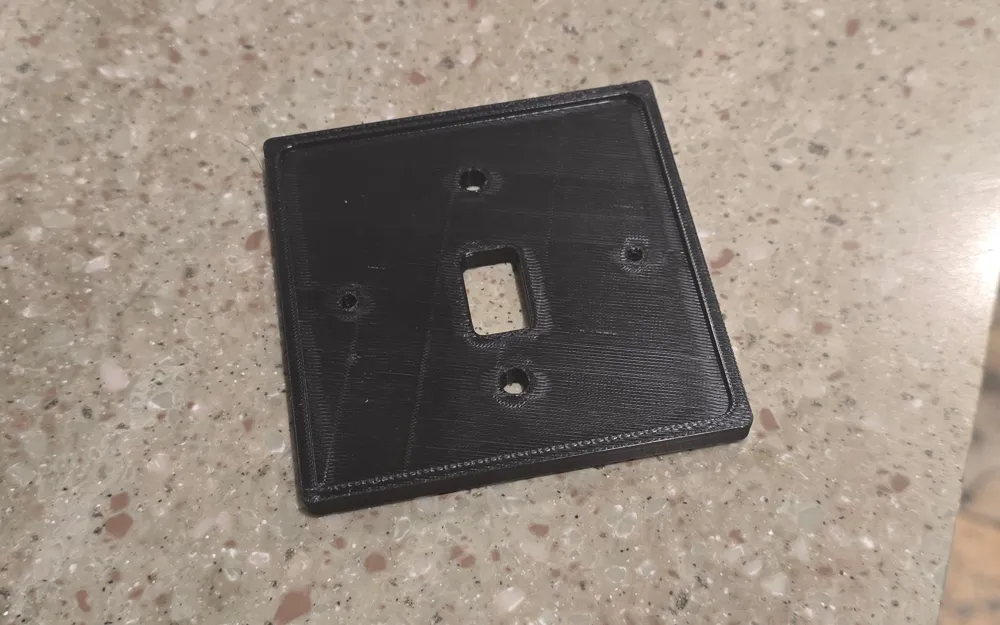

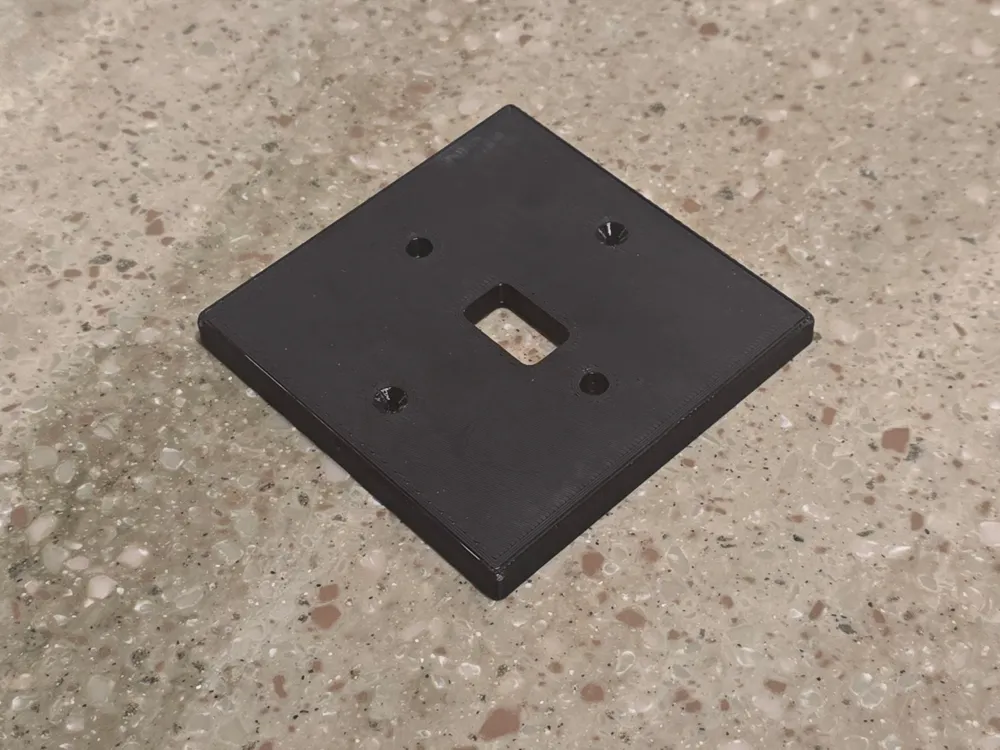

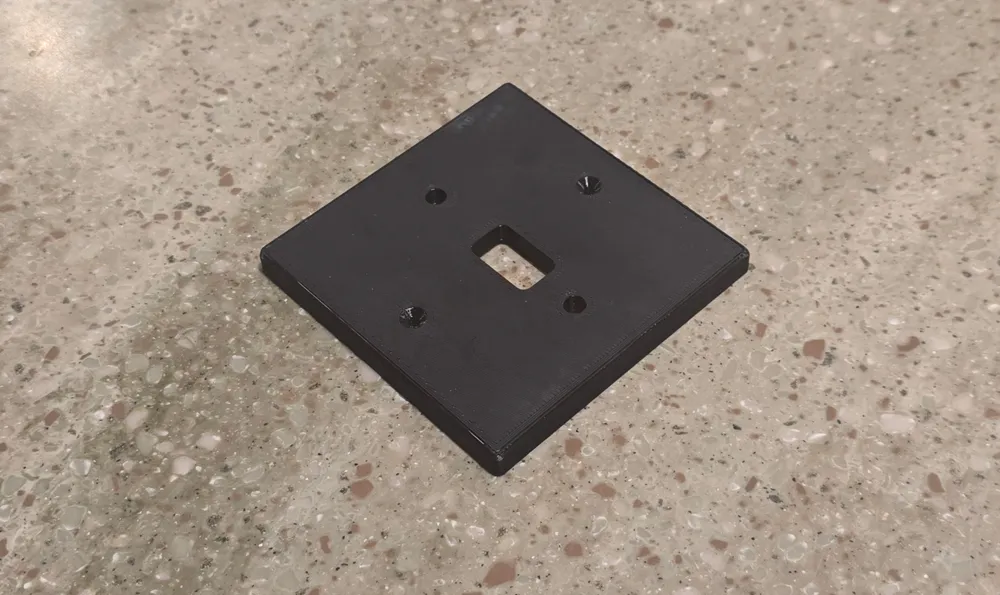

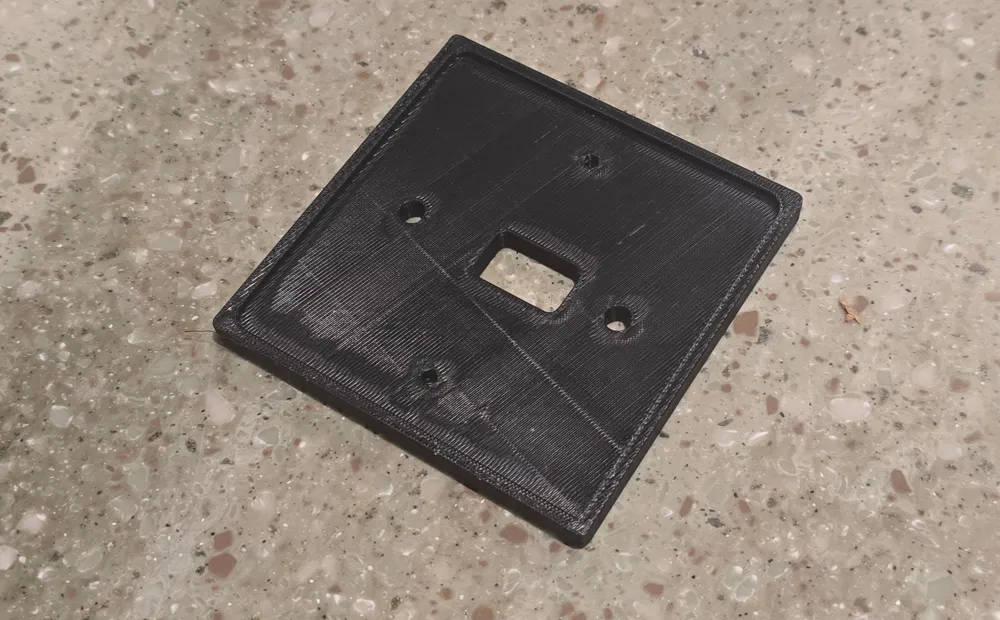

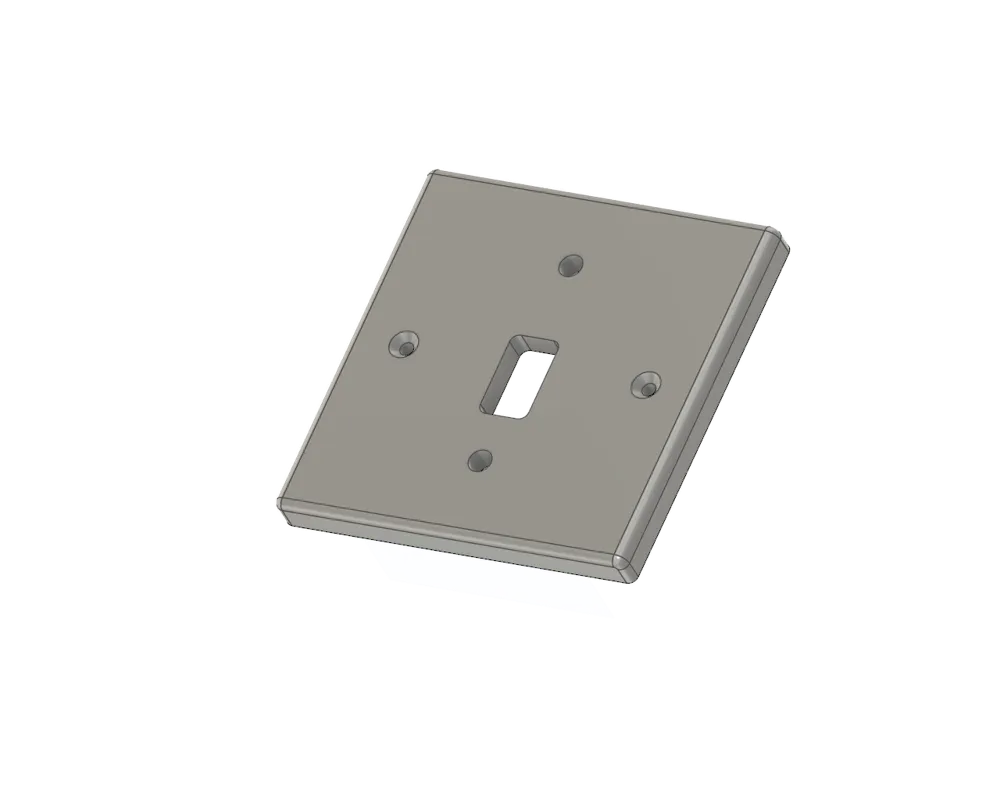

Mounting plate to fit UK style Pattress for the Afterburner Heating Controller.
Designed to have two M4 Diameter X 6mm Deep Brass threaded inserts installed , so that two M4 x 8 countersunk screws that can secure the Afterburner housing to it.
The bracket is secured to UK Pattress's using M3 Screws.
Using the bracket will add 8mm plus the depth of your Wall Box Pattress to your mounting surface.

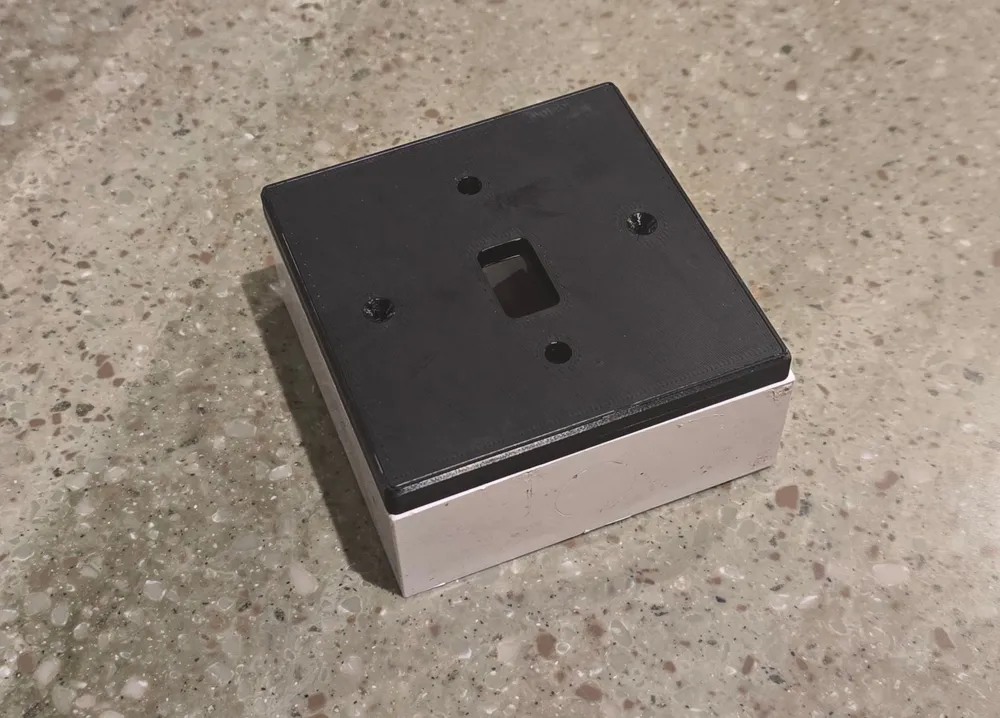

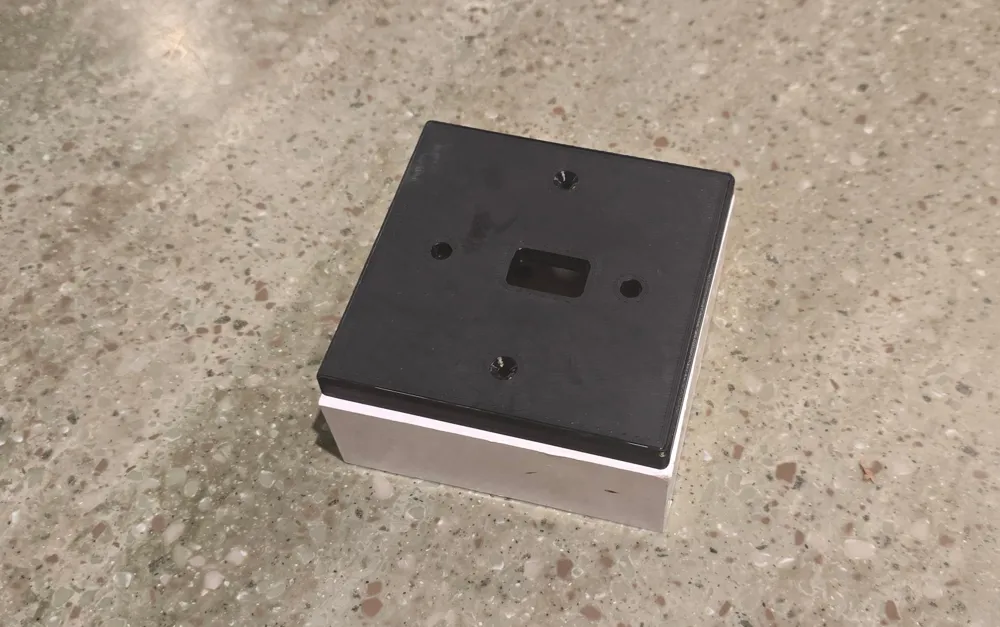

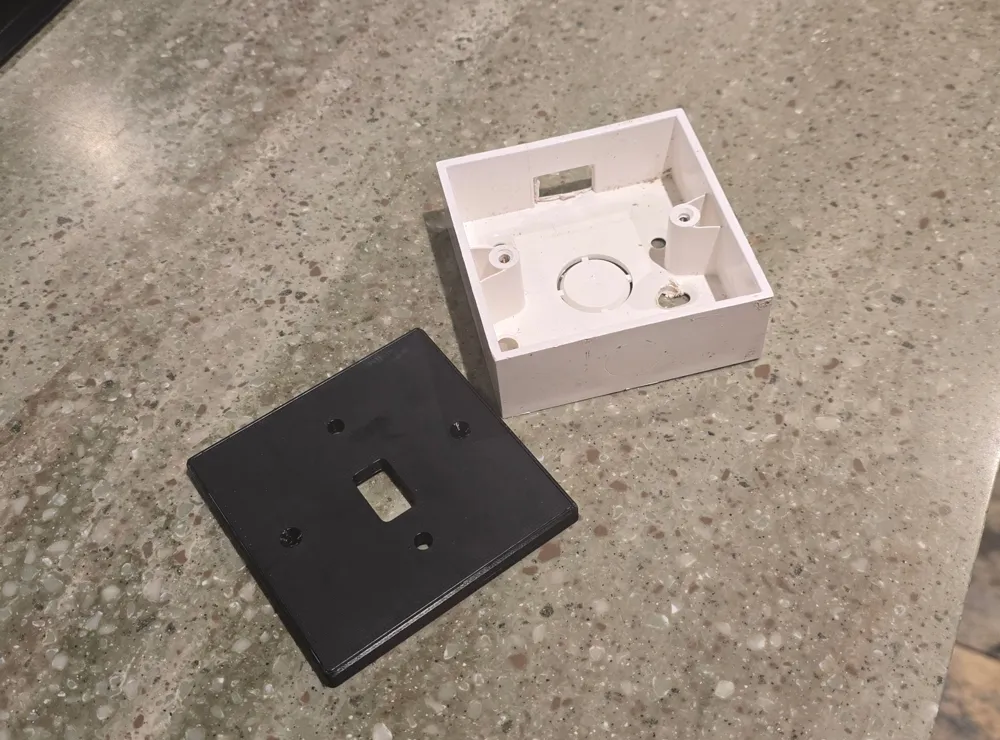

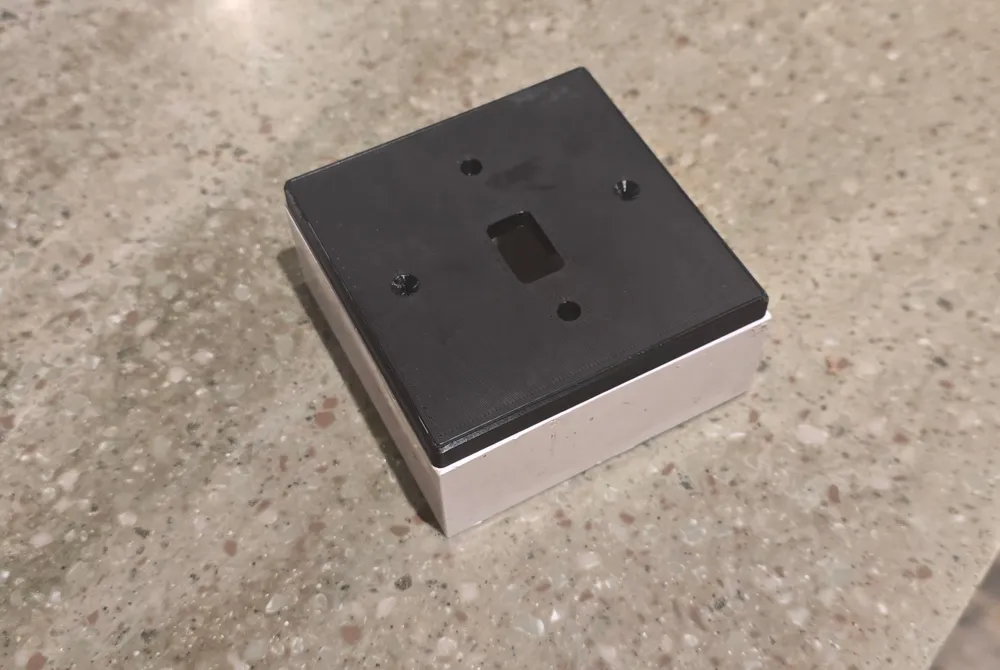

White Pattress Box shown for Useage.
I have used:
Two x M4 x 6mm Brass threaded inserts
Two M4 x 12mm Countersunk screws
