Bricks vacuum adapter V2.0

Bricks Vacuum Adapter – Bricks & small parts Collector

Tired of stepping on bricks or spending time picking them up one by one?

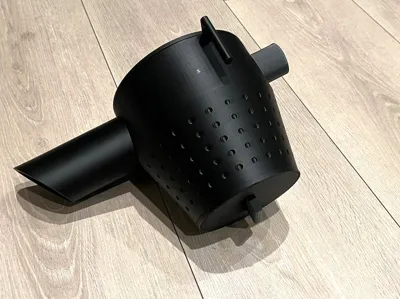

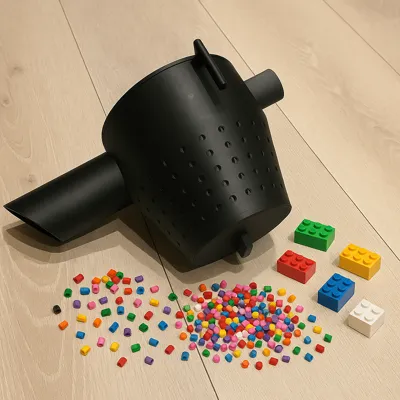

The Bricks Vacuum Adapter lets you safely vacuum bricks, beads, and small parts without them disappearing into the vacuum bag.

Designed for parents, bricks fans, and anyone who wants faster, smarter cleanup.

The adapter mounts directly onto your vacuum hose. (32mm)

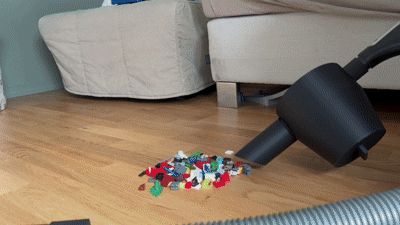

Airflow passes through the design while bricks and small items are collected inside the container, making cleanup quick and stress-free.

If the intake becomes blocked, just move the side lever in and out to quickly clear the collected parts.
The airflow is restored instantly, allowing you to continue without stopping.


NB. You need glu to assembly it.

Assembly Guide – Bricks Vacuum Adapter

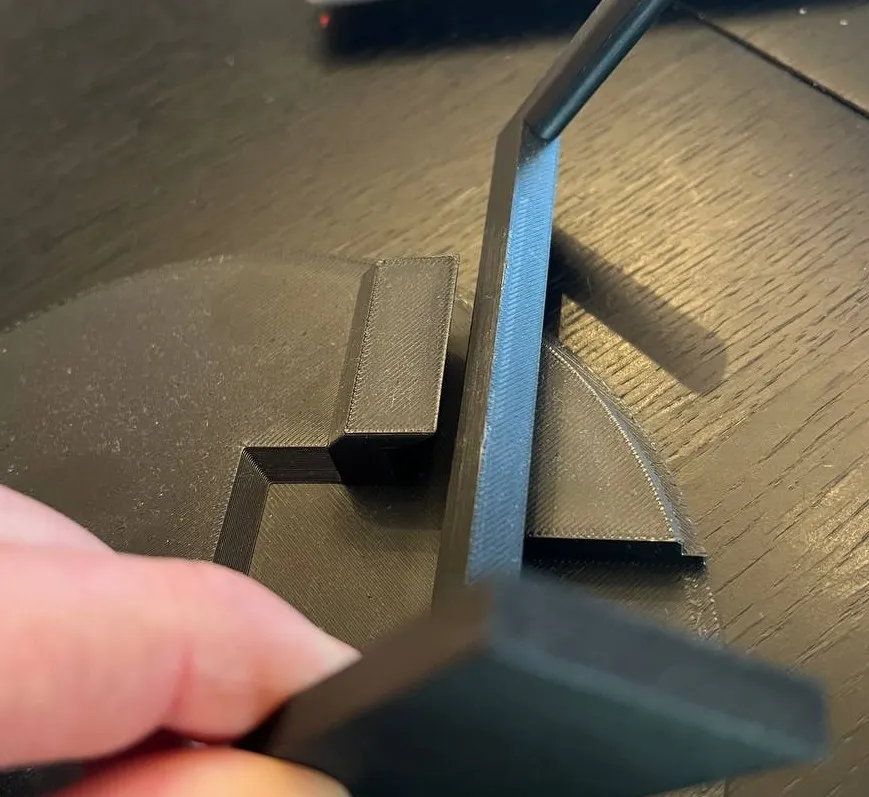

Step 1 – Install the Plunger

• Position the plunger at an angle under the overhang.
• Push it in and rotate it into place.
• Ensure the plunger moves freely and is not glued or stuck.
•

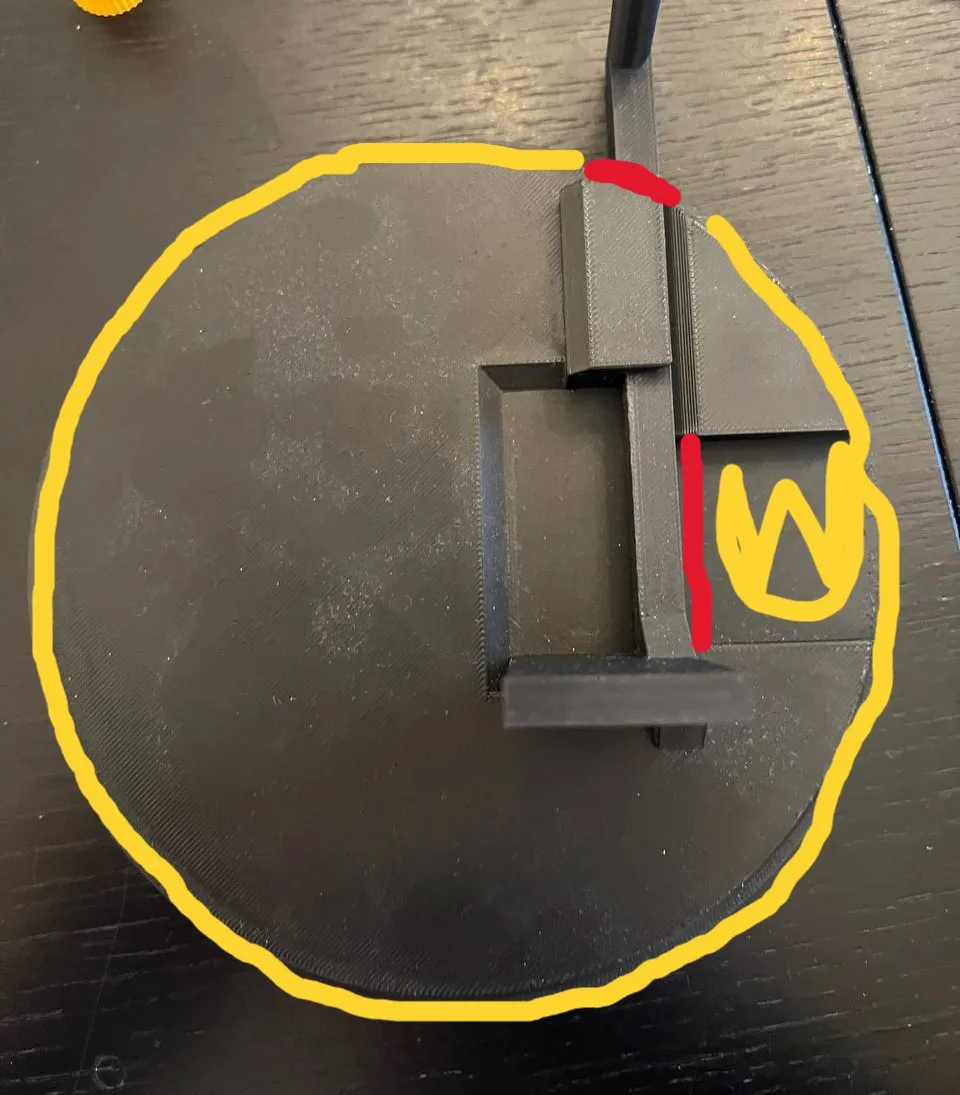

Step 2 – Prepare the Top Lid

• Apply glue around the edge of the top lid.
• Important: Do not glue the plunger lever to the lid.
• Put glue on the yellow lines. Do not put glue on the red lines.
•

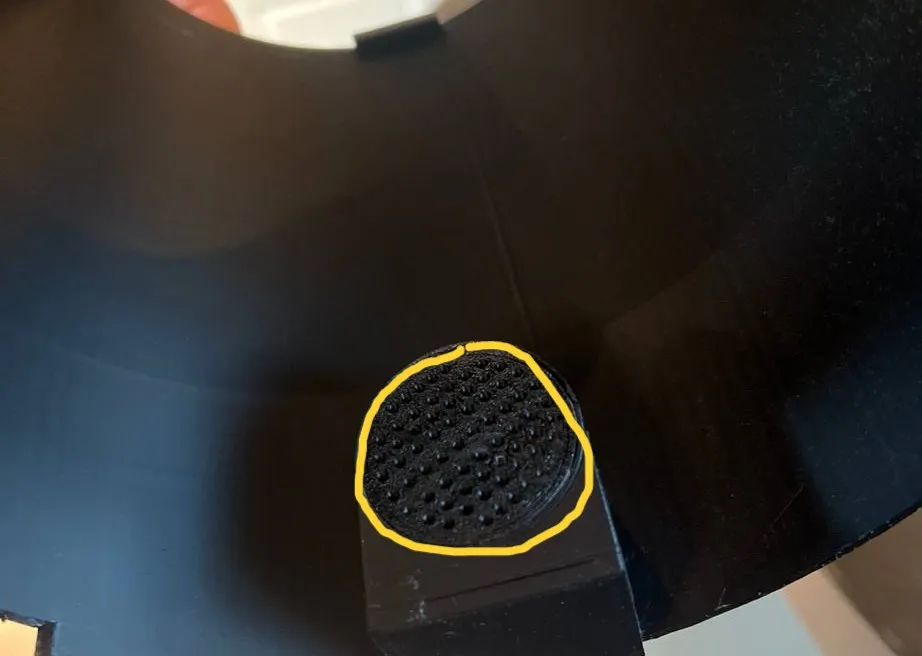

Step 3 – Install the Filter

• Apply glue around the hole where the filter will be placed.

• Insert the filter and ensure it sits securely.

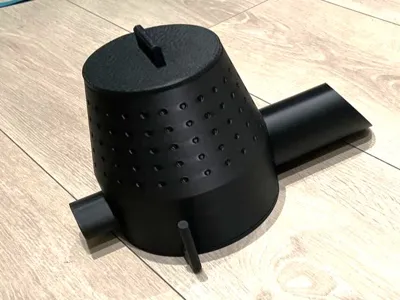

Step 4 – Place the mainbody

• Then place the main body into the top lid
• Place the lid onto the main body, turn and tighten the lid.

Step 5 – Attach the Tip

• Insert the tip into the 50mm hole.

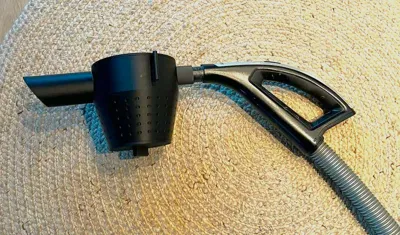

Step 6 – Connect the Vacuum

• Attach your vacuum hose to the 32mm hole.
• Ensure a snug fit for proper suction.

Tips / Maintenance

• Check that the plunger lever moves freely after assembly.
• Clean the adapter regularly for optimal airflow.
• PETG is recommended for durability if printing frequently.
• Avoid vacuuming fine dust while collecting bricks or small toys.
