Magnetic Fishing Rod Holder
Print Profile(2)
Description
WARNING: USE ONLY NON-FERROMAGNETIC NOZZLES (STAINLESS STEEL). HARDENED STEEL NOZZLES WILL STICK ON THE MAGNETS RUINING THE PRINT!
This model was developed through an extensive refinement process to deliver a reliable and practical solution for keeping your fishing rods safe, protected, and ready to cast. It allows you to securely hold your rods while swapping setups or tying knots, without risking damage.

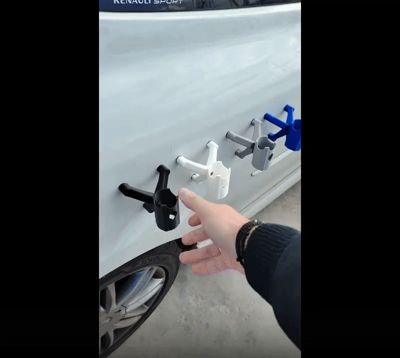

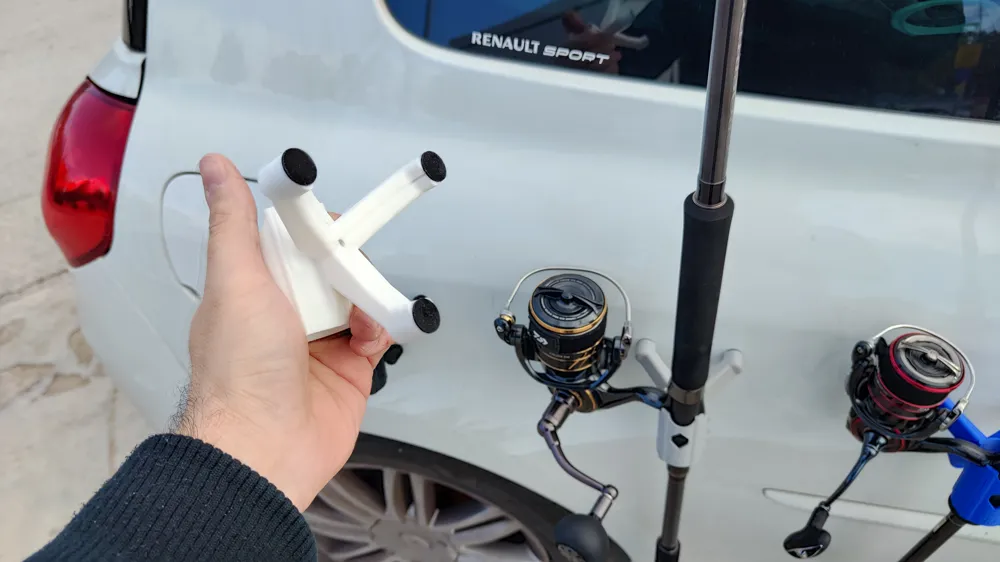

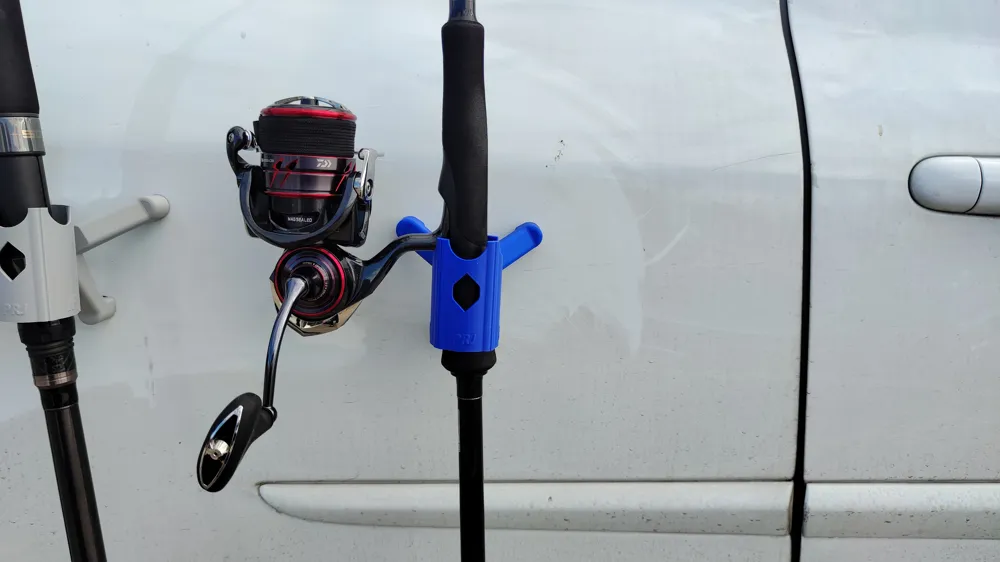

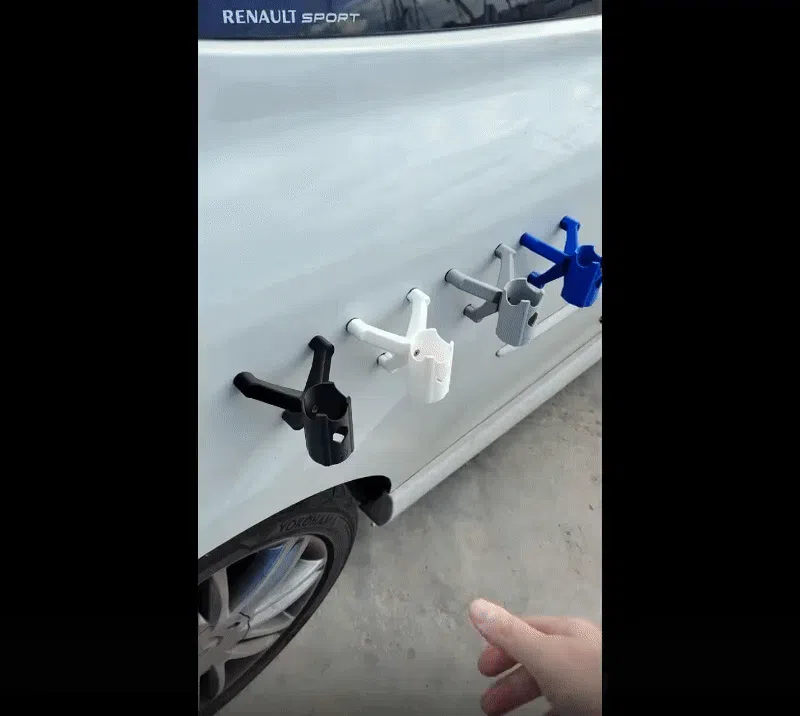

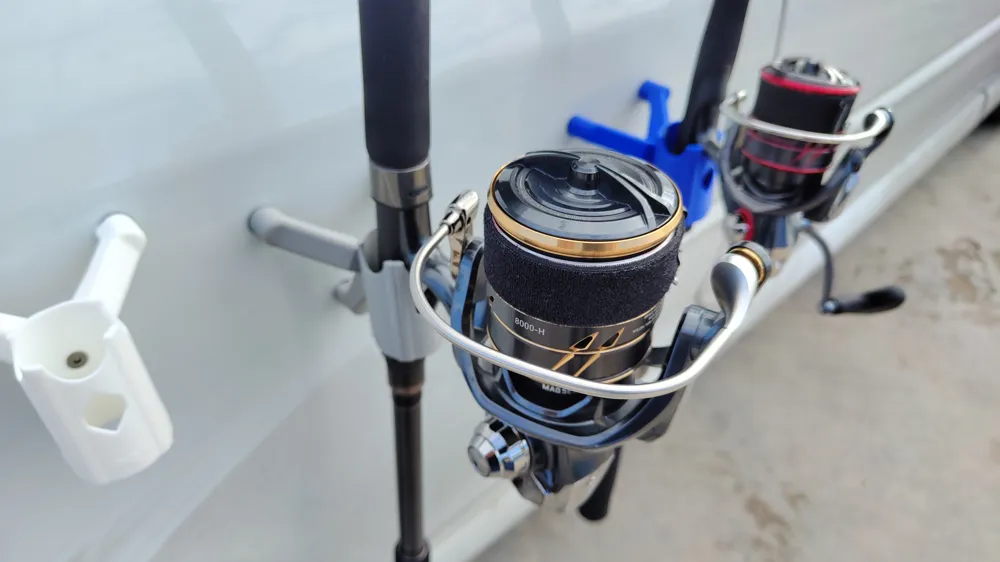

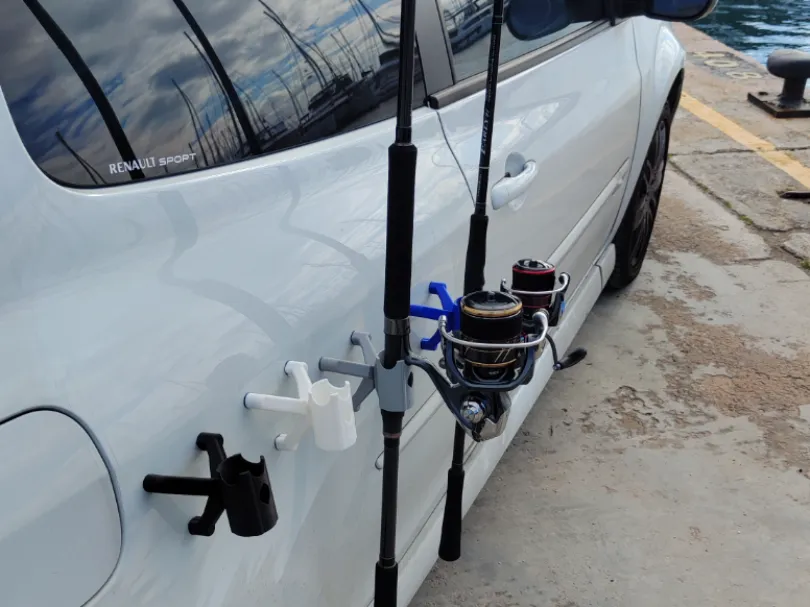

The holder easily attaches to any car using powerful neodymium magnets. It is engineered to balance easy detachment with exceptional holding strength, capable of withstanding vertical loads of up to 2.9 kg (see included video). Rods can be positioned in three different orientations, allowing you to choose the setup that best fits your fishing style.

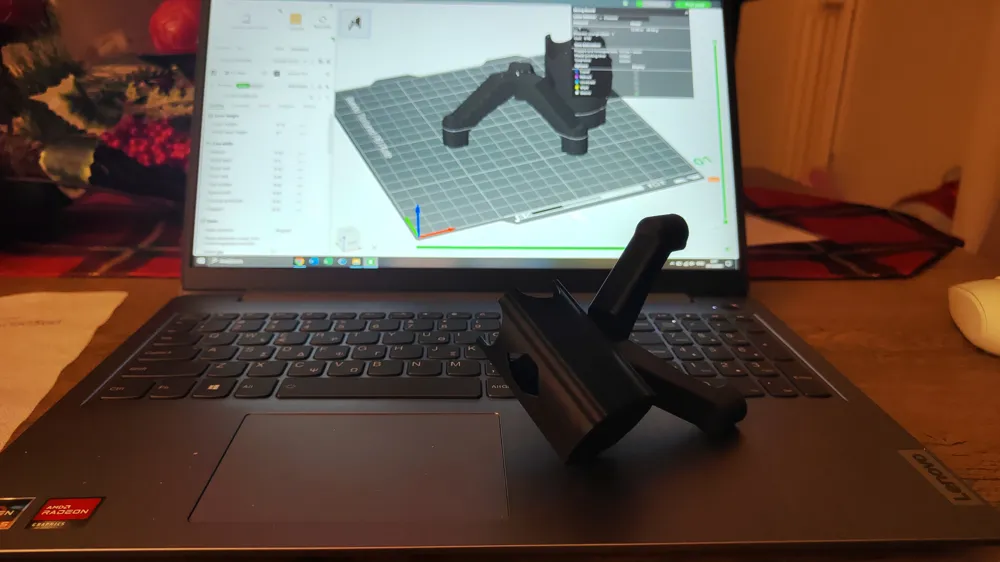

A pause has been added before layer 81 in the print file to allow for magnet installation.
Compatible with D12 Ă 12 mm neodymium cylindrical magnets.
To improve grip and protect vehicle surfaces, self-adhesive rubber discs (D15 Ă 1 mm) are required.
IMPORTANT: Do not use thicker rubber discs, as they will reduce the magnetic holding force.
Required Materials
- 1 Ă M4 Ă 16 mm threaded screw
- 3 Ă D12 Ă 12 mm neodymium cylindrical magnets (N45 grade recommended)
- 3 Ă D15 Ă 1 mm self-adhesive rubber discs
