Description

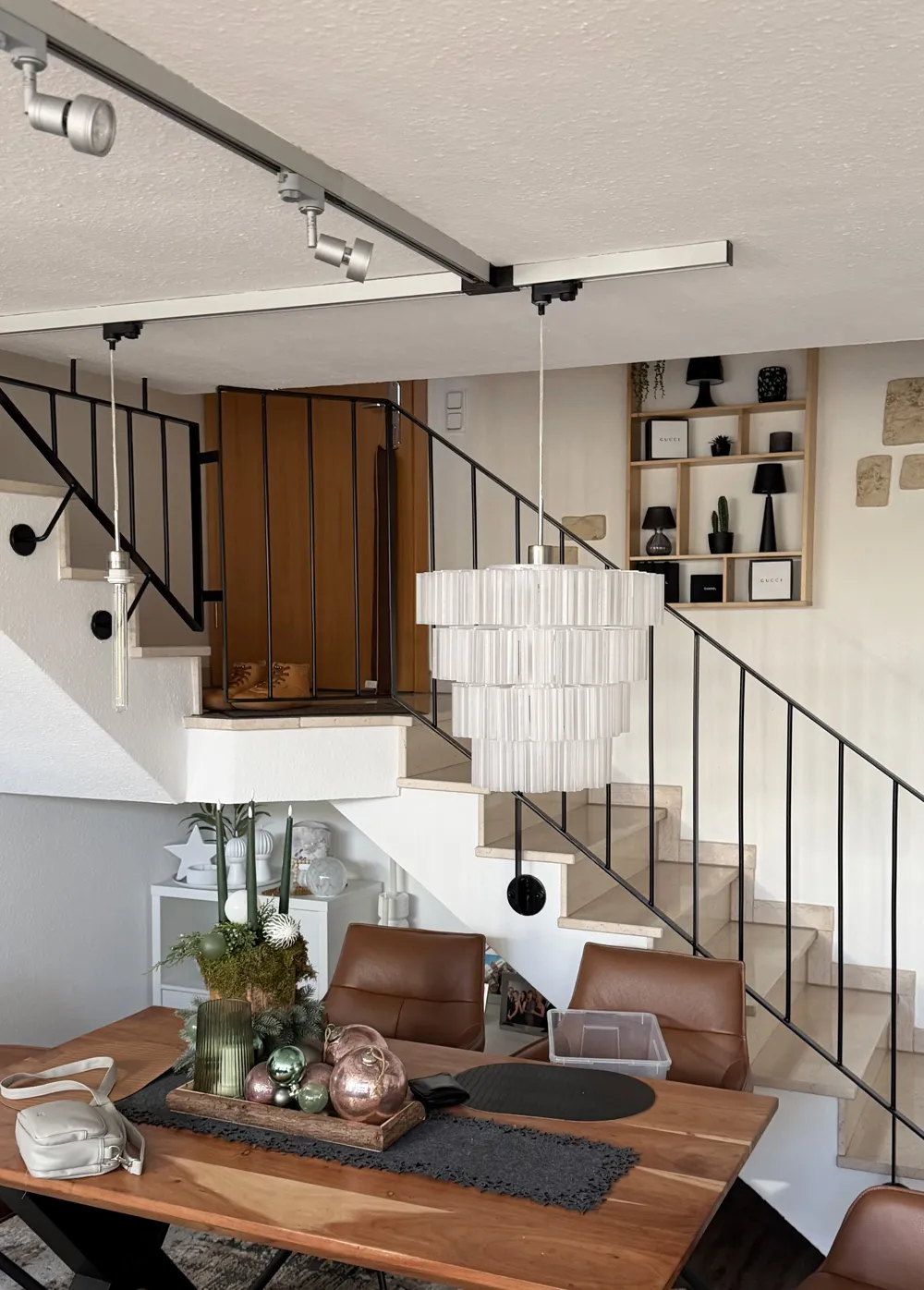

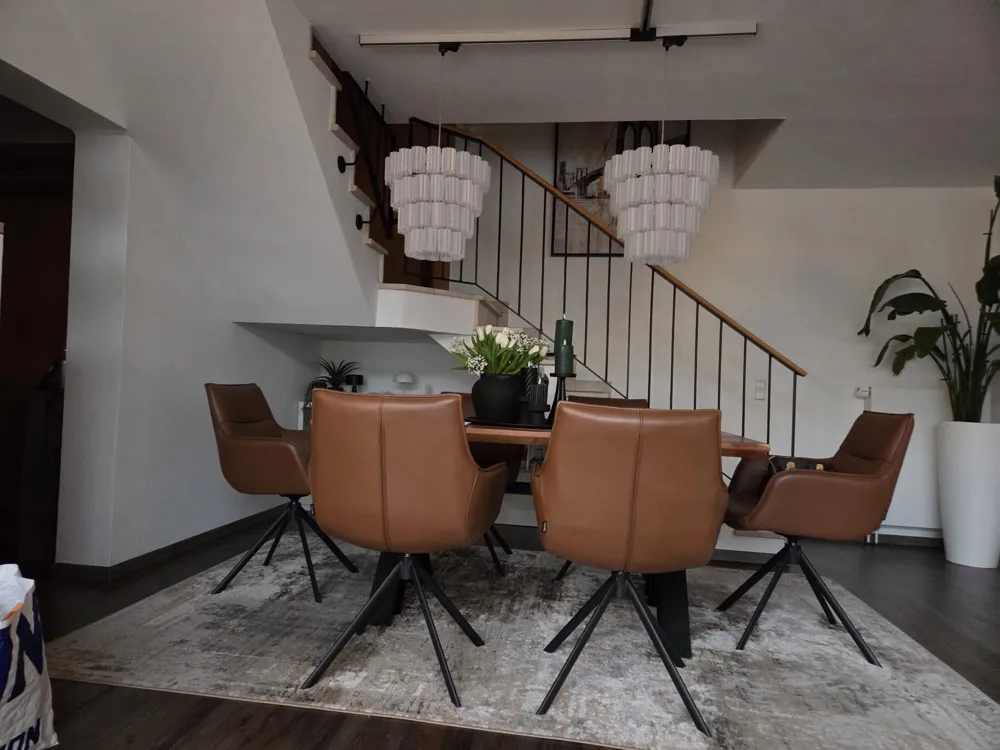

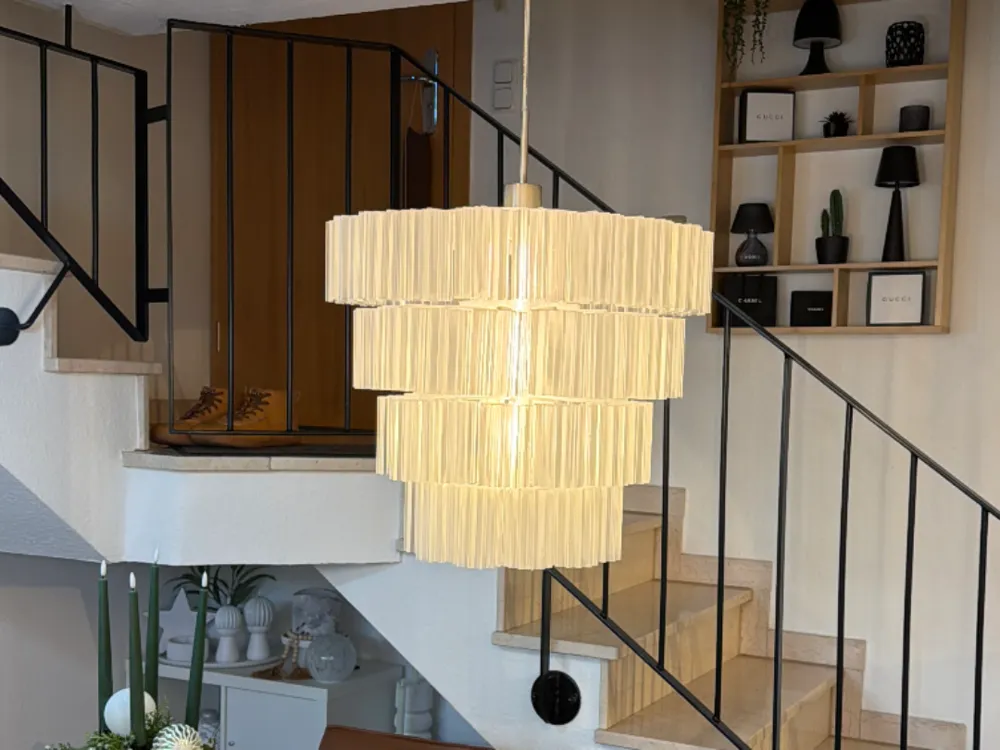

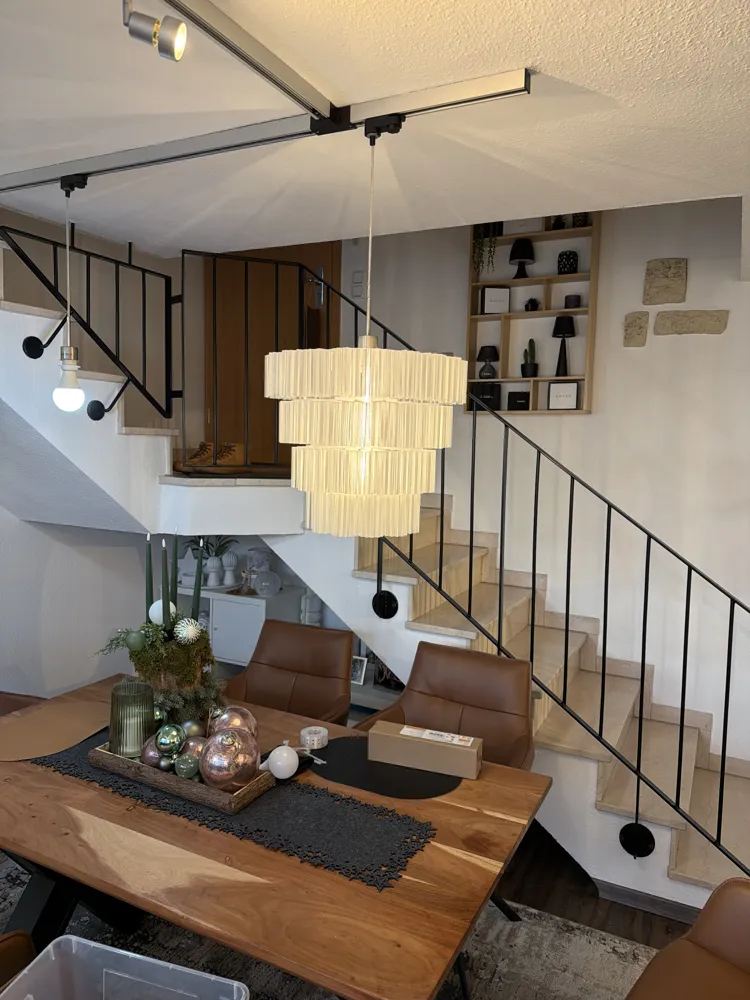

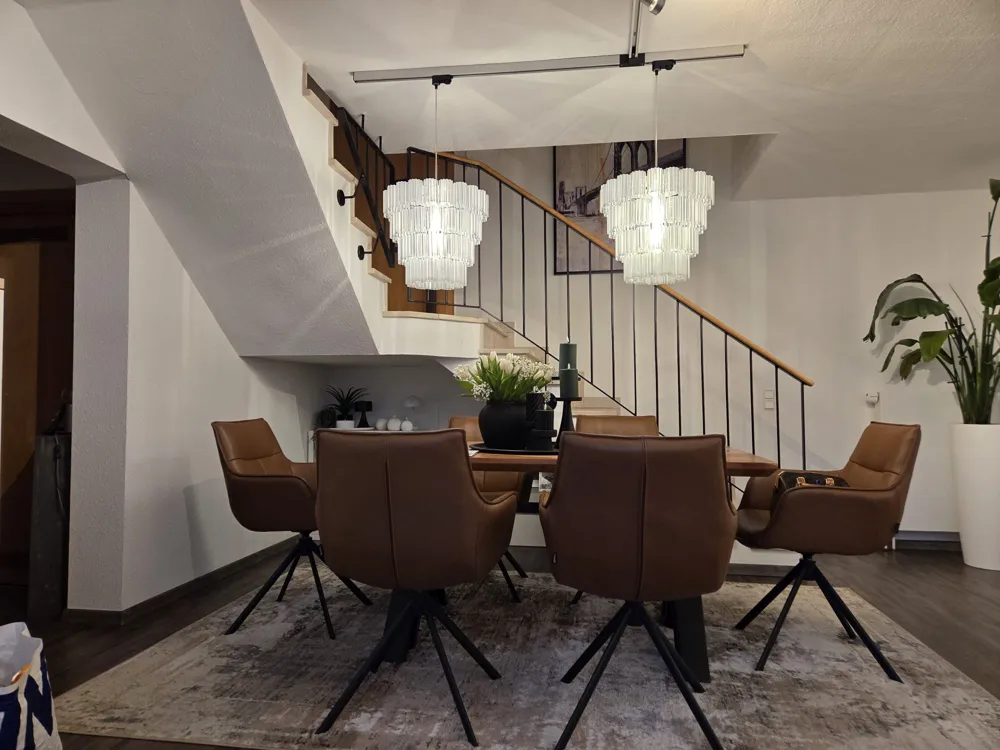

I designed this chandelier for my mother.

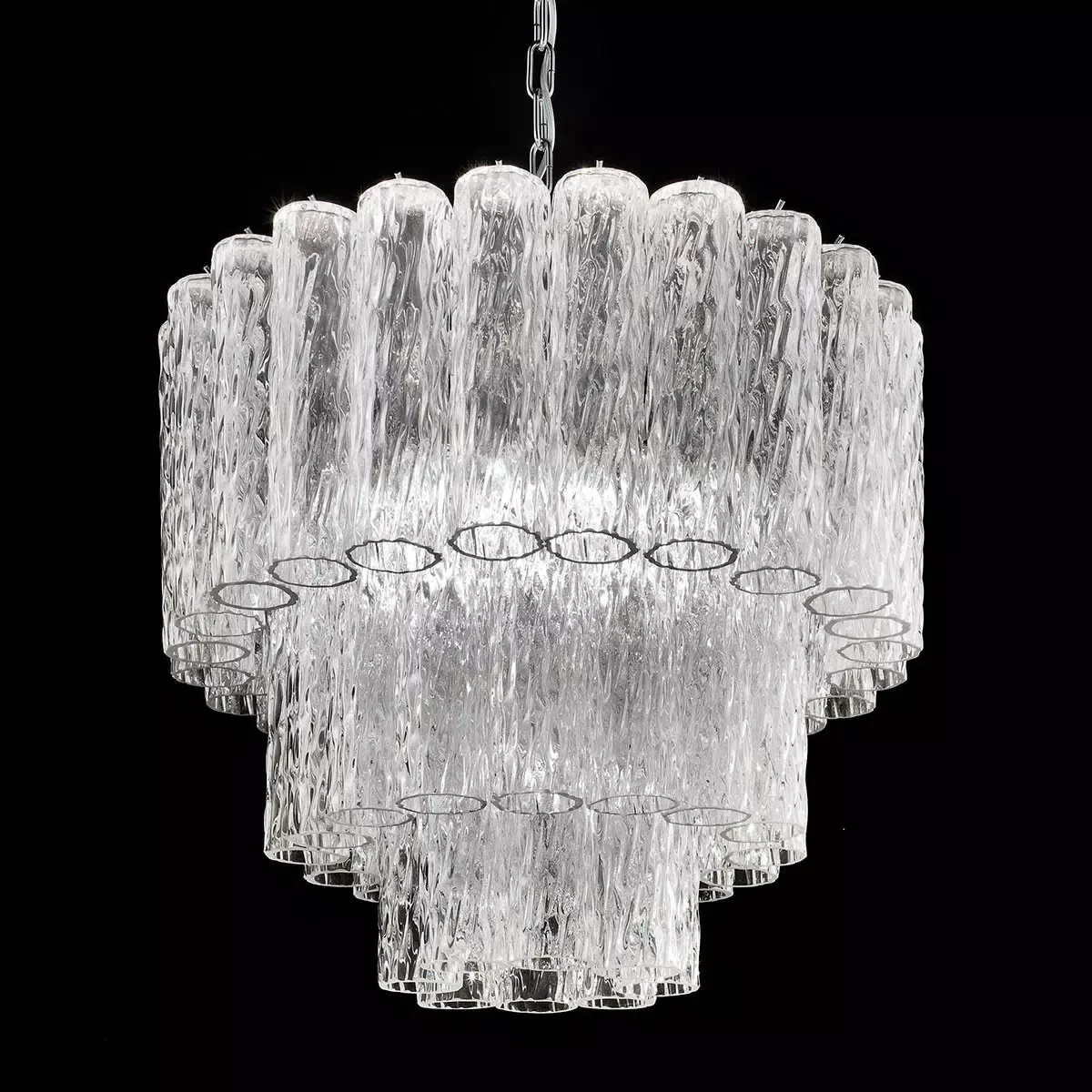

It is inspired by classic Murano glass Tronchi chandeliers.
It attaches to classic E27 pendant lamp sockets (with screw ring).
For lighting, I used E27 T30 form factor bulbs, so the chandelier is evenly illuminated over its entire height. (with classic bulbs, it might be a tight fit during assembly, I don't guarantee it will fit!)
I used the following bulbs.
The chandelier consists of 3 or optionally 4 tiers.
It is modular:
A holder is always printed once and equipped with the corresponding number of arms.
If the large variant is printed, the short arms for the bottom tier are also needed!
(I have already pre-sorted them accordingly in the 3mf file.)
The tiers are connected with 4 connectors each.
I printed in PETG (due to possible heat from the lamp), but it should also print well in PLA.
Finally, the small lampshades are hung on the arms.
The shades are printed in vase mode to be as translucent as possible.
You can also print the shades in different transparent colors to achieve great looks!
Important:
The filament must be well calibrated (as well as the printer) as the tolerances are chosen relatively tightly!
