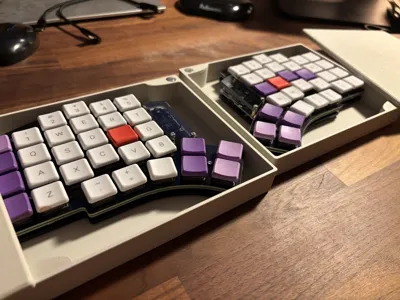

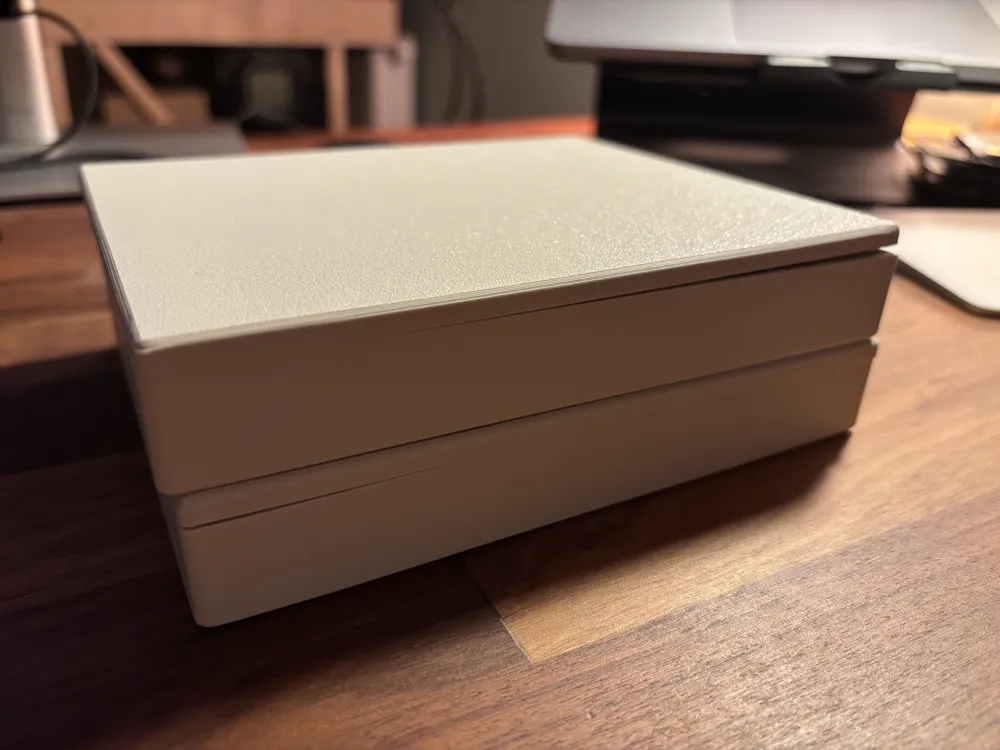

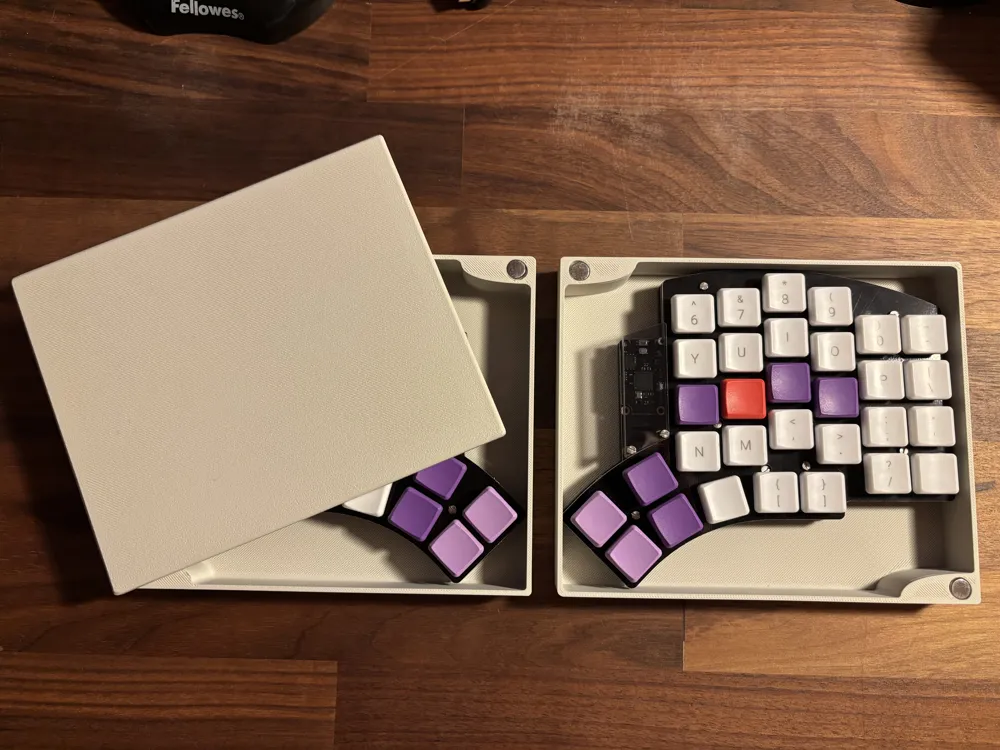

A snug one size fits all travel case for split keyboards, with magnetic lid
The (inner) model dimensions are:
- Bottom:
- width: 165 mm = 6.496 in
- length: 135 mm = 5.315 in
- height: 20 mm = 0.787 in
- Top:
- width: 165 mm = 6.496 in
- length: 135 mm = 5.315 in
- height: 3 mm = 0.118 in

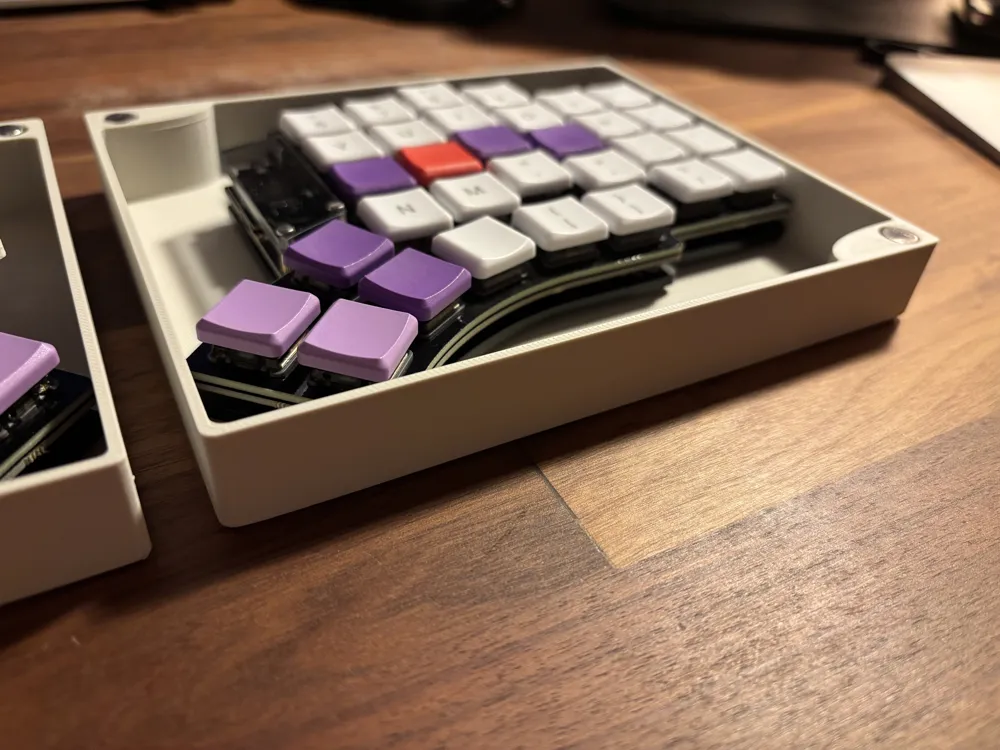

Magnets holes are:
- depth: 2 mm = 0.079 in
- diameter: 9 mm = 0.354 in
The keyboard model used for the design is an Halcyon Elora Rev 2, if you need other dimensions, feel free to use this onshape document or ask me for a resize, I'll happily publish it.
