Rotating Vacuum Hose Clamp with Ball Bearings
Print Profile(1)
Bill of Materials
- 608-ZZ x 1: Sök på Amazon
Description
I have a vacuum cleaner, but I was missing a hose holder that could actually move with the hose.
Everything I found was static.
So I decided to create something simple.
Compact.
And fast to print.

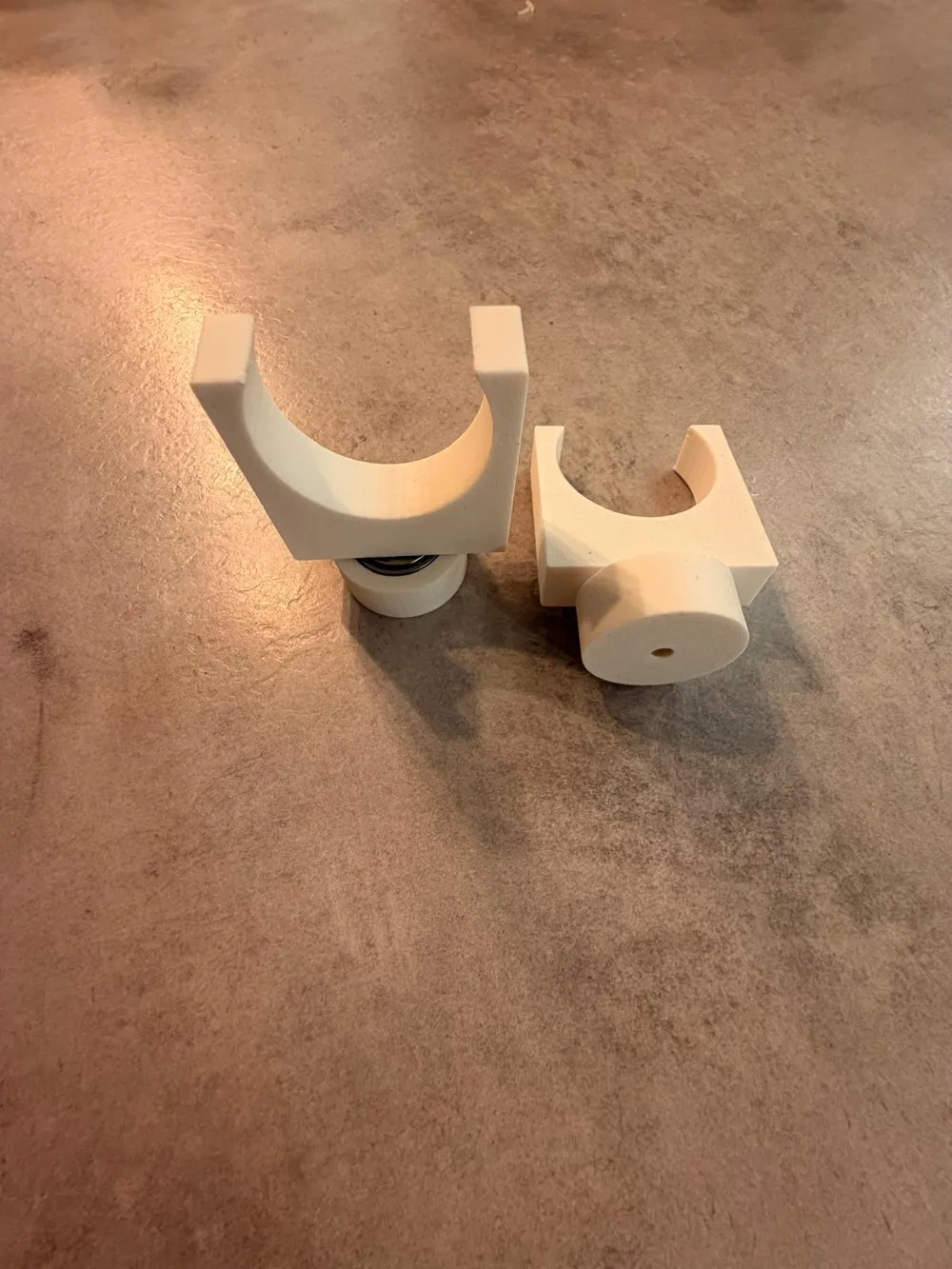

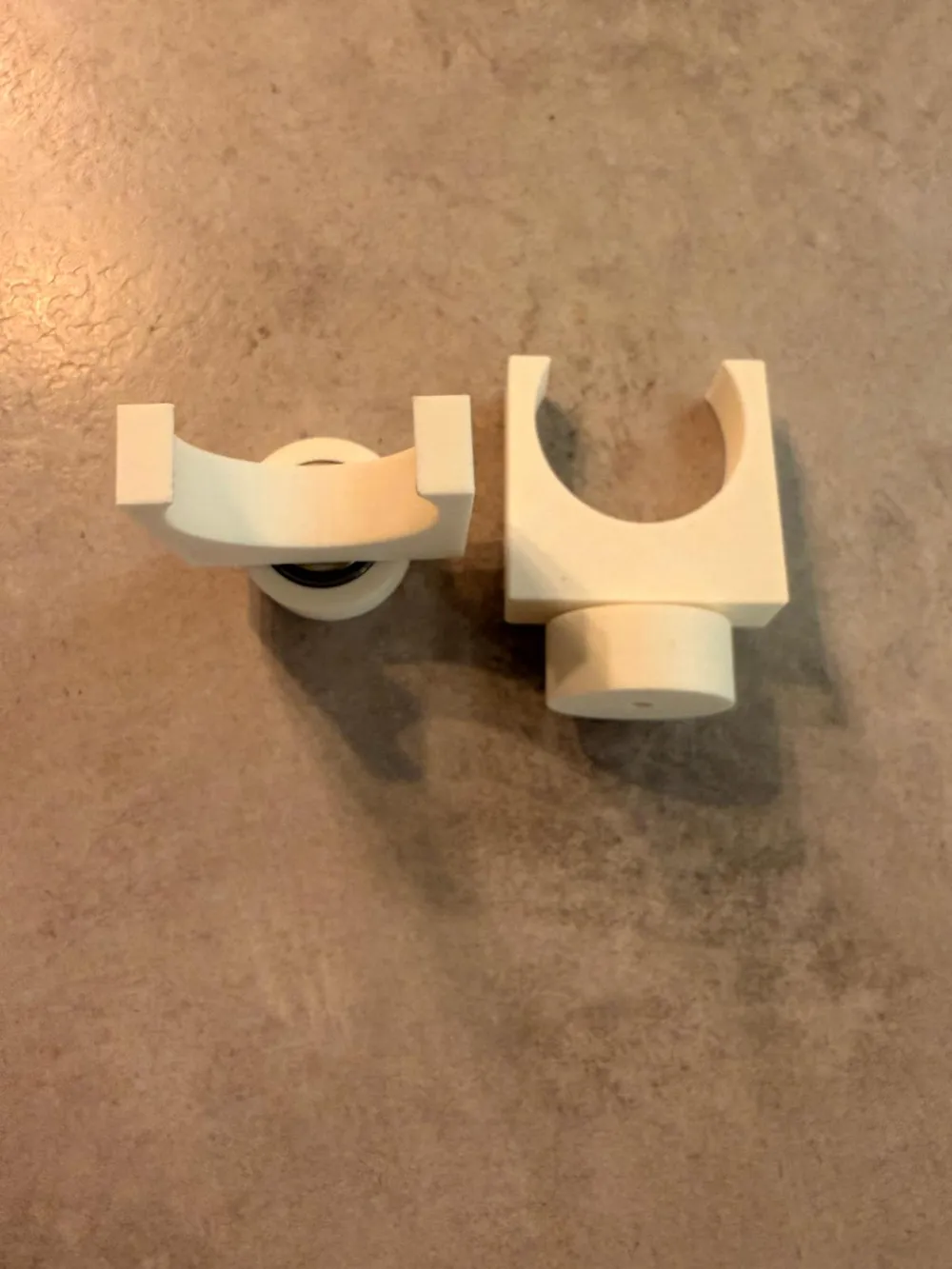

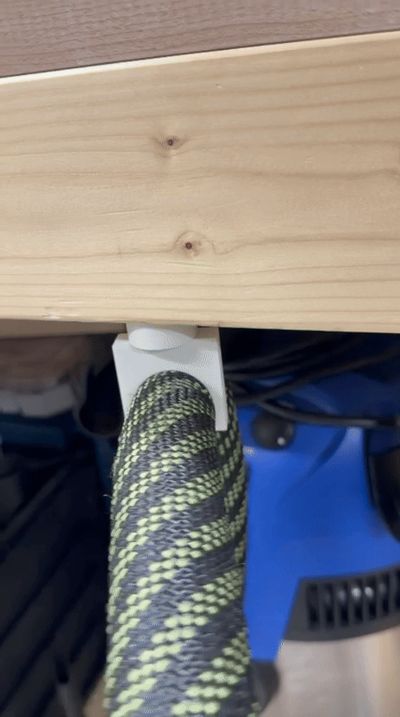

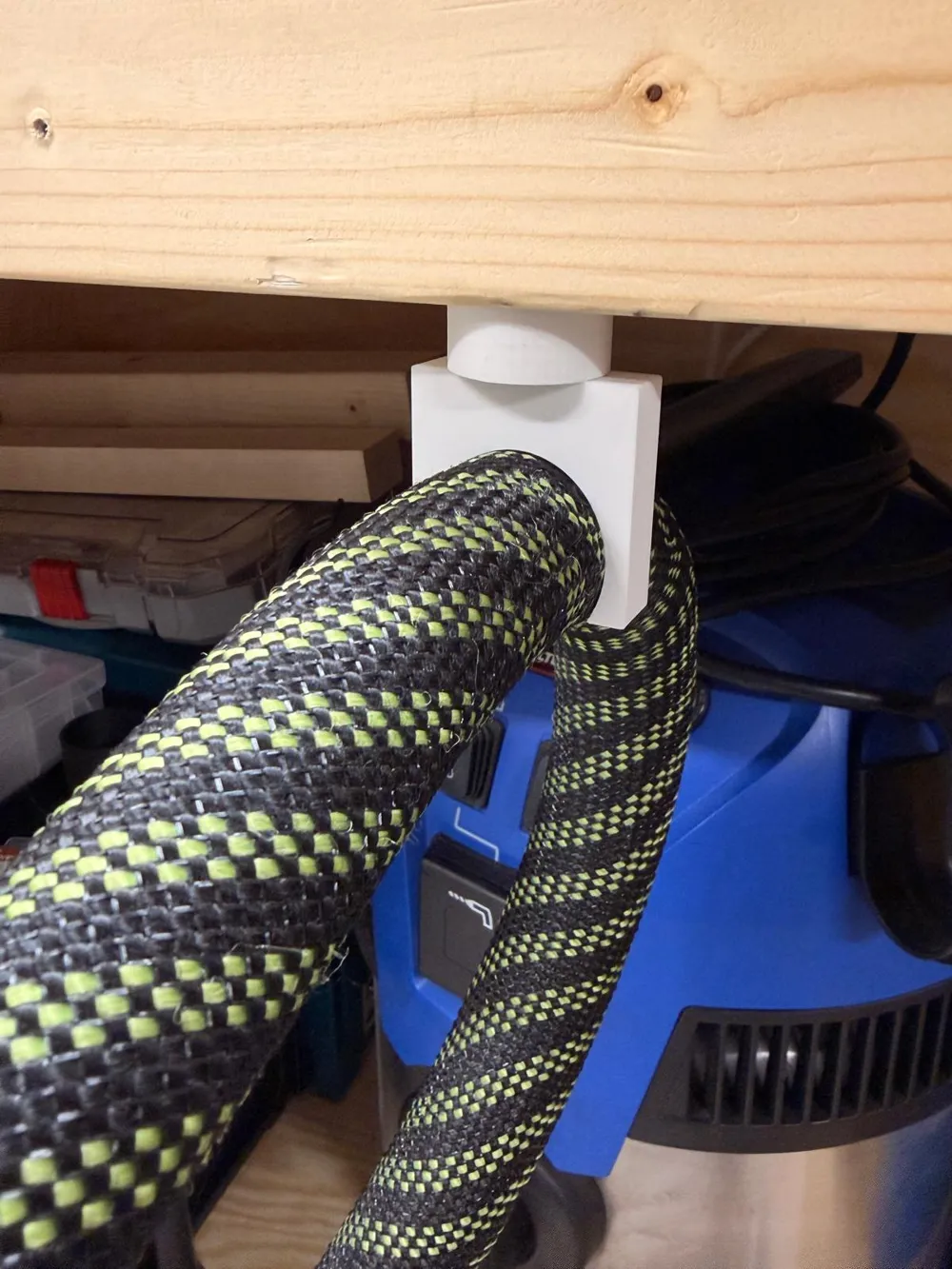

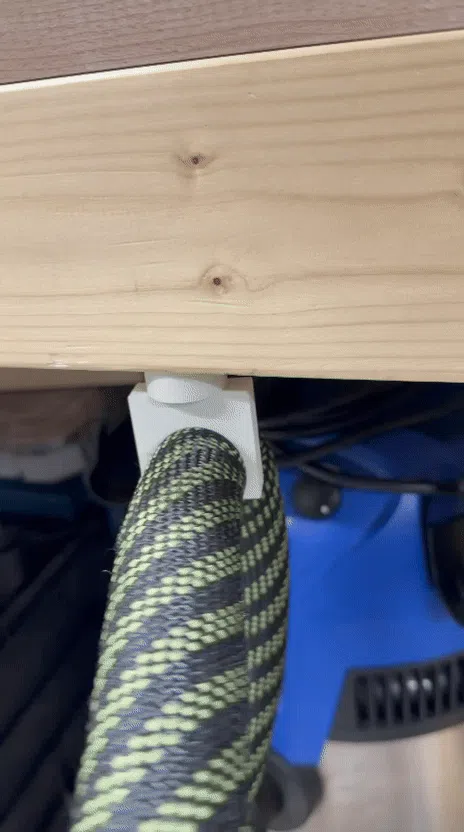

The clamp rotates using a ball bearing, which means the hose follows naturally without twisting or fighting back. Clean and smooth.

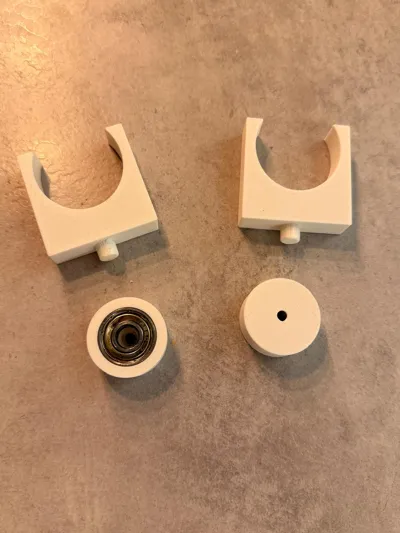

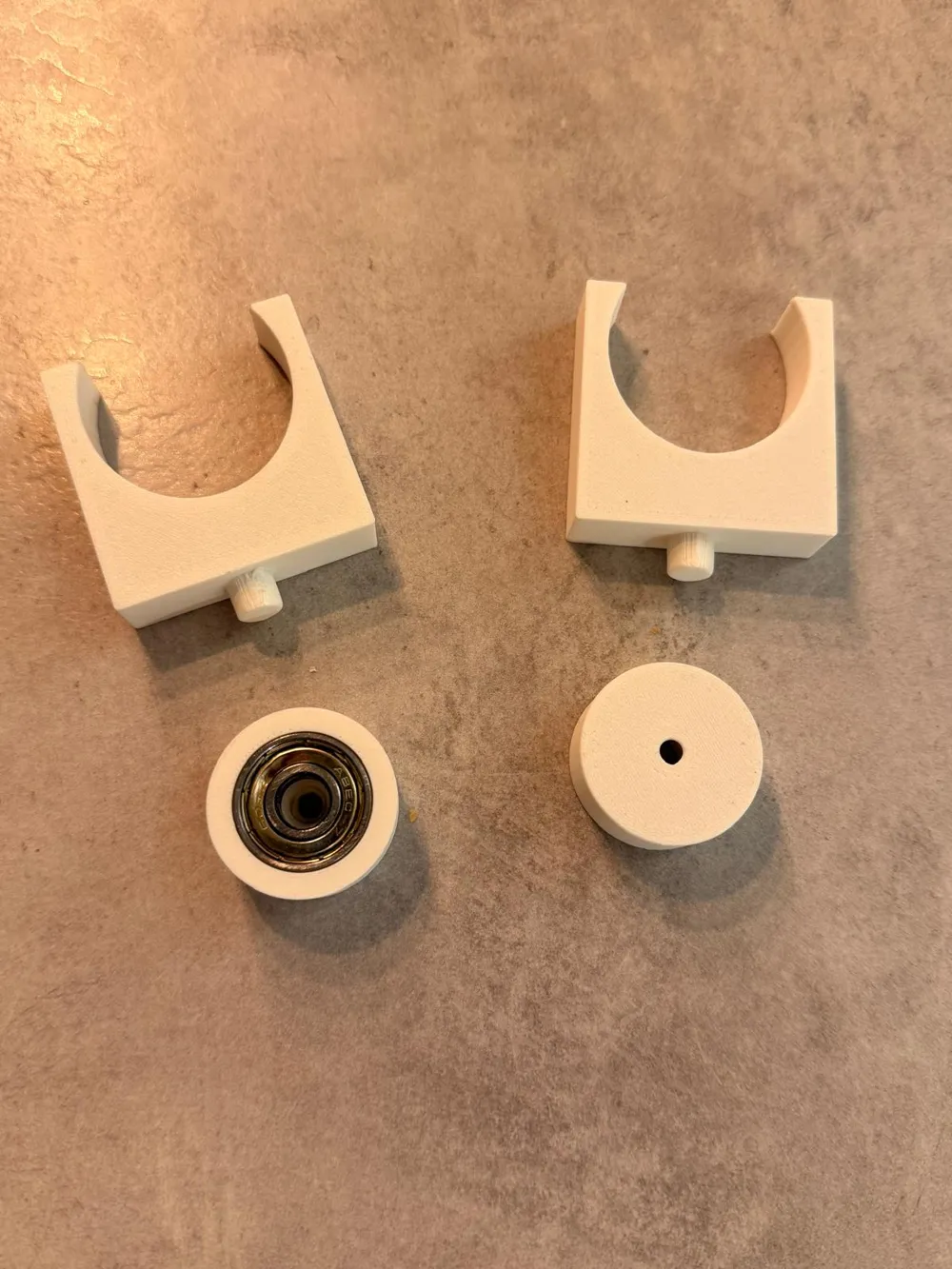

You’ll need either a 608 bearing (608 / 608ZZ)

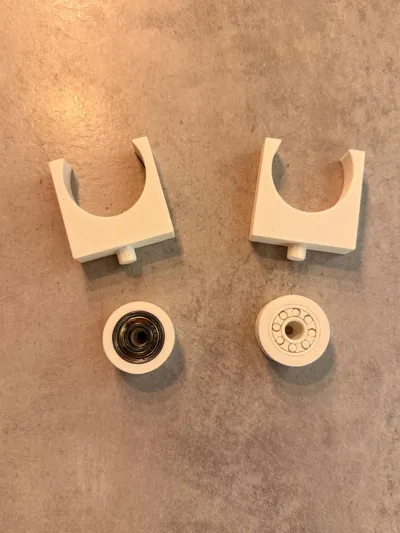

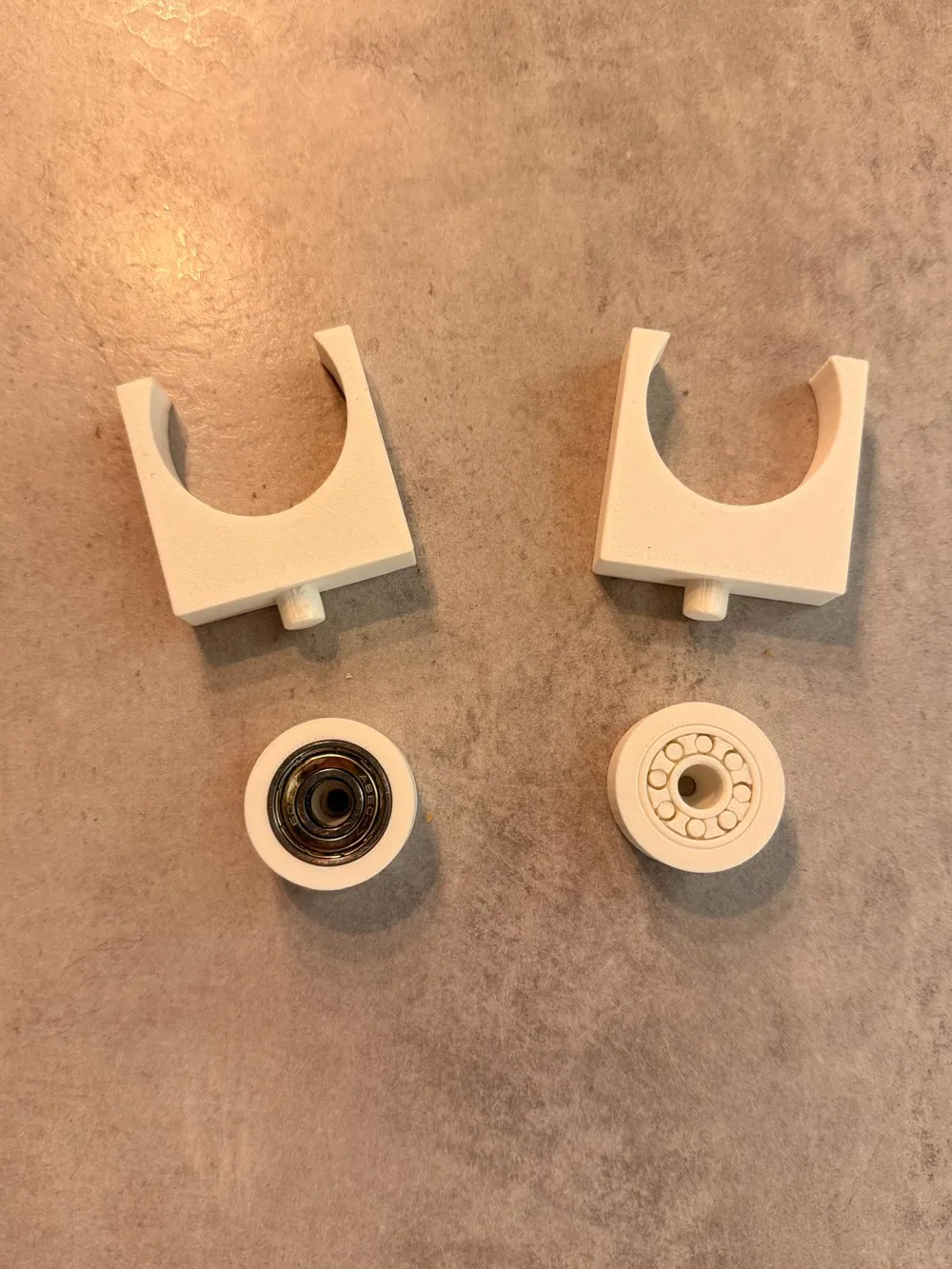

—or you can print one yourself.
I’ve tested a printed bearing and it works great.
👉 Printed bearing by @Tassesin
https://makerworld.com/sv/models/473167-608z-6000z-6001z-roller-bearing-v2#profileId-383170
Assembly
- Print both parts
- Press in the bearing (608 or printed)
- Screw the holder in place
- Push in the clamp and enjoy
Print settings
- Material: PLA
- Walls: 4 wall loops (for strength)
- Infill: 15%
- Supports: small support part (leave it enabled, print laying down)
- Print as oriented in the profile
