Mount for an ESP32 V3 8266
Print Profile(1)
Bill of Materials
- ESP 32 V3 8266 USB C x 1:
Description

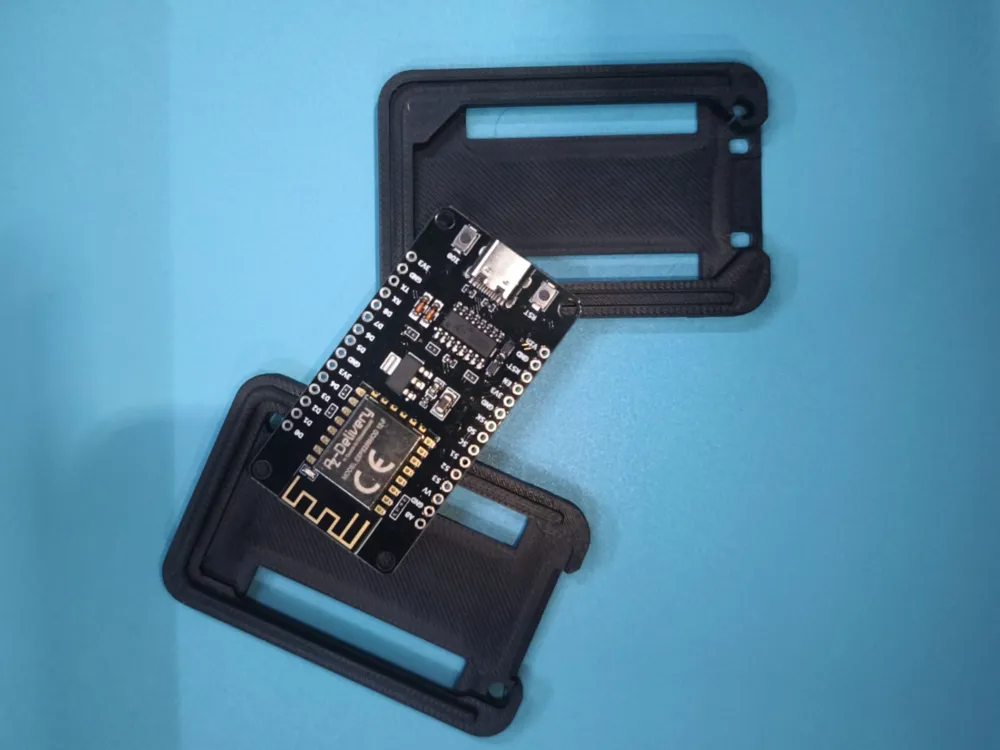

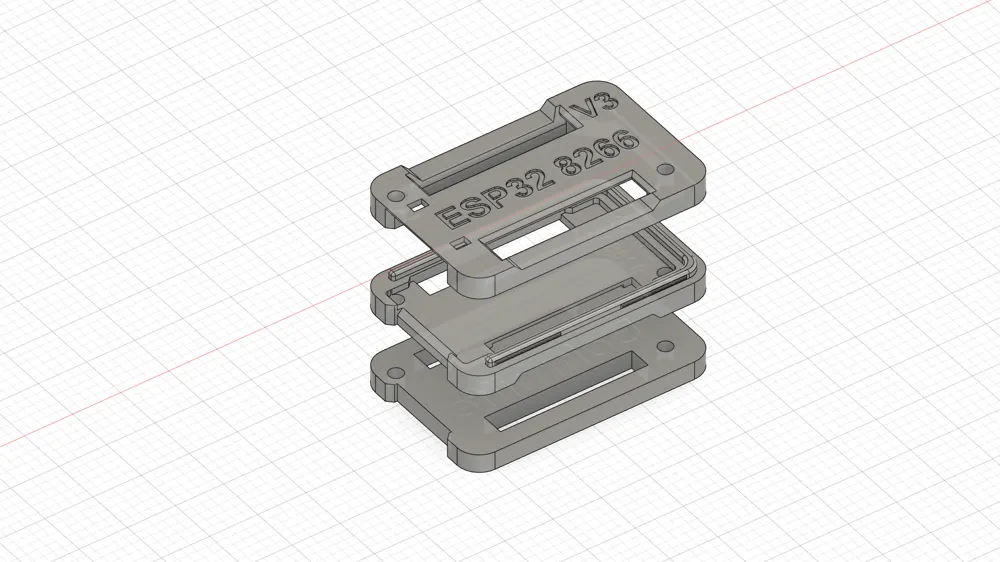

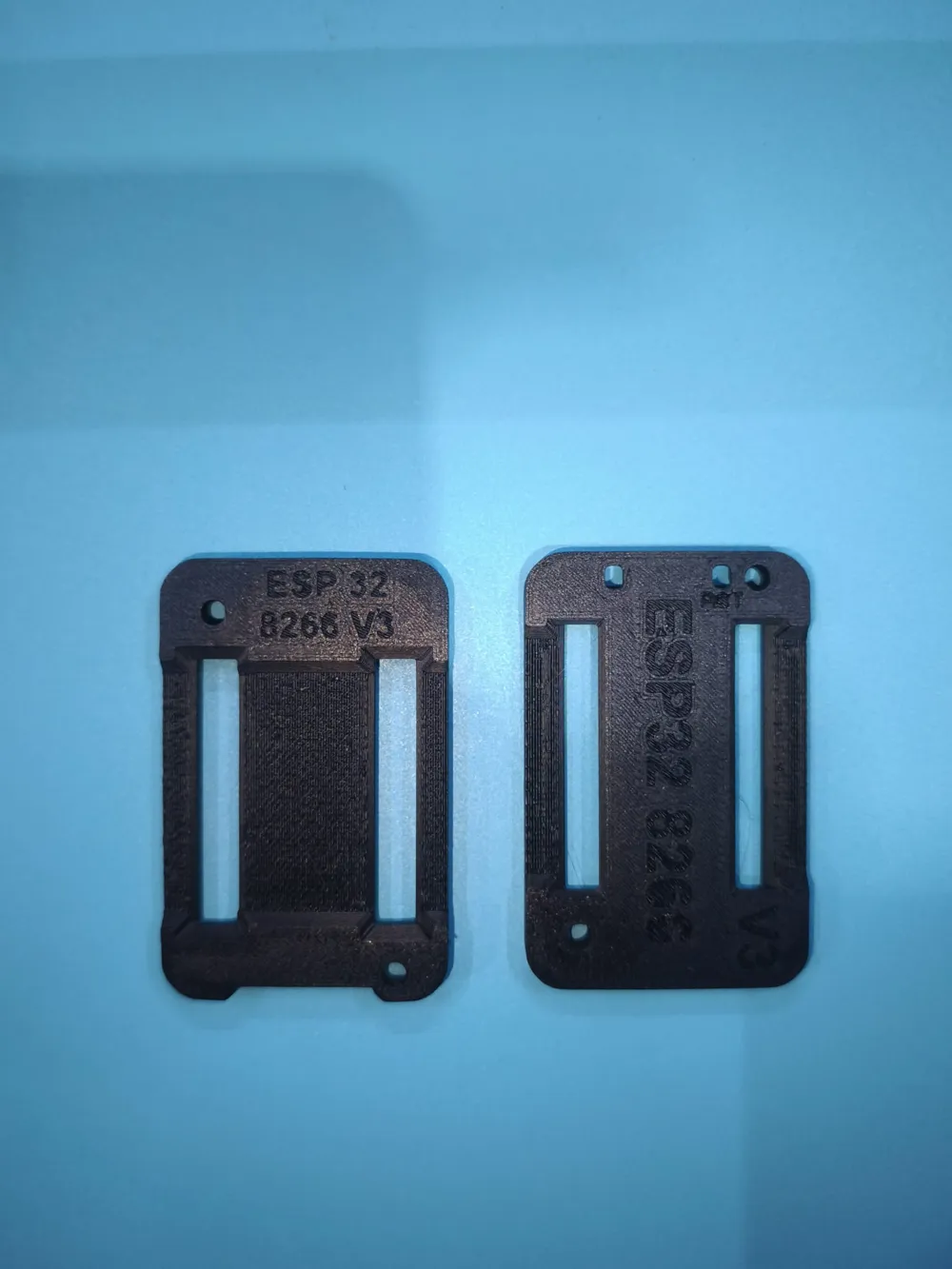

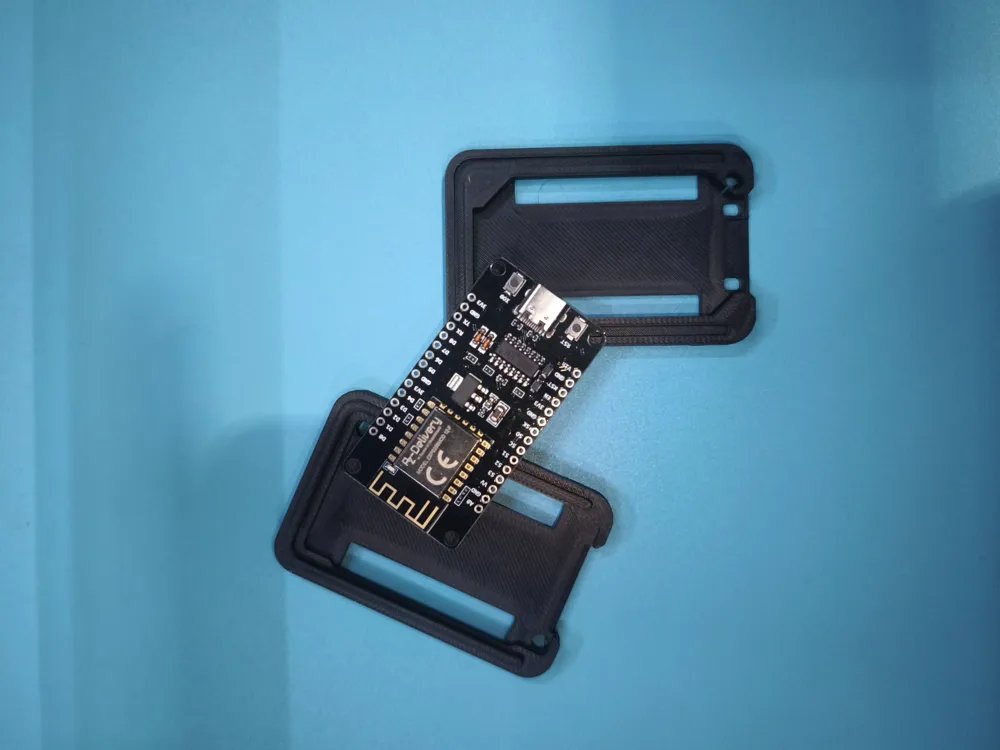

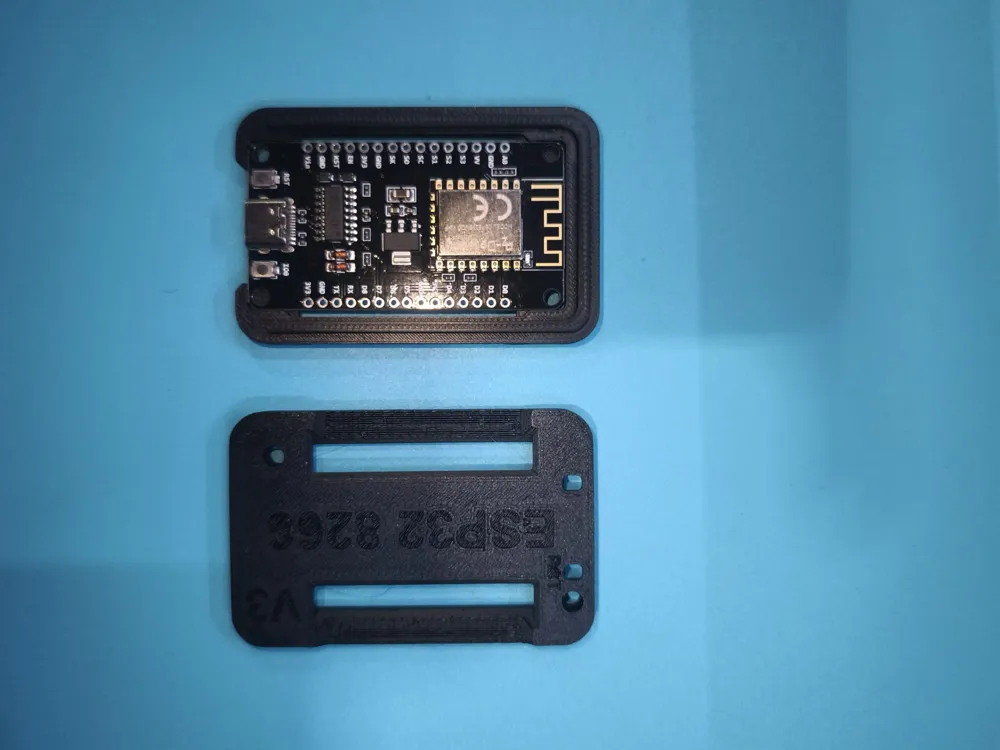

Since I'm currently working on a project where I need an ESP, I simply made a mount that I can easily screw to a back panel and continue to use the pins!
This was basically the solution that worked for me…

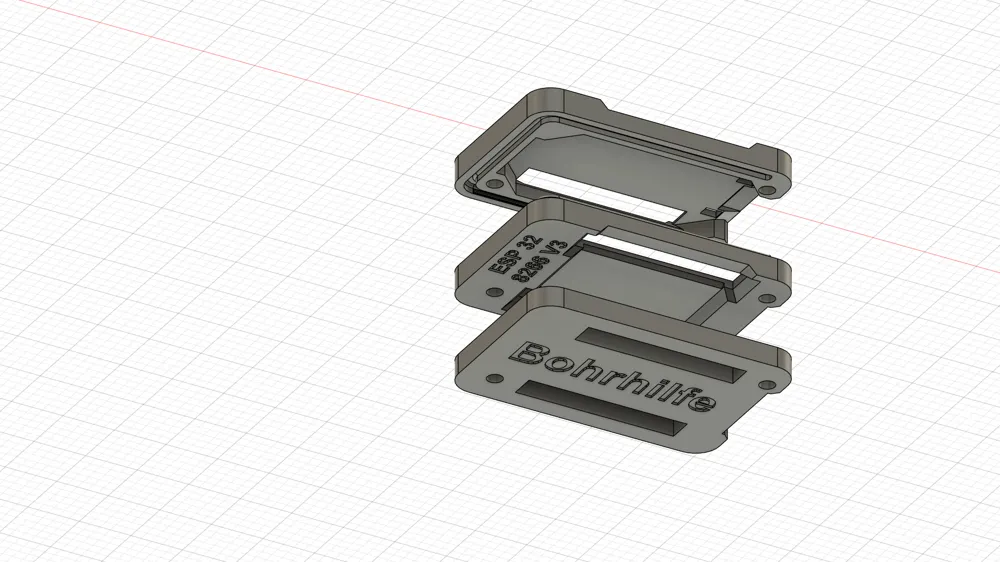

A simple drilling template is also included! If you don't need it, you can remove it from the print bed!!!

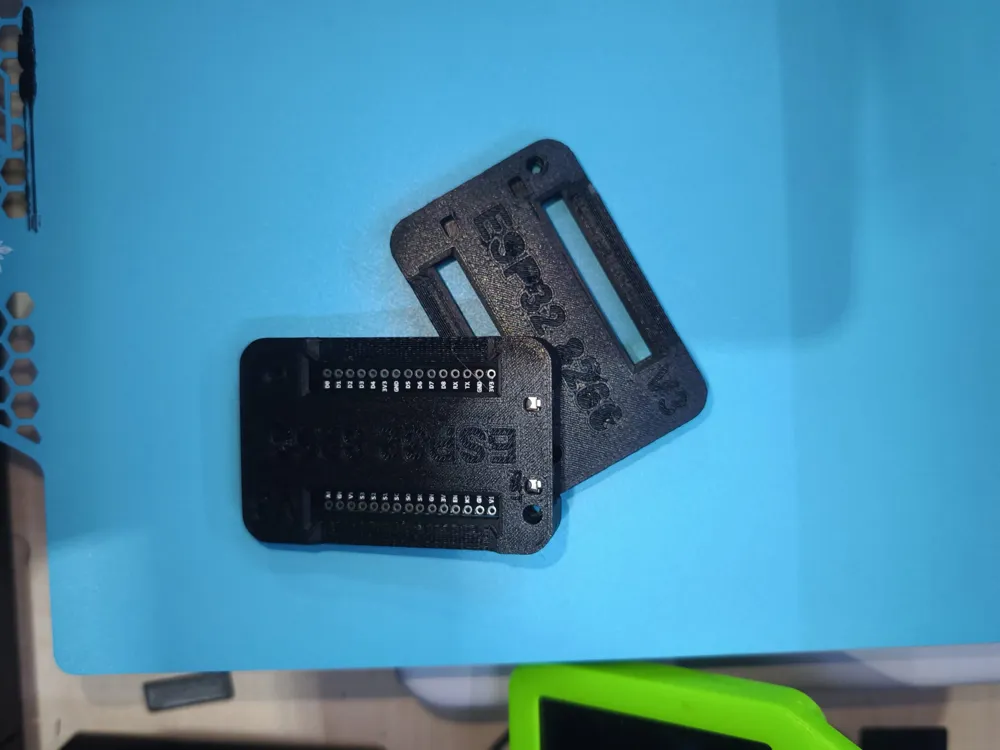

It prints quickly and you can work on all pins + res.
Support is unfortunately indispensable :D

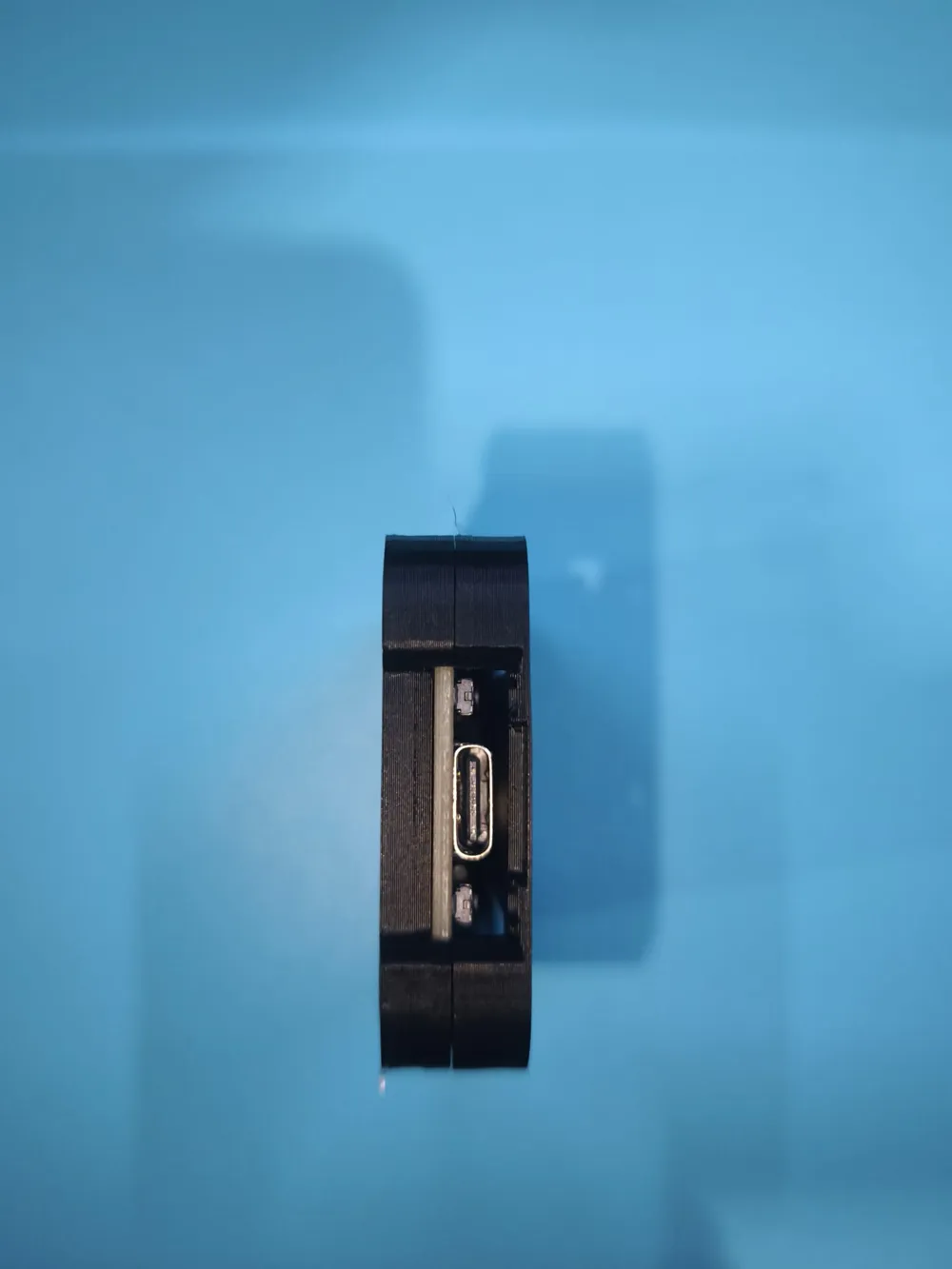

The model is designed so that the USB (C) port can be used normally!
It is designed for an M2x16 screw (2x), but you can adjust it to your wishes; longer is always possible, but I would not go shorter than M2x12
For example, I didn't use washers, but that's up to you!
PLA or PETG doesn't matter at all, you can print it however you want :D!!!
If anything is unclear, feel free to contact me
