AC Vent for Hisense Standing Unit (3.98in)

Print Profile(1)

All
X1 Carbon
P1S
H2C
X1
P1P
H2D
X1E
H2S
A1 mini
P2S
A1
H2D Pro
X2D
A2L

0.28mm layer, 4 walls, 5% infill
0.28mm layer, 4 walls, 5% infill
Designer
2.3 h
1 plate

Open in Bambu Studio
Boost
15
50
0
0
55
24
Released

Description

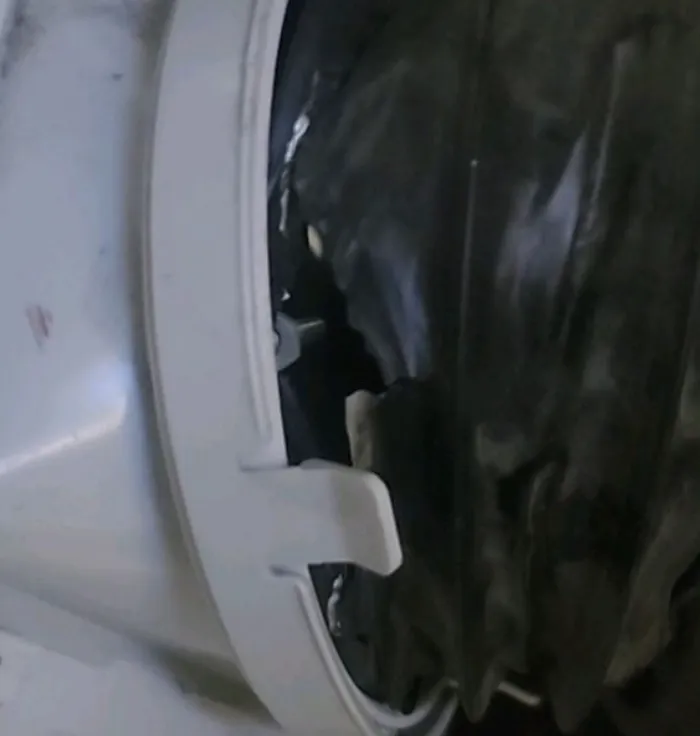

My AC duct has a hole in it. The duct that came with the unit sucks and the duct I had on it was too long, so it got scrunched and has a hole in it.

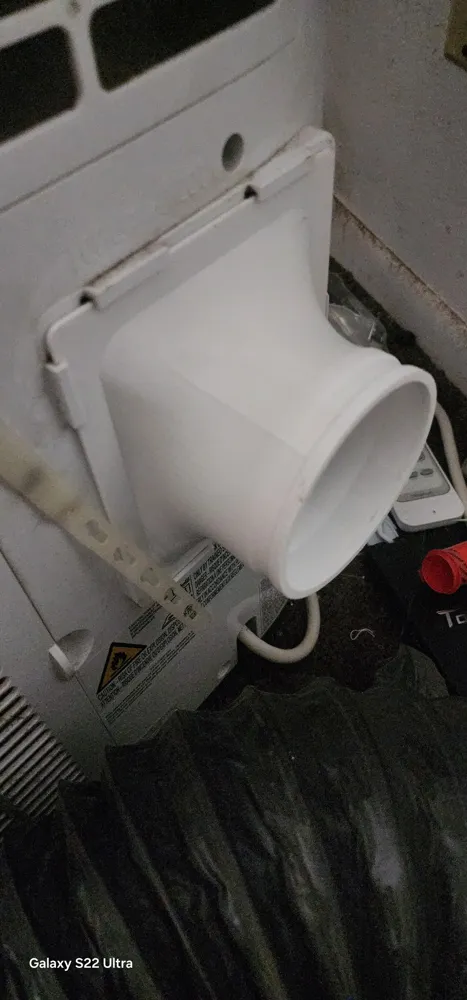

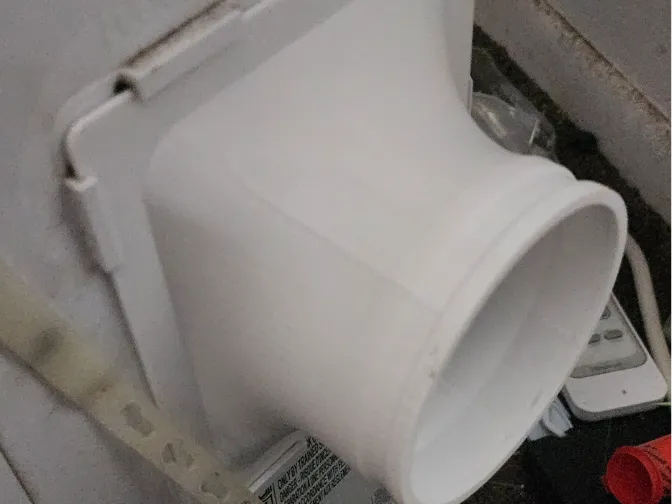

The current connection method also makes no sense because once a tube breaks, there is no way to cut it and make it work. I hated how the vent system worked so I decided to make my own vent. It has a rib on it for the smaller clamp. I also made it in 4in size since it costs less on material, duct, and components.



This must be printed in a very high temp resistant material. I previously made an accessory to make sure the other duct would fit. PLA and ABS both melted. I ended up using PC, the same is true for the model here.



Overall, I am very happy with the outcome, and I hope you are too. If you'd like to support me, consider checking out one of my Kindle books on Amazon. I've got FDM and Resin books, but I also have books on random stuff like compasses, better habit building, and DSLR cameras.
