AMS HT Holder Honeycomb
Print Profile(3)
Bill of Materials
- Zylinderkopfschraube x 4: M5x12
- Round Threaded Brass Heat-Insert Nut x 8: M5x6
Description

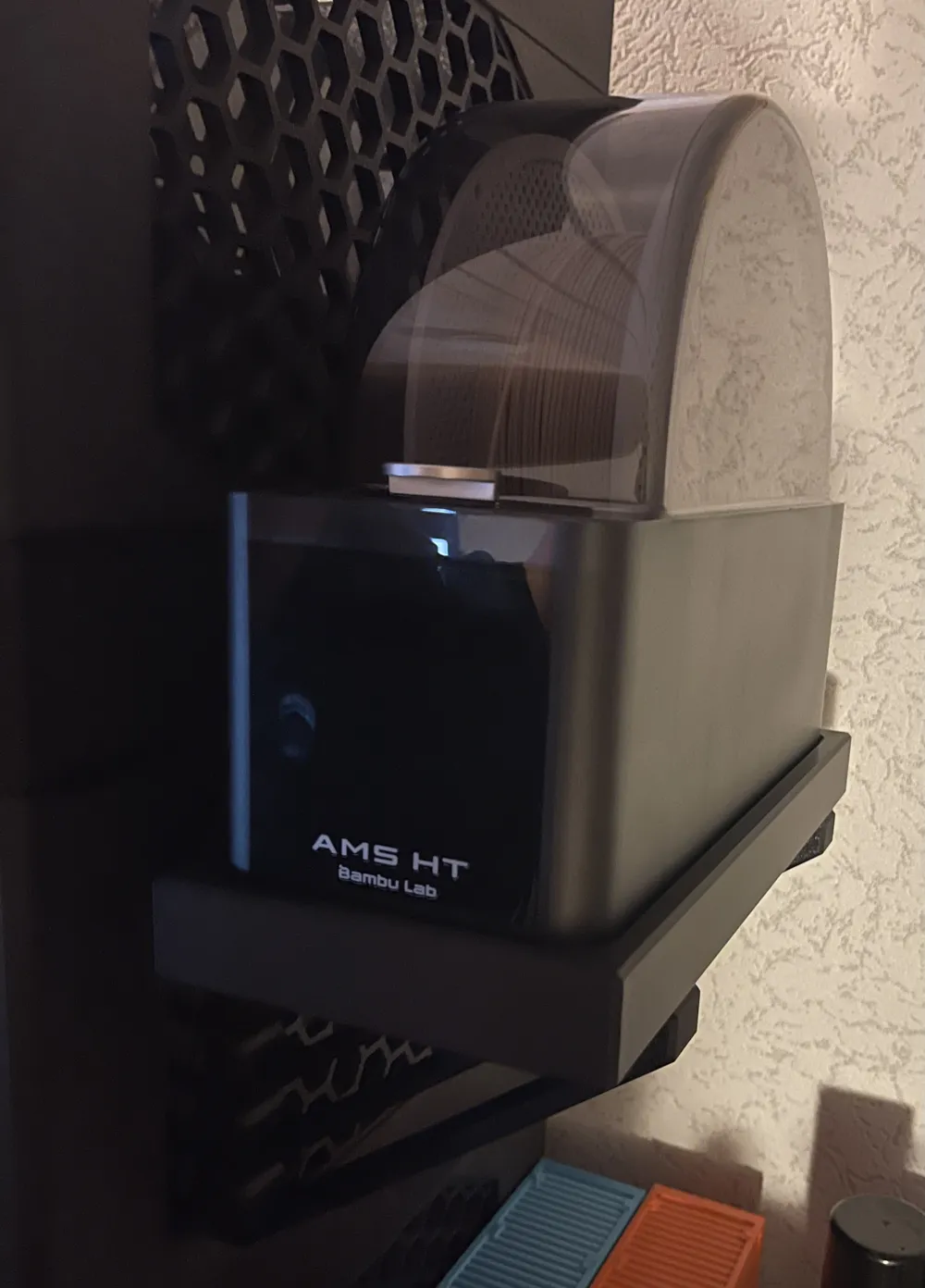

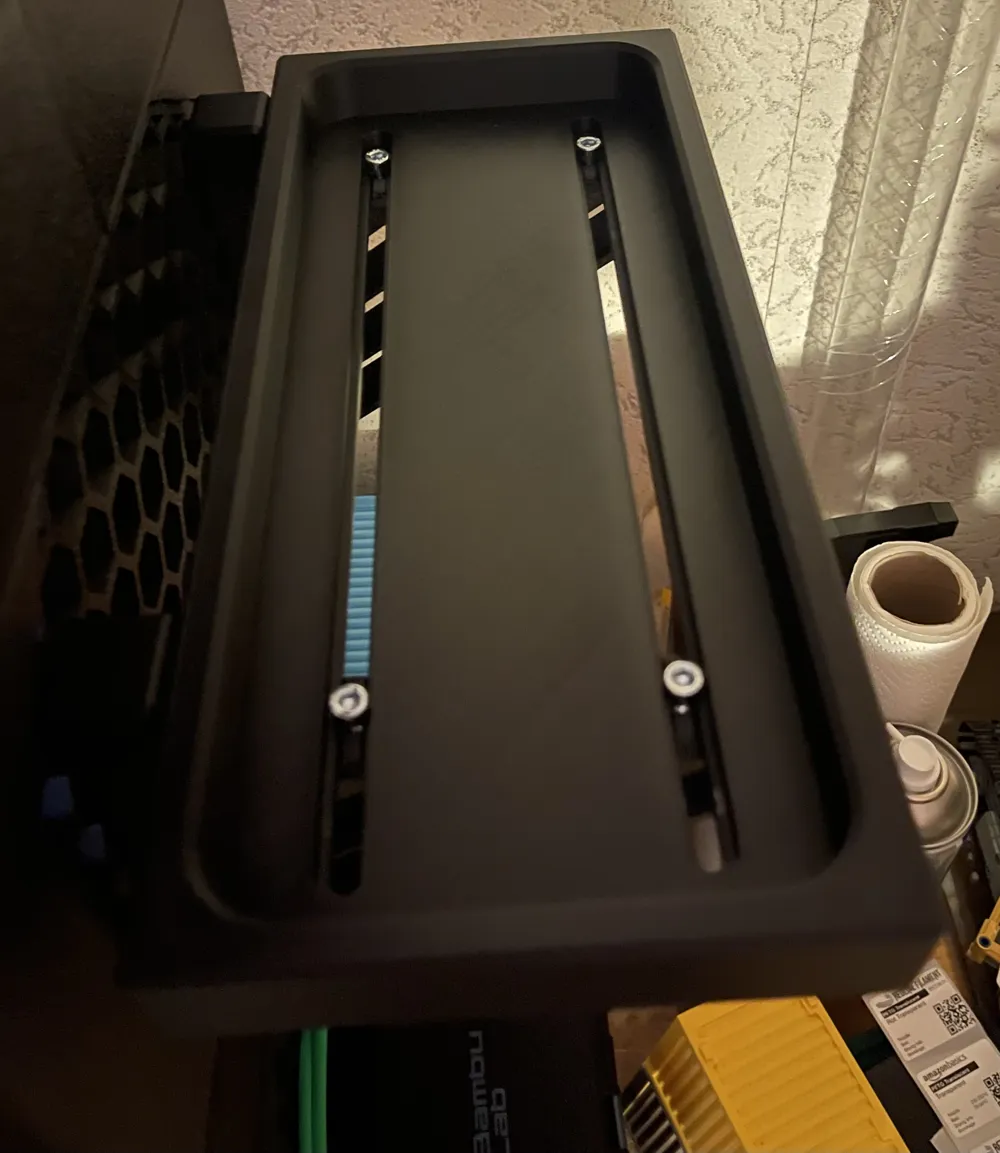

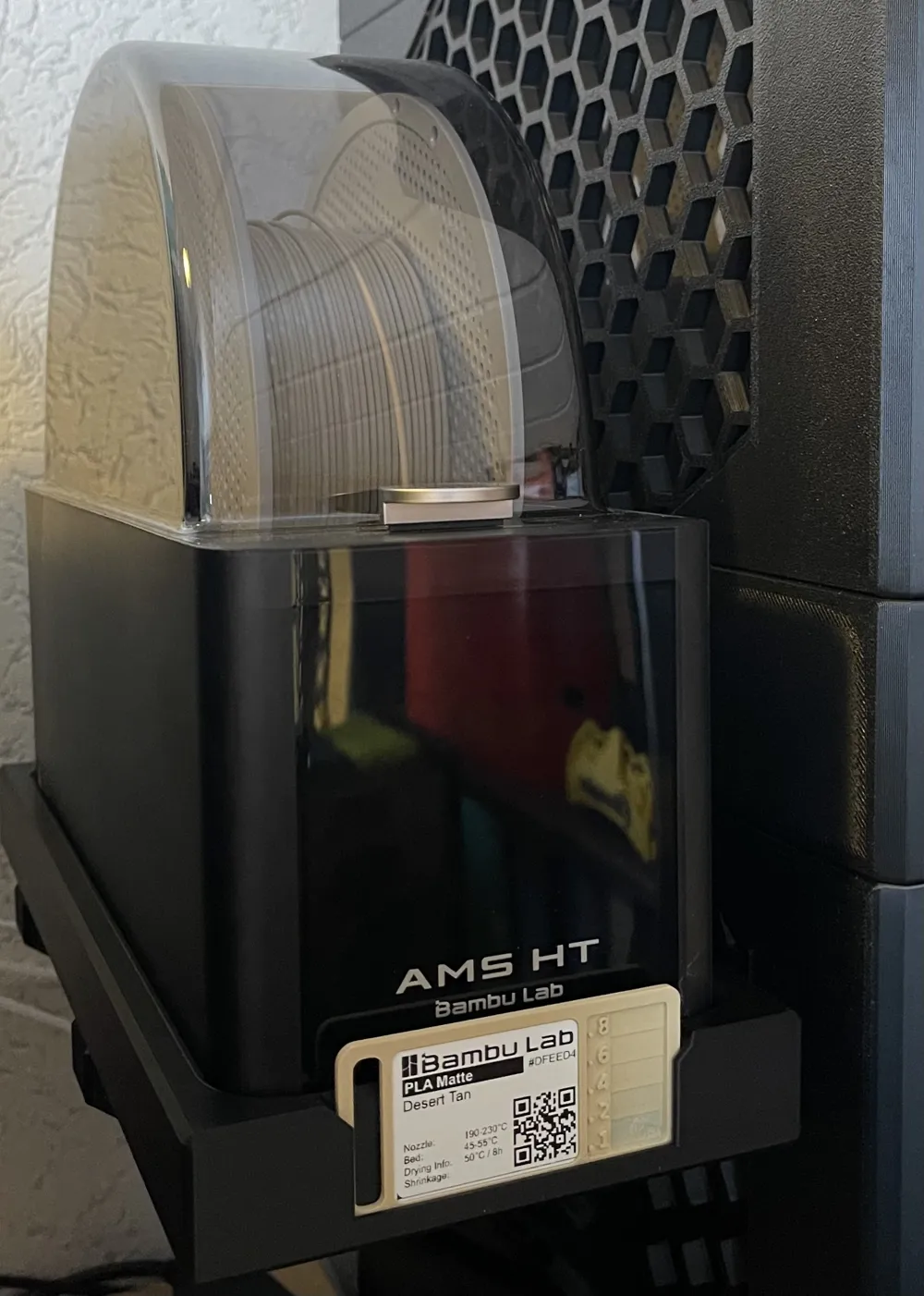

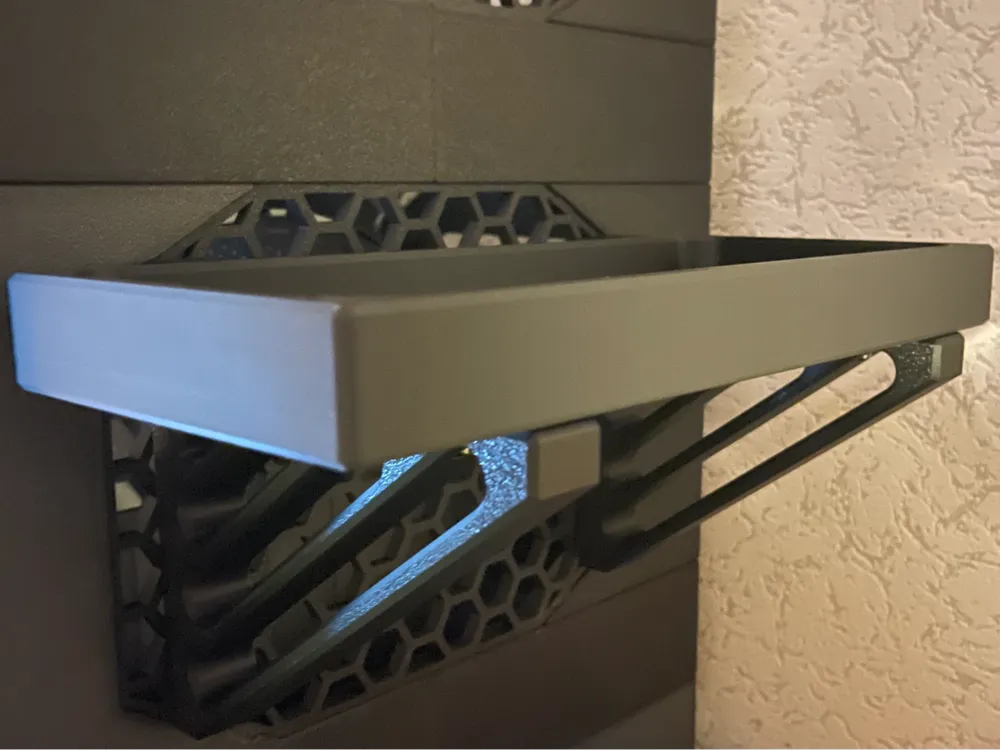

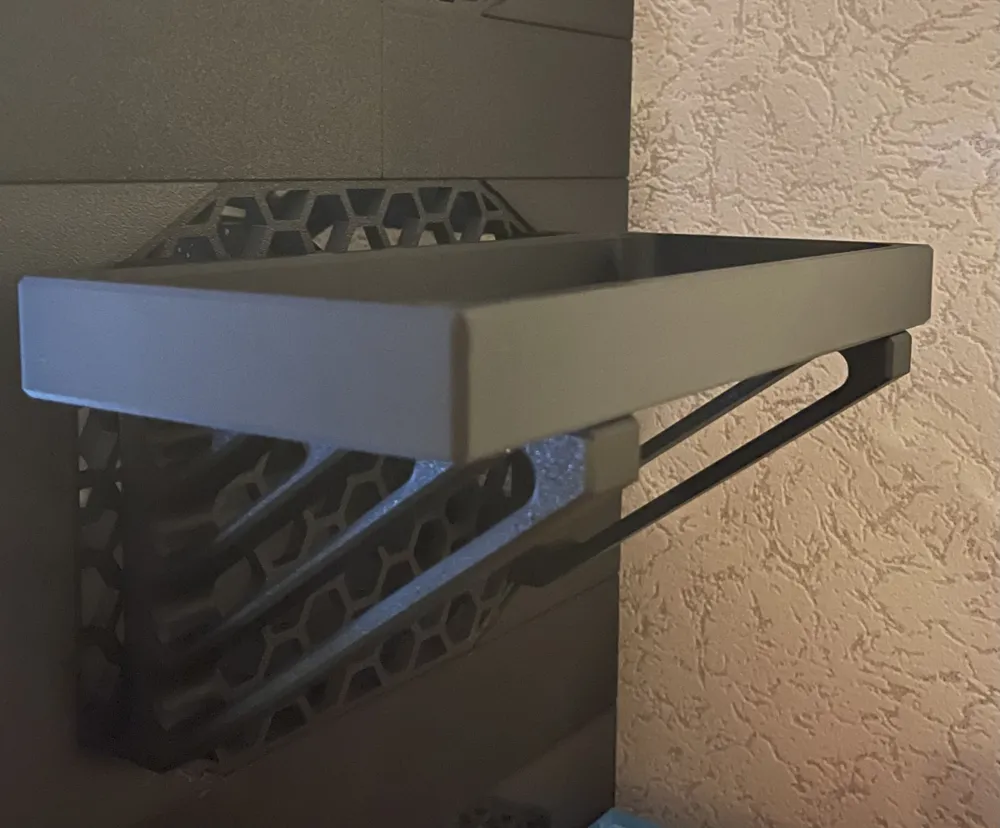

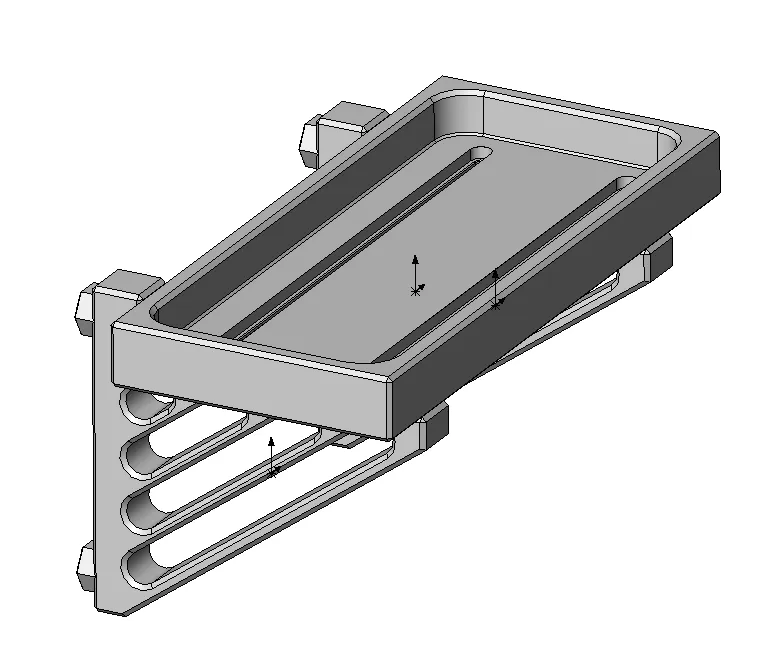

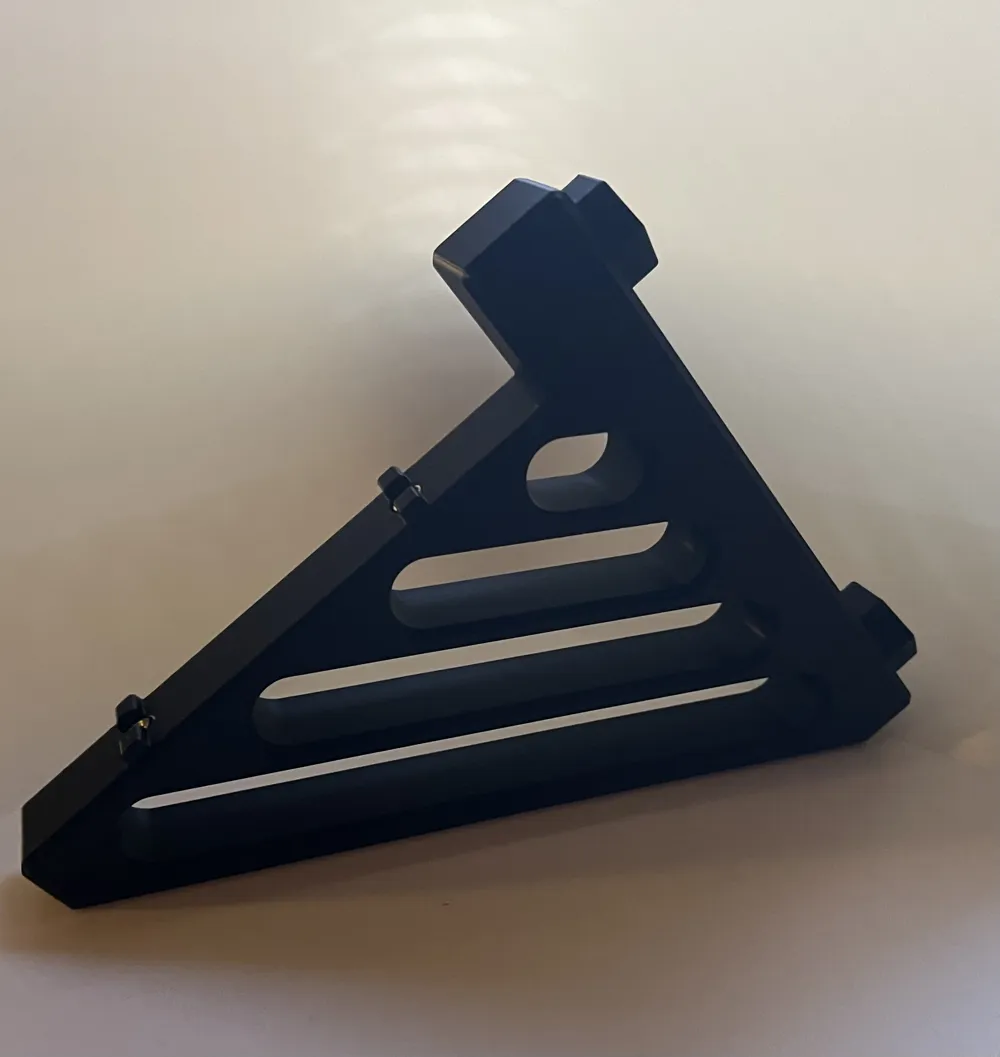

I needed a mount for my AMS HT. Since I have a honeycomb wall on my AMS rack, I wanted to use it. Therefore, I decided to design a mount. I designed a base plate with a filament sample card and one without. As you wish, you can print either one or the other. The mounts can be adjusted in length through the elongated holes in the base plate. This makes it possible to push the mount further together and adjust it to your wall. For questions or modifications, please feel free to contact me
Update 06.01.2025 Storage Boxes
A few boxes have been added as a second print profile, these fit exactly into the base plate and can be used as desired. A total of three boxes fit into the mount
Update 06.05.2026 Adapter Plate
I have added another print profile for an adapter plate to mount the AMS transversely to the honeycomb wall. For this, four M5 heat-set inserts are required
Boost Me (for free)
If you like my model, leave a like or boost me. Thank you and I wish you a lot of fun with the model
