The Most Complete IKEA Skadis Connector Collection

Overview

Stop wasting time measuring and modeling IKEA Skadis hooks! This comprehensive template kit provides a wide range of pre-configured connector bases designed specifically for makers and designers.

Instead of rebuilding the mounting system for every project, simply pick the base size that fits your needs and merge it with your custom model directly in your slicer.

What’s Included?

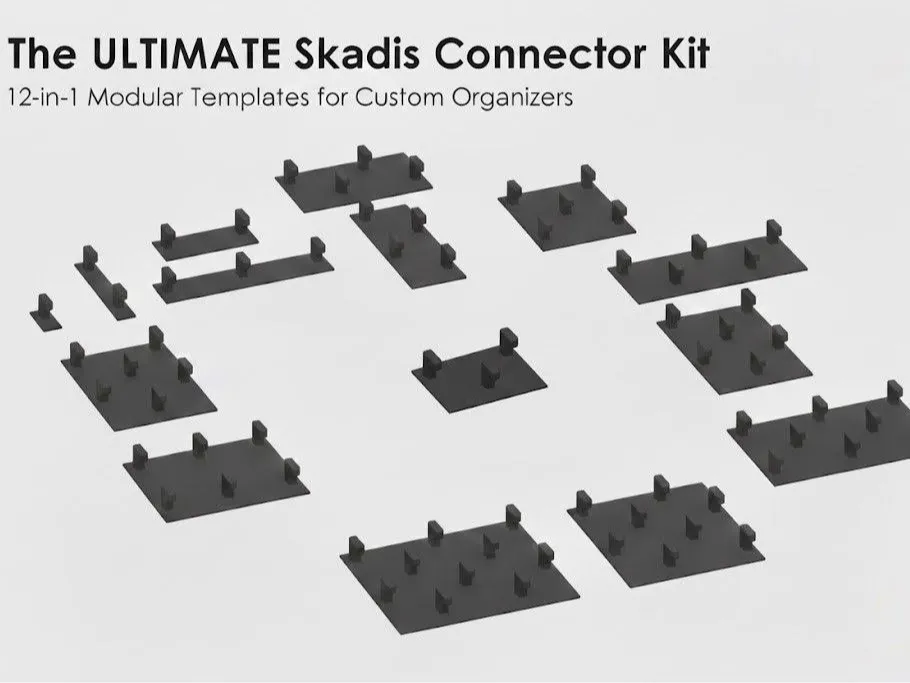

I have created 12 different base configurations to cover almost any use case:

• Vertical & Horizontal strips: 1x2, 1x3, 1x4
• Square & Rectangular plates: 2x2, 2x3, 2x4, 3x3, 3x4
• Single hooks: For small, lightweight items.

Features

• Precision Fit: Perfectly tuned for the standard Skadis hole grid (40mm spacing).
• High Strength: Optimized hook profile to minimize shear stress and prevent breaking.
• Slicer Friendly: Clean geometry makes it easy to use with Boolean operations in Bambu Studio or Orca Slicer.

How to build your custom part in 60 seconds:

1. Choose your base: Select the size (e.g., 2x2) that fits your planned design.

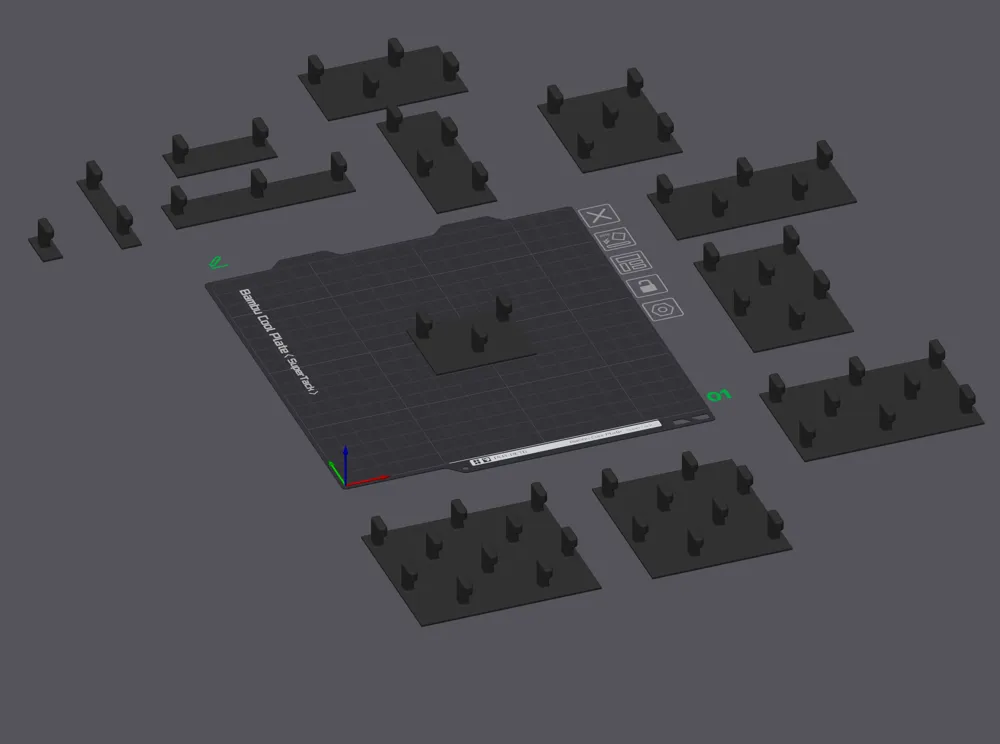

2. Import to Bambu Studio: Drag and drop the base and your custom model (e.g., a bin or tool holder) onto the plate.
3. Position: Move your model so it sits flush against the flat plate of the connector.
4. Merge: Select both objects → Right-click → "Assemble".
5. Print: Use the recommended settings below for a rock-solid fit.

Print Settings

• Material: PLA or TPU is excellent for most applications.
• Walls: At least 3 Wall Loops for maximum hook stability.
