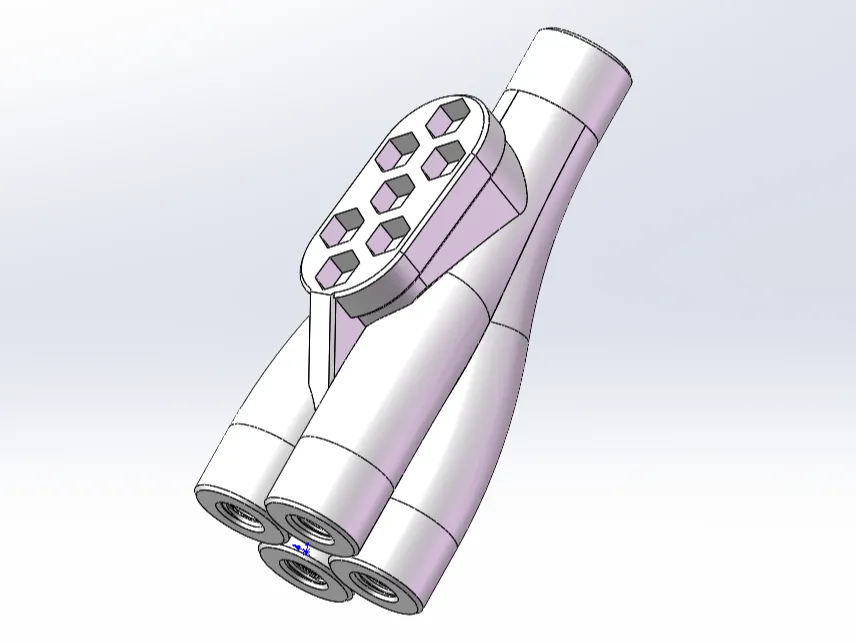

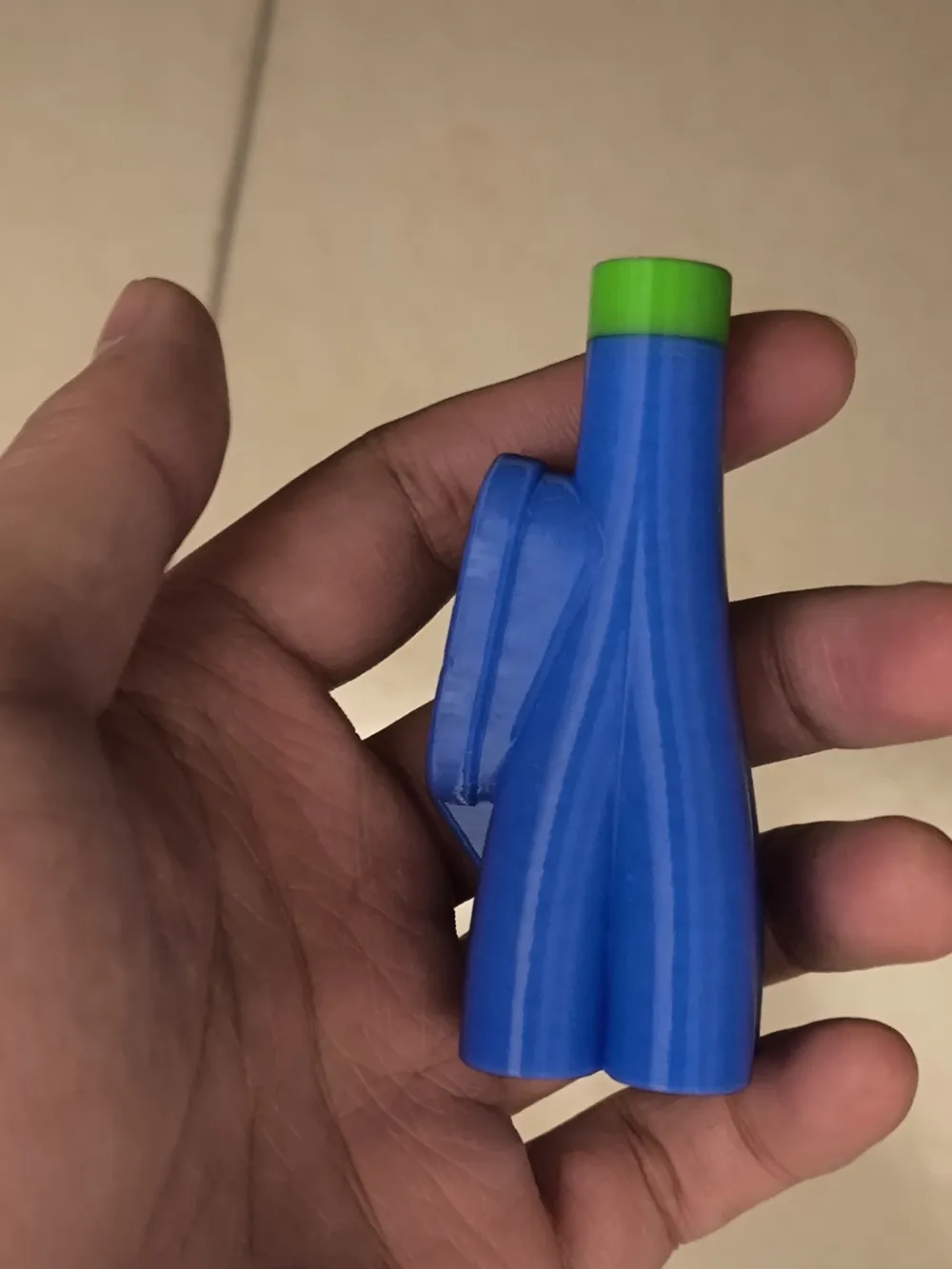

4-in-1-out, 2-in-1-out multi-way filament tube connector with magnetic feature
Print Profile(1)
Description

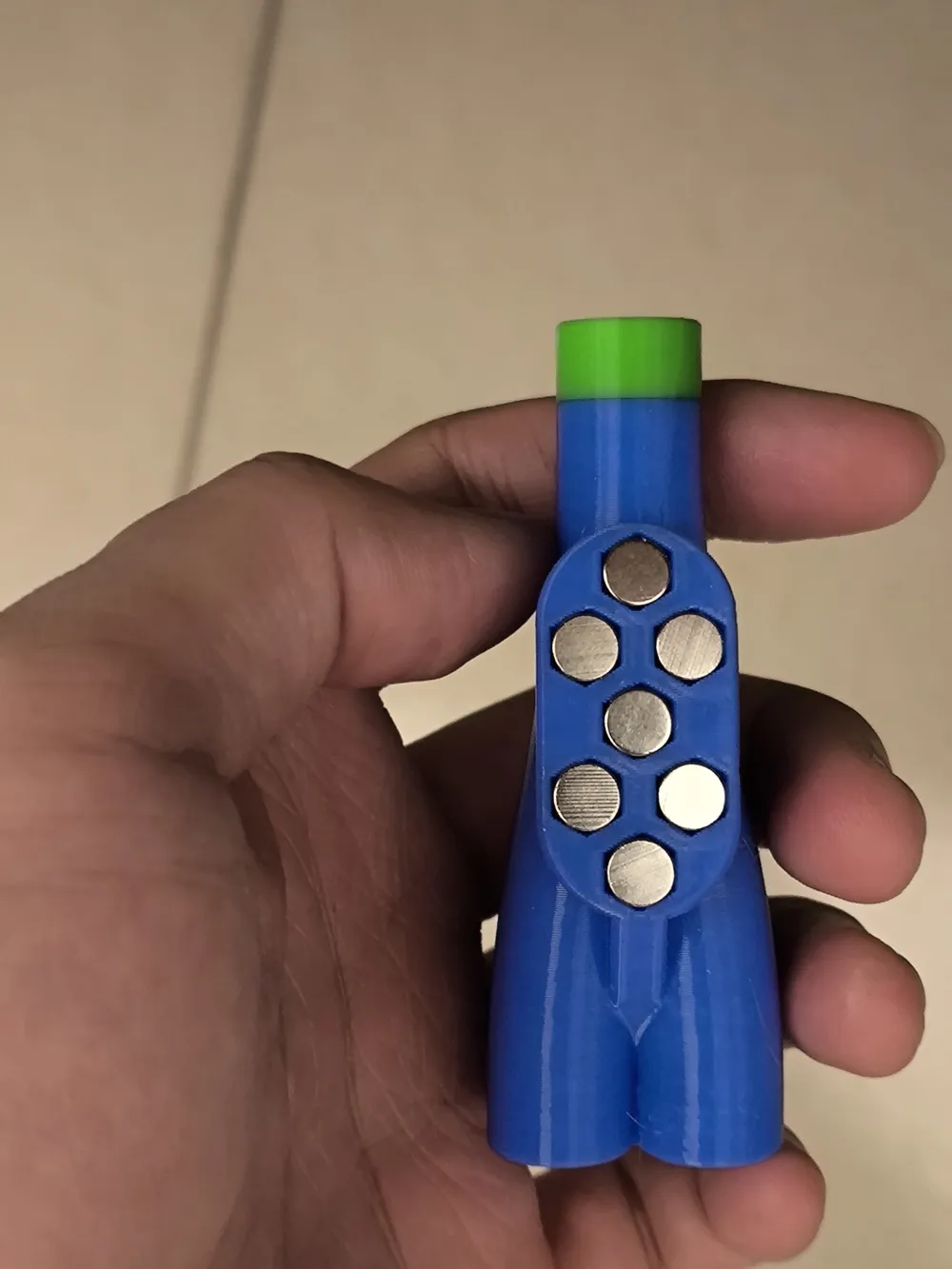

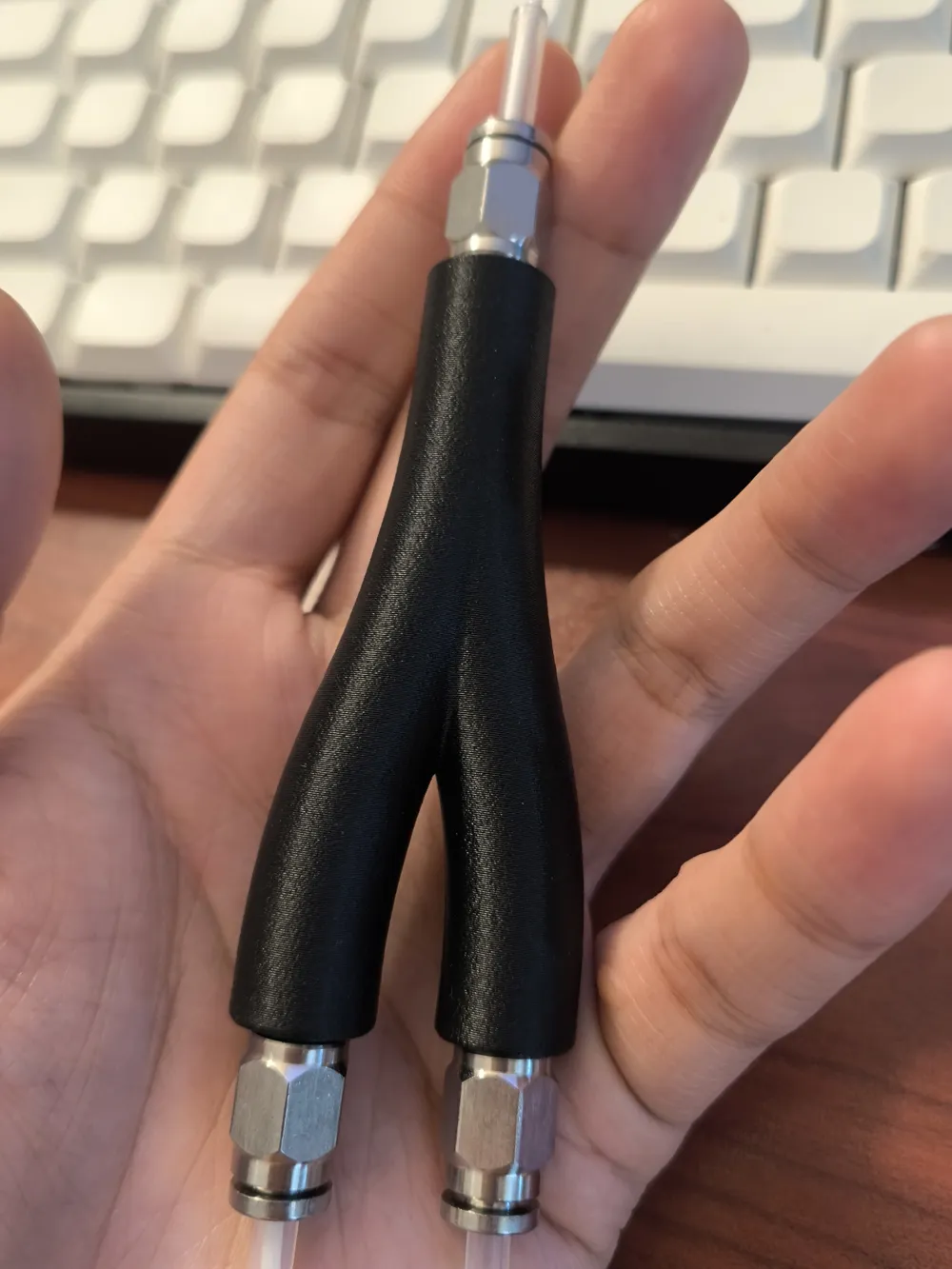

Use PC4 threaded pneumatic fittings (PC4-m6*1 pass-through type, stud length 5mm); the magnetic base uses 6mm diameter * 3mm thick high-strength magnets

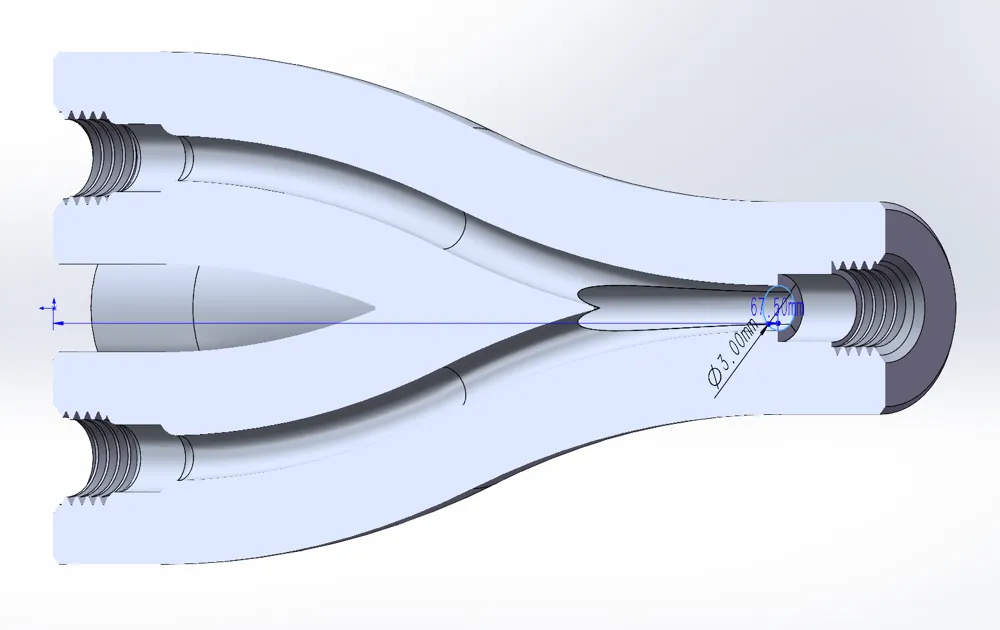

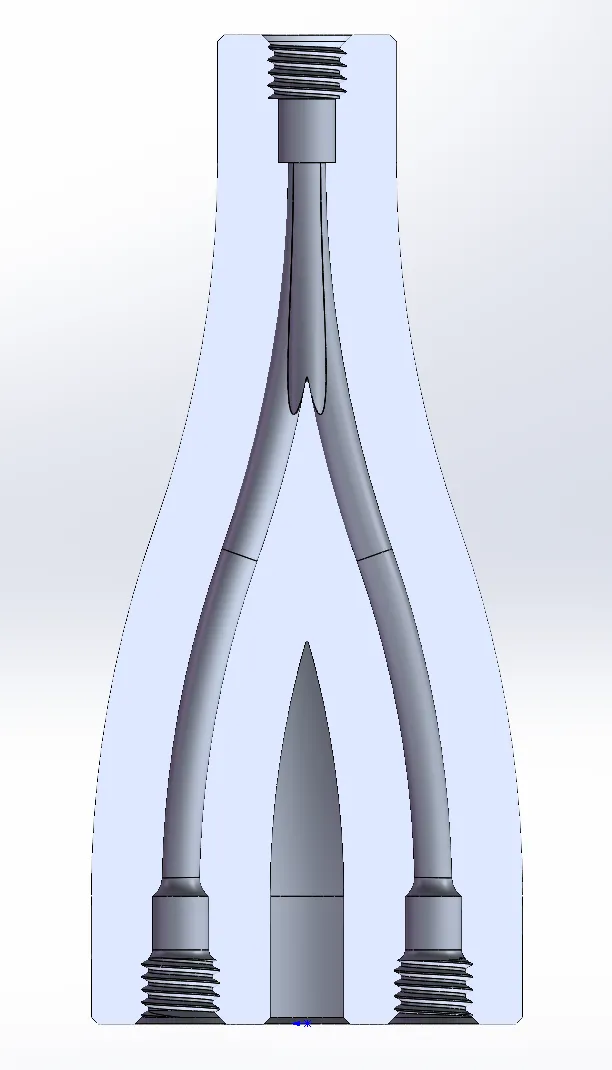

It is recommended to use pass-through pneumatic fittings as non-pass-through ones may cause filament to get stuck in the pneumatic fitting's jaws (This problem is very serious when using AMS), an additional 5mm length of 4.2mm diameter cylinder was cut out to secure the PTFE tube
