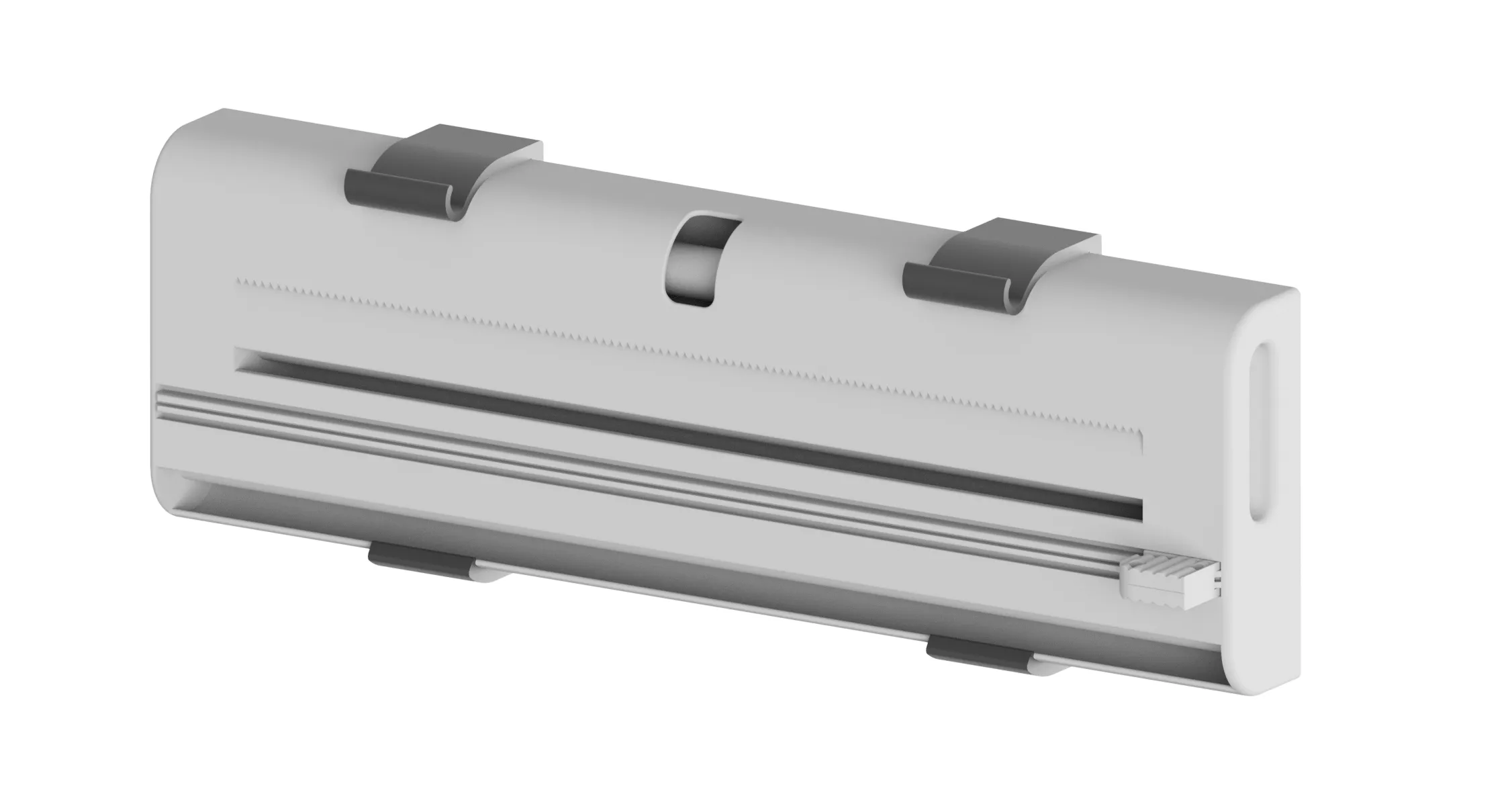

Kitchen roll holder - magnetic with cutter

Magnetic holder for kitchen roll accessories – aluminium foil, plastic wrap and baking paper.
Designed for clean organization and easy everyday use directly on your refrigerator.

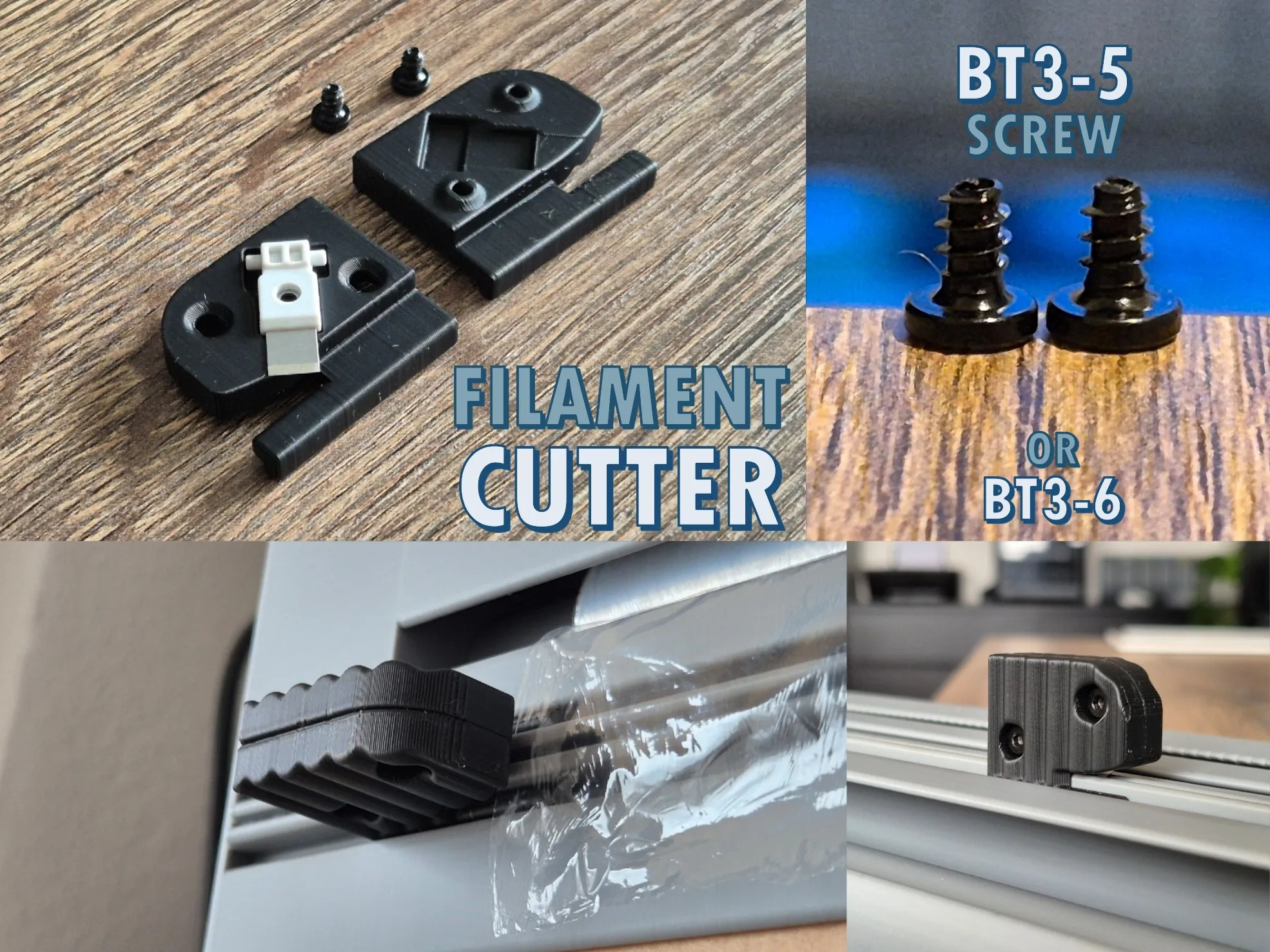

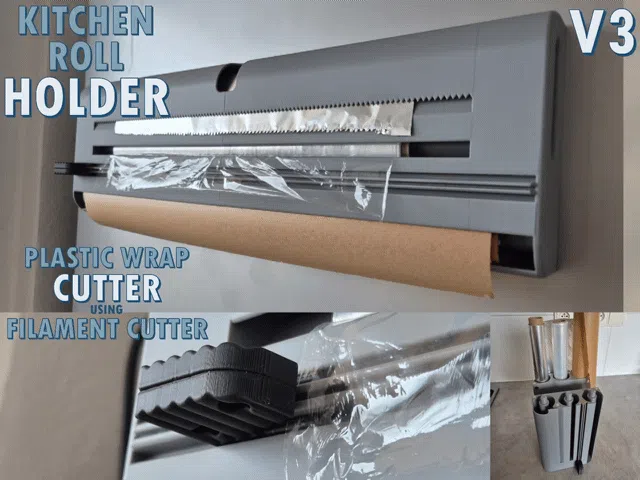

I just  added V3 on my profile. It uses standard bambu filament cutter for cutting the plastic wrap.

↓↓↓LINK HERE↓↓↓

https://makerworld.com/cs/models/2299213-kitchen-roll-holder-v3-magnetic-with-cutters#profileId-2509320

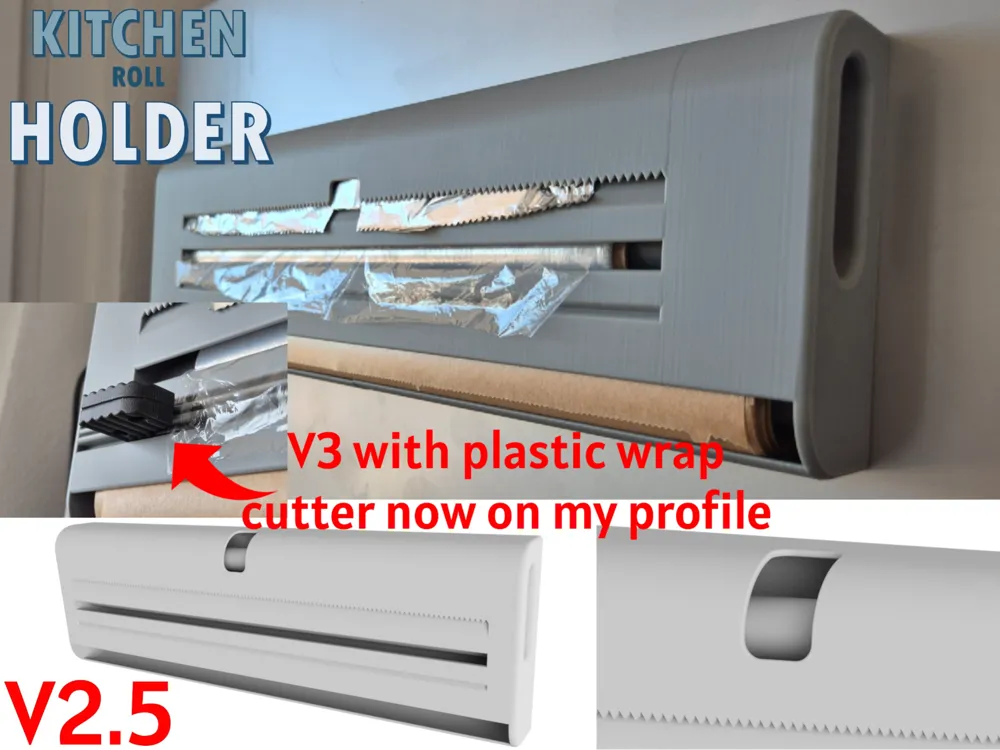

-V2.5 - extended maximum lenght of the aluminium foil and plastic wrap to 370mm.

-V2 with fixed aluminium foil cutter - just cut the foil and then slide more out using the cutout.

• Holds aluminium foil, plastic wrap and baking paper
• Two-part design connected with magnets

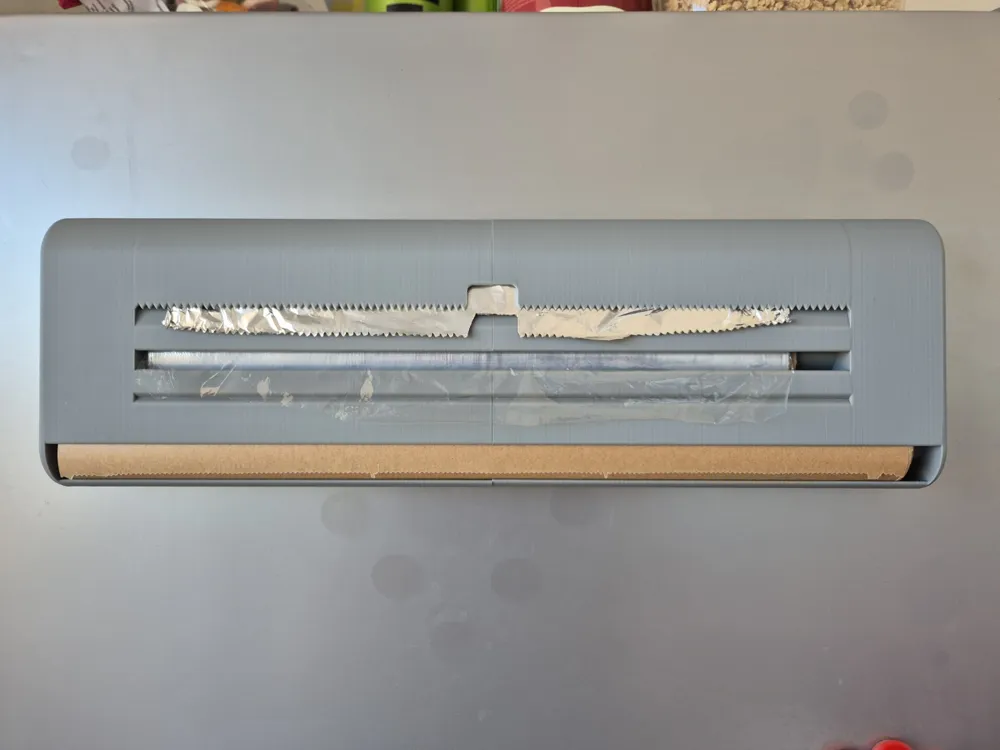

• Snaps securely onto the refrigerator using integrated magnets
• Very strong hold – tested in daily use

Magnets
• Requires 24× magnets 6×3 mm
• Strong magnetic connection between parts and to the fridge

Features
• Aluminium foil holder includes a built-in cutter for easy tearing
• Plastic wrap holder has a cutting groove for knife use
• Clean, minimal and functional design
• Easy assembly – no tools required

• Print from PLA - works just fine

Maximum sizes of the rolls

• All rolls have maximum diameter of 40mm and center rod is 18mm thick

• Aluminium foil and plastic wrap rolls can be maximally 320mm long - 370mm at version 2.5🙂

• Baking paper roll can be maximally 400mm long.

Wall mount

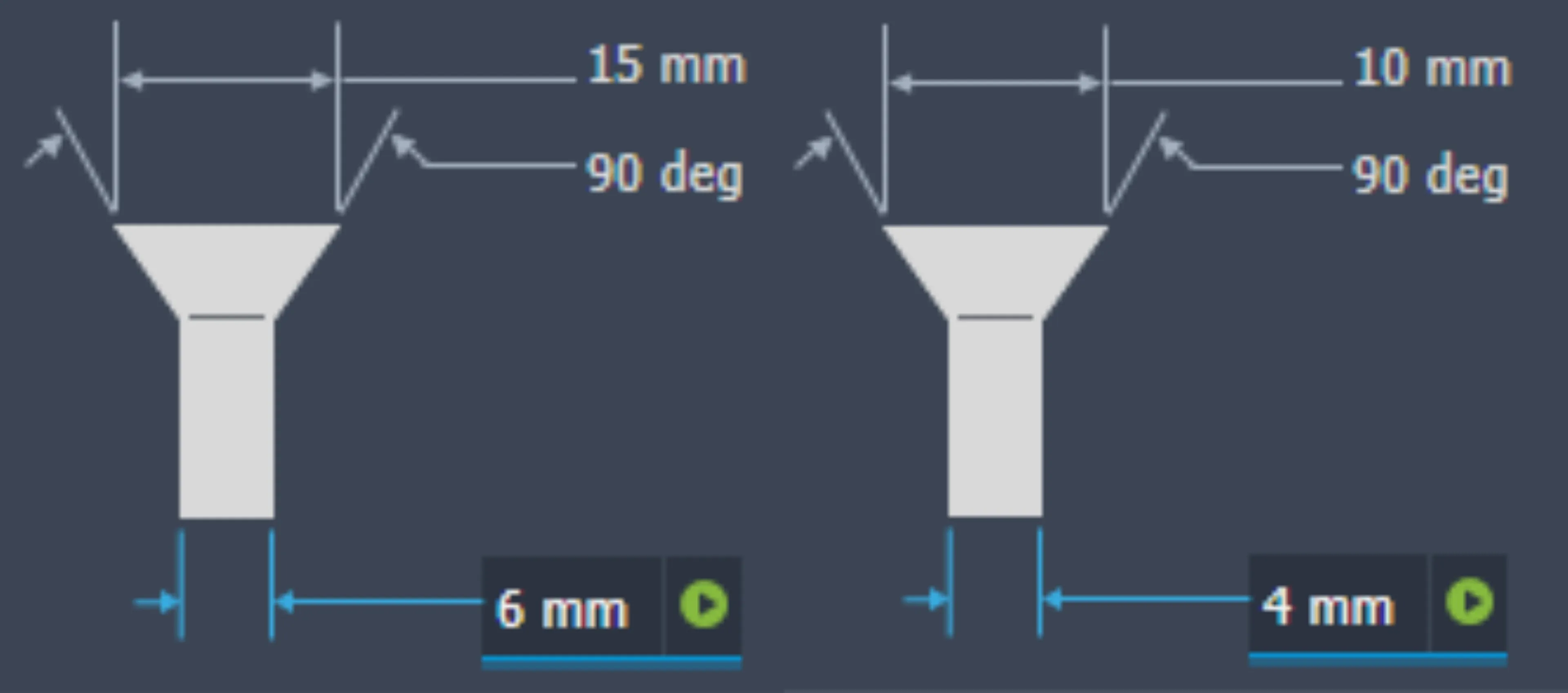

I added an wall mount, it comes in two pieces that you screw to your wall with 90° head screw.

I made two variants for diferent sizes of the screws.

Options:

6mm - for 6mm screws, 5mm should also work

4mm - for 4mm screws, 3mm should also work

Mounts have holes 85mm apart, I recomend drilling them 220mm apart

I recomend still using magnets for connecting the two halves of the holder, but it will also work without them.

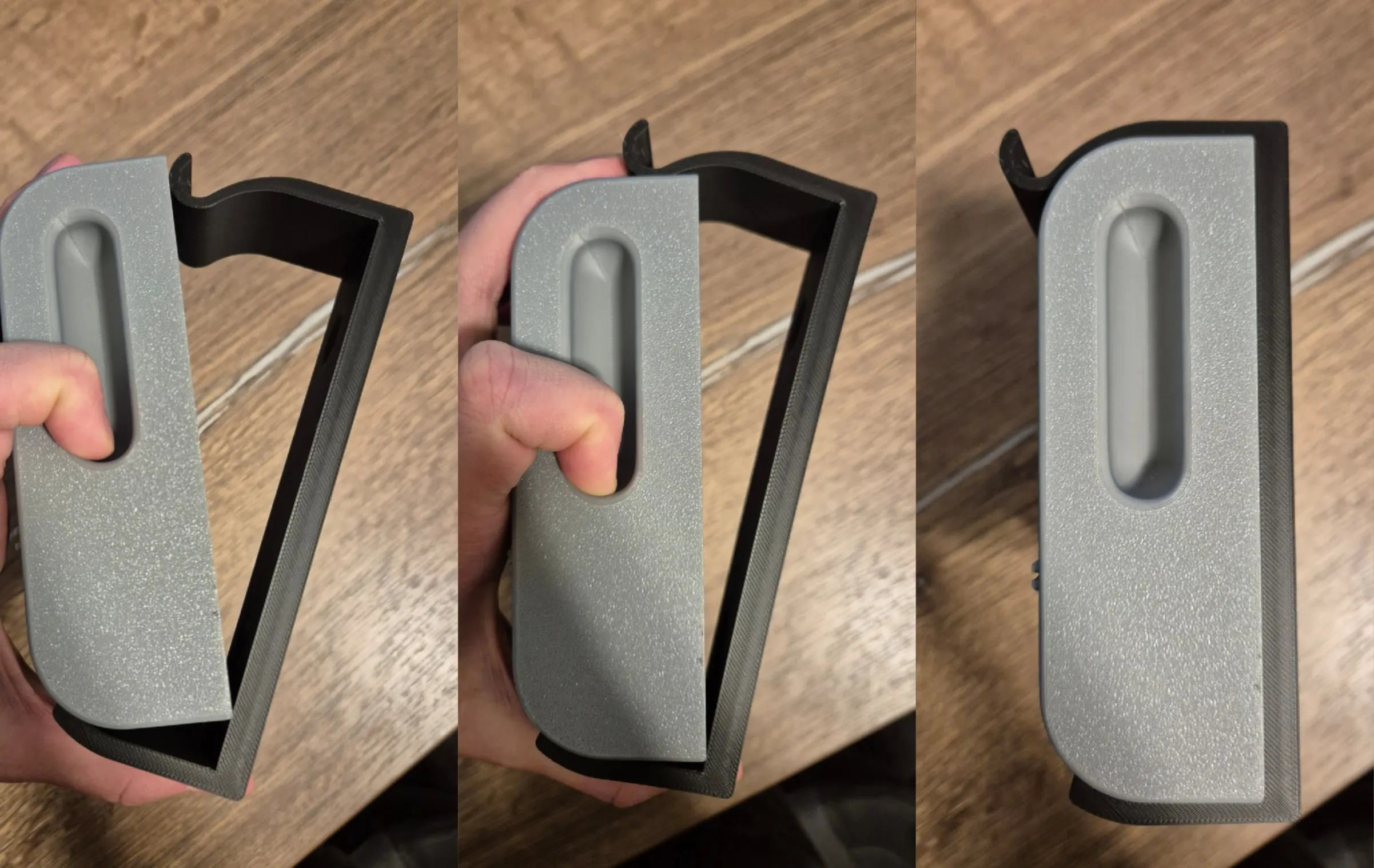

Then just snap it on like shown below

If you need a version for different magnet sizes, let me know in the comments 🙂
