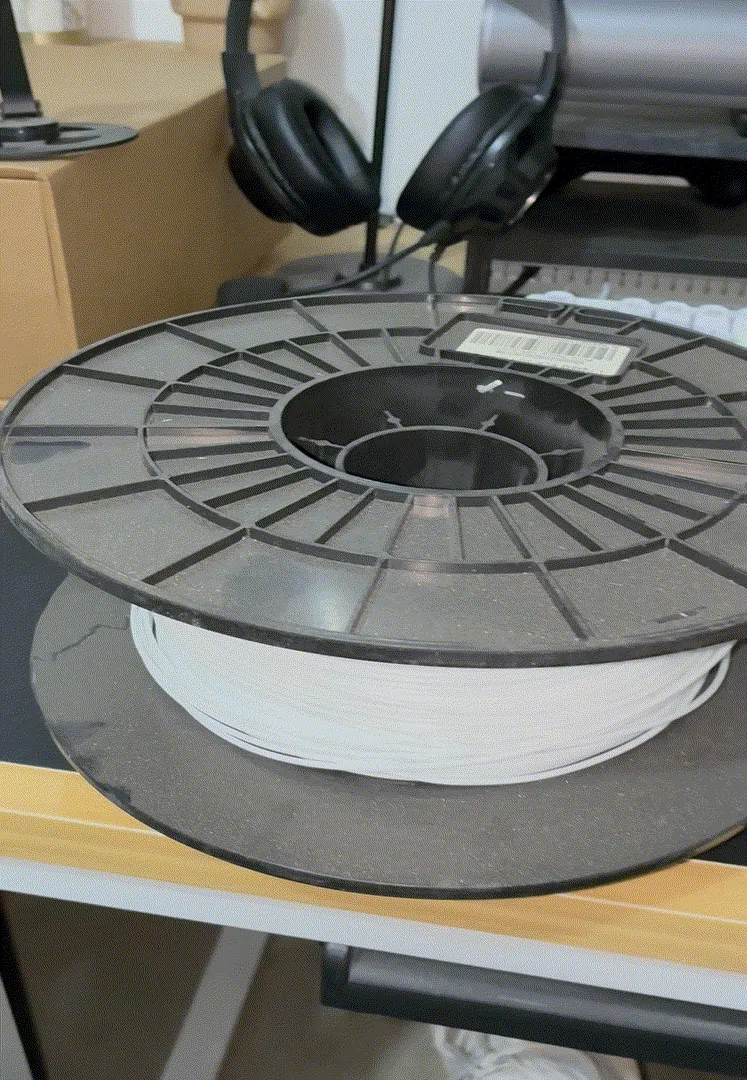

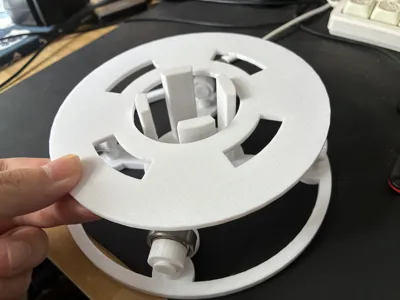

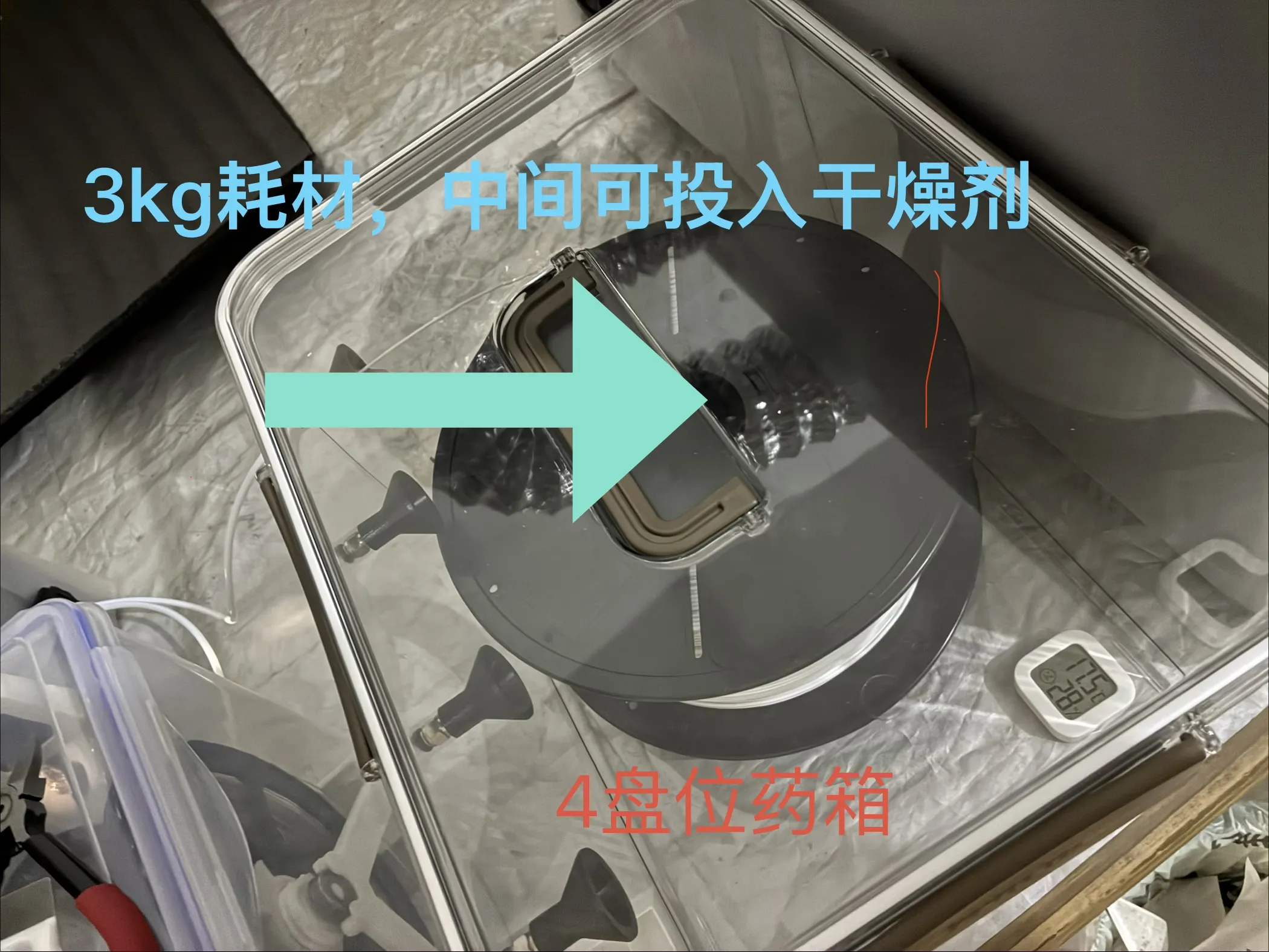

Horizontal Filament Spool Holder 1kg-2kg-3kg (compatible with dry box)
Print Profile(1)
Description
Installation Process:

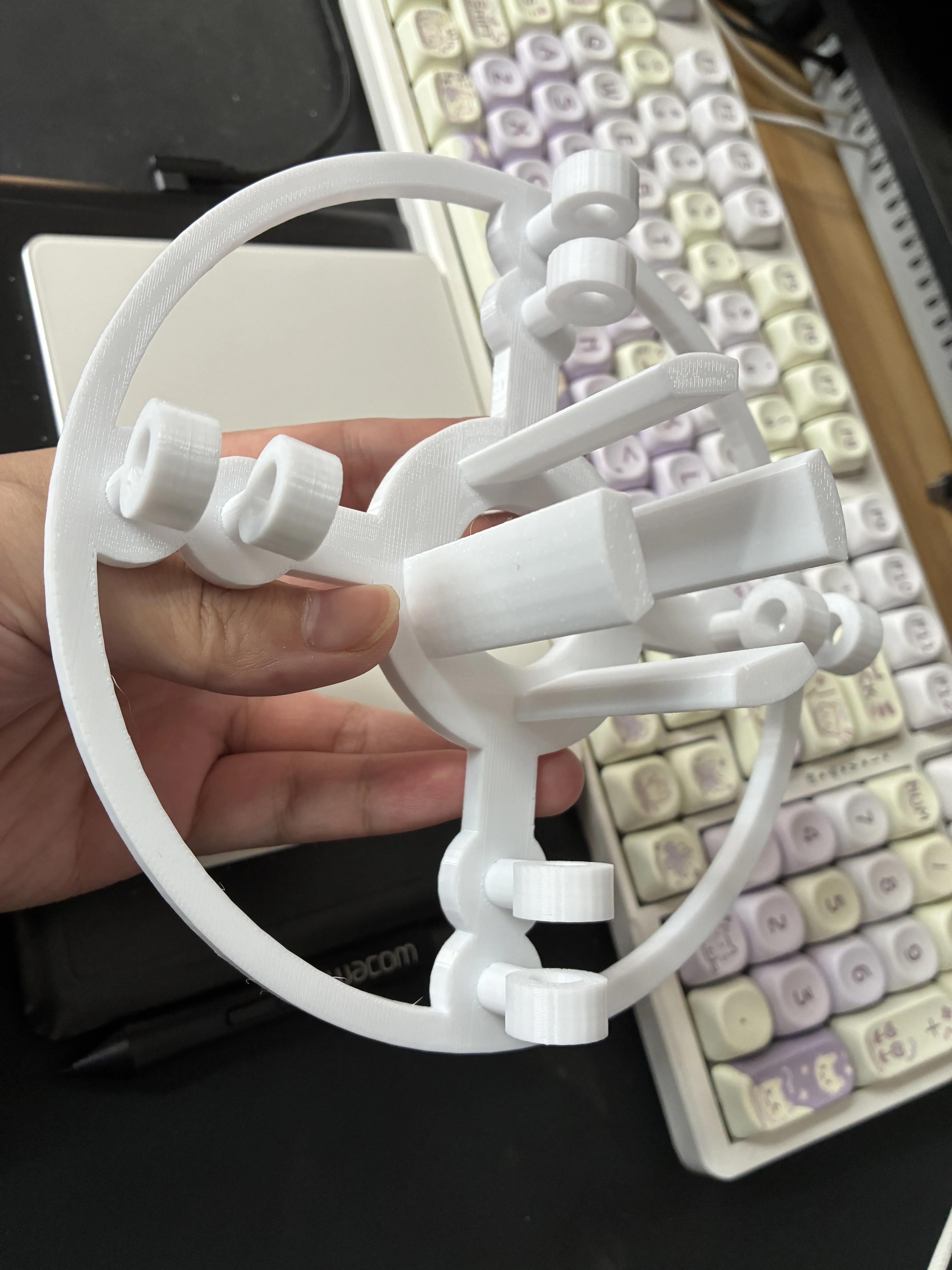

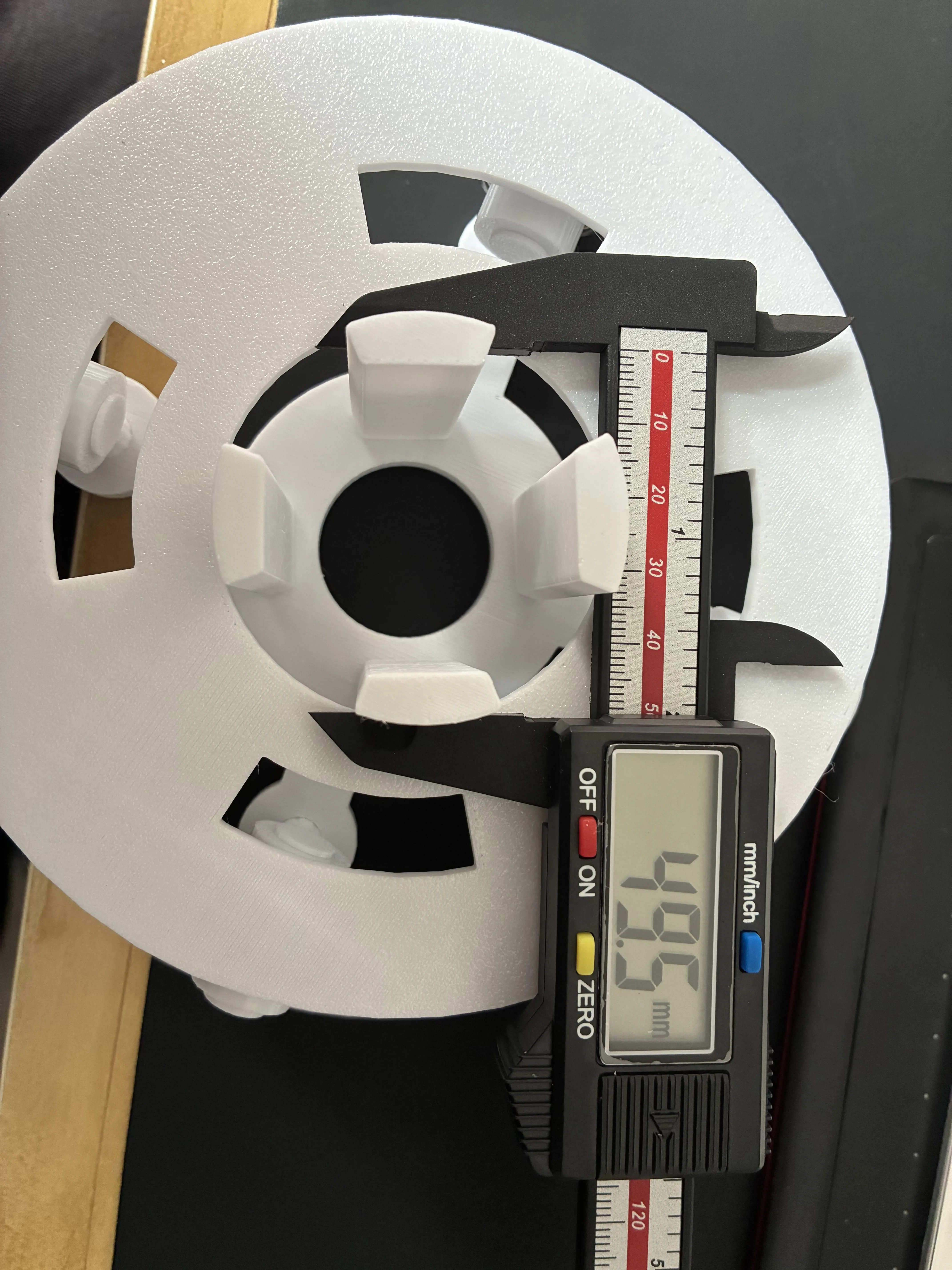

Insert the pillar, with the pillar's opening facing the center of the filament spool. This model is printed without supports. The round base of the pillar that contacts the build plate might not be perfectly round; a 0.1 tolerance has been left. If it's still too tight, you can sand the build plate contact surface of the pillar to make the cylindrical part smoother.

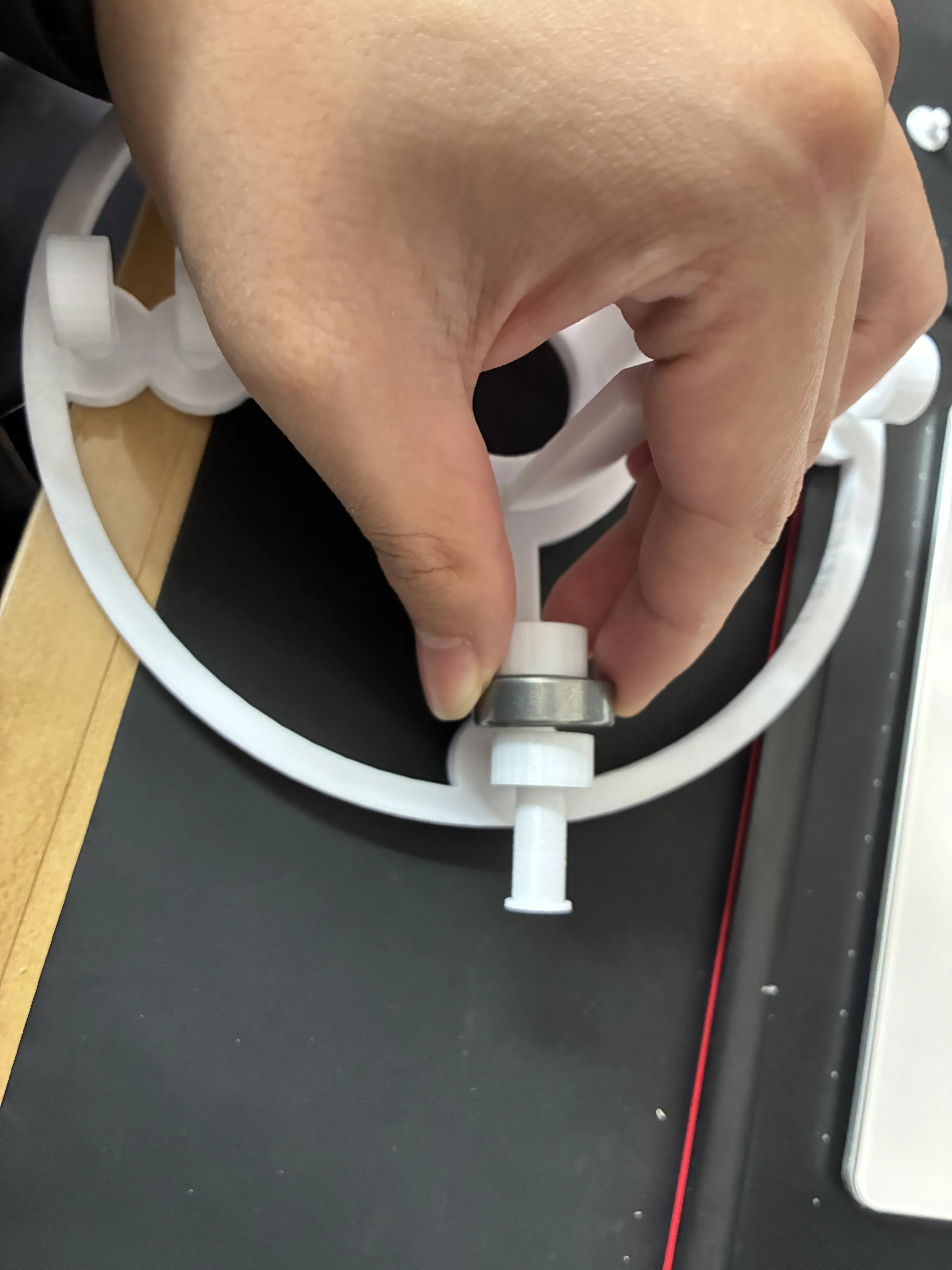

Take a 608zz bearing and one pin (4 pins in total) and insert them into the round holes of the pillar in an outer-to-inner sequence.When inserting the pin through the outermost pillar, hold the bearing with one hand and push the pin with the other hand to pass it through the central hole of the bearing.

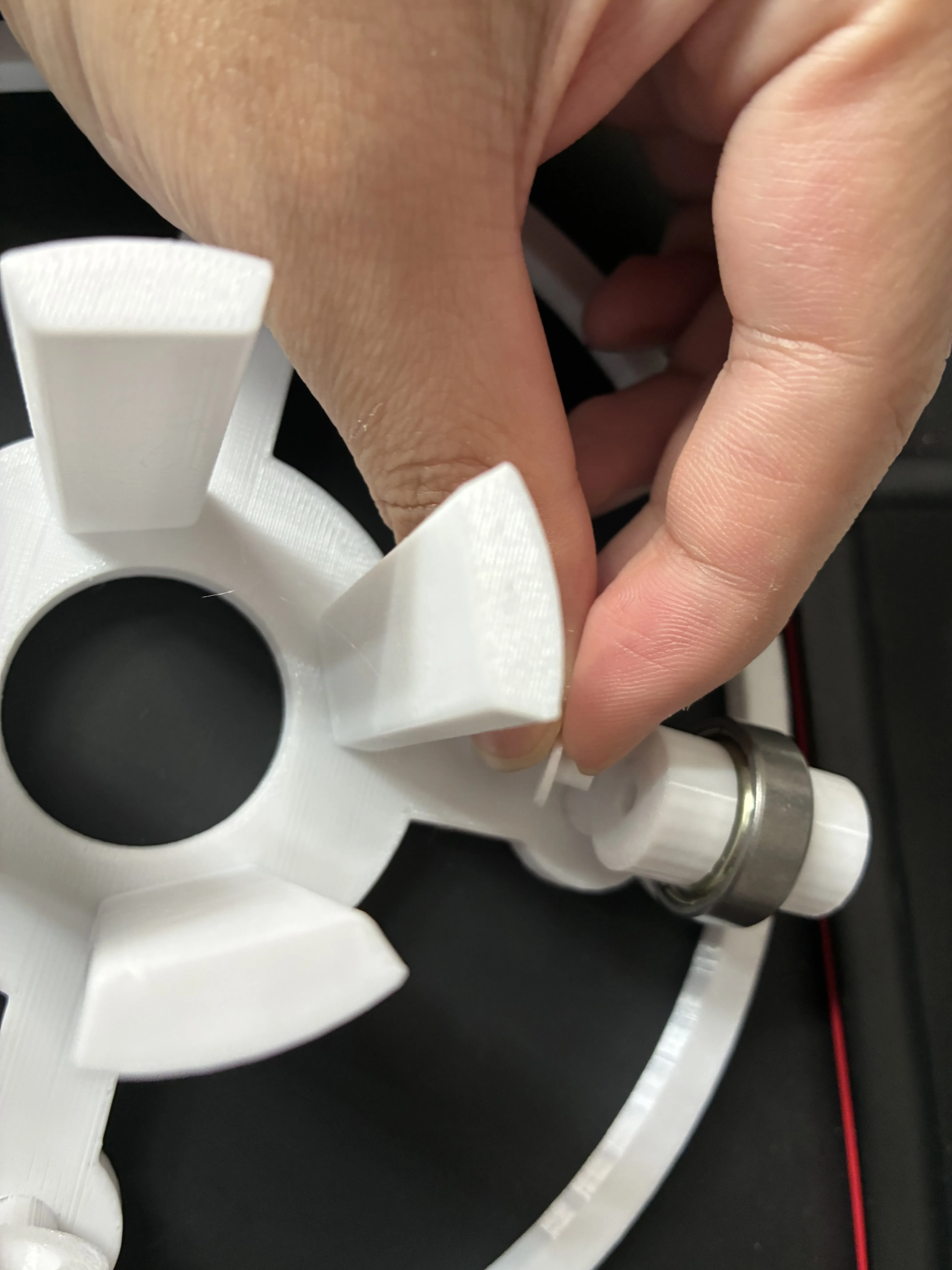

Attach the retainer plate (optional; the pin is usually tight enough not to fall out. If the retainer plate is too loose, you may choose not to install it.)

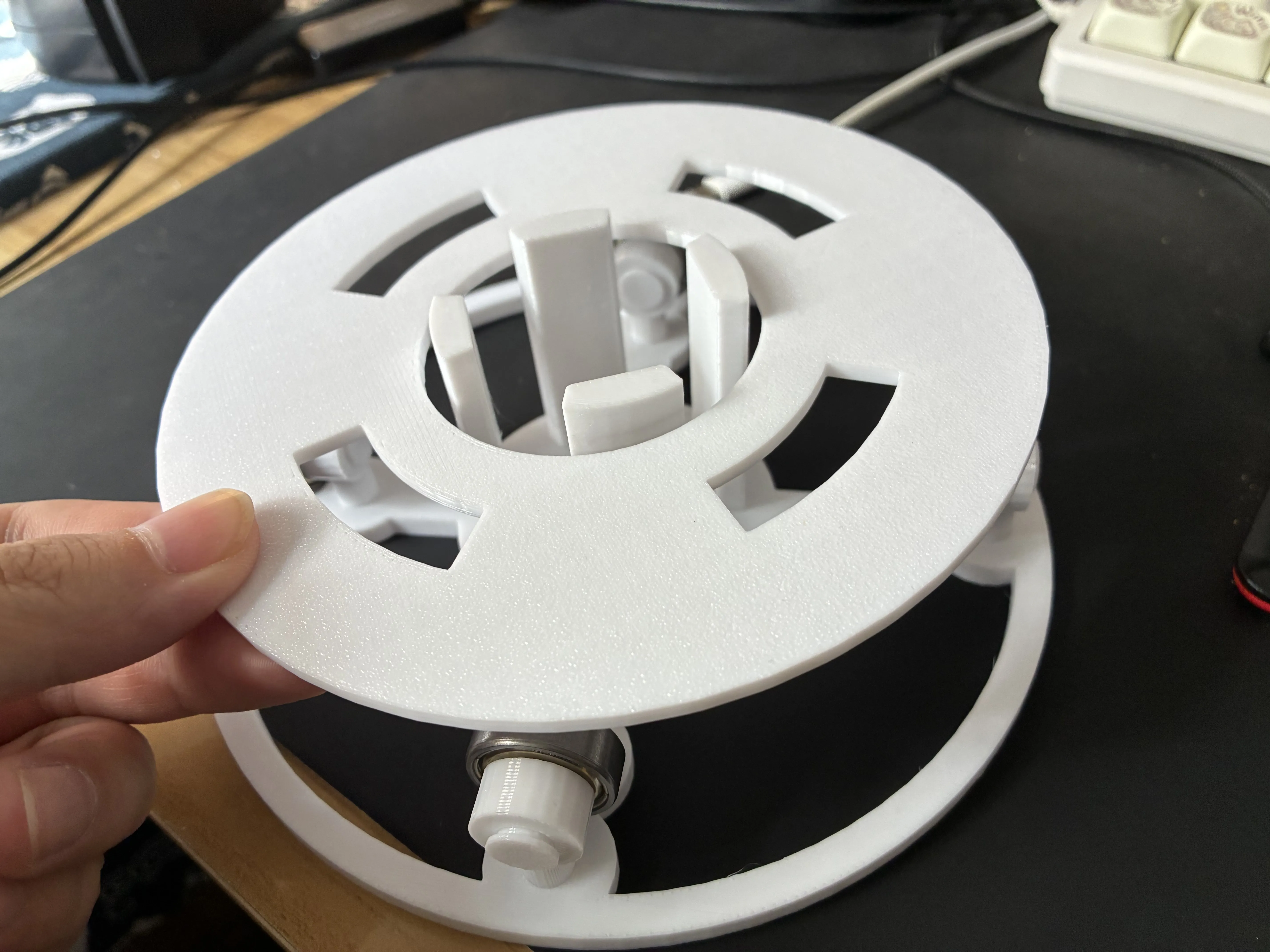

Place the drive plate
Done!
