Lubinator – MGN9 / MGN12 Dual Rail Lubricator

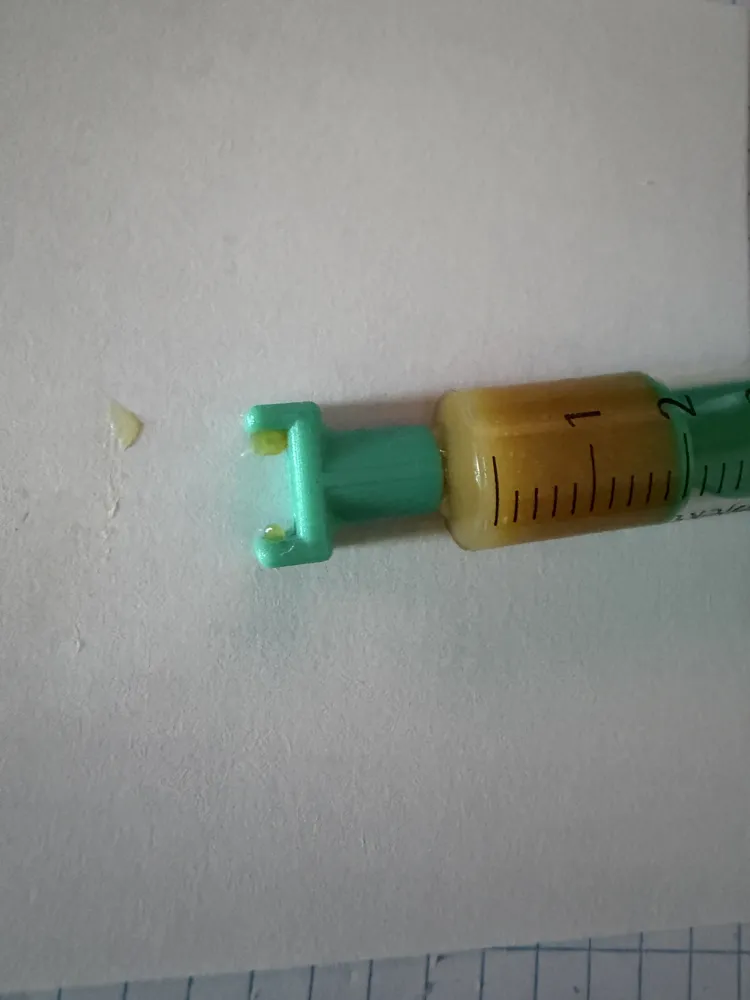

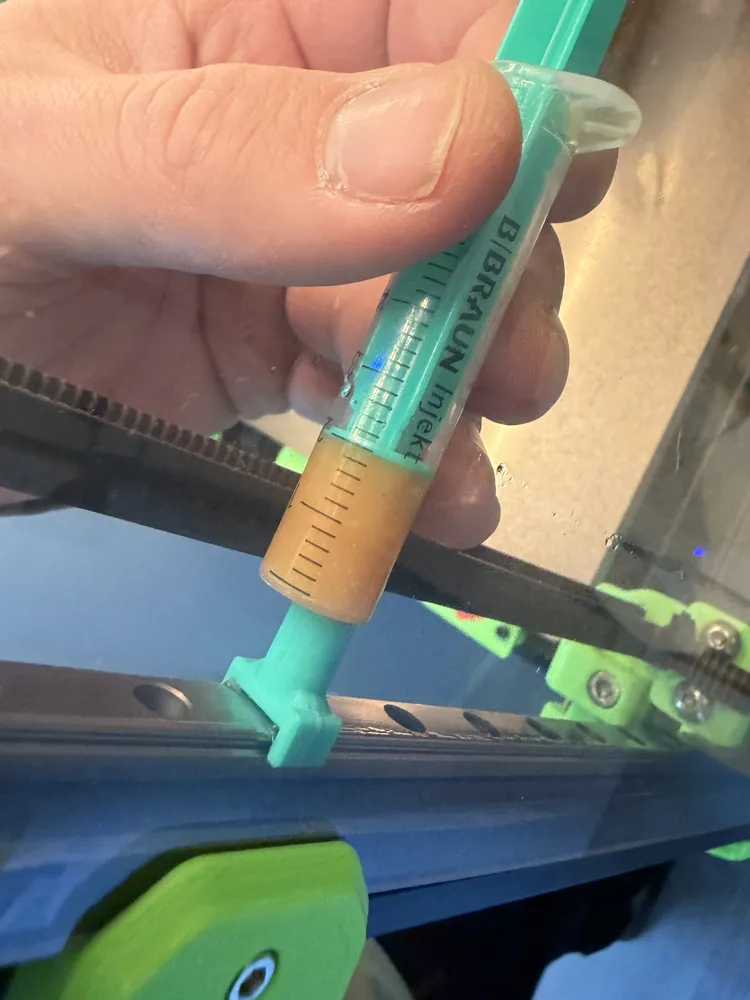

The Lubinator is simply attached to a standard syringe and enables targeted lubrication of linear rails, as commonly used in 3D printers and CNC machines.

Thanks to the two integrated lubrication channels, the oil or grease is applied simultaneously to the left and right running surfaces of the MGN9 or MGN12 rail. This ensures an even distribution of lubricant and significantly reduces maintenance effort.

Ideal for regular maintenance, quiet operation, and extended service life of linear rails.

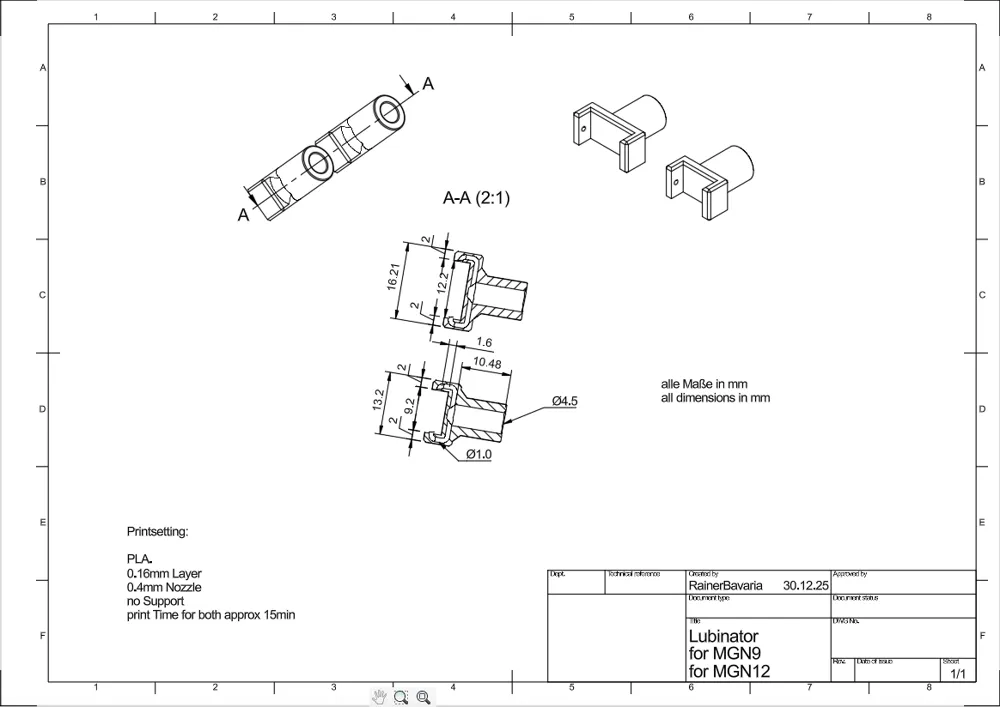

Print Recommendations

• Layer height: 0.16 mm

• Nozzle: 0.4 mm

• Material: PLA

• Support: not required

Compatibility

• ✔ MGN9 linear rails

• ✔ MGN12 linear rails

• ✔ Standard syringes (without needle)
