12032 turbo fan to 8cm exhaust port
Print Profile(1)
Description

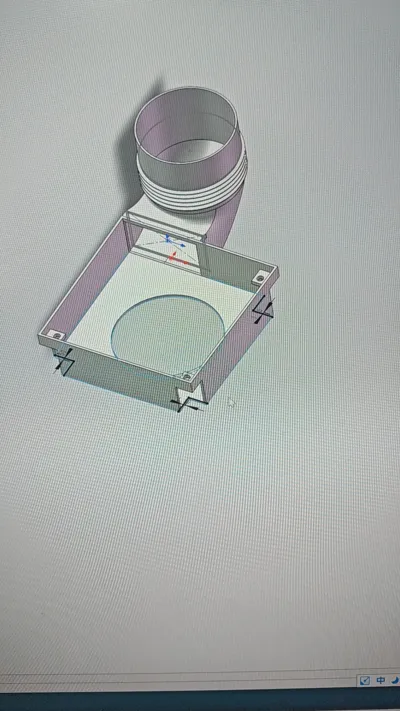

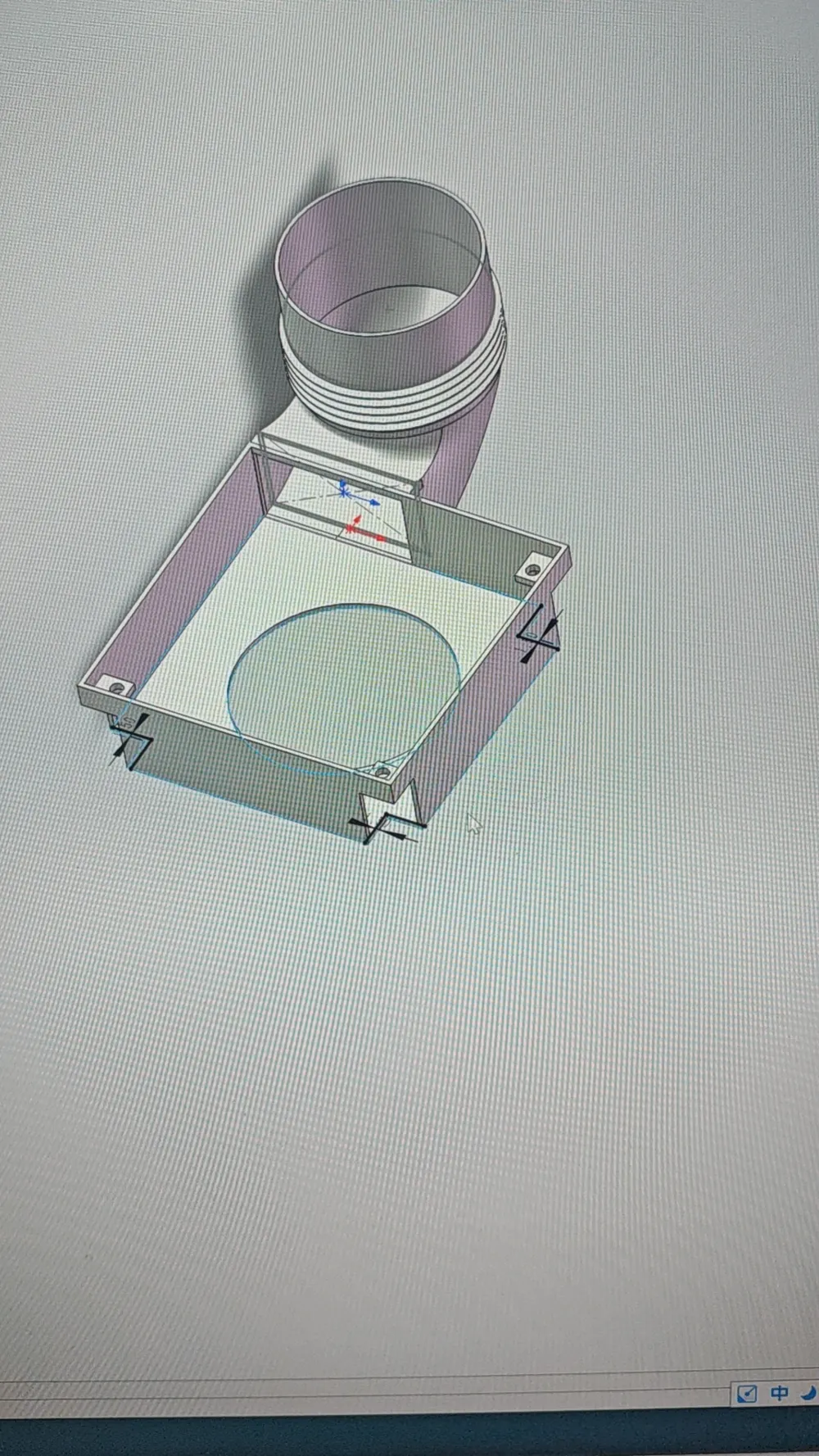

Searched around and couldn't find any accessories for a 12032 fan to 8cm exhaust port, so I drew one myself.

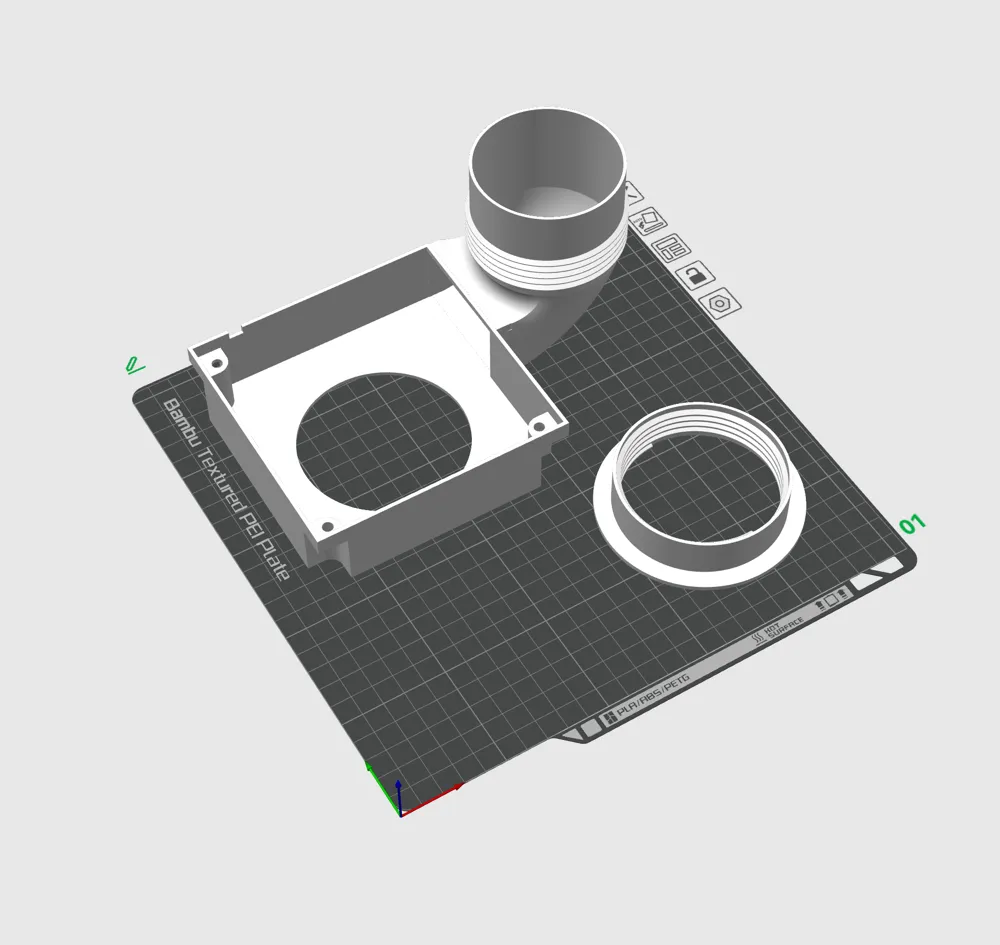

This model's pipe fitting with threads is about 75mm, suitable for 8cm exhaust duct clamp fixing.

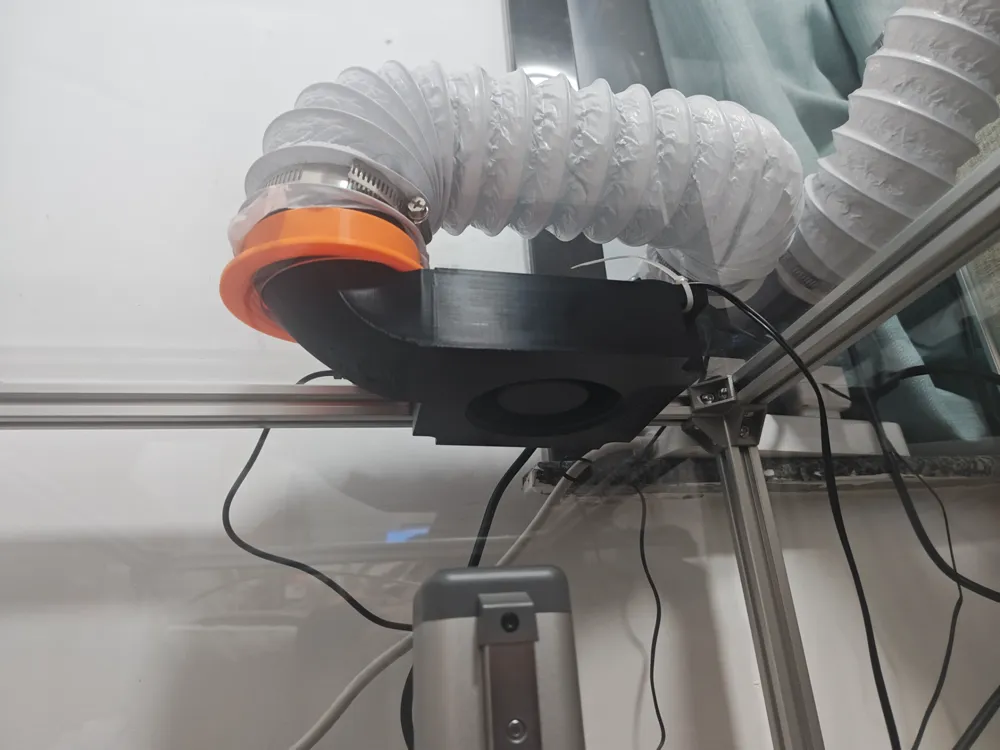

Use an external nut to tighten and fix it in the 8cm exhaust port. To prevent air leakage and reduce vibration, it is recommended to place a circle of EVA sponge in the middle.
The fan part is fixed with three M4*12 or longer screws and nuts. Connect the probe to the bottom of the heated bed with a temperature control switch to achieve automatic start/stop. The strong negative pressure can directly firmly suction the door to the door frame.
There is also an 8cm three-way exhaust pipe on my homepage.
