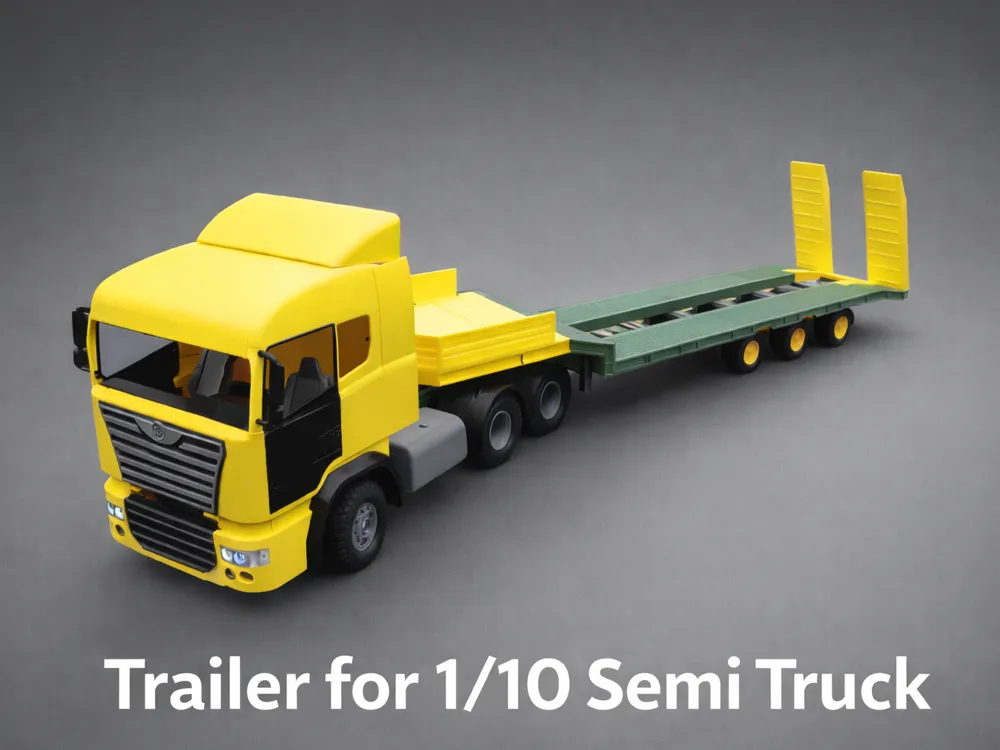

Trailer for 1/10 printed semi truck
Print Profile(1)
Description

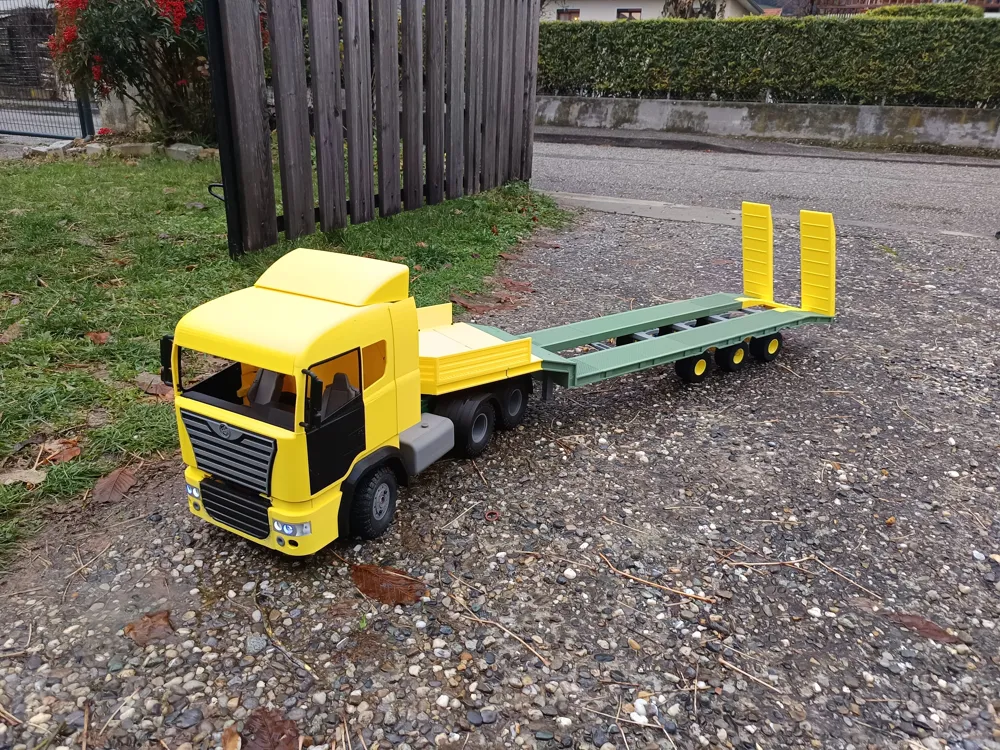

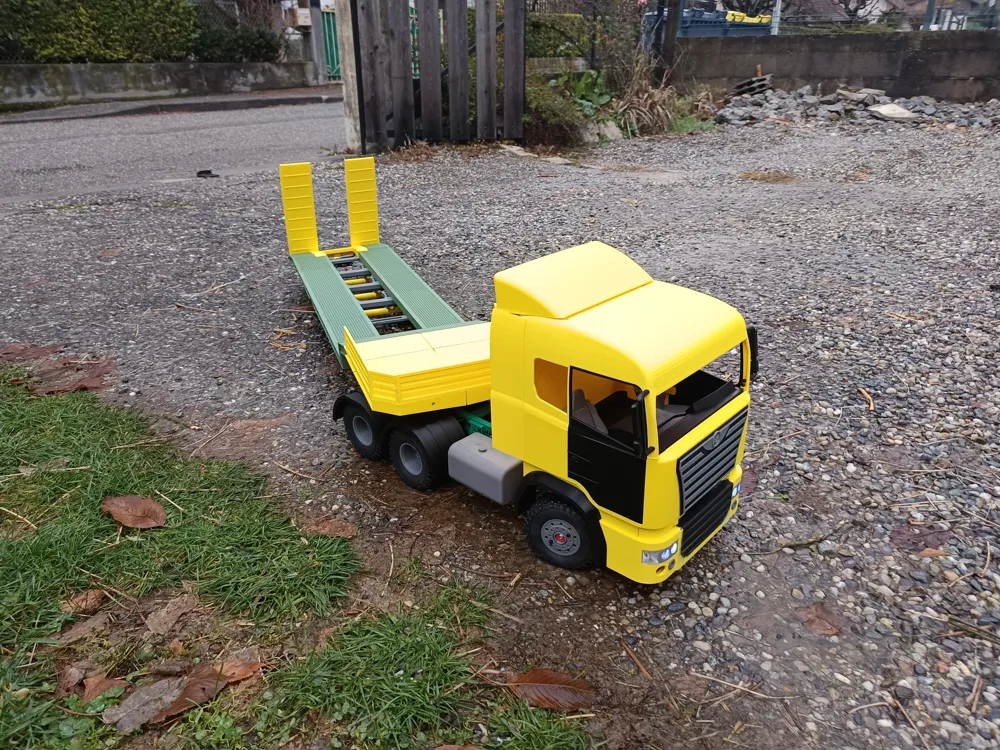

Trailer specially created for my 1/10 RC Truck model https://makerworld.com/en/models/2015491-chassis-rc-semi-remorque-1-10-allmost-full-print#profileId-2171619
Boost Me (for free)
A boost for new models It's free

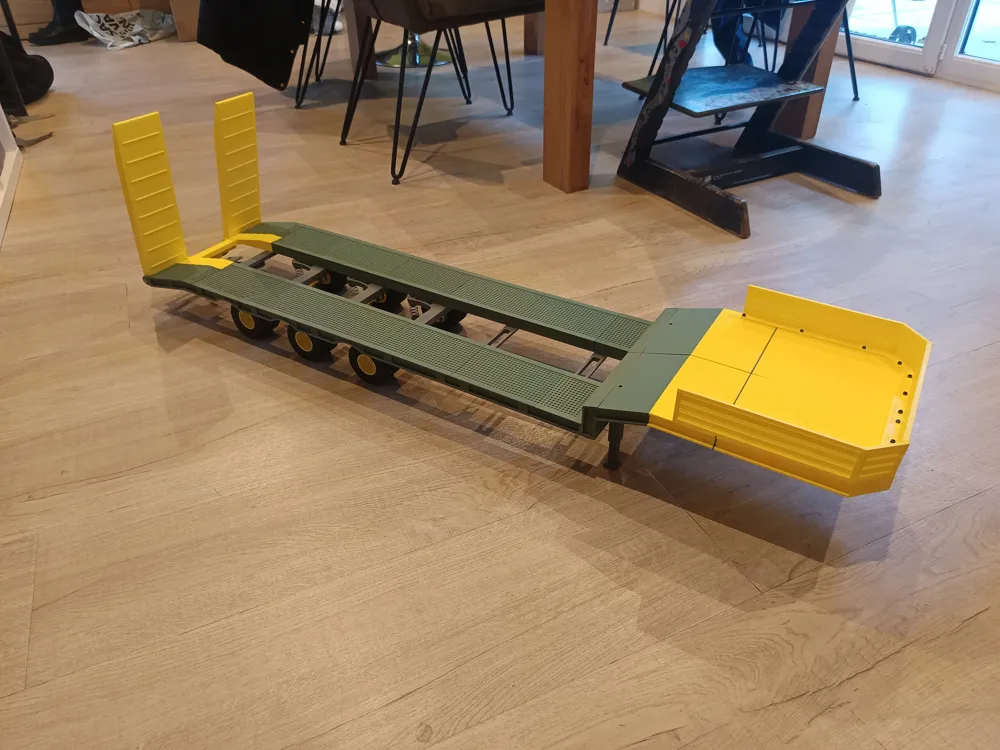

This one is modular you are not required to use all 3 axles nor all parts of the chassis
You can also add more
As is it measures 1250mm with the ramps raised
You will need
- 12 R128 bearings

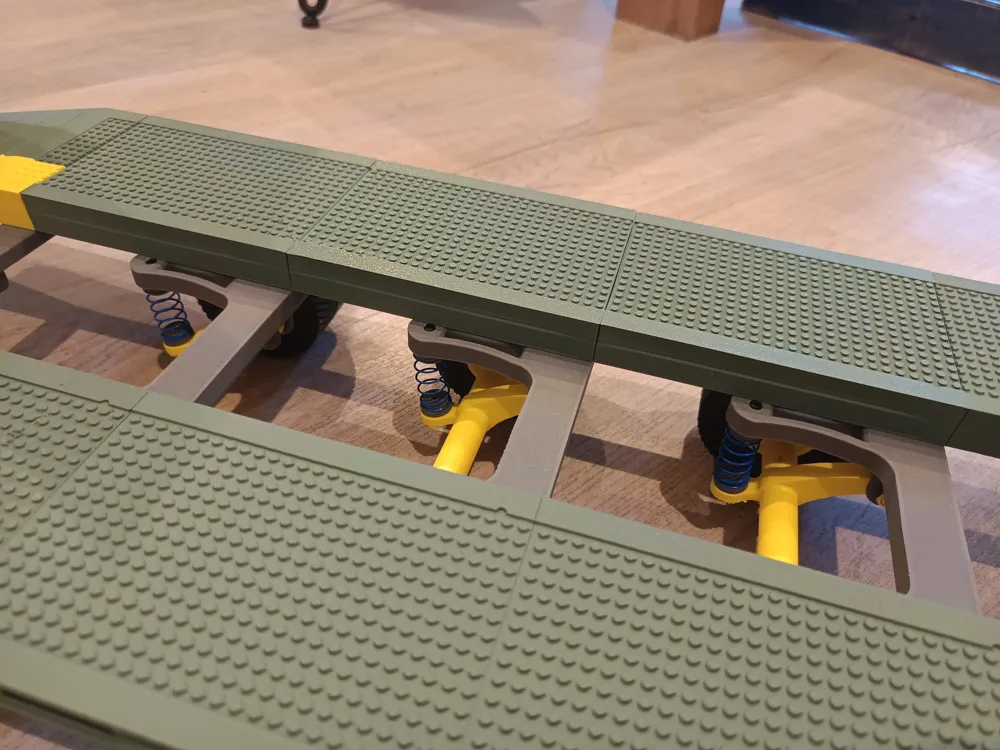

- 6 RC springs with 12mm inner diameter and 35-40mm long
- 1 small spring for the ramp locking system
- M5 threaded inserts
- M5 screws
- M3 screws
- 2 threaded rods about 20cm long to reinforce the front part (to be inserted into the two front parts)
- 2 aluminum profiles 20x12mm 750mm long (essential if you want to be able to load the trailer)
🔥 Discover all my RC models – 4WD, trucks & more
