Adjustable Feet for REGA Turntable Wall Bracket

Overview

These adjustable feet are designed specifically for the REGA Turntable Wall Bracket, compatible with REGA turntables Planar 1, Planar 2, Planar 3 and Planar 6.

The original wall bracket includes three vertical studs with M6 threaded holes, fitted with nylon screws. With my Planar 3 RS, these screws are ineffective for leveling the turntable and essentially act as hole plugs.

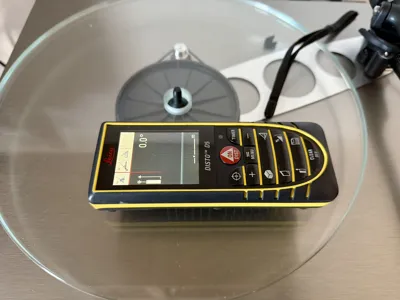

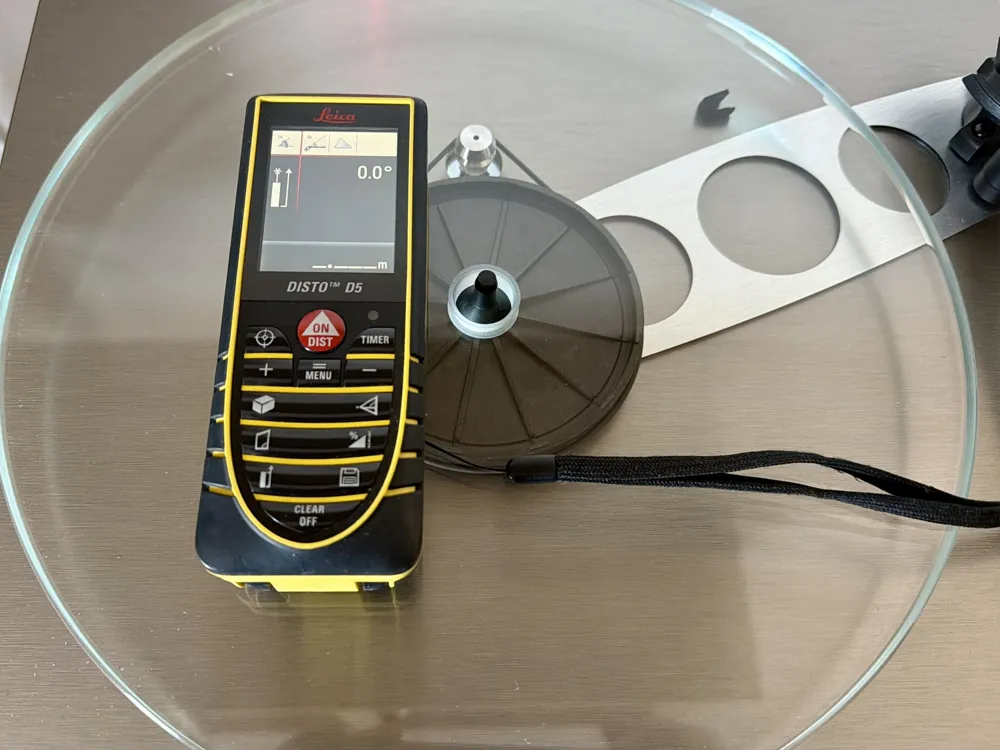

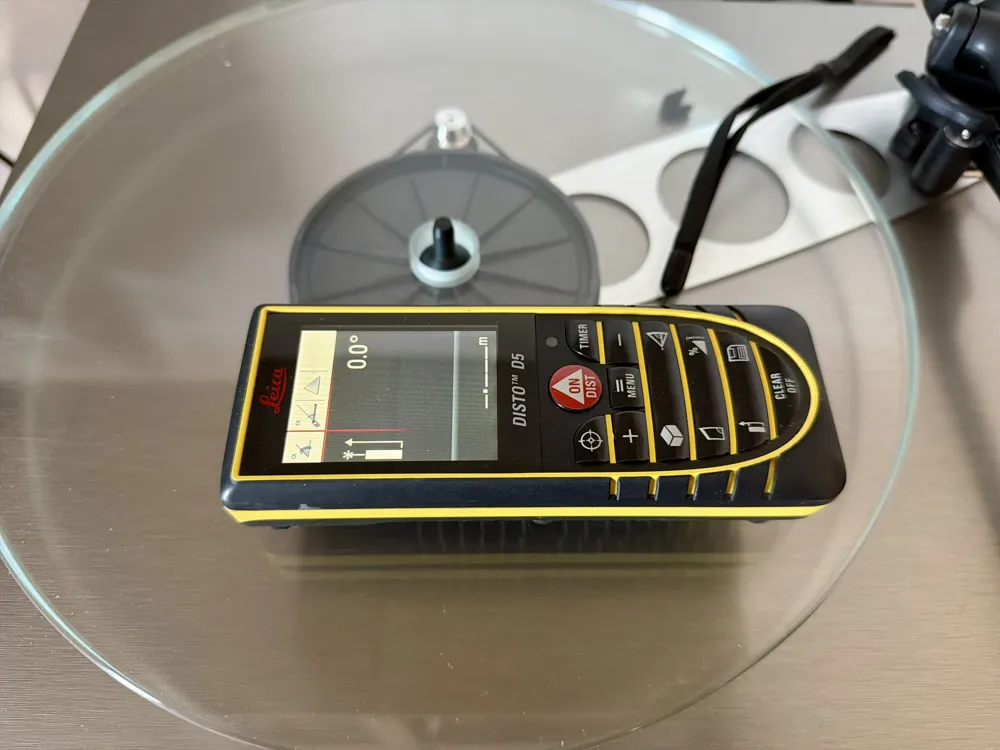

This project repurposes those M6 threads to add three adjustable bases for the rubber feet of the turntable, allowing accurate and stable leveling.

How It Works

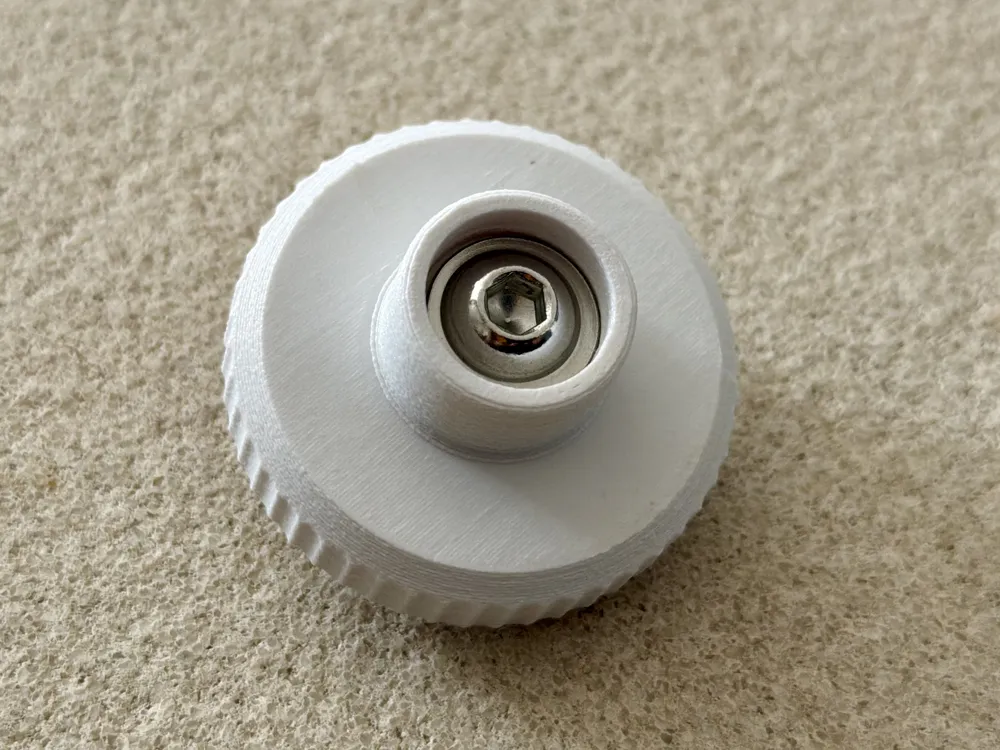

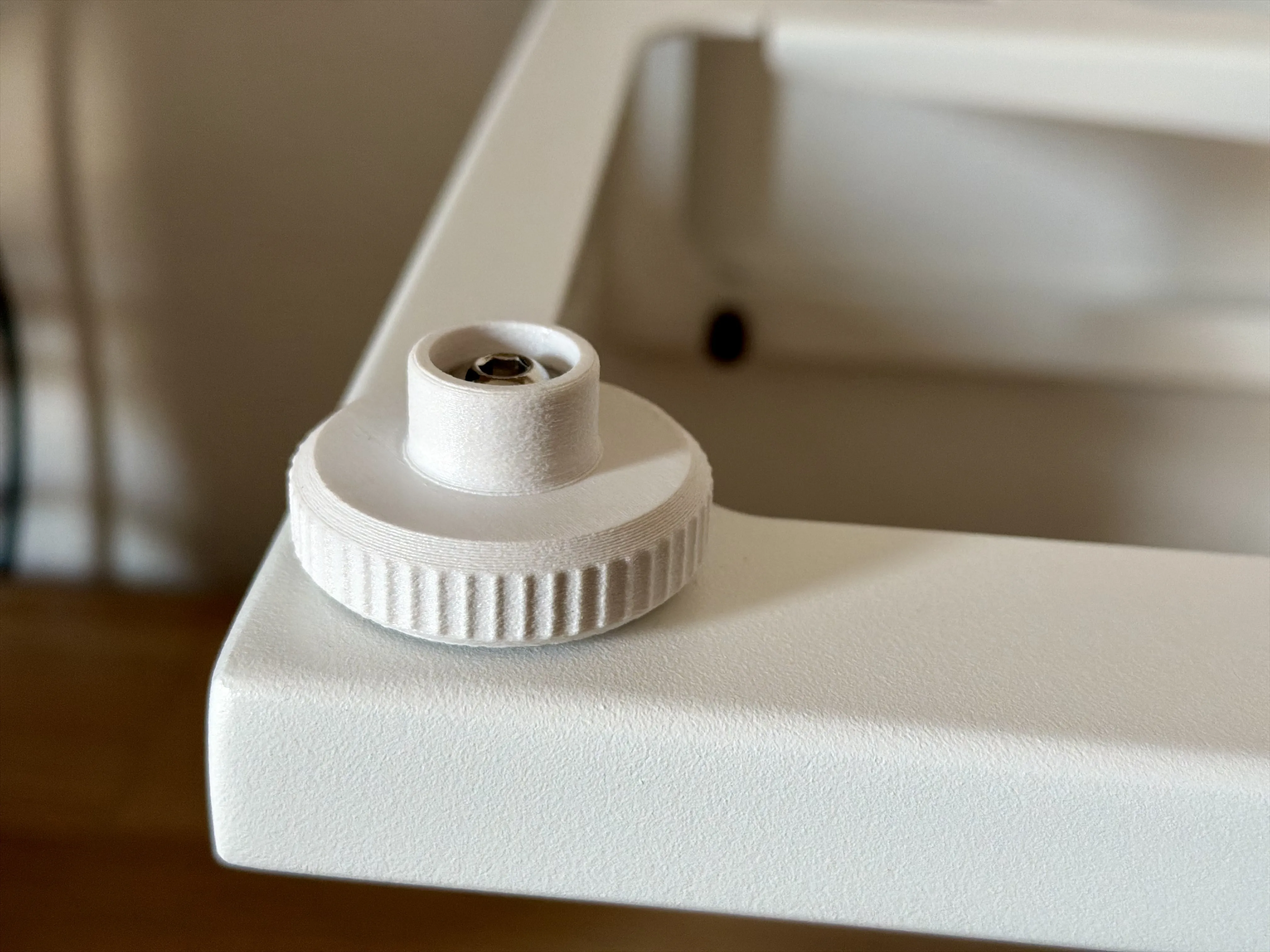

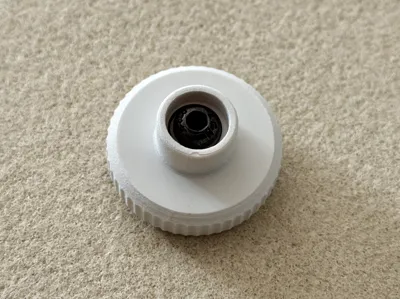

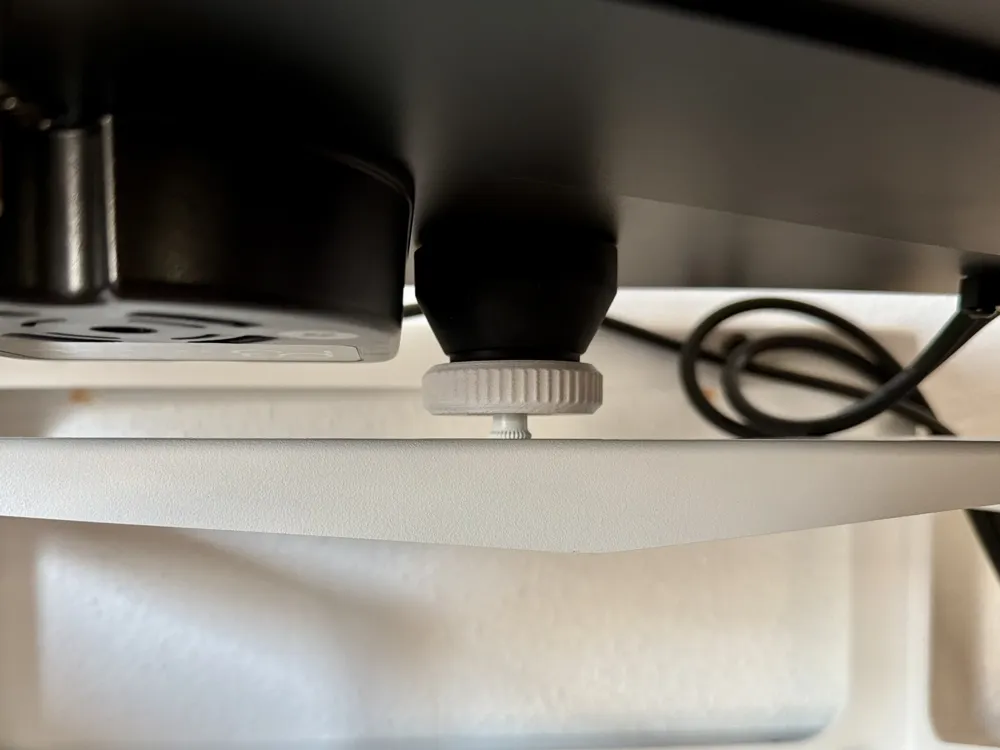

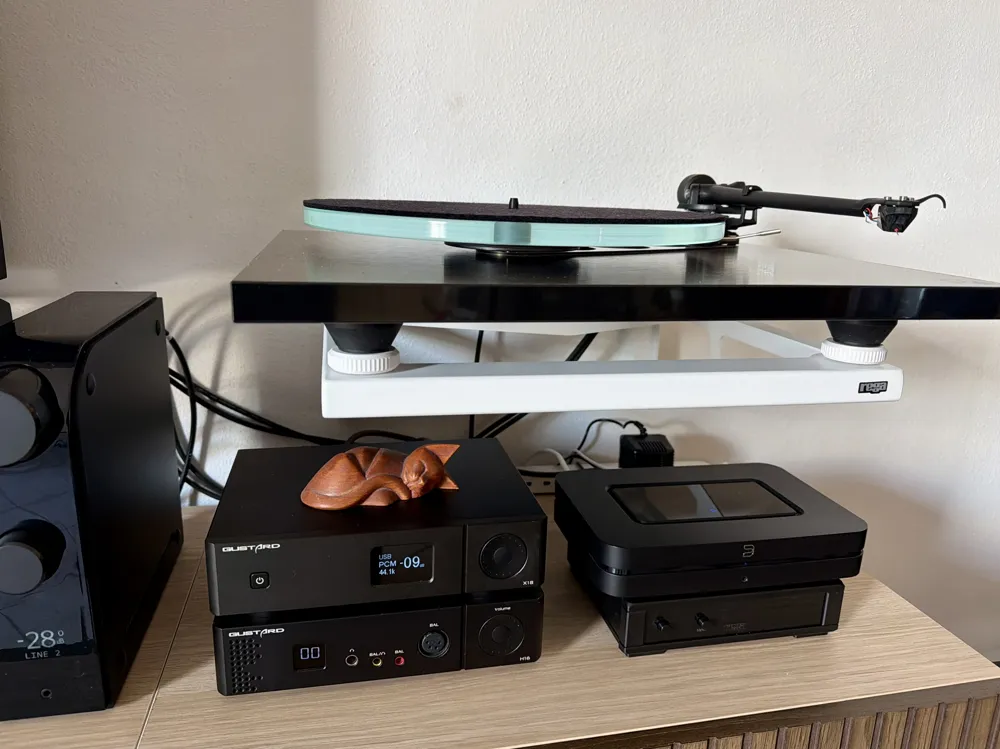

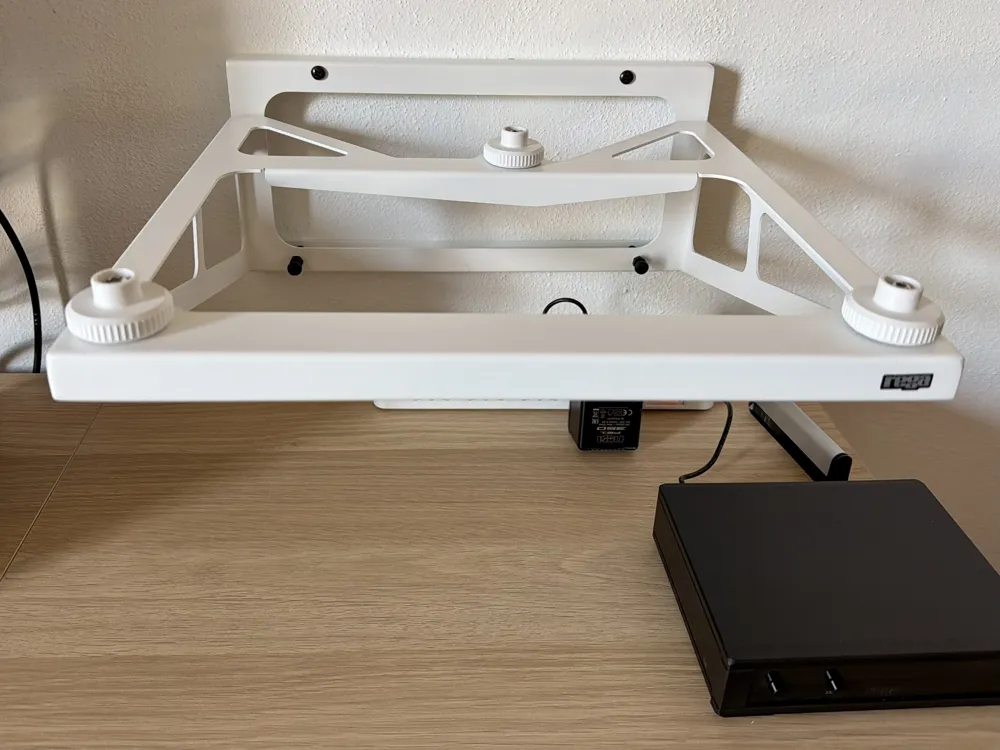

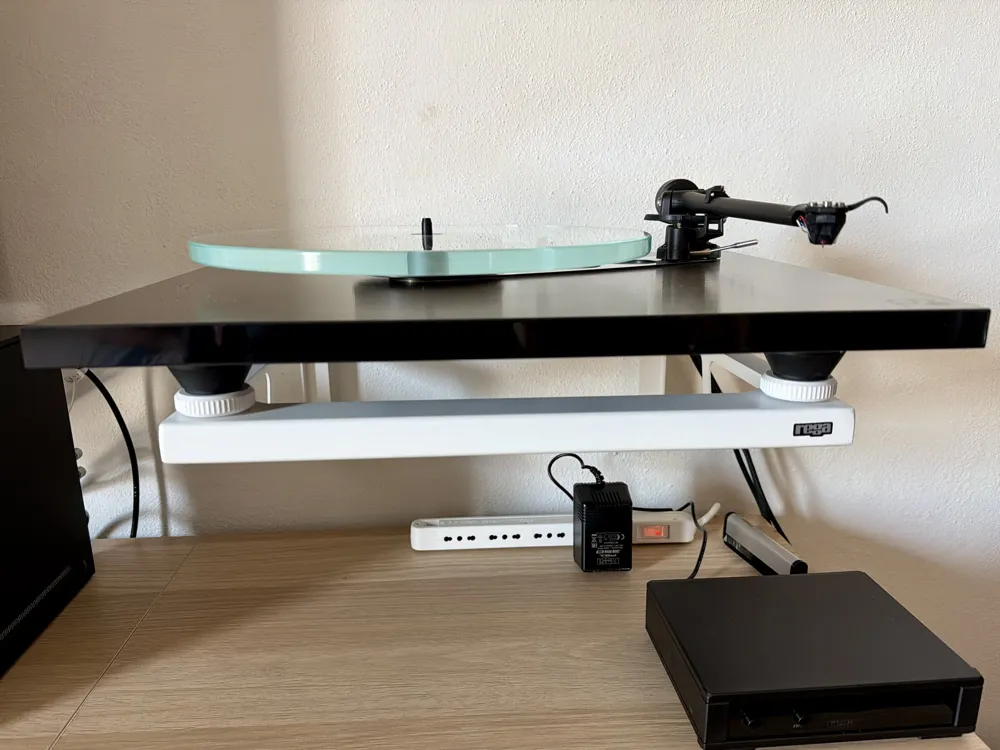

Each adjustable foot screws directly into the existing M6 threaded studs of the wall bracket and supports one rubber foot of the turntable.

Thanks to the external knurled surface, height adjustment can be performed with the turntable already resting in place, making fine tuning quick and easy.

Hardware Required

Each foot uses:

• 1 × M6 × 20 mm flanged screw
• 1 × M6 self-locking nut
• 1 × M6 washer (optional if standard M6 x 20 mm screw is used)

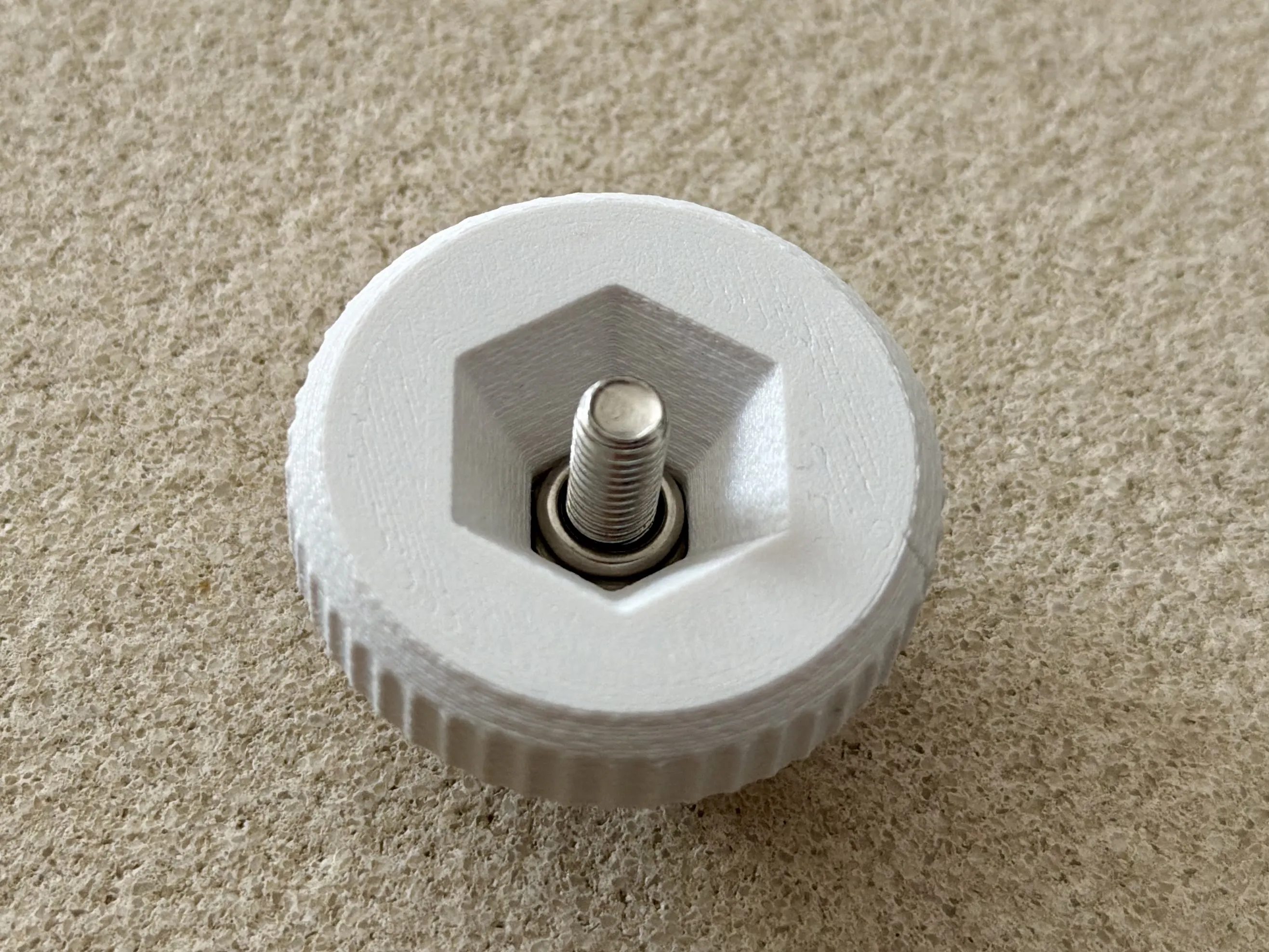

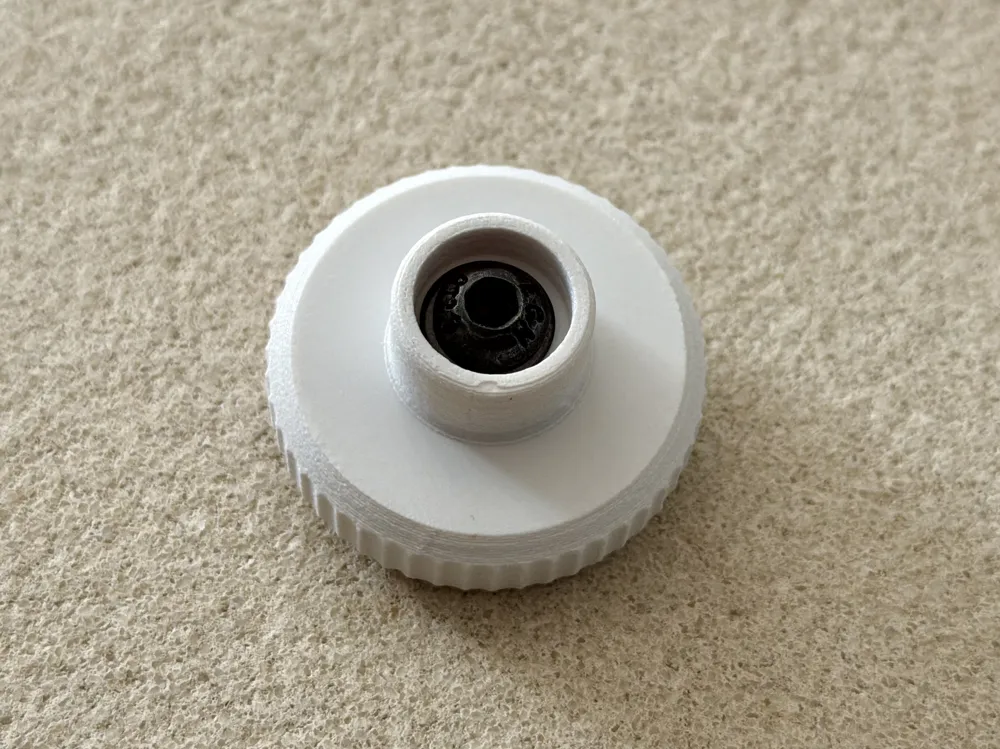

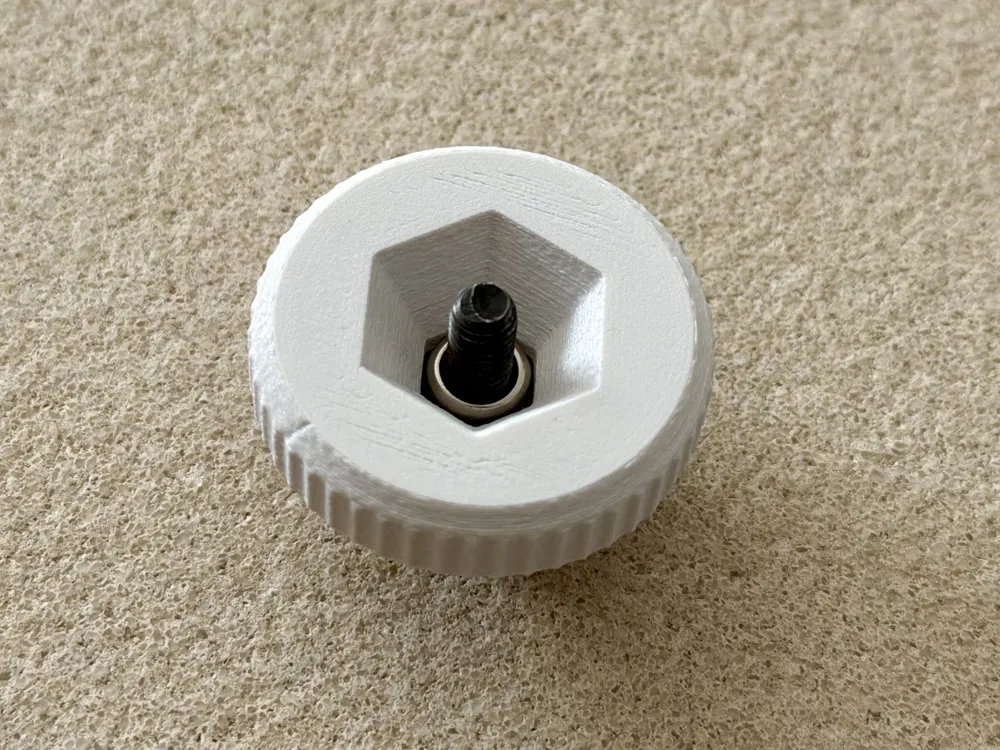

A dedicated internal hexagonal nut seat is designed on the underside of the foot.

The screw clamps the foot using the nut, while the protruding threaded section is used to secure the foot into the wall bracket.

Assembly Notes

• Insert the M6 self-locking nut into the internal hex seat
• Insert the M6 screw and washer
• Tighten until the foot is firmly clamped
• Screw the assembled foot into the wall bracket stud

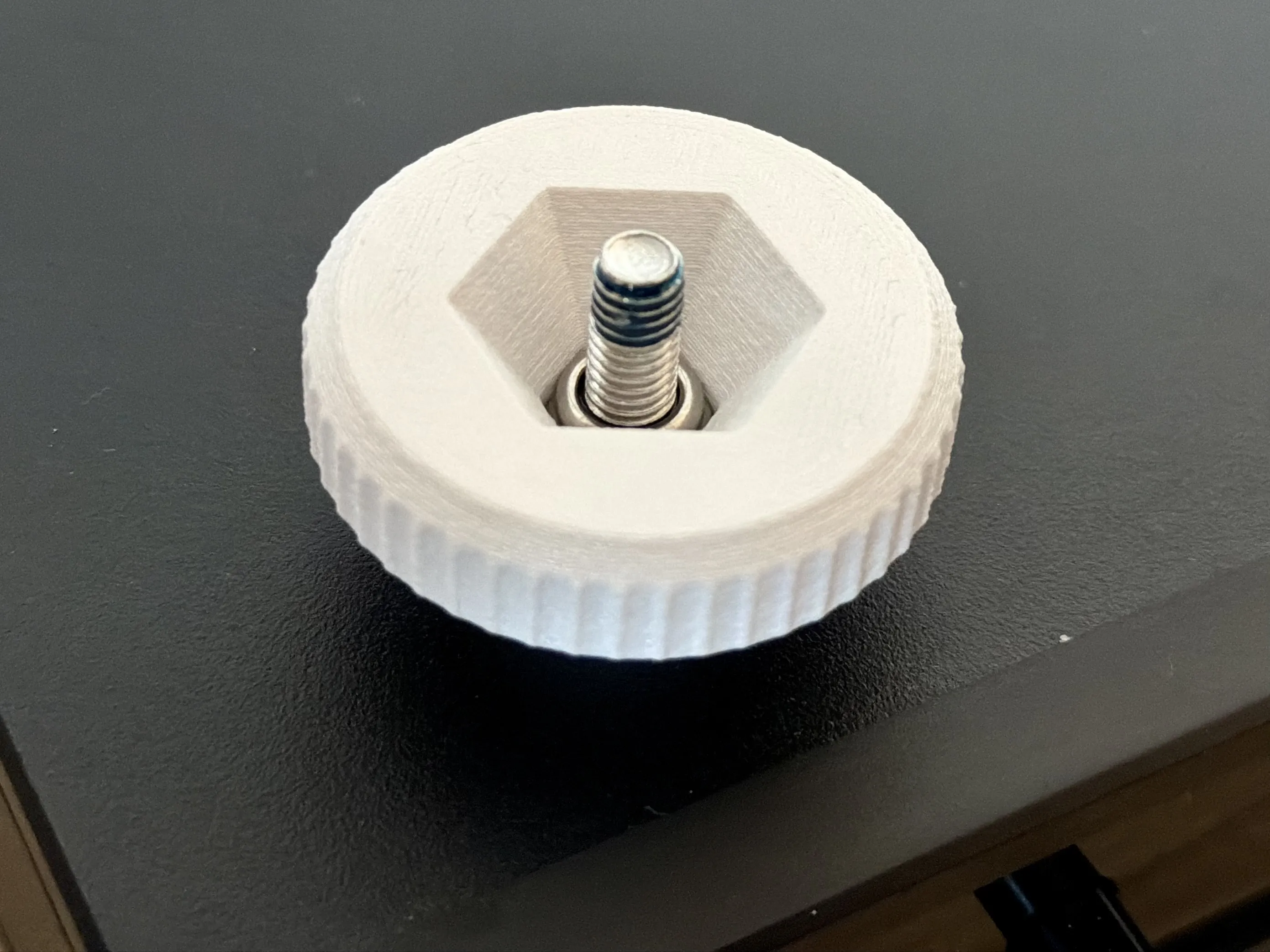

For best results, the use of blue threadlocker is recommended:

• Eliminates any possible play between screw and insert
• Allows enough working time for adjustment before curing
• Still permits easy readjustment after curing

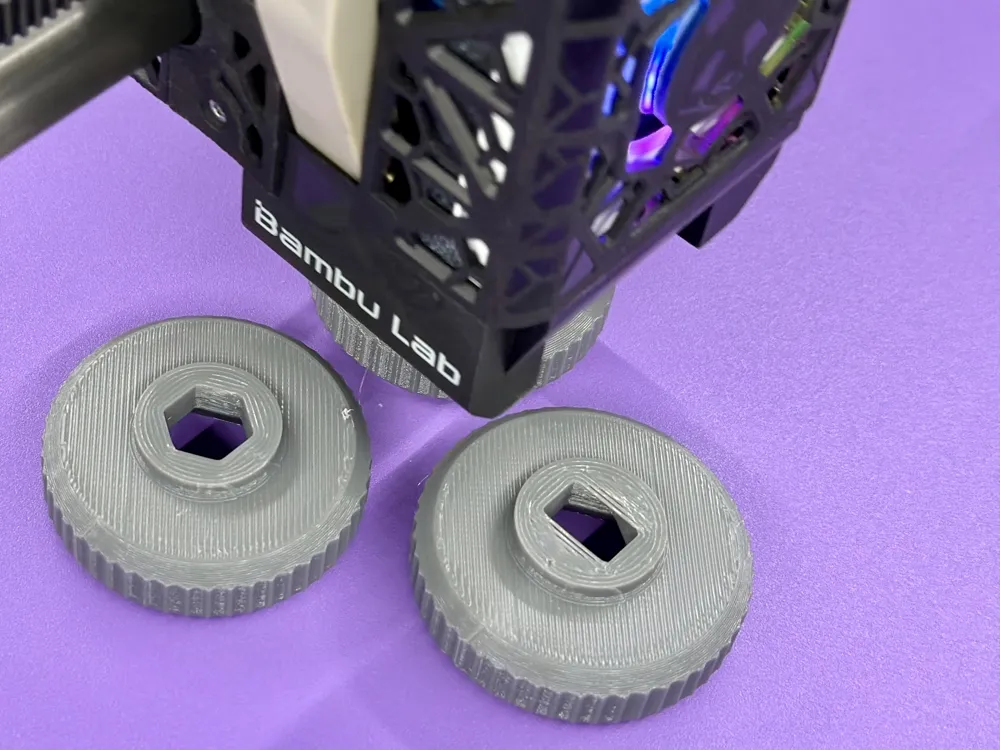

Print Settings & Recommendations

• No supports required

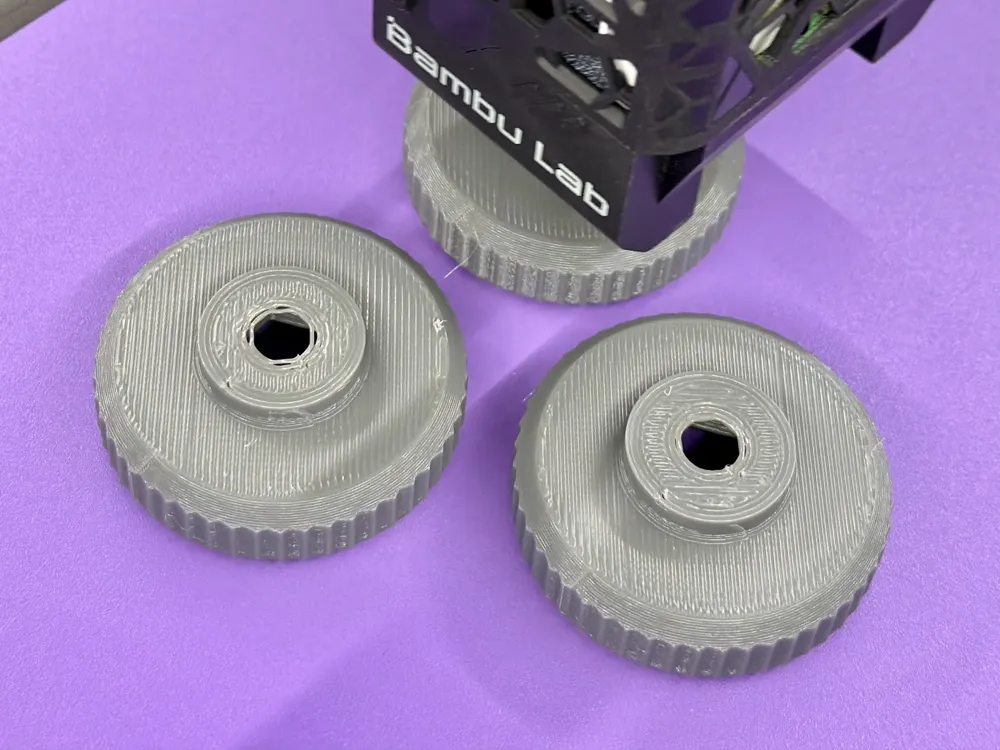

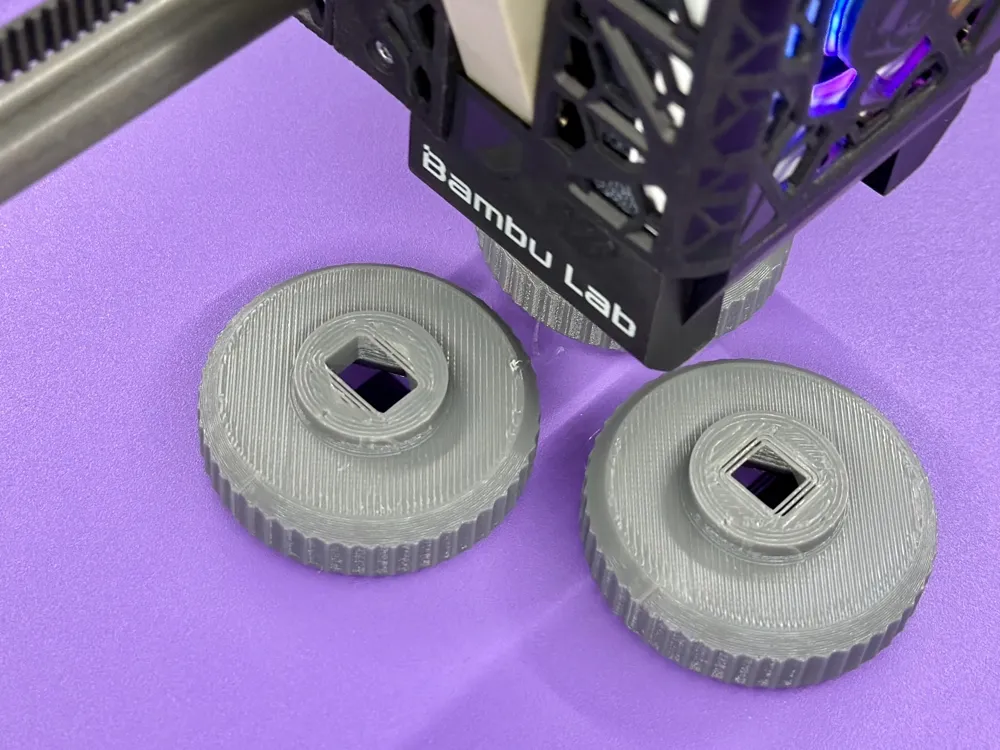

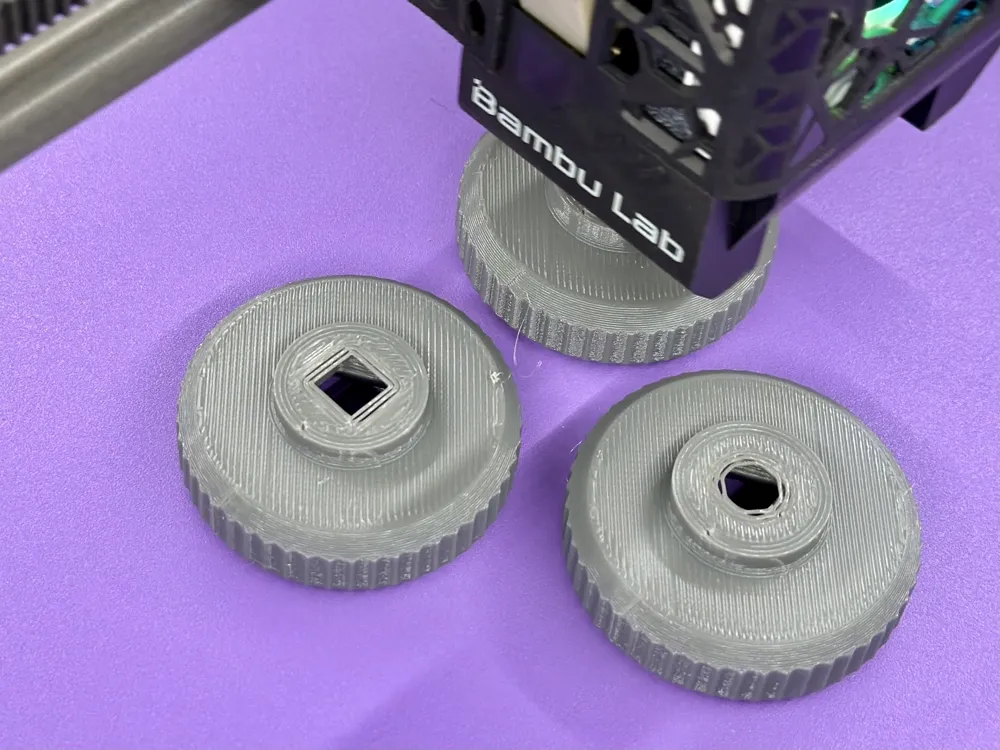

• Designed with a three-level bridging system for the suspended hole, ensuring clean and accurate support-free results
• Suitable filaments:
  • PLA
  • PETG
  • ABS
  • ASA
  • PC-PBT
  • PA

Not recommended: filled or abrasive filaments

These may damage the rubber feet of the turntable during adjustment.

The only filament tested with barely acceptable results was PETG GF.

To improve sliding between the turntable feet and the adjustable bases, ironing is enabled on the top layers.

Print Profile

An optimized PLA print profile is included:

• Print time: just over 1 hour
• Material usage: less than 30 g of PLA
• Object-specific settings
• No supports

Files & License

This project is published as a MakerWorld Exclusive, so remixing is not allowed.

However, both STL and STEP files are provided to allow personal modifications if needed.
