Bambulab - Hotend - Lamp (H2D) Multicolor
Print Profile(1)
Description
Description:

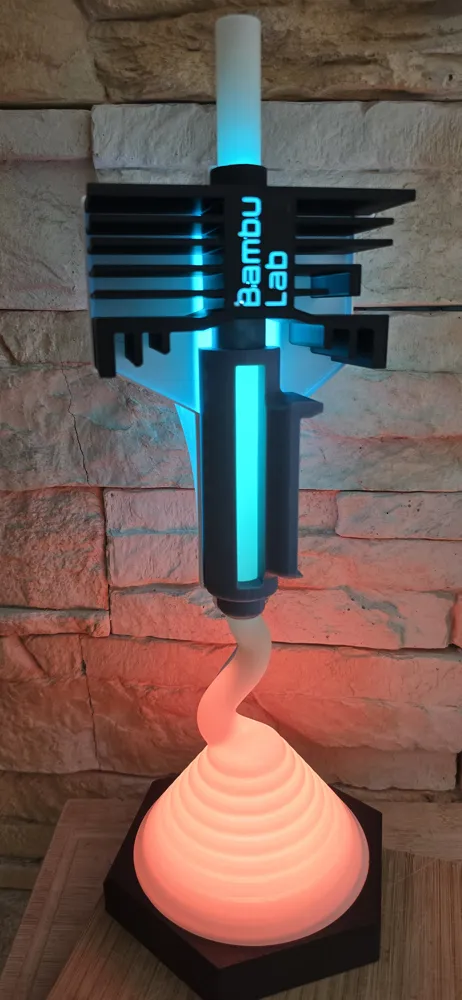

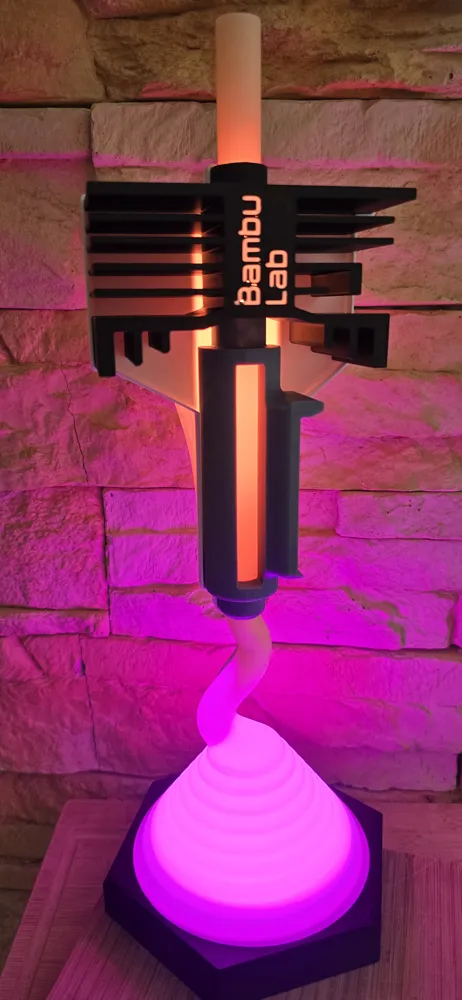

3D printable model of a decorative floor lamp designed as a Bambu Lab Hotend (based on the H2D-Hotend). The hotend area is skeletonized so that the inner filament element remains visible and creates a diffuse, glowing effect through the backlighting
- Multi-color addressable LEDs (requires two separate Bambu Lab LED Lamp Kit-001, item no MH001 – round 60 mm LED pack with USB connection)

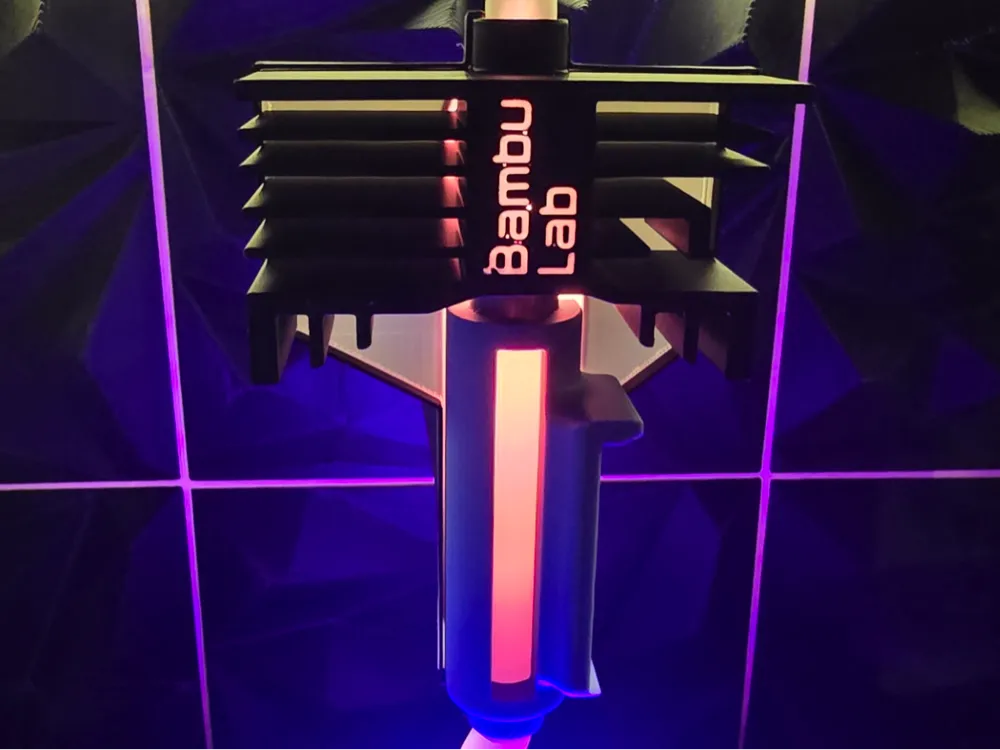

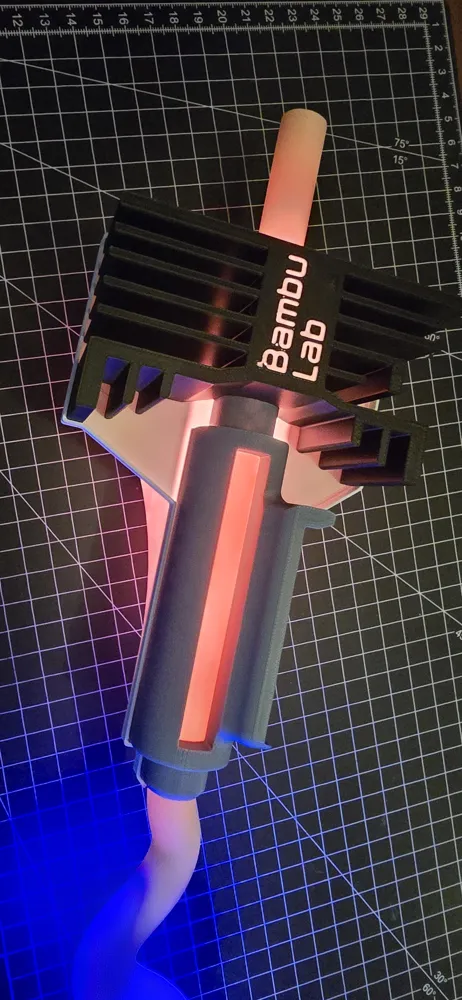

- Hotend area with backlight (illuminates the inner filament and creates the glow effect)

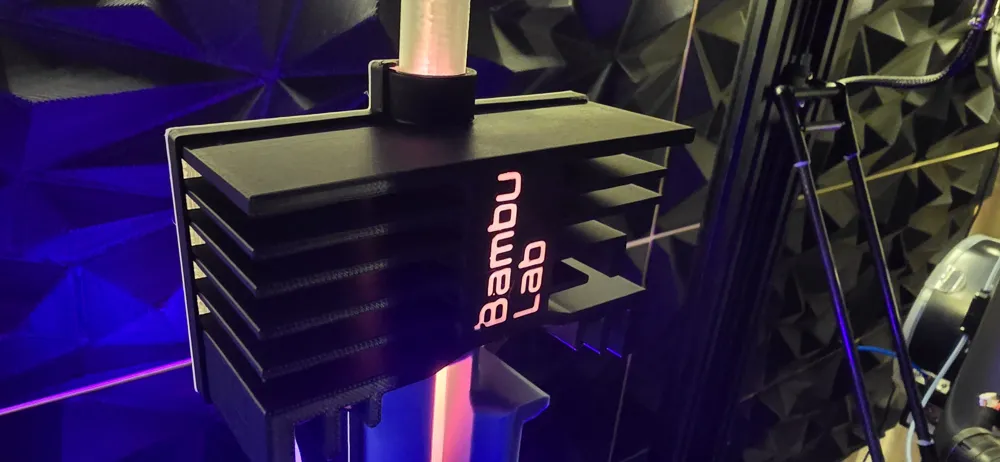

- Cooldend area: Illuminated "Bambu Lab" lettering

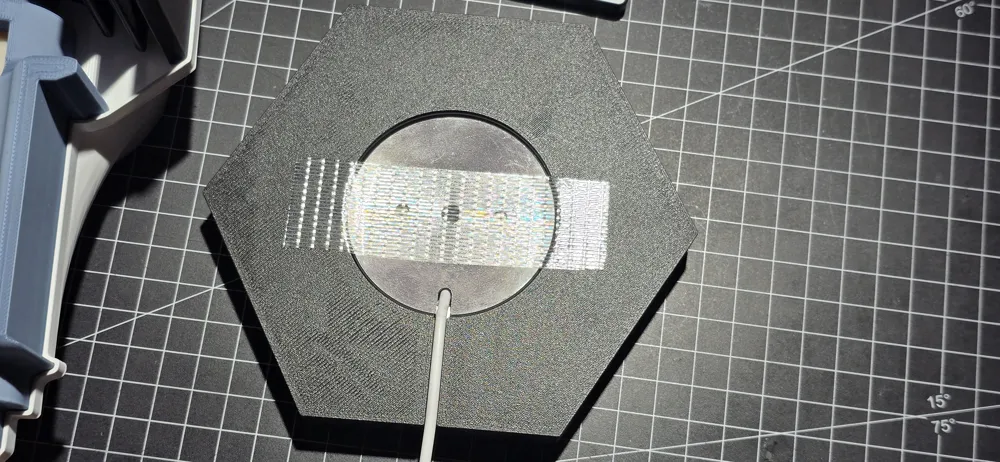

- Lower area: filament base with separate LED zone (color and effects can be controlled independently of the upper part)

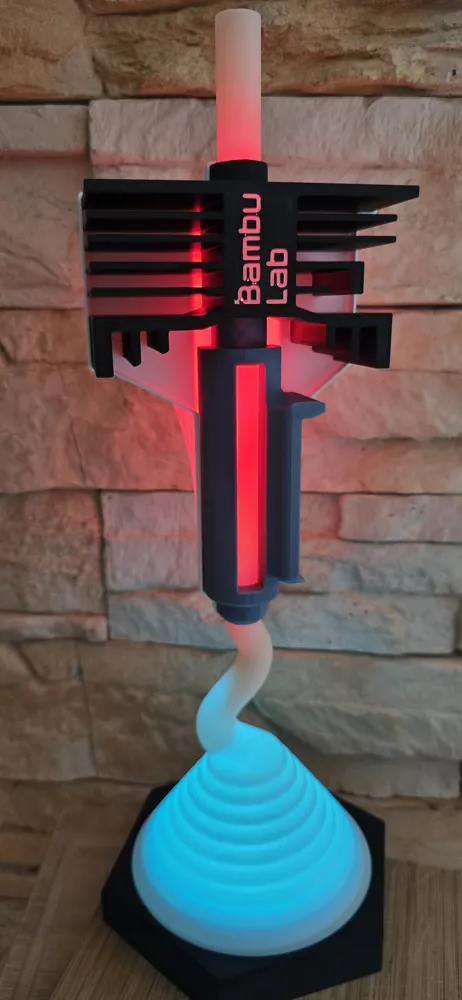

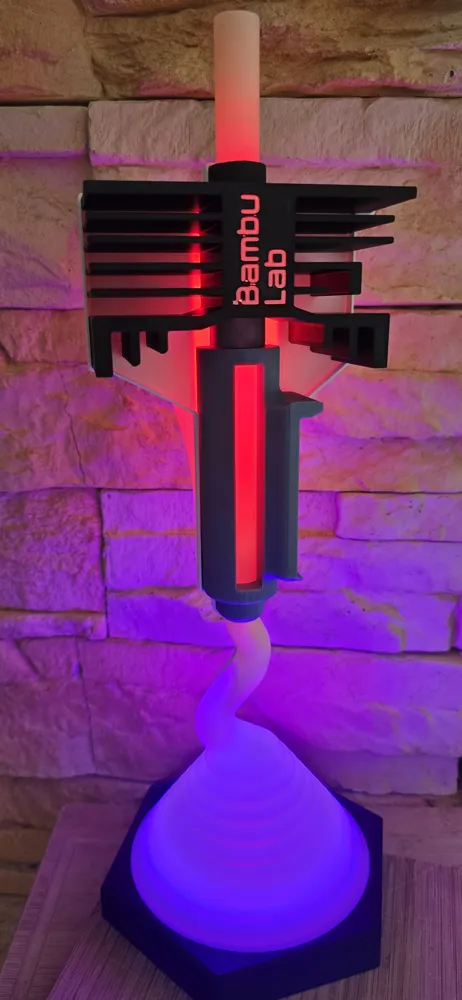

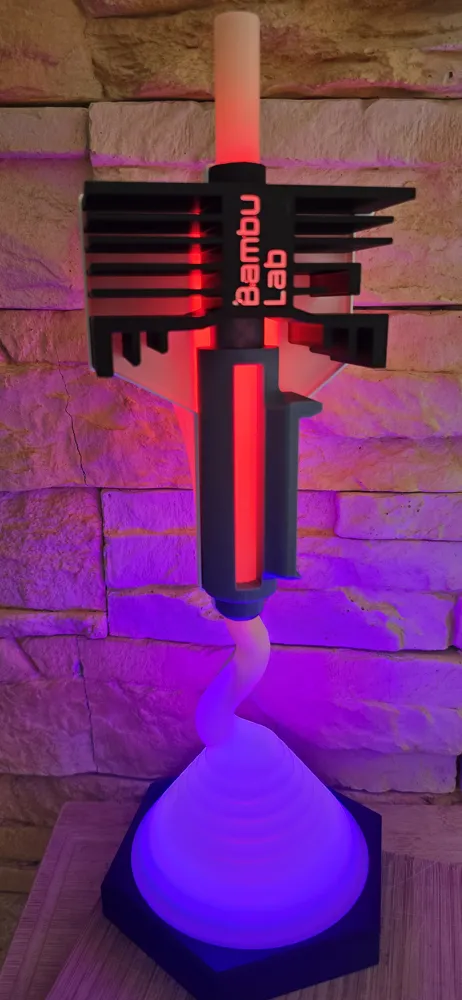

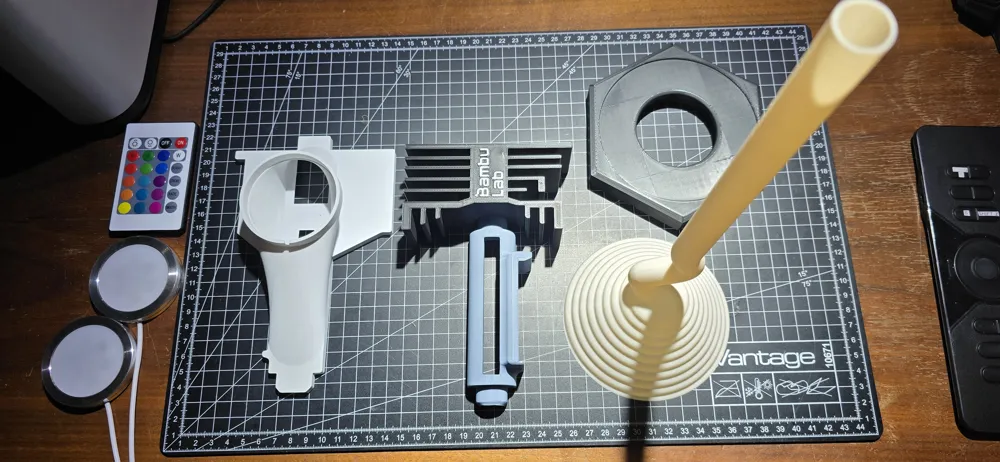

Thanks to the two separate LED sets, different colors or animations can be set simultaneously in the upper hotend area and the lower base area. The model contains all print files for the housing, cooldend, base, and inner filament elements
Printing Notes:
- The filament element is printed as a spiral vase (Vase Mode, 1 perimeter)
- Hotend and rear cover (LED mount + diffuser) require support material (recommended in PETG for easier removal)
- All parts in PLA – black, silver, or grey
- Diffuser and inner filament element in white filament (preferably translucent or matte white for optimal light diffusion)
Especially with translucent white filament for the diffuser and filament element, the light effect really comes into its own
Ideal as a table or shelf decoration in the 3D printing workshop

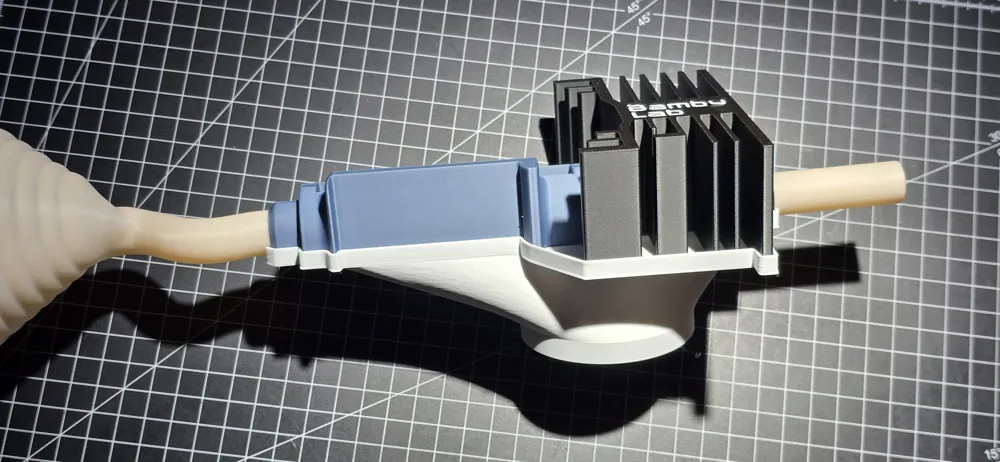

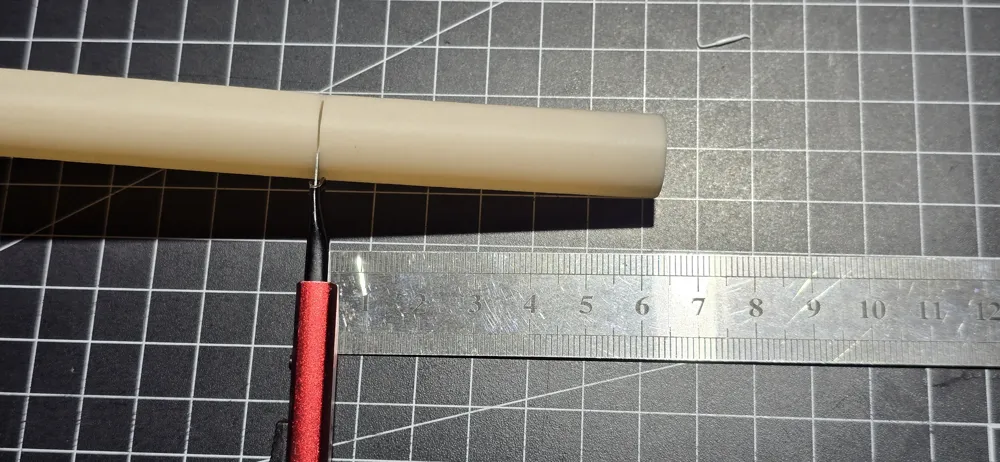

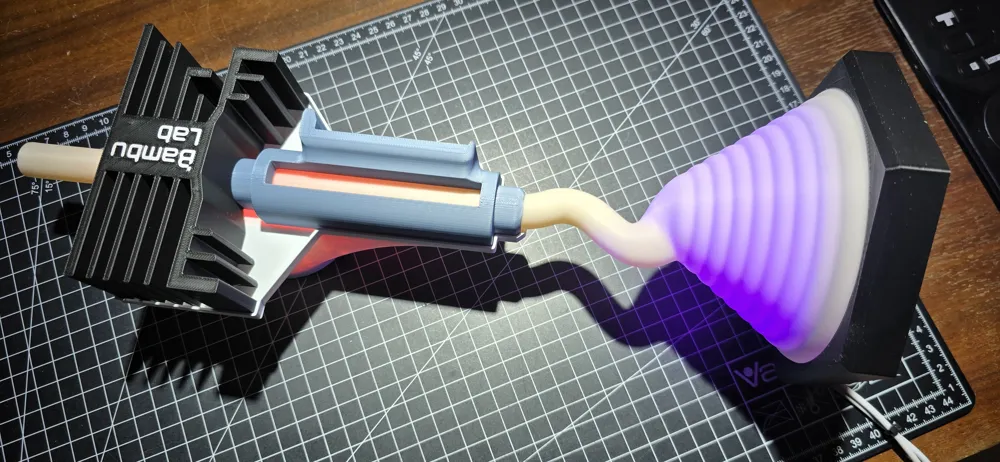

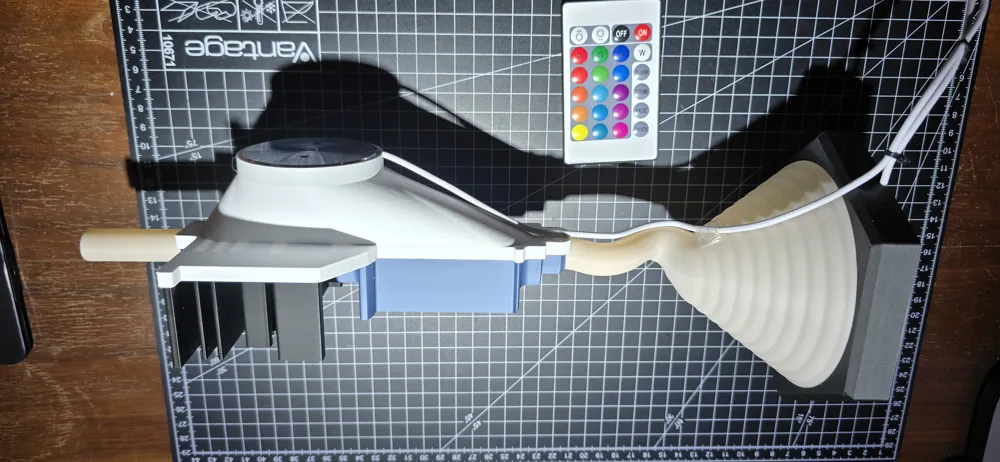

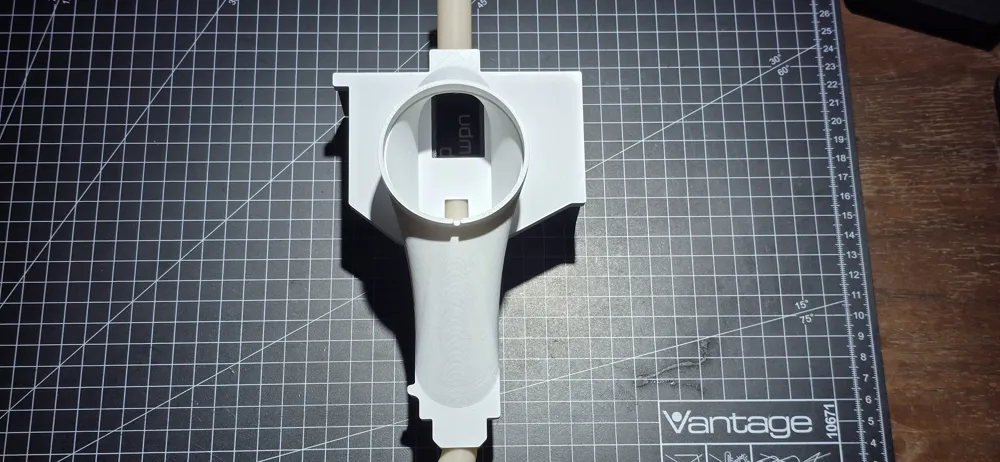

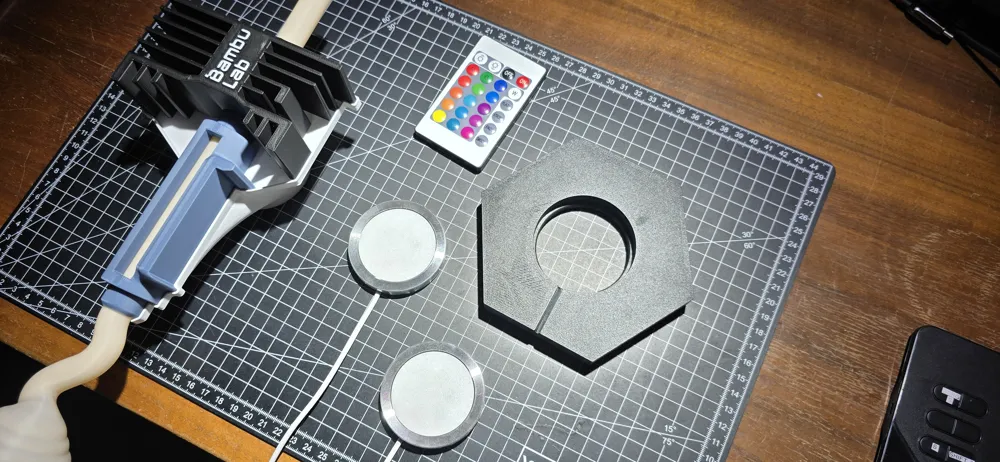

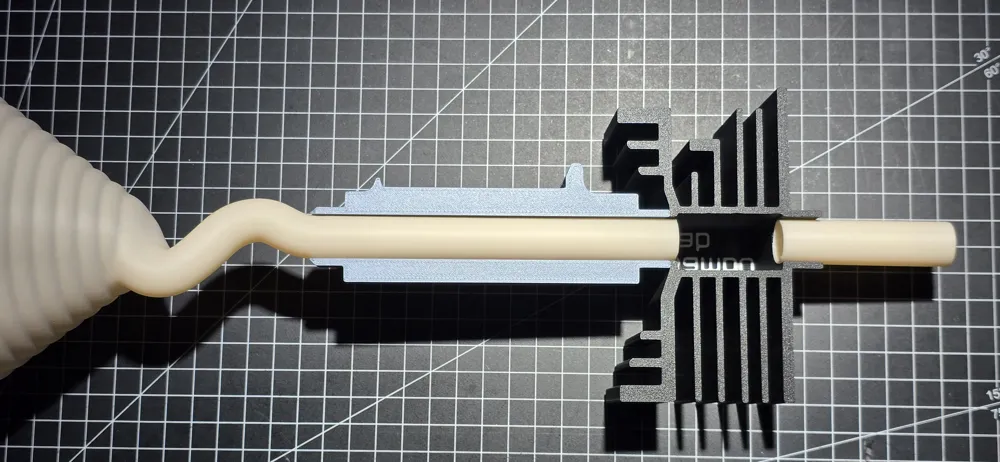

Image series with detailed step-by-step assembly
Link to LED Kit: https://us.store.bambulab.com/products/led-lamp-kit-001 (or depending on region eu.store.bambulab.com or store.bambulab.com)
Cable routing is still in progress…
For questions about printing, settings, assembly, or LED configuration, please ask in the comments
Boost Me (for free)
This model took me many hours of work. I would be very happy about a like and a boost.
Thank you very much!
