V2 Sim Rig Logitech Shifter Case G25/G27/G29/G920
Print Profile(1)
Description

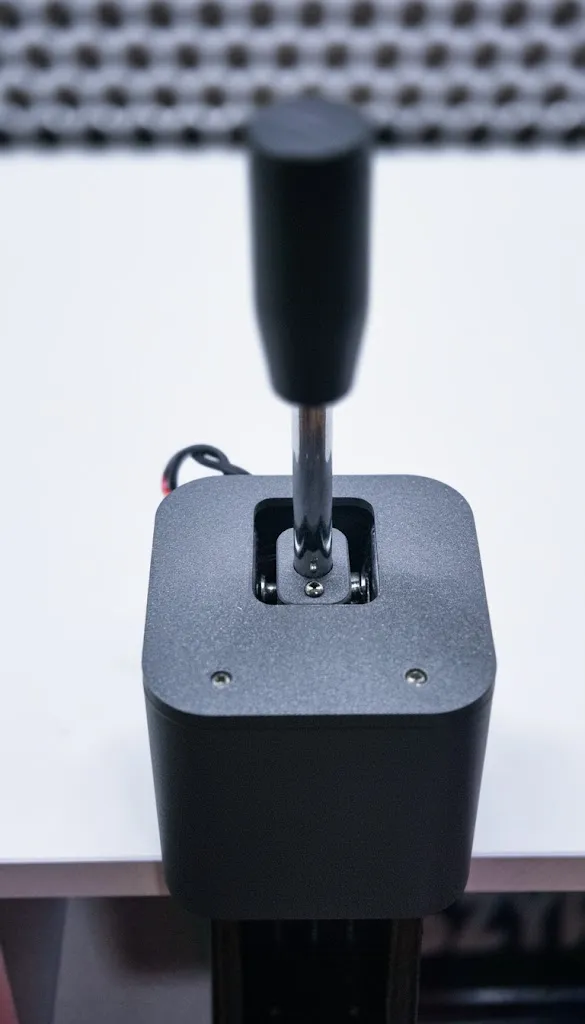

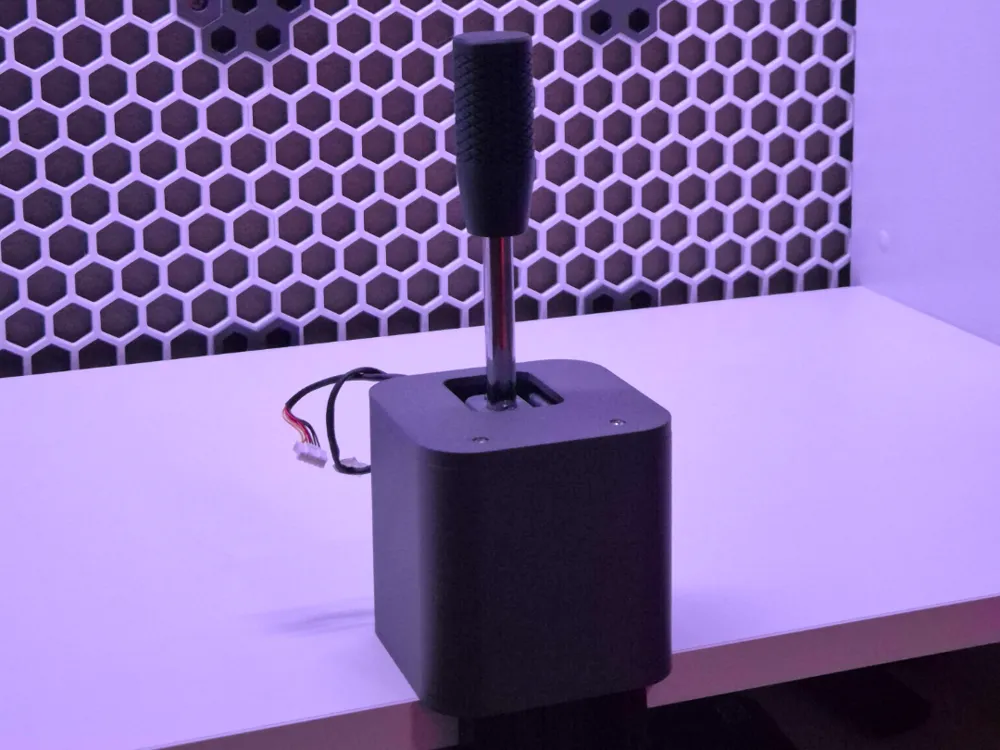

🏎️ Sim Rig Logitech Shifter Case G25 / G27 / G29 – V2 Version
Enhance your sim racing experience with the Compact Shifter Mod V2. This upgraded housing is designed to maximize realism while saving valuable space on your rig. The project focuses on eliminating the stock flaws of the Logitech mechanism, offering a much more "mechanical" and precise shifting feel.
🛠️ Key Improvements & Features:

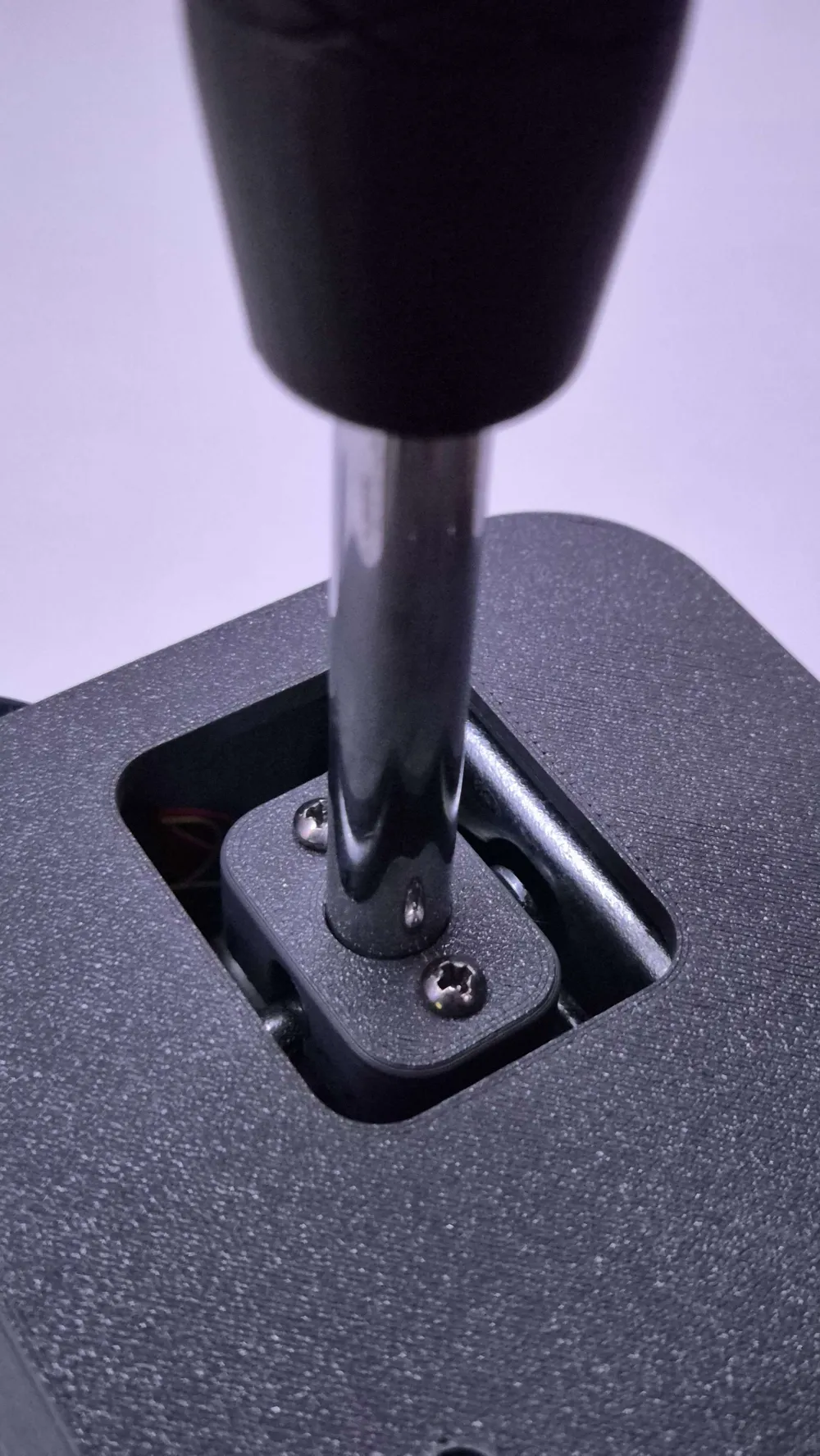

- Precision & Reduced Play: Tighter tolerances ensure the gear stick operates with increased stability.
Pro Tip: For the best results, slightly unscrew the two bolts near the mechanism lock.
- Enhanced Shifting "Feel": Gear changes become firmer and more tactile, significantly boosting immersion. 🕹️
- Ultra-Compact Design: Much smaller than the original housing, making it perfect for tight cockpits and custom builds.

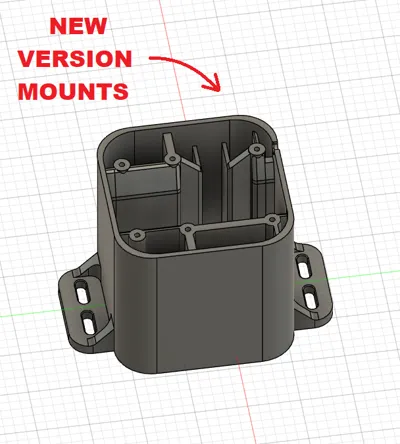

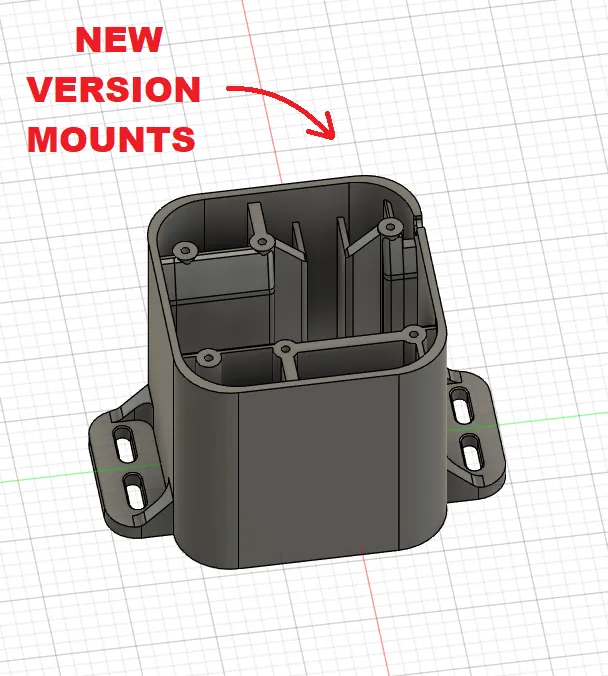

- New in V2 – Stability: Features an integrated, reinforced mount for your frame, guaranteeing a rigid and wobble-free setup. 💪
- Plug & Play Installation: All parts fit factory components perfectly—no permanent modifications required.
📏 Technical Dimensions (Width x Length x Height):
- Case: 85mm x 85mm x 84mm
- Case with mounts: 85mm x 125mm x 84mm
⚠️ Important Mounting Information:
To maintain a sleek, minimalist look, this design separates the mechanics from the electronics. It is recommended to print a separate small housing for the PCB, which can be hidden out of sight (e.g., under the rig frame). 🔧
