Garage Vacuum Hose Holder – Sliding & Rotating
Print Profile(1)
Description
Boost Me (for free)
If you like this model, please like and boost it
📸 And feel free to share photos of your setup!
If you have a vacuum cleaner in your garage and a long vacuum hose, you already know the problem.
The hose is always in the way.
On the floor.
Twisted.
Never where you want it.
That’s exactly why I designed this.
I use a vacuum cleaner in my garage almost daily, and managing the hose was always more annoying than the work itself. I wanted something simple, sturdy, and always ready to use – without rolling the hose up every time.
So I made this hose holder.
What is it?

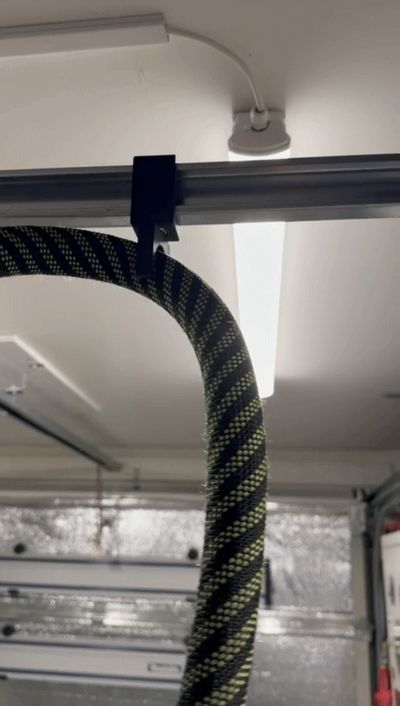

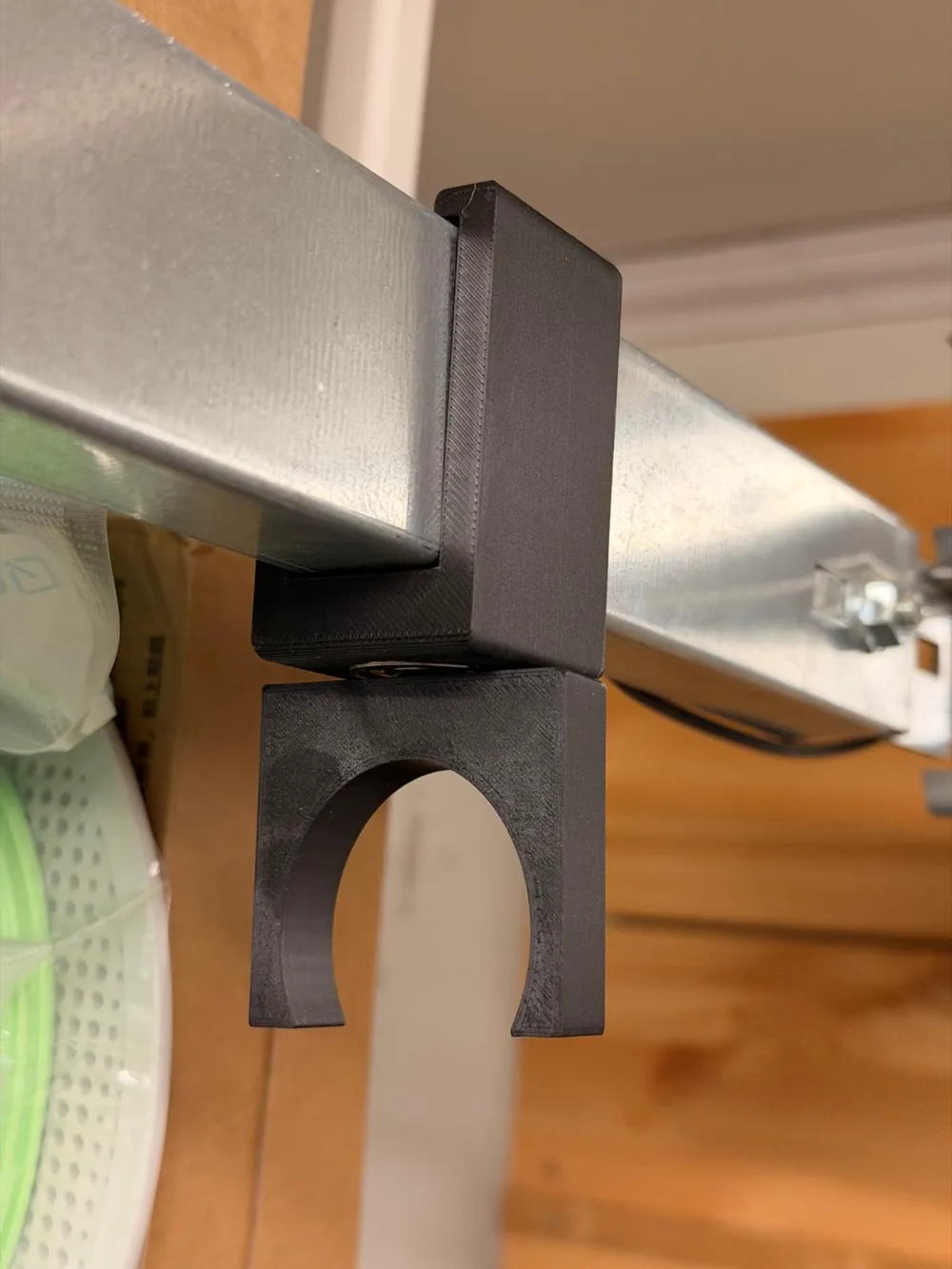

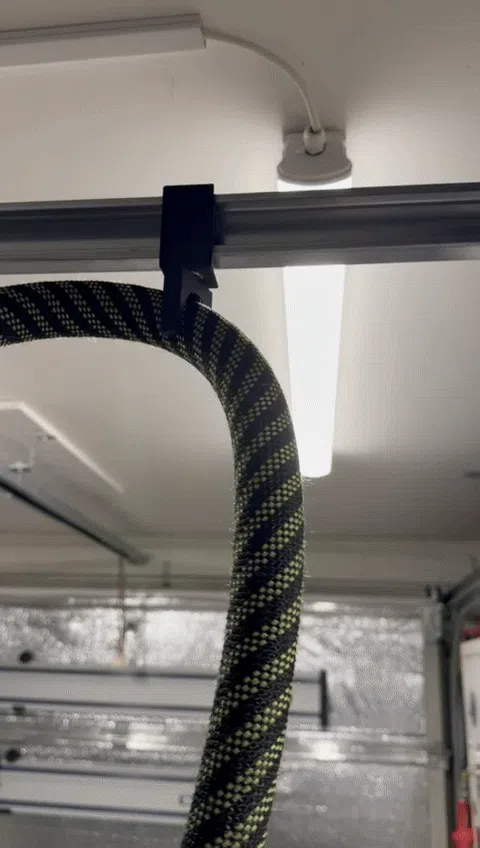

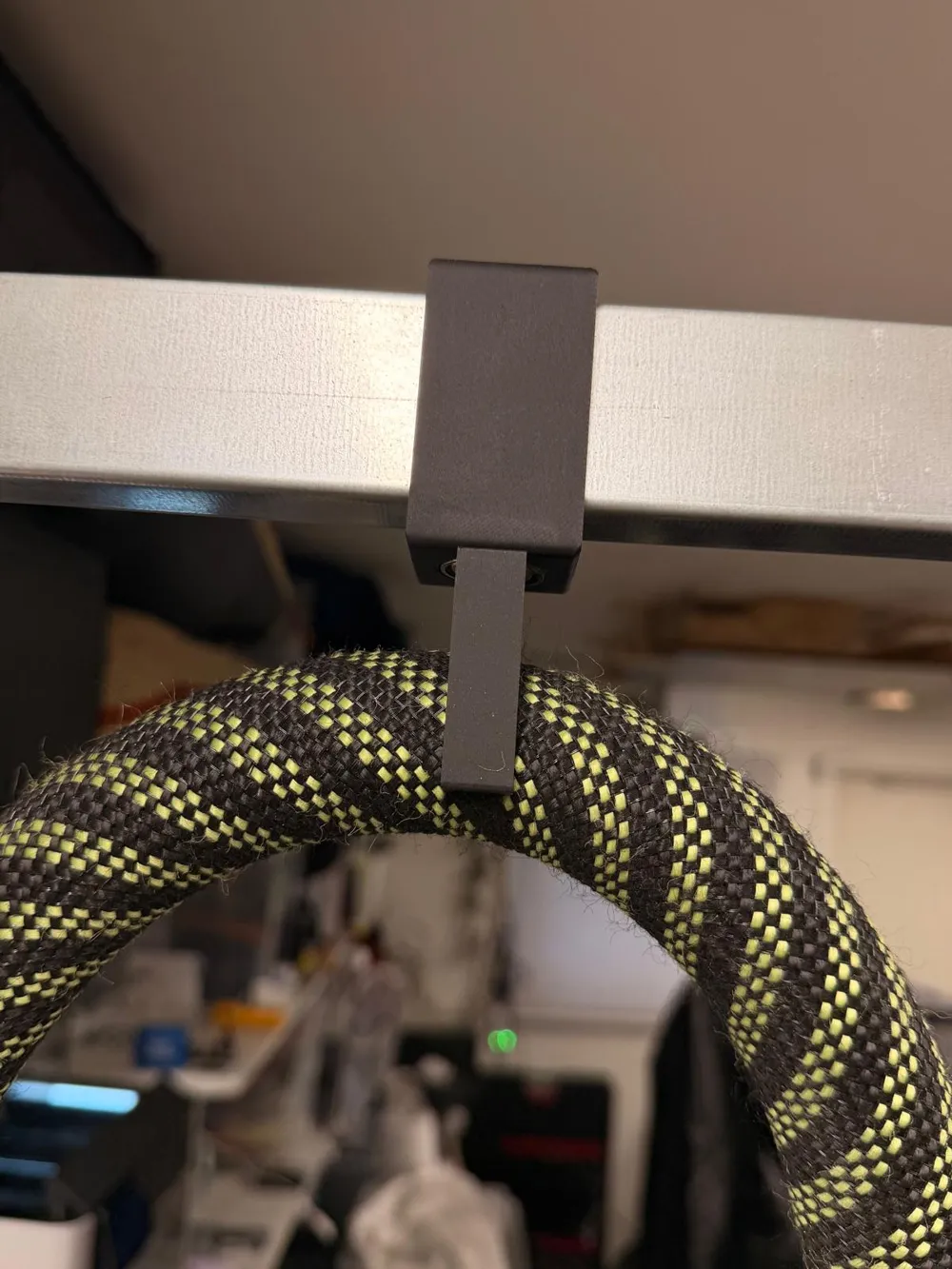

A vacuum hose holder designed to mount directly onto the garage door rail / frame.
- Snaps onto the rail – no tools required
- Can slide back and forth along the rail
- Rotates freely using a ball bearing
- Keeps the hose out of the way, but always accessible
Designed to fit Hörmann garage doors, and most likely other garage doors with similar rail dimensions.
Smooth rotation – no twisting

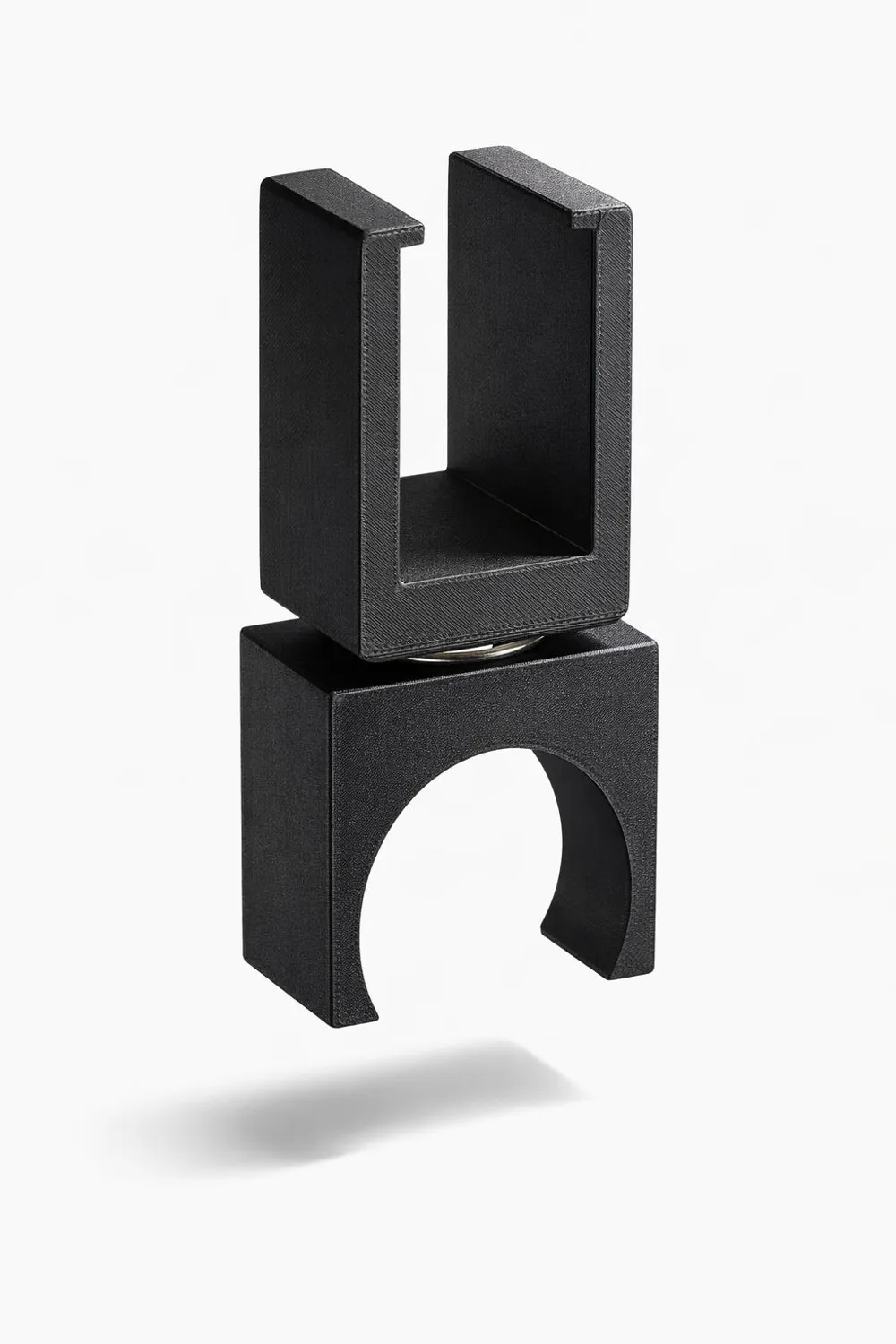

The clamp rotates using a ball bearing, allowing the hose to follow your movement naturally.
No twisting.
No resistance.
Clean and smooth operation.
You will need either:
- A 608 bearing (608 / 608ZZ)
— or - A 3D printed bearing
I have tested a printed bearing myself, and it works perfectly.
👉 Printed bearing by @Tassesin
https://makerworld.com/sv/models/473167-608z-6000z-6001z-roller-bearing-v2#profileId-383170
Installation
Simple and straightforward.

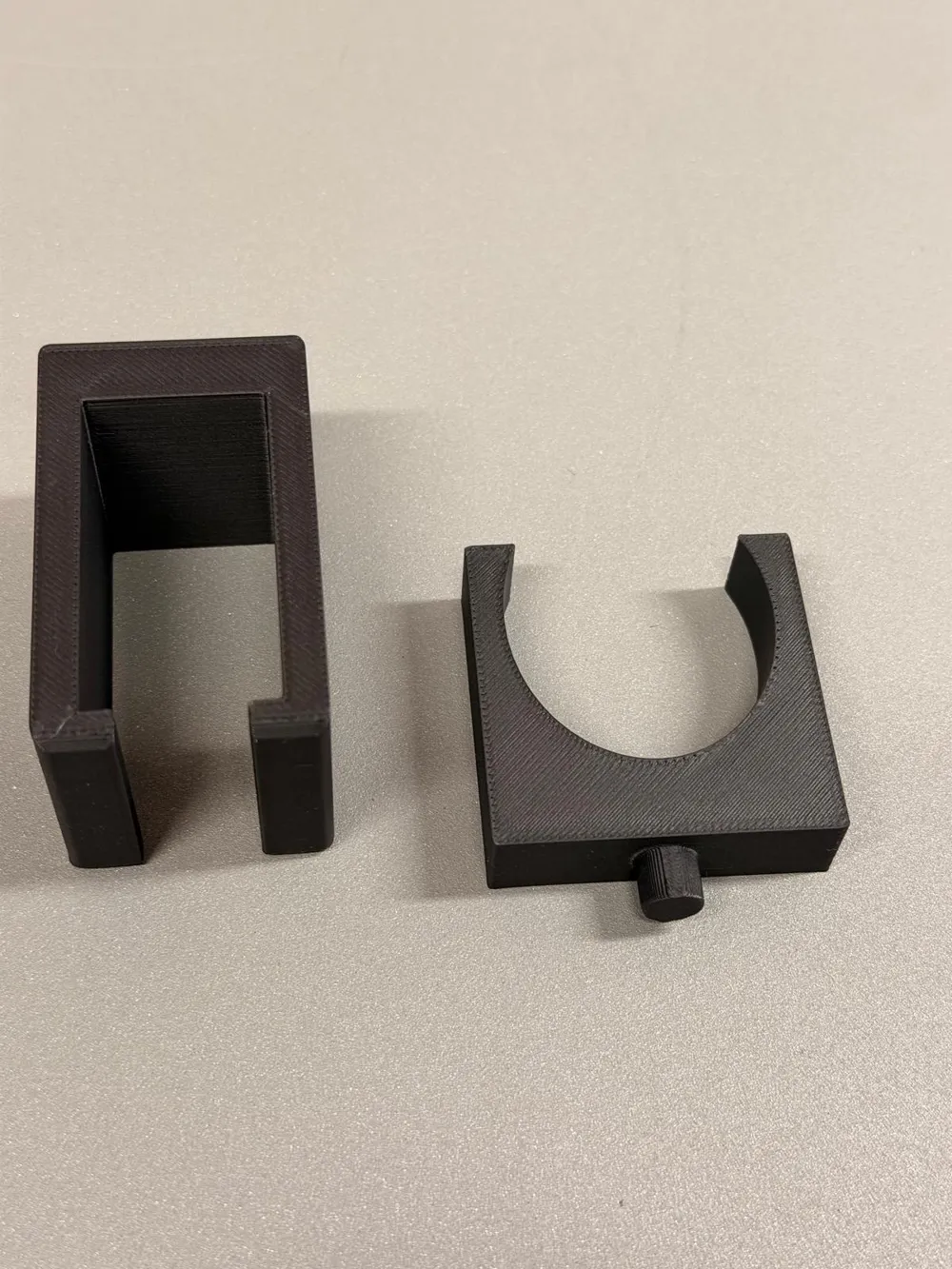

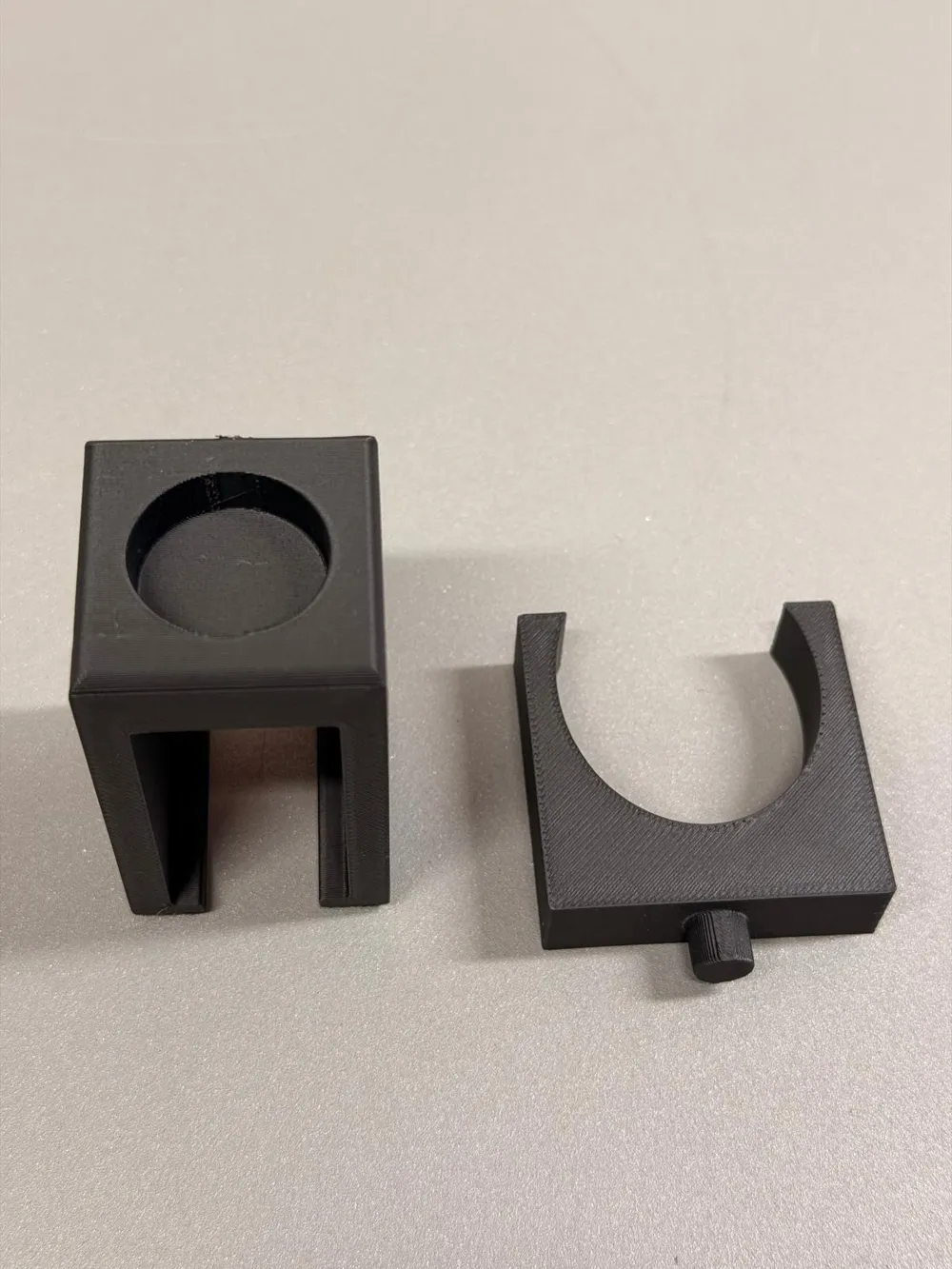

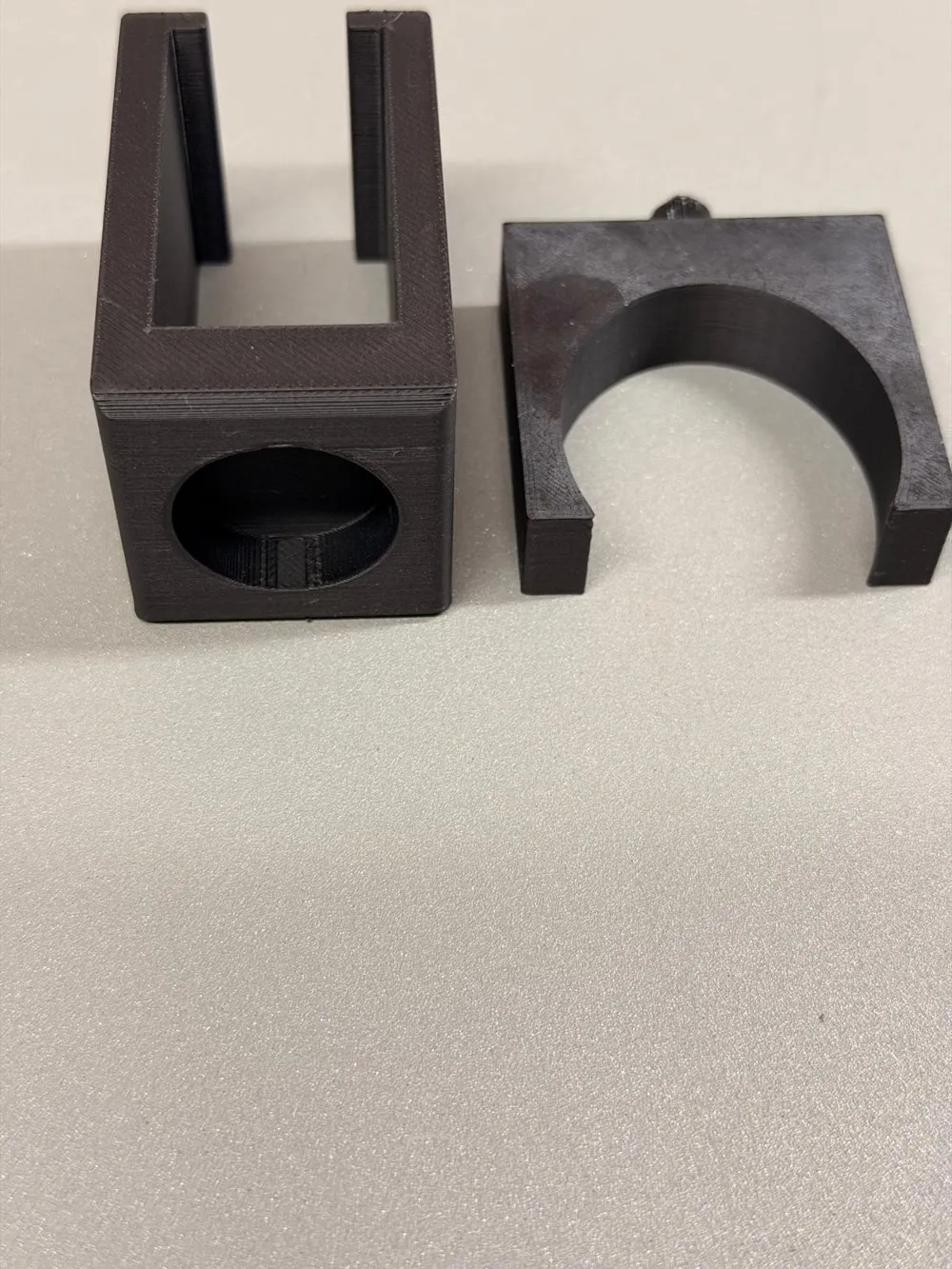

- Print both parts

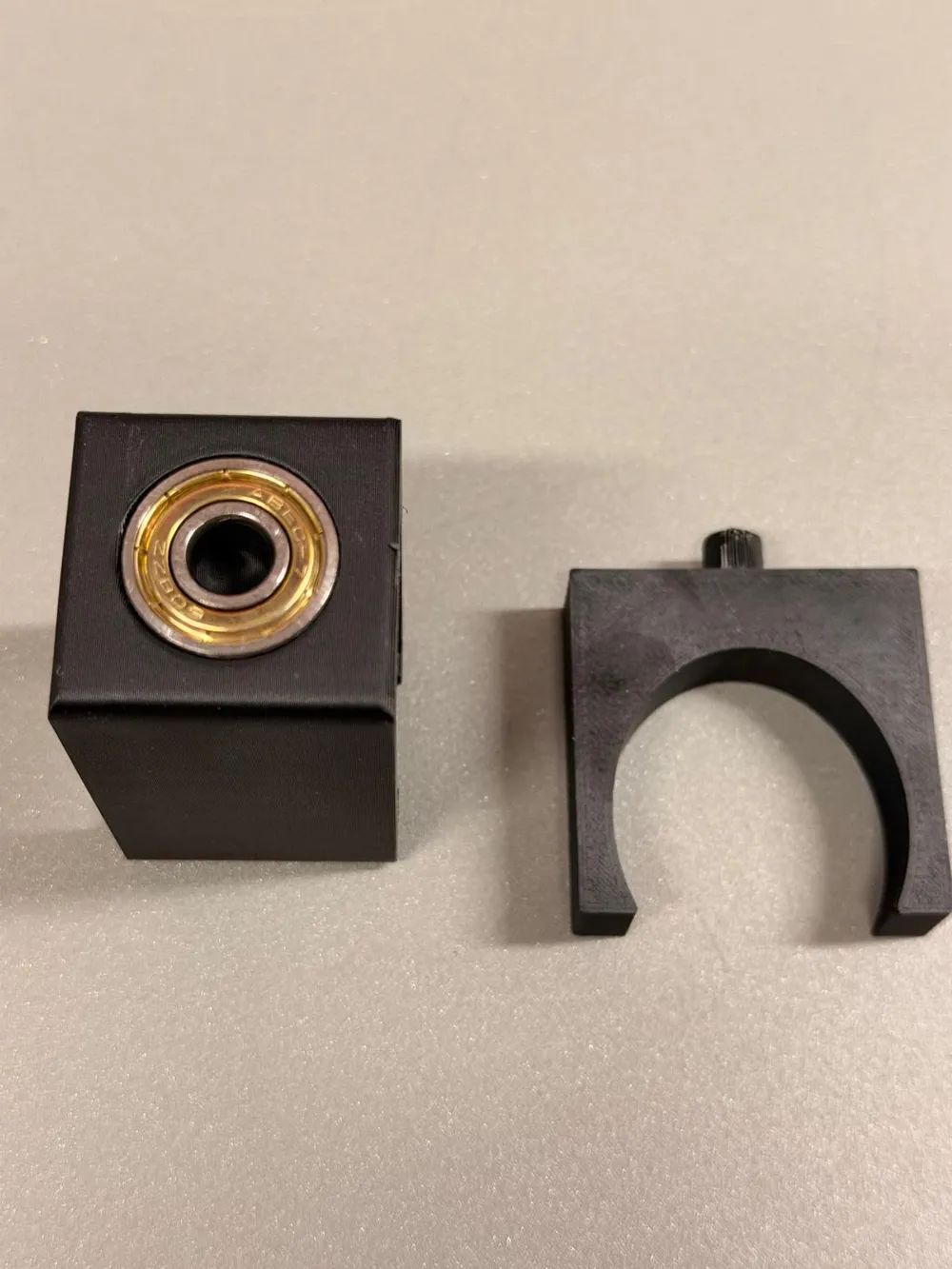

- Press in the bearing (608 or printed)

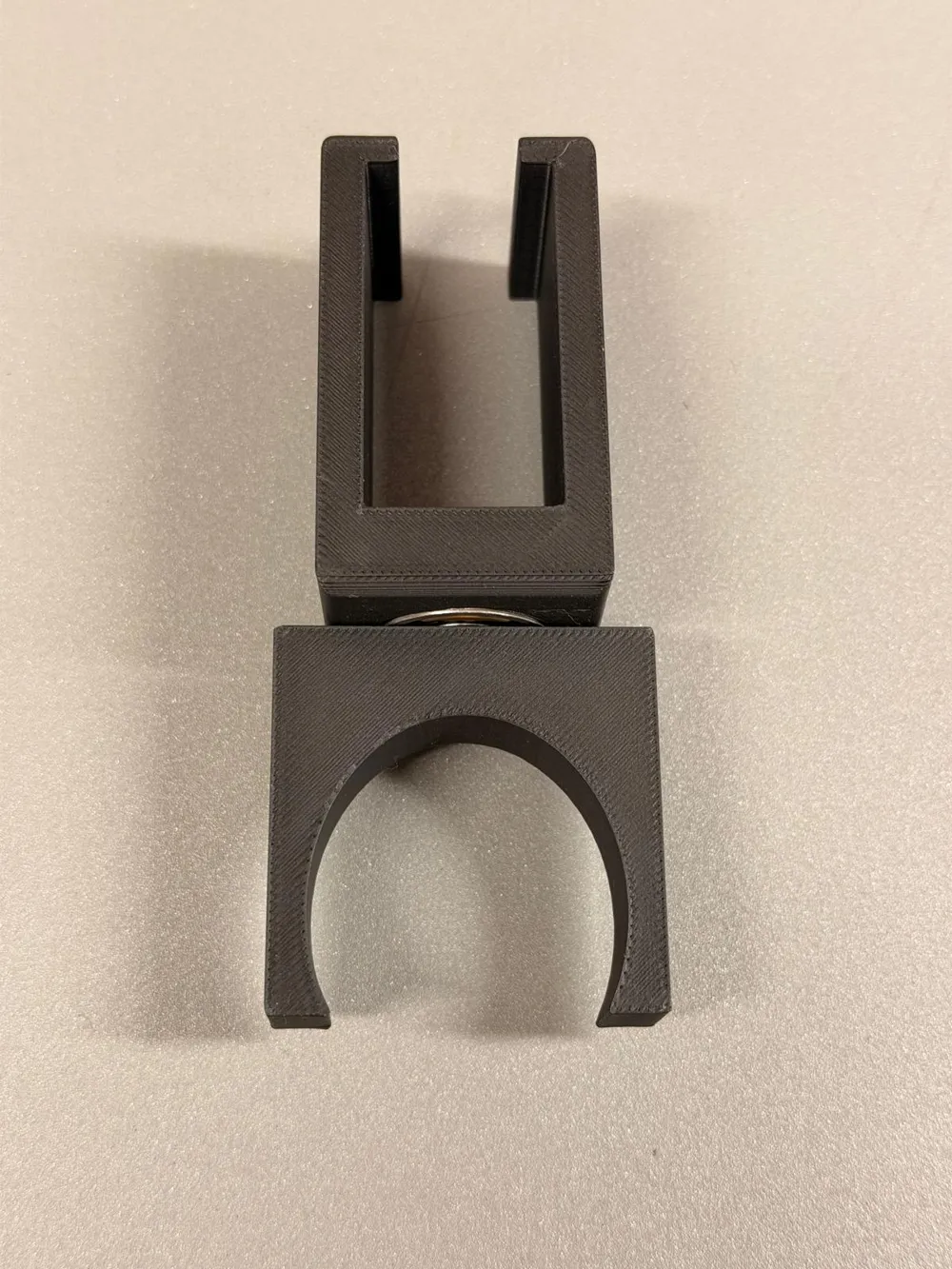

- Screw the holder together
- Push in the clamp and enjoy
⚠️ The hose is intentionally a tight fit.
This ensures that it will not slip out while hanging down during use.
For heavier hoses or permanent mounting, a small drop of super glue can be used to lock the holder in place – completely optional.

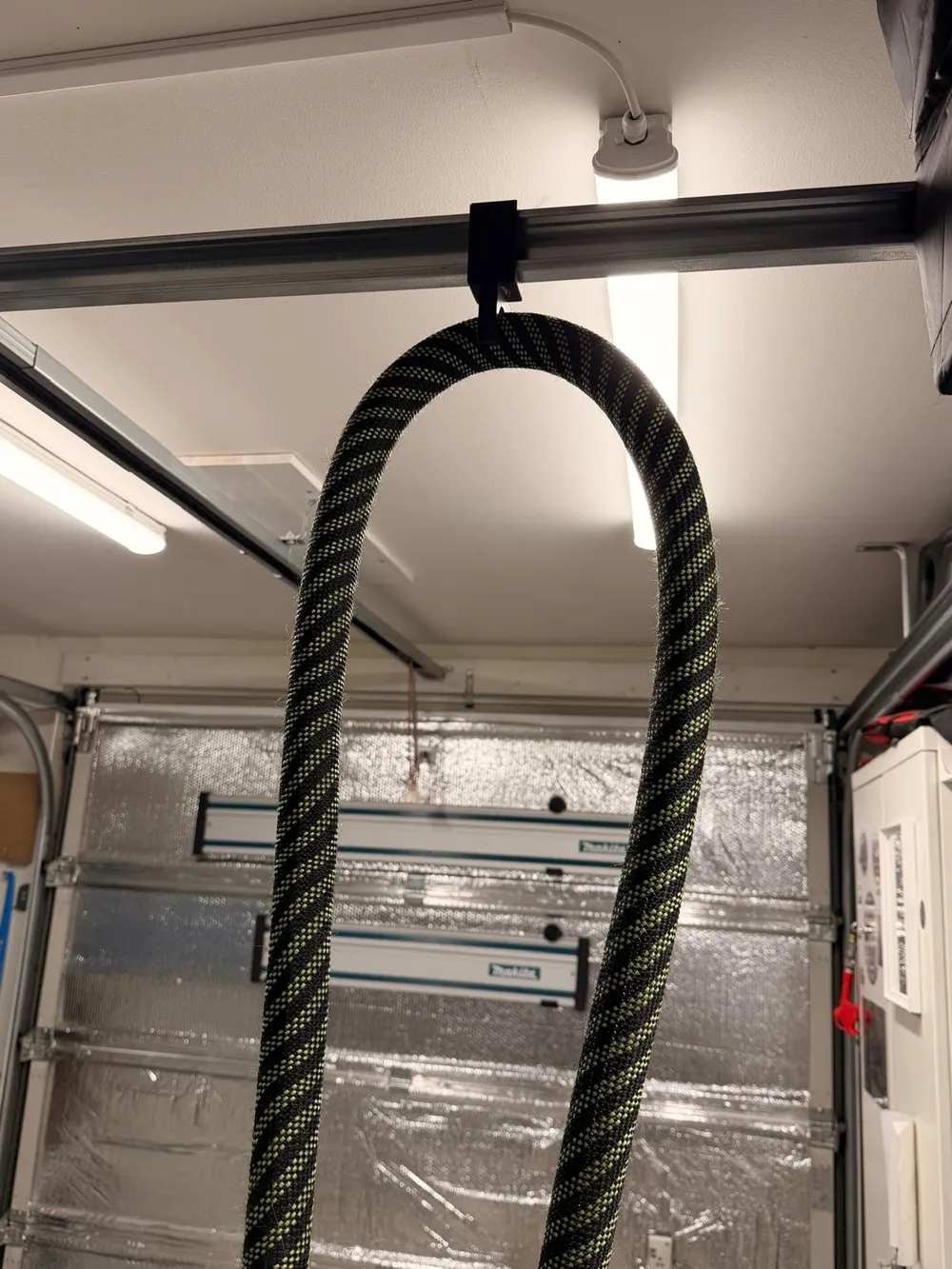

Why it works in real life
- The hose follows you as you move in the garage
- It rotates instead of twisting
- It stays where it should – not on the floor
A simple solution to a very common garage problem.
Print Settings (tested)
- Filament: PLA
- Infill: 20%
- Supports: Minimal, only needed for the rounded details
- Prints easily as-is
Good to know
- Not designed for extreme loads without extra fixation
- Super glue is recommended but not required
- Future versions may include more sizes or variations
If you have a vacuum cleaner in your garage and are tired of dealing with messy hoses, this is for you.
👉 If you like this model, please like and boost it
📸 Feel free to share photos of your garage setup!
