90° Corner Clamp Adapter Release Woodworking Clamp
Print Profile(0)
Description

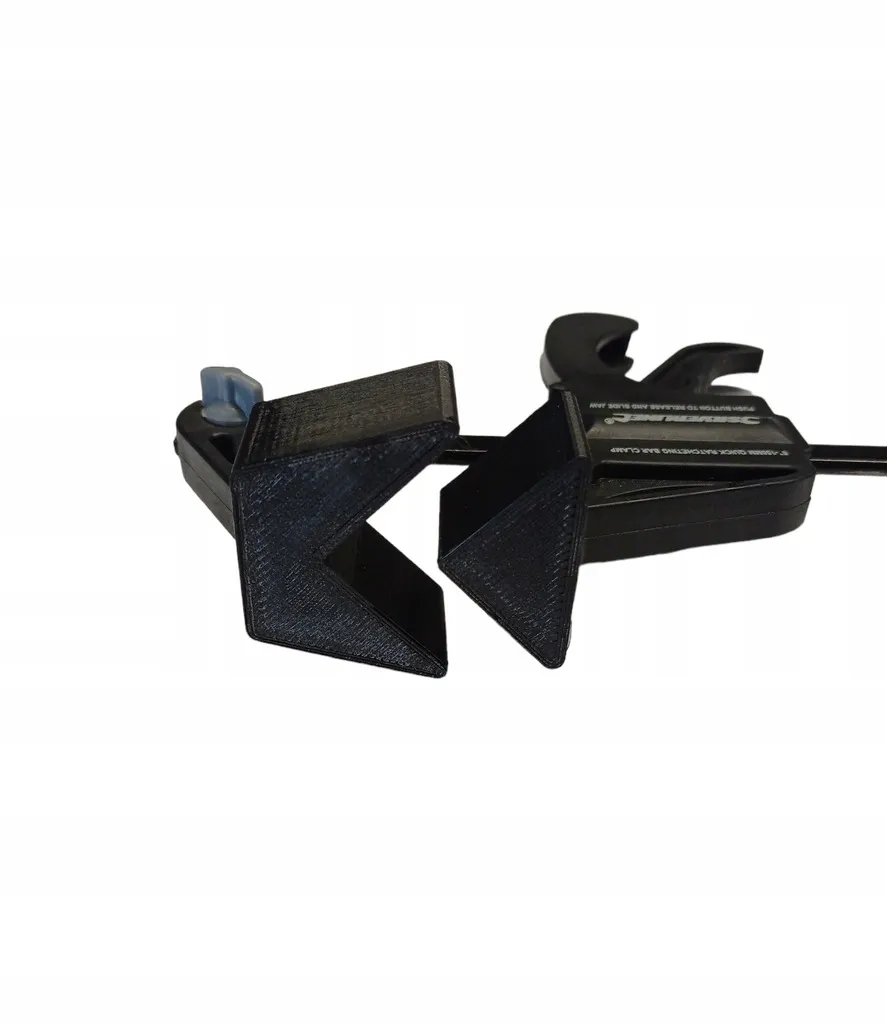

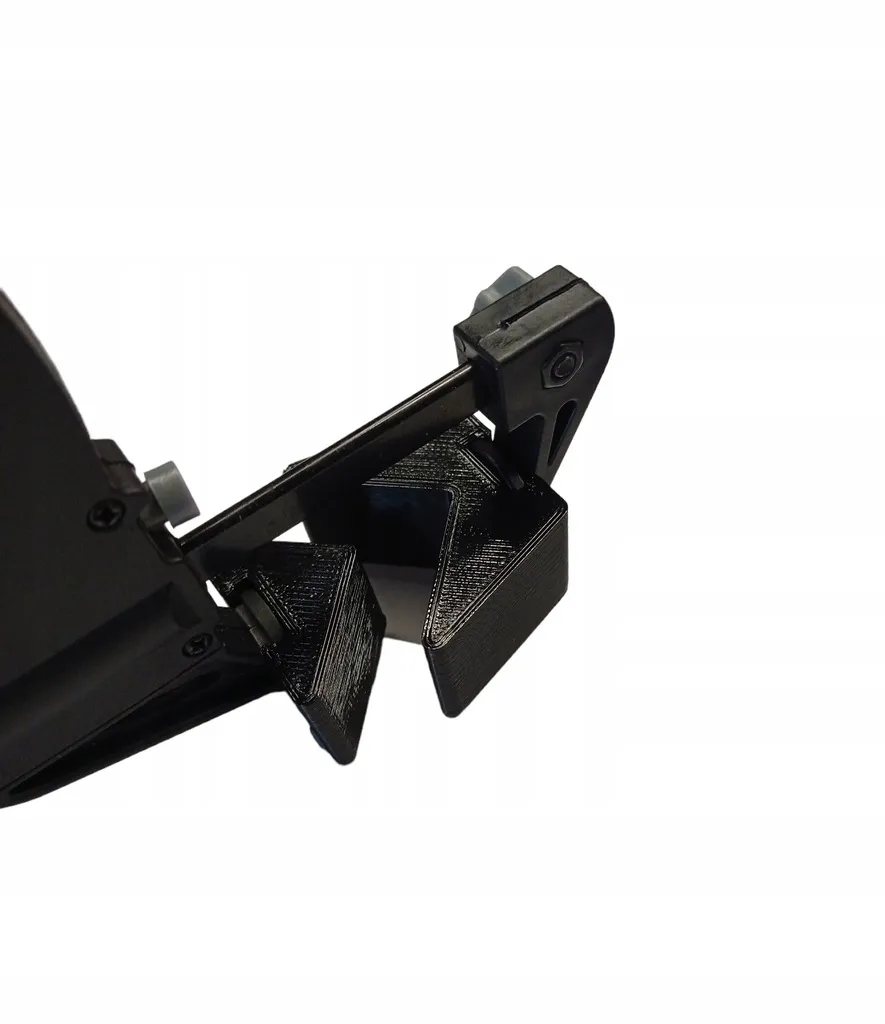

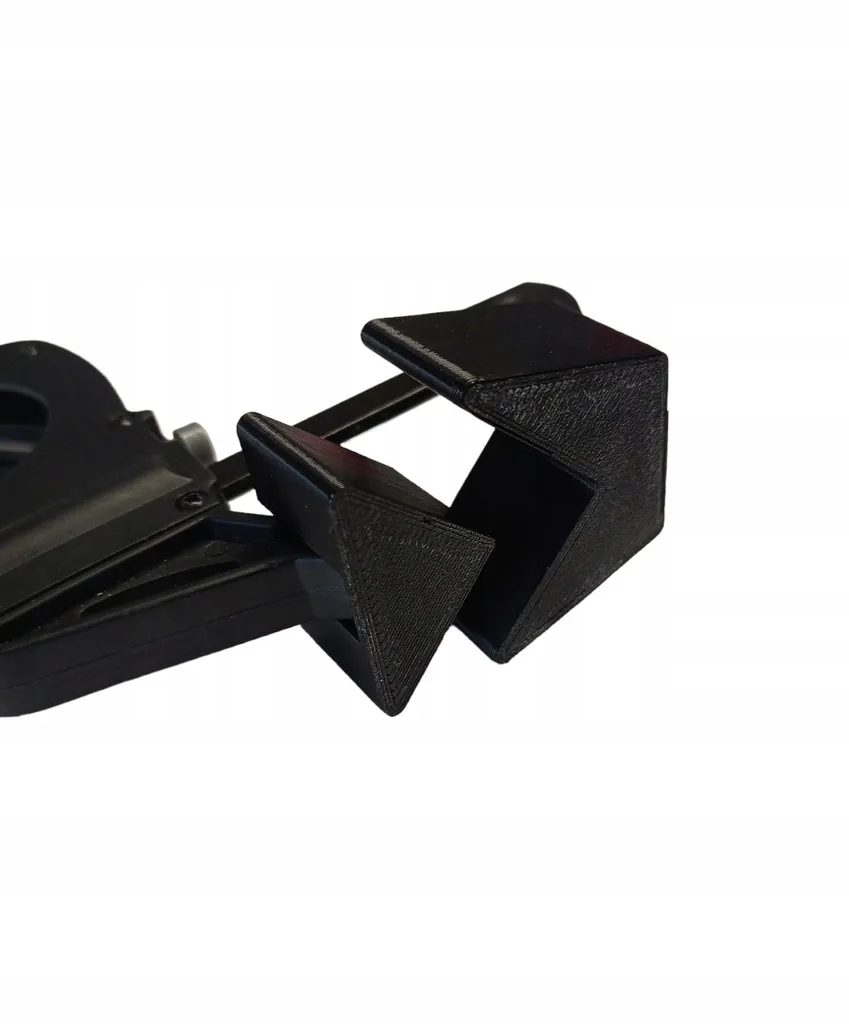

An upgrade for universal quick-release woodworking clamps, adding adapters/attachments/clamping pads that enable clamping elements at a 90-degree angle.

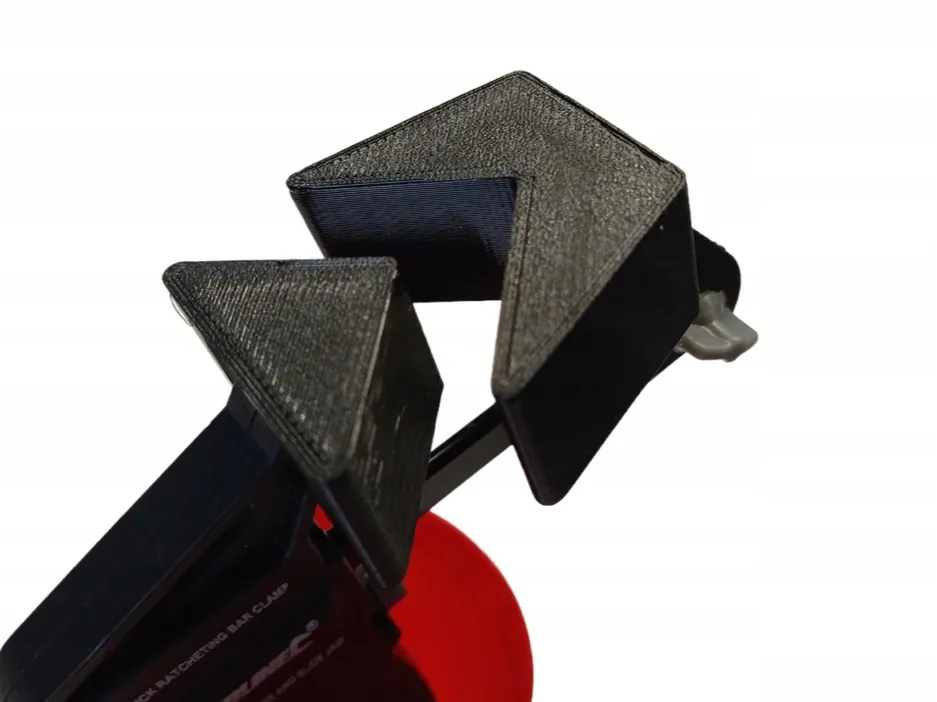

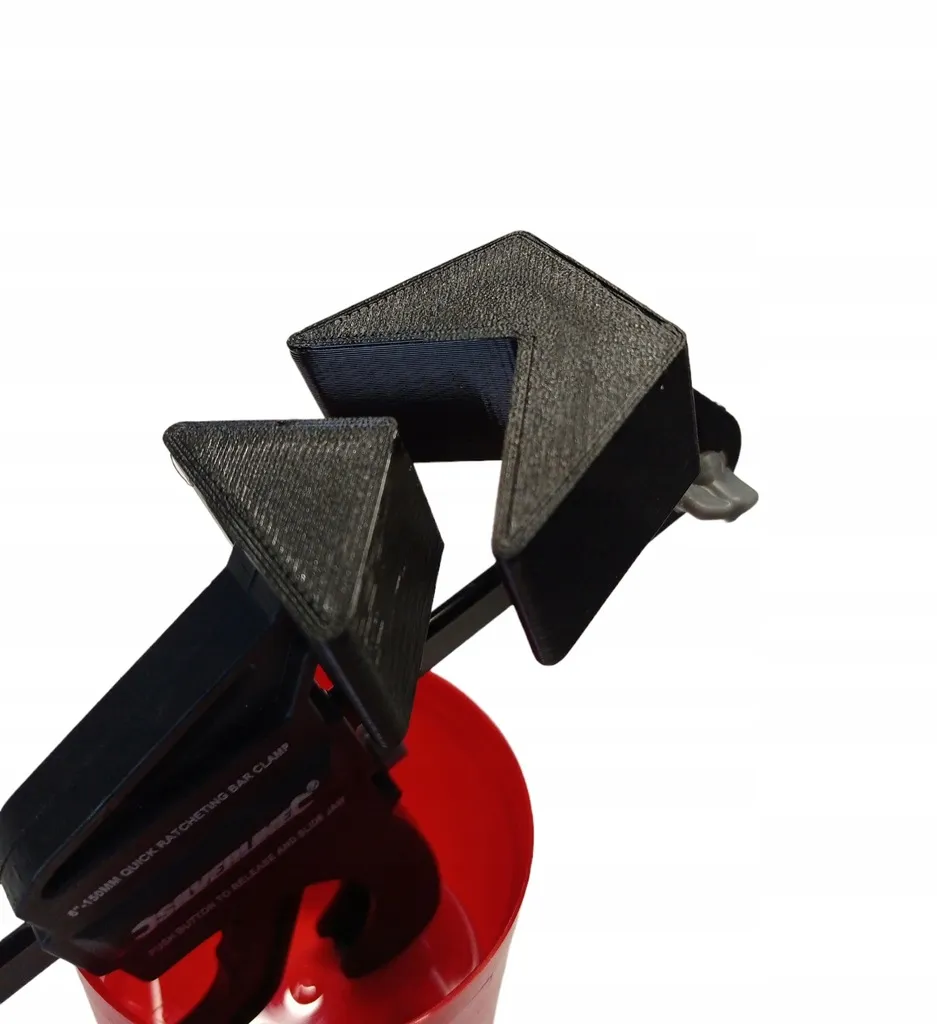

• Application: Very useful for assembling boxes, shelves, plexiglass sheets, wooden boards, etc.—making fastening quick and easy!

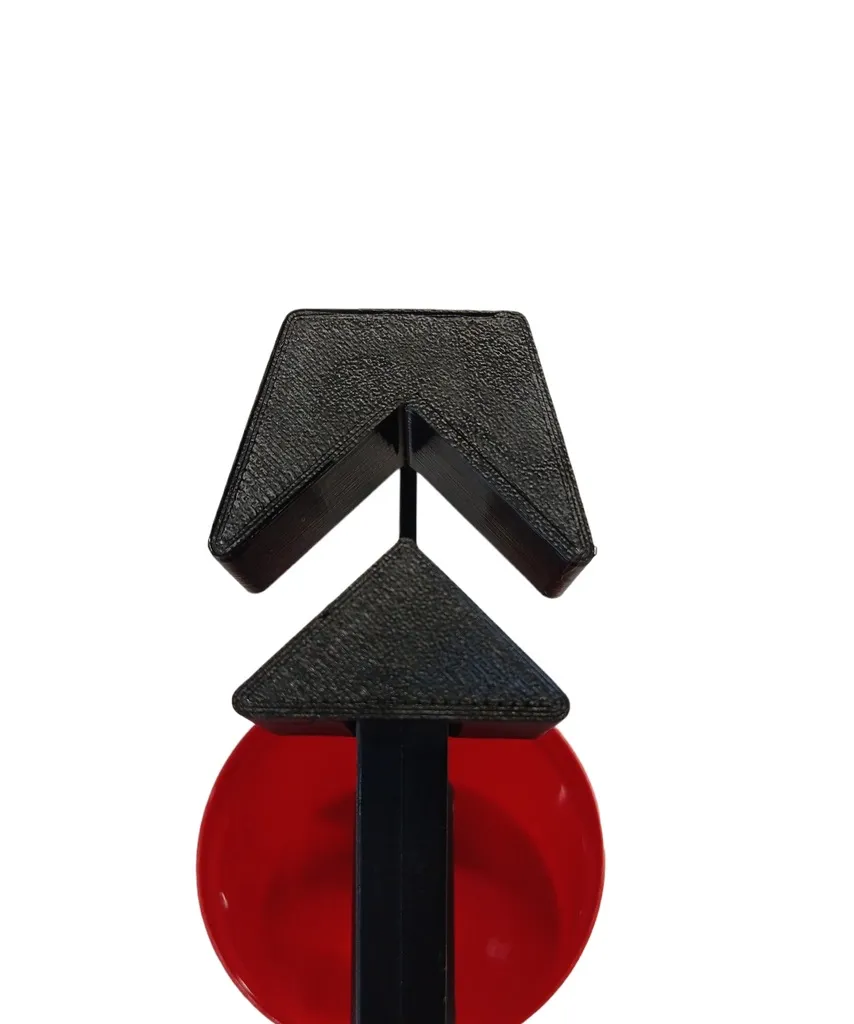

• Functionality: It holds flat elements at a 90-degree angle, forming a corner that facilitates secure fastening.

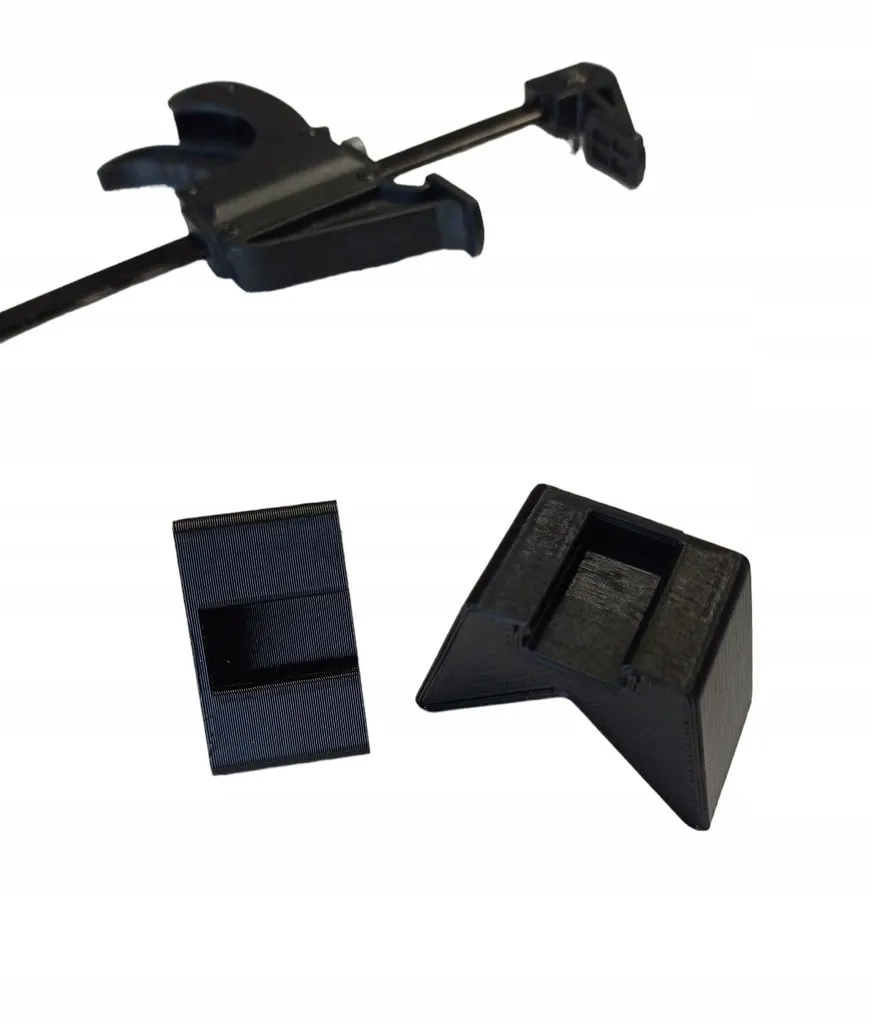

• Compatibility: The slip-on adapters are designed for standard quick-release woodworking clamps with jaw dimensions (excluding the pads typically found on the clamps): length 20 mm, width 12.8 mm.

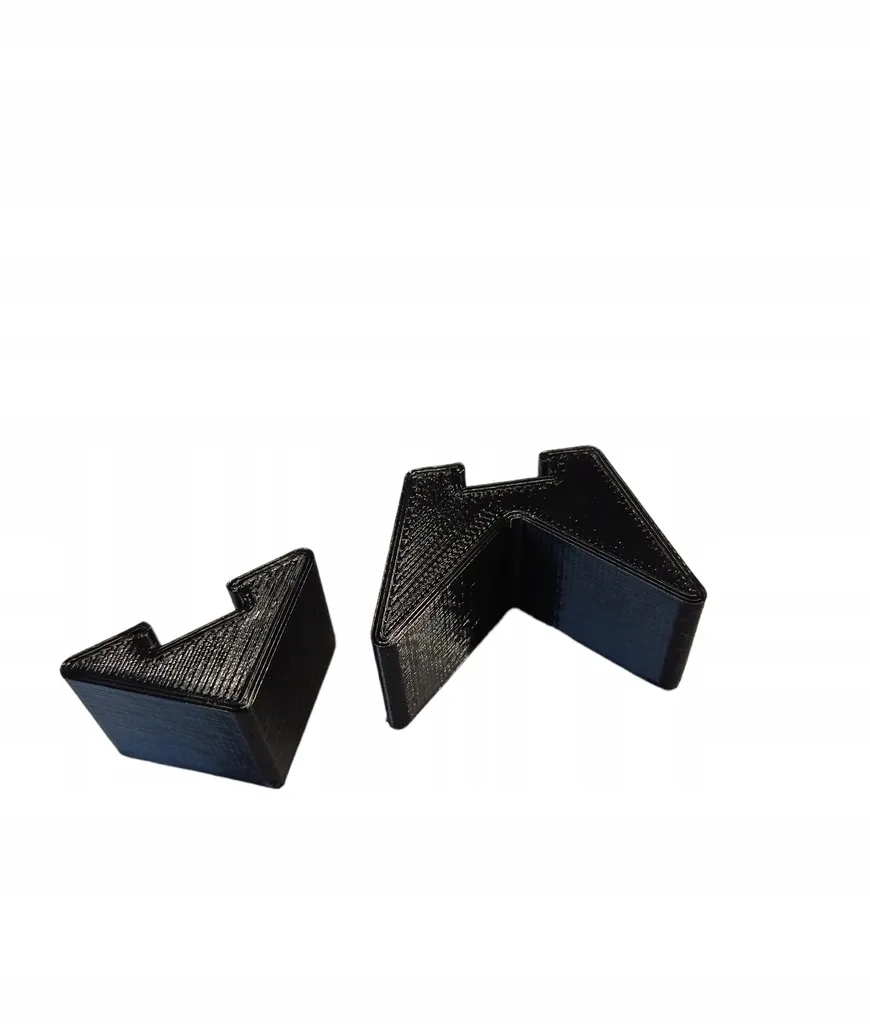

📏 Adapter Dimensions

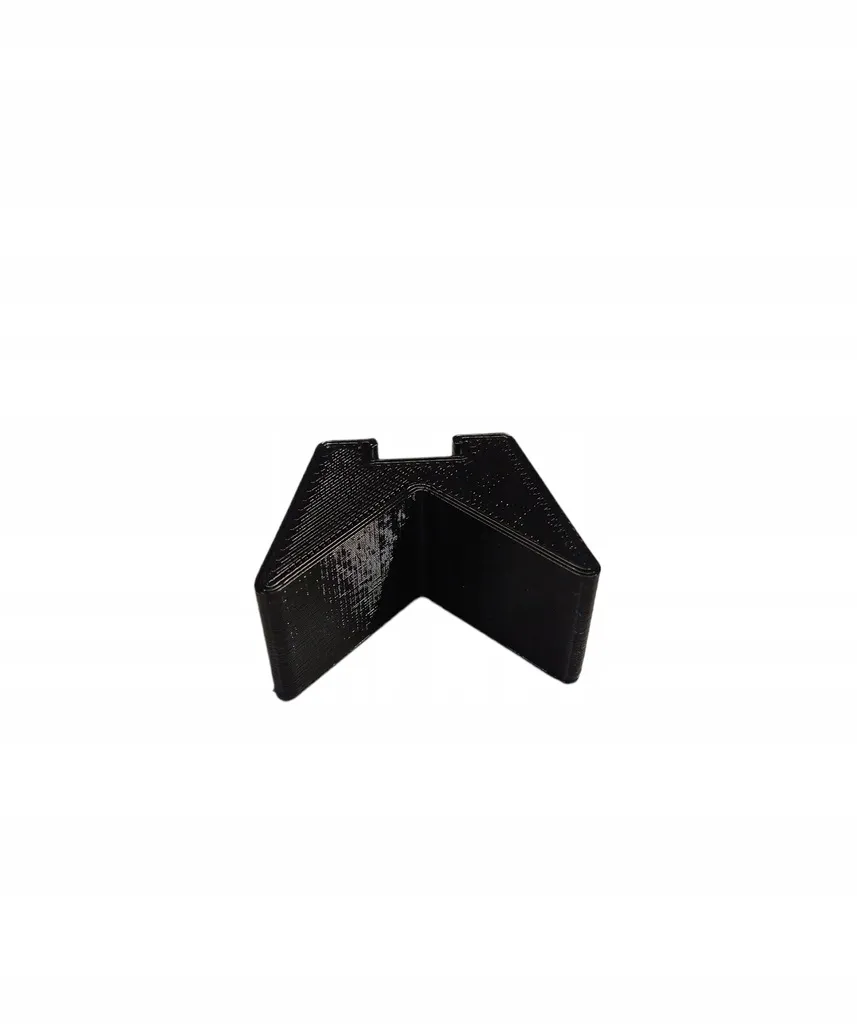

• Obtuse Angle Jaw (Open):
• Total length: 31 mm
• Arm length: 27.5 mm
• Max width: 43.5 mm
• Height: 22 mm
• Right Angle Jaw (Closed):
• Length: 20 mm
• Arm length: 26.5 mm
• Height: 22 mm
⚙️ Printing Tips
• Material: PETG or ABS. A durable material is recommended due to the clamping forces and potential stresses.
• Infill: Suggested 50-80% for maximum compression strength.
• Orientation: Print in an orientation that provides maximum mechanical strength (vertically, so that clamping forces act along the layers).
