⚒️ Dwarven Retractable Scepter

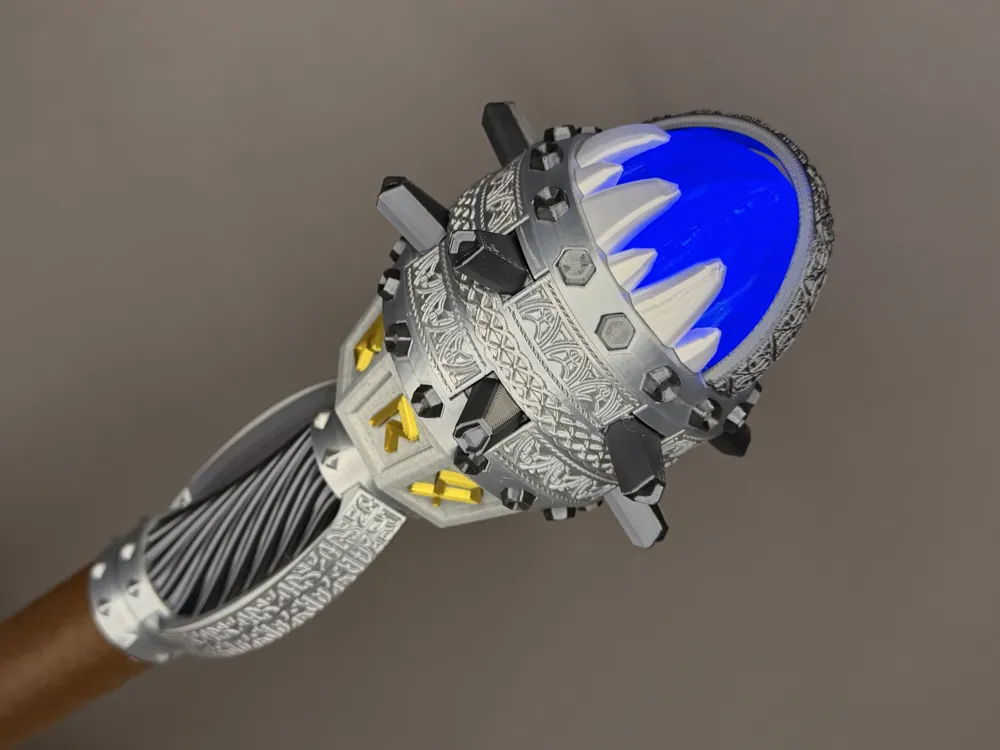

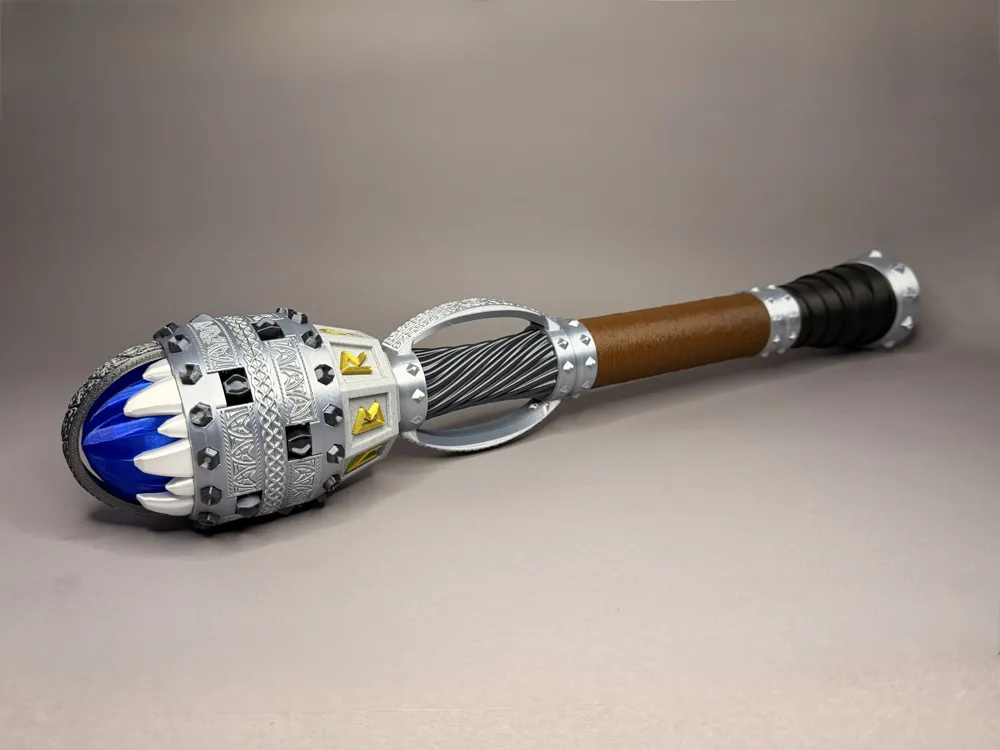

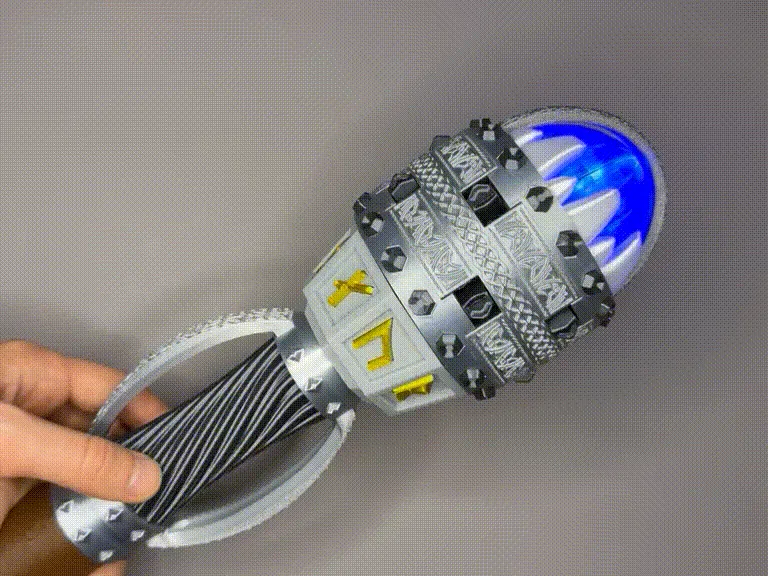

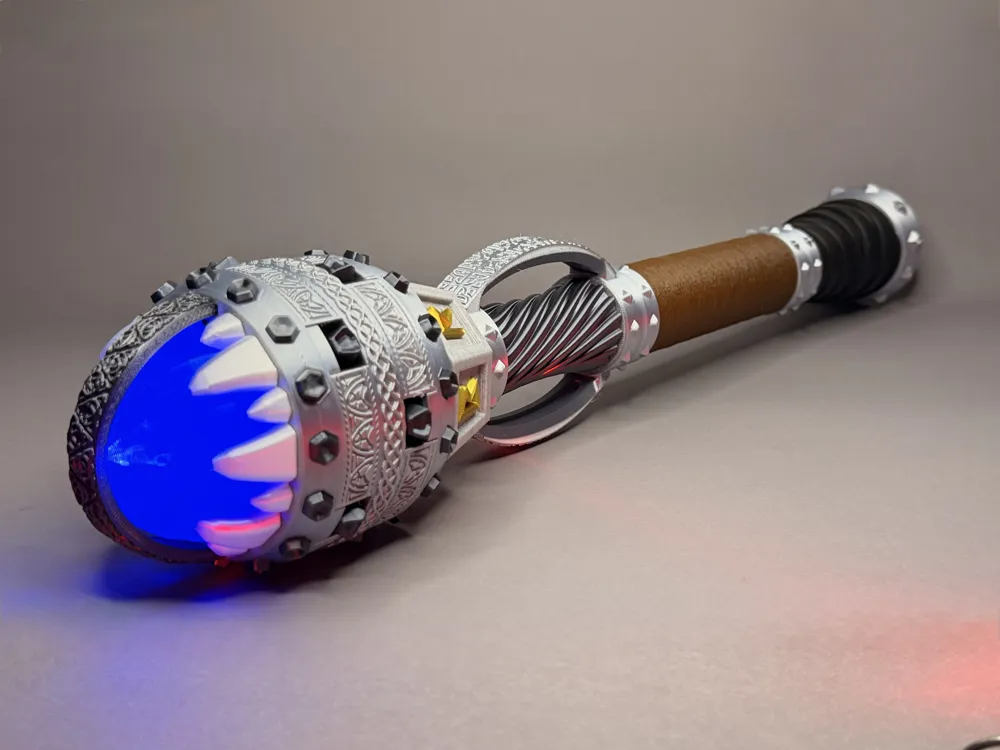

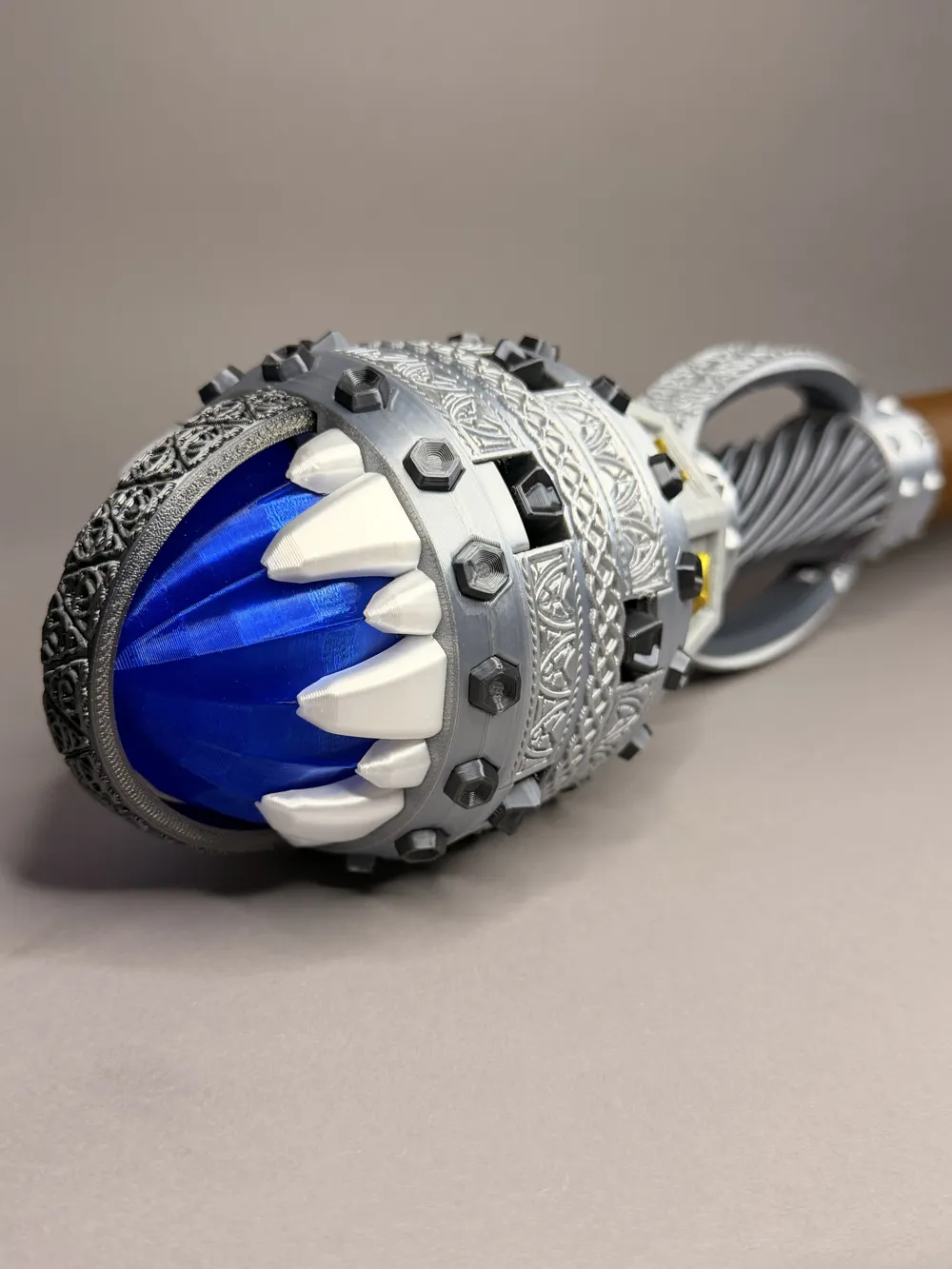

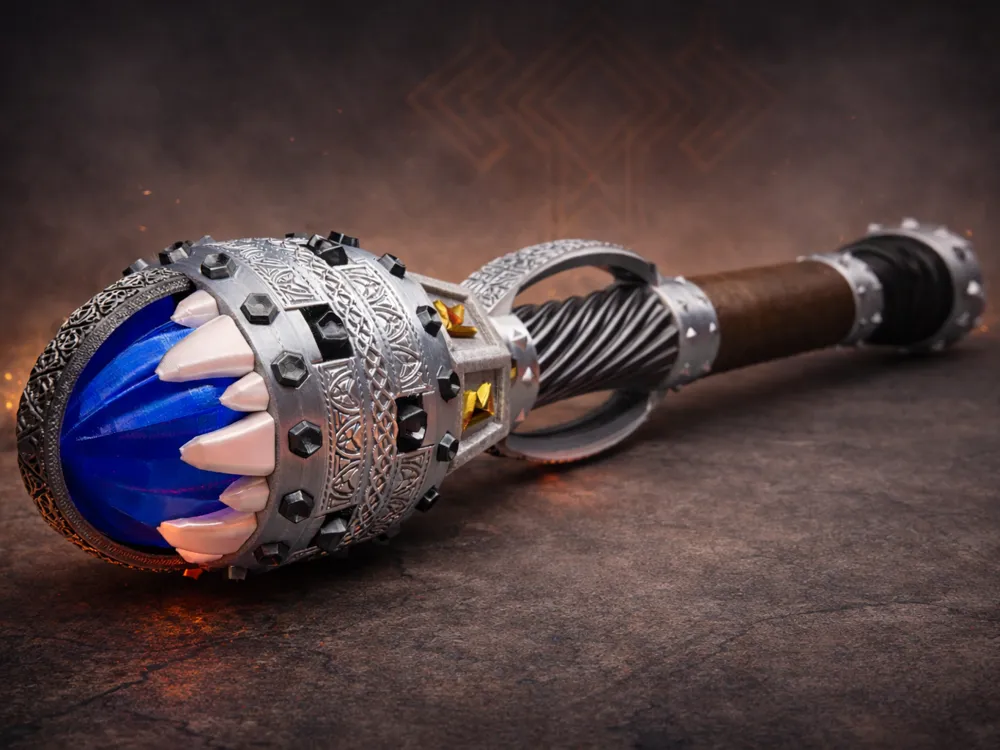

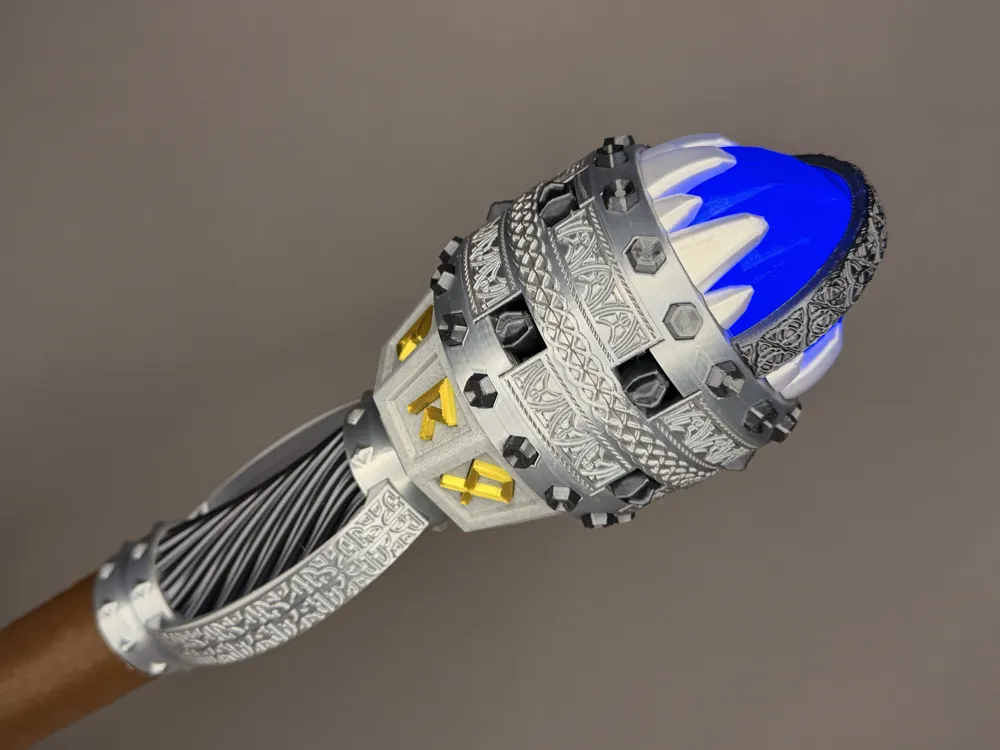

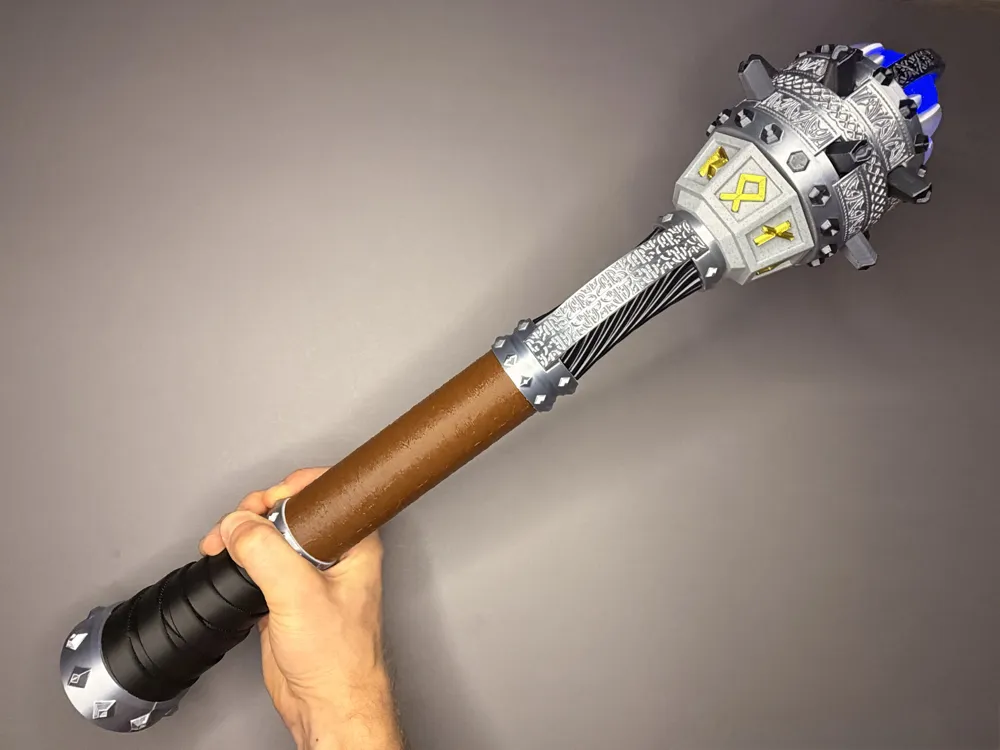

A modular fantasy scepter featuring a mechanical system of retractable spikes, activated by a rotating control shaft. The construction consists of a handle and a massive, enclosed head housing the moving mechanism and rich decorative details, including runes, a crystal, and metal studs. The design allows for optional installation of a mini RGB LED. Inspired by classic fantasy and dwarven craftsmanship, emphasizing raw stone, forged metal, precise mechanics, and forms born in the depths of the forge.

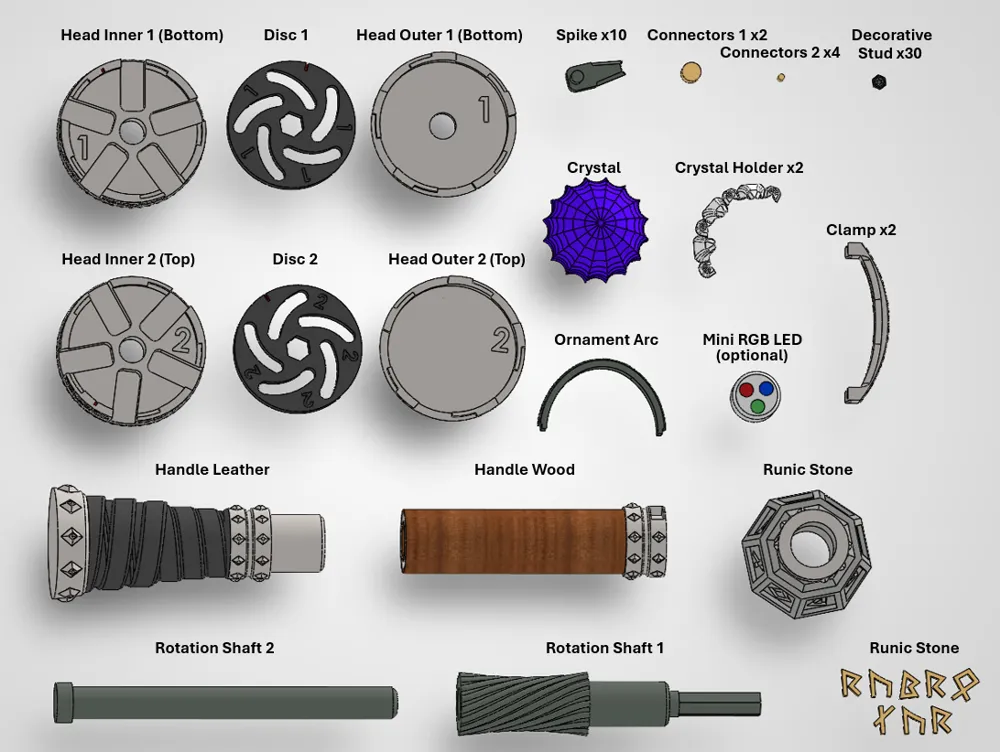

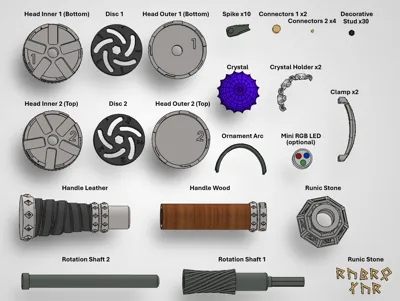

A complete parts list with detailed illustrations is available in the gallery.

Assembly

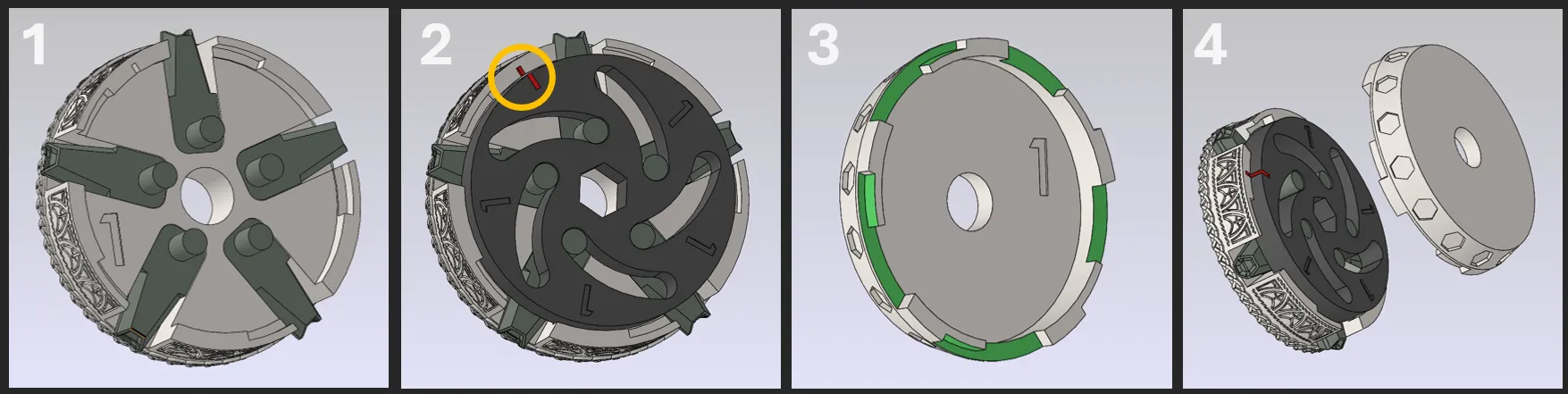

1. Insert Spike x5 into the corresponding slots in Head Inner 1 (Bottom). Make sure all spikes are set in the fully retracted (inner) position.

2. Slide Disc 1 onto the pins of the Spikes.
IMPORTANT: Ensure that the mark on Disc 1 is aligned with the mark on Head Inner 1 (Bottom) (the orange circle shown in the instruction images).

3. Apply a small amount of glue to Head Outer 1 (Bottom) in the areas marked in green.

4. Join Head Inner 1 (Bottom) with Head Outer 1 (Bottom), pressing the parts together until fully seated. Wait until the glue has completely cured.

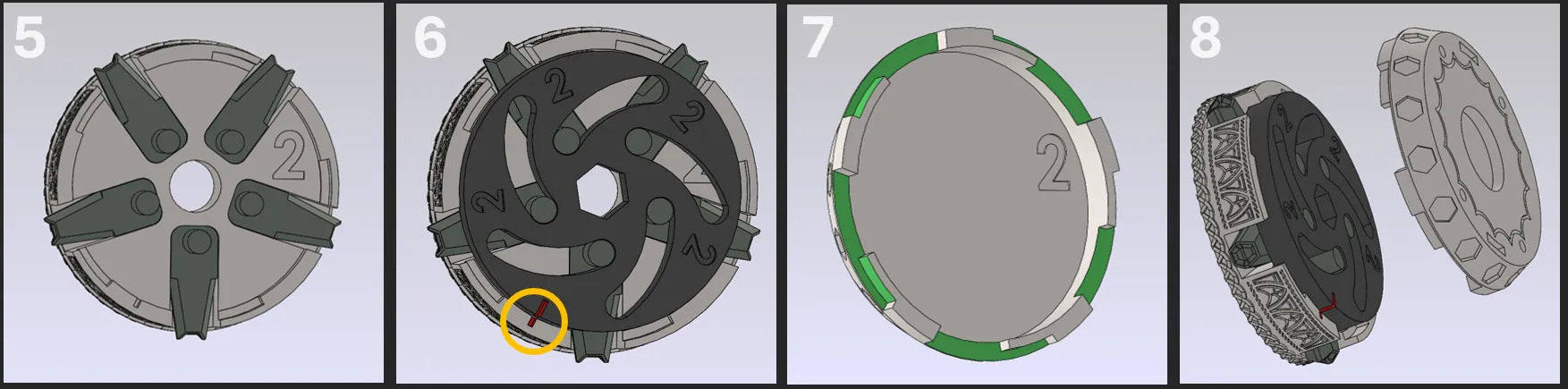

5. Insert Spike x5 into the corresponding slots in Head Inner 2 (Top). Make sure all spikes are set in the fully retracted (inner) position.

6. Slide Disc 2 onto the pins of the Spikes.
IMPORTANT: Ensure that the mark on Disc 2 is aligned with the mark on Head Inner 2 (Top) (the orange circle shown in the instruction images).

7. Apply a small amount of glue to Head Outer 2 (Top) in the areas marked in green.

8. Join Head Inner 2 (Top) with Head Outer 2 (Top), pressing the parts together until fully seated. Wait until the glue has completely cured.

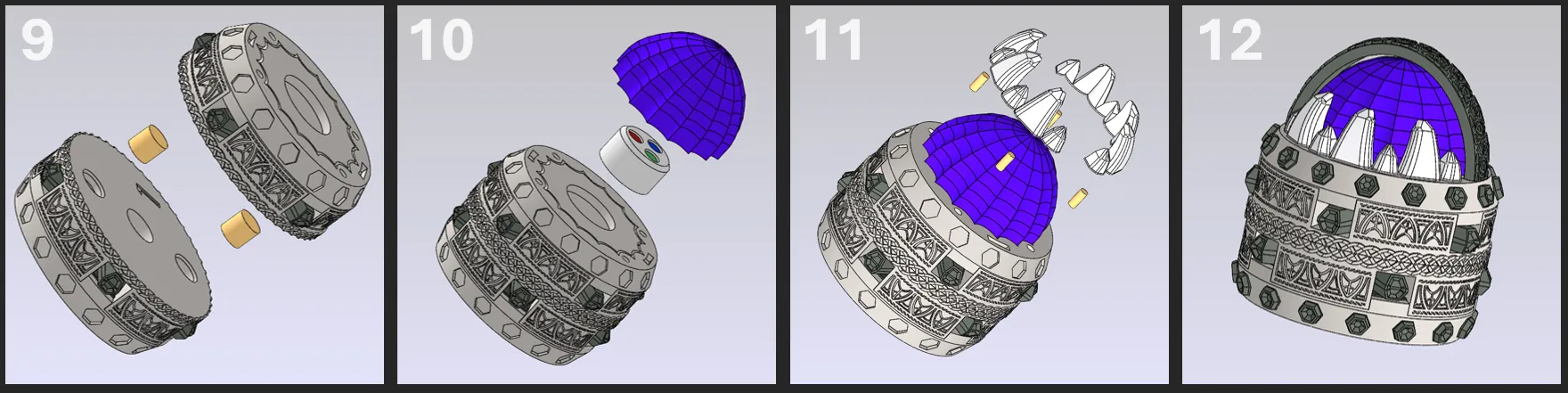

9. Join the two completed head halves using Connector 1 x2. Apply glue and wait until the glue has completely cured.

10. Optionally install a mini RGB LED in the designated location.
Apply glue inside the Crystal socket in Head Outer 2 (Top), then insert the Crystal into place.

11. Glue Connector 2 x4 into their designated locations, then mount Crystal Holder x2 onto them.

12. Install the Ornament Arc and Decorative Studs x30 in their designated locations using a small amount of glue.

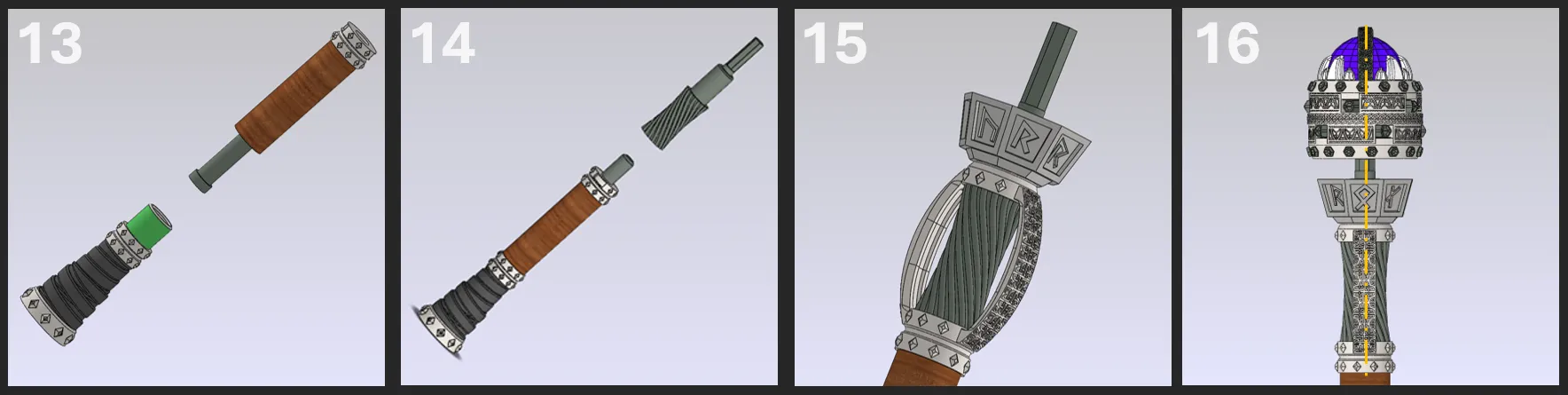

13. Apply a glue to the green-marked surface on Handle Leather. Place Rotation Shaft 2 between Handle Leather and Handle Wood, then wait until the glue has completely cured.

14. Apply a glue inside the socket of Rotation Shaft 1, then connect the protruding part of Rotation Shaft 2 to Rotation Shaft 1.
Gently press the parts together, making sure that the Rotation Shaft can rotate freely.

15. Slide Runic Stone onto the Rotation Shaft without using glue. Then secure Runic Stone to Handle Wood using Clamp x2.
The clamps may be fixed using a glue. Ensure that the Rotation Shaft can rotate freely.

16. Apply a glue to the top surface of Runic Stone, then mount the head assembly onto the Rotation Shaft. Align the head so that the Clamp axis matches the Ornament Arc axis. Wait until the glue has completely cured, then install the Runic Letters onto the Runic Stone.
