Description

🇮🇹 DESCRIZIONE (ITALIANO)

Questo progetto è un supporto/adattatore per barra DIN progettato per montare in modo sicuro e ordinato i relè Shelly di terza e quarta generazione su barra DIN standard da 35 mm, rendendoli idonei all’installazione all’interno di quadri elettrici.

Il design garantisce un fissaggio stabile, un corretto accesso ai morsetti e uno spazio adeguato per il cablaggio, evitando soluzioni improvvisate o non professionali.

✅ Caratteristiche

Compatibile con Shelly: Plus, Gen 3 and Gen 4 (no add-on)
Montaggio su barra DIN standard (35 mm)
Clip DIN integrata a incastro (senza viti)
Accesso frontale ai morsetti a vite
Ingombro compatto, ideale per quadri affollati
Ottimizzato per materiali autoestinguenti

🧵 Materiale consigliato

Il supporto è stato stampato e testato in Bambu Lab PC-FR, un materiale ritardante di fiamma e autoestinguente, adatto all’uso in quadri elettrici.

⚠️ Si sconsiglia l’uso del PLA per applicazioni in ambito elettrico.

🖨️ Impostazioni di stampa consigliate

Materiale: BambuLab PC-FR (63101)
Altezza layer: 0,2 mm
Infill: 15%
Supporti: non necessari

🔌 Compatibilità

Relè Shelly Gen 3
Relè Shelly Gen 4
Relè Shelly Plus

⚠️ Nota di sicurezza

Questo supporto è un accessorio meccanico.
L’installazione all’interno di quadri elettrici deve essere eseguita solo da personale qualificato, nel rispetto delle normative vigenti.

🇬🇧 DESCRIPTION (ENGLISH)

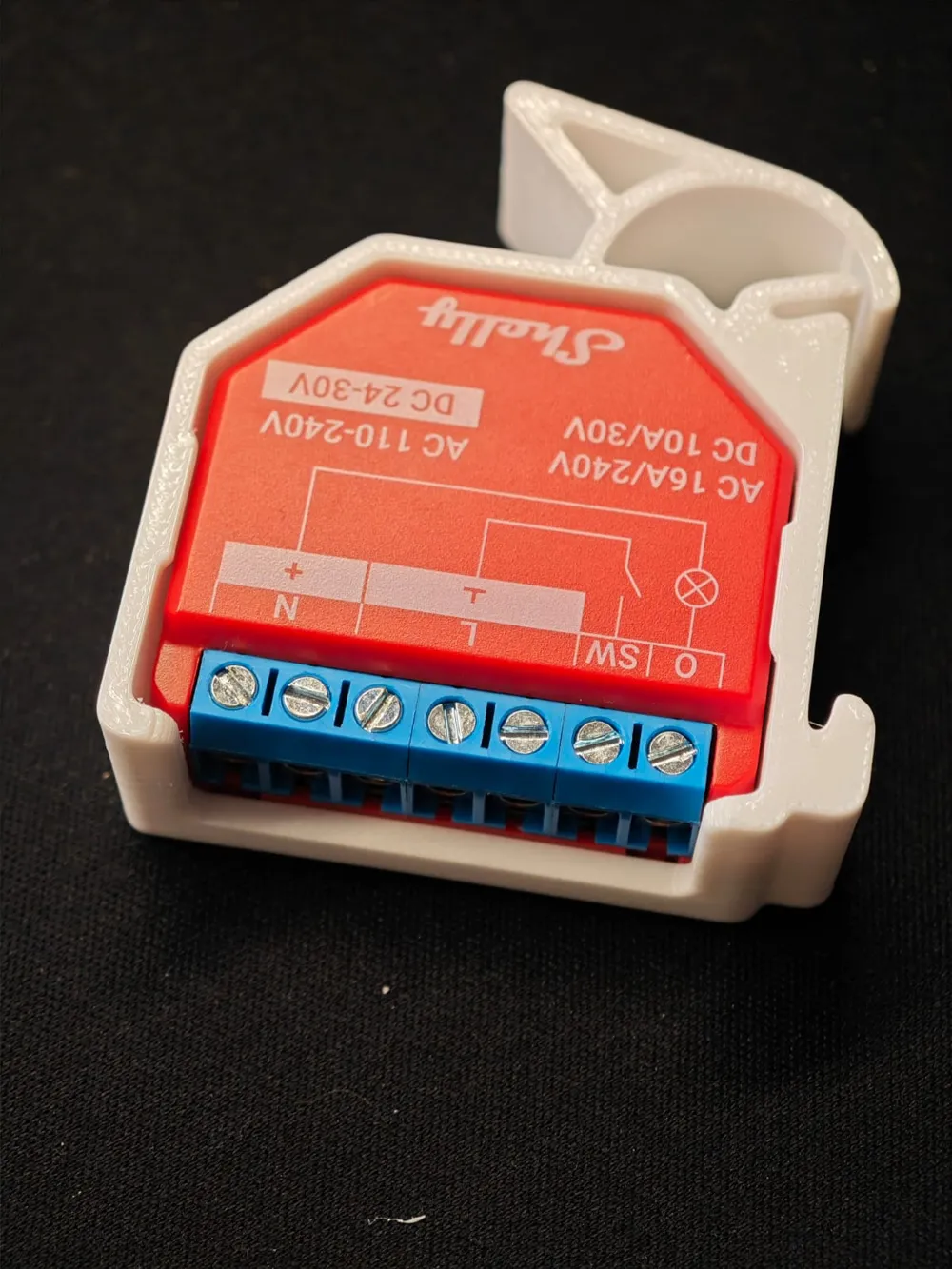

This project is a DIN rail support / adapter designed to securely mount Shelly Gen 3 and Gen 4 relays onto a standard 35 mm DIN rail, making them suitable for installation inside electrical panels.

The design ensures a stable fit, proper cable clearance, and full access to screw terminals, avoiding improvised or unsafe mounting solutions.

✅ Features

Compatible with Shelly: Plus, Gen 3 and Gen 4 (no add-on)
Designed for standard 35 mm DIN rails
Integrated snap-fit DIN clip (no screws required)
Front access to screw terminals
Compact design for crowded electrical panels
Optimized for flame-retardant materials

🧵 Recommended Material

This model was printed and tested using Bambu Lab PC-FR, a flame-retardant, self-extinguishing material suitable for electrical enclosures.

⚠️ PLA is not recommended for electrical panel installations.

🖨️ Suggested Print Settings

Material: PC-FR
Layer height: 0.2 mm
Infill: 15%
Supports: Not required

🔌 Compatibility

Shelly Gen 3 relays
Shelly Gen 4 relays
Shelly Plus relays

⚠️ Safety Notice

This is a mechanical accessory only.
Installation inside electrical panels must be performed by qualified personnel and in compliance with local electrical regulations.

💬 Feedback

Feedback, suggestions, and improvements are welcome.
If you print or modify this model, feel free to share your results!
