小智AI-电脑小智 (Slightly modified based on @董老爺's work) - Free 3D Print Model

Search models, users, collections, and posts

Eiffy

Hobby & DIY>Electronics

IP Report

Print Profile(3)

All

P2S

0.16mm layer, 2 walls, 15% infill

Designer

3.8 h

1 plate

V2 0.16mm layer height, 2 walls, 15% infill

Designer

3.8 h

1 plate

V2.1 changed the shape of the pin posts some circuit board camera interface modules and locating pin posts interfered this version made some adjustments

Designer

3.8 h

1 plate

Open in Bambu Studio

Boost

Released

Description

Content has been automatically translated.

Show original

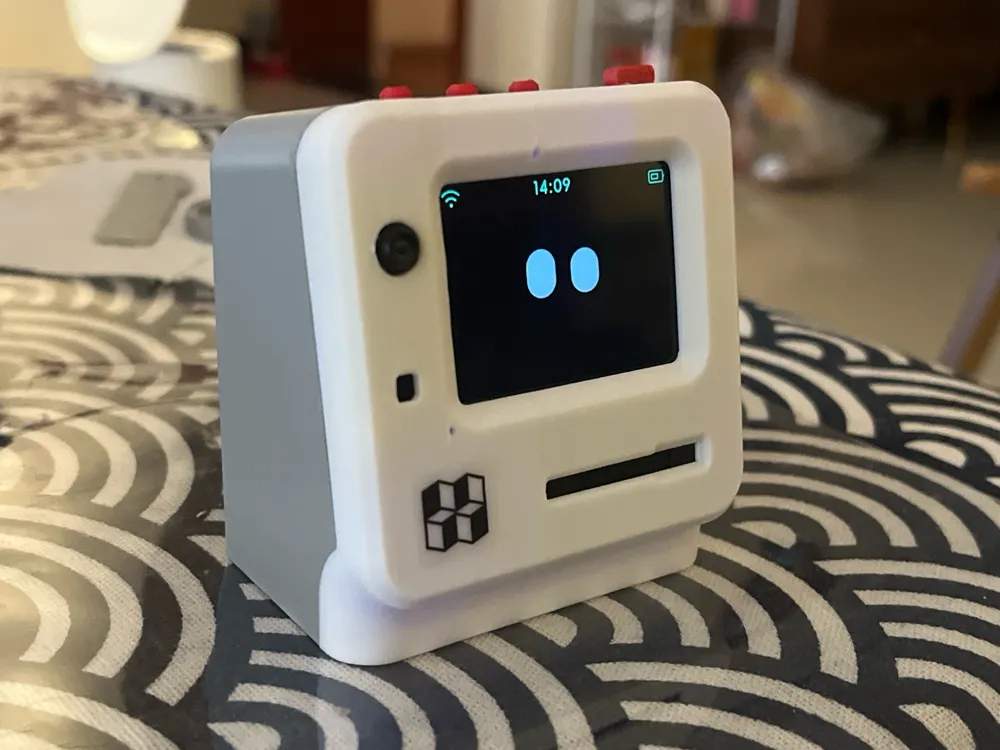

Based on XiaoZhi AI-电脑小智

Model created by Dong Laoye the original model does not allow derivative uploads so I uploaded it myself if there is any infringement please contact me to delete it

2026.1.6
Update: Modified the shape of the locating pin some PCB camera module interfaces interfere with the locating pin so the shape of the locating pin was modified if it's really not suitable you can directly cut off this part of the locating pin with sprue pliers
Increased the insertion depth of the locating pin

2026.1.4
Modifications:

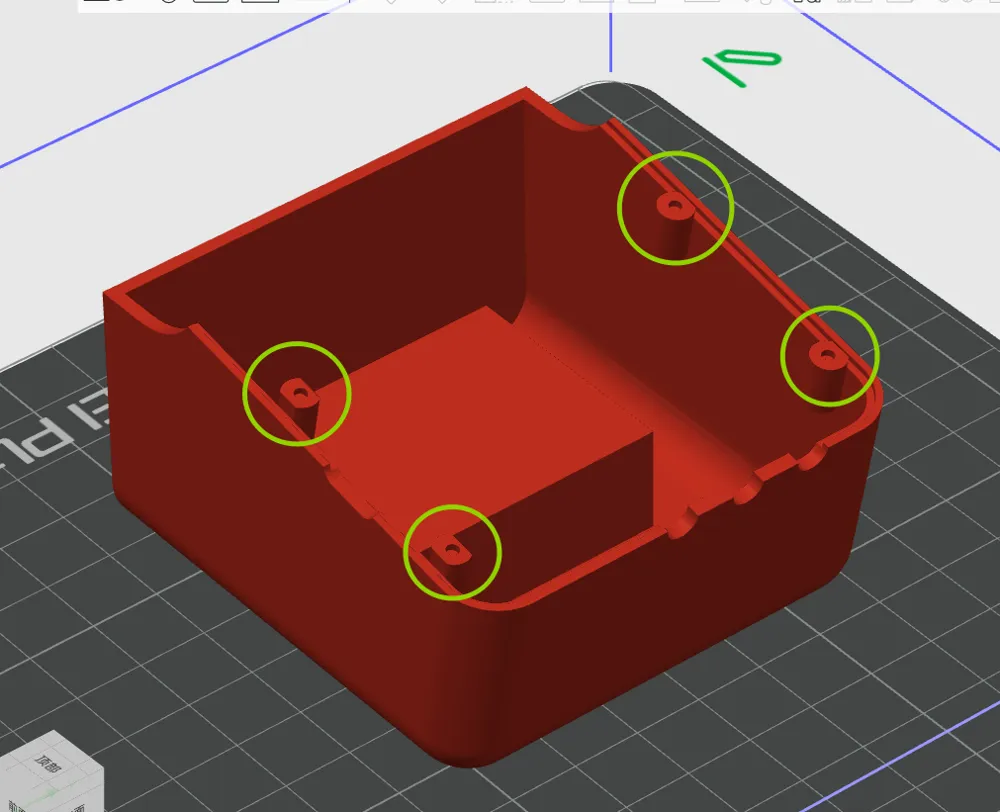

1. Added locating pins to the bottom cover

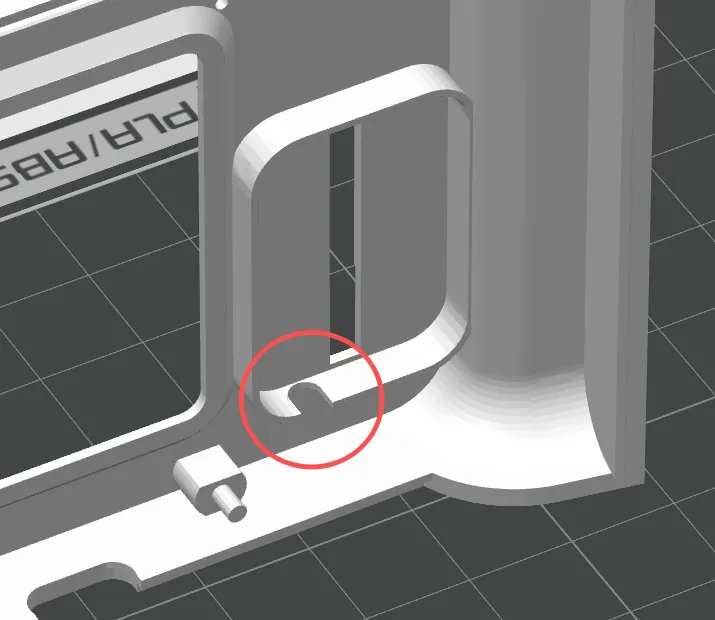

2. Added wire slot opening for the panel speaker

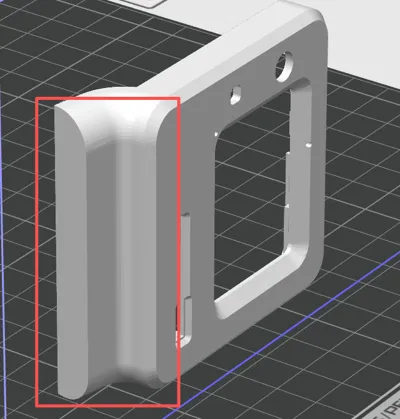

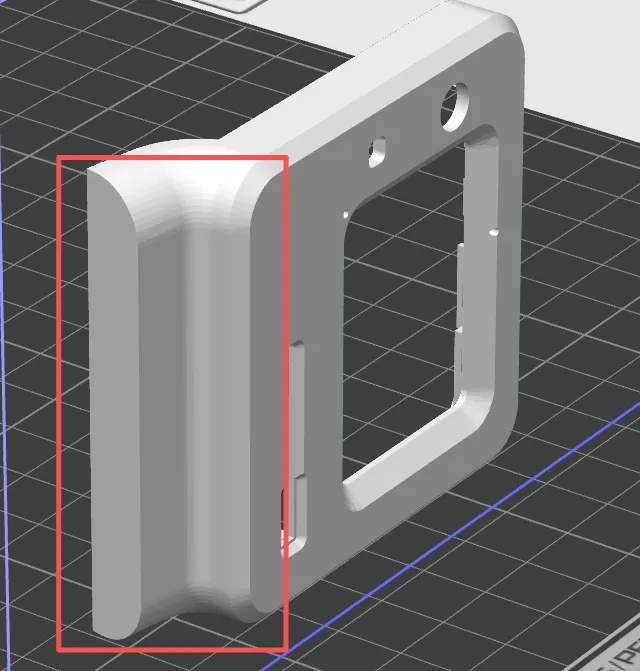

3. Adjusted the panel's plate orientation to resolve the chin overhang issue

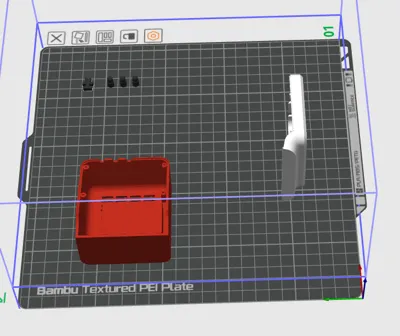

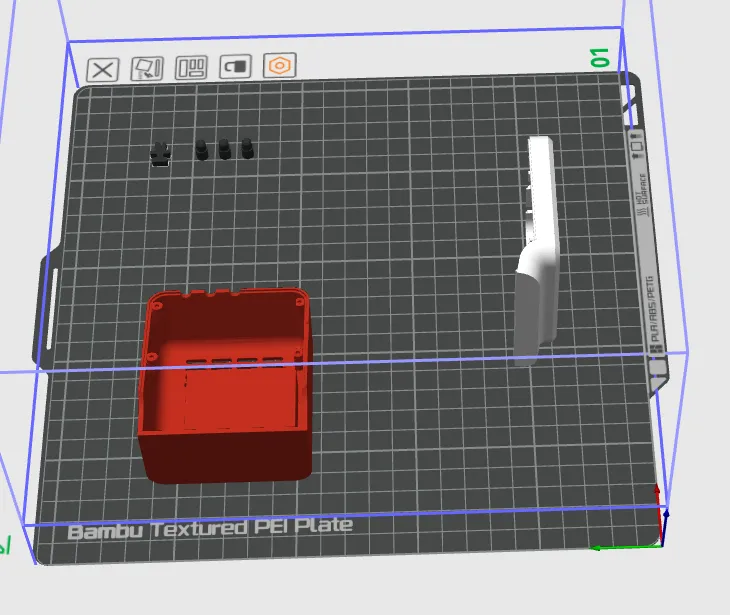

4. Adjusted the plate for gradual printing with AMS multiple colors can be printed on one plate
