Parametric Round Furniture Riser/Lift or Rod Foot
Print Profile(1)
Description
UPDATE 202605 - kI have updated my other riser model to do circular risers and it has more options so i suggest using it: https://makerworld.com/en/models/1368615-parametric-customizable-furniture-riser-lift#profileId-1423030

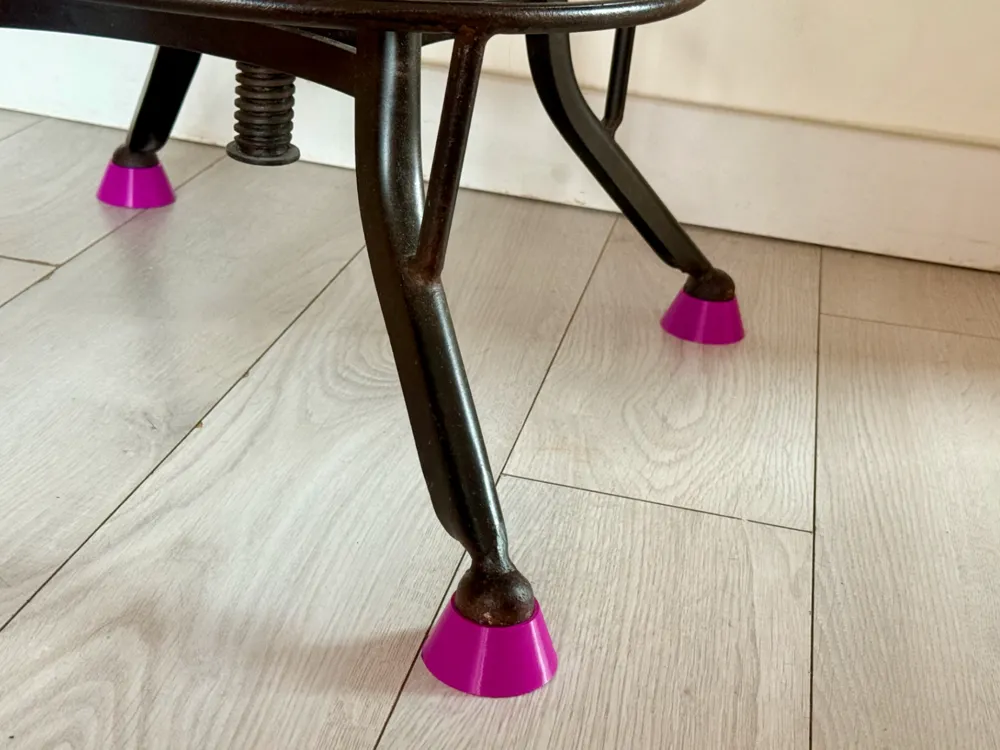

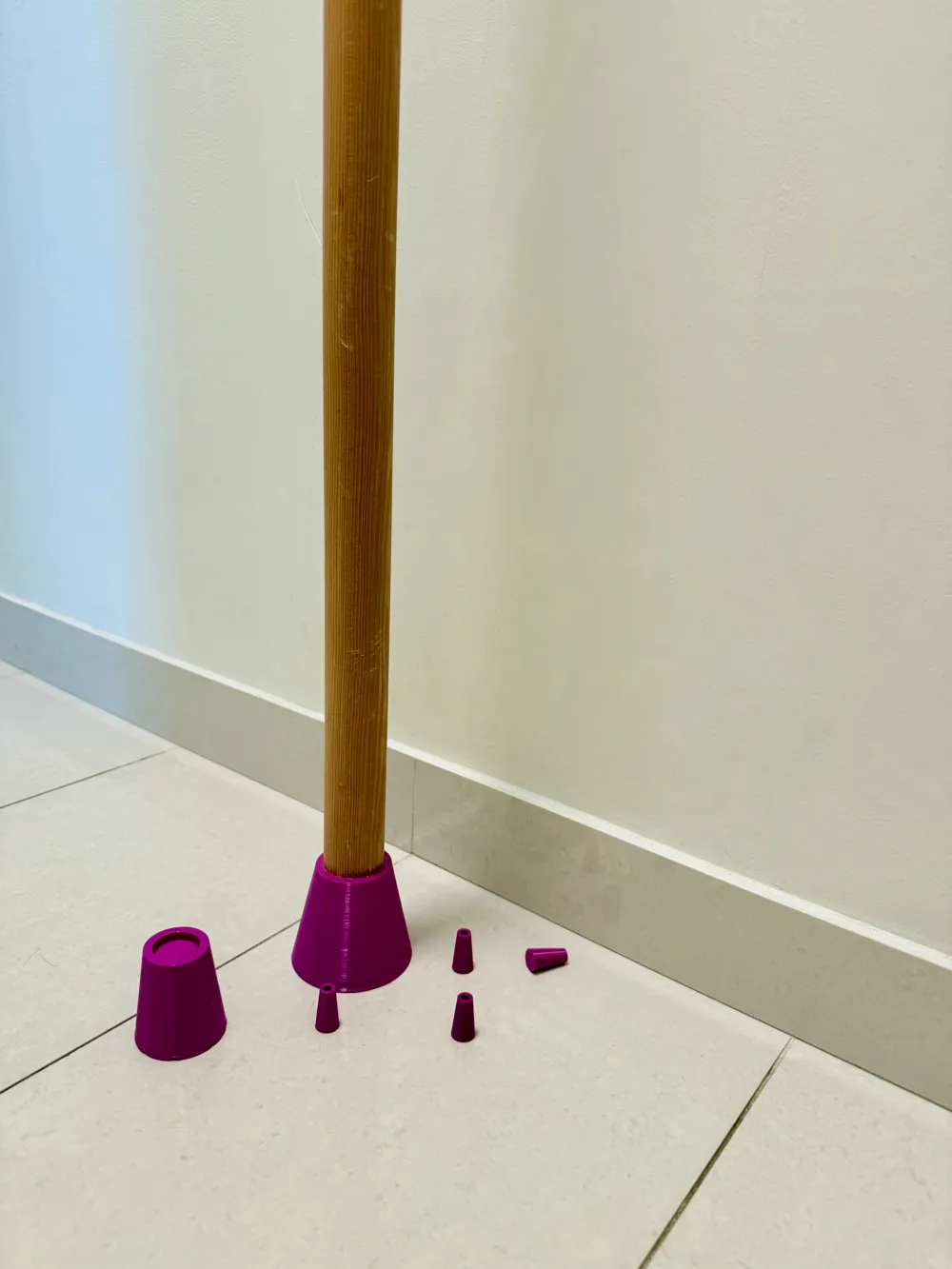

Lift furniture with round feet, cap open tubes, or create stable foot for rod/dowel.
This is a parametric OpenSCAD model designed to fit and extend any round object. Whether you need to raise a desk by a specific amount, create a foot for a wire shelving unit, create a foot to hold a rod vertical, you can generate the exact size you need. It features a tapered "flare" for stability and allows for "waffle" style stress-relief bottom pattern to prevent warping during printing and save material.
Parameters
- Rod / Leg Diameter: The actual diameter of the object you are inserting.
- Measure your furniture leg and add 0.4mm - 0.6mm to this value for a comfortable fit.
- Socket Depth: How deep the leg goes into the foot (height of the walls around the foot/rod).
- Foot Base Height: How much height you want to add to the furniture (the solid plastic part under the leg).
- Base Flare: How much wider the bottom should be compared to the top. (Set to 0 for a straight cylinder).
- Stress Relief: Toggle the bottom grooves on or off.
