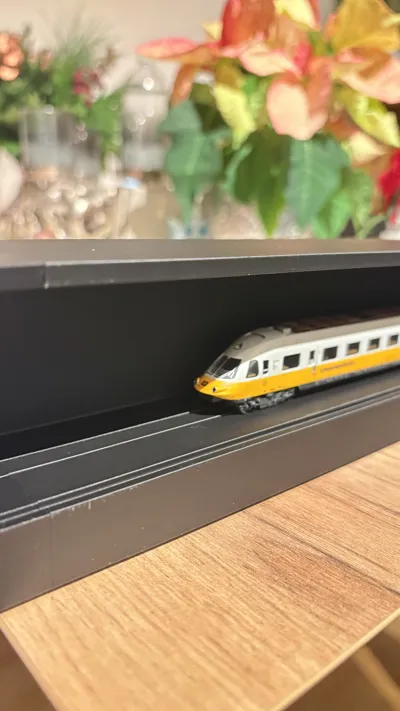

N Gauge Display Case with Lighting (Customizable)

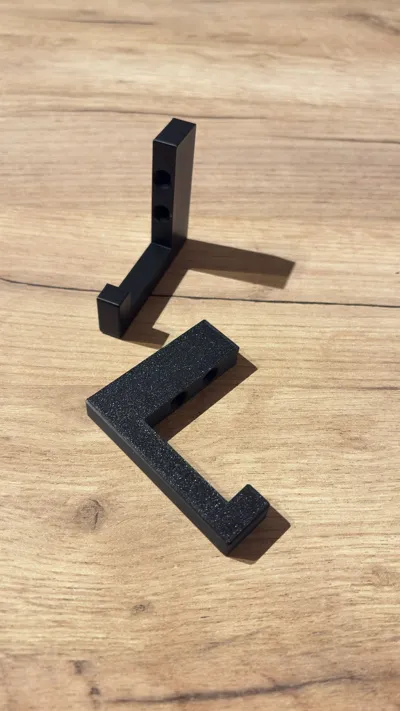

This modular N-gauge display case was specially developed for the stylish presentation of model railway vehicles. Thanks to its thoughtful design, it can be flexibly expanded and offers integrated, Wi-Fi controllable LED lighting based on an ESP32 controller. The code for the Arduino is included. The display case can also be mounted on the wall using brackets

🔧 Features

• Modular Design

  The display case consists of end pieces and freely combinable middle pieces (50 / 100 / 150 / 200 mm)

• Integrated LED Lighting

  WS2812B LED strips ensure uniform and modern illumination of your models

• Wi-Fi Control

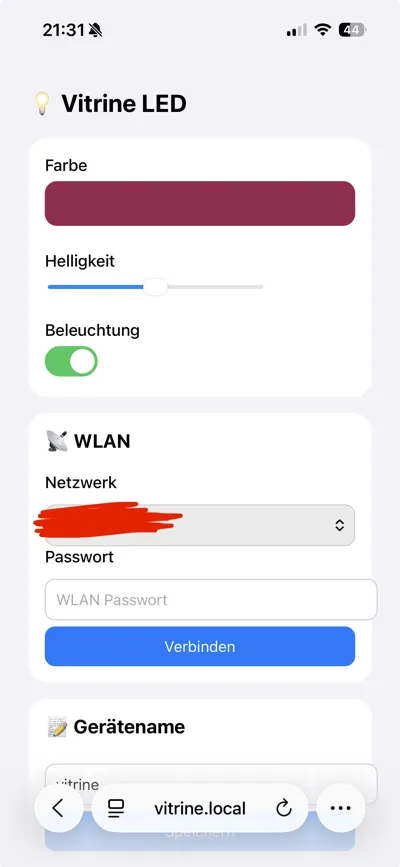

  Brightness, color, and on/off can be conveniently controlled via a web interface in the browser – without an app

• Integrated ESP32 Controller

  The special middle piece accommodates an ESP32-C3 and forms the heart of the electronics, controlling the light. The complete programming code (Arduino) is included

• Plexiglass Front

  The transparent cover protects the models and provides a high-quality appearance

• Vehicles

  The vehicles are guided by a track groove. The internal dimensions are designed so that the models cannot derail even during transport

📐 Dimensions

• Base Length (smallest display case): 204 mm internal dimension
• Can be extended as desired

🖨️ 3D Printing

• All components are optimized for 3D printers
• Printing possible without special hardware
• Gluing of the modules is recommended (e.g. superglue)

🔌 Required Additional Parts (not included)

• ESP32-C3 (e.g. Pro Mini)
• WS2812B LED strips (60 LEDs/m)
• Wires
• Plexiglass XT
• 5 V power supply (via USB-C, can also be powered by a power bank)

💡 Software

• Arduino sketch for ESP32 included
• Own Wi-Fi access point for initial setup (ESP32)
• Web interface accessible via vitrine.local (Can also be easily adjusted via the web interface)

🎯 Area of Application

Ideal for:

• N-gauge locomotives and wagons
• Model railway collectors
• Dioramas and display cases
• Makers and hobbyists interested in electronics
