Floor Drain with Splash Guard

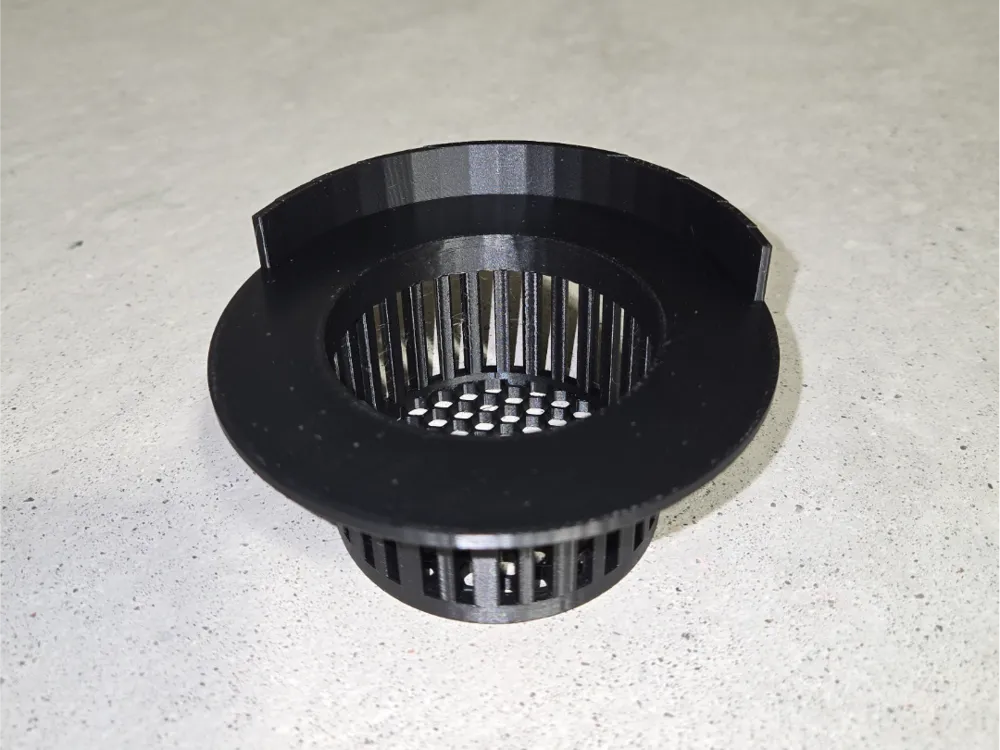

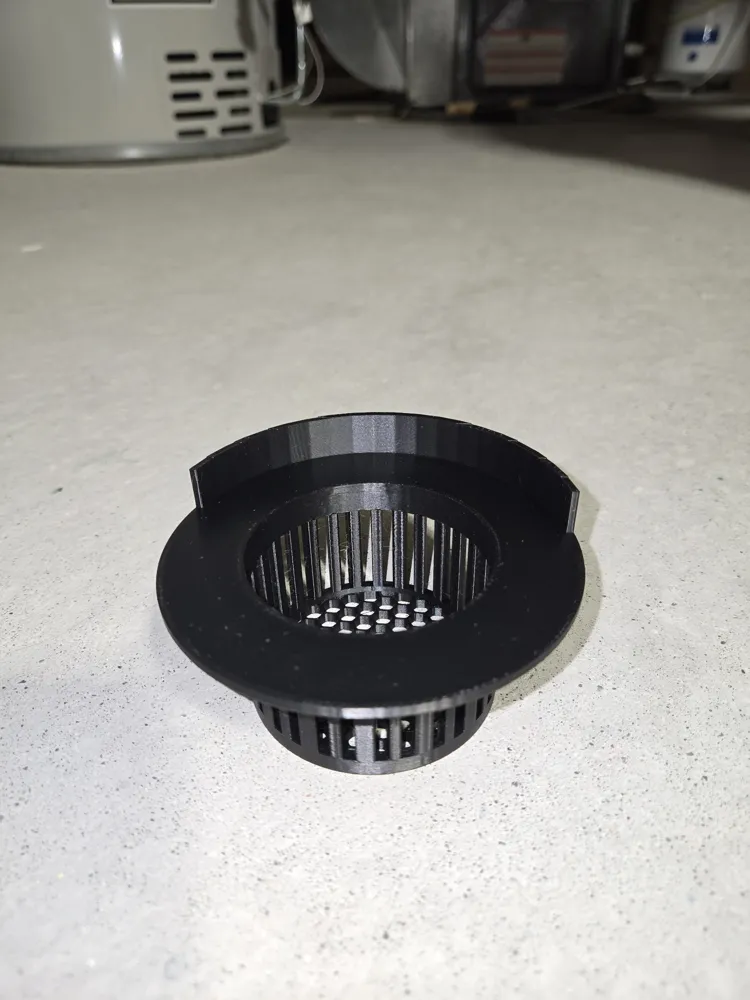

This is a remix of a standard floor drain that adds an integrated side splash guard to help control water flow during high-volume draining.

When using a hose, pressure washer, or dumping a large amount of water at once, a regular floor drain can allow water to splash or overflow toward one side, sending water farther across the floor than intended. This remix adds a raised side wall to block and redirect that flow down into the drain, keeping water contained and improving drainage control. Printed in PETG for durability.

Key Features

• Integrated side wall / splash guard to prevent water from overflowing in a specific direction
• Designed for high-volume water flow (hoses, washdowns, garage or workshop cleanup)
• Helps keep surrounding areas drier and more controlled
• Based on a proven drain design, with minimal changes for compatibility
• Simple geometry for easy, reliable printing

Use Cases

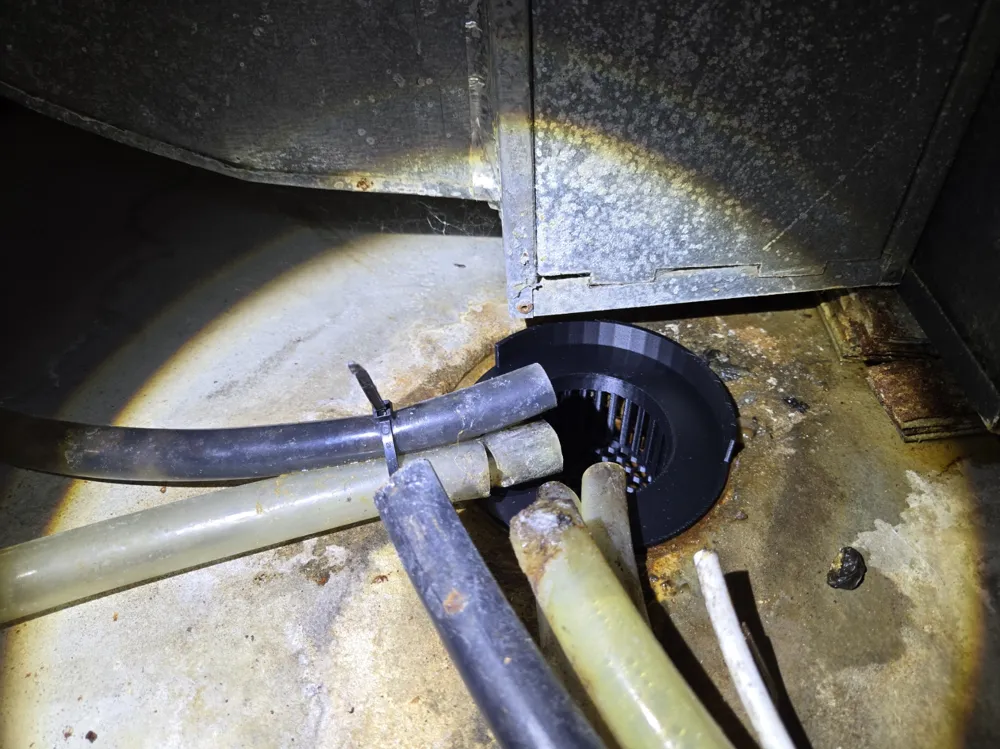

• Garage floor drains
• Workshops or utility rooms
• Basements or laundry areas
• Rinsing muddy tools, equipment, or vehicles
• Any setup where water is intentionally directed toward a floor drain

This model is a functional remix intended to solve a real-world drainage issue while keeping the original design’s footprint and ease of installation.
